Presentation Transcript

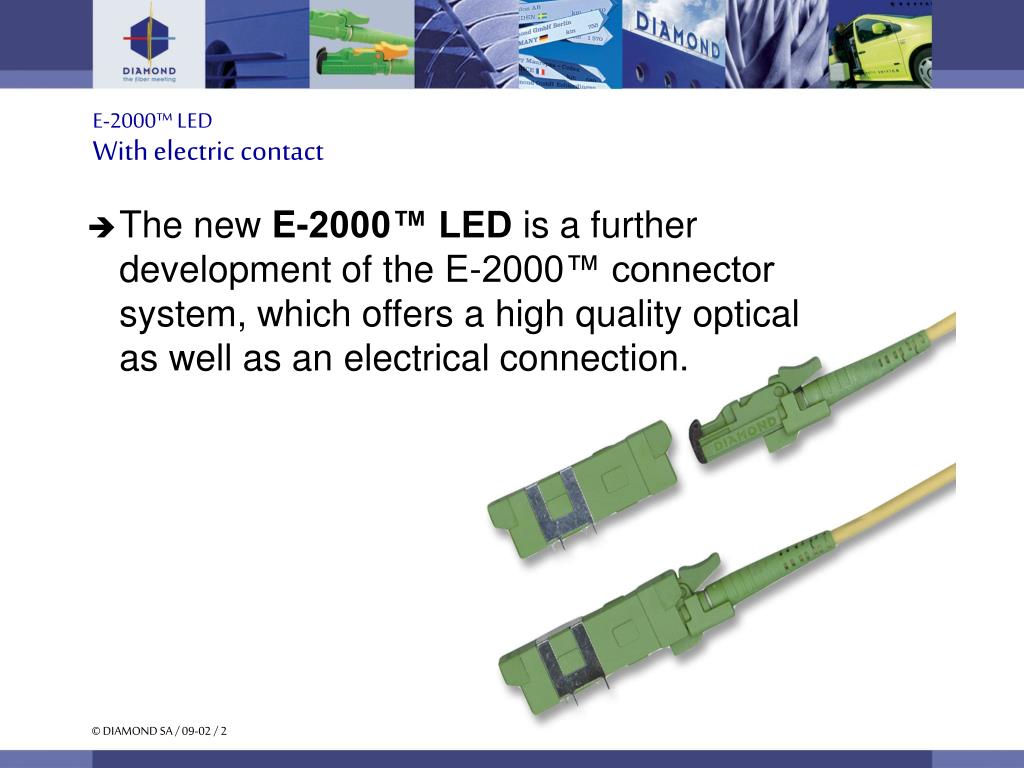

e 2000 led with electric contact
The new E-2000™ LED is a further development of the E-2000™ connector system, which offers a high quality optical as well as an electrical connection. E-2000™ LEDWith electric contact

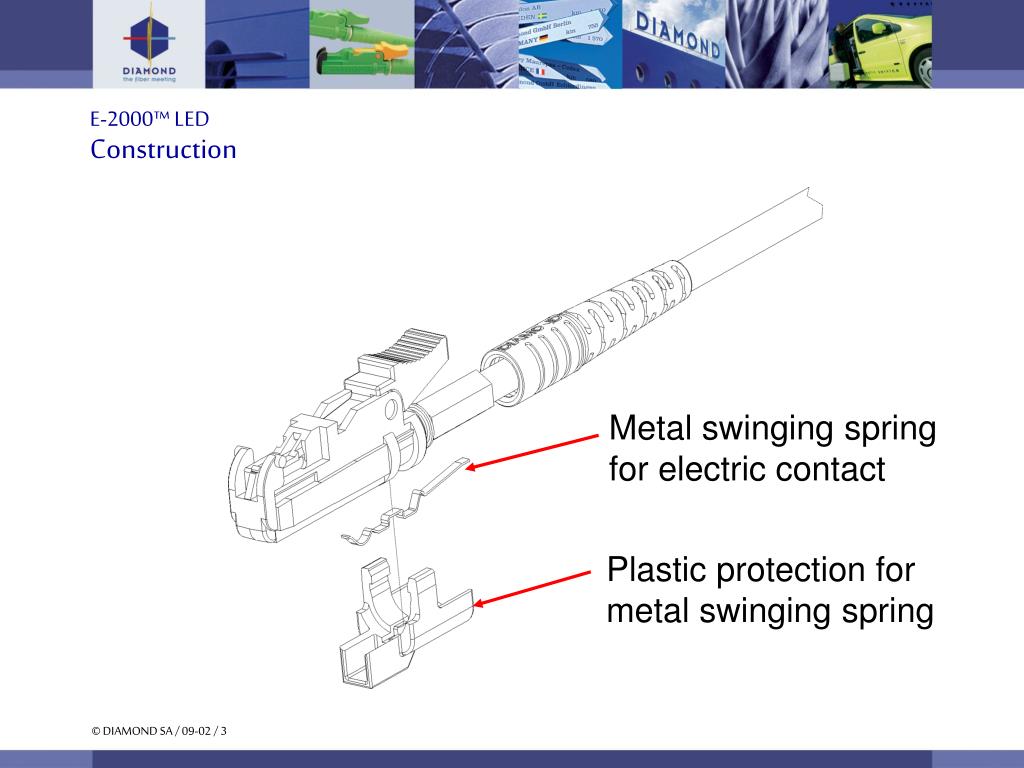

e 2000 led construction
E-2000™ LEDConstruction

Metal swinging spring for electric contact

Plastic protection for metal swinging spring

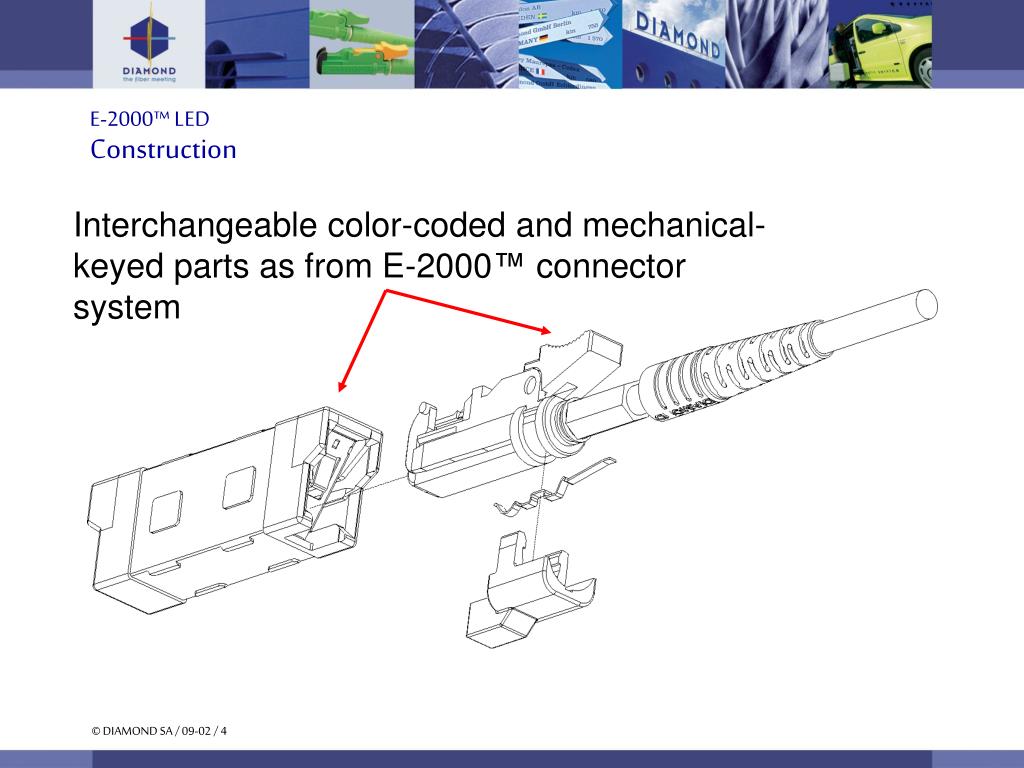

e 2000 led construction1
E-2000™ LEDConstruction

Interchangeable color-coded and mechanical-keyed parts as from E-2000™ connector system

e 2000 led application principle
E-2000™ LEDApplication principle

Metal latch (fixing clip)

Matching adapters body

Connector body

Crimping sleeve

Kevlar

Copper wire

Metal swinging spring

Protection latch (snapped)

Frontal plate

*) Pretension in order to make sure the contact between connector and PC-Board
