  1. Precision Truck Loading System

  2. We Give You The Power To Automatically Load Trucks, Cleanlyand Accurately, With a Simple Device That’s Easy To Maintain.

  3. Basic Operations: 1. Inventory Management 2. Automatic Truck Positioning 3. Precision Truck Loading

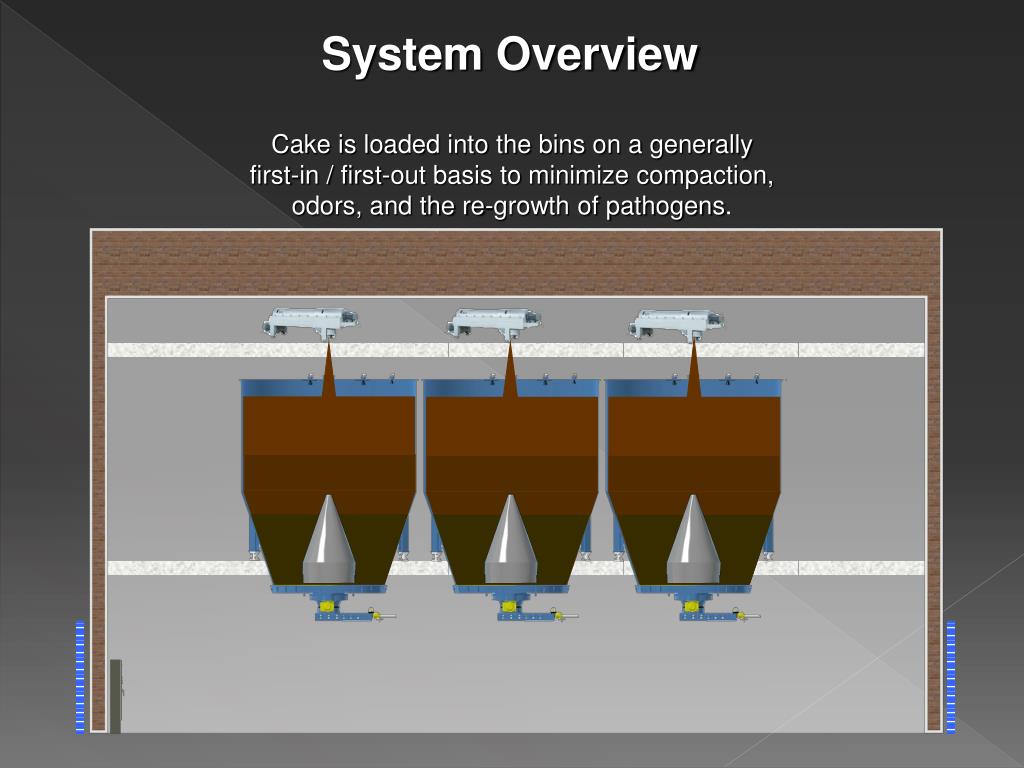

  4. System Overview Cake is loaded into the bins on a generally first-in / first-out basis to minimize compaction, odors, and the re-growth of pathogens.

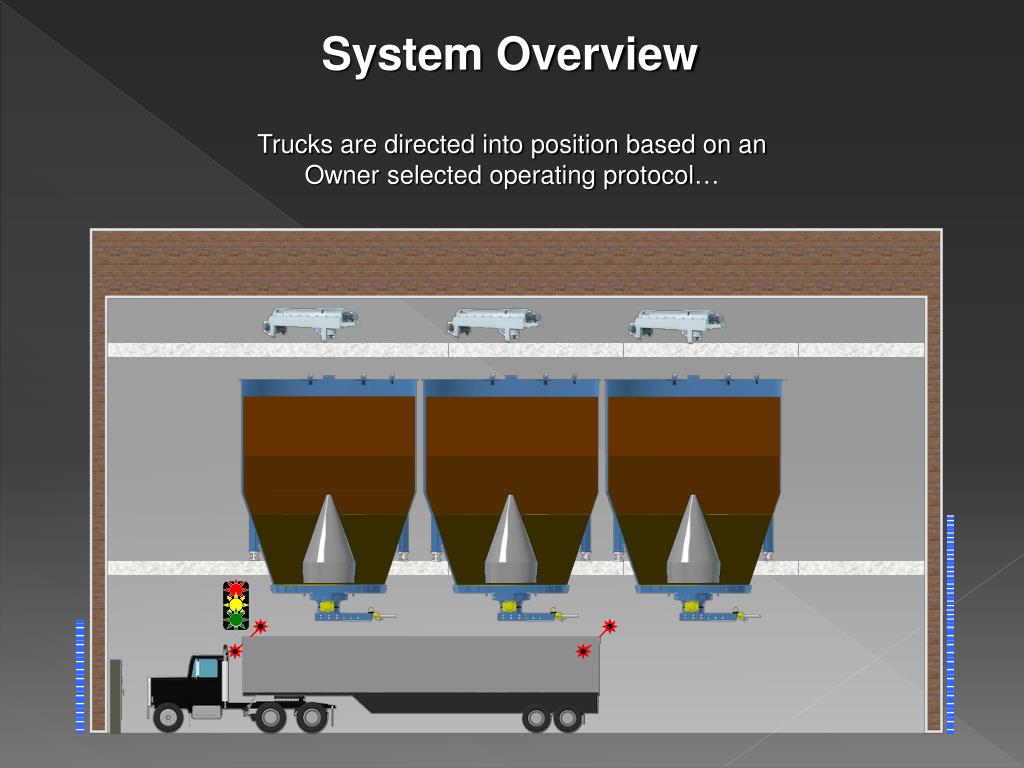

  5. System Overview Trucks are directed into position based on an Owner selected operating protocol…

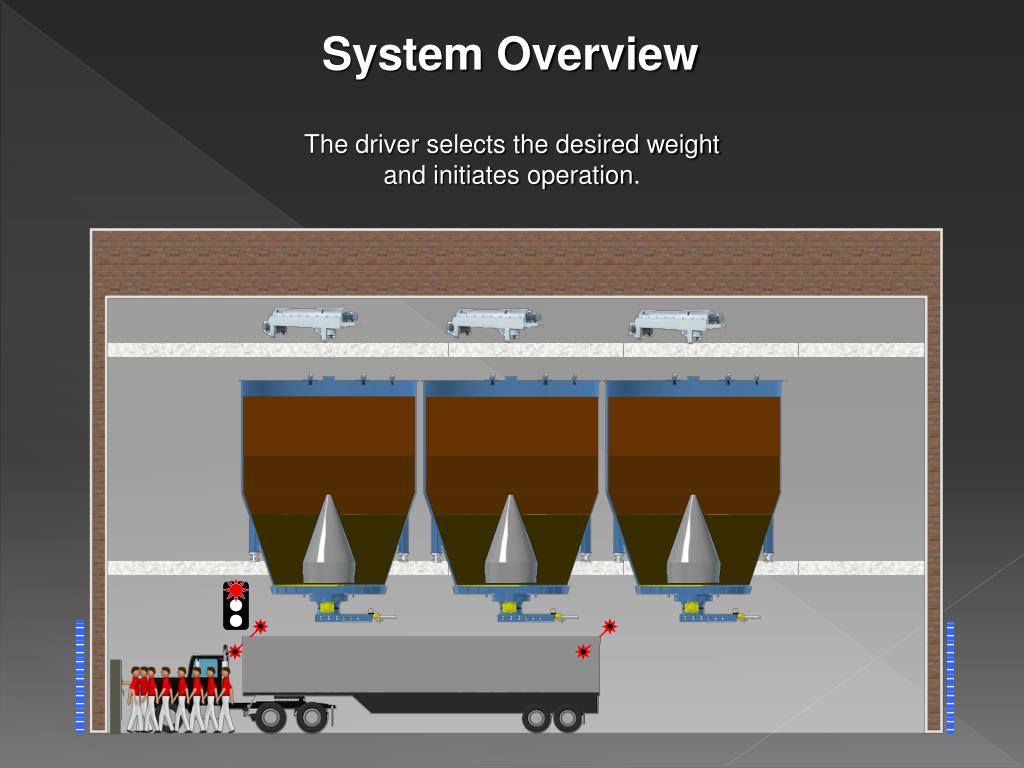

  6. System Overview The driver selects the desired weight and initiates operation.

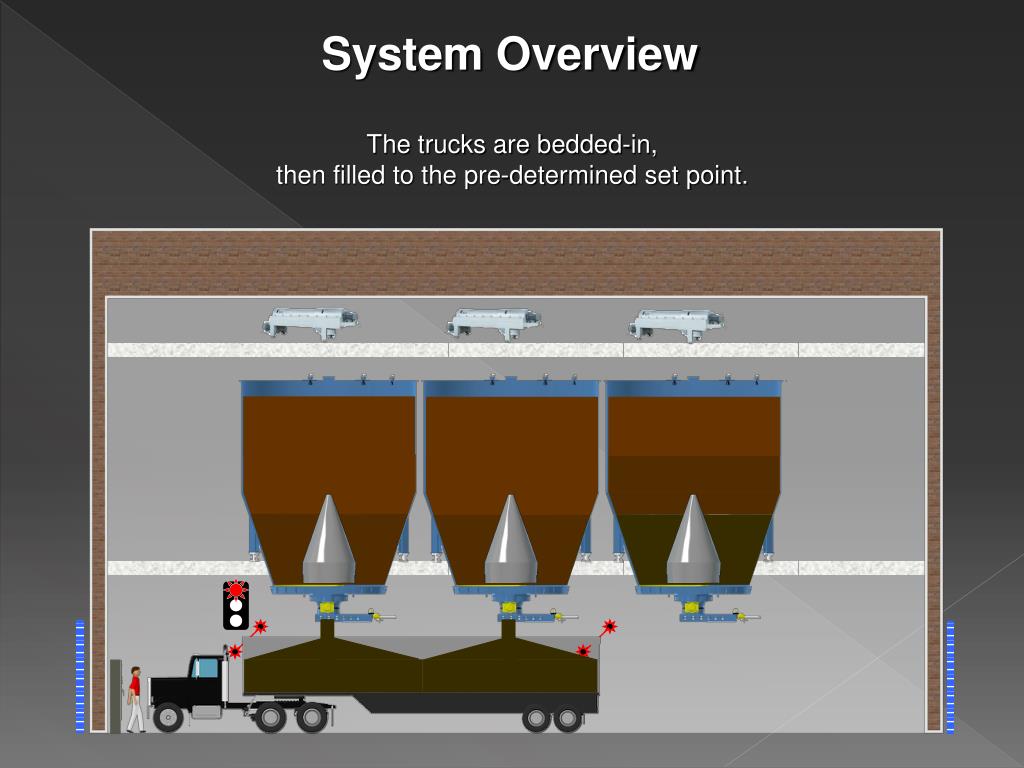

  7. System Overview The trucks are bedded-in, then filled to the pre-determined set point.

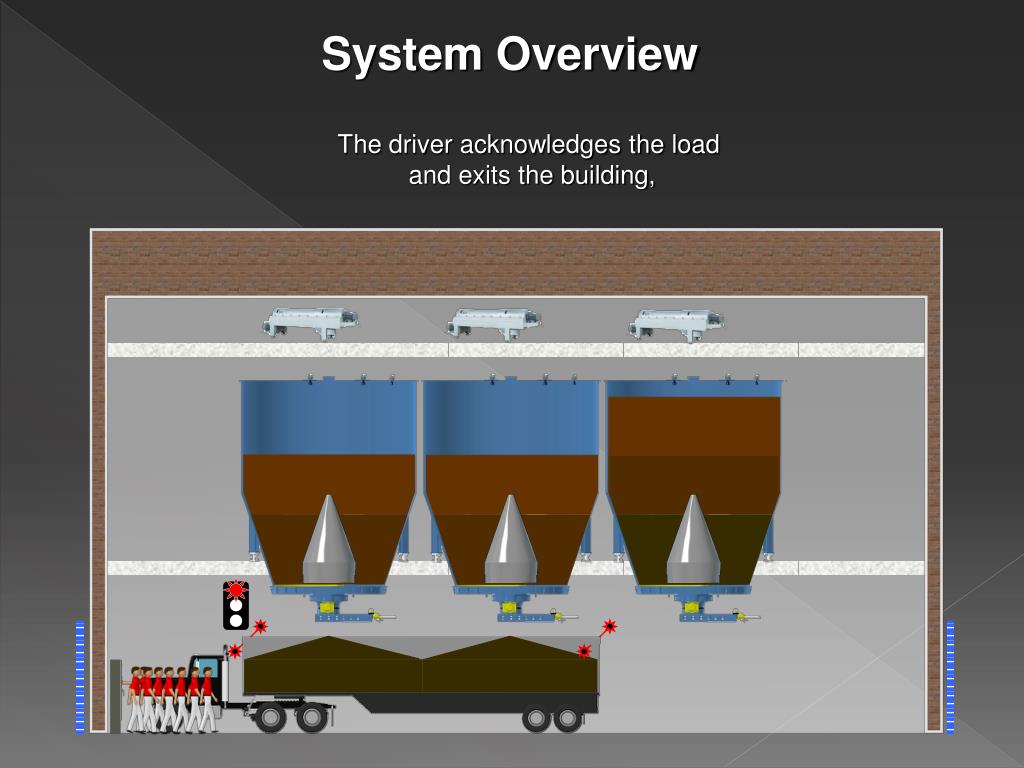

  8. System Overview The driver acknowledges the load and exits the building,

  9. System Overview The driver acknowledges the load and exits the building, enabling the next truck to enter the building.

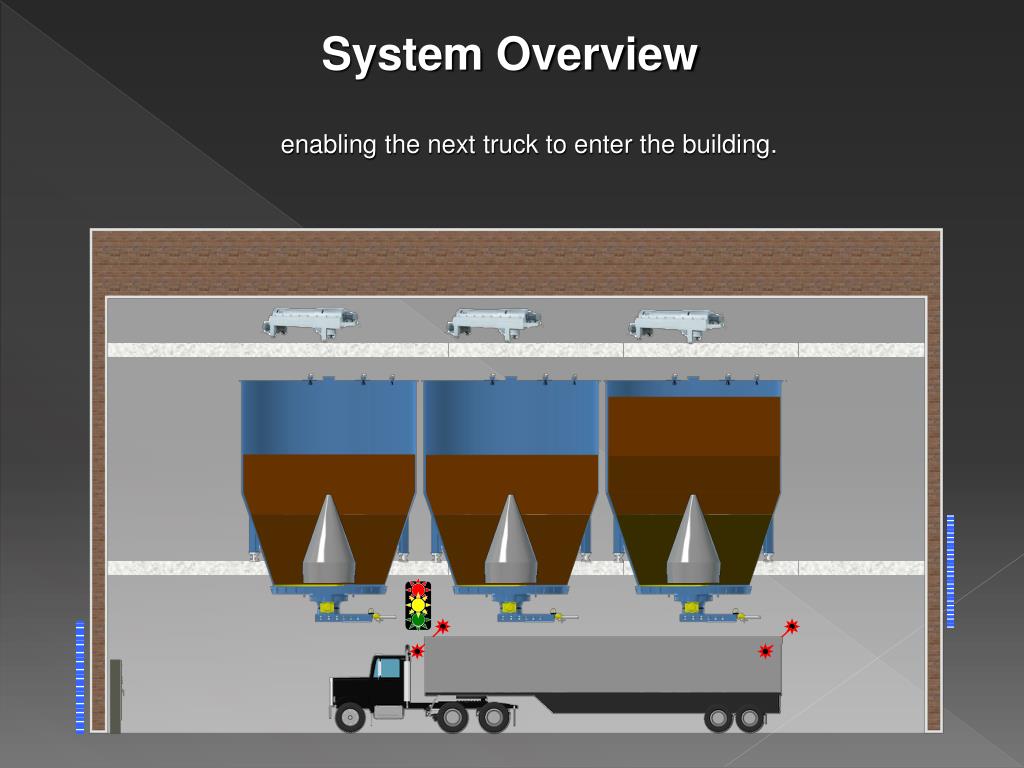

  10. System Overview enabling the next truck to enter the building.

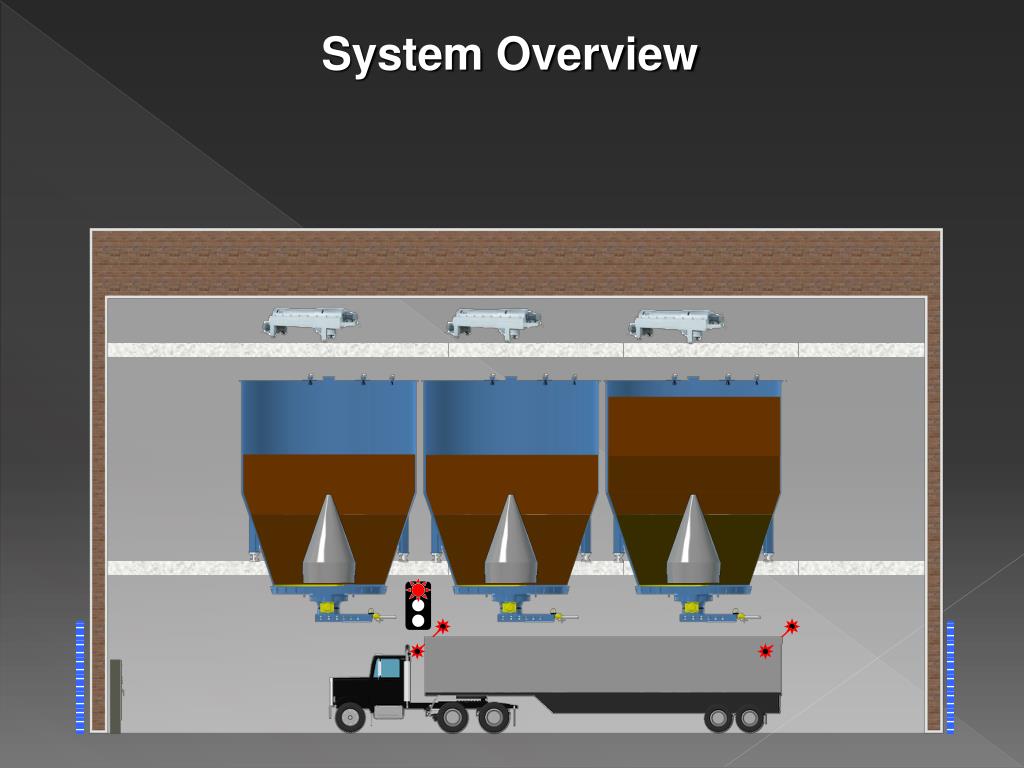

  11. System Overview

  12. Key Components Of The System

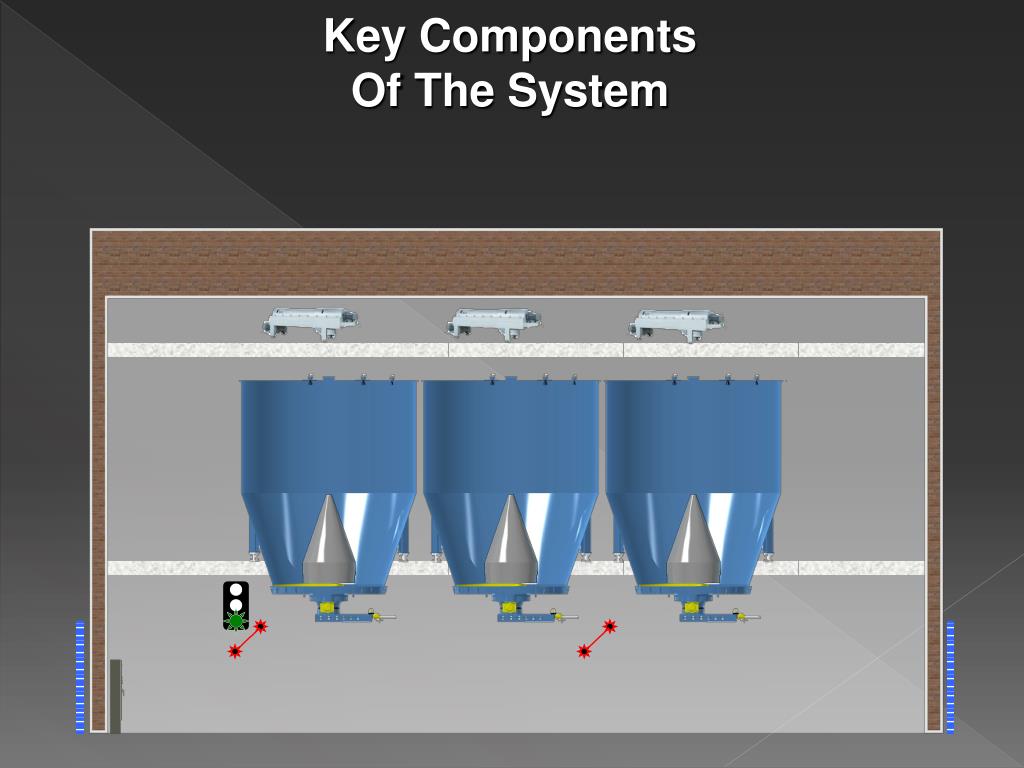

  13. Key Components Of The System

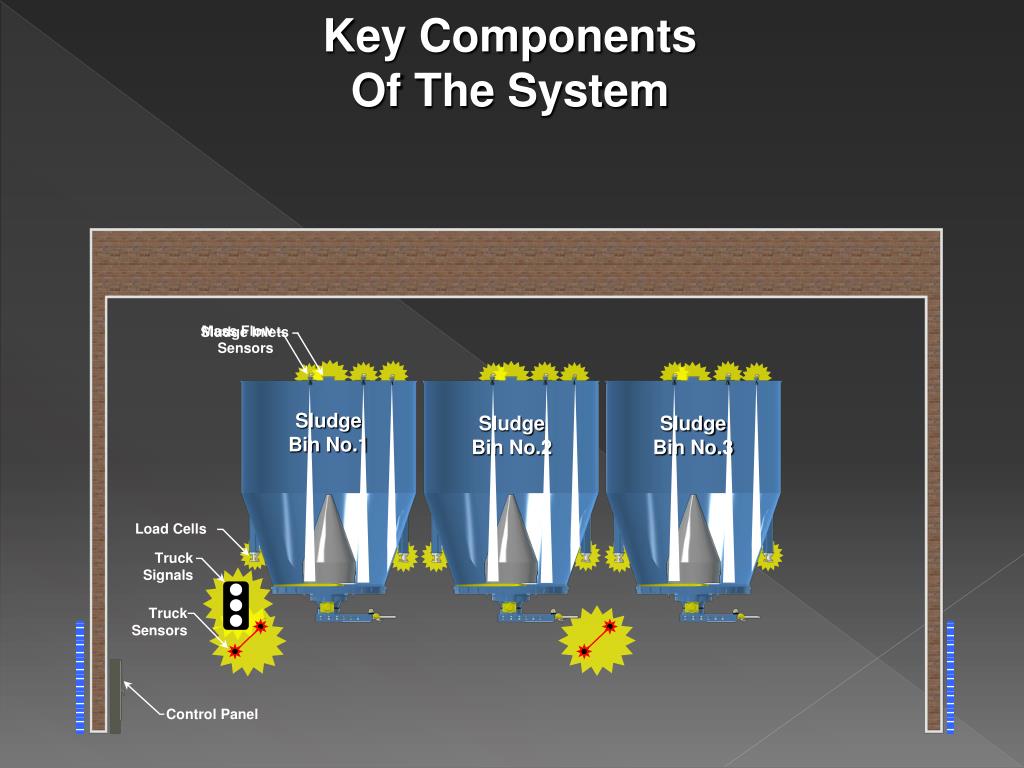

  14. Sludge Inlets Mass Flow Sensors Load Cells Truck Signals Truck Sensors Control Panel Key Components Of The System Sludge Bin No.1 Sludge Bin No.2 Sludge Bin No.3

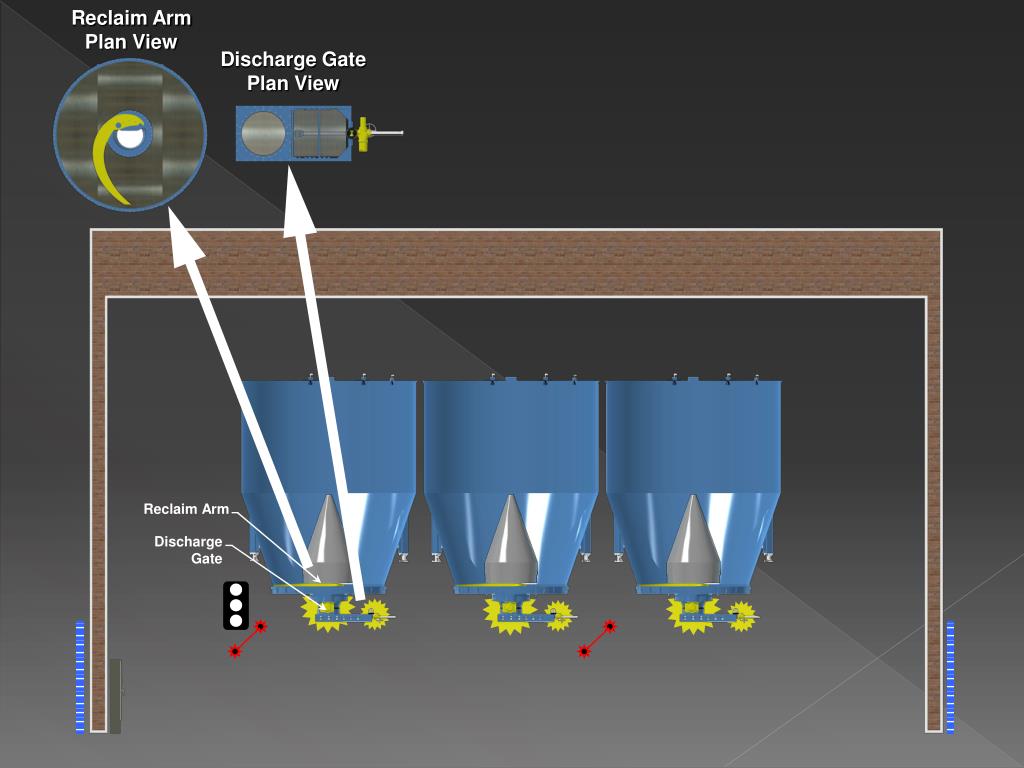

  15. Reclaim Arm Discharge Gate Reclaim Arm Plan View Discharge Gate Plan View

  16. We Give You The Power To Control The Flow

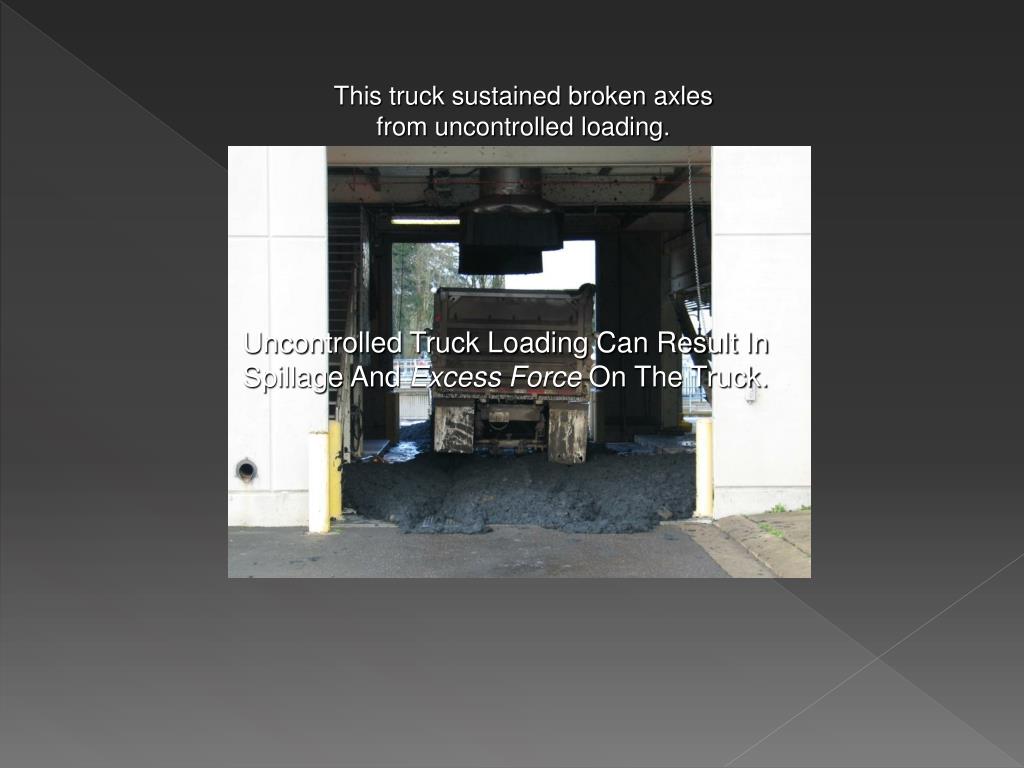

  17. This truck sustained broken axles from uncontrolled loading. Uncontrolled Truck Loading Can Result In Spillage And Excess Force On The Truck.

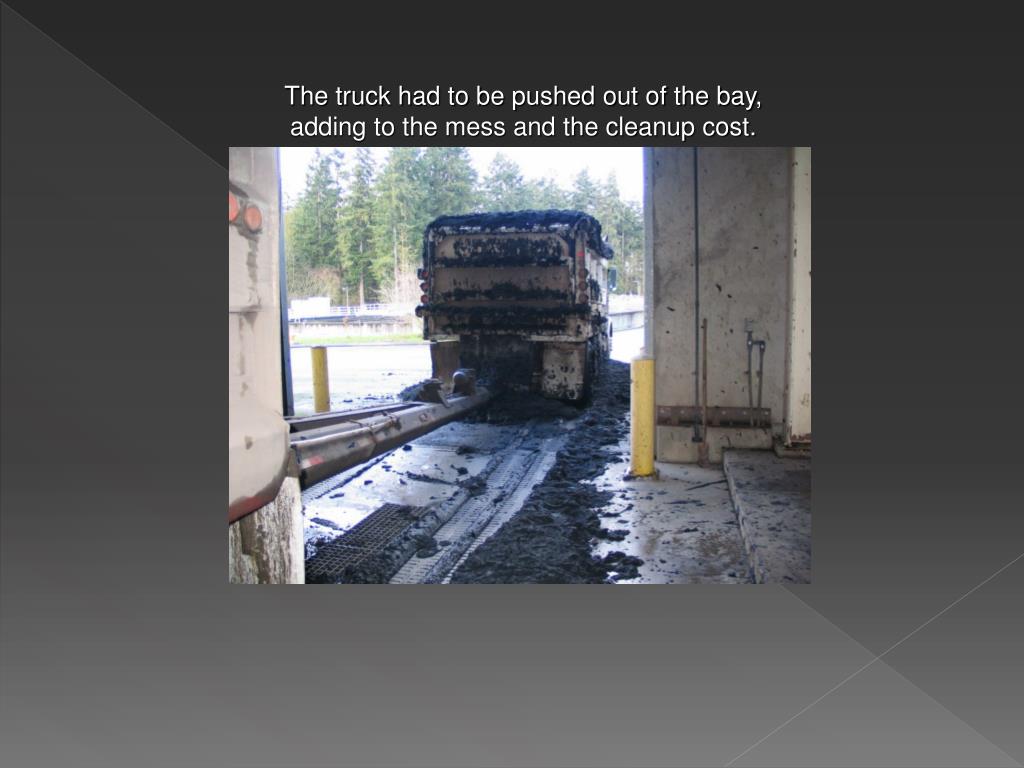

  18. The truck had to be pushed out of the bay, adding to the mess and the cleanup cost.

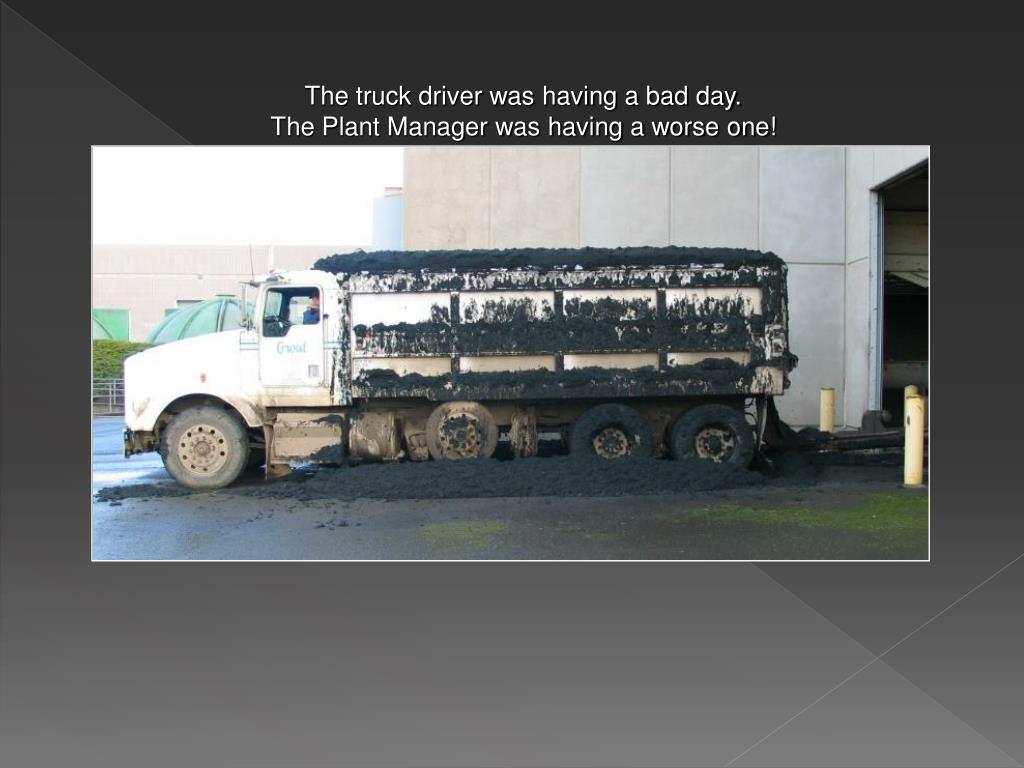

  19. The truck driver was having a bad day. The Plant Manager was having a worse one!

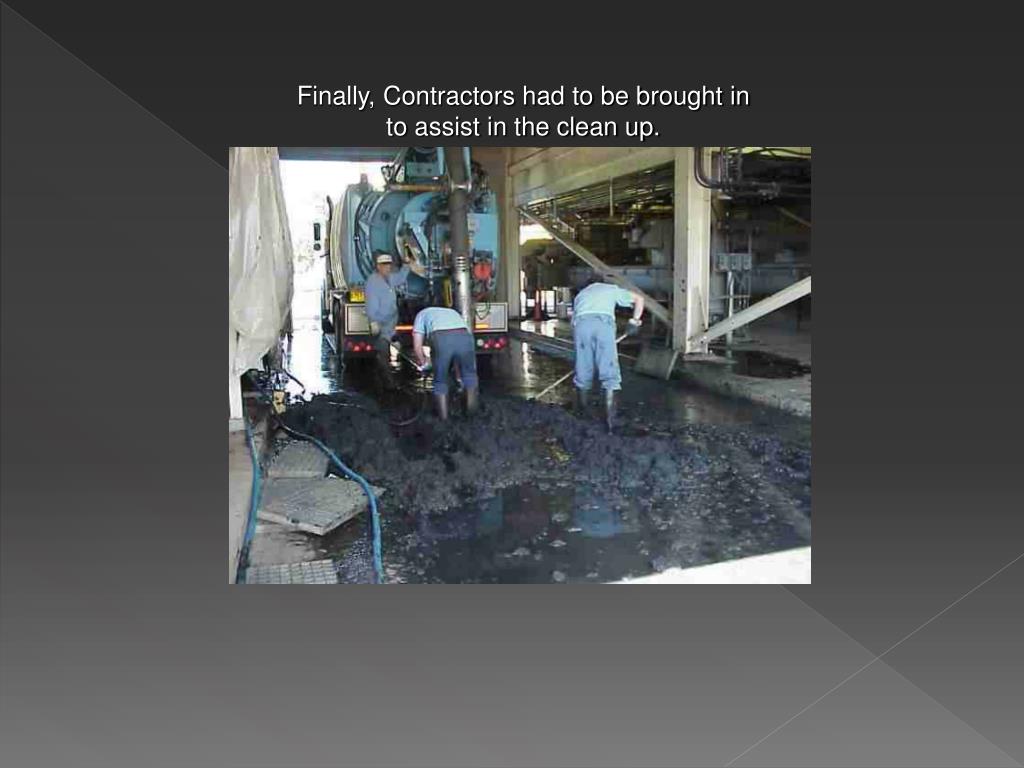

  20. Finally, Contractors had to be brought in to assist in the clean up.

  21. We Give You The Power To Have Automatic Precision Truck Loading 1. First-In / First-Out Bin Filling 2. Mass Flow: No Bridging Or Ratholing 3. Trucks Are Loaded To Within A Few Hundred Pounds of Set-Point, And NEVER OVERLOADED 4. Neat, Clean, And Efficient Loading, With Little Or No Regular Maintenance
