Self Loading Mixer Truck

Different from the concrete mixer truck, the self loading mixer truck has both concrete mixing and concrete transportation function. What are its basic parameters and operation tips? Learn more.

dollygao
Download Presentation

Self Loading Mixer Truck

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

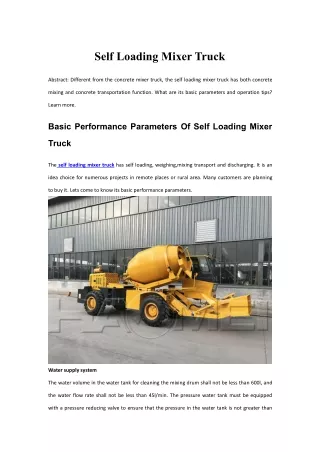

  1. Self Loading Mixer Truck Abstract: Different from the concrete mixer truck, the self loading mixer truck has both concrete mixing and concrete transportation function. What are its basic parameters and operation tips? Learn more. Basic Performance Parameters Of Self Loading Mixer Truck The self loading mixer truck has self loading, weighing,mixing transport and discharging. It is an idea choice for numerous projects in remote places or rural area. Many customers are planning to buy it. Lets come to know its basic performance parameters. Water supply system The water volume in the water tank for cleaning the mixing drum shall not be less than 600l, and the water flow rate shall not be less than 45l/min. The pressure water tank must be equipped with a pressure reducing valve to ensure that the pressure in the water tank is not greater than

  2. 0.6mpa. The water tank should be equipped with a clear water level gauge (pipe), and the operator can easily see the water level in the water tank. Mixing drum The mixing drum should be provided with 1 or 2 quick-opening entrances, with a diameter of not less than 450mm. In the case of an oval hole, its short diameter should not be less than 350mm, and it should be sealed well when closed. The mixing drum should rotate smoothly under various prescribed conditions of use, without trembling and vibration. The mixing blade and the barrel should be welded firmly. Discharge chute The discharge chute should be able to rotate 180° in the horizontal plane to adapt to different discharge positions, and the inclination angle should be adjusted to adapt to different discharge heights The total length of the discharge chute and the extended chute shall not exceed 3.5m. After the discharge chute is connected with the extended chute, a smooth connection channel should be formed. The discharge chute should be equipped with a locking mechanism, and the discharge chute should be fixed and locked when the transport vehicle is running. Hydraulic system The hydraulic pipelines should be neatly arranged, firm and reasonable, and the components should be easily assembled and disassembled for easy maintenance. During work, the temperature rise of the hydraulic oil of the hydraulic system must not exceed 40 ℃, and the high temperature must not exceed 80 ℃. Technical Indicators Of Self Loading Mixer Truck Data Collection Terminal The self loading mixer truck has self loading, weighing, mixing, transport and discharging. According to the actual needs of the data collection terminal, it has the following technical indicators.

  3. Module working voltage: The working voltage of this terminal comes from the vehicle battery, usually 12v or 24v, so the module working voltage should be less than the power supply voltage. Communication method: The wireless network and short message communication can be used. Terminal online rate: In order to ensure the real-time data exchange between the terminal and the monitoring center, the terminal should maintain a high online rate. Packet loss rate: The packet loss rate refers to the ratio of the number of lost data packets to the transmitted data packets in the test. In order to reduce the data packet loss rate, it can be considered in the design that when the wireless transmission module cannot connect to the network, resulting in the login failure of the terminal, the data will be supplemented to the server after the wireless transmission module leaves the blind zone. Positioning accuracy: The accuracy of the electronic map of the vehicle monitoring and dispatching system is in the order of meters. The positioning accuracy of haomei self loading mixer for sale must be controlled within 30m. A reliable data collection terminal will ensure the normal operation of each part. As a self loading concrete mixer manufacturer, haomei machinery has complete models. Mixing Drum Of Self Loading Mixer For Sale Different from the concrete mixer truck, the self loading mixer for sale has both concrete mixing and concrete transportation function. Its concrete mixing function is inseparable from its mixing

  4. drums. What are the features of the mixing drum? 1. It is of compact structure and good sealing performance. 2. The mixing blades is in the form of section, therefore its contact area with the medium is very large. Its mixing is also very even. 3. The spraying nozzles of the self loading concrete mixer for sale are arranged in multiple rows, and the water output is evenly and adjustable. 4. The residual ash rate is particularly low and there are no dead corners inside the equipment. 5. The concrete quality of this self loading mixer is of stable quality, uniform mixing and rapid discharge. 6. It also has 270 degree discharging function,which contributes to higher efficiency and has strong adaptability for the narrow construction sites. When the customers choose a self loading mixer truck, they should stress the quality of the mixing drum. Usually the mixing drum is made up of durable manganese steel material. In order to save energy consumption, haomei self loading mixer truck can realize the automatic control of the rotating speed of the mixing drum. As a self loading mixer manufacturer, haomei has complete models for you to choose from. The capacity ranges from 1.2 m3to 6.5 m3per batch. The hourly output is 6-30 m3/h. Welcome to leave message to get a quotation.

  5. The Operation Tips Of Self Loading Concrete Mixer For Sale The self loading concrete mixer for sale is a powerful construction vehicle which has self loading, weighing, mixing, transport and discharging in one. It is especially suitable for narrow construction sites. Since it often works in rural and mountainous areas, the road conditions are not so good. The driver must pay attention to inspection before driving on roads. There are some tips for the drivers of the self loading mixer truck. 1. Check carefully and find out the fault in time Check engine oil, antifreeze, lubricating oil, cooling water, etc. Before ignition. If insufficient, add it again. After the self loading mixer truck is started, let the mixing drum rotate at a low speed, and check the tire pressure to see if there is a flat tire. Then use a screwdriver to remove the stones in the tire gap and check whether there are iron nails or the like stuck in the tire. Don’t forget to check the light, especially the waist light, ensuring that it can shin on the edge of the tire. Use a rag to clean the rear-view mirrors and window glass on both sides, which ensure a good vision.

  6. 2. Ensure that there is enough water in the water tank and there is a water reducing agent. Once there is no enough water, the water reducing agent will help a lot. 3. When the engine starts, make sure that the mixing tank is in a static state. Because if the tank is rotating at a high speed when the engine is started, the instantaneous force will be very large and will damage the reducer. 4. Regardless of which operation you choose, the handle should be stopped at the stop position and then moved to the next operating position.
