Presentation Transcript
contents
Contents
  • DECT Data Application Scenarios
  • DECT Data Interoperability
  • DECT Data Standards
  • DECT Data Trends
  • Conclusions
dect data applications1

DECT Data Applications

DECT Data Application Scenarios

increasing data traffic

1,000

800

Mobile

users

600

(Millions)

400

200

0

1996

1998

2000

2002

2004

Increasing Data Traffic

Internet

users

Mobile

Internet

users

end user activities

At work

At the Office Desk

On the Move

At Home

End-User Activities
wireless technologies

On-Site Paging

Wireless Technologies

Wired terminal

100.0

Hiper LAN

10.0

Wireless LAN

Information Bit Rate, Mbit/sec

1.0

UMTS

DECT

0.1

Blue-

tooth

GSM / DAMPS

0.01

Room or

Office

Building

Stationary

Walking

Vehicle

Indoors

Outdoors

potential of dect data services

IP services to mobile devices

Potential of DECT data services

End-to-End services

Wide Area

Local Area

The first

feet

Bluetooth WLAN/DECT 2G & 3G mobile

home soho dect benefits
Home/SOHO DECT Benefits
  • Avoidance of Cable Installation
  • Home Area Mobility
home soho environment
Home/SOHO Environment
  • Mobile Internet Access
  • Cable Replacement
    • modem and PC
  • Networking to exchange information between multiple electronic devices without cabling
    • printer sharing
    • modem sharing
    • home network
homo soho scenario
Homo/SOHO Scenario

DPRS

ISDN-Basic

Rate Access

business environment

Security Applications

Synchronization of PDA

Message Notification

Nurse Cal Applications

Wire Replacement in factory

WWW Access

Temporary Workplace

Inventory Applications

Alarm Handling Applications

Access To E-mail

Point-Of-Sale Applications

Access to Patient Information in Hospital

Hospitality Applications

Business Environment
business environment1
Business Environment
  • Access to information or communication for on-site mobile employees
  • Reduction of cabling costs
  • Re-using the wireless voice infrastructure for offering data services at low marginal cost
business environment2
Business Environment
  • Driven by dedicated professional applications
  • Large diversity in applications
  • DECT Interoperability provides
    • a unified market
    • economies of scale
    • acceptable cost level
    • provide maximum possible added value for the customer
business environment3
Business Environment
  • Security of wireless connection
  • Easy integration of data modules / PC cards in existing terminals
  • Physical interfaces and software drivers adhering to industry standards
wll environment
WLL Environment
  • Main application is Internet Access
  • 90% of all internet access is through dial-up connections and analogue modems
  • Internet is a must for operators
  • Drive to high bandwidth
dect data applications2

DECT Data Applications

Market Potential

market potential enterprise environment
Market Potential Enterprise Environment

On-Site Wireless Data Market in USA

(WLAN)

Source : Yankee Group ‘98

dect data applications3

DECT Data Applications

DECT Data Interoperability

key interoperability benefits 1

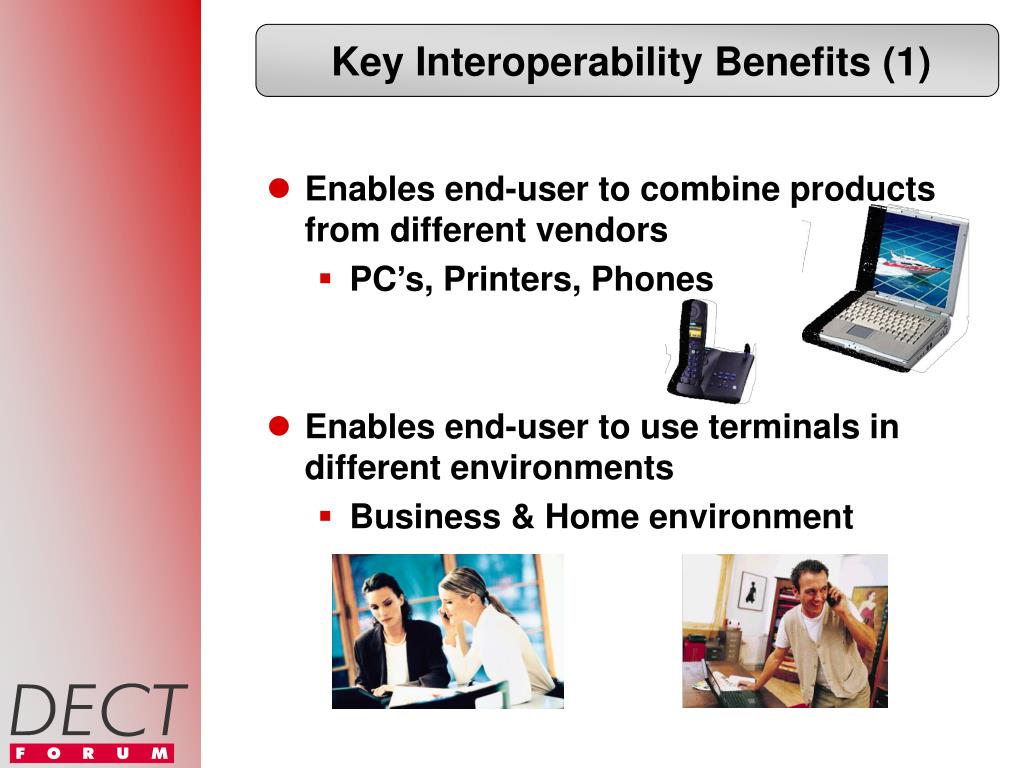

Key Interoperability Benefits (1)
  • Enables end-user to combine products from different vendors
    • PC’s, Printers, Phones
  • Enables end-user to use terminals in different environments
    • Business & Home environment
key interoperability benefits 2
Key Interoperability Benefits (2)
  • Enables manufacturers with different competence areas to bring together a complete solution
    • Bar-code readers
    • Point Of Sale terminals
  • Provides economies of scale
    • Standard data modules for different applications
key interoperability benefits 3
Key Interoperability Benefits (3)
  • Provides future-proof investments
    • Replacement cycle of PBX is 7-10 years
  • Creates a platform for joint promotional activities
    • To generate cross-industry support
dect data applications4

DECT Data Applications

DECT Data Standards

packet oriented data standards
Packet Oriented Data Standards
  • DECT Packet Radio System (DPRS)
    • Up to 552 kbit/s
    • Migration to 2 Mbit/s
    • Asynchronous Connections
    • V.24 and Ethernet Interworking
    • Application Specific Profiles : DMAP for Multimedia Applications
connection oriented data standards
Connection Oriented Data Standards
  • D2 profile
    • 32 kbit/s unrestricted isochronous data
  • E2 profile
    • 1.2 kbit/s messaging services
    • Application Specific Profiles : CTM-FP2 (DECT-SMS)
migration path dect radio technology
Migration Path DECT Radio Technology

IMT2000

Functionality

High Level

Modulation

Extra Features

DPRS

up to 2Mbit/s

Data Communication

24-552kbit/s

CTM FP-2

CAP

DECT GAP

Short Message Service

Time

main benefits of dect data
Main Benefits of DECT Data
  • Commercial DECT Data Products Available Now !
  • DECT provides open interoperable air-interface standards
  • DECT offers a reserved frequency band, no interference problems
  • DECT offers secure data transmission
  • DECT offers good data protection protocols
  • DECT Terminals and Base Stations can simultaneously offer data and high quality voice services
main benefits of dect data1
Main Benefits of DECT Data
  • DECT has a high traffic capacity on air interface. Many devices can work in the same room without interference.
  • DECT offers small size modules
  • DECT offers low power capabilities
  • DECT is easy to implement, and adheres to standards from the data world
  • DECT offers a clear migration path to2 Mbit/s
dect data applications5

DECT Data Applications

DECT Data Trends

dect data trends
DECT Data Trends
  • DECT-WAP
    • Value added mobile internet services
    • Designed for wireless devices with limited user interface capabilities
    • Independent of radio technology
    • Fixed/Mobile Convergence of services
    • Main DECT data standards supported by WAP Forum
dect data trends1
DECT Data Trends
  • DECT-USB
    • Next DPRS Interworking Scenario being standardized by ETSI for the Home/SOHO Environment
conclusions
Conclusions
  • DECT Data plays an important role for local area wireless data communication services (up to 2 Mbit/s)
  • DECT Data delivers Interoperability, a critical success factor for market development
  • DECT Data has an attractive price point
  • DECT Data is convenient
  • DECT Data is easy to use
dect data applications7

DECT Data Applications

Available Today !
