  1. SIP-Based-DECT Rev1.9 25Feb., 2013

  2. Table of Contents • 1. Overview • 2. Specification and Features • 3. Air Synchronization • 4. Registration • 1. Installation Basic Flow • 2. CS radio zone design • 3. CS/PS Firmware Update • 4. Setup CS/PS and NS1000 • 5. Maintenance of System phone book • Appendix • - PS Ring Group • Air Synchronization • Move CS • Site Survey (Tool) • Site Planning (Tool) • - PS function List

  3. Chapter 1 Overview

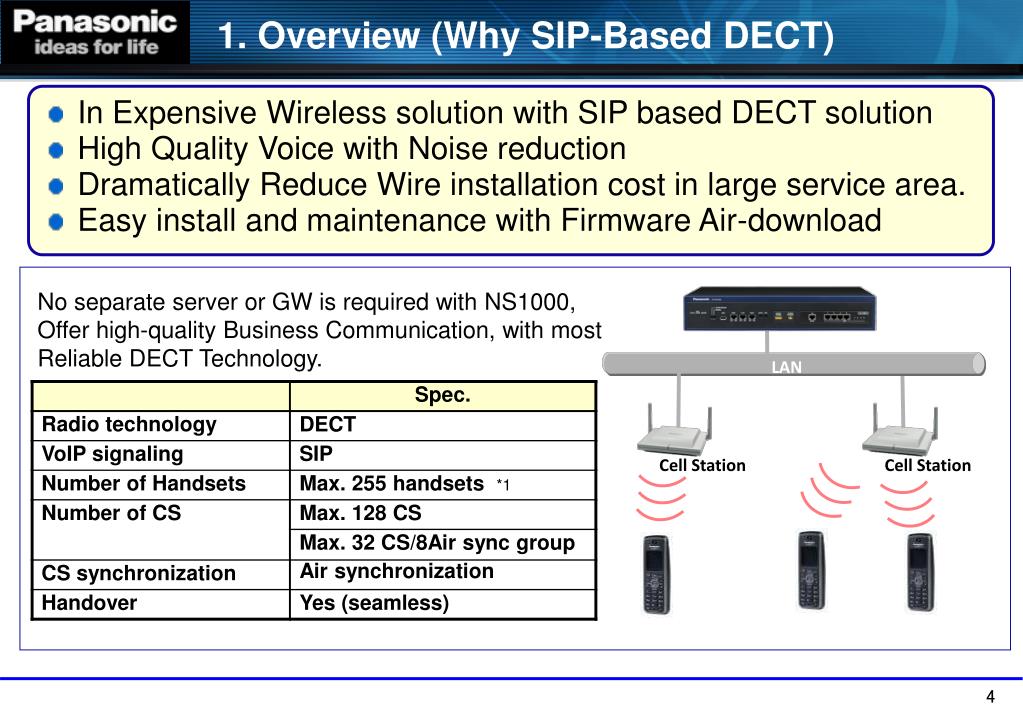

  4. 1. Overview (Why SIP-Based DECT) • In Expensive Wireless solution with SIP based DECT solution • High Quality Voice with Noise reduction • Dramatically Reduce Wire installation cost in large service area. • Easy install and maintenance with Firmware Air-download No separate server or GW is required with NS1000, Offer high-quality Business Communication, with most Reliable DECT Technology. LAN Cell Station Cell Station

  5. 1. Overview (Hand Over) SIP based DECT phone satisfies needs of personnel who want to be always ready to talk to partners or customers anywhere and anytime within their company. NS1000 <Cell Station> <Cell Station> Hand Over <PS> <PS> <PS> <PS>

  6. 1. Overview Multi Zone PS can be reception which is located anywhere. The whole building becomes the communication zone. Retail Store Features and Benefits Office Hallways On-site employees: efficient because it is not necessary to return to the office to make a call. Hand-over Automotive Dealership Call receptionists: less trouble because the person to transfer the call to can be anywhere. Customers: improved CS because there is less time spent waiting to transfer calls. Factory Meeting Room Storage Suitable Environments Frequent moving about inside the company

  7. 1. Overview Move to other System/Location PS can be moved from original site to the other site. In this condition, the PS must be resisted to other unit also PS can be resisted up to 4 different Cell Station (Need to regist NS1000 also) Master Units Slave Units IP <Cell Station-2-> <Cell Station-1-> Move with PS to other site <PS301> <PS201>

  8. Chapter 2 Specification and Features

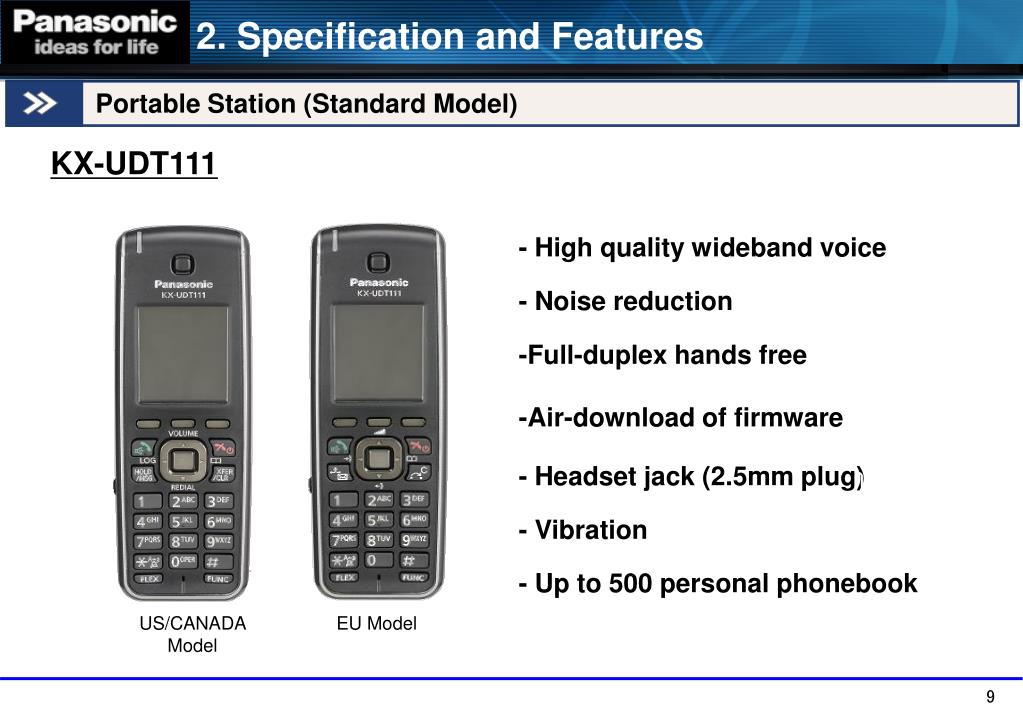

  9. 2. Specification and Features Portable Station (Standard Model) KX-UDT111 • - High quality wideband voice • - Noise reduction • -Full-duplex hands free • -Air-download of firmware • - Headset jack (2.5mm plug) • - Vibration • - Up to 500 personal phonebook US/CANADA Model EU Model

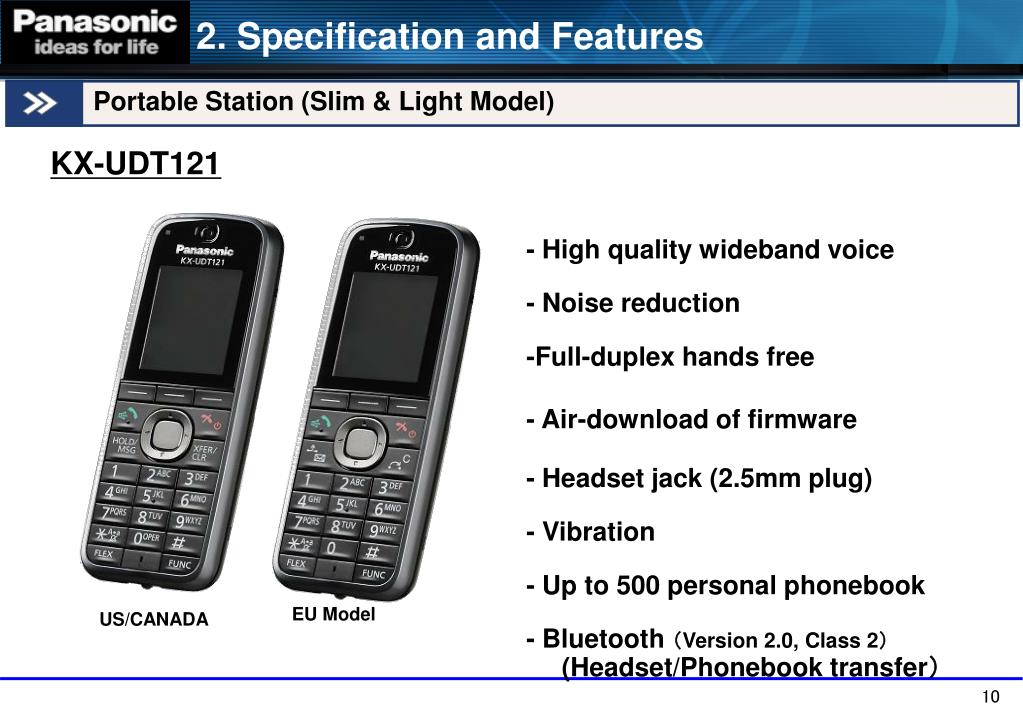

  10. 2. Specification and Features Portable Station (Slim & Light Model) KX-UDT121 *Future • - High quality wideband voice • - Noise reduction • -Full-duplex hands free • - Air-download of firmware • - Headset jack (2.5mm plug) • - Vibration • - Up to 500 personal phonebook • - Bluetooth (Version 2.0, Class 2)(Headset/Phonebook transfer) *LCD back light off and Bluetooth is not in use. EU Model US/CANADA

  11. 2. Specification and Features Portable Station (Taught Model) • - High quality wideband voice • - Noise reduction • -Full-duplex hands free • - Air-download of firmware • Vibration • Against Hazard LevelIP65 (IEC529) • - Up to 500 personal phonebook • - Bluetooth (Version 2.0, Class 2)(Headset/Phonebook transfer) KX-UDT131 *Future *LCD back light off and Bluetooth is not in use. EU Model US/CANADA

  12. 2. Specification and Features Cell Station KX-UDS124 *Future • - Web interface for set up • - Air-download of firmware • - Max PS registration : • Up to 255 per CS and System • - The number of Cell Station for a system : • Up to 64 or 128 (One Look networking) • (32 per air sync group/Max 8 Air sync group per one Unit, total max 128 Air Sync group on • One-Look networking ) • - PoE or optional AC adaptor(KX-A239)

  13. 2. Specification and Features PS Detail Specification

  14. 2. Specification and Features CS Detail Specification

  15. 2. Specification and Features CS Detail Specification LED indication on CS Note) LED flashing patterns are as follows: Slow Flashing: 60 times per minute Moderate Flashing: 120 t60INT-2 Green Flashing/per minute

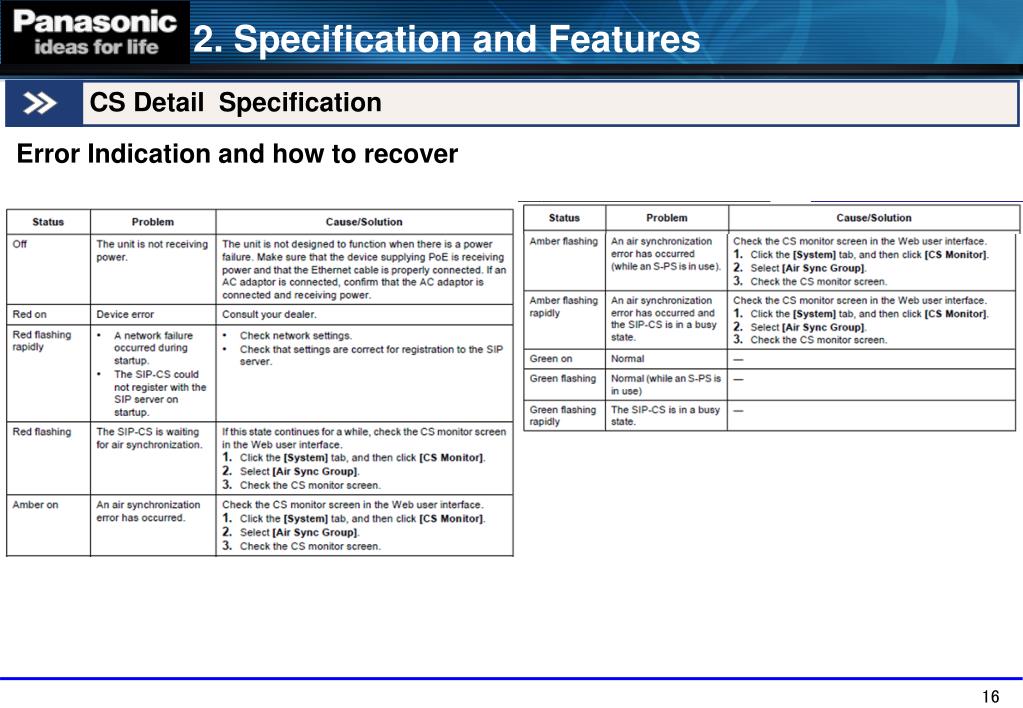

  16. 2. Specification and Features CS Detail Specification Error Indication and how to recover

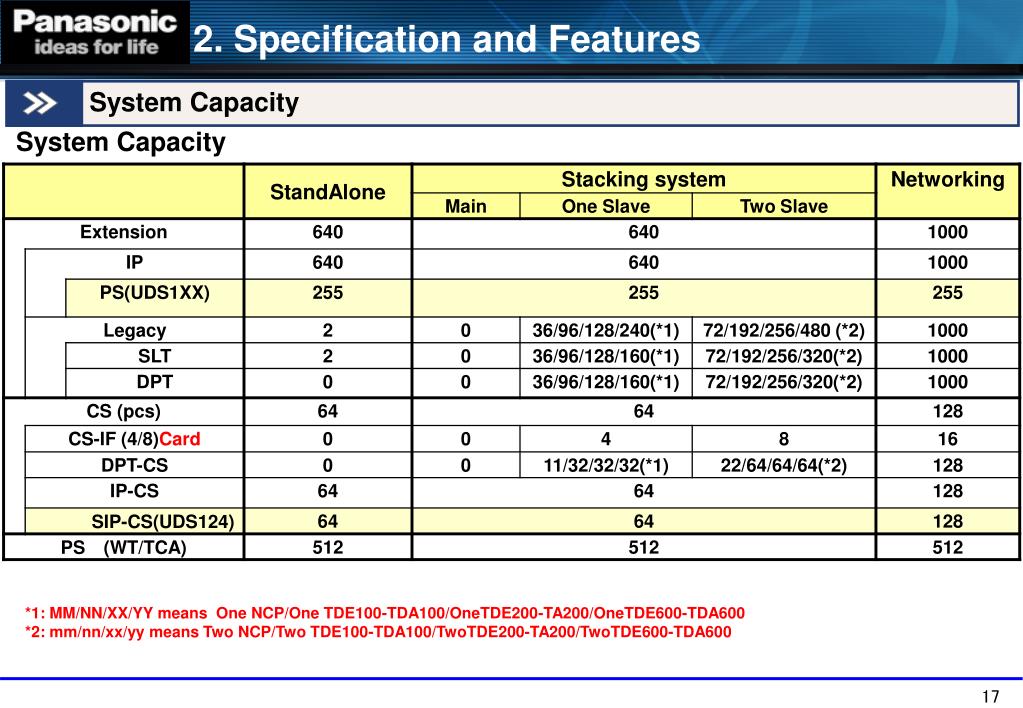

  17. 2. Specification and Features System Capacity System Capacity *1: MM/NN/XX/YY means One NCP/One TDE100-TDA100/OneTDE200-TA200/OneTDE600-TDA600 *2: mm/nn/xx/yy means Two NCP/Two TDE100-TDA100/TwoTDE200-TA200/TwoTDE600-TDA600

  18. 2. Specification and Features (Cover Area) CS Coverage Area for Establishing Conversation Using PSs Coverage Area: (About 50m to 60m) A A Good Coverage Area: (About 30m to 40m) Good sound quality can be maintained. B B Out of Service: Cannot make/receive calls. C Gray Zone: Conversation will be intermittent C

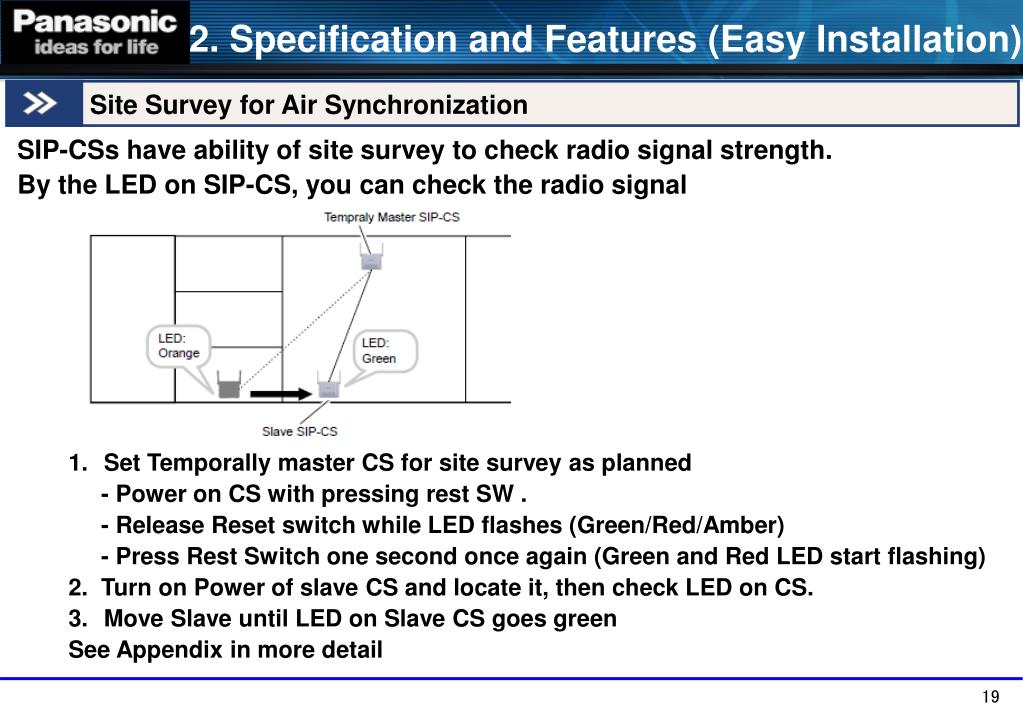

  19. 2. Specification and Features (Easy Installation) Site Survey for Air Synchronization SIP-CSs have ability of site survey to check radio signal strength. By the LED on SIP-CS, you can check the radio signal • Set Temporally master CS for site survey as planned • - Power on CS with pressing rest SW . • - Release Reset switch while LED flashes (Green/Red/Amber) • - Press Rest Switch one second once again (Green and Red LED start flashing) • 2. Turn on Power of slave CS and locate it, then check LED on CS. • Move Slave until LED on Slave CS goes green • See Appendix in more detail

  20. 2. Specification and Features (Easy Installation) Site Survey for S-PS Service Area The PS has a PS AREA CHECK ability User can confirm CS cover area easily by this function • Power ON CS and set Maintenance mode • Change PS to PS AREA CHECK mode • Make call from PS to PS • See Appendix in more Detail

  21. 2. Specification and Features Wideband Audio Support Better Receiving Frequency Response Clear & Natural voice by Wideband Audio. Multi Handsets and Multi-Cell supported. Human voice Range Narrow Band (G.711) Enhance Enhance Wide Band (G.722) Enhance the Lower frequencywith small receiver Enhance the High frequency by aperture rate of the receiver previous model (Panasonic PBX terminal) UDT111 UDT121 U P aperture rate 4.3 % aperture rate 35 % aperture rate 24.5 %

  22. 2. Specification and Features (Pattern1) Noise Reduction features Can configure TX/RX noise reduction to ON/OFF during standby and talk (Default : OFF). TX : Noise Reduction for Sending Signal Detect and reduce noise part from the transmission voice Noise reduction Noise sound Voice Noise RX : Listening Enhancement for Receiving Signal Dynamic receiving volume control according to acoustic ambient noise characteristics Noise sound High noise High volume Low noiseNormal volume Waiting Demo Voice file ***

  23. Panasonic Technology 2. Specification and Features (Pattern1) Noise Reduction features Strong against the multipath environment by the enhanced precision of error detection and new voice processing technology. Multipath Fading Ex) cubicle farm, concrete building The fading occurs when moving the place where the electricwave is strengthened or weakened each other under multipath environment. Example Error Less Received RF power at cordless handset under multipath environment. High occurrence multipath by direct/reflected/diffracted wave, etc Freq Low Error [Time] Directwave Voice waveform PS Old Proprietary Process CS New Diffractedwave Reflected wave Advanced error correction makes stable communication.

  24. 2. Specification and Features KX-UDT111 Appearance Enhance aperture rate Receiver Large Ringer / Charge LED CONCAVE aperture rate 4.3% (previous model) U P Strap hole1 Belt clip hole aperture rate 35.0% (UDT111) • Shape to avoid operation mistake • in the pocket • - Shape to protect keys • Concave shape and rippled keys • for easy access to keys 1.8inch Color LCD with backlit 3 Soft keys Headset Connection Navigation key Wall mountable charger Key backlit Microphone Strap hole2

  25. 2. Specification and Features KX-UDT121 Appearance Enhance aperture rate Pocket size aperture rate 4.3% (previous model) Ringer / Charge LED (18mm) (48.5mm) Receiver (90g) Strap hole1 1.8inch Color LCD with backlit U P Belt clip hole Headset Connection 3 Soft keys aperture rate 24.5% (UDT121) Navigation key (127.5mm) Plating Grill Section keys Wall mountable charger Strap hole2 Key backlit Microphone

  26. Chapter 3 Air Synchronization

  27. 3. Air Synchronization Air Synchronization To activate Handover through CS, all CS must be synchronized. CSs are synchronized by using “Air Synchronization” for same air Sync. group After CS synchronized with other CS, Handover is available. LAN i/f L2 SW CS (Master) Air Synchronisation Handover is not Available Handover is available CS (Slave) Air Synchronisation Handover is not Available Synchronised By Air Synchronisation CS (Slave)

  28. 3. Air Synchronization CS Coverage Area for Air Synchronization between CSs You must not install SIP-CS without site survey. Coverage Area: Radio signal strength level is between “03” (about 50m to 60m) and “14” (about 20m to 30m). A A Good Coverage Area: Radio signal strength level is between “05” (about 40m to 50m) and “14” (about 20m to 30m). Good synchronisation quality can be maintained. B B C Out of Service: 0m to 3m or the radio signal strength level is “00 to 02”. Cannot be synchronized. C Gray Zone: Conversation will be intermittent C

  29. Chapter 4 Registration

  30. 4. Registration Step for DECT System Installation Following is Step for SIP based DECT system registration 1) Instauration Basic Flow 2) CS Radio Zone Setting (Site Survey) Step0: Initialing CS Step1: Site Planning Step2: Site Survey Step3:CS Registration into Master CS (By CS-web) Step4: TreeSurvey 3) Firmware UP date Step1: Local firm Update 4) Set up CS/PS and NS1000 Step1:Virtual Extension (UT) Install Step2:Step up Terminal Type Step3: Entry CS/PS name and FF-Key Step4: Entry CS and PS extension Number)

  31. 4. Registration Step for DECT System Installation Continue 4) Set up CS/PS and NS1000 Step5: Set up Master CS Step6: Set up System information URL Step7: PS registration Step8: Set up Slave CS Step9: Set up Master CS of other Air sync group Step10: Set up Slave/Master CS to NS1000 (For Ring group) 5) Set up CS/PS and NS1000

  32. 4.1. Installation Basic Flow Basic Flow how to set up CS/PS and regist to NS1000 1. CS radio zone design (Site Survey) 1-1. Site Planning 1-2. Site Survey 1-3. CS Registration into Master CS (By CS-web) 1-4. Tree Survey 2. Firmware Update 2-1. Manual Update 3. Setup CS/PS and NS1000 3-1. NS1000 setting by Web-MC 3-2. Super Master CS setting by CS-Web 3-3. PS registration 4. Maintenance of System phone book 5. PS Ring group setting (see Appendix)

  33. 4.2. CS Radio Zone setting Step0: Initialize CS for Before Registration Before CS/PS registration, following process must be done 1. Depress RESET Switch while CS is power on (See Note) 2. Keep pressing RESET Switch 10 sec. And wait around 60sec until LED turn on red When you use CS very first time, you do not need to initialize Note:You need wait until LED on the CS will start blinking RED or Stay Red when you initialize CS See next page how to initialize CS by Web 1. Initialize CS 2. Open CS-Web interface • Depress RESET Switch and turn on • CS power • Keep pressing RESET until LED blink amber/red/green

  34. 4.2. CS Radio Zone setting Step0: Initialize CS by CS-Web You can initialize CS by CS-Web interface CS-Web LOGIN Default Web Address (192.168.0.241) CS For CS and PS registration, need to set up Super Master CS 1) Open CS-Web (See previous page) 2) Access CS-Web (Default Web address is 192.168.0.241) 3) Go to Maintenance menu then proceed Factory Reset 4) Then CS will be initialized and LED on CS will start RED blinking Note: *1 To enable CS-Web function, need to proceed power on with reset SW (See Page 28) Login/Password : For Installer instoperatoruserid/instpass, For Customer admin/adminpass

  35. 4.2. CS Radio Zone setting Step1: Site Planning Plan the CS position by using Site planning tool - Site planning tool (Excel) Local PC PBX Support Page of CS-Web 2. Plan & Check CS position 1.Down Load 1) Download Site planning tool (Excel) from PBX Support Page of CS Web Site 2) After you Import site map data to this tool and determine the size scale, you can plan the CS position and check the radio range of CS. (simulate for CS positioning) Note: Please refer Appendix more in detail 2. Determine size scale Import site map data (jpg format)

  36. 4.2. CS Radio Zone setting Step2:Site Survey (1/2) Locate CS as temporarily position by using LED indication 1) Keep Pressing SW and turn on the CS. 2) Release the SW button and depress it again. ⇒ Sync Master mode for Site survey starts. SyncMaster mode 3) Other CS(s) synchronize to Sync Master CS automatically 4) Check other CS’s LED * Confirm the CS radio status at planning position 5) Change position until being Green LED Slave Slave Change Position Slave Slave Slave 6) Depress the SW button again. (return to Slave) LED LED ■ Green OK ■ Amber NG (poor) ■ Red NG (out of range)

  37. 4.2. CS Radio Zone setting Step2:Site Survey (2/2) Following shows Site Survey status indication and status 1. Change to Survey Mode Case 1: Keep Pressing reset SW and turn on the CS.(Master Mote) Survey Mode1 Release Rest SW And depress again Note:CS must be Fixed IP Mode Ex) 192.168.0.241 Red and Green Alternate Flashing Moderate Red Flashing Power on CS with Pressing reset SW Case 2: Turn on the CS normally. (Slave Mode) Survey Mode2 CS will enter site survey mode automatically when receives signal from Master CS Moderate Red Flashing Power on CS • How to Return Normal Mode from Survey mode • Either press Reset SW more than 10 sec, or Power Off CS then Power on CS with • pressing Rest SW then change to Fix IP mode then restart CS

  38. 4.2. CS Radio Zone setting Step3:CS registration in to Master CS CS Registration into Master CS by CS-Web 1. CS-Web 2. 4. 1. 3. Super Master 3. Slave Slave 1. Change “CS Class” from “Slave” to “Master” via CS-Web. 2. Push “Start CS Registration” button in CS Management screen. 3. CS(s) that is registered in Super Master are listed up. Slave Slave

  39. 4.2. CS Radio Zone setting Step4:Tree Survey Tree Survey (Auto Air Synchronization) by Super Master CS-Web or PC Tool 1) Push “Start Tree Survey” button via CSWeb. 2) System executes auto air synchronization and calculate Tree structure. 3) Push “Apply” button. Web user interface (Web application) CS-Web - For small system - No installation needed 1. 3. . Auto Air Synchronization Super Master CS-MT (SIP CS Management Tool) - For mid and large system - Installation is necessary Slave2 Slave1 Slave3 Slave4 Slave5 Note: In case that # of CS are up to 9, PC tool needs to be used for tree-survey.

  40. 4. 3 Firmware Update Step1:Update firmware by CS-Web You can perform the firmware update manually using CS Web programming. After the firmware is uploaded to the Super Master CS, the Super Master CS distributes the firmware to all other SIP-CSsautomatically. Upload new firmware CS-Web 2 1. Deliver to all CS 3 4 1. Get in to [Firmware Update]. 2. Select [Direct] for [Update Mode]. 3.Select updated firmware 4. Click [All Update Firmware]. Note: You must update CS firmware to V01.200 or later when you use CS under NS1000

  41. 4. 4 Set up CS/PS and NS1000 Step1:Vitrula Extension (UT) install Click [Setup]  select [PBX Configuration] – [1.Configration] – [1.Slot]  [Virtual] – [V-UTEXT32]

  42. 4. 4 Set up CS/PS and NS1000 Step2: Set up Terminal Type Set up CS or PS type of Telephone type in Port Property as Master CS/SIP-CS or S-PS Click [Set-up] - [1.Configlation] - [1. Slot] – [Select Target V-UTEXT32] – [Port property] Note: 1. Telephone Type Setting is Master CS: Super master CS which is Master CS of Air Sync Group #1 SIP-CS : Master CS of Air Sync Group 2 to 8 and or all slave CS S-PS : PS 2. Only one Master CS can be set per one Unit 3. Do not need to set UP SIP-CS if customer does not need to set up PS-Ringing (ICD-Group Function)

  43. 4. 4 Set up CS/PS and NS1000 Step3: Entry CS/PS name and FF-Key • Enter Name of PSand Extension number • Click [Set-up] - [1.Configlation] - [1. Slot] – [Select Target V-UTEXT32] – [Port property] Enter PS Name 2. Enter FF-Key of PS Click [Set-up] - [4. Extension] - [1.Wired Extension] - [4. Flexible Button] – [Target PS ] Can be set these Functions Enter FF-Key Code Note: Set up PS related programming by wired extension setting if needed

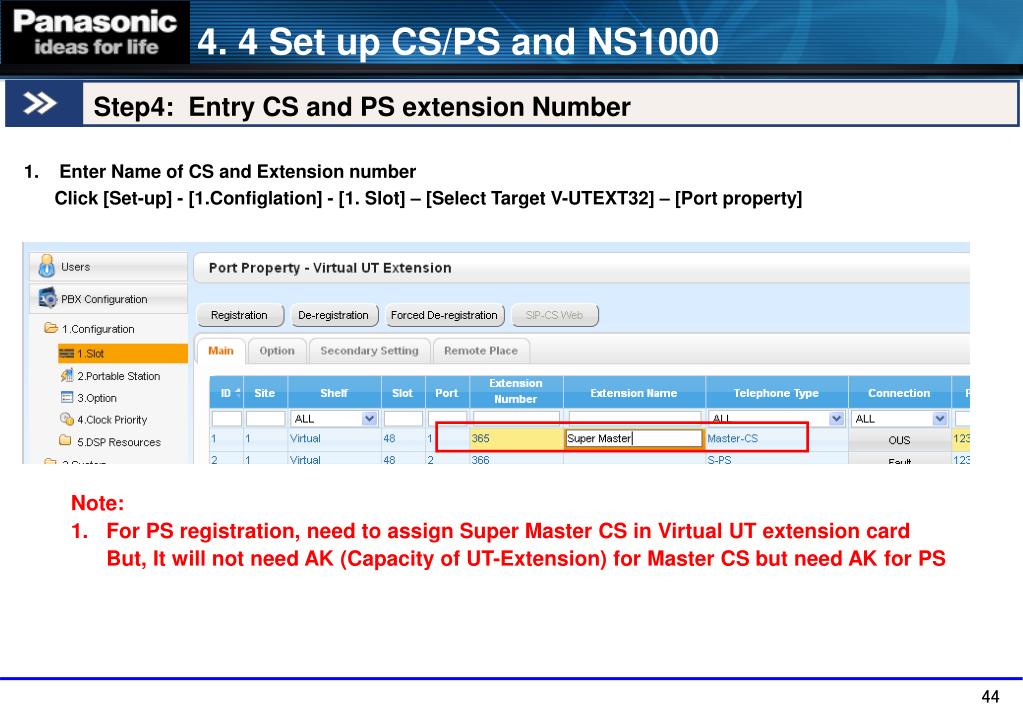

  44. 4. 4 Set up CS/PS and NS1000 Step4: Entry CS and PS extension Number • Enter Name of CS and Extension number • Click [Set-up] - [1.Configlation] - [1. Slot] – [Select Target V-UTEXT32] – [Port property] • Note: • For PS registration, need to assign Super Master CS in Virtual UT extension card • But, It will not need AK (Capacity of UT-Extension) for Master CS but need AK for PS

  45. 4. 4 Set up CS/PS and NS1000 Step5: Set up Master CS CS-Web LOGIN Default Web Address (192.168.0.241) Super Master CS • For CS and PS registration, need to set up Super Master CS • Login CS-Web (192.168.0.241 as a default) • In default setting, CS-Web site is set as 192.168.0.241 • 2) Set up own IP Address • In default setting, CS is defined as DHCP mode. If no DHCP • server, need to set up own IP address. After IP Address, CS • will restart automatically. Better select Static mode on • Master CS • 3) Set CS mode as Mater CS • In default, CS mode is set as Slave CS, so need to set CS • mode as Master CS . After set Master CS, CS will restart • automatically Note: *1 To enable CS-Web function, need to proceed power on with reset SW (See Page 28) Login/Password : For Installer instoperatoruserid/instpass, For Customer admin/adminpass

  46. 4. 4 Set up CS/PS and NS1000 Step6: Set up System information URL (in Master CS) In order to download configuration file from NS1000, URL information of Super Master CS for getting the file in NS1000 has to be set by CS-Web. 1) Set following URL into System File URL http://192.168.0.101:7580/utdownload/System.cfg Then, Click All Save. After set up URL, CS will restart automatically. Note: At this point, configuration data is downloaded into Super Master CS and registrated to NS1000 automatically even if registration mode is [manual] mode in NS1000 Do not enter any other field Port # NS1000 IP address

  47. 4. 4 Set up CS/PS and NS1000 Step7: PS Registration CS-Web LOGIN Regist Super Master CS PS • PS has to be registered into Super Master CS by CS-Web as follows: • Login CS-Web • Select menu of PS Registration. • Click Start PS Registration. • Select Available PS and move to Selected PS by “>” button. • Click Next. • Set PS to registration mode and register that to neighbor CS. • *registration mode = push button on PS. Note: 1. Extension Number is downloaded from NS 1000 automatically, and also when change PS extension number by Web-MC of NS1000, the modification data is also down loaded automatically 2. After regist PS to CS, CS-Web will be closed. After Close CS-Web, can open Web Port by PS setting Caution: Firmware up process may execute after complete PS registration, during this process you can not de-registrationand also do not power down PS, until complete Firmware version up.

  48. 4. 4 Set up CS/PS and NS1000 Step8: Set up Slave CS CS-Web of Slave CS CS-Web LOGIN LOGIN Regist Set up Slave CS IP address Super Master CS Set up Master IP address * Slave CS Slave CS can regist to Super Master CS. Just Set up IP address of Master CS (*) Then proceed CS registration by Super Master CS Note: If System Mode is set up as DHCP enable, do not need to set up Own IP-Address CS-Web of Super Master CS Start CS registration in Super Master CS

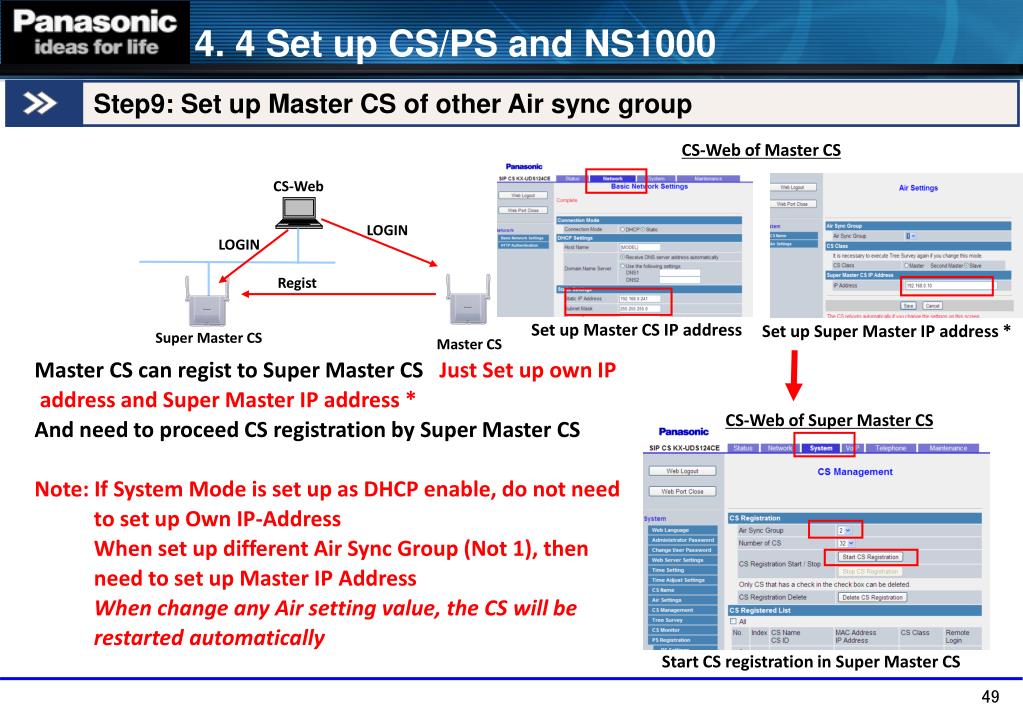

  49. 4. 4 Set up CS/PS and NS1000 Step9: Set up Master CS of other Air sync group CS-Web of Master CS CS-Web LOGIN LOGIN Regist Set up Master CS IP address Set up Super Master IP address * Super Master CS Master CS Master CS can regist toSuper Master CSJust Set up own IP address and Super Master IP address * And need to proceed CS registration by Super Master CS Note: If System Mode is set up as DHCP enable, do not need to set up Own IP-Address When set up different Air Sync Group (Not 1), then need to set up Master IP Address When change any Air setting value, the CS will be restarted automatically CS-Web of Super Master CS Start CS registration in Super Master CS
