Writing faster managed code

Writing faster managed code Claudio Caldato Program Manager CLR Performance Team

Outline • Performance engineering • Managed code performance • Contrast with native code • Garbage collection • Features’ cost and Pitfalls • Perf problems diagnosis

Performance engineering • Set goals • Measure, measure and then measure • Know your platform • Process: • Budget, plan, verify • continuous improvement • Measure, track, refine • automated tests • Build a performance culture • User expectations • Developer attitudes – perf is my feature!

Moving to managed code • Why? Productivity and quality • Do more with less code • Fewer bugs • Clean, modern libraries targeting modern requirements • Better software, sooner • But is performance a problem? • Easier to write programs fast • Easier to write fast programs?

Know Your Garbage Collector • Why? • GC basics • Pause threads; trace reachable objects from roots; compact live objects; recycle dead memory • Self tuning • CLR is a generational mark and sweep GC

Generation 1 Generation 0 Garbage Collection in Action New objects allocated in generation 0 GC: accessible references keep objects alive GC: preserves / compacts referenced objects GC: objects left merged into older generation Once again, new objects allocated in generation 0

Know Your Garbage Collector • GC basics • Pause threads; trace reachable objects from roots; compact live objects; recycle dead memory • Self tuning • Generational GC Heaps • Gen0 – new objects – cache conscious; fast GC • Gen1 – objects survived a GC of gen0 • Gen2 – long lived objects – survived a GC of gen1,2 • Large object heap • Server GC • Optimized for throughput and multi processor scalability

Garbage Collection Pitfalls • Object lifetimes still matter! • Use an efficient “allocation profile” • Short lived objects are cheap (but not free) • Don’t have a “midlife crisis” (avoid gen2 churn) • Review with perfmon counters, CLRProfiler • Common Pitfalls • Keeping refs to “dead” object graphs • Null out object references (where appropriate) • Implicit boxing • Pinning young objects • GC.Collect considered harmful • Finalization ...

Garbage Collection Pitfalls (2)Finalization and the Dispose Pattern • ~C(): non-deterministic clean up. • object unref’d • promote to the next generation • queue finalizer • Costs: retains object graph, finalizer thread • use Dispose Pattern • Implement IDisposable • Call GC.SuppressFinalize • Hold few obj fields • Dispose early, when possible use ‘using’ (C#)

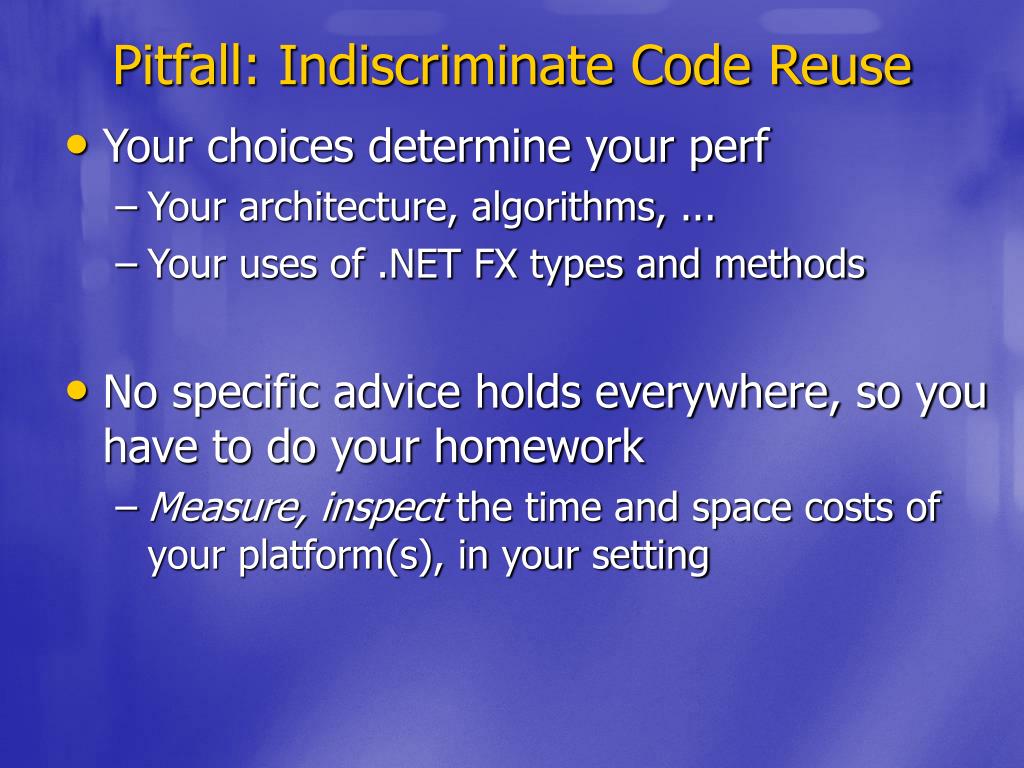

Pitfall: Indiscriminate Code Reuse • Your choices determine your perf • Your architecture, algorithms, ... • Your uses of .NET FX types and methods • No specific advice holds everywhere, so you have to do your homework • Measure, inspect the time and space costs of your platform(s), in your setting

Data Cost • Data locality • Remote, disk, RAM, cache • GC: objects allocated together in time, stay together in space • Data representation • Complex data structures with a lot of pointers is GC cost

Reflection Cost • Fast and Light APIs: • TypeOf, object.GetType, get_Module, get_MemberType, new Token/Handle resolution APIs • Costly APIs: • MemberInfo, MethodInfo, FieldInfo, GetCustomAttribute, InvokeMember, Invoke, get_Name • Only request what you need • minimize the use of GetMembers, GetConstructors, … • Consider using the new Token/Handle resolution APIs

Reflection Cost (2) • Cache members after having retrieved them • For instance cache Member’s handle • Avoid using Type.InvokeMember • Avoid doing case insensitive member lookups • Use BindingsFlags.ExactMatch whenever possible • Use FxCop • Insidious • .NET FX code that uses reflection • Late bound code in VB.NET, JScript.NET • Enforce early binding • Option Explicit OnOption Strict On

P/Invoke, COM Interop Cost • Efficient, but frequent calls add up • Costs also depend on marshaling • Primitive types and arrays of same are cheap • Unicode to ANSI string conversions are not. • Diagnosis • Perfmon: .NET CLR Interop counters (# of marshalling) • Time based profiling • Mitigate interop call costs by batching calls or move the boundary

Deployment considerations • Assemblies • Performance-wise: the fewer, the better! • Use GAC • Avoids repetitive SN signature verification • Use NGEN • Caches pre-JIT’d DLL; code may run slower • Generally reduces startup time, improves code shareability • Try it and measure for yourself

Xml: It is not always the answer • System.Xml.dll is 2MB • Load it only when you need it • Don’t use XML classes for trivial tasks • MyApp.Config.Xml: <MyApp> <MainWindow> <Top>512</Top> <Left>340</Left> </MainWindow> </MyApp>

Analyzing Performance ProblemsCode Inspection • Ildasm – findstr “box” • Debuggers – Module loads, rebasing • FxCop – Static Analyzer

Analyzing Performance ProblemsMeasure It, With Tools • High level diagnostics • Taskmgr, perfmon, vadump, event tracing for Windows (ETW) • Space • CLR Profiler, code profilers, ETW • Time • Code profilers, timing loops, ETW

Improve startup time • Cold startup is typically dominated by disk accesses and warm startup by CPU usage. • Reduce dlls loaded at startup if possible. • Ngen your assemblies. Jitting consumes CPU at startup. • Place strong named assemblies in the GAC. • The application would be doing its own computations. Is the bottleneck here?

Resources • Patterns & Practices: Improving .NET Application Performance and Scalability • [http://msdn.microsoft.com/perf] • .NET framework developer center • Programming Information/performance • Usergroup: • microsoft.public.dotnet.framework.performance • Blogs • RicoM, MaoniS • Claudio’s Quick list

Q&A

Questions • In the product cycle, when do you start working on performance? • What are the top issues you have to deal with? • Are there good tools to do performance analysis?, what is missing? • Where type of resources do you use to find answers to performance issues? • Comment the following statement: “In managed code it is easier to find and solve performance issues”

Writing faster managed code
