Presentation Transcript

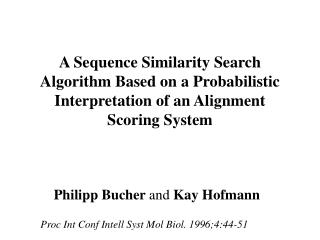

slide1

A Sequence Similarity Search Algorithm Based on a ProbabilisticInterpretation of an Alignment Scoring System

Philipp Bucher and Kay Hofmann

Proc Int Conf Intell Syst Mol Biol. 1996;4:44-51

slide2
Goal
  • Modify Smith-Waterman (SW) algorithm such that it has a probabilistic interpretation
introduction 1
Introduction 1
  • Goal: find a local alignment between a query sequence and a sequence in a database
  • Local similarity to find conserved domains
  • Conservation implies function
introduction 2
Introduction 2
  • Smith-Waterman (SW) Algorithm (dynamic programming) is the most sensitive algorithm to identify local alignment between two sequences
  • Heuristic algorithms such as FASTA and BLAST are modifications or special cases of SW algorithm
  • O (mxn)
definition
Definition
  • a = a1 a2 . . . am

b = b1 b2 . . . bn

a,bS, S containing N elements

u alignment path

u= (x1,y1), (x2,y2), . . . (xl,yl)

x k+1>xk, y k+1>y k, x £m, y£n

m=8

n=7

l=6

EGAWGHE-E

P-AW-HEAE

EAWHEE

PAWHEE

scoring

Sequence dependent

Sequence independent

Gap score

Scoring

Substitution matrix s(a, b)

SA(a, b, u) = SM (a, b, u) + SG(u)

  • Gap weighting function w(k )
  • w(k ) = a + bk for k ³1,
  • w(0) = 0 if k=0
probabilistic smith waterman psw algorithm
Defines a probability distribution over the sequence space by means of a stochastic process involving arandom walkthrough the model

Defines a probability distribution over the space of sequence pairs by means of a stochastic process involving a random walk through an alignment path matrix

?

?

Probabilistic Smith-Waterman (PSW) Algorithm

ASS

HMM

null probability

Length distribution (same for ASS and Null model)

Null model

residue probability distribution over the alphabet S

residue a

Null probability
slide11

Scoring fxn of local alignment

Length normalizing fxn

slide12

Length normalizing fxn

SM(a, b, u)

SG(u)

Scoring fxn of localalignment

SA(a, b, u)= SM(a, b, u) + SG(u)

Z is some logarithmic base that satisfies:

slide14

G

RKE

GAWG--HE-

AAW-RKHEE

GAWHE

AAWHE

Length of unmatched pairs

Length of matched pairs

P0(a,b)

vk, wk unmatched residues in a and b, respectively

xk, yk matched residues in a and b, respectively

performance evaluation of psw
Performance evaluation of PSW
  • BLAST (Blosum 62)
  • SSEARCH
    • Native SW
    • Blosum 45
    • default gap weighting fxn
  • PSW
    • Blosum 45
    • Same weighing fxn as SSEARCH
  • Search the Swissprot protein database
  • Query: from well known protein family and domains
slide18
Typically 50-90% true positives retrieved for a single query sequence
  • % True positives affected by
    • Divergence of sequence family
    • Stringency of significant criterion applied
  • Stringency of criterion determined by fixing thenumber of false positives accepted
    • Not appropriate if the status of sequences is not known in advance
comparison

5%

9%

14%

14%

26%

33%

54%

54%

53%

Comparison

Equivalent performance of SSEARCH and PSW on GPC receptors, SH2-domain, SH3-domain

comparison ii
Comparison II
  • Improved or equivalent performance of PSW over native SW
  • PSW is specially more sensitive for stringent criterion
summary
Summary
  • Pairwise sequence alignments can be improved by interpreting a scoring system as a probabilistic model
  • Probabilistic interpretation gives higher sensitivity
  • Log-likelihood ratio eliminates scoring bias due to sequence length or choice of the scoring matrix
  • Facilitates optimization of gap weighting matrices
advantages of psw
Advantages of PSW
  • No assumption about evolutionary relatedness is made
  • Therefore, any scoring matrix can be used
