  1. MMS – Multimedia Messaging Service Ville Partanen Markus Kujala

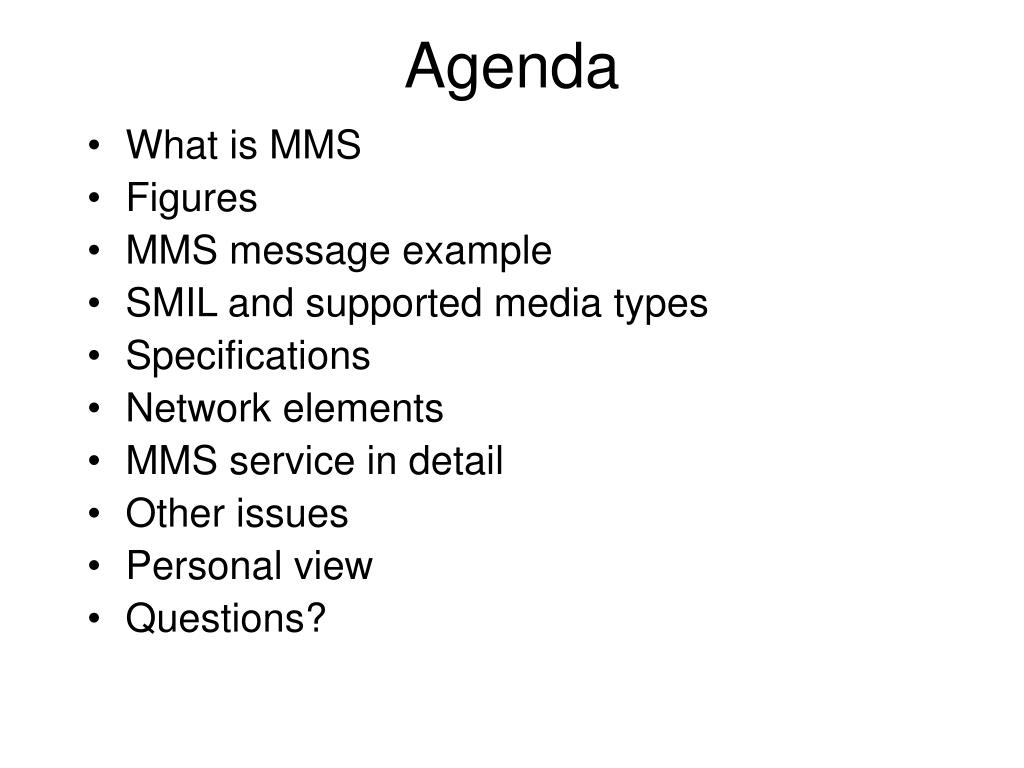

  2. Agenda • What is MMS • Figures • MMS message example • SMIL and supported media types • Specifications • Network elements • MMS service in detail • Other issues • Personal view • Questions?

  3. What is MMS (1/2) • In short: ”A method to send voice, pictures, text and video from phone/ computer to phone/computer” • Virtually all new phones have the capabity to send MMS messages. (For example all Nokia phones starting from the new 3000 model series) • In order to send MMS messages the user has to configure GPRS (or other data channel) settings to his/her phone

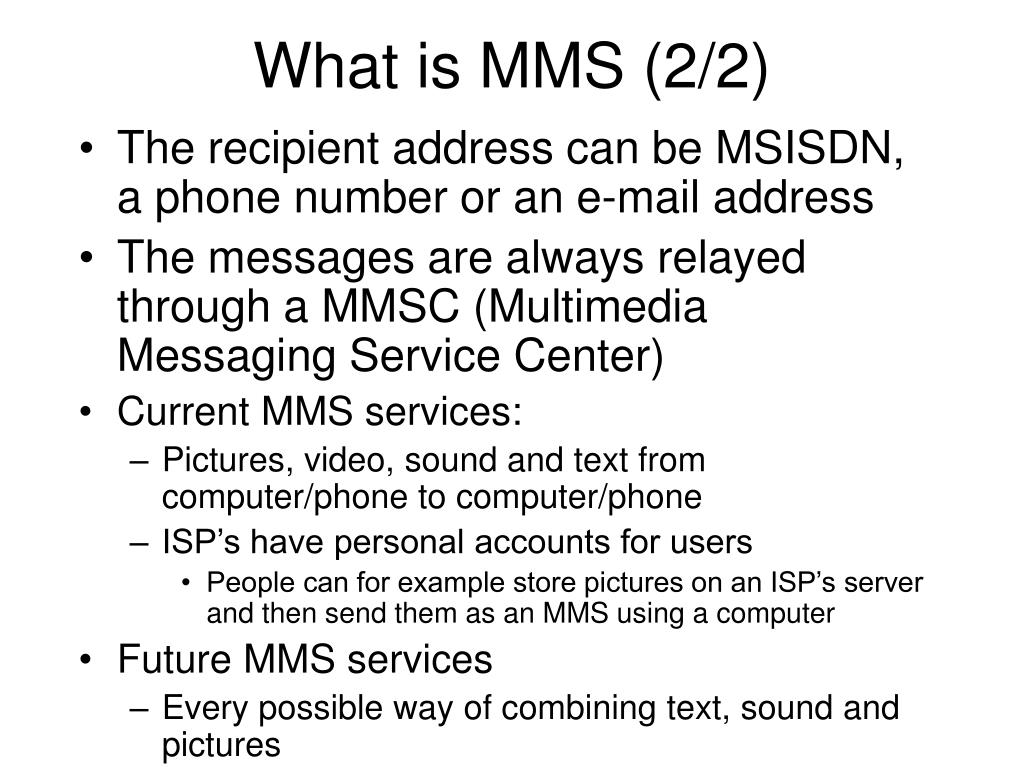

  4. What is MMS (2/2) • The recipient address can be MSISDN, a phone number or an e-mail address • The messages are always relayed through a MMSC (Multimedia Messaging Service Center) • Current MMS services: • Pictures, video, sound and text from computer/phone to computer/phone • ISP’s have personal accounts for users • People can for example store pictures on an ISP’s server and then send them as an MMS using a computer • Future MMS services • Every possible way of combining text, sound and pictures

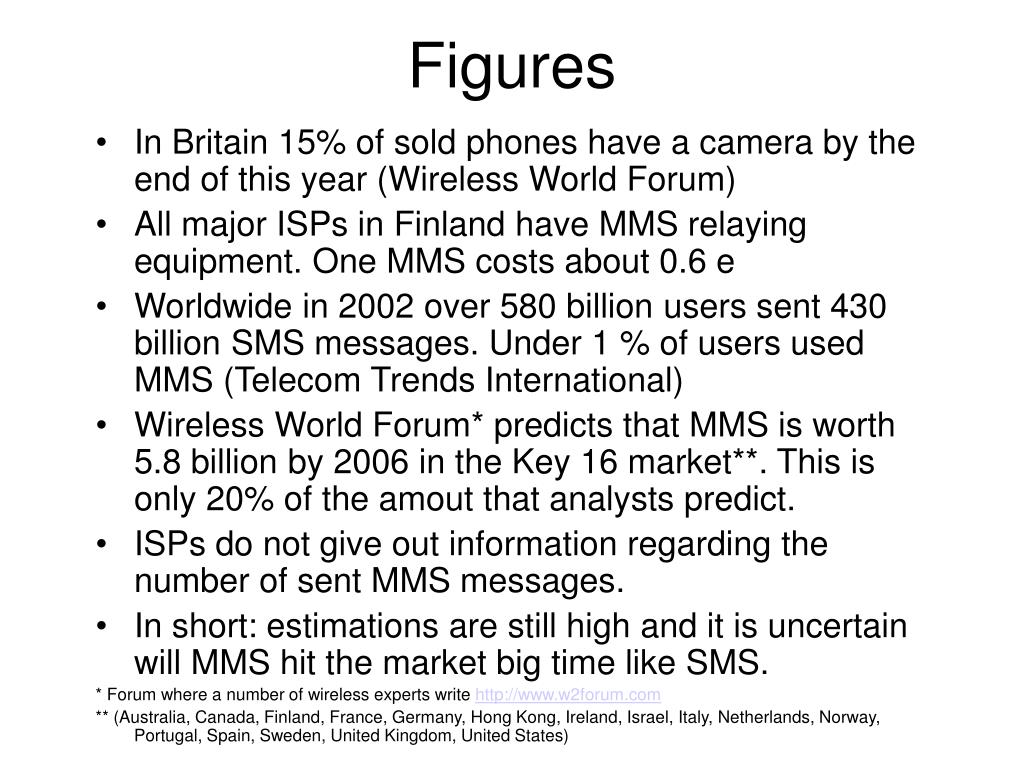

  5. Figures • In Britain 15% of sold phones have a camera by the end of this year (Wireless World Forum) • All major ISPs in Finland have MMS relaying equipment. One MMS costs about 0.6 e • Worldwide in 2002 over 580 billion users sent 430 billion SMS messages. Under 1 % of users used MMS (Telecom Trends International) • Wireless World Forum* predicts that MMS is worth 5.8 billion by 2006 in the Key 16 market**. This is only 20% of the amout that analysts predict. • ISPs do not give out information regarding the number of sent MMS messages. • In short: estimations are still high and it is uncertain will MMS hit the market big time like SMS. * Forum where a number of wireless experts write http://www.w2forum.com ** (Australia, Canada, Finland, France, Germany, Hong Kong, Ireland, Israel, Italy, Netherlands, Norway, Portugal, Spain, Sweden, United Kingdom, United States)

  6. SMIL and supported media types • SMIL = Synchronized Multimedia Integration Language • HTML-like language with timing capabilites • SMIL defines when and where different MMS message elements (i.e text, audio) are presented • First phones offer only limited SMIL • Altenatives for example XHTML, but it does not support timing • Conclusion: SMIL must be supported in the future. To help this there are already documents concerning SMIL+XHTML • Supported media types: • Picture: JPEG, GIF, WBMP • Text: UTF-8/16 • Speech: AMR (Adaptive Multi-Rate) • Personal information Management: vCalendar and vCard

  7. MMS example (1/4)

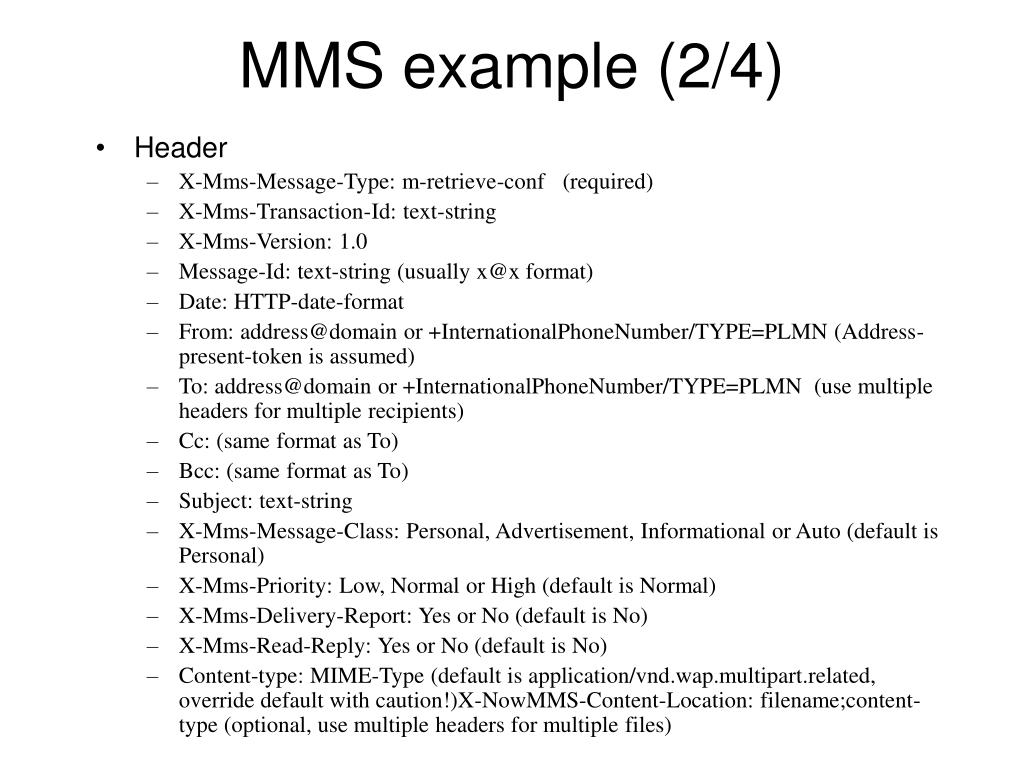

  8. MMS example (2/4) • Header • X-Mms-Message-Type: m-retrieve-conf (required) • X-Mms-Transaction-Id: text-string • X-Mms-Version: 1.0 • Message-Id: text-string (usually x@x format) • Date: HTTP-date-format • From: address@domain or +InternationalPhoneNumber/TYPE=PLMN (Address-present-token is assumed) • To: address@domain or +InternationalPhoneNumber/TYPE=PLMN (use multiple headers for multiple recipients) • Cc: (same format as To) • Bcc: (same format as To) • Subject: text-string • X-Mms-Message-Class: Personal, Advertisement, Informational or Auto (default is Personal) • X-Mms-Priority: Low, Normal or High (default is Normal) • X-Mms-Delivery-Report: Yes or No (default is No) • X-Mms-Read-Reply: Yes or No (default is No) • Content-type: MIME-Type (default is application/vnd.wap.multipart.related, override default with caution!)X-NowMMS-Content-Location: filename;content-type (optional, use multiple headers for multiple files)

  9. MMS example (3/4) • SMIL part <?XML version="1.0" ?> <!DOCTYPE SMIL PUBLIC "-//W3C//DTD SMIL 2.0 Basic//EN" "http://www.w3.org/TR/REC-smil/2000/SMIL20Basic.dtd"> <smil> <head> <layout> <!-- This is a "landscape" screen --> <root-layout width="352" height="144"/> <region id="Image" width="176" height="144" left="0" top="0"/> <region id="Text" width="176" height="144" left="176" top="0"/> </layout> </head> <body> <par dur="8s"> <img src="FirstImage.jpg" region="Image" alt="First image" begin="1s" end="6s"/> <text src="FirstText.txt" region="Text"/> <audio/> </par> </body> </smil>

  10. MMS example (4/4) • <smil>: smil part • <par>: parallel -- happens in parallel. The par-tag can have dur=” XXms” as an attribute • <exce>: only one can be selected, a button for example (not shown here) • <seq>: elements played in a sequence (not shown here)

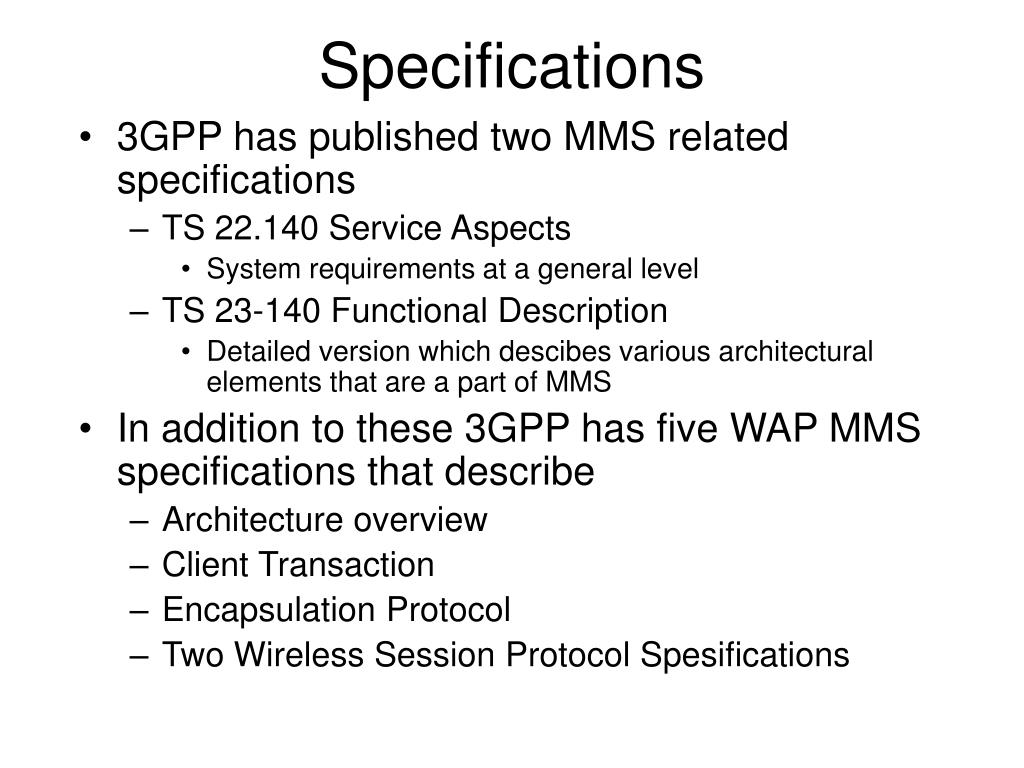

  11. Specifications • 3GPP has published two MMS related specifications • TS 22.140 Service Aspects • System requirements at a general level • TS 23-140 Functional Description • Detailed version which descibes various architectural elements that are a part of MMS • In addition to these 3GPP has five WAP MMS specifications that describe • Architecture overview • Client Transaction • Encapsulation Protocol • Two Wireless Session Protocol Spesifications

  12. Network elements (1/2)

  13. Network elements (2/2) • E-mail Server/Gateway • MMS to E-mail • Legacy support • Server where to store the message before user fetches it • Subscriber database • Helps MMSC to decide what content to deliver • Content server • If a user’s mobile phone does not support sent media, content server converts it • Voicemail • Voice can be encapsulated to MMS messages • Foreign MMSC • Must be used when MMS is sent to other carrier’s network • These are just the basic elements, the future will show us many more

  14. MMS service in detail • Originator addresses a message • Mobile device contains information about MMSC and initializes a connection and sends the message • MMSC accepts the message • MMSC sends the message to the receiver • The receiver gets information about the message from MMSC • Receiver can decide when to get the message • MMS message in sent to the user • Receiver acknowledges the message • MMSC informs the originator that the message was delivered

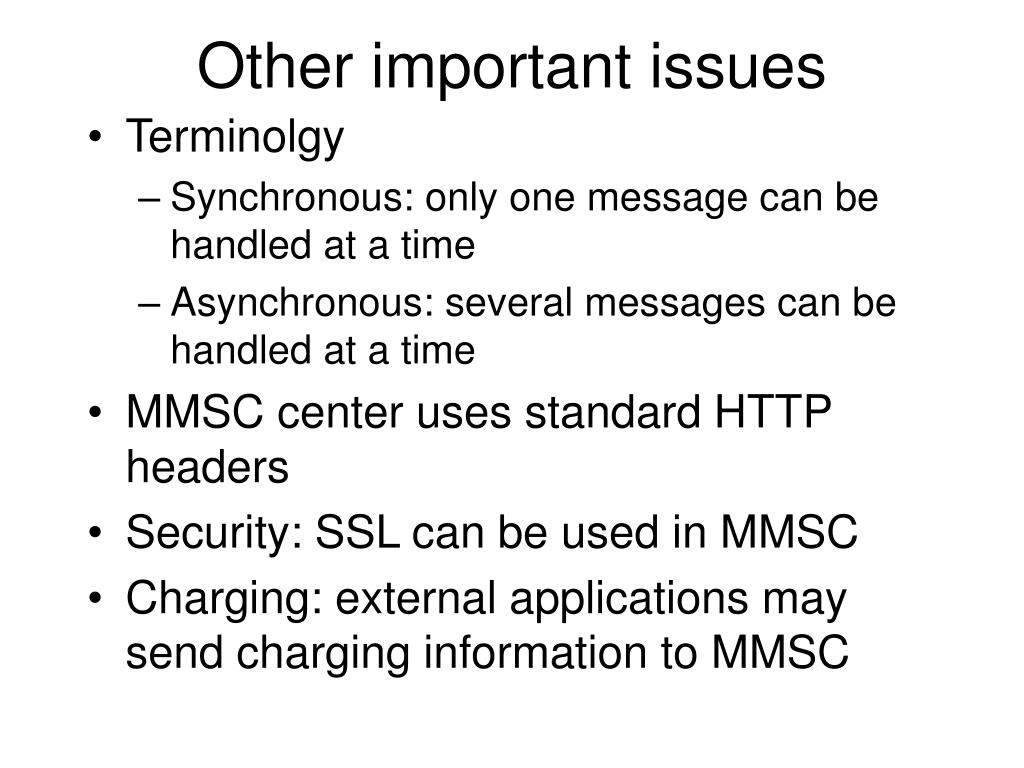

  15. Other important issues • Terminolgy • Synchronous: only one message can be handled at a time • Asynchronous: several messages can be handled at a time • MMSC center uses standard HTTP headers • Security: SSL can be used in MMSC • Charging: external applications may send charging information to MMSC

  16. Personal view • MMS looks like a killer application, but it will not ”kill” until the price is reasonable • MMS will definately belong to the future of mobile communication • Streaming and MMS could offer big revenues

  17. Questions? • Thank you!

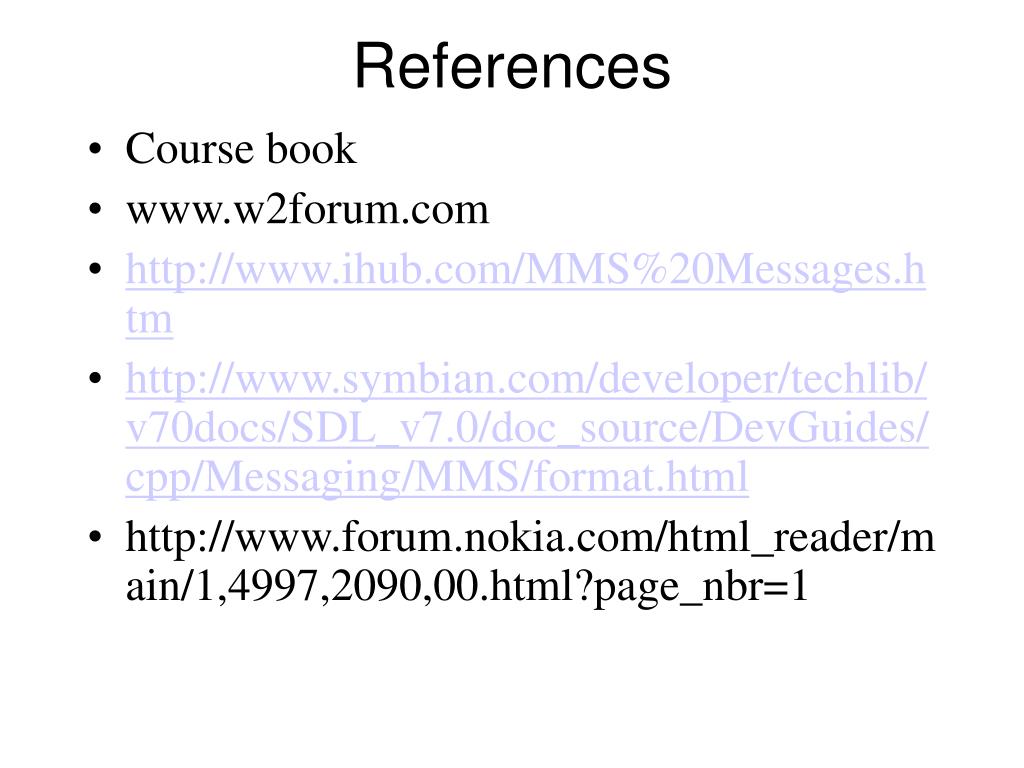

  18. References • Course book • www.w2forum.com • http://www.ihub.com/MMS%20Messages.htm • http://www.symbian.com/developer/techlib/v70docs/SDL_v7.0/doc_source/DevGuides/cpp/Messaging/MMS/format.html • http://www.forum.nokia.com/html_reader/main/1,4997,2090,00.html?page_nbr=1
