1. Communicating Ideas

2. Small RAM e.g., chimpanzee Large (but not infinite) ROM e.g., stack of instruction cards Computing With Limited Memory

3. Each instruction: Examine a specific input bit . Based on current state, lookup next state. Computing With Limited Memory mstates (log2 m bits memory) nBoolean inputs Assume n much greater than m

4. x2=0, current = S2 current next 0 0 1 1 Computing With Limited Memory

5. ? Compute Computing With Limited Memory

6. Representation of Boolean Functions Example: 0 0 0 0 Disjunctive Normal Form (canonical): 0 0 1 0 0 1 0 0 0 1 1 1 Sum of Products (not unique): 1 0 0 0 1 0 1 1 1 1 0 0 1 1 1 1

7. 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 1 1 0 0 0 1 0 1 1 1 1 0 0 1 1 1 1 Representation of Boolean Functions Example: XOR of AND terms: unique?

8. 0 1 0 0 0 0 0 0 1 0 0 1 0 0 0 1 0 1 0 1 1 1 1 0 0 0 0 1 0 1 0 1 0 1 1 0 1 1 1 1 0 0 1 1 1 1 0 0 0 1 0 1 0 1 Ordered Binary Decision Diagrams Example: Directed Acyclic Graph; variables are inspected in order.

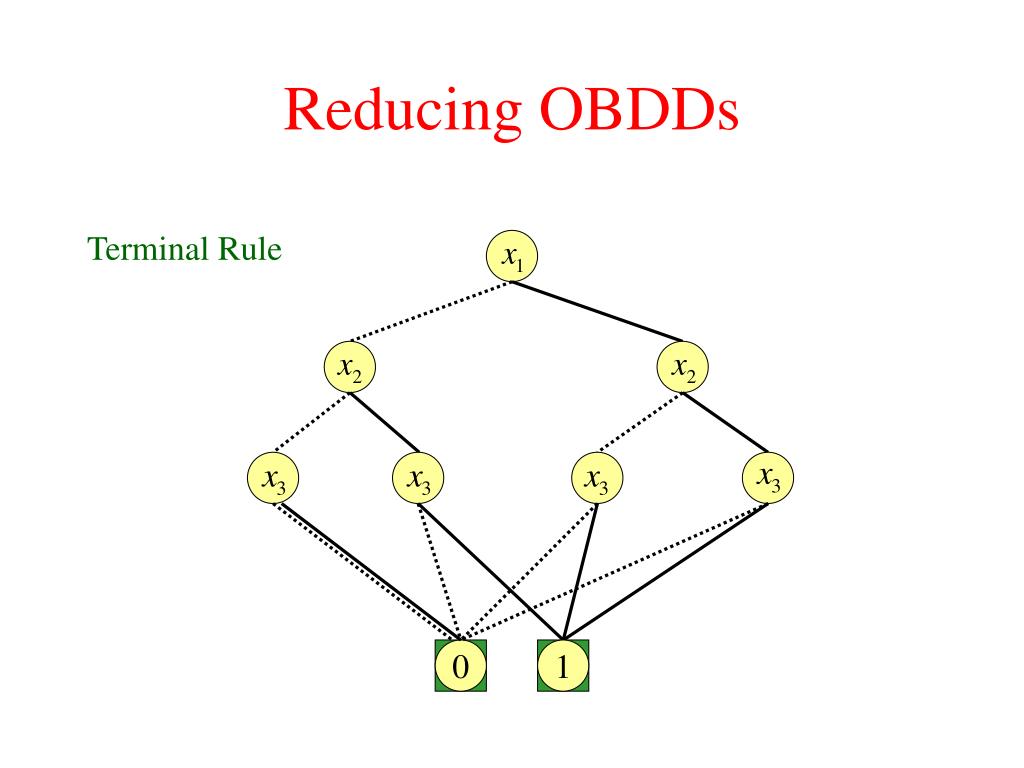

9. 0 0 0 1 0 1 0 1 Reducing OBDDs Terminal Rule

10. 0 1 Reducing OBDDs Terminal Rule

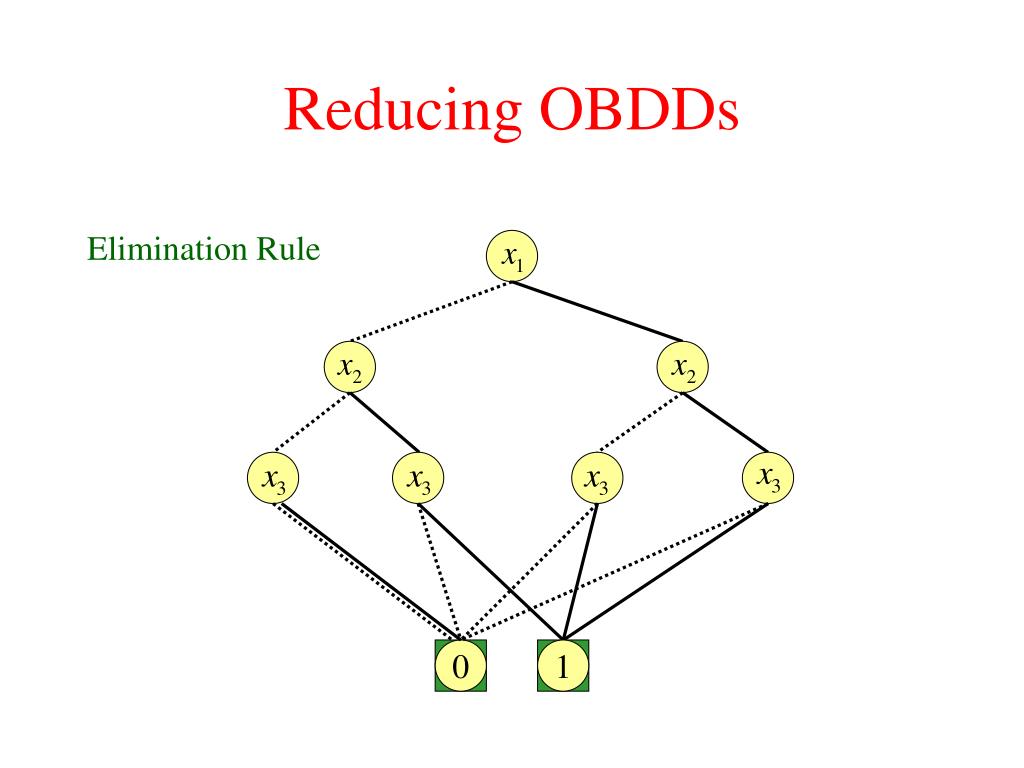

11. 0 1 Reducing OBDDs Elimination Rule

12. 0 1 Reducing OBDDs Elimination Rule

13. 0 1 Reducing OBDDs Merging Rule

14. Reducing OBDDs Merging Rule 0 1

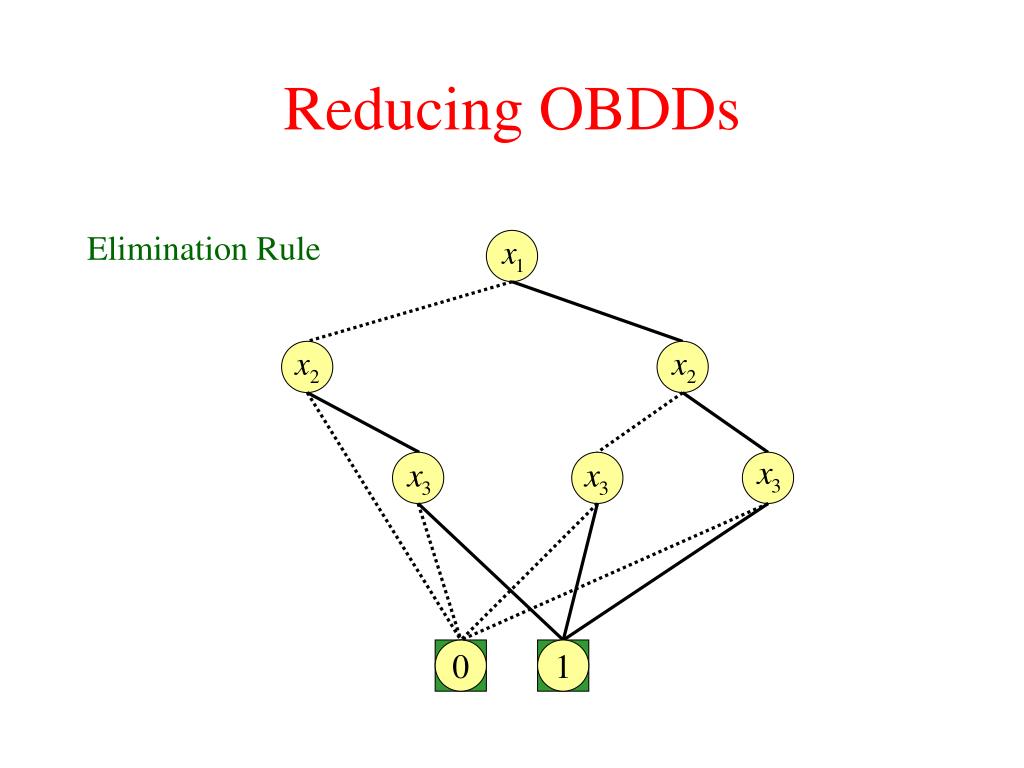

15. 0 1 Reducing OBDDs Elimination Rule

16. 0 1 Reducing OBDDs Elimination Rule

17. Binary Decision Diagrams 0 1 0 1 0 1

18. Binary Decision Diagrams 0 0 1 0 1 1 0 1 0 0 * * 1 0 1 1

19. Binary Decision Diagrams 0 1 0 1 0 1

20. Binary Decision Diagrams 0 1 0 1 0 1

21. Each instruction: Examine a specific input bit . Based on current state, lookup next state. Computing With Limited Memory mstates (log2 m bits memory) nBoolean inputs Assume n much greater than m

22. S 0 1 Fixed-Width BDD

23. Fixed-Width BDD S Irrelevant! 0 1

24. Fixed-Width BDD 1 2 3 4 S 0 1

25. 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 4 3 2 1 Fixed-Width BDD View each row as a pair ofpermutations.

26. Fixed-Width BDD 1 2 3 4 1 2 3 4 1 2 3 4 Restrict ourselves to cyclicpermutations. 1 2 3 4 4 3 2 1

27. Fixed-Width BDD 1 2 3 4 1 2 3 4 1 2 3 4 Restrict ourselves to cyclicpermutations. 1 2 3 4 4 3 1 2

28. Fixed-Width BDD 1 2 3 4 1 2 3 4 1 2 3 4 Restrict ourselves to cyclicpermutations. 1 2 3 4 4 3 1 2 1 4 2 3

29. Fixed-Width BDD 1 2 3 4 1 2 3 4 1 2 3 4 Restrict ourselves to cyclicpermutations. 1 2 3 4 4 3 1 2 (1 4 2 3)

30. 1 2 3 4 S then (1 2 3 4) then then (1 3 2 4) then then (1 4 2 3) then is identity permutation 0 1 Fixed-Width BDD

31. 1 2 3 4 S 0 1 Fixed-Width BDD

32. 1 2 3 4 5 S if (1 3 2 5 4) if 0 1 Fixed-Width BDD Say BDD “yields” (1 3 2 5 4).

33. Identity: a = a = a Inverse: a = (1 2 3 4), a-1=(4 3 2 1), a a-1 = Cyclic Permutations Composition: a b = (1 2 3 4 5)(1 4 2 3 5) = (1 3 2 5 4)

34. Cyclic Permutations Transformation: For cyclic permutations a and b, there exists a permutation such that: (Why?)

35. Cyclic Permutations Commutation: aba-1b-1 Consider a = (1 2 3 4 5), b = (1 3 5 4 2) Let S be the set of permutations obtained by taking commutations of pairs, starting with a and b.

36. Cyclic Permutations Example: a = (1 2 3 4 5), b = (1 3 5 4 2) aba-1b-1 = (1 2 3 4 5)(1 3 5 4 2)(5 4 3 2 1)(2 4 5 3 1) = (1 3 2 5 4) = c

37. Cyclic Permutations Example: a = (1 2 3 4 5), c = (1 3 2 5 4) aca-1c-1 = (1 2 3 4 5)(1 3 2 5 4)(5 4 3 2 1)(4 5 2 3 1) = (1 5 3 2 4) = d

38. Cyclic Permutations Commutation: aba-1b-1 Consider a = (1 2 3 4 5), b = (1 3 5 4 2) Let S be the set of permutations obtained by taking commutations of all pairs, starting with a and b. Sis a closed set under commutation (always inlcudes ). Such a set does not exist for cyclic permutations of length < 5. (How many elements does S contain?)

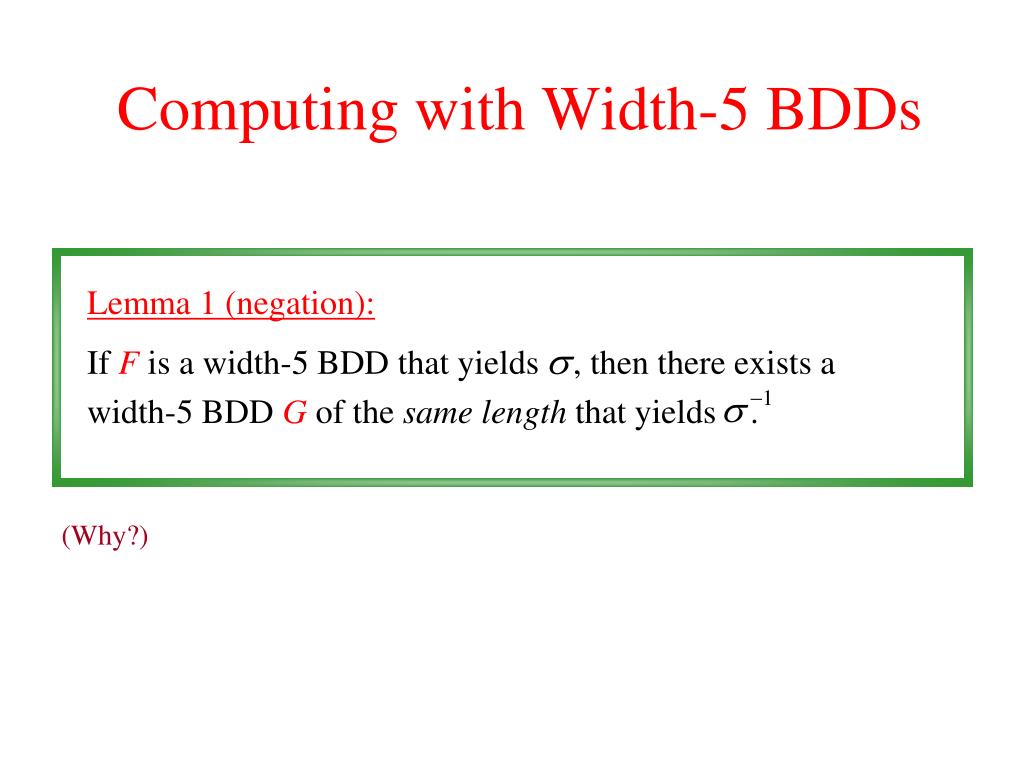

39. IfFisawidth-5 BDD that yields , then there exists a width-5 BDD G of the same length that yields . Computing with Width-5 BDDs Lemma 1 (negation): (Why?)

40. G is identical to F except in last instruction. If the last instruction of F is , then the last instruction of Gis . Computing with Width-5 BDDs Lemma 1 (negation):

41. For and in S, a width-5 BDD F that yields , can be transformed into a width-5 BDD Gof the same length that yields . Computing with Width-5 BDDs Lemma 2 (transformation): (How?)

42. Find such that . Changeeach instructionin F from to . Computing with Width-5 BDDs Lemma 2 (transformation):

43. When you don’t know the answer….

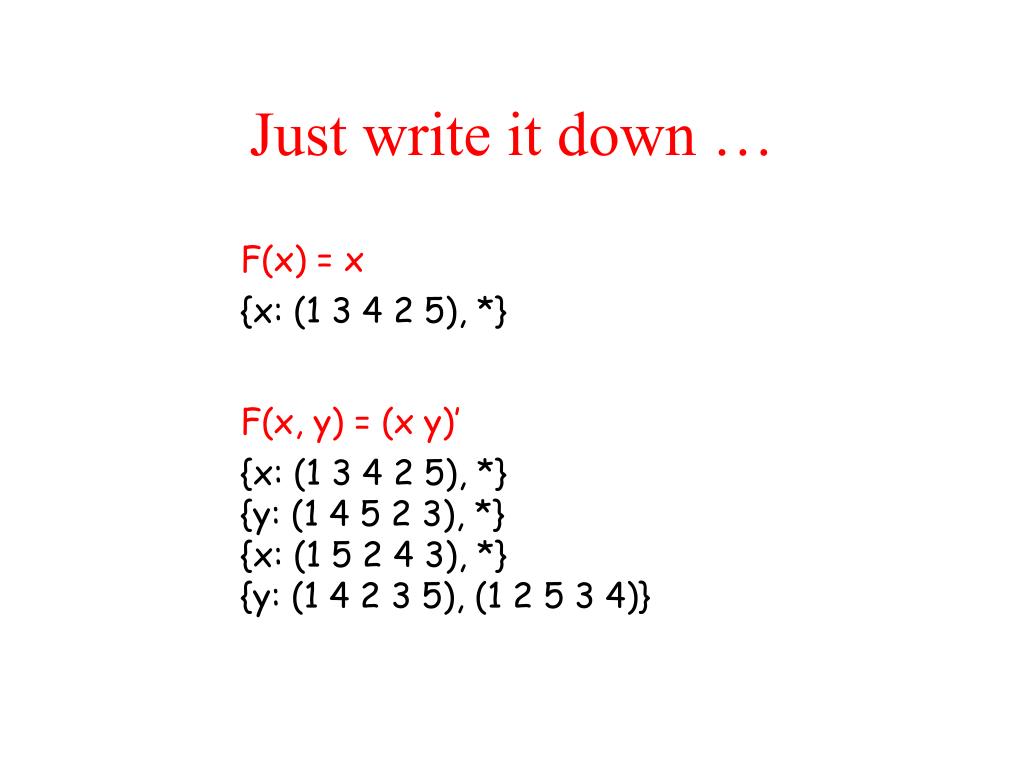

44. Just write it down … F(x) = x {x: (1 3 4 2 5), *} F(x, y) = x y {x: (1 3 4 2 5), *} {y: (1 4 5 2 3), *} {x: (1 5 2 4 3), *} {y: (1 3 2 5 4), *}  {x y : (1 4 3 5 2), *}

45. Just write it down … F(x) = x {x: (1 3 4 2 5), *} F(x, y) = (x y)’ {x: (1 3 4 2 5), *} {y: (1 4 5 2 3), *} {x: (1 5 2 4 3), *} {y: (1 3 2 5 4), *} {*: (1 2 5 3 4), (1 2 5 3 4)}  {(x y)’: (1 4 3 5 2), *}

46. Just write it down … F(x) = x {x: (1 3 4 2 5), *} F(x, y) = (x y)’ {x: (1 3 4 2 5), *} {y: (1 4 5 2 3), *} {x: (1 5 2 4 3), *} {y: (1 4 2 3 5), (1 2 5 3 4)}

47. Just write it down … A = (1 4 3 5 2) B = (1 4 5 2 3) C = (1 3 4 2 5) D = (1 2 4 5 3) E = (1 4 2 3 5) A = C B C' B' B = D C D' C' C = E D E' D' D = A E A' E' E = B A B' A' A' = B C B' C' B' = C D C' D' C' = D E D' E' D' = E A E' A' E' = A B A' B' A’ = (1 2 5 3 4) B’ = (1 3 2 5 4) C’ = (1 5 2 4 3) D’ = (1 3 5 4 2) E’ = (1 5 3 2 4)

48. F(x, y, z) = (x z)’ (x’y’)’ {(x z)’ (x’y’)’: A, *}

49. F(x, y, z) = (x z)’ (x’y’)’ {(x z)’: C, *} {(x’y’)’: B, *} {(x z)’: C’, *} {(x’y’)’: B’, *}
