  1. Linked Data Mashups:From Query to Visualization Dominic DiFranzo

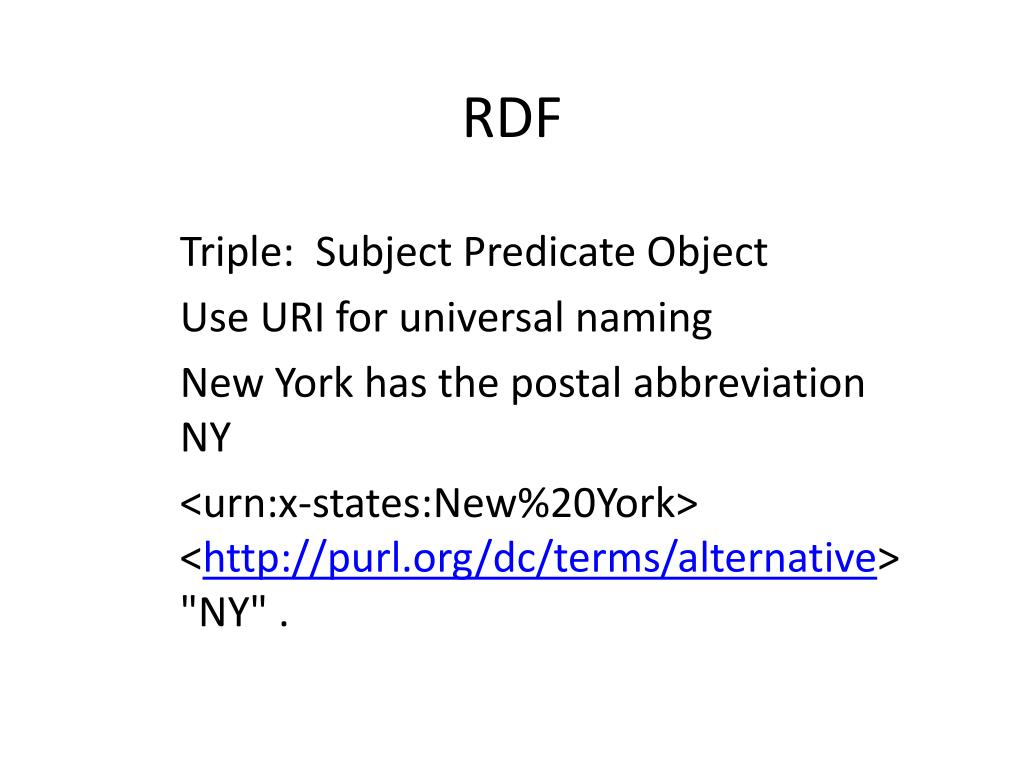

  2. RDF Triple: Subject Predicate Object Use URI for universal naming New York has the postal abbreviation NY <urn:x-states:New%20York> <http://purl.org/dc/terms/alternative> "NY" .

  3. Linking I found a new dataset and it has the following triple <http://dbpedia.org/page/New_York> <http://dbpedia.org/ontology/Place/otherName> “The Empire State” .

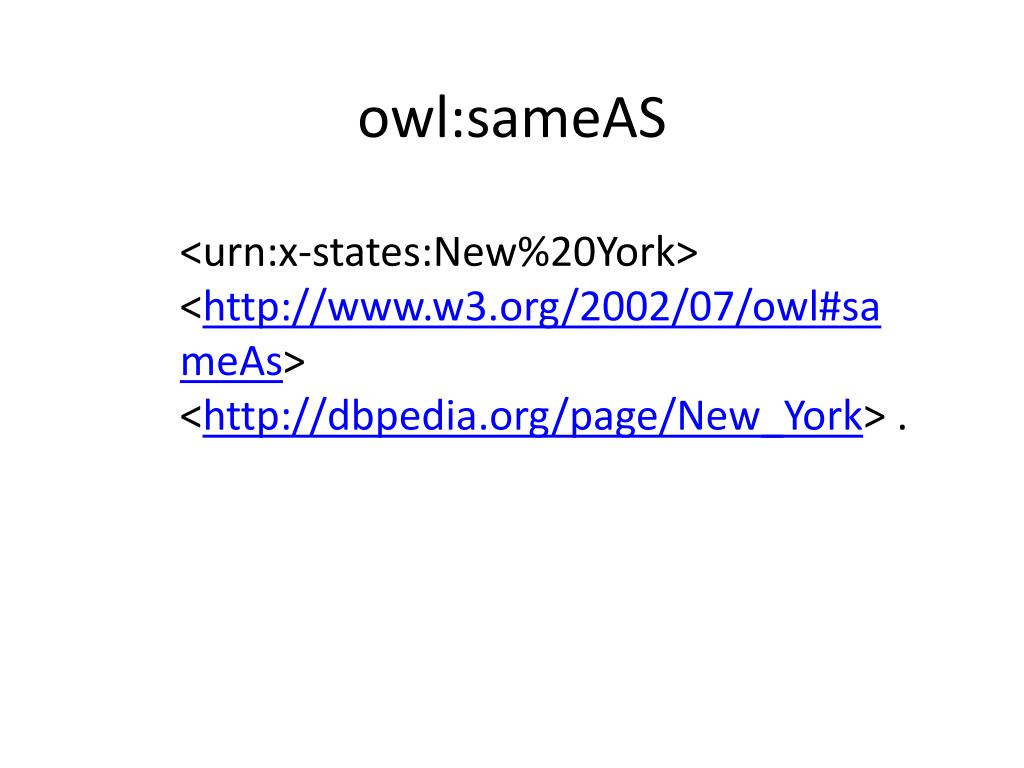

  4. owl:sameAS <urn:x-states:New%20York> <http://www.w3.org/2002/07/owl#sameAs> <http://dbpedia.org/page/New_York> .

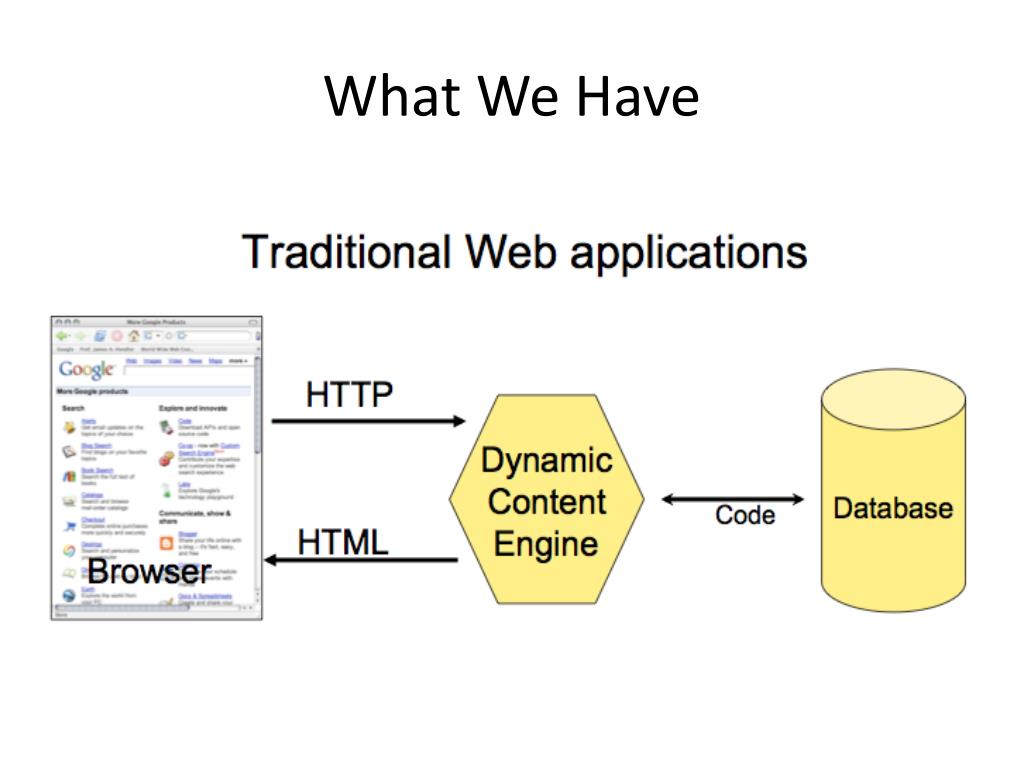

  5. What We Have

  6. Current Technology • Sunlight Foundation’s National Data Catalog, Socrata, Open311 API, and Microsoft’s Open Government Data Initiative, etc • Store in some backend, release data through an API.

  7. Challenges • Only ask what its built to answer • No standard - must relearn each time • Opaque - no way for consumers to see, reuse or improve the data model • Silos of Data - no linking at the data level • VeryTop Down

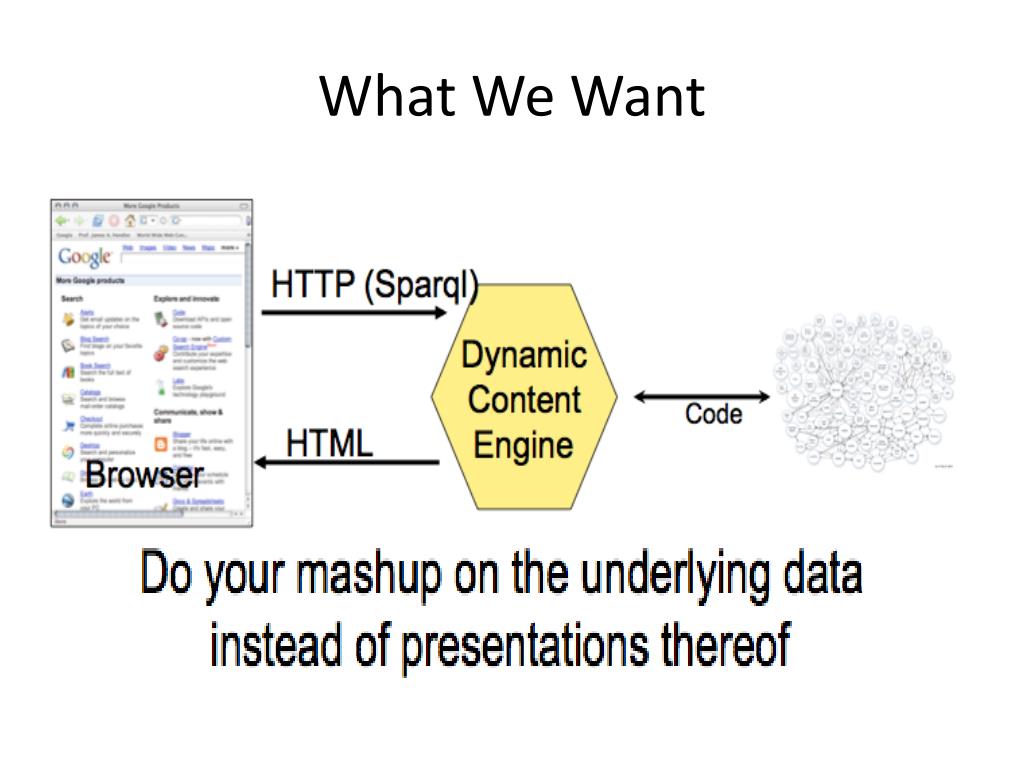

  8. What We Want

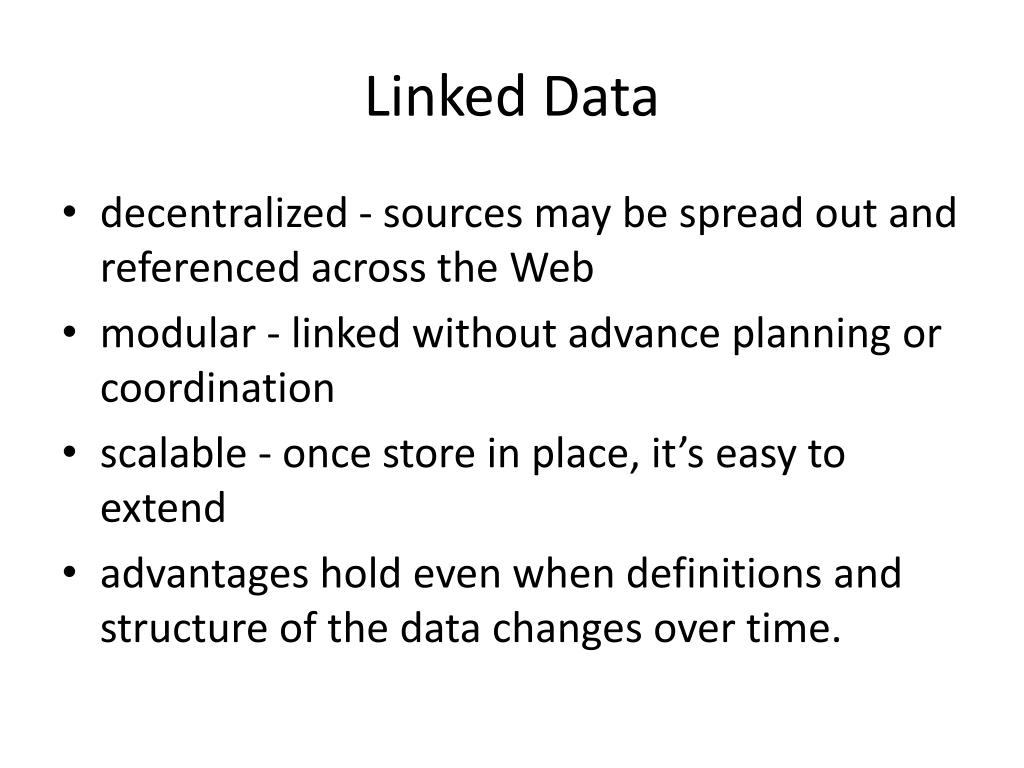

  9. Linked Data • decentralized - sources may be spread out and referenced across the Web • modular - linked without advance planning or coordination • scalable - once store in place, it’s easy to extend • advantages hold even when definitions and structure of the data changes over time.

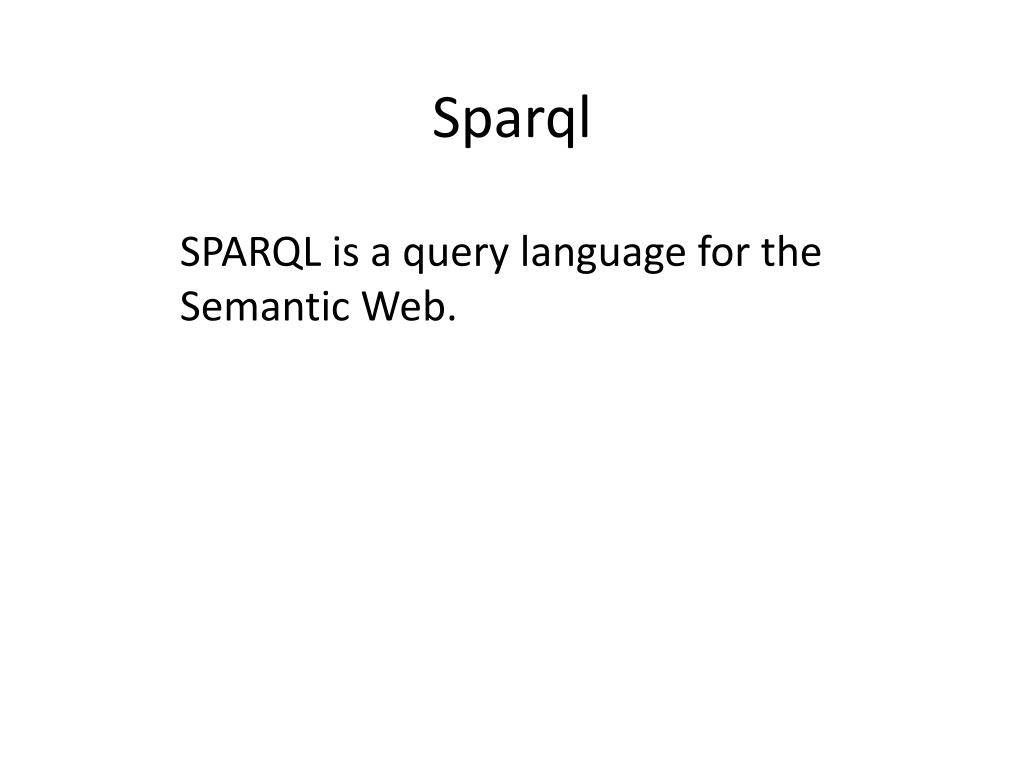

  10. Sparql SPARQL is a query language for the Semantic Web.

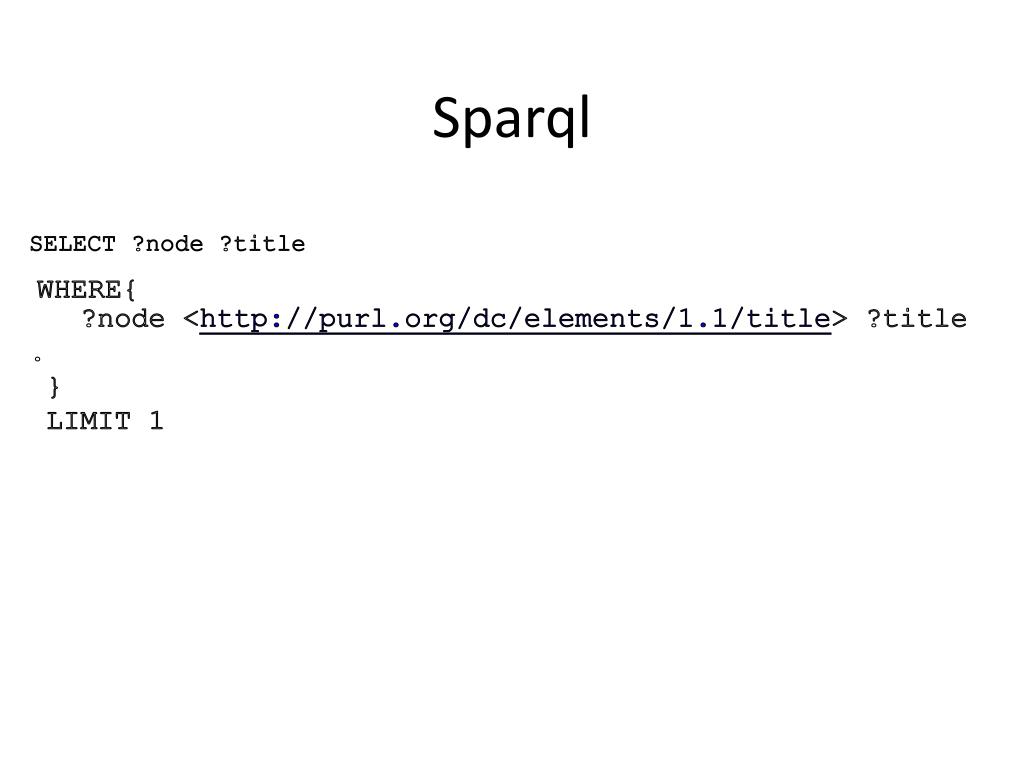

  11. Sparql SELECT ?node ?title WHERE{  ?node <http://purl.org/dc/elements/1.1/title> ?title . } LIMIT 1

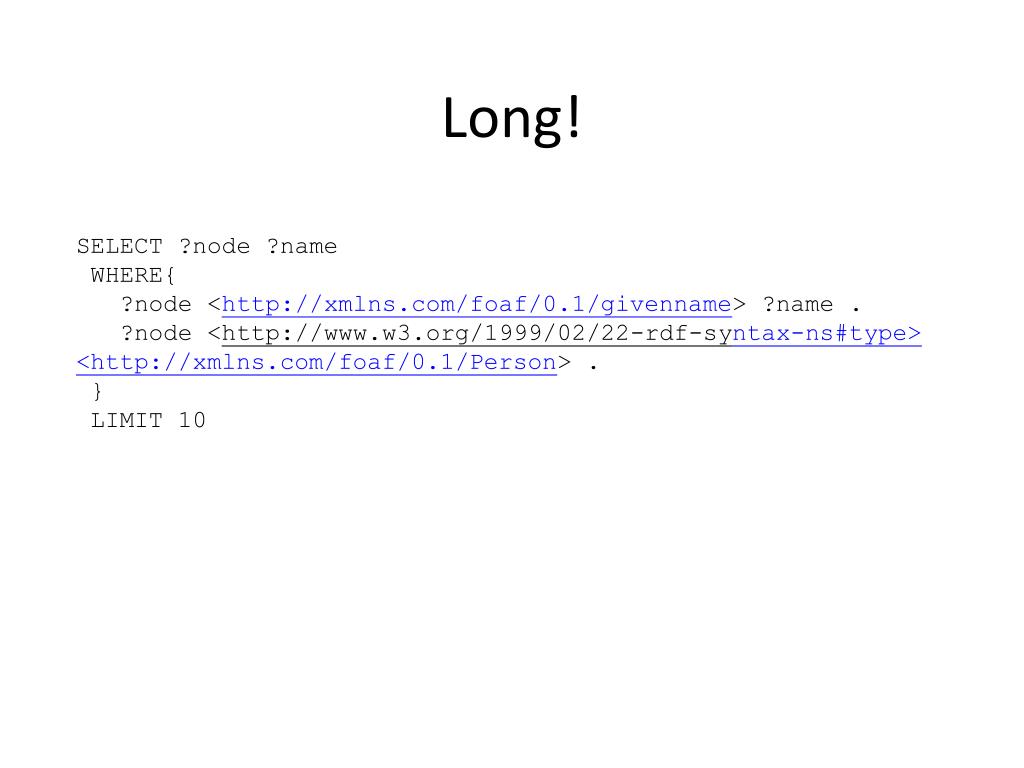

  12. Long! SELECT ?node ?name WHERE{  ?node <http://xmlns.com/foaf/0.1/givenname> ?name .  ?node <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://xmlns.com/foaf/0.1/Person> . } LIMIT 10

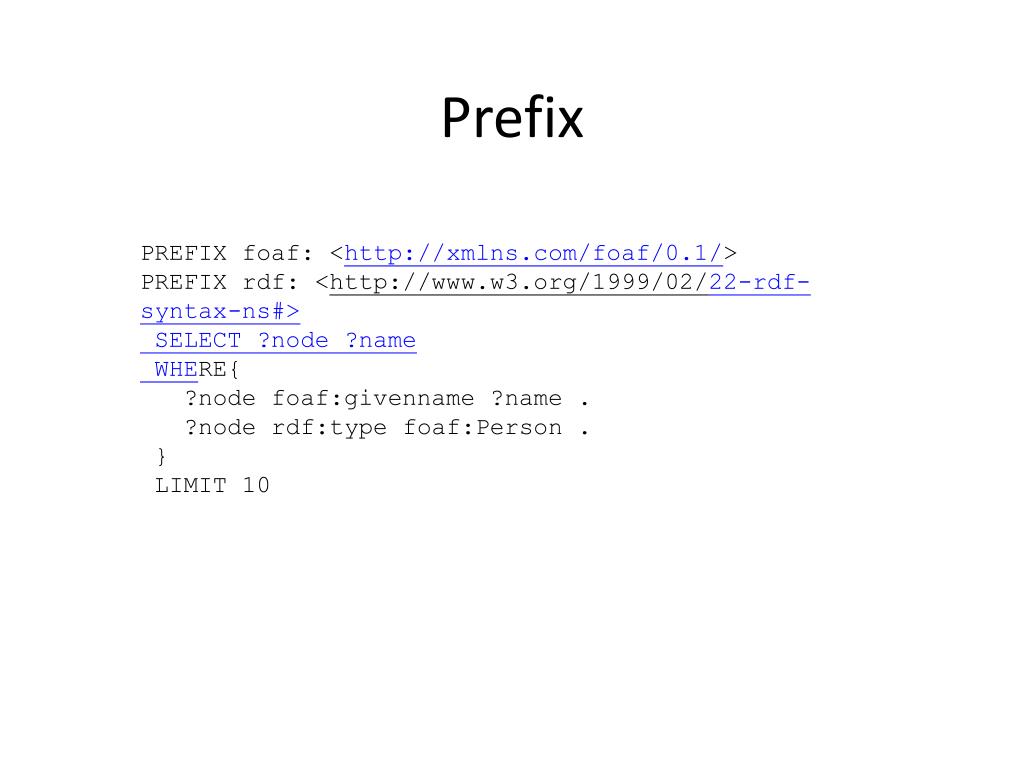

  13. Prefix PREFIX foaf: <http://xmlns.com/foaf/0.1/> PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> SELECT ?node ?name WHERE{  ?node foaf:givenname ?name .  ?node rdf:typefoaf:Person . } LIMIT 10

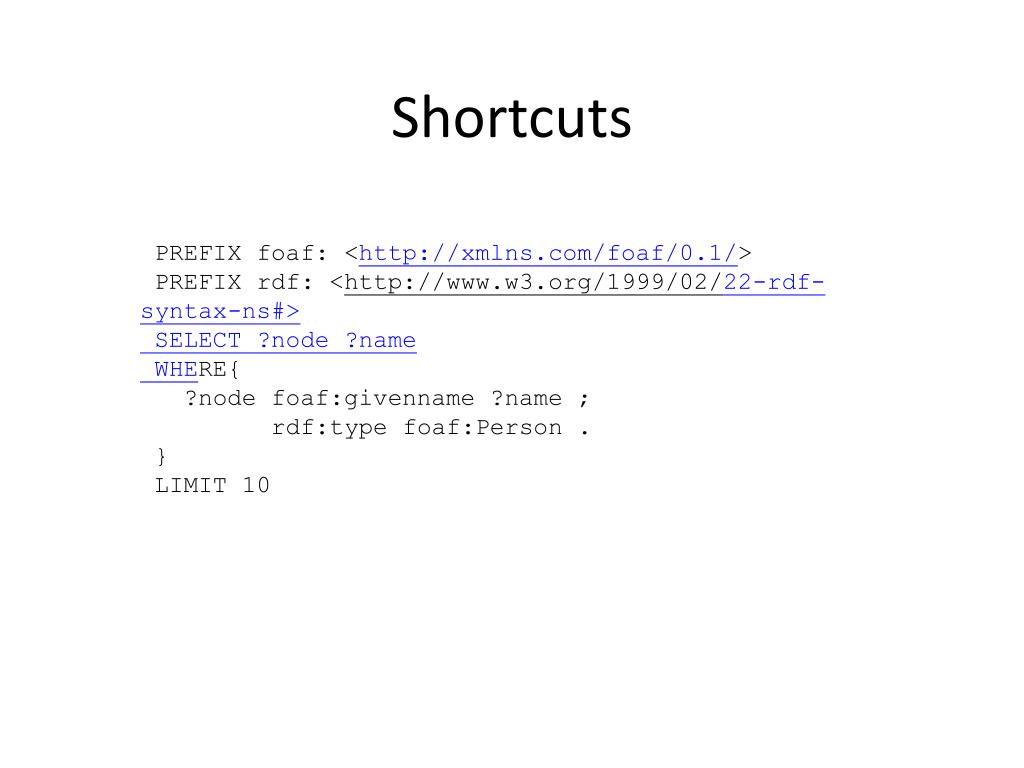

  14. Shortcuts PREFIX foaf: <http://xmlns.com/foaf/0.1/> PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> SELECT ?node ?name WHERE{  ?node foaf:givenname ?name ; rdf:typefoaf:Person . } LIMIT 10

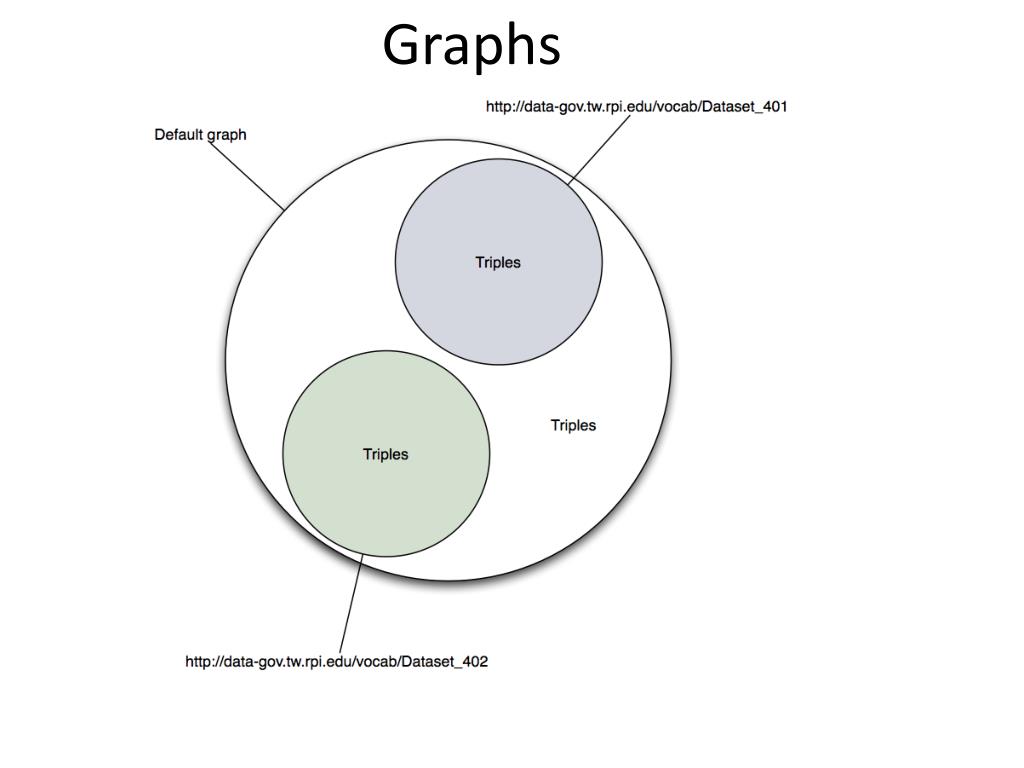

  15. Graphs

  16. Named Graph PREFIX dc: <http://purl.org/dc/elements/1.1/> SELECT ?graph ?node ?title WHERE{ GRAPH ?graph{  ?node dc:title ?title . } } LIMIT 3

  17. Named Graph PREFIX dc: <http://purl.org/dc/elements/1.1/> SELECT  ?node8 ?desc8 ?node401 ?desc401 WHERE{ GRAPH <http://data-gov.tw.rpi.edu/vocab/Dataset_401>{  ?node401 dc:description ?desc401 . } GRAPH <http://data-gov.tw.rpi.edu/vocab/Dataset_8>{  ?node8 dc:description ?desc8 . } } LIMIT 3

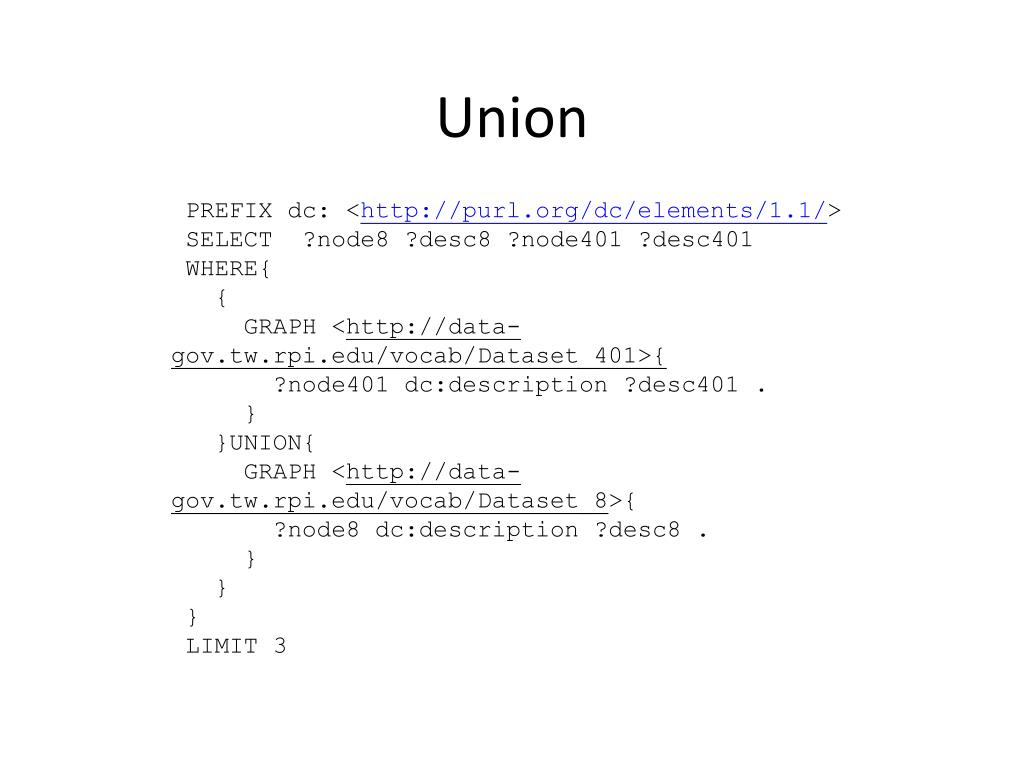

  18. Union PREFIX dc: <http://purl.org/dc/elements/1.1/> SELECT  ?node8 ?desc8 ?node401 ?desc401 WHERE{ { GRAPH <http://data-gov.tw.rpi.edu/vocab/Dataset_401>{  ?node401 dc:description ?desc401 . } }UNION{ GRAPH <http://data-gov.tw.rpi.edu/vocab/Dataset_8>{  ?node8 dc:description ?desc8 . } } } LIMIT 3

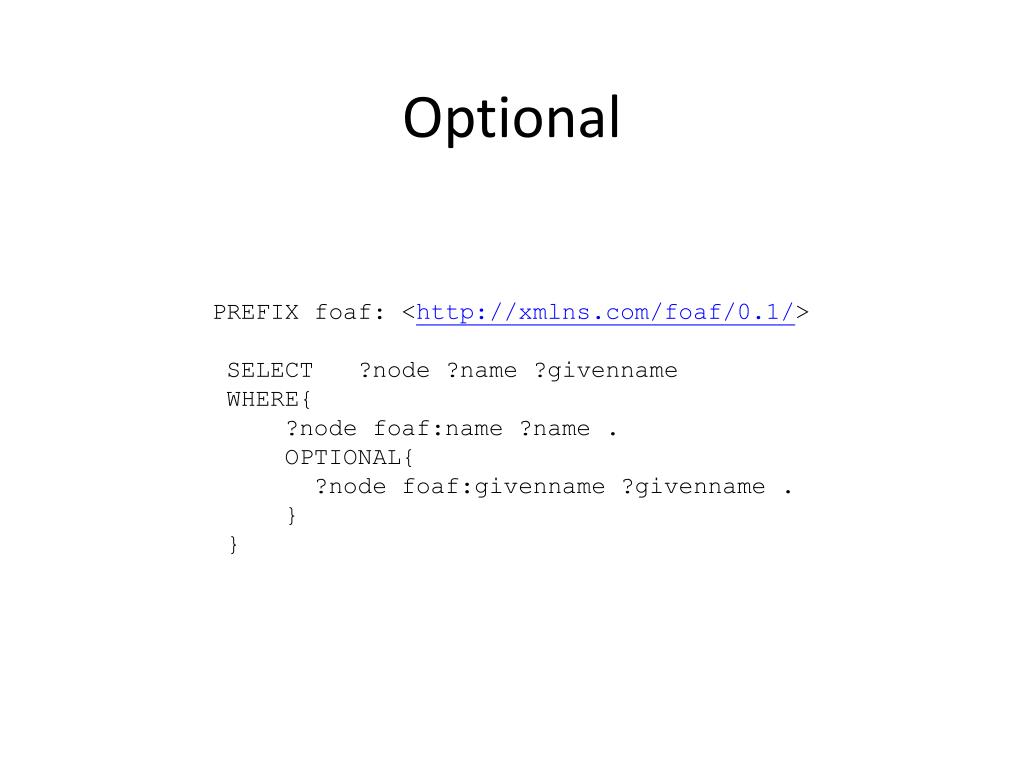

  19. Optional PREFIX foaf: <http://xmlns.com/foaf/0.1/> SELECT  ?node ?name ?givenname WHERE{  ?node foaf:name ?name . OPTIONAL{  ?node foaf:givenname ?givenname . } }

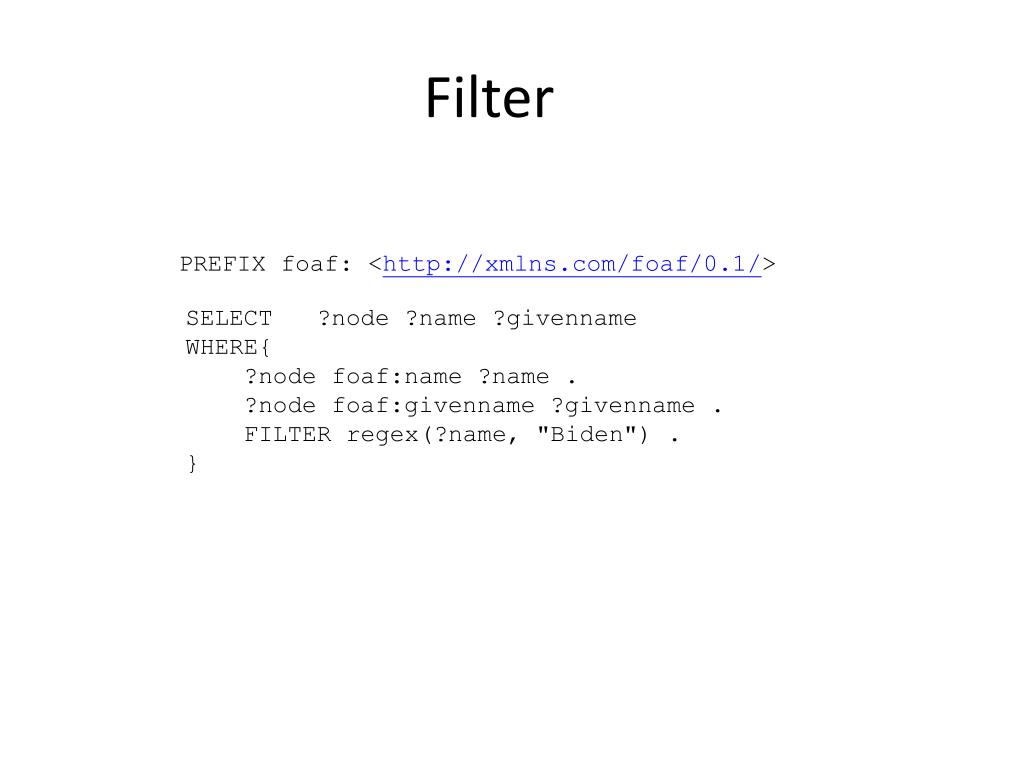

  20. Filter PREFIX foaf: <http://xmlns.com/foaf/0.1/> SELECT  ?node ?name ?givenname WHERE{  ?node foaf:name ?name .  ?node foaf:givenname ?givenname . FILTER regex(?name, "Biden") . }

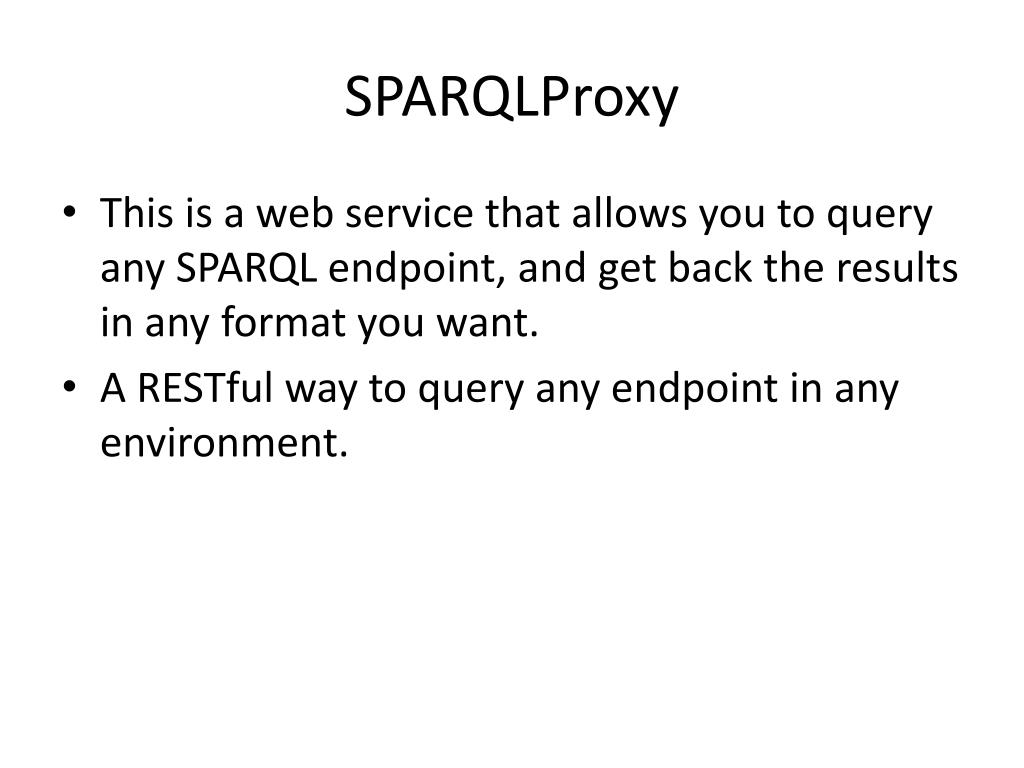

  21. SPARQLProxy • This is a web service that allows you to query any SPARQL endpoint, and get back the results in any format you want. • A RESTful way to query any endpoint in any environment.

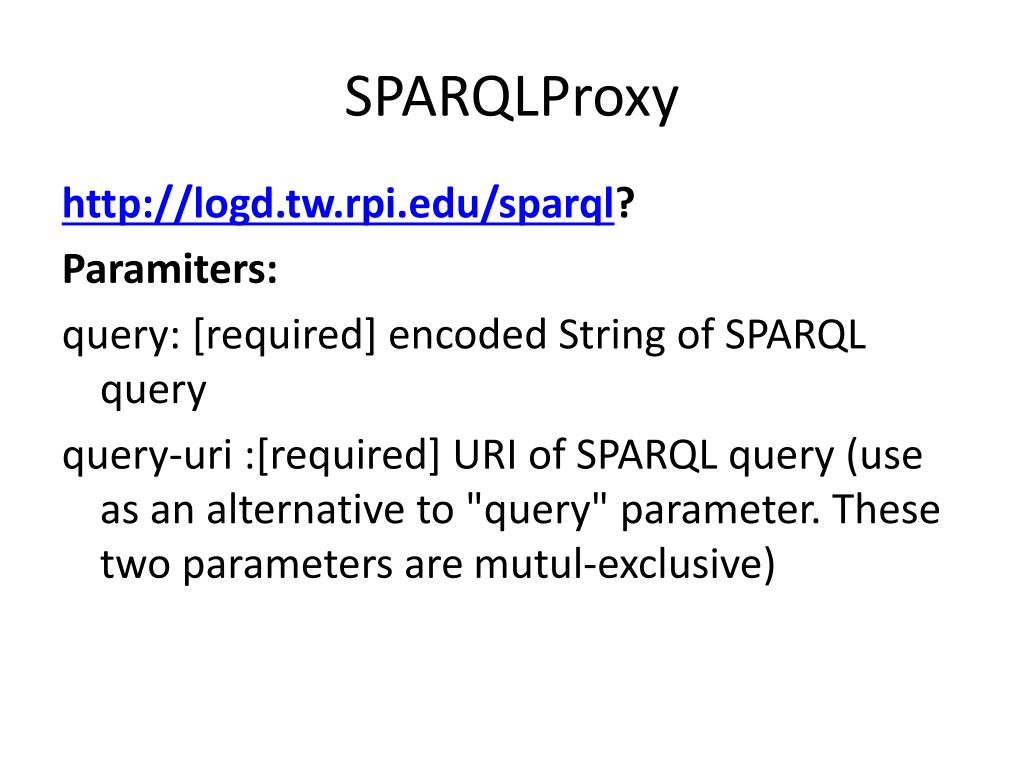

  22. SPARQLProxy http://logd.tw.rpi.edu/sparql? Paramiters: query: [required] encoded String of SPARQL query query-uri :[required] URI of SPARQL query (use as an alternative to "query" parameter. These two parameters are mutul-exclusive)

  23. SPARQLProxy service-uri: [required] URI of SPARQL Endpoint – default is the LOGD endpoint output: output format. ''xml'' - SPARQL/XML (default) : ''exhibit'' - JSON for MIT Exhibit : ''gvds'' - JSON for Google Visualization : ''csv'' - CSV : ''html'' - HTML table : “sparql” - SPARQL JSON

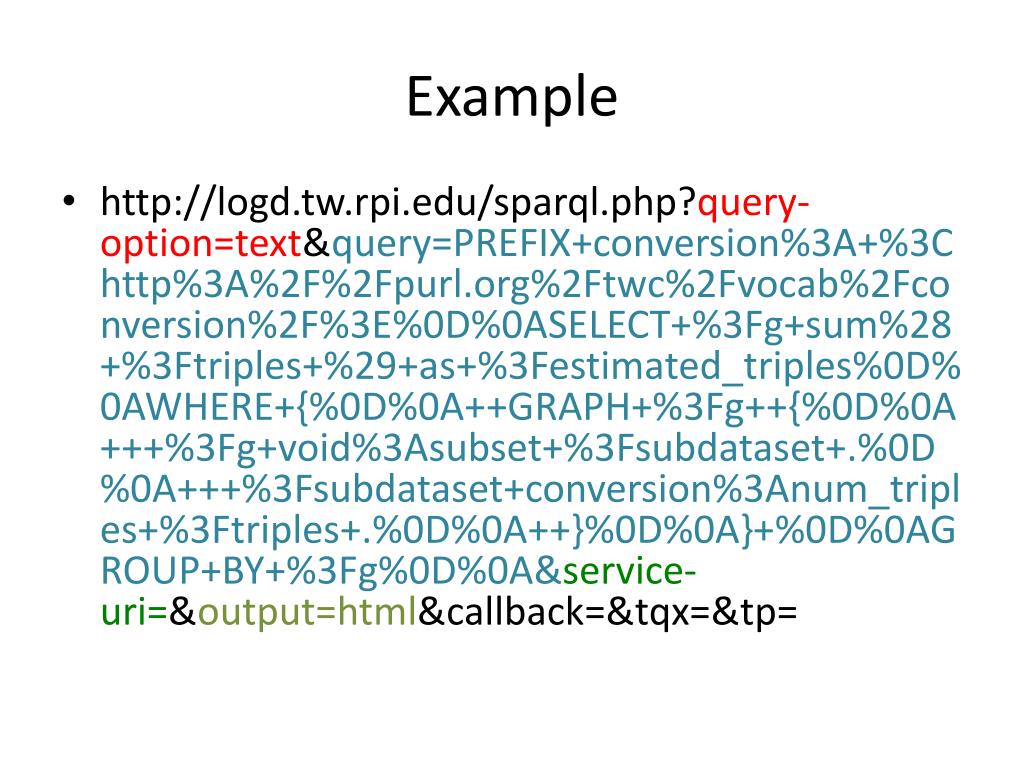

  24. Example • http://logd.tw.rpi.edu/sparql.php?query-option=text&query=PREFIX+conversion%3A+%3Chttp%3A%2F%2Fpurl.org%2Ftwc%2Fvocab%2Fconversion%2F%3E%0D%0ASELECT+%3Fg+sum%28+%3Ftriples+%29+as+%3Festimated_triples%0D%0AWHERE+{%0D%0A++GRAPH+%3Fg++{%0D%0A+++%3Fg+void%3Asubset+%3Fsubdataset+.%0D%0A+++%3Fsubdataset+conversion%3Anum_triples+%3Ftriples+.%0D%0A++}%0D%0A}+%0D%0AGROUP+BY+%3Fg%0D%0A&service-uri=&output=html&callback=&tqx=&tp=

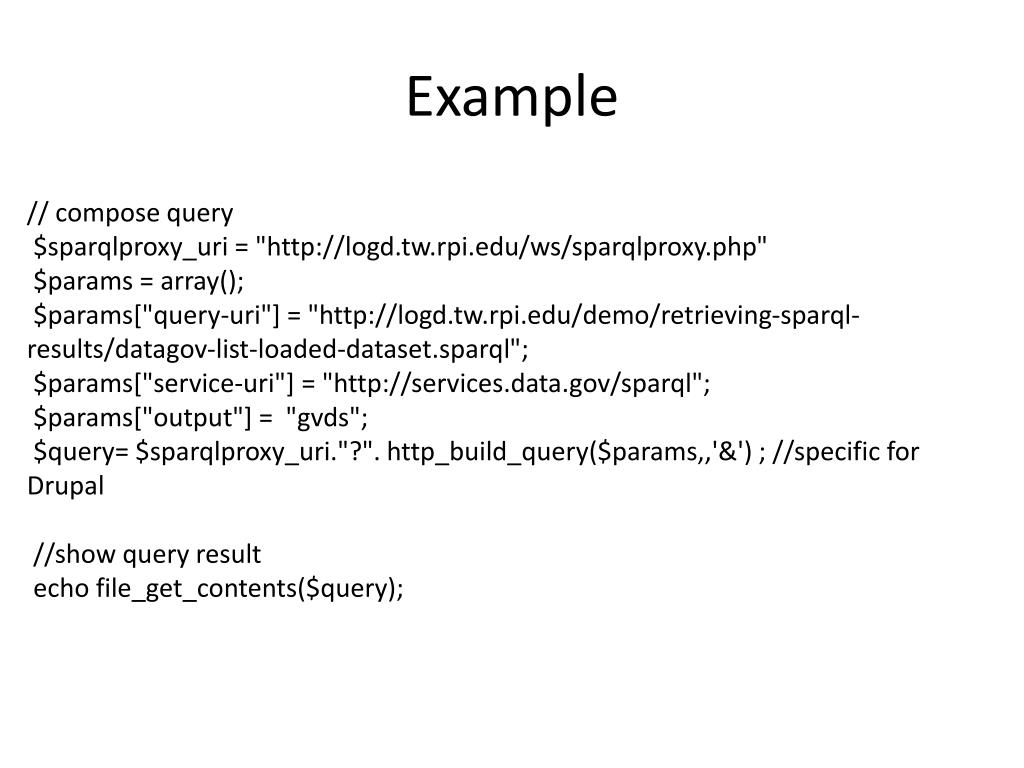

  25. Example // compose query $sparqlproxy_uri = "http://logd.tw.rpi.edu/ws/sparqlproxy.php" $params = array(); $params["query-uri"] = "http://logd.tw.rpi.edu/demo/retrieving-sparql-results/datagov-list-loaded-dataset.sparql"; $params["service-uri"] = "http://services.data.gov/sparql"; $params["output"] = "gvds"; $query= $sparqlproxy_uri."?". http_build_query($params,,'&') ; //specific for Drupal //show query result echo file_get_contents($query);

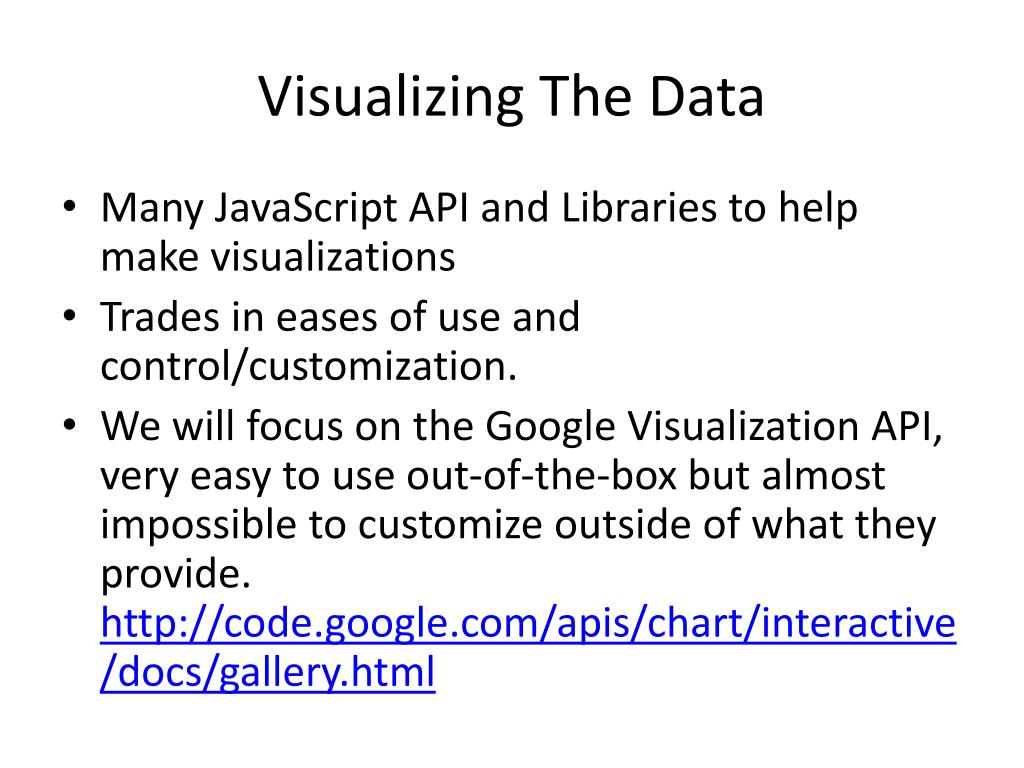

  26. Visualizing The Data • Many JavaScript API and Libraries to help make visualizations • Trades in eases of use and control/customization. • We will focus on the Google Visualization API, very easy to use out-of-the-box but almost impossible to customize outside of what they provide. http://code.google.com/apis/chart/interactive/docs/gallery.html

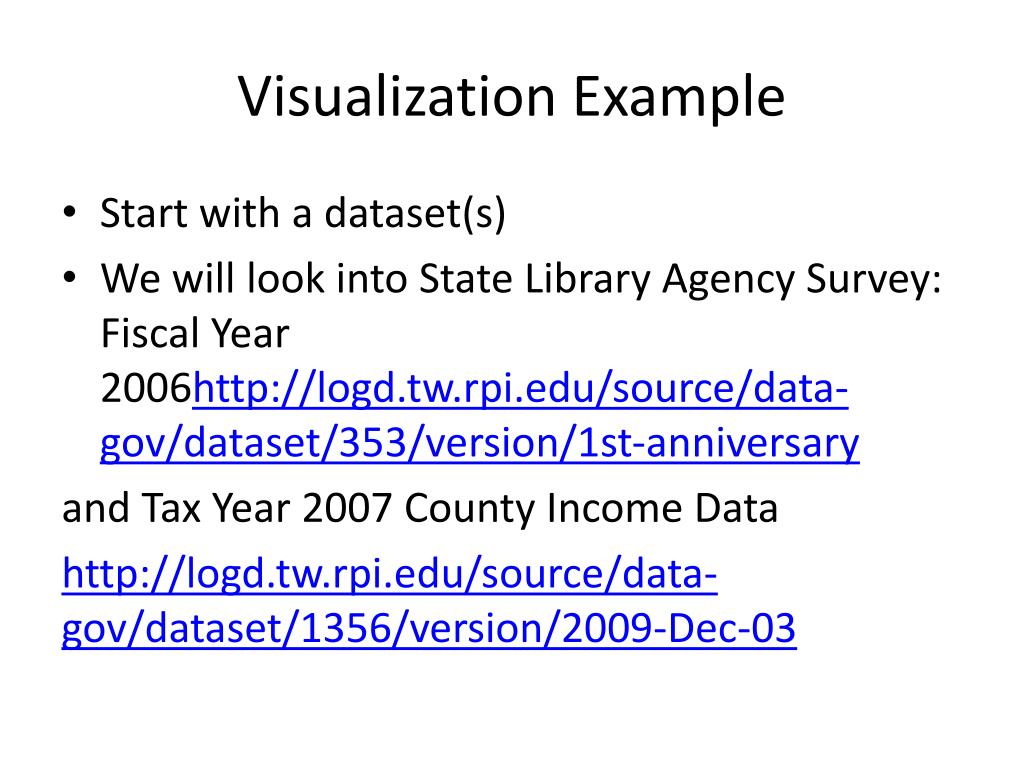

  27. Visualization Example • Start with a dataset(s) • We will look into State Library Agency Survey: Fiscal Year 2006http://logd.tw.rpi.edu/source/data-gov/dataset/353/version/1st-anniversary and Tax Year 2007 County Income Data http://logd.tw.rpi.edu/source/data-gov/dataset/1356/version/2009-Dec-03

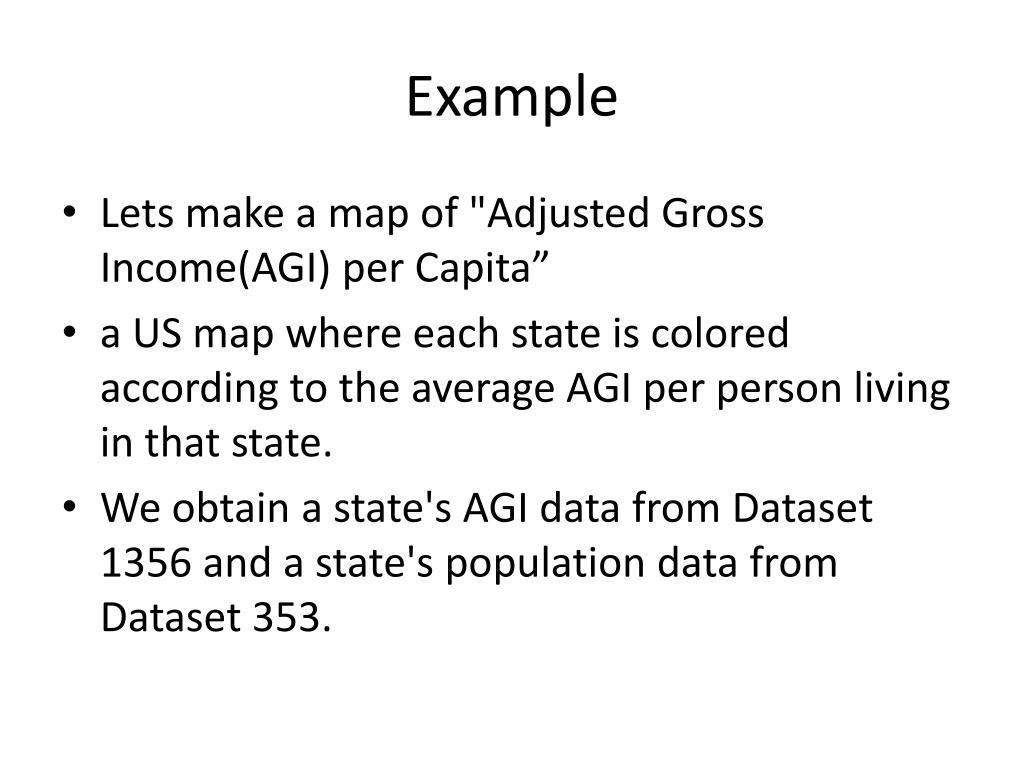

  28. Example • Lets make a map of "Adjusted Gross Income(AGI) per Capita” • a US map where each state is colored according to the average AGI per person living in that state. • We obtain a state's AGI data from Dataset 1356 and a state's population data from Dataset 353.

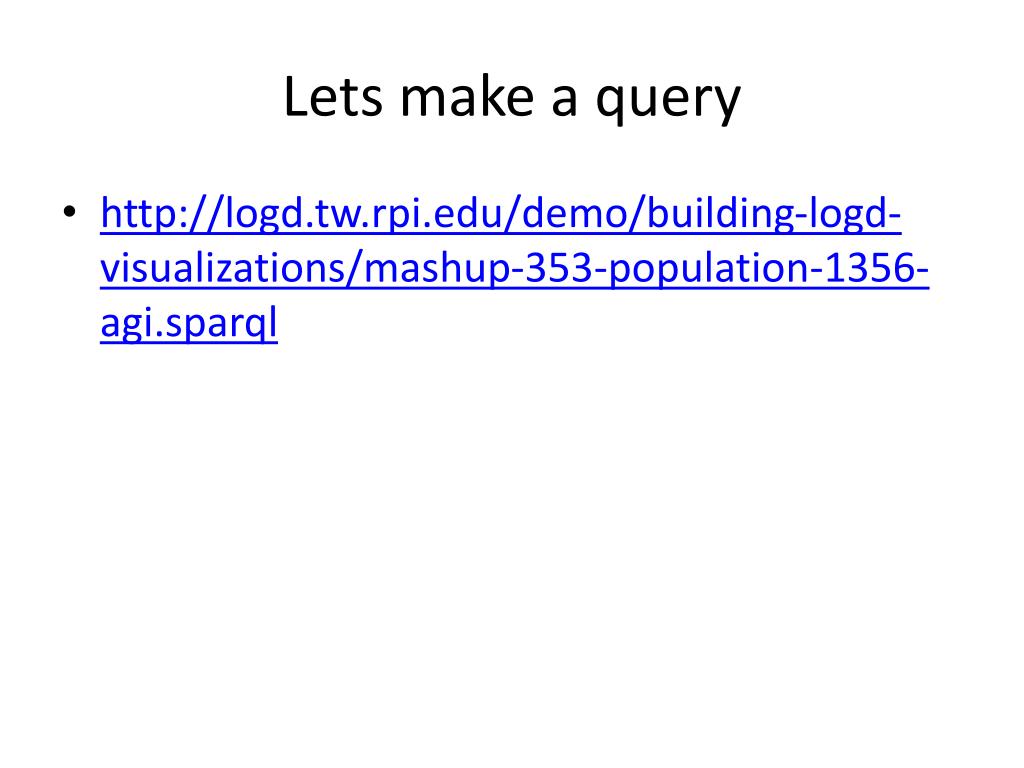

  29. Lets make a query • http://logd.tw.rpi.edu/demo/building-logd-visualizations/mashup-353-population-1356-agi.sparql

  30. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>AGI per Capita Map</title> </head> <body> <div>AGI per Capita Map</div> <div id='map_canvas'>Loading Map ...</div> </body> </html>

  31. <!-- import Google visualization API --> <script type="text/javascript" src="http://www.google.com/jsapi"></script>

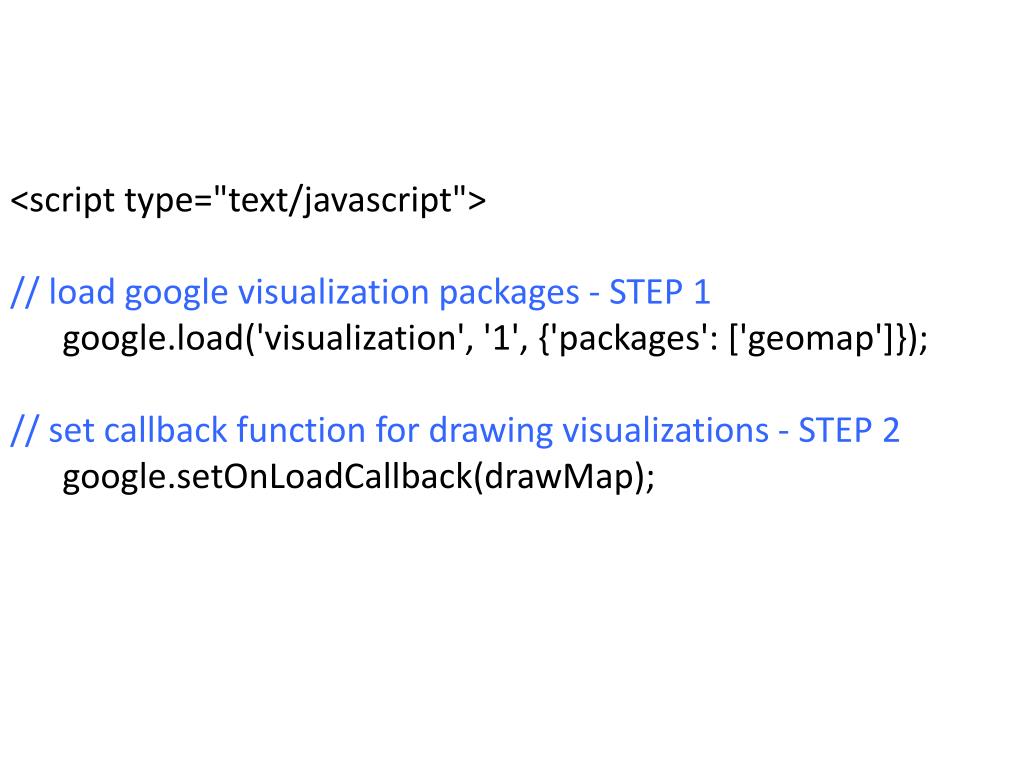

  32. <script type="text/javascript"> // load google visualization packages - STEP 1 google.load('visualization', '1', {'packages': ['geomap']}); // set callback function for drawing visualizations - STEP 2 google.setOnLoadCallback(drawMap);

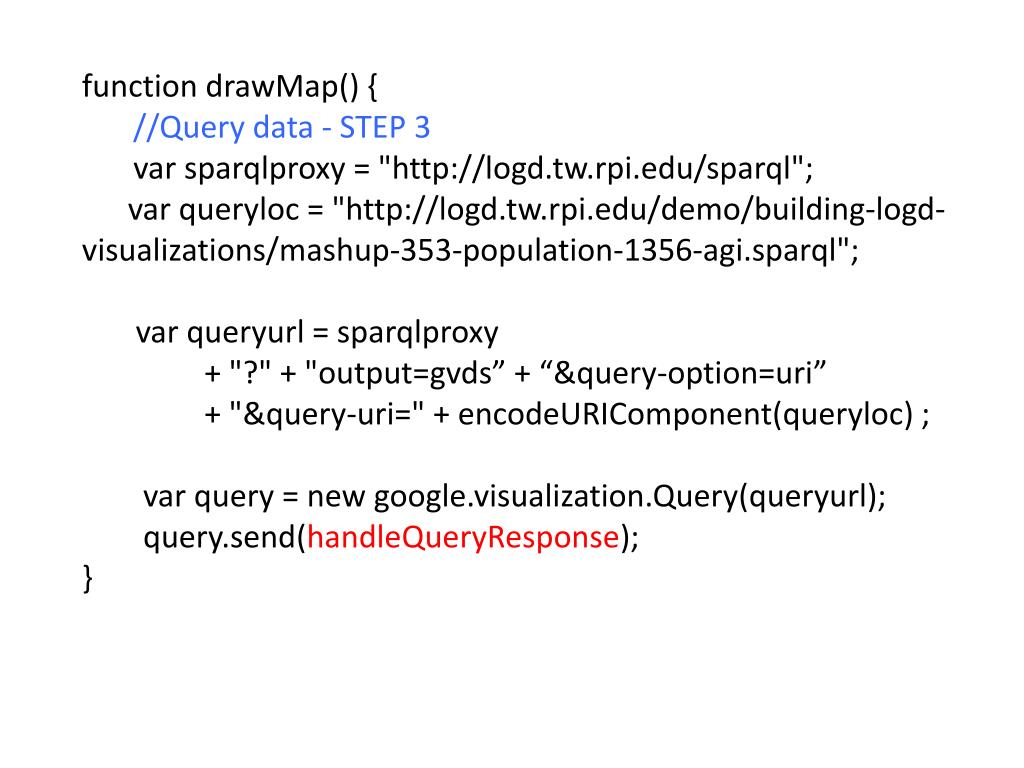

  33. function drawMap() { //Query data - STEP 3 varsparqlproxy = "http://logd.tw.rpi.edu/sparql"; varqueryloc = "http://logd.tw.rpi.edu/demo/building-logd-visualizations/mashup-353-population-1356-agi.sparql"; varqueryurl = sparqlproxy + "?" + "output=gvds” + “&query-option=uri” + "&query-uri=" + encodeURIComponent(queryloc) ; var query = new google.visualization.Query(queryurl); query.send(handleQueryResponse); }

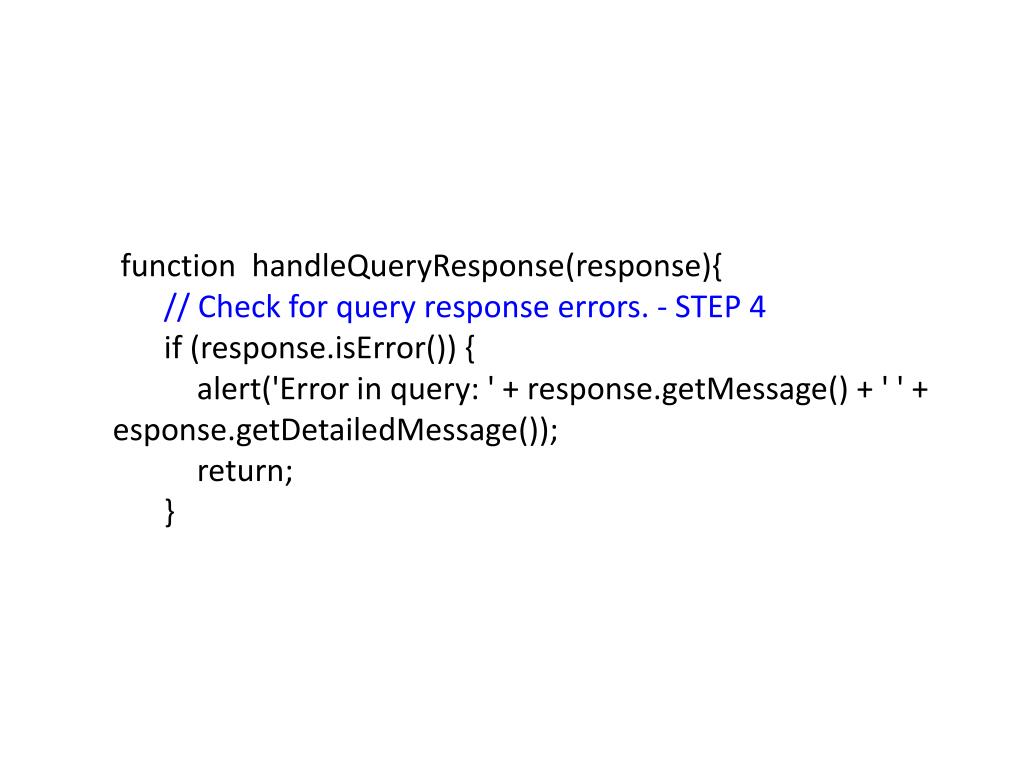

  34. function handleQueryResponse(response){ // Check for query response errors. - STEP 4 if (response.isError()) { alert('Error in query: ' + response.getMessage() + ' ' + esponse.getDetailedMessage()); return; }

  35. // read data - STEP 5 var data = response.getDataTable(); // create new data - STEP 6 varnewdata = new google.visualization.DataTable(); newdata.addColumn('string', 'State'); newdata.addColumn('number', 'AGI per Capita');

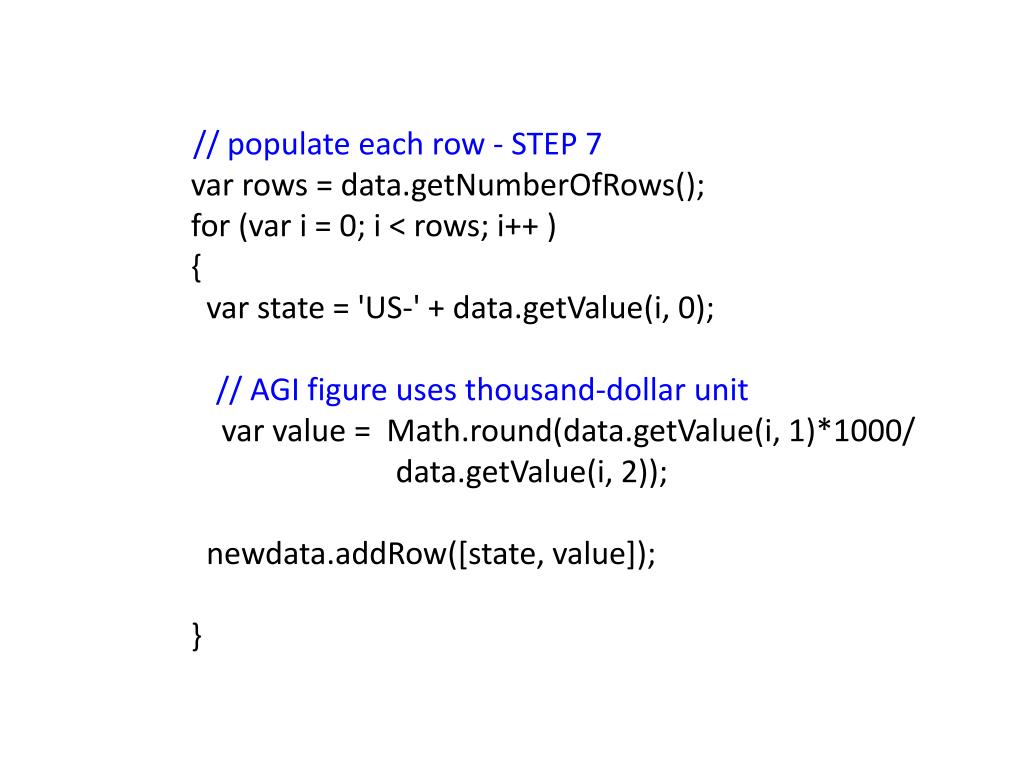

  36. // populate each row - STEP 7 var rows = data.getNumberOfRows(); for (vari = 0; i < rows; i++ ) { var state = 'US-' + data.getValue(i, 0); // AGI figure uses thousand-dollar unit var value = Math.round(data.getValue(i, 1)*1000/ data.getValue(i, 2)); newdata.addRow([state, value]); }

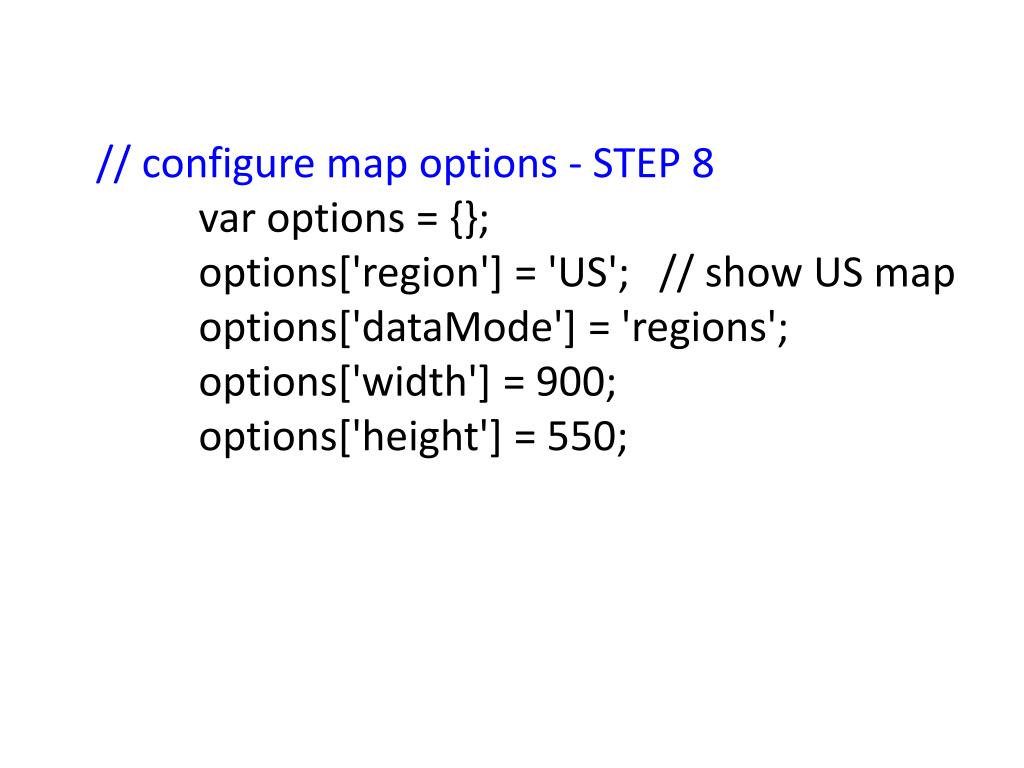

  37. // configuremapoptions - STEP 8 var options = {}; options['region'] = 'US'; // show US map options['dataMode'] = 'regions'; options['width'] = 900; options['height'] = 550;

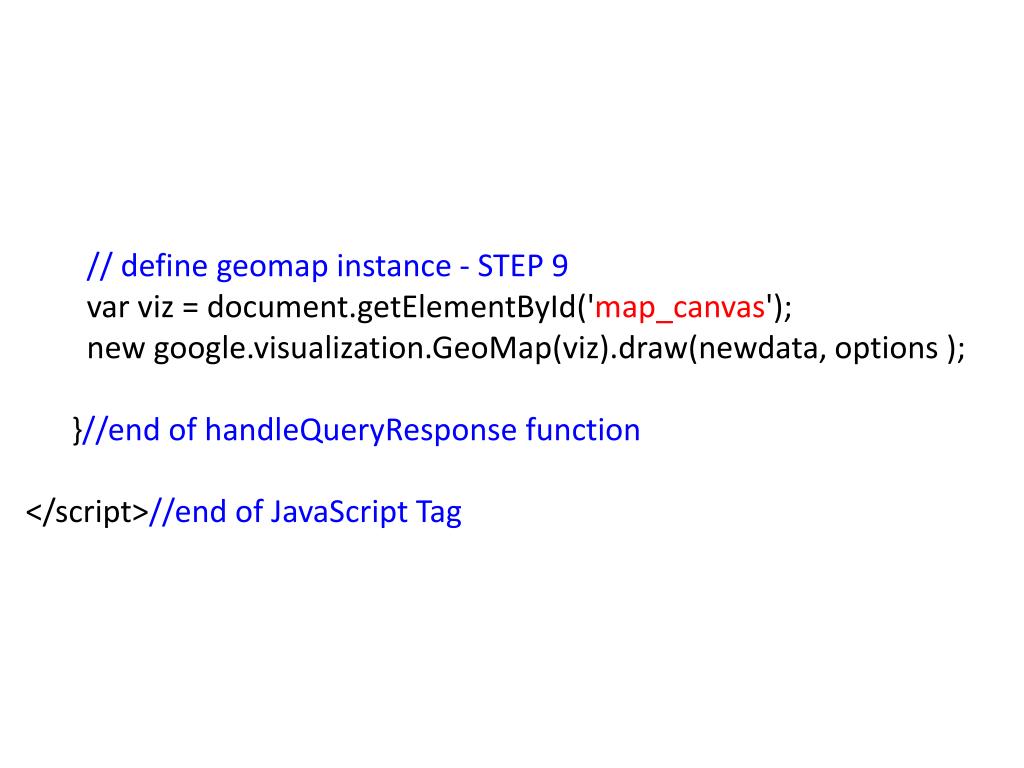

  38. // define geomap instance - STEP 9 varviz = document.getElementById('map_canvas'); new google.visualization.GeoMap(viz).draw(newdata, options ); }//end of handleQueryResponse function </script>//end of JavaScript Tag

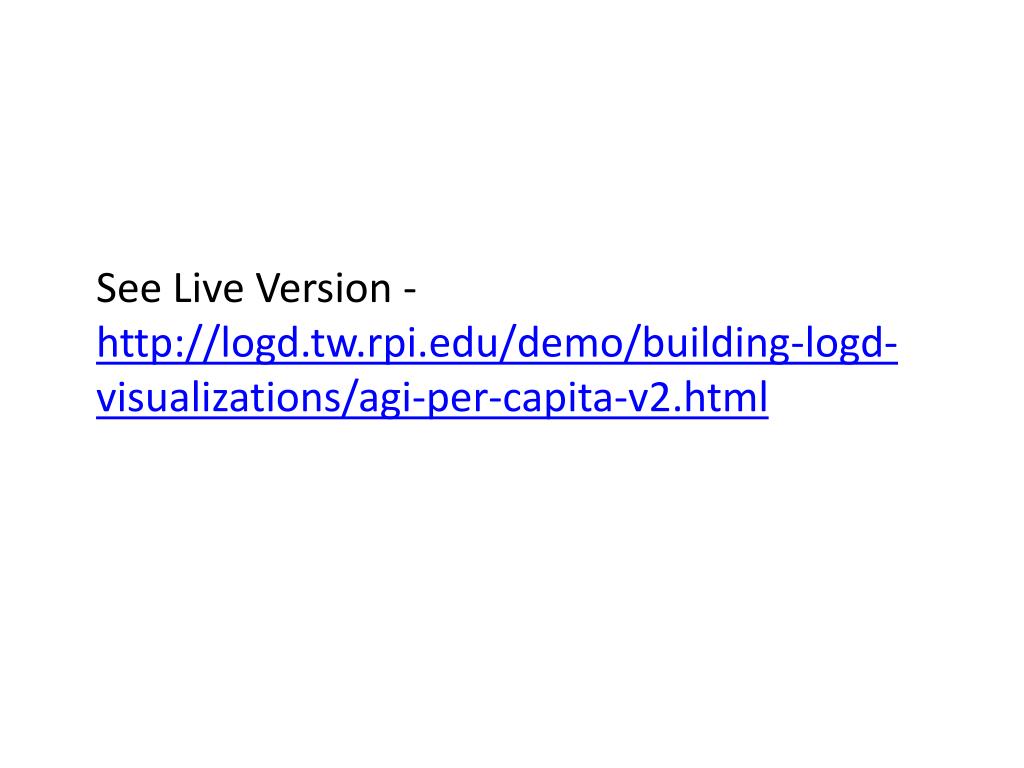

  39. See Live Version - http://logd.tw.rpi.edu/demo/building-logd-visualizations/agi-per-capita-v2.html
