  1. Query Optimization CMPT 454

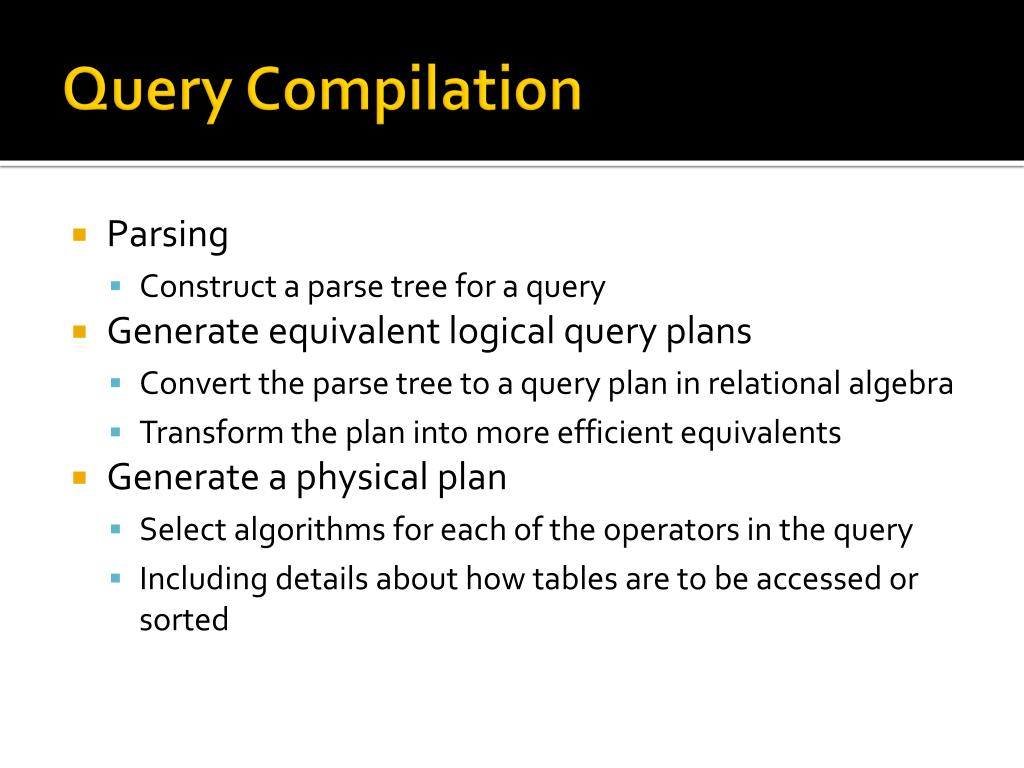

  2. Query Compilation • Parsing • Construct a parse tree for a query • Generate equivalent logical query plans • Convert the parse tree to a query plan in relational algebra • Transform the plan into more efficient equivalents • Generate a physical plan • Select algorithms for each of the operators in the query • Including details about how tables are to be accessed or sorted

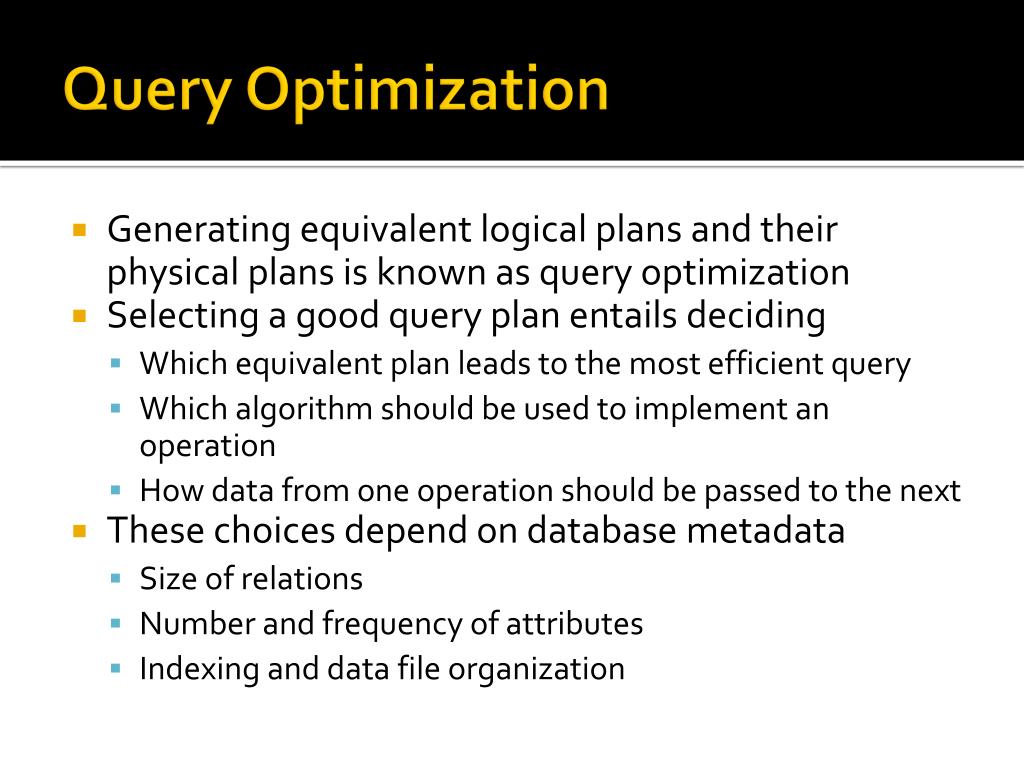

  3. Query Optimization • Generating equivalent logical plans and their physical plans is known as query optimization • Selecting a good query plan entails deciding • Which equivalent plan leads to the most efficient query • Which algorithm should be used to implement an operation • How data from one operation should be passed to the next • These choices depend on database metadata • Size of relations • Number and frequency of attributes • Indexing and data file organization

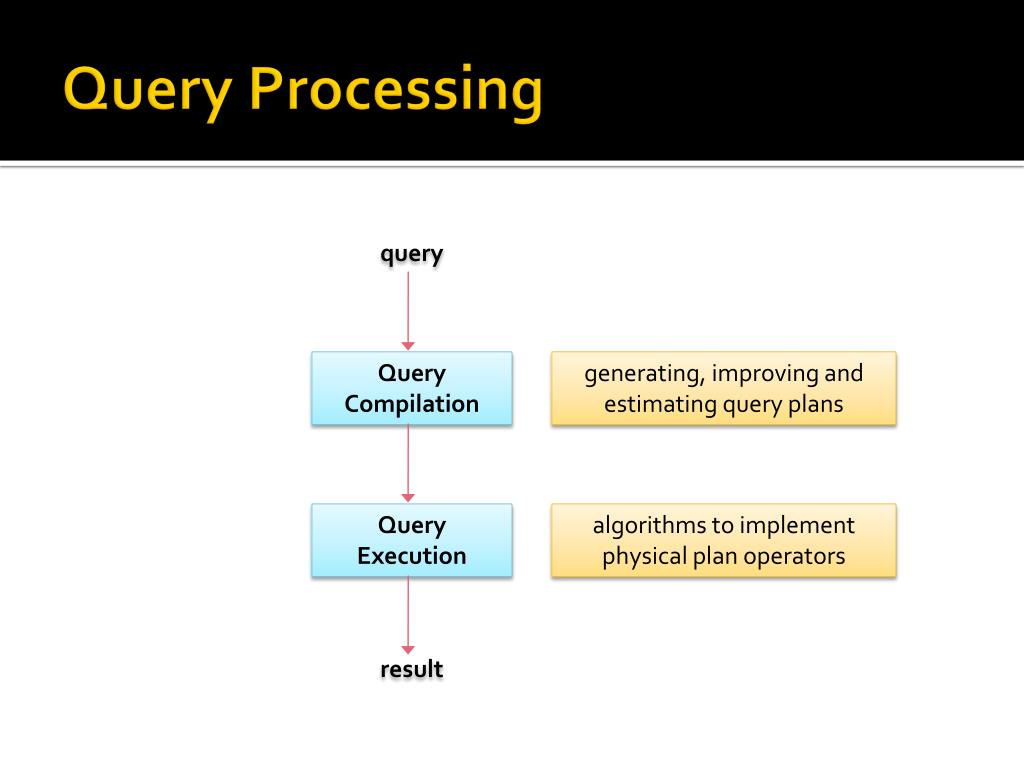

  4. Query Processing query Query Compilation generating, improving and estimating query plans Query Execution algorithms to implement physical plan operators result

  5. Query Execution

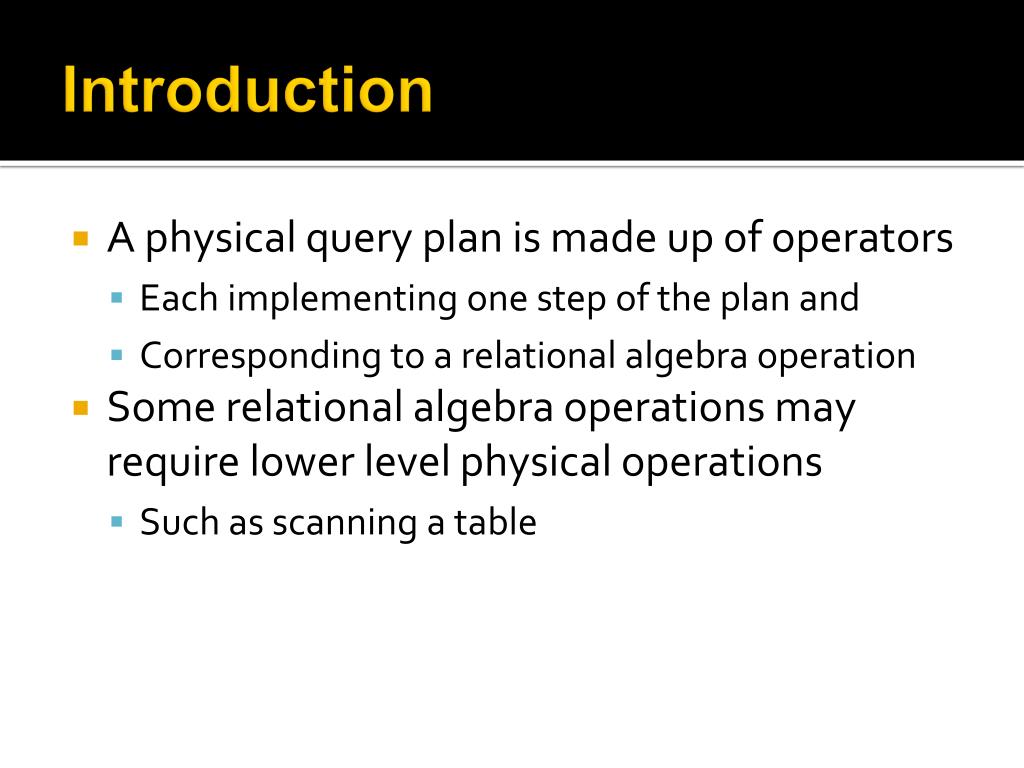

  6. Introduction • A physical query plan is made up of operators • Each implementing one step of the plan and • Corresponding to a relational algebra operation • Some relational algebra operations may require lower level physical operations • Such as scanning a table

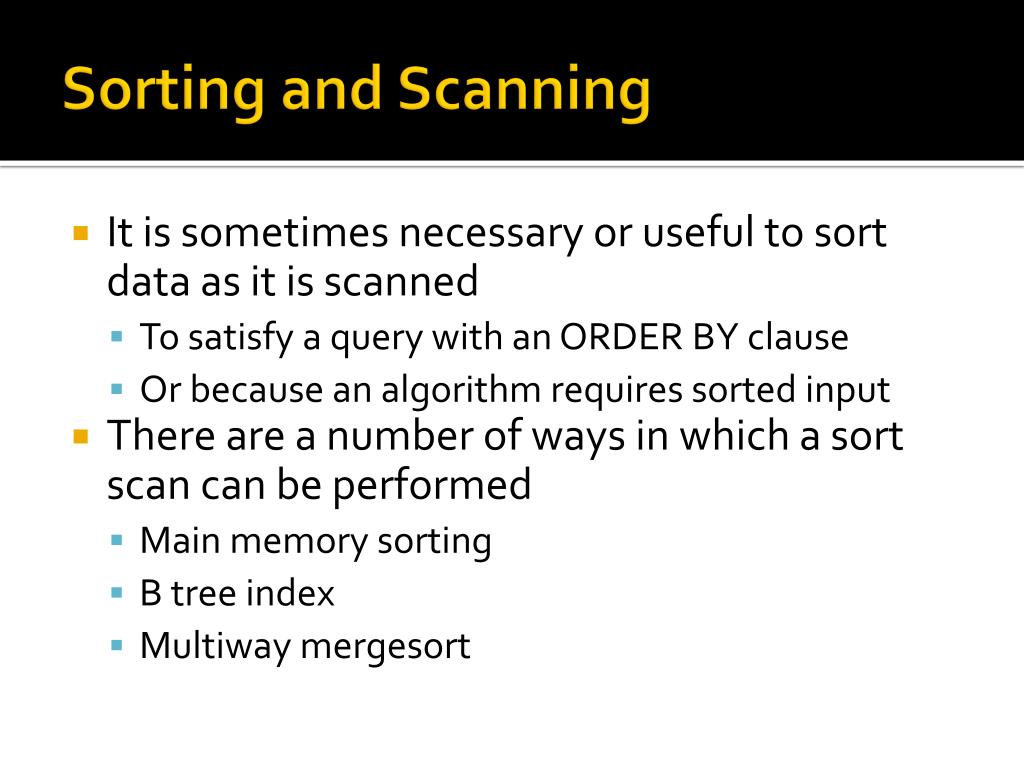

  7. Sorting and Scanning • It is sometimes necessary or useful to sort data as it is scanned • To satisfy a query with an ORDER BY clause • Or because an algorithm requires sorted input • There are a number of ways in which a sort scan can be performed • Main memory sorting • B tree index • Multiwaymergesort

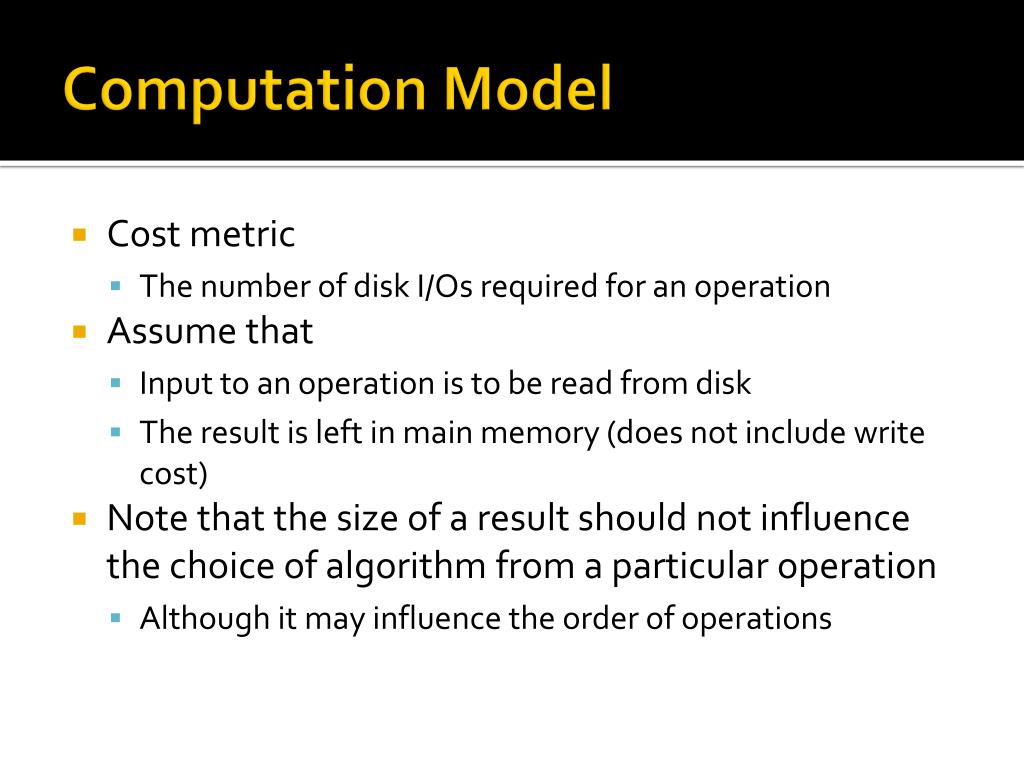

  8. Computation Model • Cost metric • The number of disk I/Os required for an operation • Assume that • Input to an operation is to be read from disk • The result is left in main memory (does not include write cost) • Note that the size of a result should not influence the choice of algorithm from a particular operation • Although it may influence the order of operations

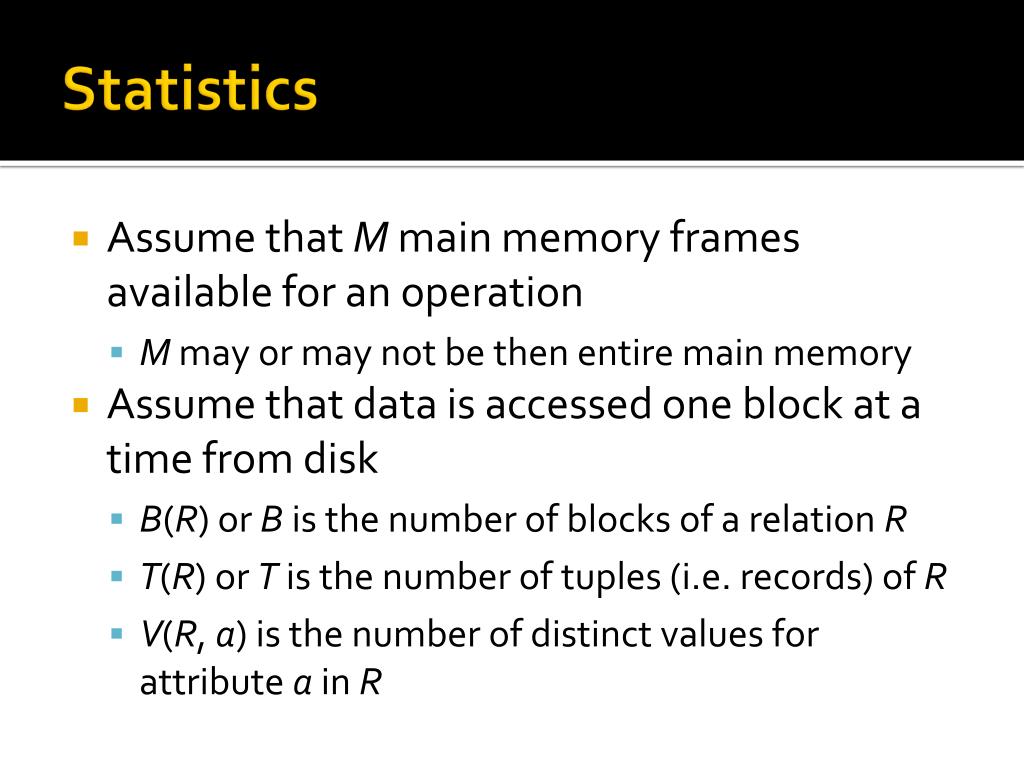

  9. Statistics • Assume that M main memory frames available for an operation • M may or may not be then entire main memory • Assume that data is accessed one block at a time from disk • B(R) or B is the number of blocks of a relation R • T(R) or T is the number of tuples (i.e. records) of R • V(R, a) is the number of distinct values for attribute a in R

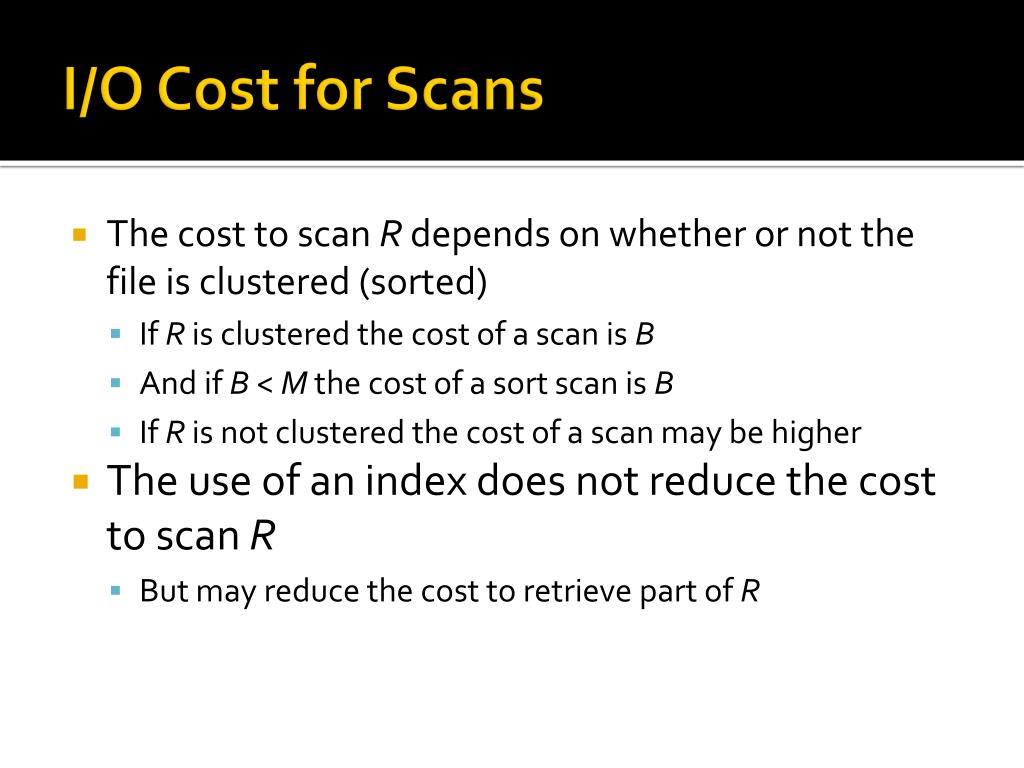

  10. I/O Cost for Scans • The cost to scan R depends on whether or not the file is clustered (sorted) • If R is clustered the cost of a scan is B • And if B < M the cost of a sort scan is B • If R is not clustered the cost of a scan may be higher • The use of an index does not reduce the cost to scan R • But may reduce the cost to retrieve part of R

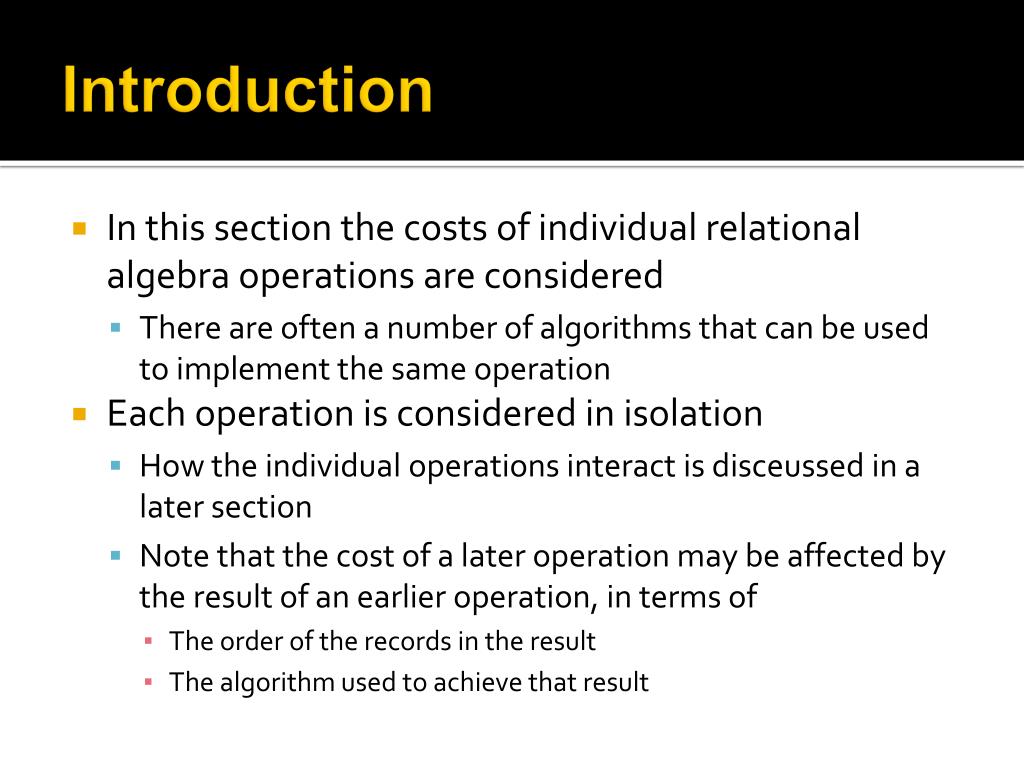

  11. Introduction • In this section the costs of individual relational algebra operations are considered • There are often a number of algorithms that can be used to implement the same operation • Each operation is considered in isolation • How the individual operations interact is disceussed in a later section • Note that the cost of a later operation may be affected by the result of an earlier operation, in terms of • The order of the records in the result • The algorithm used to achieve that result

  12. Selection SELECT * FROM Customer WHERE age > 50 • Only records that match the selection are included in the result • The size of the result depends on the number of records that match the selection • Complex selections that contain more than a single term will be considered later age > 50(Customer)

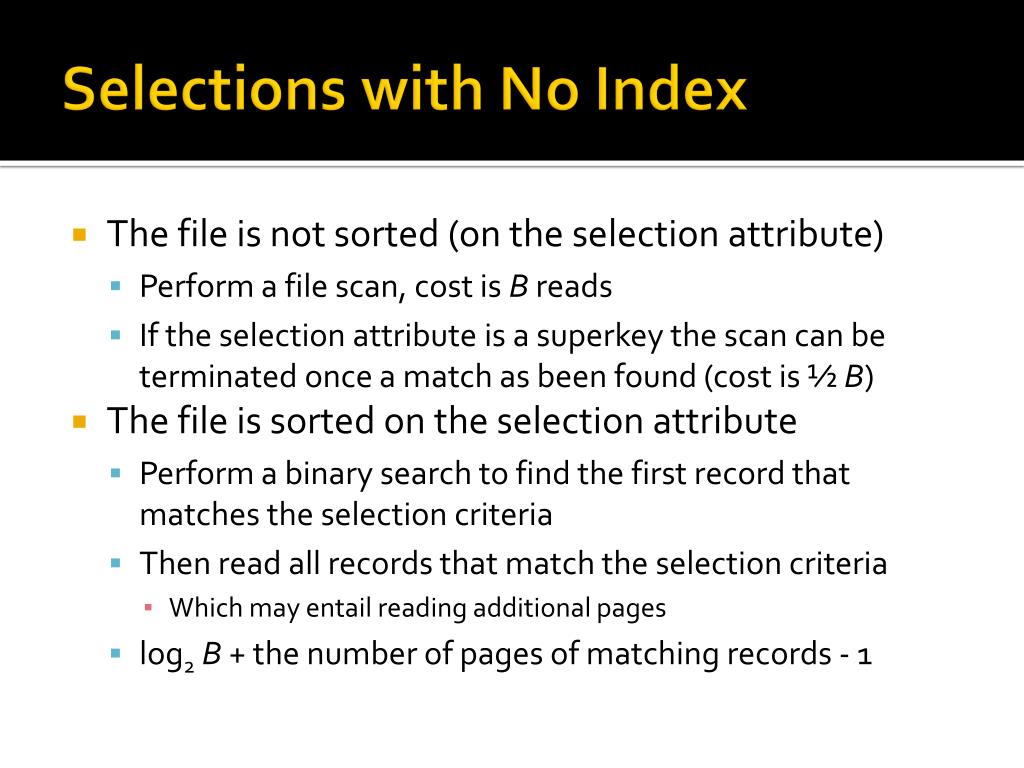

  13. Selections with No Index • The file is not sorted (on the selection attribute) • Perform a file scan, cost is B reads • If the selection attribute is a superkey the scan can be terminated once a match as been found (cost is ½ B) • The file is sorted on the selection attribute • Perform a binary search to find the first record that matches the selection criteria • Then read all records that match the selection criteria • Which may entail reading additional pages • log2 B + the number of pages of matching records - 1

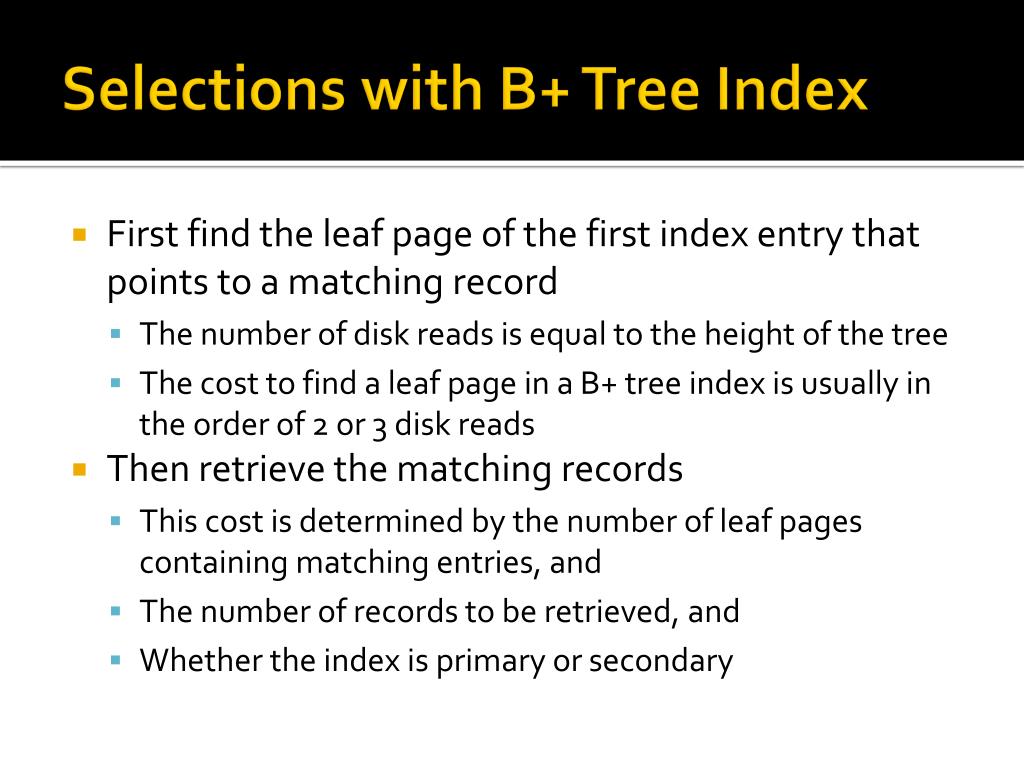

  14. Selections with B+ Tree Index • First find the leaf page of the first index entry that points to a matching record • The number of disk reads is equal to the height of the tree • The cost to find a leaf page in a B+ tree index is usually in the order of 2 or 3 disk reads • Then retrieve the matching records • This cost is determined by the number of leaf pages containing matching entries, and • The number of records to be retrieved, and • Whether the index is primary or secondary

  15. Primary B+ Tree Index • In a primary index the file sorted on the search key • If the selection is small it may fit on one page • An additional disk read to access this page is required • Unless the data entries are not the records • If the selection is large, additional pages may have to be read • The selection may return many records • If it covers a large range of records, or • Is an equality selection on an attribute with few distinct values • The exact number of pages depends on the number of records that match the selection

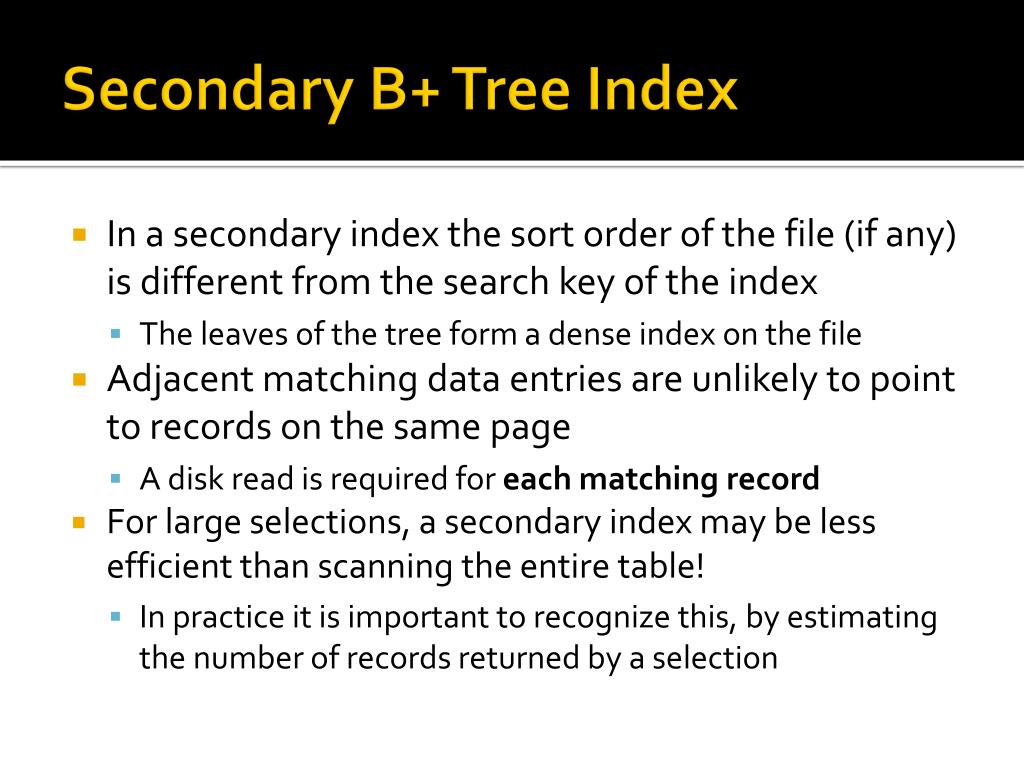

  16. Secondary B+ Tree Index • In a secondary index the sort order of the file (if any) is different from the search key of the index • The leaves of the tree form a dense index on the file • Adjacent matching data entries are unlikely to point to records on the same page • A disk read is required for each matching record • For large selections, a secondary index may be less efficient than scanning the entire table! • In practice it is important to recognize this, by estimating the number of records returned by a selection

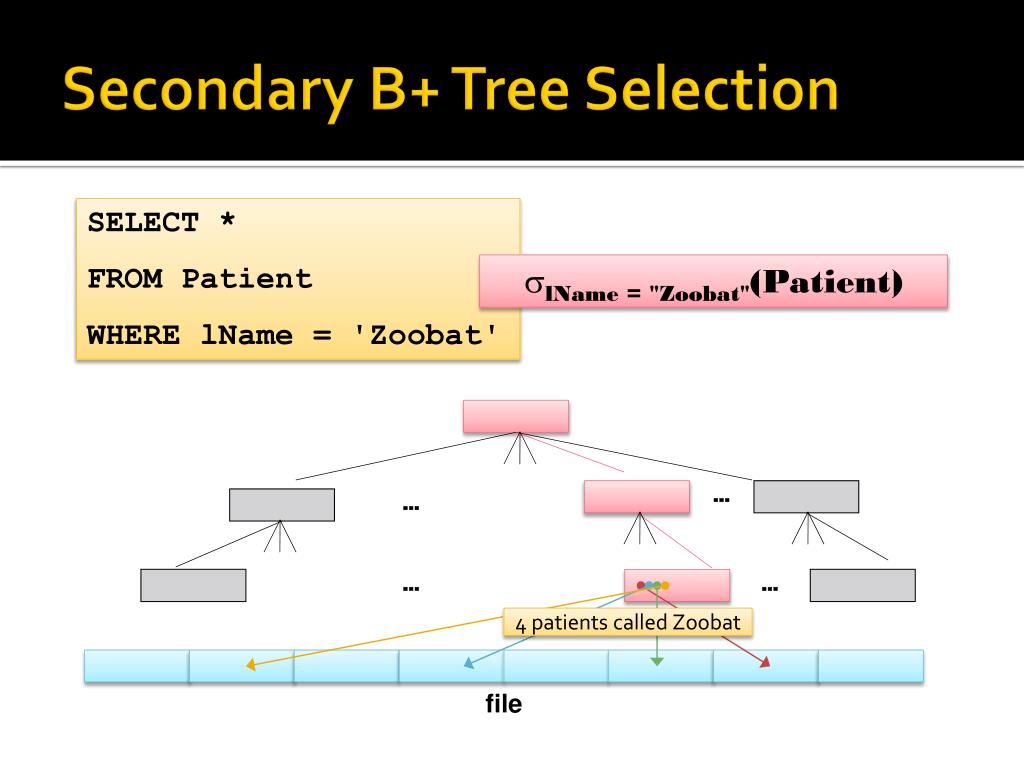

  17. Secondary B+ Tree Selection SELECT * FROM Patient WHERE lName = 'Zoobat' lName = "Zoobat"(Patient) … … … … 4 patients called Zoobat file

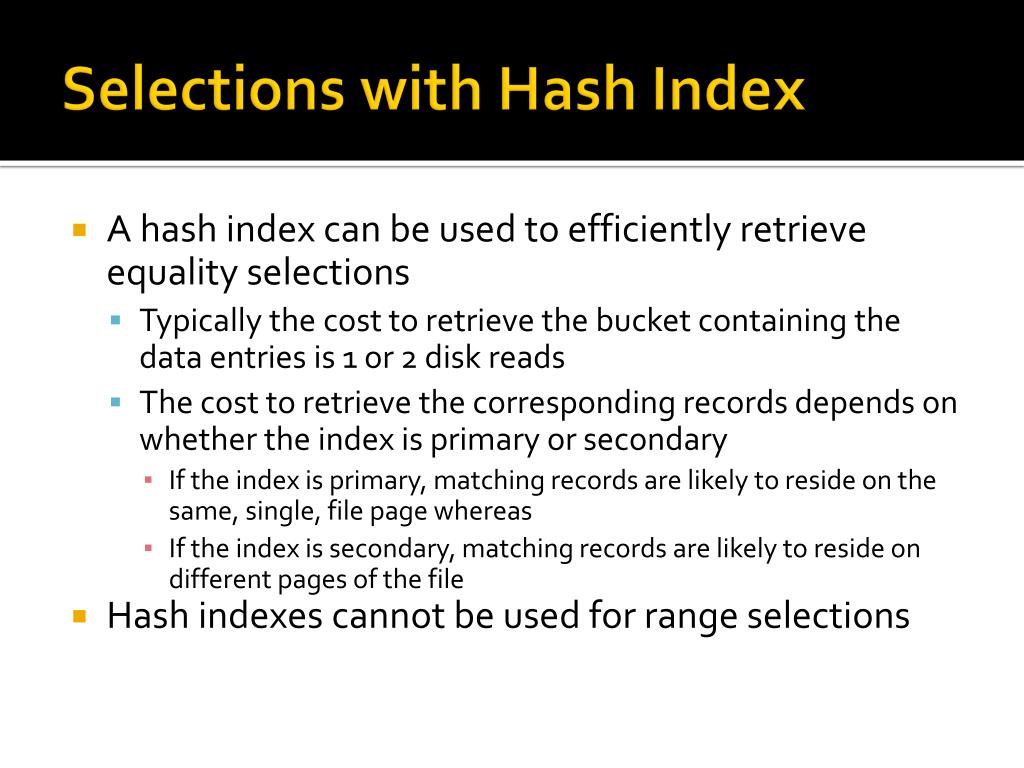

  18. Selections with Hash Index • A hash index can be used to efficiently retrieve equality selections • Typically the cost to retrieve the bucket containing the data entries is 1 or 2 disk reads • The cost to retrieve the corresponding records depends on whether the index is primary or secondary • If the index is primary, matching records are likely to reside on the same, single, file page whereas • If the index is secondary, matching records are likely to reside on different pages of the file • Hash indexes cannot be used for range selections

  19. Complex Selections • Selections may be made up of a number of terms connected by  and  • These terms may reference different attributes • It is useful to know whether or not an index can be used to evaluate a selection • To determine this the selection is first expressed in conjunctive normal form (CNF) • A collection of conjuncts (terms joined by and) • Each conjunct consists either of a single term, or multiple terms joined by or (i.e. disjunctions) • e.g. (A  B)  C  D  (A  C  D)  (B  C  D)

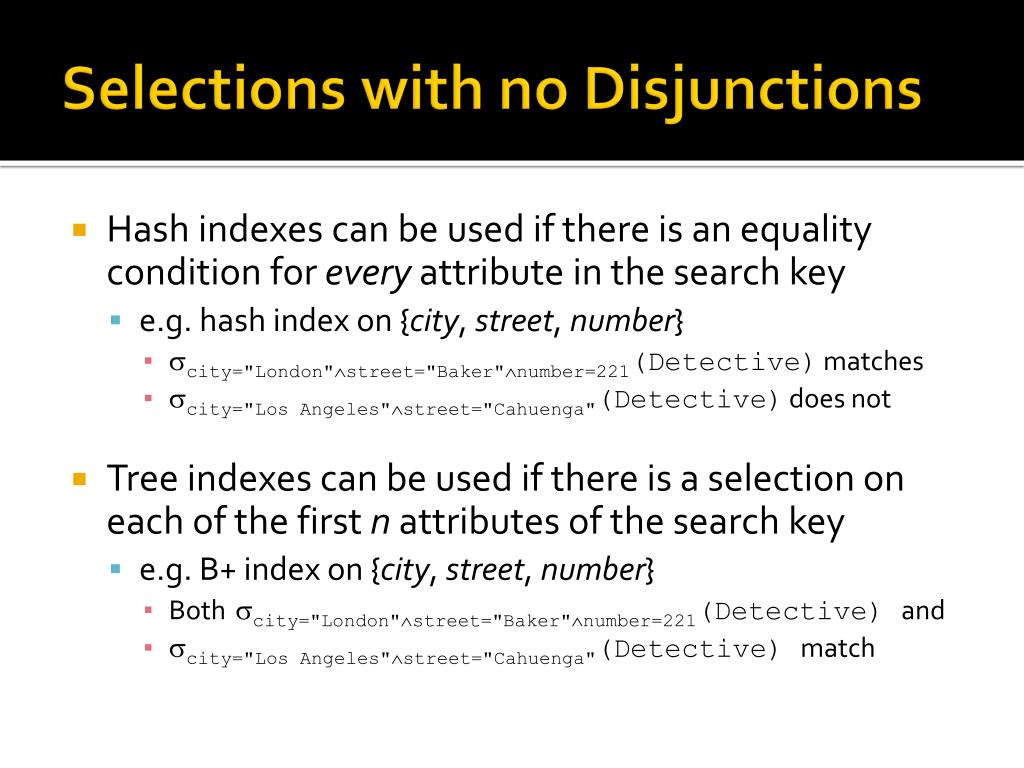

  20. Selections with no Disjunctions • Hash indexes can be used if there is an equality condition for every attribute in the search key • e.g. hash index on {city, street, number} • city="London"street="Baker"number=221(Detective)matches • city="Los Angeles"street="Cahuenga"(Detective)does not • Tree indexes can be used if there is a selection on each of the first n attributes of the search key • e.g. B+ index on {city, street, number} • Bothcity="London"street="Baker"number=221(Detective) and • city="Los Angeles"street="Cahuenga"(Detective) match

  21. Selections with no Disjunctions… • If an index matches a subset of the conjuncts • Use the index to return a result that contains some unwanted records • Scan this result for matches to the other conjuncts • city="London"street="Baker"number=221fName = "Sherlock" (Detective) • If more than one index matches a conjunct • Either use the most selective index, then scan the result, discarding records that fail to match to the other criteria • Or use all indexes and retrieve therids • Take the intersection of the rids and retrieve those records

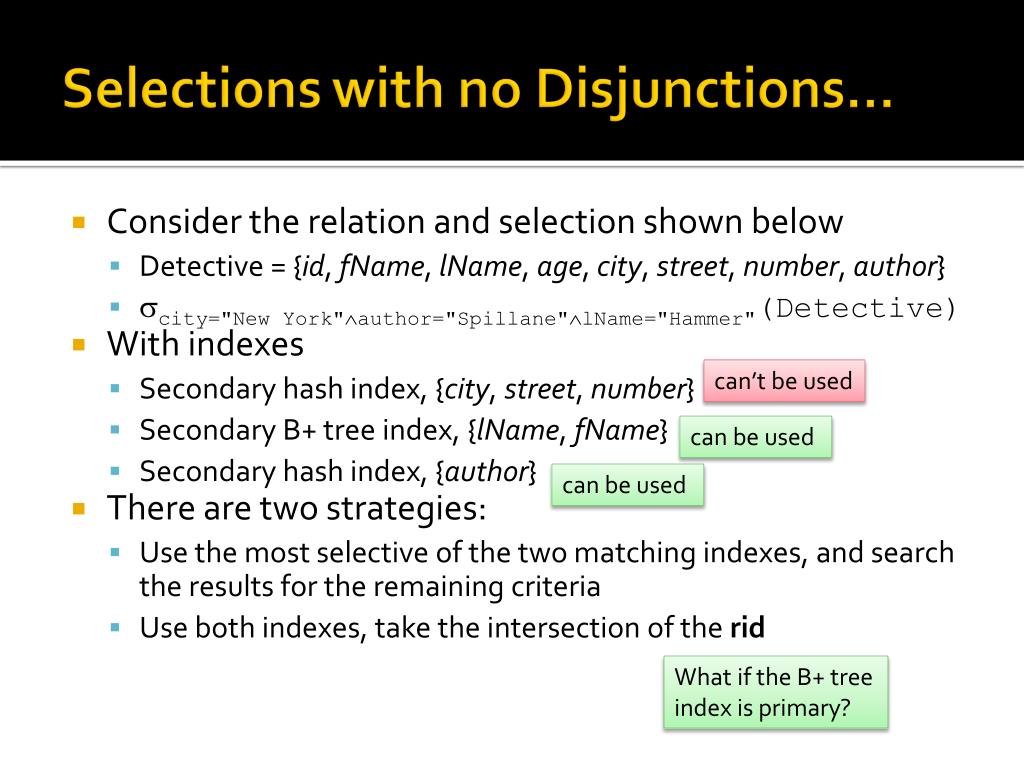

  22. Selectionswith no Disjunctions… • Consider the relation and selection shown below • Detective = {id, fName, lName, age, city, street, number, author} • city="New York"author="Spillane"lName="Hammer"(Detective) • With indexes • Secondary hash index, {city, street, number} • Secondary B+ tree index, {lName, fName} • Secondary hash index, {author} • There are two strategies: • Use the most selective of the two matching indexes, and search the results for the remaining criteria • Use both indexes, take the intersection of the rid can’t be used can be used can be used What if the B+ tree index is primary?

  23. Selections with Disjunctions • If necessary, restate the selection in CNF • If a conjunct includes a disjunction with no index on its attribute, no index can be used for that conjunct • If all the conjuncts contain such a disjunction a file scan is necessary to satisfy the selection • Otherwise, use an index that matches one of the conjuncts and retrieve those records • The remaining selection criteria can then be applied to the results from using that index

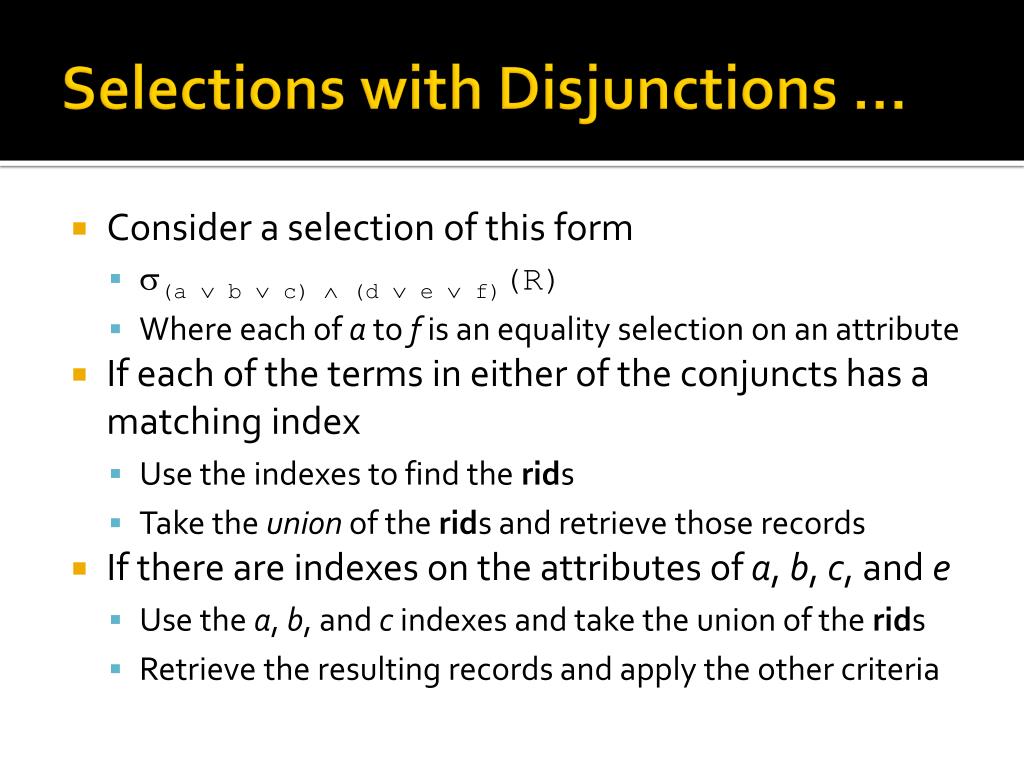

  24. Selections with Disjunctions … • Consider a selection of this form • (a  b  c)  (d  e  f)(R) • Where each of a to f is an equality selection on an attribute • If each of the terms in either of the conjuncts has a matching index • Use the indexes to find the rids • Take the union of the rids and retrieve those records • If there are indexes on the attributes of a, b, c, and e • Use the a, b, and c indexes and take the union of the rids • Retrieve the resulting records and apply the other criteria

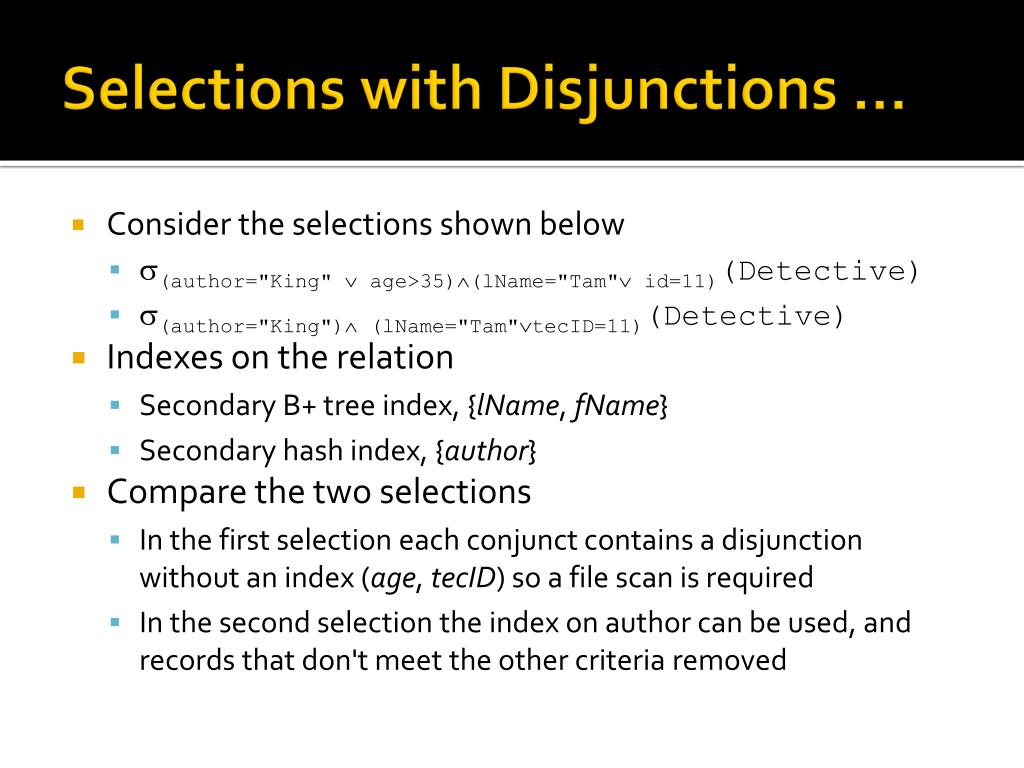

  25. Selections with Disjunctions … • Consider the selections shown below • (author="King"  age>35)(lName="Tam" id=11)(Detective) • (author="King") (lName="Tam"tecID=11)(Detective) • Indexes on the relation • Secondary B+ tree index, {lName, fName} • Secondary hash index, {author} • Compare the two selections • In the first selection each conjunct contains a disjunction without an index (age, tecID) so a file scan is required • In the second selection the index on author can be used, and records that don't meet the other criteria removed

  26. Projections SELECT fName, lName FROM Customer • Only columns in the column list are retained • Reducing the size of the result relation • There are two steps to implementing projections • Remove the unwanted columns • Eliminate any duplicate records, but only if DISTINCT has been specified • Duplicates can be removed either by sorting or hashing fName,lName(Customer)

  27. External Sorting A Digression

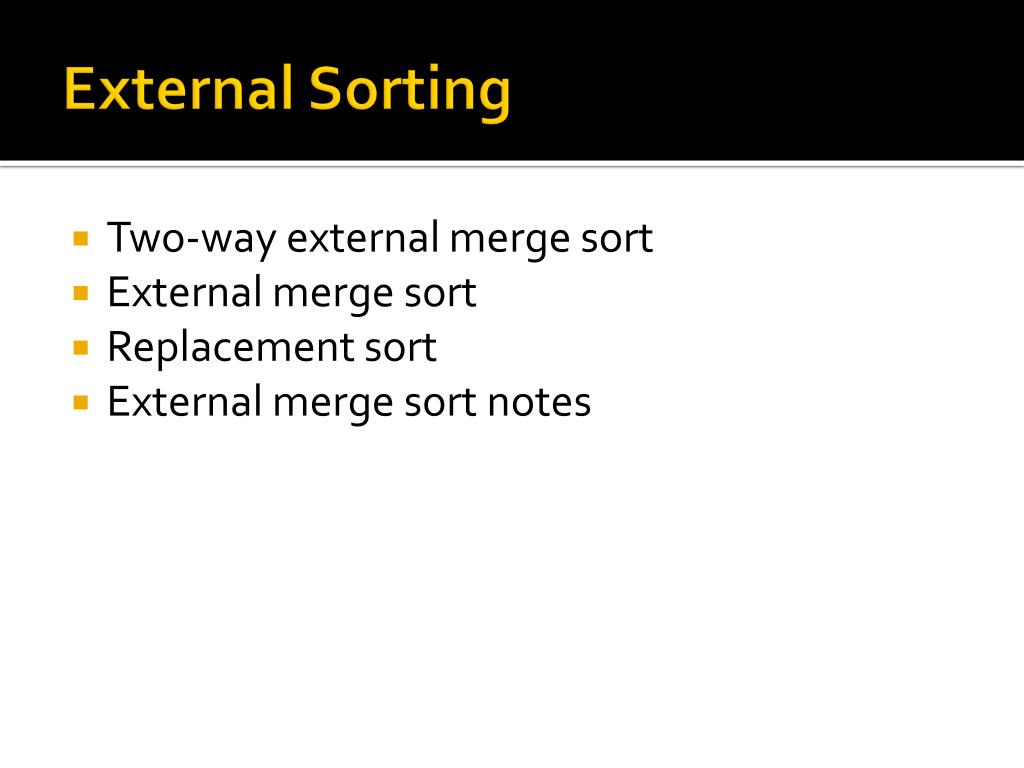

  28. External Sorting • Two-way external merge sort • External merge sort • Replacement sort • External merge sort notes

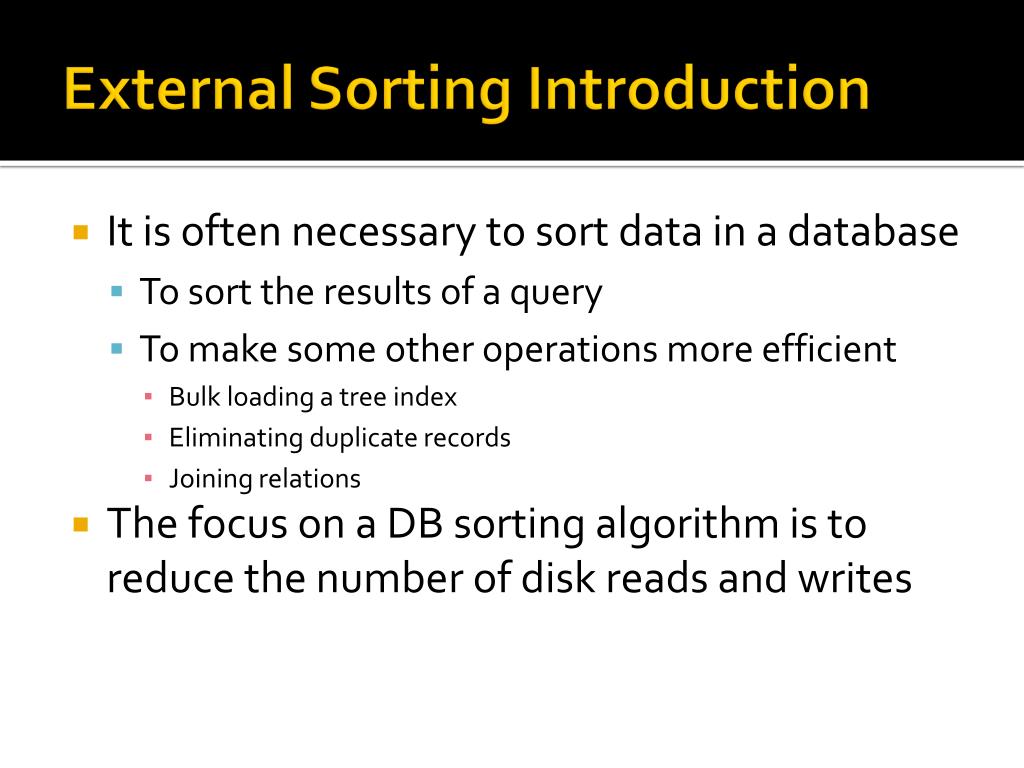

  29. External Sorting Introduction • It is often necessary to sort data in a database • To sort the results of a query • To make some other operations more efficient • Bulk loading a tree index • Eliminating duplicate records • Joining relations • The focus on a DB sorting algorithm is to reduce the number of disk reads and writes

  30. Internal vs. External Sorting • Sorting a collection of records that fit within main memory can be performed efficiently • There are a number of sorting algorithms that can be performed in n(log2n) time • That is, with n(log2n) comparisons, e.g., Mergesort, Quicksort, • Many DB tables are too large to fit into main memory at one time • So cannot be read into main memory and sorted • The focus in external sorting is to reduce the number of disk I/Os

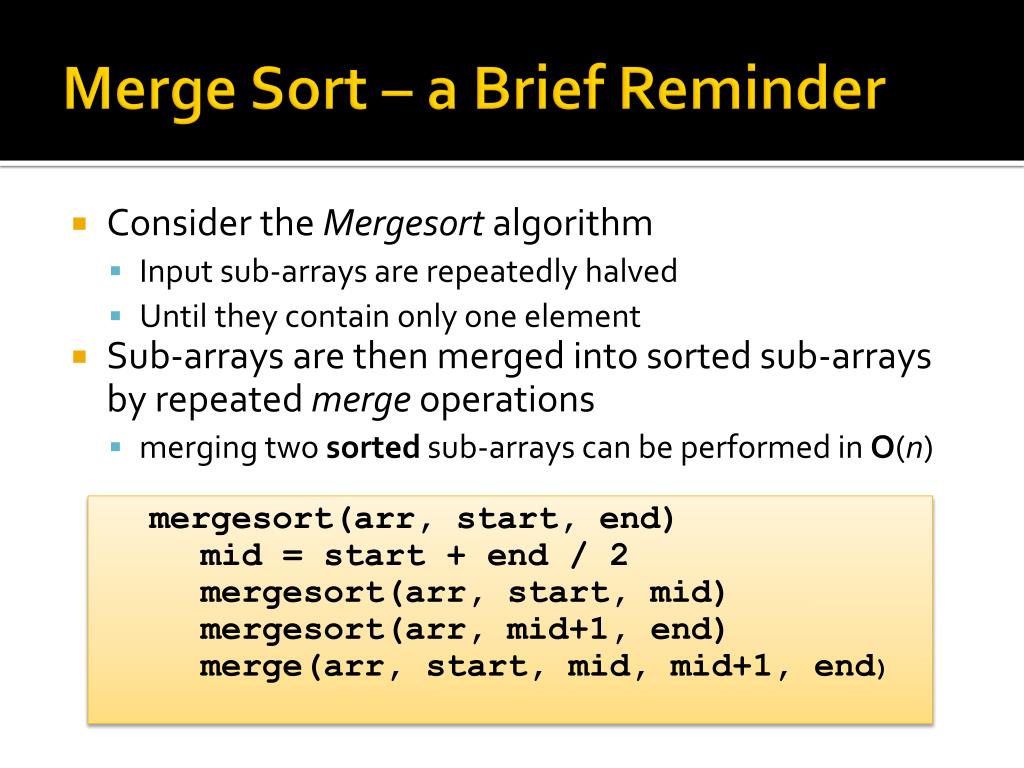

  31. Merge Sort – a Brief Reminder • Consider the Mergesort algorithm • Input sub-arrays are repeatedly halved • Until they contain only one element • Sub-arrays are then merged into sorted sub-arrays by repeated merge operations • merging two sorted sub-arrays can be performed in O(n) mergesort(arr, start, end) mid = start + end / 2 mergesort(arr, start, mid) mergesort(arr, mid+1, end) merge(arr, start, mid, mid+1, end)

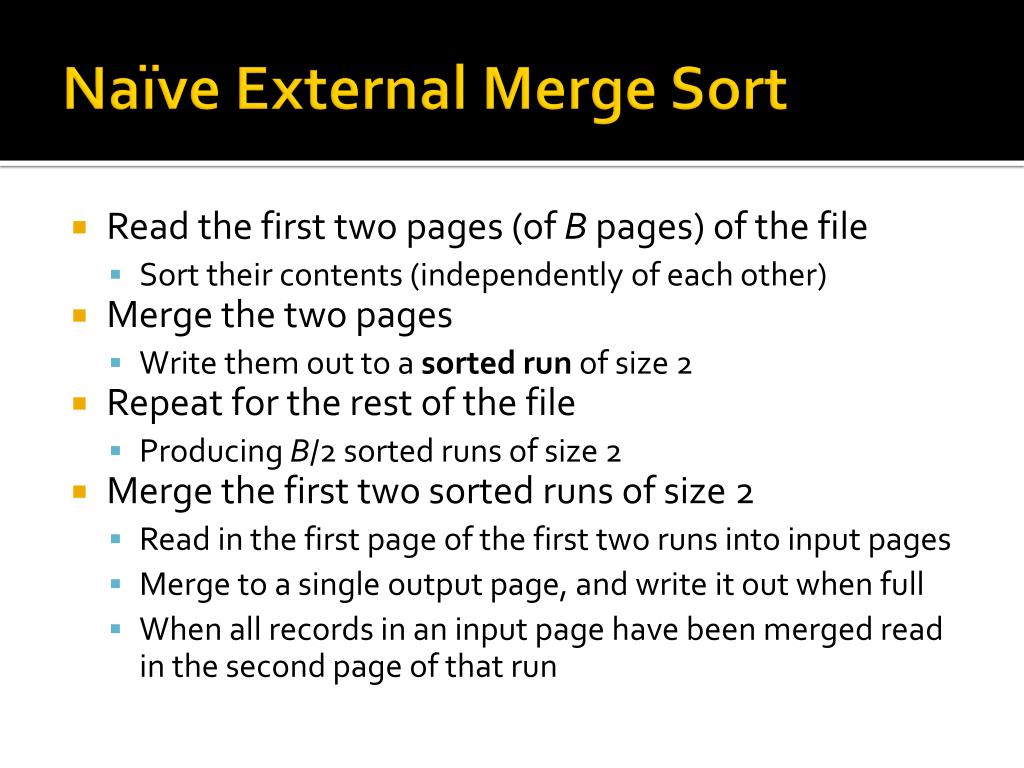

  32. Naïve External Merge Sort • Read the first two pages (of B pages) of the file • Sort their contents (independently of each other) • Merge the two pages • Write them out to a sorted run of size 2 • Repeat for the rest of the file • Producing B/2 sorted runs of size 2 • Merge the first two sorted runs of size 2 • Read in the first page of the first two runs into input pages • Merge to a single output page, and write it out when full • When all records in an input page have been merged read in the second page of that run

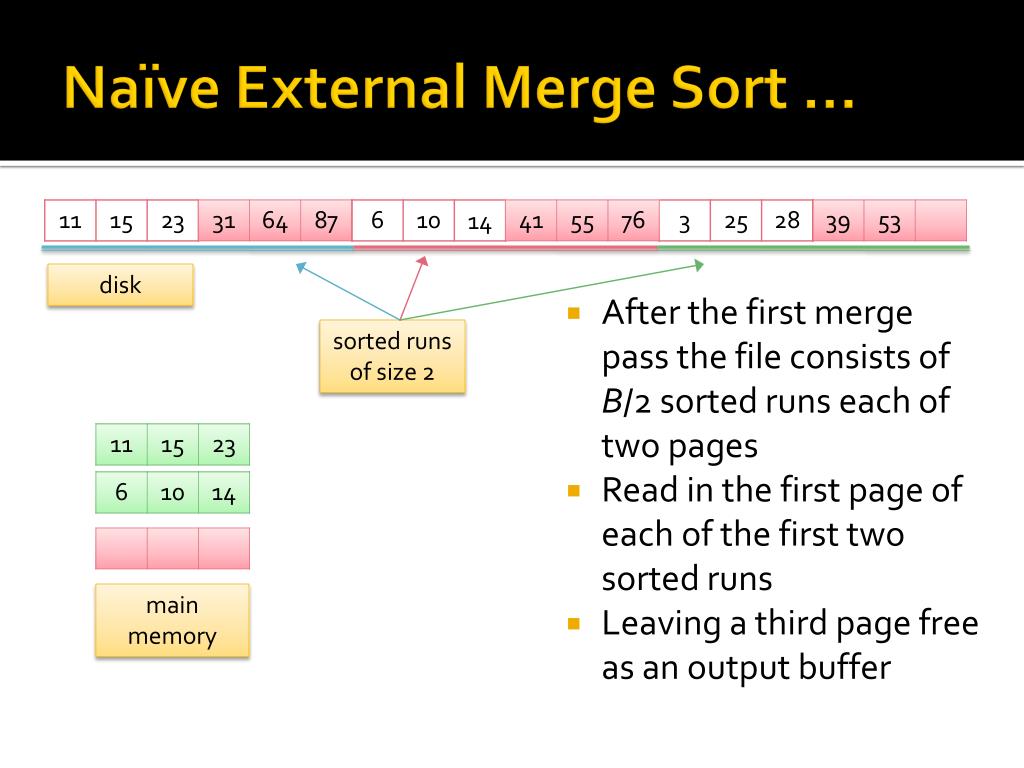

  33. Naïve External Merge Sort … • After the first merge pass the file consists of B/2 sorted runs each of two pages • Read in the first page of each of the first two sorted runs • Leaving a third page free as an output buffer disk sorted runs of size 2 main memory

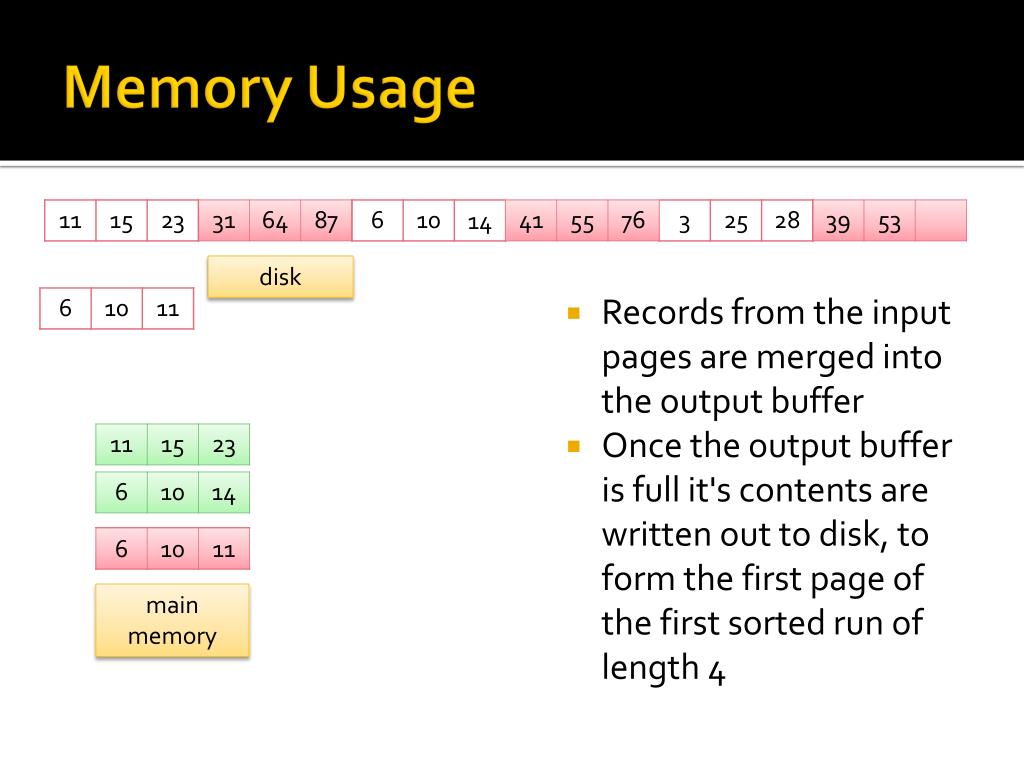

  34. Memory Usage • Records from the input pages are merged into the output buffer • Once the output buffer is full it's contents are written out to disk, to form the first page of the first sorted run of length 4 disk main memory

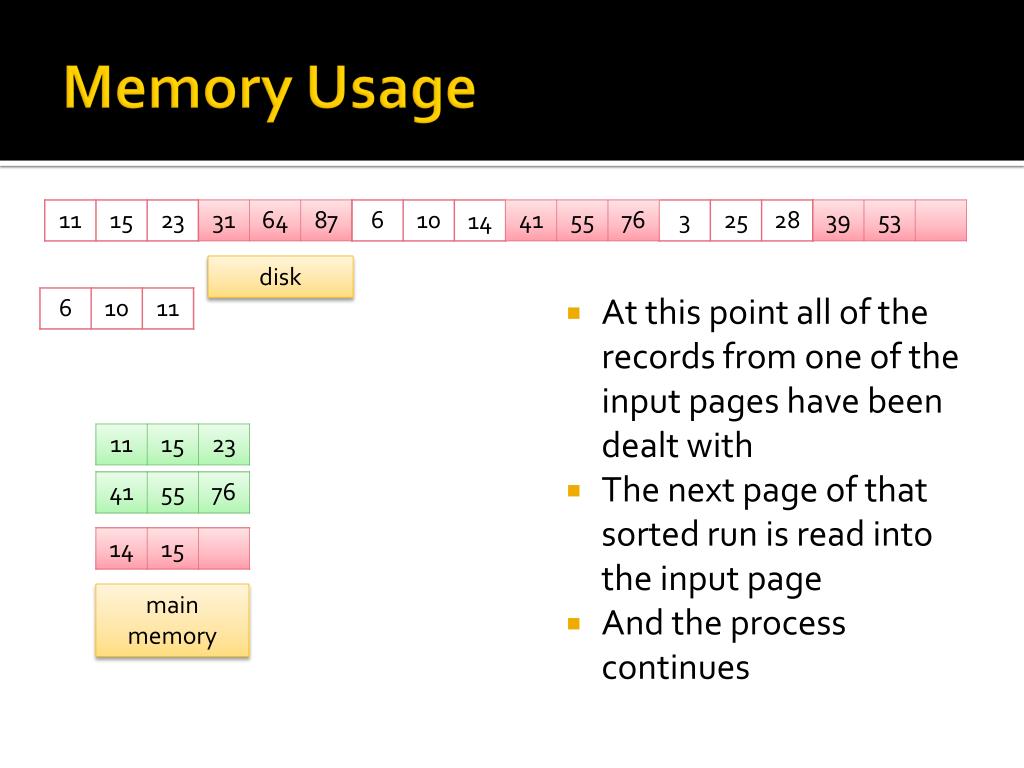

  35. Memory Usage • At this point all of the records from one of the input pages have been dealt with • The next page of that sorted run is read into the input page • And the process continues disk main memory

  36. Cost of Naïve Merge Sort • Assume that B = 2k, after the first merge pass there are 2k-1 sorted runs, each two pages long • After the second pass there are 2k-2 sorted runs, of length 4 • After the kth pass there is one sorted run of length B • The number of passes is therefore log2B+1 • log2B is the number of merge passes required • The +1 is for the initial pass to sort each page • Each pass requires that each page be read and written back for a total cost of 2B(log2 B +1) • Note that only 3 frames of main memory are used!

  37. First Stage Improvement • In the first stage of the process each page is read into main memory, sorted and written out • The pages are then ready to be merged • Instead of sorting each page independently, read M pages into main memory, and sort them together • M is the main memory frames available for the sort • After the first pass there will be B/M sorted runs, each of length M • This will reduce the number of subsequent merge passes that are required

  38. Merge Pass Improvement • In the merge passes perform an M-1 way merge rather than a 2 way merge, using • M-1 input pages, one for each of M-1 sorted runs and • 1 page for an output buffer • The first item in each of the M-1 input partitions is compared to each other to determine the smallest • Resulting in less merge passes, and less disk I/O • Each merge pass merges M-1 runs • After the first pass the runs are size (M-1)*M

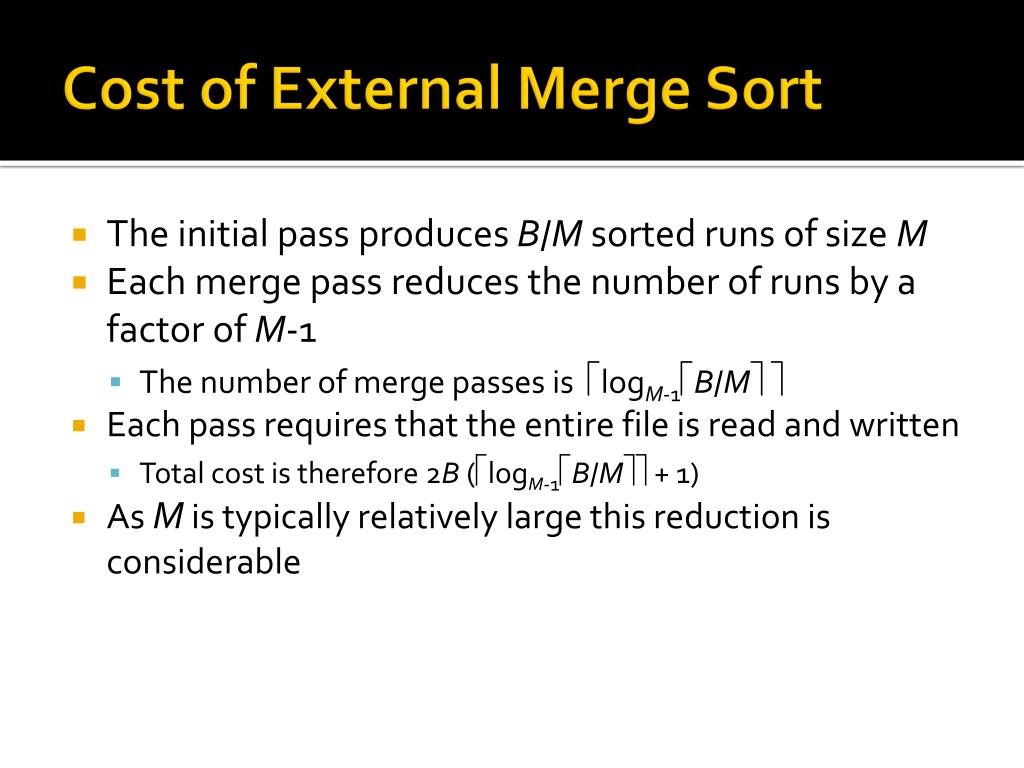

  39. Cost of External Merge Sort • The initial pass produces B/M sorted runs of size M • Each merge pass reduces the number of runs by a factor of M-1 • The number of merge passes is logM-1B/M  • Each pass requires that the entire file is read and written • Total cost is therefore 2B (logM-1B/M + 1) • As M is typically relatively large this reduction is considerable

  40. Number of Passes Assume that main memory is of a reasonable size and that it is all dedicated to sorting a file Even a large file can usually be sorted in two passes (a cost of 4B I/Os to sort an write out)

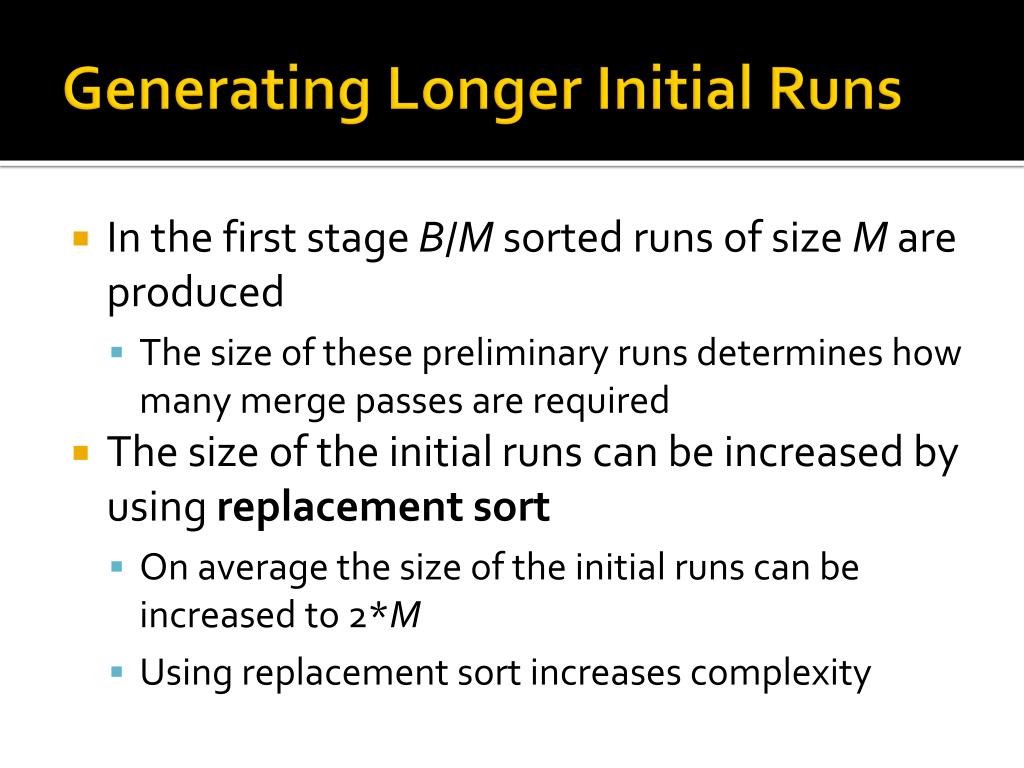

  41. Generating Longer Initial Runs • In the first stage B/M sorted runs of size M are produced • The size of these preliminary runs determines how many merge passes are required • The size of the initial runs can be increased by using replacement sort • On average the size of the initial runs can be increased to 2*M • Using replacement sort increases complexity

  42. Replacement Sort • M-2 pages are used to sort the file • Called the current set • One page is used for input, and • One page is used for output • The current set is filled • … and sorted disk current set input output main memory

  43. Replacement Sort • The next page of the file is read in to the input buffer • The smallest record from the current set (and the input buffer) is placed in the output buffer • The first location of the current set is now available for the first record from the input buffer disk current set input output main memory

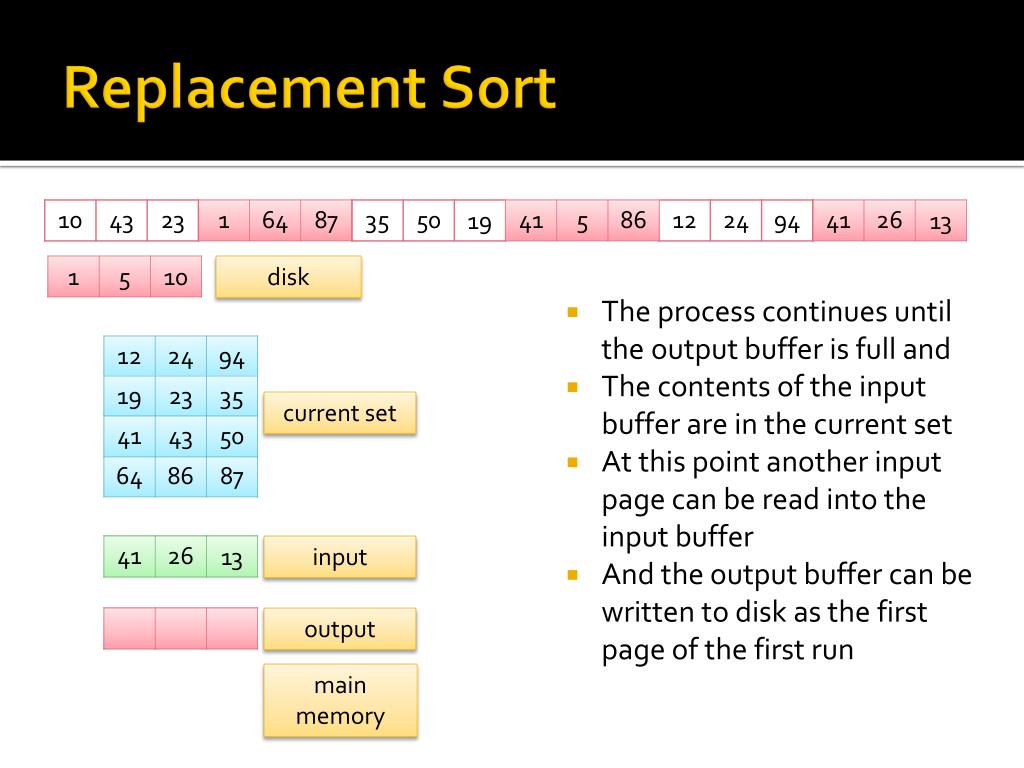

  44. Replacement Sort • The process continues until the output buffer is full and • The contents of the input buffer are in the current set • At this point another input page can be read into the input buffer • And the output buffer can be written to disk as the first page of the first run disk current set input output main memory

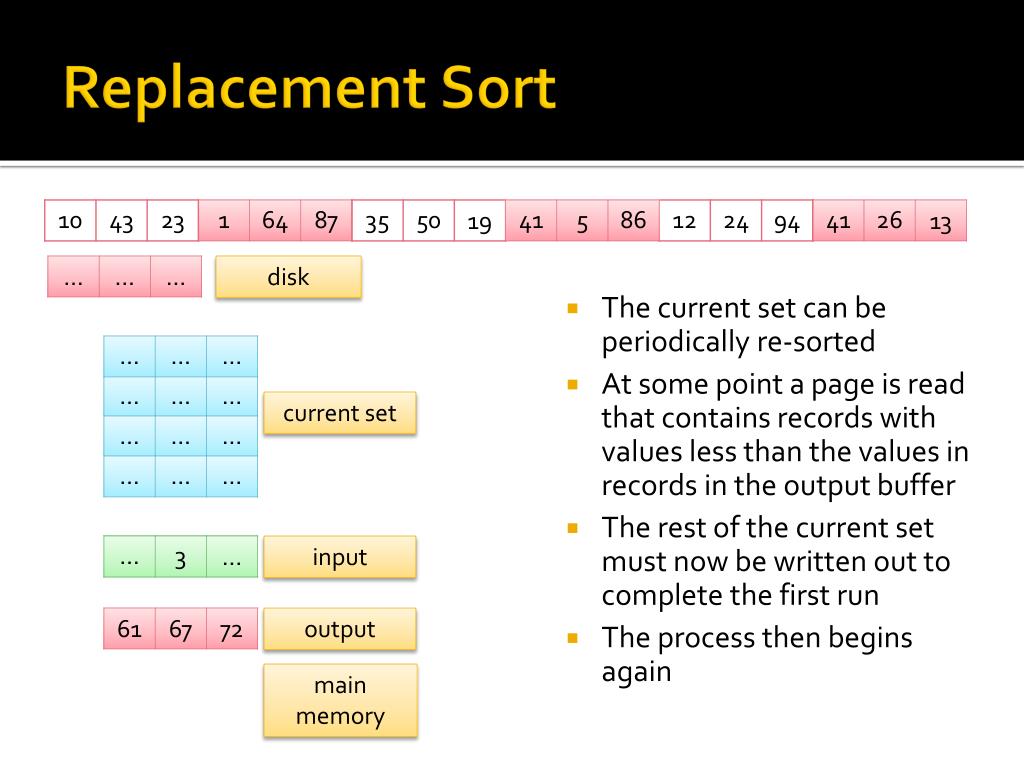

  45. Replacement Sort • The current set can be periodically re-sorted • At some point a page is read that contains records with values less than the values in records in the output buffer • The rest of the current set must now be written out to complete the first run • The process then begins again disk current set input output main memory

  46. Revisiting I/O Costs • The cost metric used so far is very simplistic • In practice it my be advantageous to make the input and output buffers larger than one page • This reduces the number of runs that can be merged at one time, so may increase the number of passes required • But, it allows a sequence of pages to be read or written to the buffers, decreasing the actual access time per page • We have also ignored CPU costs • If double buffering is used, the CPU can process one part of a run while the next is being loaded into main memory

  47. Note: B+ Trees and Sorting • Primary B+ tree index • The index can be used to find the first page, but • Note that the file is already sorted! • Secondary B+ tree index • Leaves point to data records that are not in sort order • In the worst case, each data entry could point to a different page from its adjacent entries • Retrieving the records in order requires reading all of the index leaf pages, plus one disk read for each record! • In practice external sort is likely to be much more efficient than using a secondary index

  48. End Digression

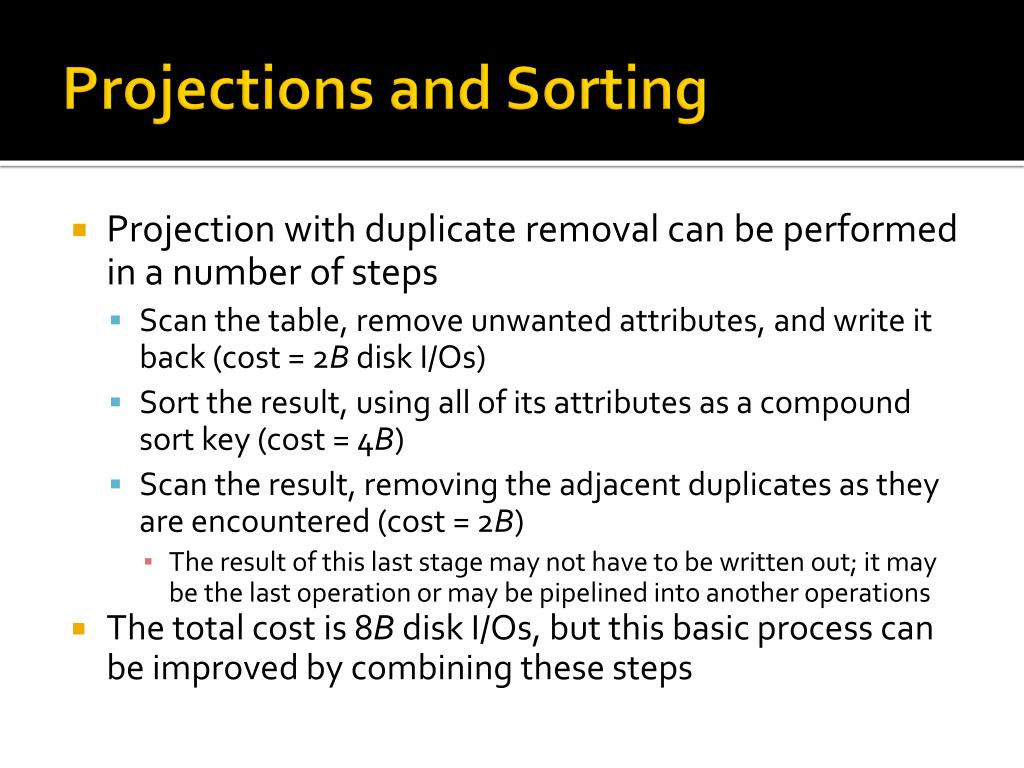

  49. Projections and Sorting • Projection with duplicate removal can be performed in a number of steps • Scan the table, remove unwanted attributes, and write it back (cost = 2B disk I/Os) • Sort the result, using all of its attributes as a compound sort key (cost = 4B) • Scan the result, removing the adjacent duplicates as they are encountered (cost = 2B) • The result of this last stage may not have to be written out; it may be the last operation or may be pipelined into another operations • The total cost is 8B disk I/Os, but this basic process can be improved by combining these steps

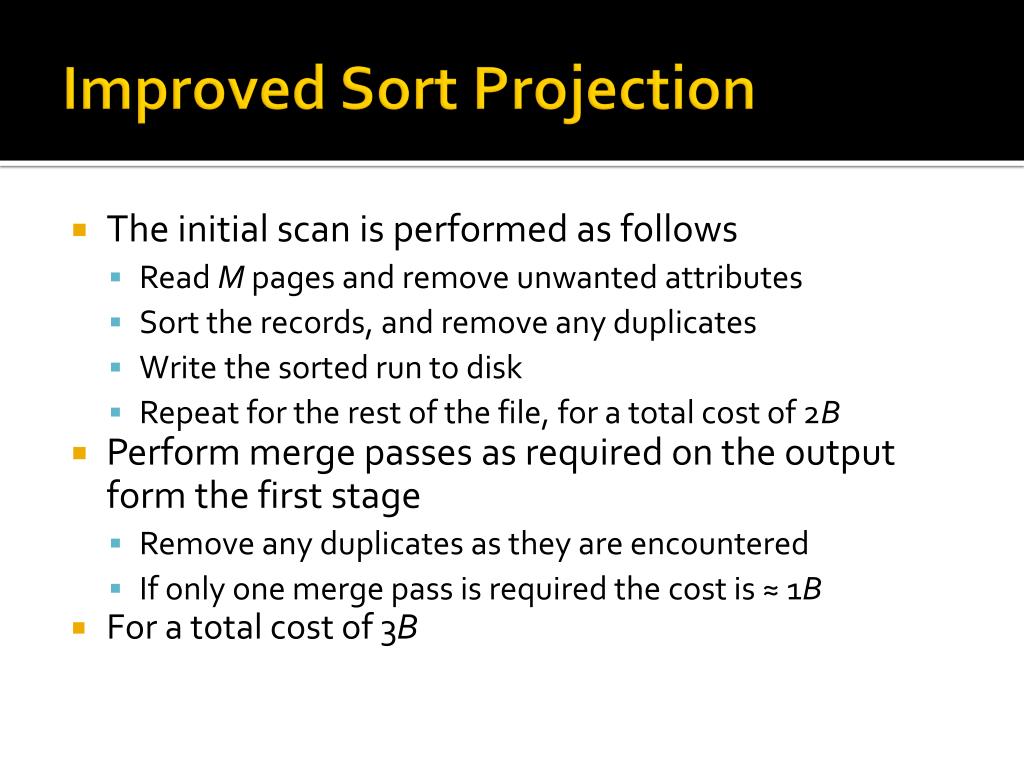

  50. Improved Sort Projection • The initial scan is performed as follows • Read M pages and remove unwanted attributes • Sort the records, and remove any duplicates • Write the sorted run to disk • Repeat for the rest of the file, for a total cost of 2B • Perform merge passes as required on the output form the first stage • Remove any duplicates as they are encountered • If only one merge pass is required the cost is ≈ 1B • For a total cost of 3B
