slide1

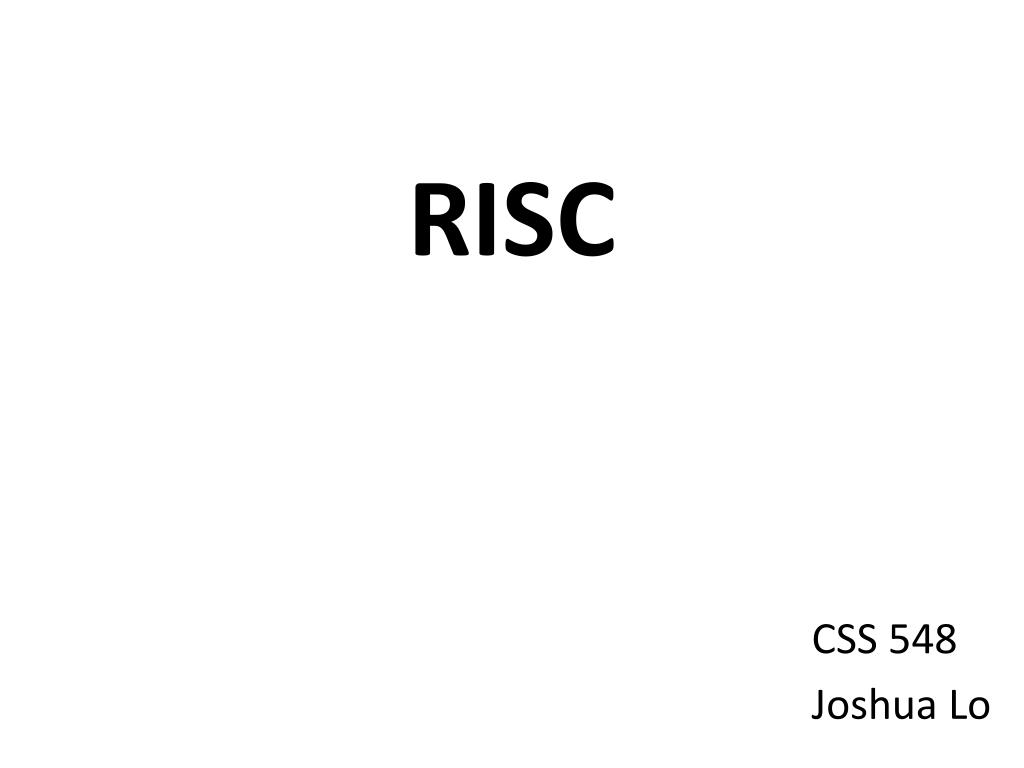

RISC

CSS 548

Joshua Lo

slide2

RISC

Reduced Instruction Set Computers

Microprocessor architecture

Designed to perform a set of smaller computer instructions so that it can operate at higher speeds

what will we cover
What will we cover?
  • History
  • Theory
  • Advantages
  • Pipelining
before the risc era
Before the RISC era
  • Compilers were hard to build especially for machines with registers
    • Make machine do more work than software
    • Have instructions load and store directly to memory (memory-to-memory operations)
  • Software costs were rising and hardware costs were dropping
    • Move as much functionality to hardware
  • Magnetic core memory was used as main memory which was slow and expensive
    • Minimize assembly code
  • Complex Instruction Set Computers (CISC)
    • Use complex instructions “MULT”, “ADD”…
technology was advancing
Technology was advancing
  • Compilers were improving
    • Simple compilers found it difficult to use more complex instructions
    • Optimizing compilers rarely needed more powerful instructions
  • Caches
    • allowed main memory to be accessed at similar speeds to control memory
  • Semiconductor memory was replacing magnetic core memory
    • Reduced performance gap between control and main memory
inception of risc

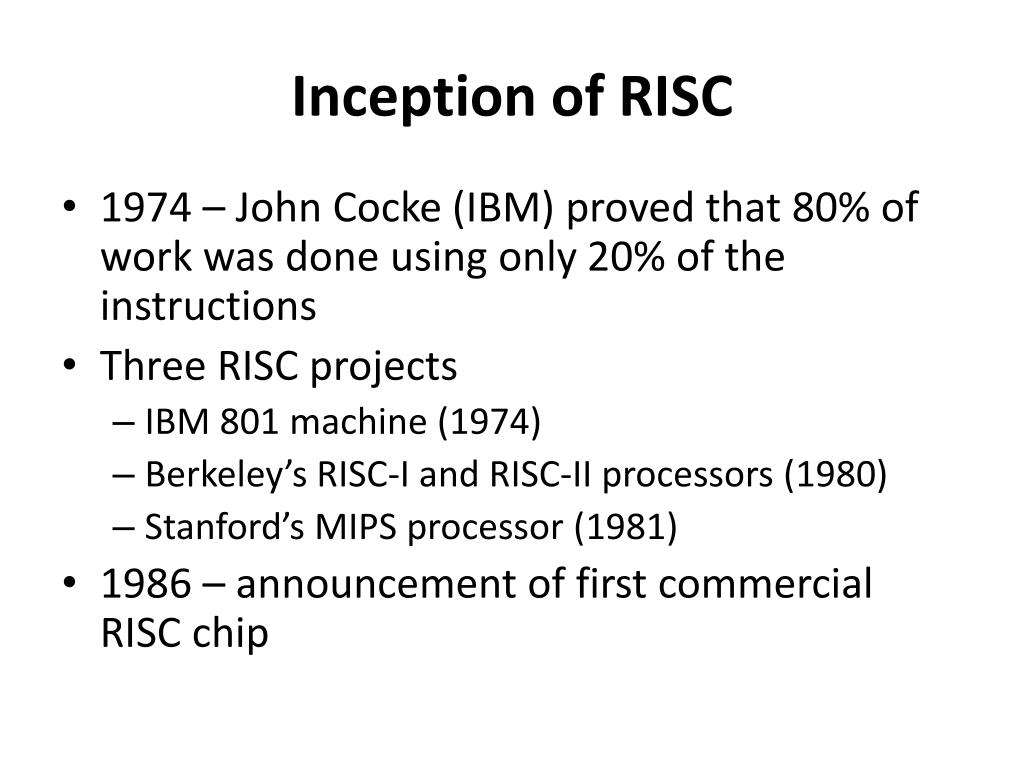

Inception of RISC
  • 1974 – John Cocke (IBM) proved that 80% of work was done using only 20% of the instructions
  • Three RISC projects
    • IBM 801 machine (1974)
    • Berkeley’s RISC-I and RISC-II processors (1980)
    • Stanford’s MIPS processor (1981)
  • 1986 – announcement of first commercial RISC chip
risc approach
RISC Approach
  • Use only simple instructions that can be executed within one clock cycle
    • Fewer transistors for instructions = more registers
  • Pipelining
  • Register-to-register operations
    • Operand reuse
    • Reduction of load/store
pipelining
Pipelining

Sequential

IF – Instruction Fetch

ID – Instruction Decode

OF – Operand Fetch

OE – Operand Execution

OS – Operation Store

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

Clock Cycle

Pipelined

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

Clock Cycle

Time

pipelining1
Pipelining

Data Dependency

IF – Instruction Fetch

ID – Instruction Decode

OF – Operand Fetch

OE – Operand Execution

OS – Operation Store

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

Branch Address Dependency

IF

ID

OF

OE

OS

IF

ID

OF

OE

OS

pipelining2

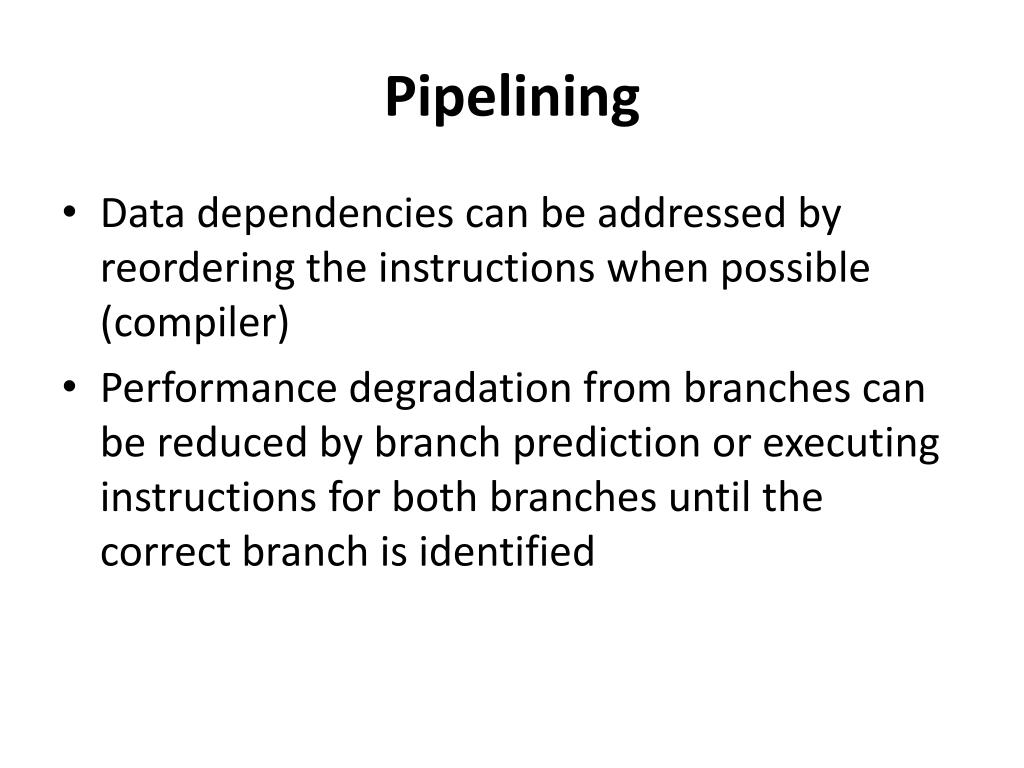

Pipelining
  • Data dependencies can be addressed by reordering the instructions when possible (compiler)
  • Performance degradation from branches can be reduced by branch prediction or executing instructions for both branches until the correct branch is identified
other advantages
Other Advantages
  • New microprocessors can be developed and tested more quickly if being less complicated is one of it’s aims
  • Smaller instruction sets are easier for compiler programmers to use
use of risc today
Use of RISC today
  • X86 is one of the only chips that retain CISC architecture
    • Large base of proprietary PC applications were written for X86 or compiled into X86 machine code
    • Intel was able to spend vast amounts of money on processor development to offset the RISC advantages enough to maintain PC market share
  • CISC and RISC architectures are nearly indistinguishable
    • CISC processors use pipelining and can complete multiple instructions per cycle
    • Transistor technology has allowed more room on chips allowing RISC to have more CISC like instruction
questions

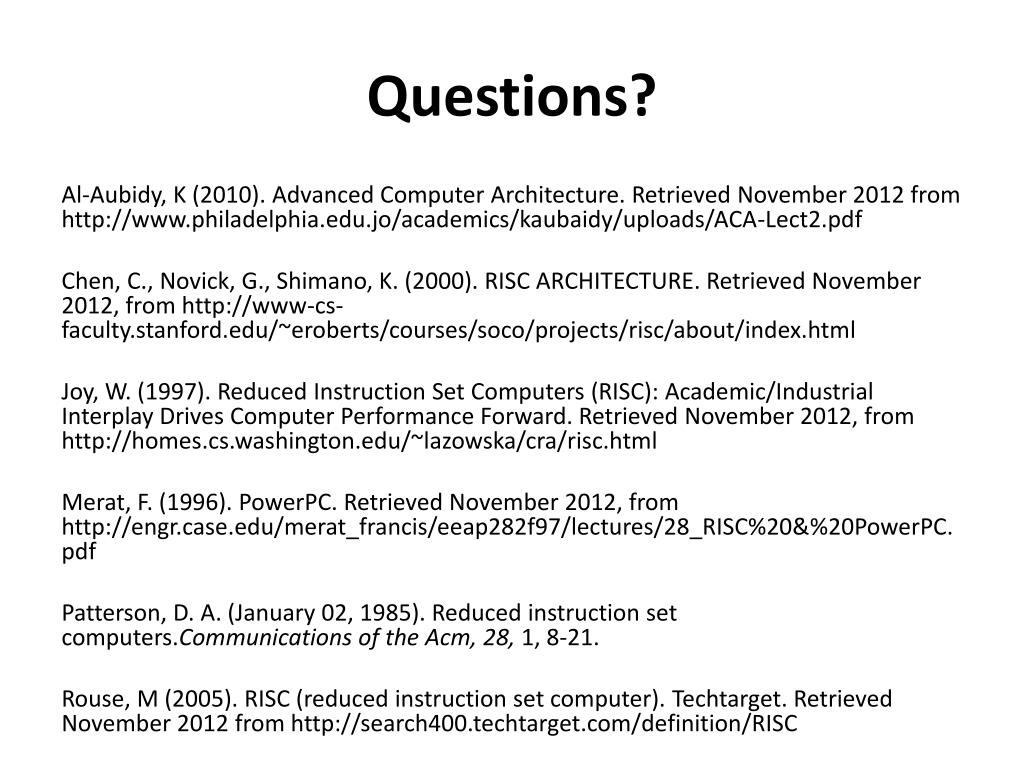

Questions?

Al-Aubidy, K (2010). Advanced Computer Architecture. Retrieved November 2012 from http://www.philadelphia.edu.jo/academics/kaubaidy/uploads/ACA-Lect2.pdf

Chen, C., Novick, G., Shimano, K. (2000). RISC ARCHITECTURE. Retrieved November 2012, from http://www-cs-faculty.stanford.edu/~eroberts/courses/soco/projects/risc/about/index.html

Joy, W. (1997). Reduced Instruction Set Computers (RISC): Academic/Industrial Interplay Drives Computer Performance Forward. Retrieved November 2012, from http://homes.cs.washington.edu/~lazowska/cra/risc.html

Merat, F. (1996). PowerPC. Retrieved November 2012, from http://engr.case.edu/merat_francis/eeap282f97/lectures/28_RISC%20&%20PowerPC.pdf

Patterson, D. A. (January 02, 1985). Reduced instruction set computers.Communications of the Acm, 28, 1, 8-21.

Rouse, M (2005). RISC (reduced instruction set computer). Techtarget. Retrieved November 2012 from http://search400.techtarget.com/definition/RISC
