Enhanced Design of Low-Cost Launch Vehicle Observatory

This project involved optimizing a 1.1m aperture telescope design for cost-effective launch, by adjusting spectrometer channels, reducing telescope structure length, and revising Solar Array Sun Shade geometry. Additional studies are ongoing to enhance system margin.

xuan
Download Presentation

Enhanced Design of Low-Cost Launch Vehicle Observatory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

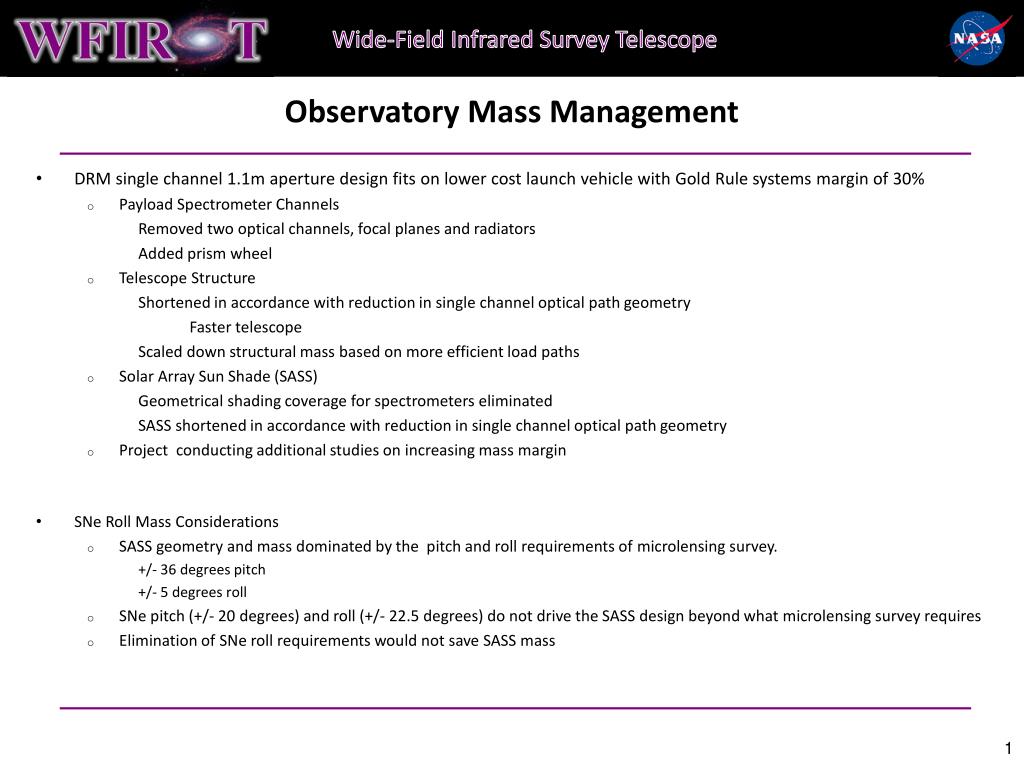

  1. Observatory Mass Management • DRM single channel 1.1m aperture design fits on lower cost launch vehicle with Gold Rule systems margin of 30% • Payload Spectrometer Channels Removed two optical channels, focal planes and radiators Added prism wheel • Telescope Structure Shortened in accordance with reduction in single channel optical path geometry Faster telescope Scaled down structural mass based on more efficient load paths • Solar Array Sun Shade (SASS) Geometrical shading coverage for spectrometers eliminated SASS shortened in accordance with reduction in single channel optical path geometry • Project conducting additional studies on increasing mass margin • SNe Roll Mass Considerations • SASS geometry and mass dominated by the pitch and roll requirements of microlensing survey. +/- 36 degrees pitch +/- 5 degrees roll • SNe pitch (+/- 20 degrees) and roll (+/- 22.5 degrees) do not drive the SASS design beyond what microlensing survey requires • Elimination of SNe roll requirements would not save SASS mass
