Aspha min warm asphalt mixes

ASPHA – MINWARM ASPHALT MIXES

A Division of Eurovia


Eurovia mhi
Eurovia / MHI

Originators of Zeolite Warm Mix Technology

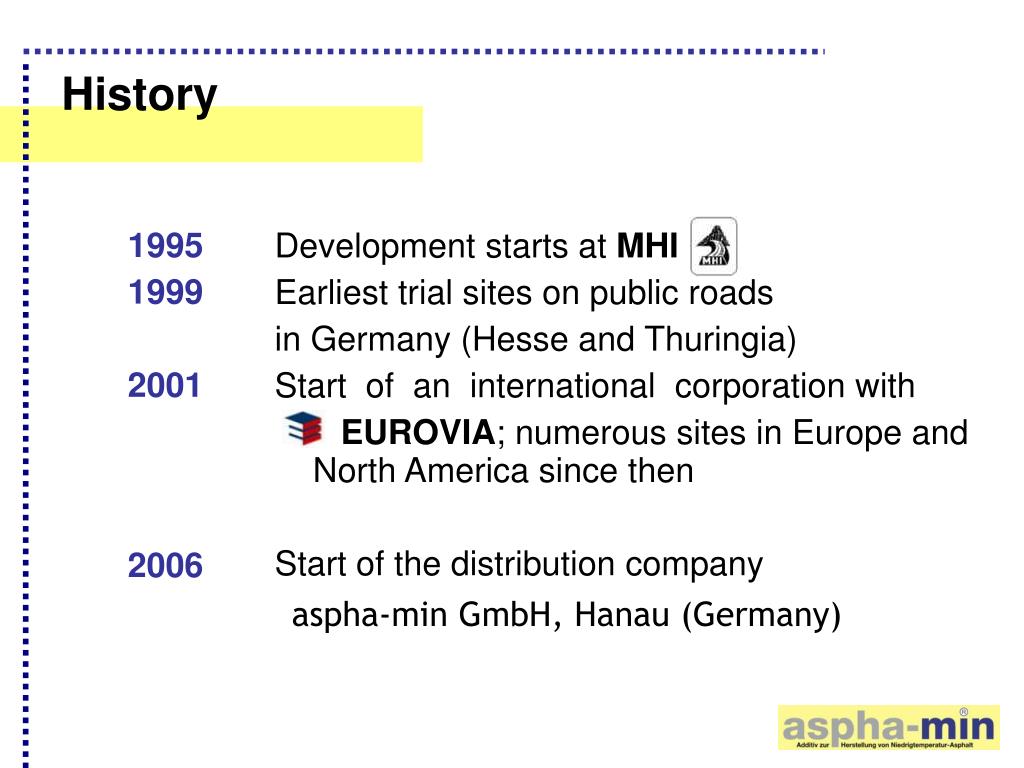

History
History

Development starts at MHI

Earliest trial sites on public roads

in Germany (Hesse and Thuringia)

Start of an international corporation with

EUROVIA; numerous sites in Europe and North America since then

Start of the distribution company

1995

1999

2001

2006

aspha-min GmbH, Hanau (Germany)

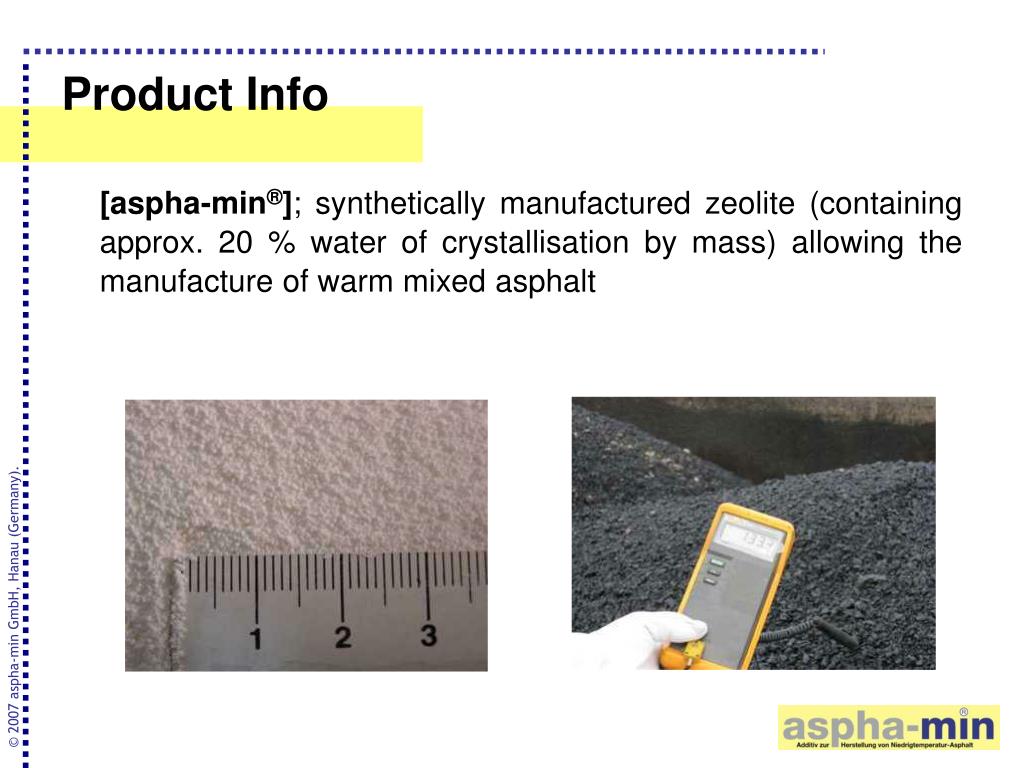

Product info
Product Info

[aspha-min®]; synthetically manufactured zeolite (containing approx. 20 % water of crystallisation by mass) allowing the manufacture of warm mixed asphalt

© 2007 aspha-min GmbH, Hanau (Germany).


Product info1
Product Info

Impact of aspha-min®:

  • Added to the mix shortly before or at the same time as the binder at a rate of 0.3% by mass, the zeolite starts to release water, creating a very fine water spray

  • This controlled foaming effect leads to a slight increase of the binder volume

  • The gradual release of the water provides the impact over a longer period of time (6 to 7 hrs.)

  • The effect lasts until the mix has cooled to (212° F) thus ensuring comfortable workability of the mix

© 2007 aspha-min GmbH, Hanau (Germany).


Product info2
Product Info

Benefits of aspha-min® in WMA:

  • Compatible with all currently used types of binder

  • Compatible with all currently used types of mix

  • Compatible with the use of RAP

  • No change to the ball-and-pen value

  • Easy handling and dosing

  • Stable storage when kept dry

  • No additional storage facilities for pre-mixed binder

  • No major modifications to the plant

  • No prolongation of the mixing time

© 2007 aspha-min GmbH, Hanau (Germany).



Case study 1

Field Report

Case study 1

Project: B 3, Schönstadt-Schwarzenborn – Germany, State of Hesse

Principal: Hessisches Landesamt für Straßen- und Verkehrswesen

Amt für Straßen- und Verkehrswesen, Marburg

Contractor: A. Bauer GmbH & Co. KG, Cölbe

Mixing Plant: MHI GmbH, Homberg (Ohm) – 26 km to work site

Application: June 1999

Types of mix: Asphaltbinder 0/22 S (binder course)

(3256 mt warm mixed; 991 mt hot mixed)

Splittmastixasphalt 0/8 S (stone mastic asphalt)

(1016 mt warm mixed; 387 mt hot mixed)

Specifics: First major public trial site

Measuring of energy savings at mixing plant

Ambient temp.: 18° - 22° C (64° - 72° F)

Application temp.: 126° - 142° C delivered on site (259° - 288° F)

105° - 130° C at the paver (221° - 266° F)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 11

Field Report

Case study 1

B 3, Schönstadt-Schwarzenborn (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Two lanes separately paved with warm mix


Case study 12

Field Report

Case study 1

B 3, Schönstadt-Schwarzenborn (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Texture of the SMA


Case study 13

Field Report

Case study 1

B 3, Schönstadt-Schwarzenborn (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Surface after completion


Case study 14

Field Report

Case study 1

B 3, Schönstadt-Schwarzenborn (energy savings - extract)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 15

Field Report

Case study 1

B 3, Schönstadt-Schwarzenborn (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Average Temperature Range 30°F - 61°F

Annual Precipitation 35”

Average Daily Traffic 8879 Trucks 1651

1999

2007

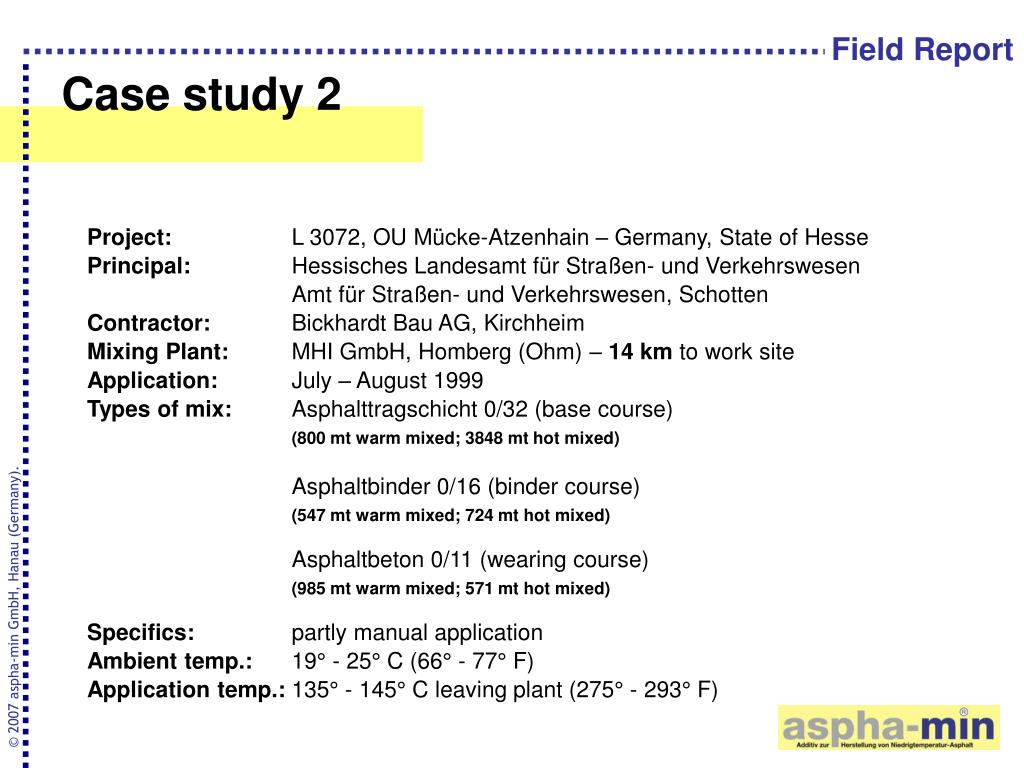

Case study 2

Field Report

Case study 2

Project: L 3072, OU Mücke-Atzenhain – Germany, State of Hesse

Principal: Hessisches Landesamt für Straßen- und Verkehrswesen

Amt für Straßen- und Verkehrswesen, Schotten

Contractor: Bickhardt Bau AG, Kirchheim

Mixing Plant: MHI GmbH, Homberg (Ohm) – 14 km to work site

Application: July – August 1999

Types of mix: Asphalttragschicht 0/32 (base course)

(800 mt warm mixed; 3848 mt hot mixed)

Asphaltbinder 0/16 (binder course)

(547 mt warm mixed; 724 mt hot mixed)

Asphaltbeton 0/11 (wearing course)

(985 mt warm mixed; 571 mt hot mixed)

Specifics: partly manual application

Ambient temp.: 19° - 25° C (66° - 77° F)

Application temp.: 135° - 145° C leaving plant (275° - 293° F)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 21

Field Report

Case study 2

L 3072, Mücke-Atzenhain (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Warm mix attached to existing lane


Case study 22

Field Report

Case study 2

L 3072, Mücke-Atzenhain (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Hand work areas


Case study 23

Field Report

Case study 2

L 3072, Mücke-Atzenhain (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Connecting link-roads


Case study 24

Field Report

Case study 2

L 3072, Mücke-Atzenhain (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Surface after completion


Case study 25

Field Report

Case study 2

L 3072, Mücke-Atzenhain (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 26

Field Report

Case study 2

L 3072, Mücke-Atzenhain (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 27

Field Report

Case study 2

L 3072, Mücke-Atzenhain (today)

© 2007 aspha-min GmbH, Hanau (Germany).



Case study 3

Field Report

Case study 3

Project: B 49, Flensungen-Ruppertenrod – Germany, State of Hesse

Principal: Hessisches Landesamt für Straßen- und Verkehrswesen

Amt für Straßen- und Verkehrswesen, Schotten

Contractor: Stutz GmbH & Co. KG

Mixing Plant: MHI GmbH, Homberg (Ohm) – 23 km to work site

Application: November 1999 – June 2000

Types of mix: Asphalttragschicht 0/32 (base course)

(2045 mt warm mixed; 2305 mt hot mixed)

Asphaltbinder 0/16 (binder course)

(640 mt warm mixed; 659 mt hot mixed)

Splittmastixasphalt 0/11 (stone mastic asphalt)

(865 mt warm mixed; 200 mt hot mixed)

Specifics: base course contains 45% of RAP

Ambient temp.: -1° - +3° C (30° - 37° F)

Application temp.: 139° - 145° C delivered on site (282° - 293° F)

102° - 139° C at the paver (216° - 282° F)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 31

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Warm mixed base course paved at ~ 0° C


Case study 32

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Warm mixed SMApaved at ~ 2° C!

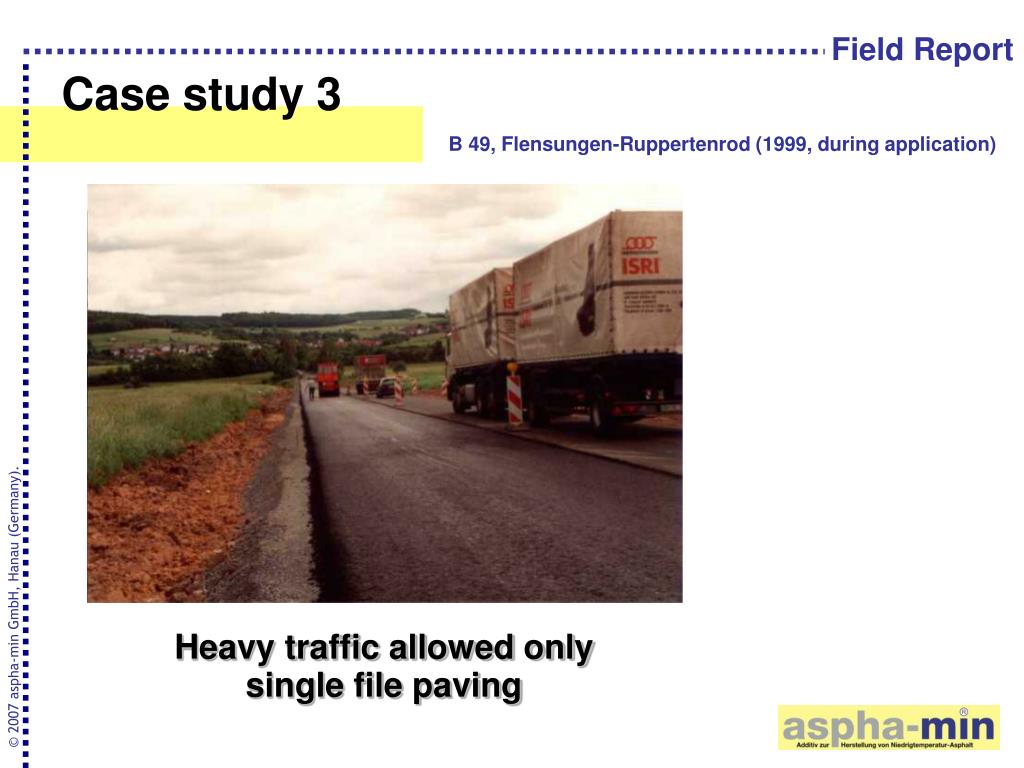

Case study 33

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Heavy traffic allowed only single file paving


Case study 34

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (1999, during application)

© 2007 aspha-min GmbH, Hanau (Germany).

Surface after completion

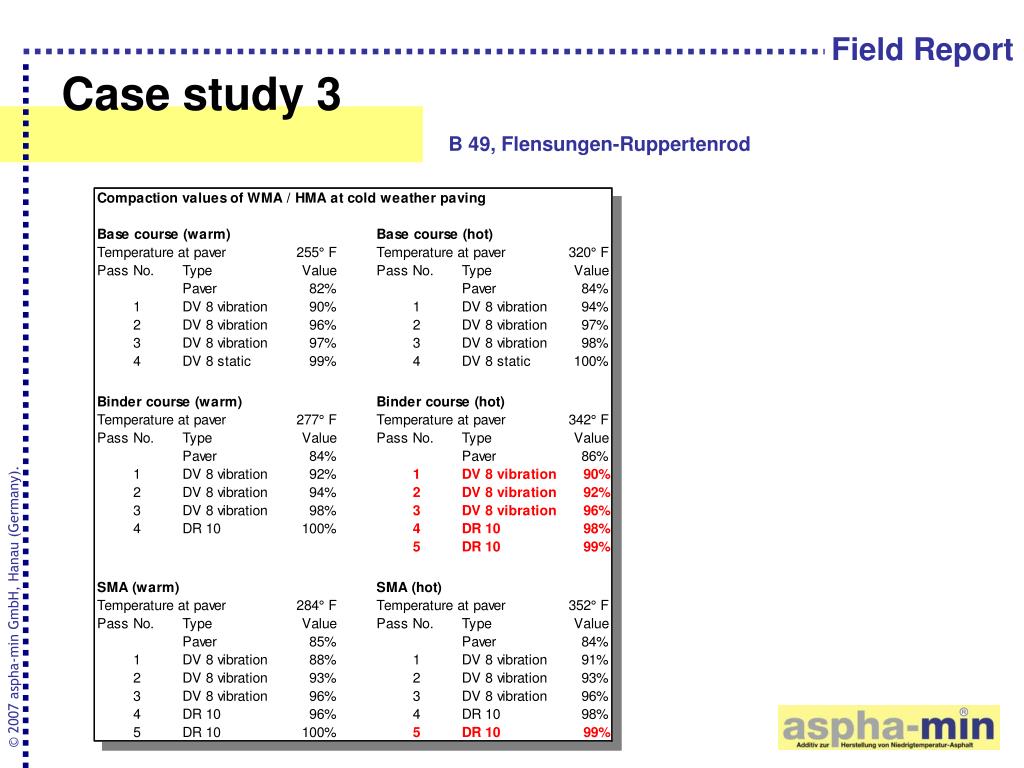

Case study 35

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 36

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 37

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 38

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (today)

© 2007 aspha-min GmbH, Hanau (Germany).


Case study 39

Field Report

Case study 3

B 49, Flensungen-Ruppertenrod (today)

© 2007 aspha-min GmbH, Hanau (Germany).



Official rating

Field Report

Official rating

Here: B 3, Schönstadt-Schwarzenborn

© 2007 aspha-min GmbH, Hanau (Germany).

Source:„Erfahrungssammlung über die Verwendung von Fertigprodukten und Zusätzen zur Temperaturabsenkung von Asphalt“; bast 08/2006


Product info3

Field Report

Product Info

Extrabenefits of aspha-min® in HMA:

  • Easier compaction of high performance types of mix

  • Easier compaction in manual application

  • Easier compaction of thin layers

  • Easier compaction when adding high portions of RAP

  • Allows longer hauls

  • Allows cold weather paving

© 2007 aspha-min GmbH, Hanau (Germany).


Laying

Renfovia®with aspha-min®

Renfovia®without aspha-min®

Field No.

1

2

3

4

5

Roller

9 t V, S

12 t V, O

9 t V, S

9 t V, O

12 t V, O

Pass 1

78,9

77,5

76,6

79,8

76,7

Pass 2

92,8

92,8

93,4

91,5

90,2

Pass 3

97,0

95,1

97,0

94,0

94,5

Pass 4

97,9

96,3

97,7

95,9

94,9

Pass 5

98,3

98,8

98,4

96,8

97,9

Pass 6

-

-

-

97,5

98,3

Density by volume

2,485

2,485

2,485

2,465

2,465

Field Report

Laying

aspha-min® as compaction aid in hot mixed asphalt:

(Germany: BAB A 31, AS Lembach – AS Gescher)

© 2007 aspha-min GmbH, Hanau (Germany).

Legend: V = vibration; S = statically; O = oscillation

Source: EUROVIA Services GmbH, MPA Bottrop –Dr. Ing. Christoph Dröge

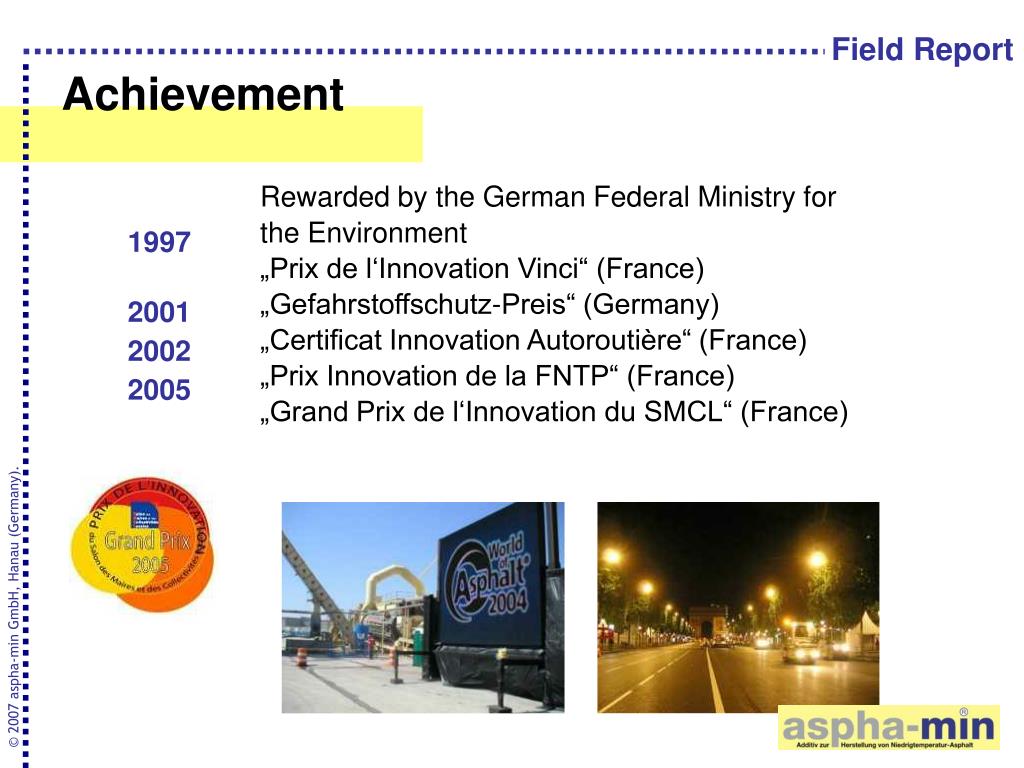

Achievement

Field Report

Achievement

Rewarded by the German Federal Ministry for

the Environment

„Prix de l‘Innovation Vinci“ (France)

„Gefahrstoffschutz-Preis“ (Germany)

„Certificat Innovation Autoroutière“ (France)

„Prix Innovation de la FNTP“ (France)

„Grand Prix de l‘Innovation du SMCL“ (France)

1997

2001

2002

2005

© 2007 aspha-min GmbH, Hanau (Germany).

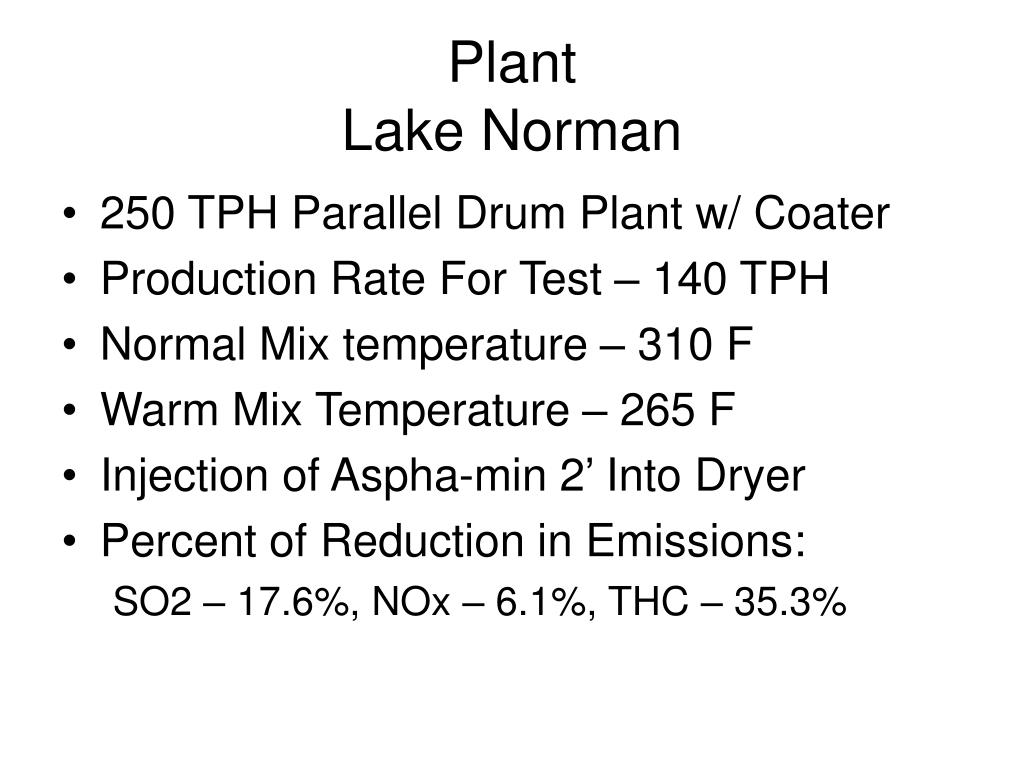

Plant lake norman
PlantLake Norman

  • 250 TPH Parallel Drum Plant w/ Coater

  • Production Rate For Test – 140 TPH

  • Normal Mix temperature – 310 F

  • Warm Mix Temperature – 265 F

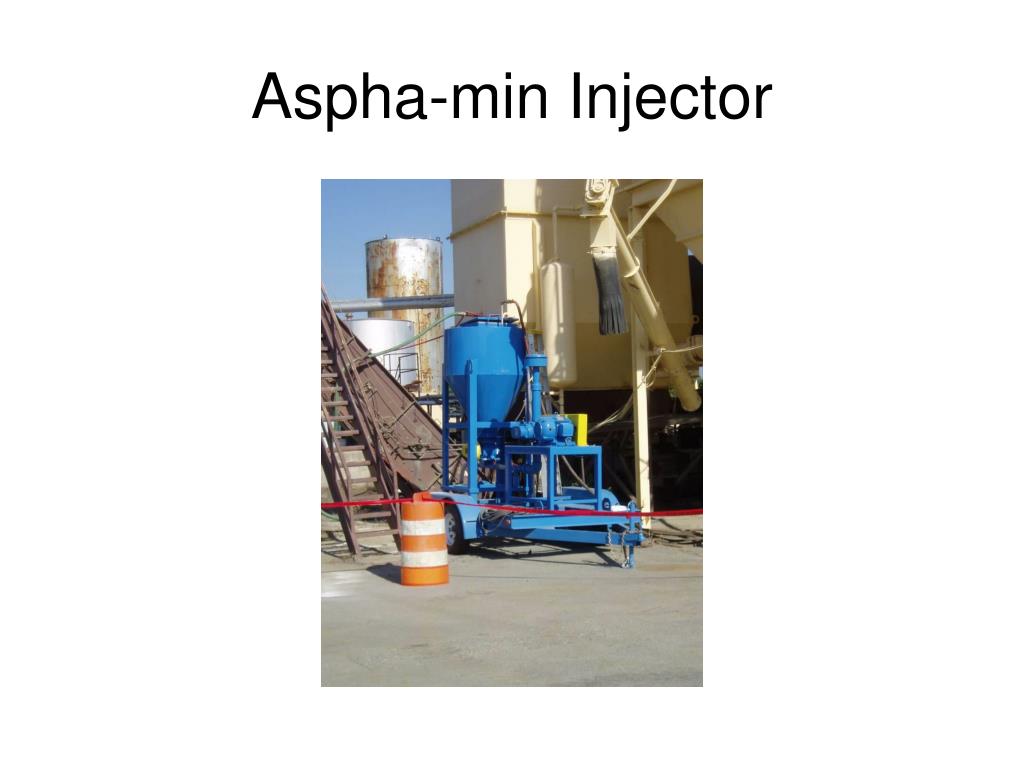

  • Injection of Aspha-min 2’ Into Dryer

  • Percent of Reduction in Emissions:

    SO2 – 17.6%, NOx – 6.1%, THC – 35.3%

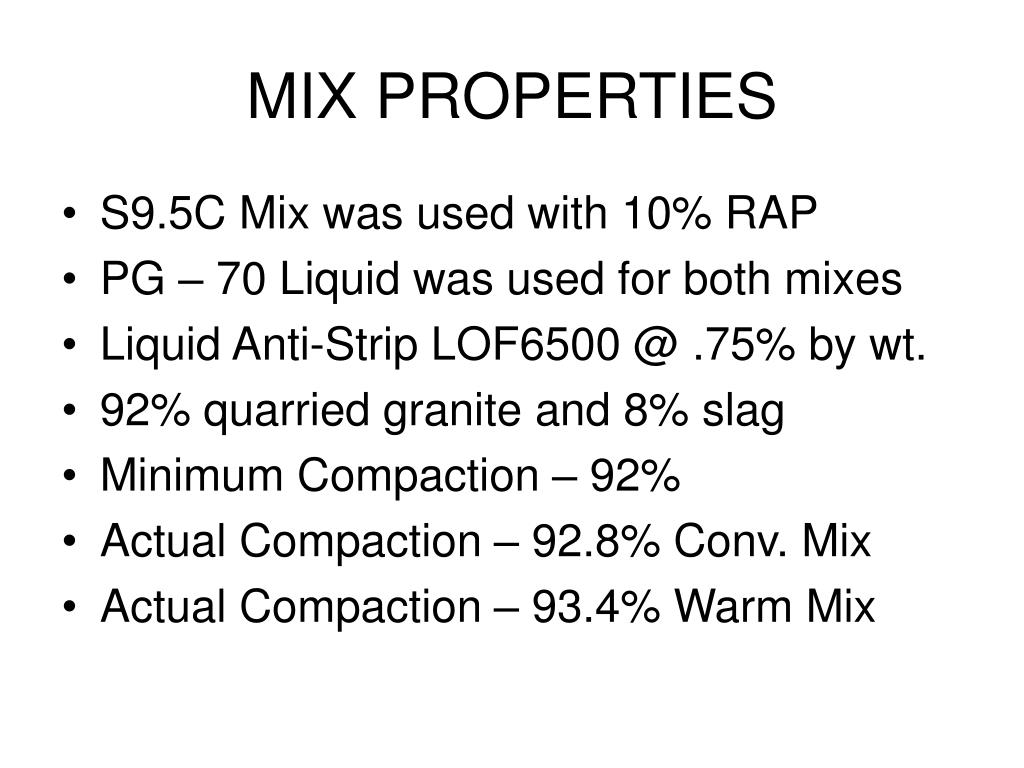

Mix properties
MIX PROPERTIES

  • S9.5C Mix was used with 10% RAP

  • PG – 70 Liquid was used for both mixes

  • Liquid Anti-Strip LOF6500 @ .75% by wt.

  • 92% quarried granite and 8% slag

  • Minimum Compaction – 92%

  • Actual Compaction – 92.8% Conv. Mix

  • Actual Compaction – 93.4% Warm Mix


Paving old statesville road charlotte nc
Paving Old Statesville RoadCharlotte, NC

  • Placed mix with 2181 Blaw-Knox Paver

  • Two Vibratory Rollers and 1 Rubber Tire

  • Rolling Pattern was same for both mixes

  • Matt Thickness – 1 1/2” to 2”

  • Very little temperature loss from plant to job

  • Placed 160 tons of Warm Mix


Aspha min mix on old statesville with city and dot observers
Aspha-min Mix on Old Statesvillewith City and DOT Observers



Aspha-Min WMA - 265° F

HMA - 315° F


Old statesville road 2007
Old Statesville Road 2007

  • Average Temperature Range 39°F - 79°F

  • Annual Precipitation 43”

  • Average daily traffic volume 27,800

  • Posted speed 45mph




Open Graded Friction Course

PG 76-22 with .4% fiber

Design temp 320° F


274° F with aspha-min

Where did the smoke go?


SR 417 Today

  • Average temperature range 48°F - 92°F

  • Days over 90°F – 107 annually

  • Annual Precipitation – 48”

  • Average daily traffic volume – 22,750 Trucks 3,200 65mph


2006

Today



Nov. 2006

  • Rue De Bleury (Montréal)


  • 3 projects in 2006

    • Autoroute 55 Sud (L’Avenir/Ulverton)

    • Rue Mc Gill

    • Rue des Sommets (Ile des Sœurs)

      1000 tons


Contact

Field Report

Contact

aspha-min GmbH

Lise Meitner-Str. 35

D-63457 Hanau

Tel.: +49 6181 / 98 38 897

Fax: +49 6181 / 98 38 899

Mail: [email protected]

Web:www.aspha-min.com

www.hubbard.com

© 2007 aspha-min GmbH, Hanau (Germany).


ad
