  1. Investigating Cancer KRAS Activity

  2. What is cancer? • All cancers derive from single cells that have acquired the characteristics of continually dividing in an unrestrained manner and invading surrounding tissues. • Cancer cells behave in this abnormal manner because of changes in the DNA sequence of key genes, which are known as cancer genes. Therefore all cancers are genetic diseases. Human melanoma cell undergoing cell division Credit: Paul Smith & Rachel Errington, Wellcome Images

  3. Cancer information • One in three people in the Western world develop cancer and one in five die of the disease • There are approximately 200 types of cancer, each with different causes, symptoms and treatments • In 2007, 297,991 people were newly diagnosed with cancer in the UK • An individual's risk of developing cancer depends on many factors, including age, lifestyle and genetic make-up Cancer Research UK

  4. The 20 most common causes of death from cancer, UK, 2008 Cancer Research UK. Accessed July 2010 /

  5. Cancer cells have altered genomes Karyotype illustrating structural abnormalities in cancer Credit : Mira Grigorova and Paul Edwards, Department of Pathology, University of Cambridge, unpublished Source:

  6. What is a mutation? • Germline mutation • A change in the DNA sequence that can be inherited from either parent • Somatic mutation • A change in the DNA sequence in cells other than sperm or egg • The mutation is present in the cancer cell and its offspring, but not in the patient’s healthy cells

  7. Mutations & cancer genes • Cancer genes are causally implicated in oncogenesis • Mutations in cancer genes can occur somatically or can be inherited. • Mutations in some cancer genes can be inherited from parents, in which case they are present in every cell of the body. Such people are at a higher risk of developing cancer. • Somatic mutations can occur in any of the cells of the body except the germ cells (sperm and egg) and therefore are not passed on to children.

  8. Importance of somatic DNA changes in human cancer Both Inherited Somatic • Only 5 –10% of cancer cases have a clear hereditary component, • e.g. BRCA1 and BRCA2 in breast cancer • Even in those cases where susceptibility is clearly inherited, somatic changes are required for cancer to develop

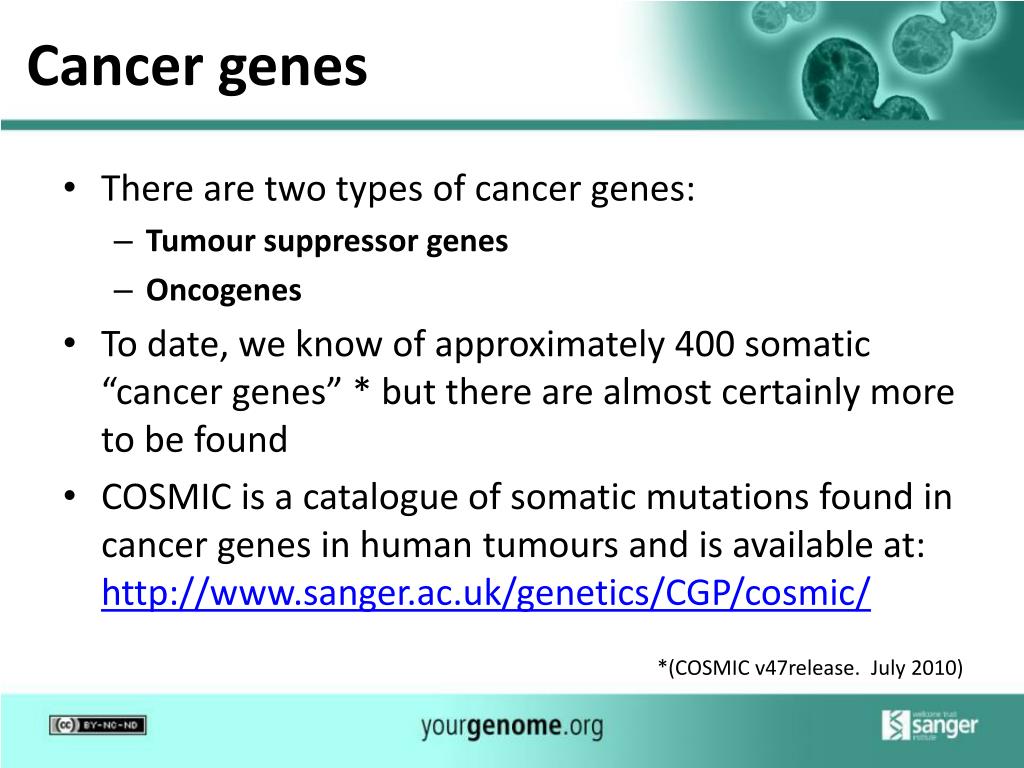

  9. Cancer genes • There are two types of cancer genes: • Tumour suppressor genes • Oncogenes • To date, we know of approximately 400 somatic “cancer genes” * but there are almost certainly more to be found • COSMIC is a catalogue of somatic mutations found in cancer genes in human tumours and is available at: *(COSMIC v47release. July 2010)

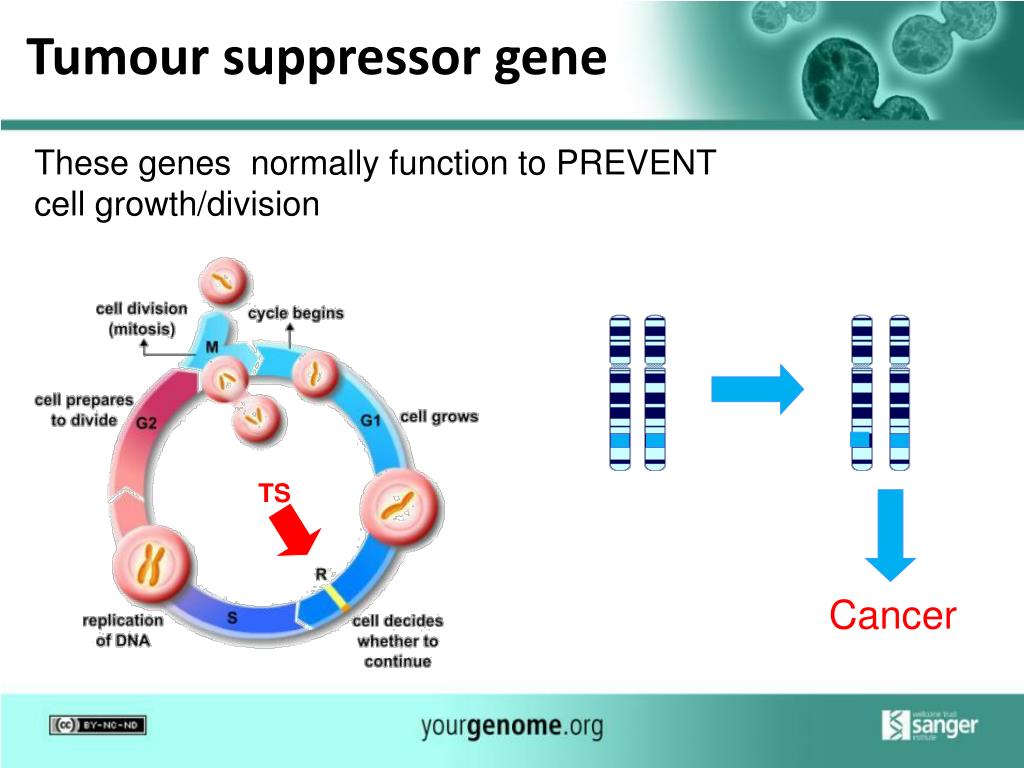

  10. These genes normally function to PREVENT cell growth/division Tumour suppressor gene TS Cancer

  11. Genes which normally function to PROMOTE cell growth/division in a controlled manner Oncogene Ras Cancer


  13. Cancer progression Mutations in multiple cancer genes are required for the development and progression of a single cancer Benign Tumour In situ cancer Invasive cancer Metastatic cancer

  14. External causes of cancer: ultraviolet radiation lastexit

  15. External causes of cancer: tobacco smoke

  16. Lifestyle factor: diet

  17. Biological factor: virus • HPV is a cause of cervical cancer • Proteins from the virus activate and deactivate cancer genes • The role of HPV in cervical cancer has led to the development of vaccines HPV in cervical epithelium Credit: MRC NIMR, Wellcome Images

  18. Activity • The KRAS gene codes for a signalling molecule • Mutations in KRAS are present in many cancers, including pancreatic cancer • You have to look for the mutations by comparing healthy DNA sequence with tumour DNA sequence • Not all of you will find a mutation

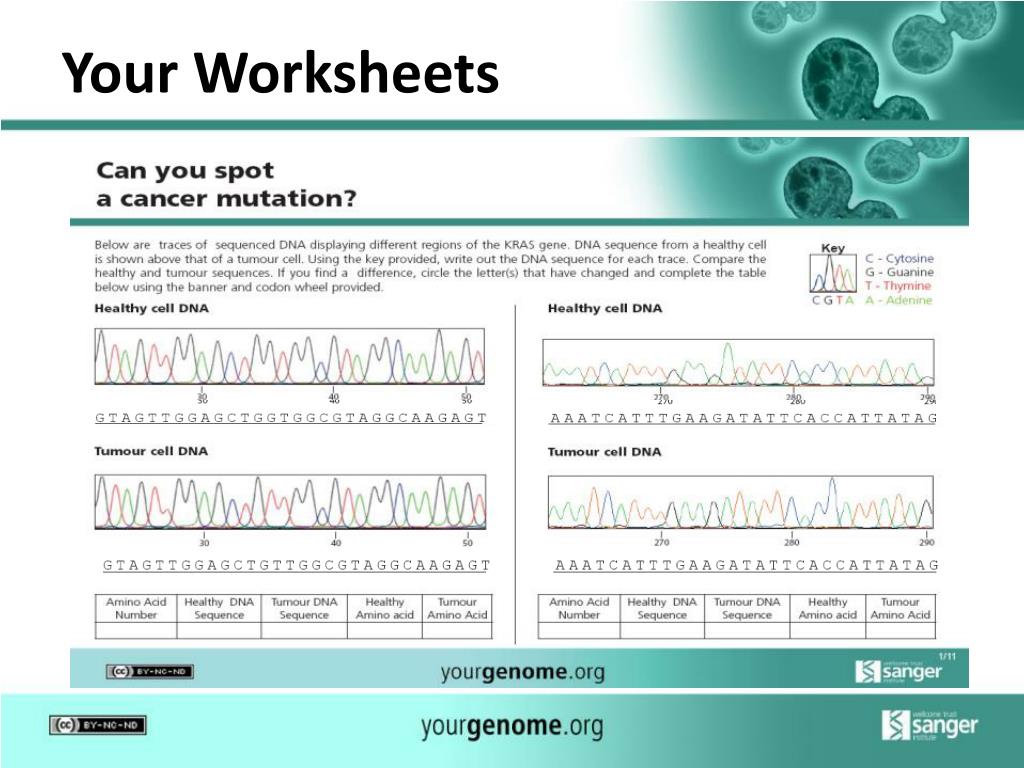

  19. Your Worksheets

  20. If you find a mutation EXAMPLE ONLY

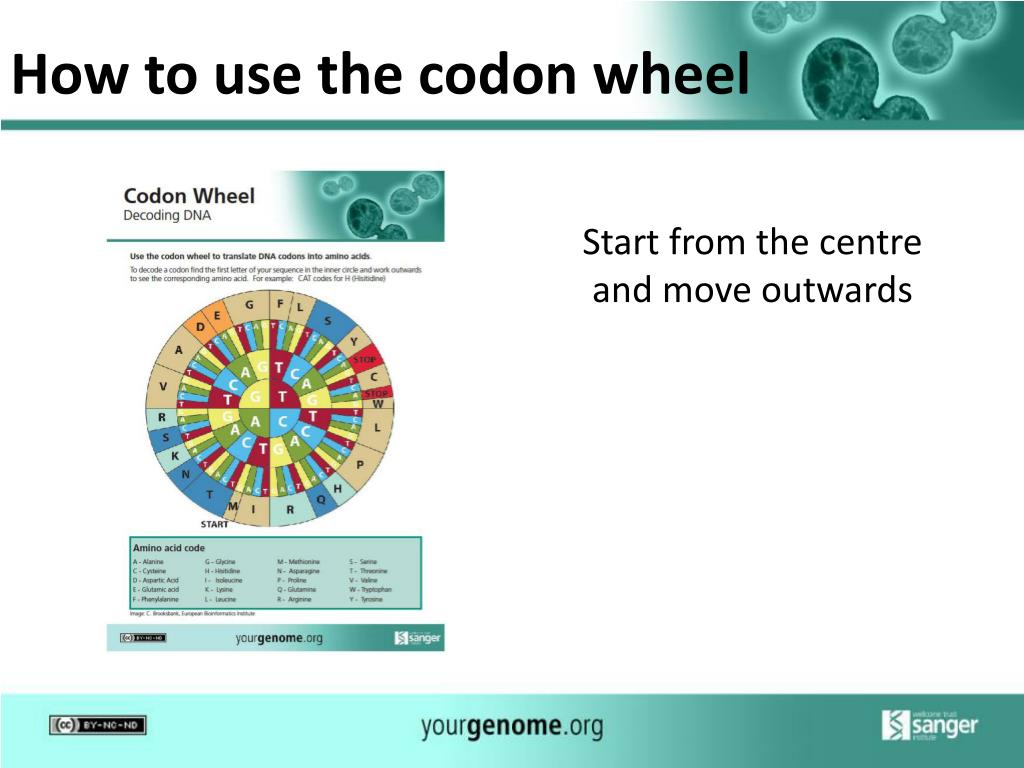

  21. How to use the codon wheel Start from the centre and move outwards

  22. Mark up your sequence

  23. Heterozygous mutations Normal DNA sequence A double peak indicates a mutation on one chromosome and not the other i.e. a heterozygous mutation A DNA change in cancer T → A BRAF gene mutation Nature 417, 906-7 (June 2002)

  24. Results Amino Acid Healthy DNA Tumour DNA Healthy Amino Tumour Amino Number Sequence Sequence Acid Acid G ( glycine ) V ( valine ) GGT GTT 12 D (aspartic acid) G (glycine) GGC GAC 13 D (aspartic acid ) D (aspartic acid) 30 GAC GAT Q (glutamine ) R ( arginine ) 61 CAA CGA A (alanine) P (proline) 146 GCA CCA ) D (aspartic acid D (aspartic acid) 173 GAT GAC

  25. Significant mutations

  26. How common? AA 12 13,894 AA 13 2,111 AA 61 212 AA 146 33 Source: COSMIC July 2010

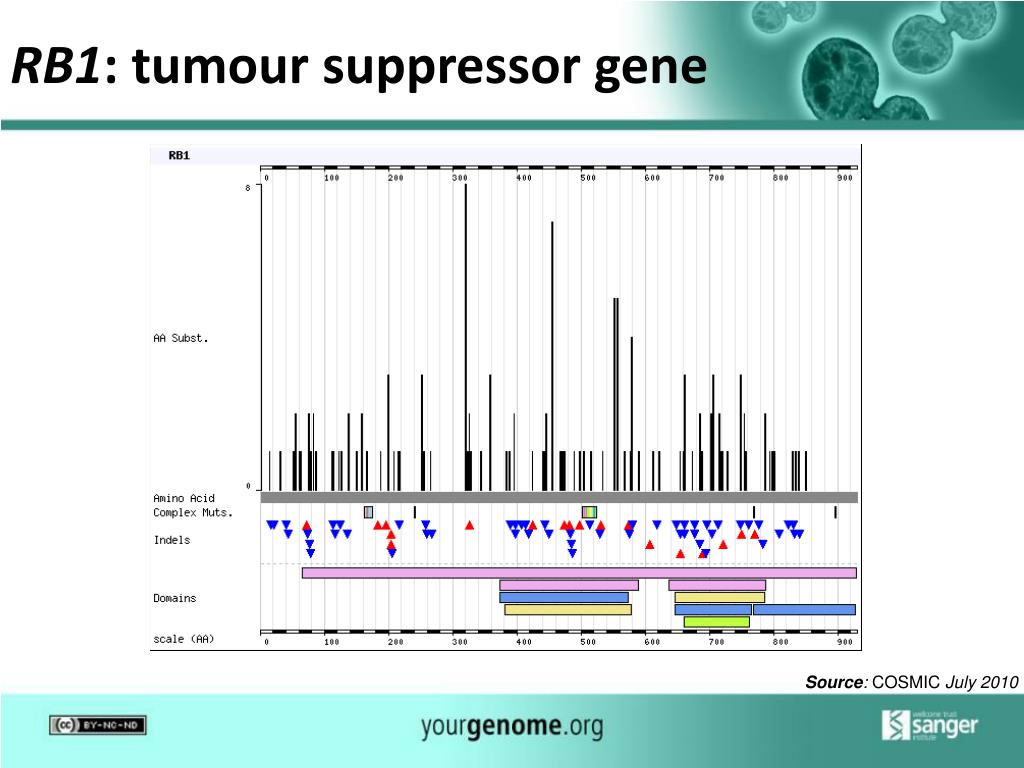

  27. RB1: tumour suppressor gene Source: COSMIC July 2010

  28. How does this affect the KRAS protein?

  29. Amino acid 12

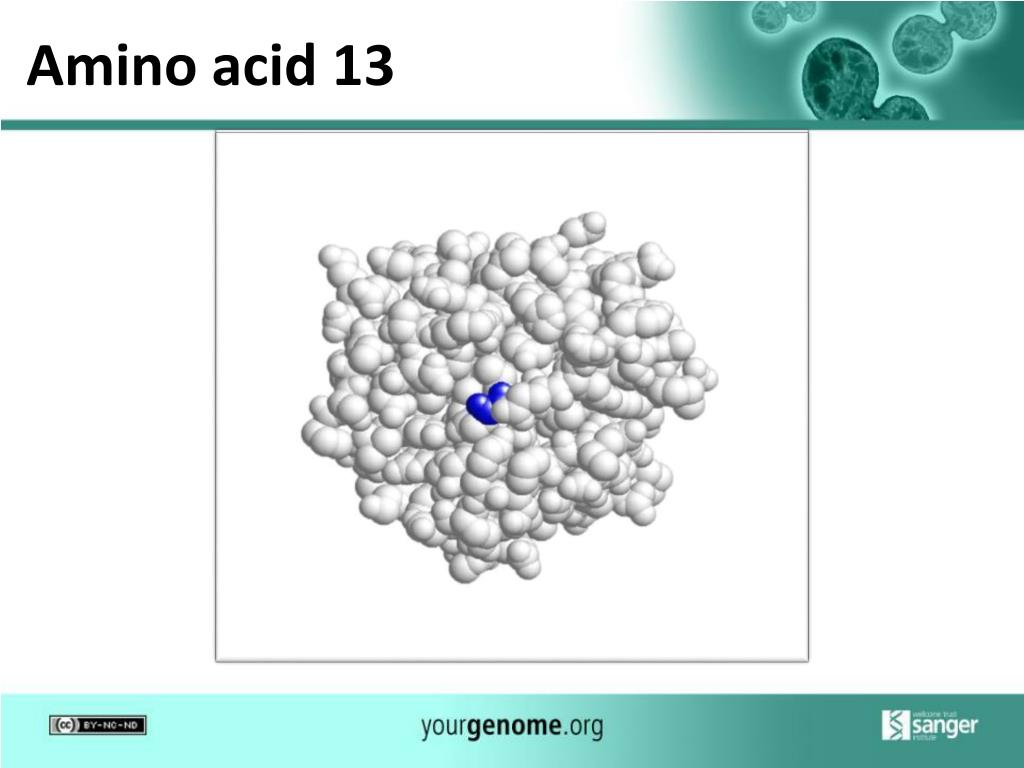

  30. Amino acid 13

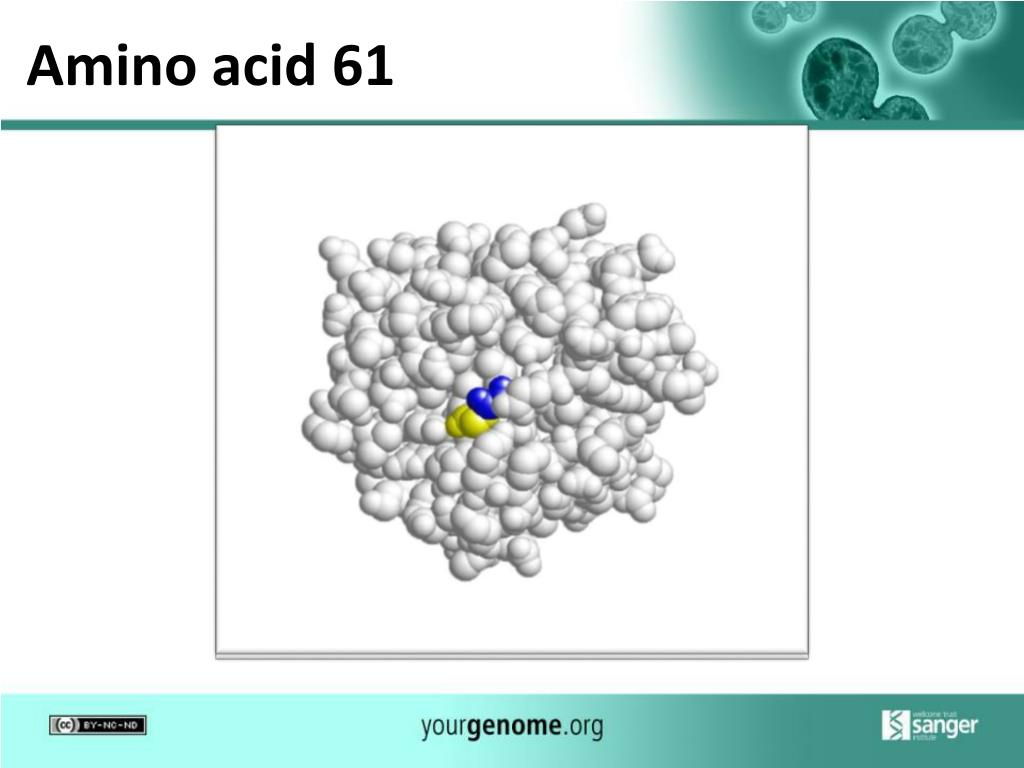

  31. Amino acid 61

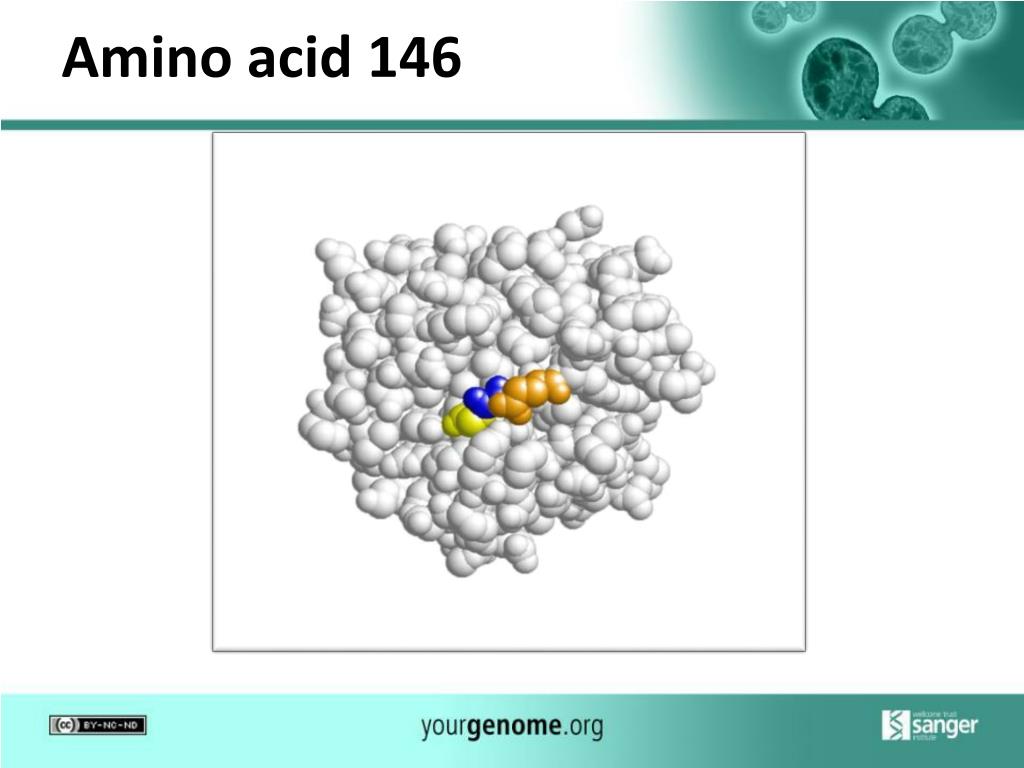

  32. Amino acid 146

  33. Amino acid 146

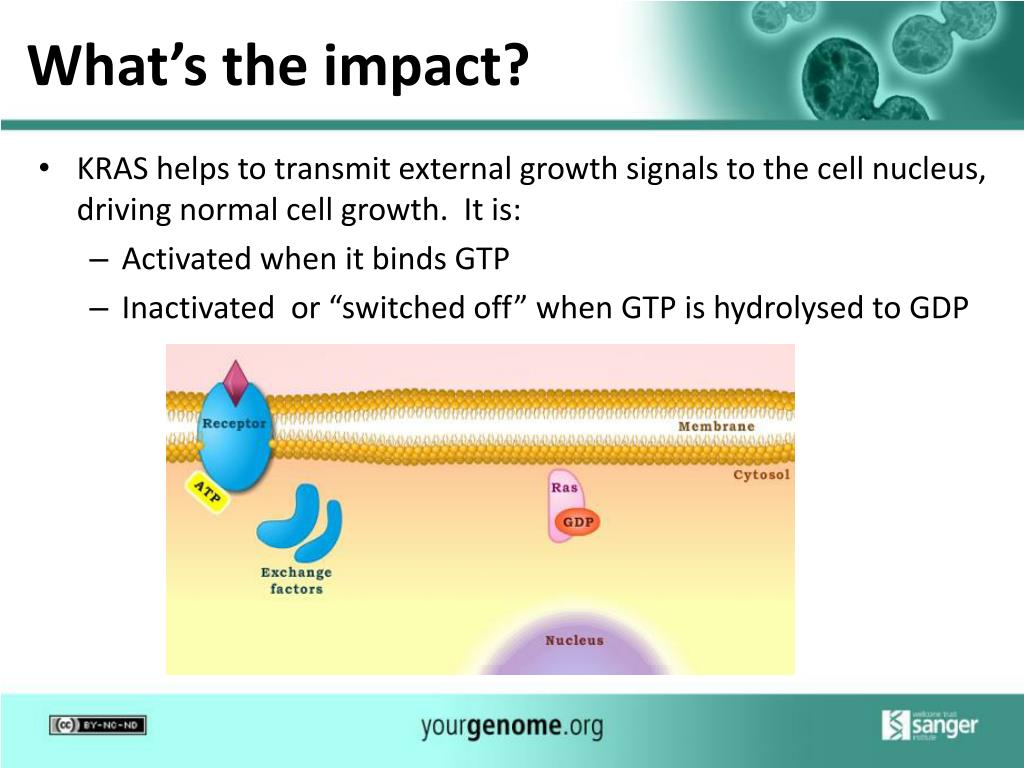

  34. What’s the impact? • KRAS helps to transmit external growth signals to the cell nucleus, driving normal cell growth. It is: • Activated when it binds GTP • Inactivated or “switched off” when GTP is hydrolysed to GDP
