Gases

Gases. The behavior of gases can be explained by the KINETIC MOLECULAR THEORY. This theory has three assumptions about what matter is made up of. Link to webpage describing Kinetic Mol. Theory. Three Assumptions of K.M. Theory. Matter is made up of molecules.

xenon
Download Presentation

Gases

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Gases The behavior of gases can be explained by the KINETIC MOLECULAR THEORY. This theory has three assumptions about what matter is made up of. Link to webpage describing Kinetic Mol. Theory

  2. Three Assumptions of K.M. Theory • Matter is made up of molecules. • Molecules are in constant random motion • Molecules undergo perfectly elastic collisions (they do not lose energy when they collide).

  3. Pressure How is pressure defined? Pressure is defined as the force applied to a given area. How is pressure commonly measured (think measuring the pressure in your bike tire)? Pounds per square inch (PSI). Other units of pressure include atmospheres, mm of Hg, Torr, and Pascals.

  4. How does a gas exert pressure? Let’s take a look at a simulation to see if we can answer this question.

  5. Pressure depends on - The molecules of a gas colliding with the walls of the container. Anything that increases the number of collisions per unit area, or the force of the collisions will increase the pressure of the gas.

  6. Using a mercury barometer to measure pressure • A mercury barometer works by measuring the height of the column of mercury supported by the air pressure. • Standard Pressure is when the column of mercury is 760 millimeters high.

  7. The aneroid barometer The aneroid barometer consists of closed sealed capsule with flexible sides. Any change in the air pressure alters the thickness of the capsule. Levers magnify these changes, causing a pointer to move on the dial.

  8. The air pressure can be measured using a barometer • The pressure of the atmosphere in any location changes as a result of the uneven heating of the atmosphere. • Normal atmospheric pressure at sea level is called Standard Pressure.

  9. Values for Standard Pressure Standard Pressure is expressed by any of the following units: • 1.0 atmospheres (atm) • 760 millimeters of mercury (mm of Hg) • 760 Torr (in honor of Torricelli – inventor of the Hg barometer • 101 kiloPascals (kPa)

  10. Temperature The temperature of a gas is a measure of the average kinetic energy of the molecules making up the gas.

  11. Average Molecular Motion • Not all molecules in a sample of gas move at the same speed. • Study this graph, how are the molecules in this sample like the runners in a big cross country race. In a xc race some runners are fast, some are slow, but most run at about the same speed. The same is true for molecules in a sample of a gas.

  12. Temperature & Molecular Motion • Increasing the temperature of a sample of gas will cause the average speed of the molecules of the gas to increase. • Click here to view a simulation showing the relationship of molecular motion to temperature.

  13. The Kelvin Temperature Scale • The Kelvin Temperature Scale is referred to as the Absolute Temperature scale. • Zero Kelvin is the temperature at which all molecular motion stops. • Temperatures in the lab are usually measure in Celsius and converted to Kelvin using: K = oC + 273

  14. Standard Temperature Standard Temperature is equal to 273 K (or 0oC).

  15. STP This is the abbreviation for Standard Temperature & Pressure It indicates that the pressure of the gas is 1 atm and the temperature is 273K

  16. Volume • The volume of a gas refers to the space taken up by the gas (as opposed to the volume of the gas molecules). • The volume of a gas is always equal to the volume of its container.

  17. Boyle’s Law • Boyle’s Law states that for a sample of gas containing a definite number of molecules at constant temperature, as the pressure of the gas increases, the volume will decrease.

  18. Simulation of Boyle’s Law • Click here to see a simulation of Boyle’s Law. • Pressure and volume (with a constant amount of gas and constant temp.) are an example of an inverse relationship.

  19. Mathematical Statement of Boyle’s Law • The equation which describes the relationship shown in the graph is P1 x V1 = P2 x V2 Where P1 and V1 are the initial pressure and volume of a sample of gas, and P2 and V2 are the pressure of the gas after it has been expanded or contracted (Temp. remains constant).

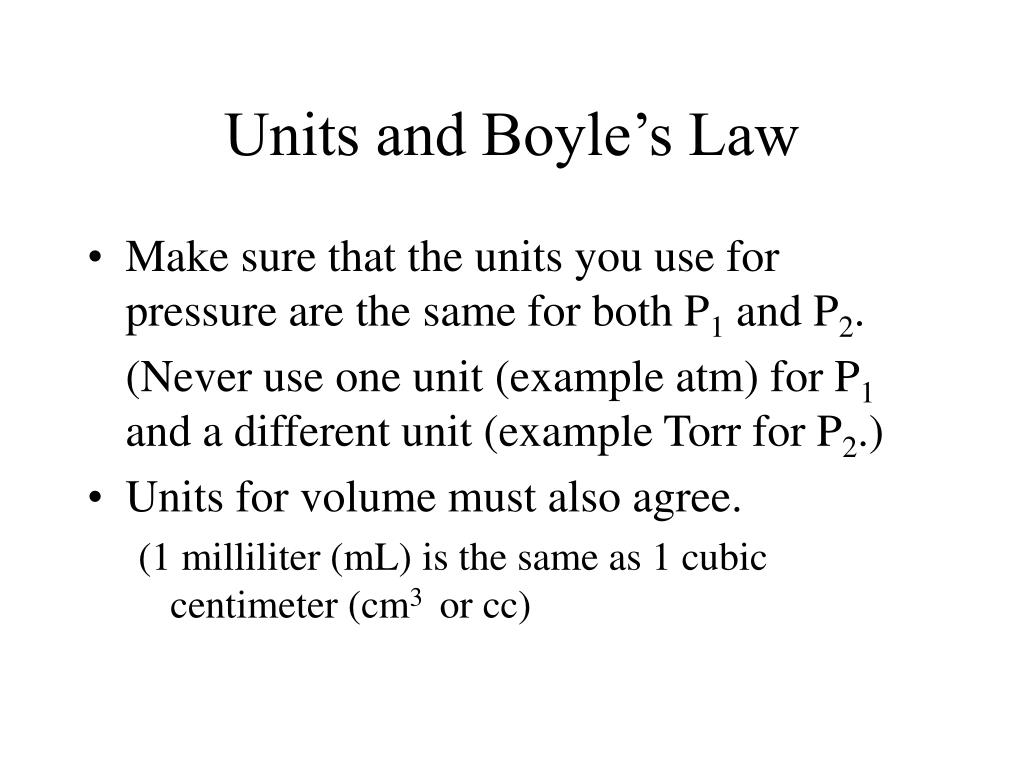

  20. Units and Boyle’s Law • Make sure that the units you use for pressure are the same for both P1 and P2. (Never use one unit (example atm) for P1 and a different unit (example Torr for P2.) • Units for volume must also agree. (1 milliliter (mL) is the same as 1 cubic centimeter (cm3 or cc)

  21. Sample Boyle’s Law Problem • Suppose you have a cylinder & piston containing 8 liters of hydrogen at 1 atmosphere of pressure. (P1 = 1 atm and V1 = 8 liters) • What will happen if the piston is pushed in till the volume of the gas is equal to 4 liters?

  22. Boyle’s Law Problem -2 • The molecules will be pushed closer together thus increasing the pressure. • The volume of the gas will decrease. (V2 = 4 liters)

  23. Boyle’s Law Calculation • Using the equation P1 x V1 = P2 x V2 and plugging in we get 1 atm x 8 L = P2 x 4 L Solving for P2 gives us the value of the new pressure: P2 = 2 atm

  24. Practice Problems Solve the following problems (assume the temperature & amount of gas is constant): • The initial pressure of a sample of gas is 75 kPa and the initial volume is 15 ml. If the pressure is increased to 101 kPa, what will be the new volume of the gas? • The pressure of a sample of gas is 760 Torr and the volume of the gas is 2.5L. What will be the pressure of the gas if the gas is compressed to 1.75 L? 11.1mL 1086 Torr

  25. Charles’ Law • Charles’ Law states that for a sample of gas containing a definite number of molecules at constant pressure, as the temperature of the gas increases, the volume will increase.

  26. Simulation of Charles’ Law • Click here to see a simulation of Charles’ Law. • Temperature and volume (with a constant amount of gas and constant pressure) are an example of a direct relationship.

  27. Mathematical Statement of Charles’s Law • The equation which describes the relationship shown in the graph is Where T1 and V1 are the initial temperature and volume of a sample of gas, and T2 and V2 are the temp. & volume of the gas after it has expanded or contracted (Pressure & the amount of gas remains constant).

  28. Charles’s Law Sample Problem • A 12 mL sample of a gas is enclosed in a syringe at 25oC. If the temperature is raised to 30oC, what will the new volume of the gas be if the pressure remains constant? V1 = 12 ml T1 = 298 K (temperature MUST be converted to Kelvin) V2 = ? mL T2 = 303 K (temperature MUST be converted to Kelvin)

  29. Charles’s Law Solution

  30. Charles’s Law -Practice Problems • A 4.5L sample of gas at 20oC is heated to a temperature of 80oC. If the amount of gas and the pressure of the gas remain constant, what will be the new volume of the gas? • A sample of gas at 60oC occupies a volume of 35 mL. If the gas is allowed to expand until it occupies a volume of 52 mL, what will be the new temperature of the gas (assuming the quantity and pressure of the gas are constant)? 5.4 L 495 K ( 222oC )

  31. Combined Gas Law Boyle’s Law is valid when you have a constant amount of gas at constant temperature. Charles’s Law is valid when you have a constant amount of gas at constant pressure. But what happens when the volume, the pressure, and the temperature all change at the same time? Use the Combined Gas Law

  32. The equation of the Combined Gas Law Charles’s Law Boyle’s Law P1 x V1 = P2 x V2 THE COMBINED GAS LAW

  33. Sample Combined Gas Law A 25 mL sample of a gas has a pressure of 81kPa and a temperature of 25oC, what would the volume of the gas be at STP? Identify and label the various variables: V1 = 25mL P1 = 81kPa T1= 298K (Must convert to Kelvin) V2 = ? P2 = 101kPa T1 = 273 K (Must convert to Kelvin)

  34. Combined Gas Law Problem Solved

  35. Combined Gas Law Problems • A 35cm3 sample of gas at 25oC and a pressure of 95.6kPa is compressed and cooled until it has a pressure of 250kPa and a temperature of -15oC. What would be the new volume of the gas? • 1.83L of gas with a temperature of 53oC and a pressure of 843 Torr is converted to STP. What will be the new volume of the gas? 11.6 cm3 1.70L

  36. Dalton’s Law of Partial Pressures Suppose a sample of gas contains a mixture of gases, how do the pressure of the individual gases affect the total pressure of the gases? To answer the question, let’s look at a diagram of the container holding the gases:

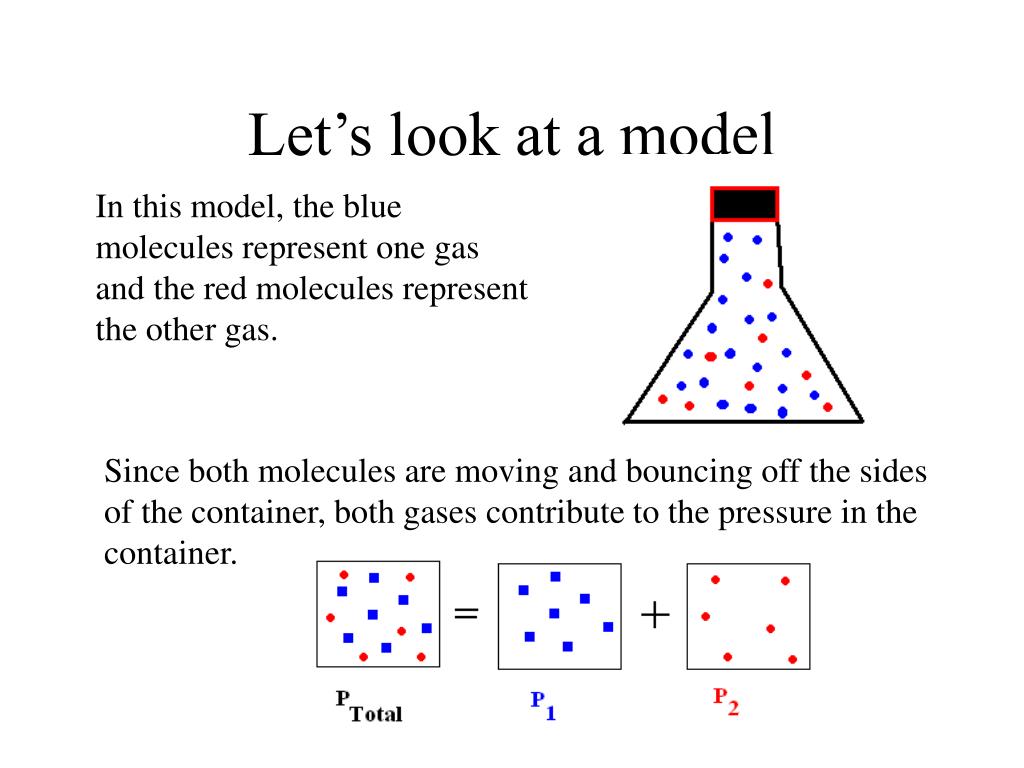

  37. Let’s look at a model In this model, the blue molecules represent one gas and the red molecules represent the other gas. Since both molecules are moving and bouncing off the sides of the container, both gases contribute to the pressure in the container.

  38. Statement of Dalton’s Law Since both gases contribute to the pressure: The total pressure in a mixture of gases is equal to the sum of the pressures of the individual gases in the mixture. This law can be expressed by the following equation: Ptotal = Pgas a + Pgasb

  39. Sample Dalton’s Law Problem What is the pressure of a mixture of He and Ne gas when the He has a pressure of 480 Torr and the Ne has a pressure of 290 Torr? The formula states: Ptotal = PHe + P Ne Plugging in we get: Ptotal = 480Torr + 290Torr Final answer: Ptotal = 770 Torr

  40. Dalton’s Law Practice • A container contains three gases. The pressure of O2 is 320 Torr, the pressure of He is 220 Torr, and the pressure of Ne is 56 Torr. What is the total pressure in the container? • The pressure in a container is measure to be 150kPa. If the container contains N2 and O2 gases and the pressure of the N2 gas is 110kPa, what is the pressure of the O2 gas? In this case there are three gases, so Ptotal = 320 Torr + 220 Torr + 56 Torr =596 Torr Ptotal = 150kPa = 110kPa + PO2 PO2 = 40 kPa

  41. Vapor Pressure When a gas is collected above a liquid (usually water), some of the water evaporates a contributes to the pressure above the liquid

  42. Two Factors determine vapor pressure • The strength of the intermolecular attractions in the liquid.

  43. Factors Affecting Pvapor • The temperature of the liquid.

  44. Vapor Pressure and the Boiling Point • The vapor pressure of a liquid is related to the boiling point of a liquid. • The higher the vapor pressure of a substance, the lower the boiling point of the substance. • Why? Both vapor pressure and boiling point relate to how easily a liquid can become a gas. The stronger the intermolecular attractions the lower the vapor pressure and the higher the boiling point.

  45. Definition of Boiling Point • The boiling point is defined as the temperature at which the vapor pressure of a liquid becomes equal to the pressure of the gas above the liquid. • The normal boiling point is the temperature at which the vapor pressure becomes equal to standard pressure (101 kPa).

  46. Determining Normal Boiling Points Use Table H to determine the normal boiling points of the following substances: • Propanone • Ethanol • Water • Ethanoic acid 56 oC 79 oC 100 oC 118 oC

  47. Boiling Point depends on the pressure on the liquid • The bubbles formed when a liquid boils cannot form when the pressure on the surface of the liquid is greater than the pressure of the gas in the bubble.

  48. Bubbles are caused by the vapor molecules When the vapor pressure of the liquid becomes large enough, the force of the molecules bouncing off the inside of the bubbles keeps the bubbles from collapsing.

  49. Determining Normal Boiling Points Use Table H to determine the boiling points of the following substances: at 50 kPa at 150 kPa • Propanone • Ethanol • Water • Ethanoic acid 37 oC 68 oC 62 oC 90 oC 82 oC 112 oC 97 oC Off chart

  50. The Pressure Cooker A pressure cooker cooks faster because it allows the water to be heated to a higher temperature without boiling.
