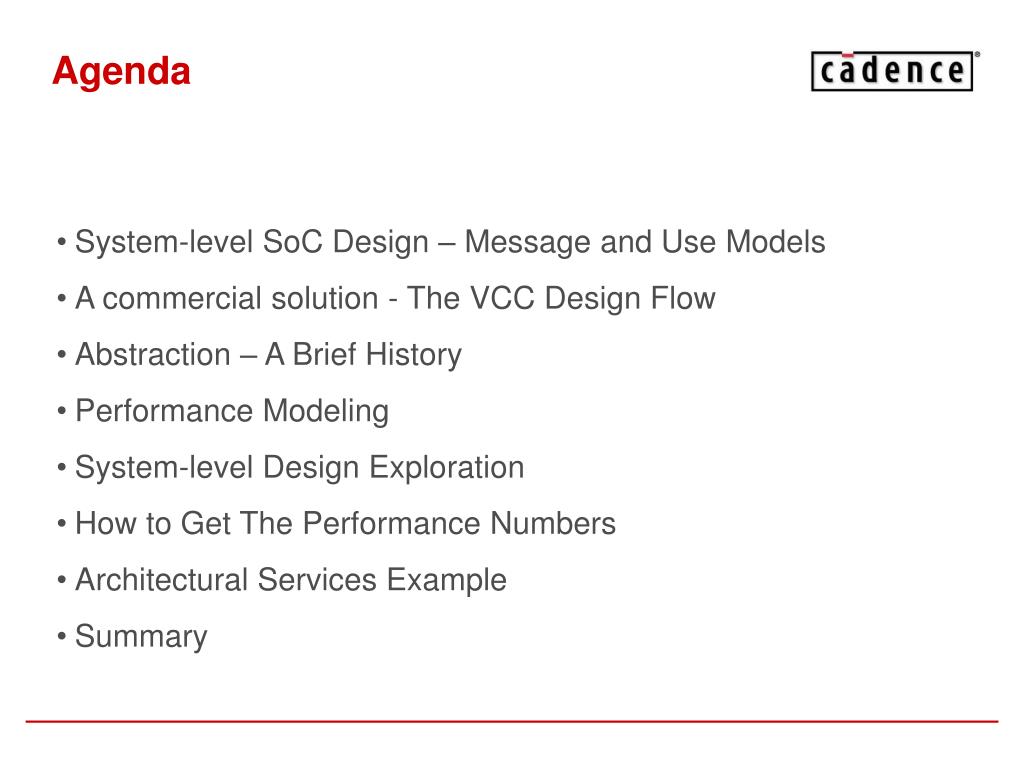

Agenda
  • System-level SoC Design – Message and Use Models
  • A commercial solution - The VCC Design Flow
  • Abstraction – A Brief History
  • Performance Modeling
  • System-level Design Exploration

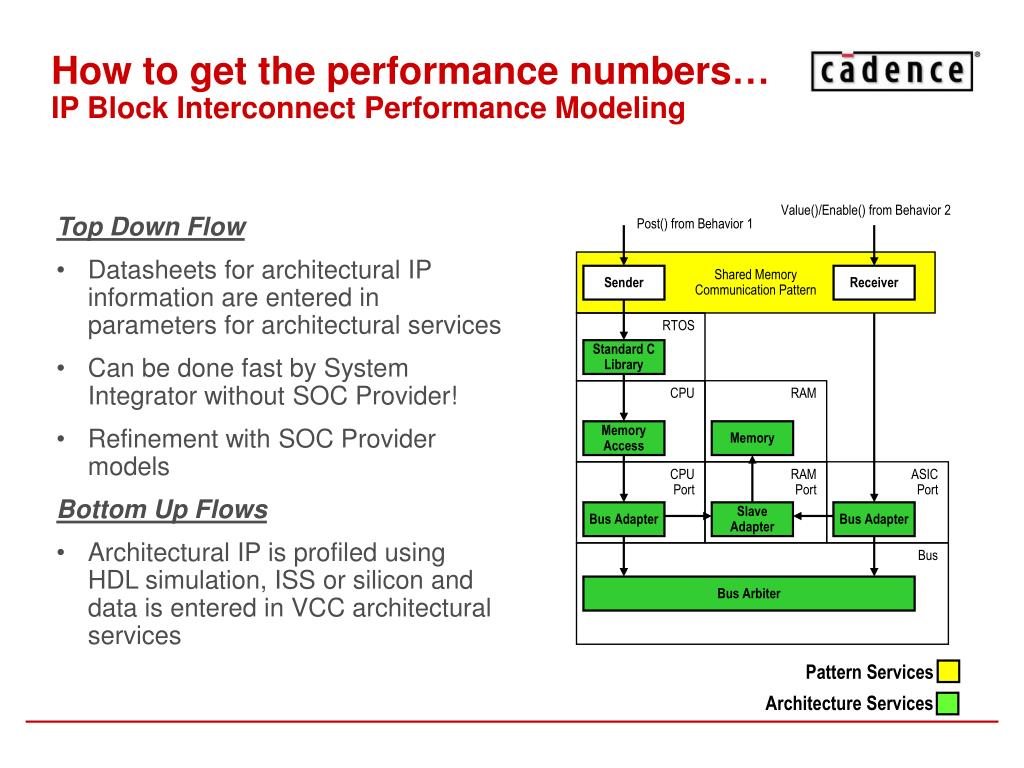

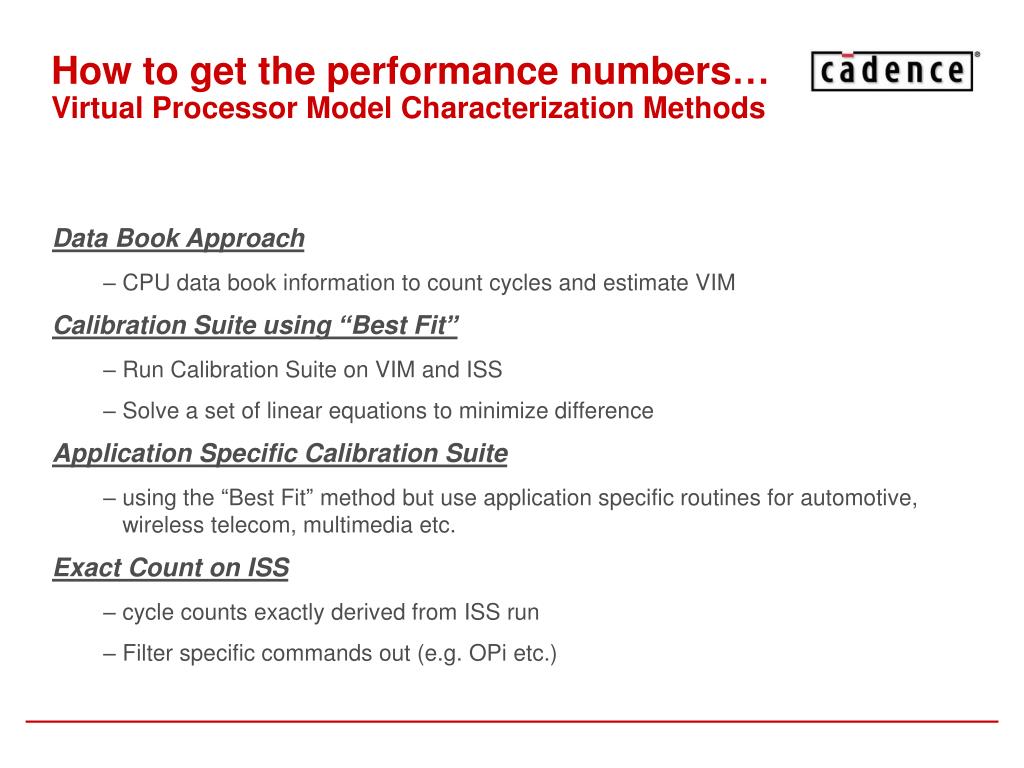

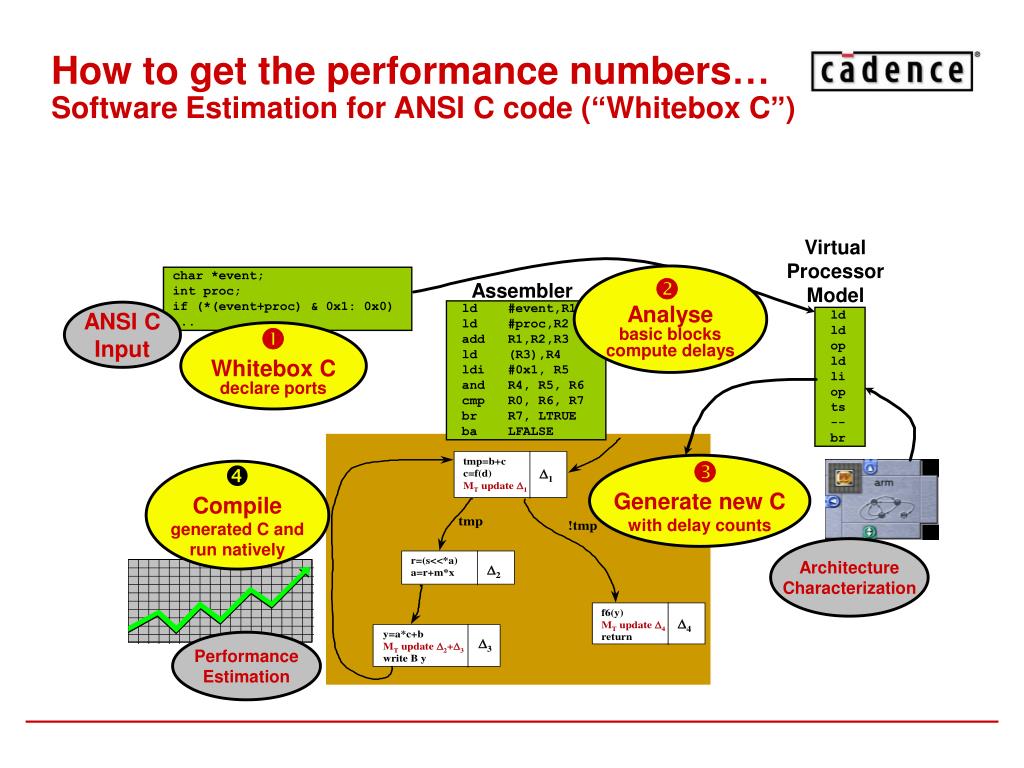

  • How to Get The Performance Numbers
  • Architectural Services Example
  • Summary
embedded system on chip soc design

SystemEnvironment

Zone 4: Global

Requirements Specification

Satellite

Specification

Untimed,

Unclocked,

C/C++ Level

Zone 3: Suburban

Embedded

Systems Design

Zone 2: Urban

Zone 1: In-Building

Pico-Cell

Micro-Cell

Macro-Cell

EmbeddedSoftware

RefinementDesign Export

P/C

µ

Testbench

Analog

Memory

SOC

Implementation

Timed,

Clocked,

RTL Level

Firmware

Software

CORE

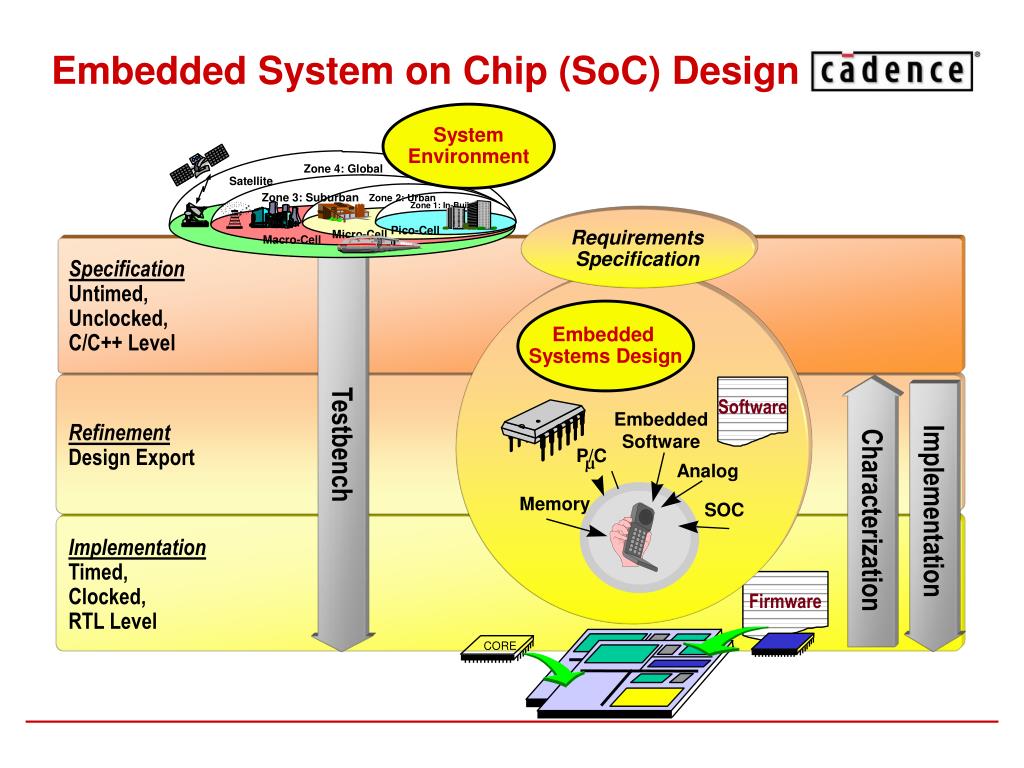

Embedded System on Chip (SoC) Design

Characterization

Implementation

soc creator and system integrator enabling the electronic design chain

Felix Partnership Members

Hitachi Micro Systems

Infineon Technologies AG

Motorola SPS

National Semiconductor

NEC Electronics

Philips Semiconductors

ST Microelectronics

Texas Instruments

BMW

Infineon Technologies AG

Magneti Marelli S.p.A.

Motorola

National Semiconductor

Nokia

Telefonaktiebolaget LM Ericsson

Thomson CSF

System

Houses

Virtual Component

(IP) Providers

Semiconductor

Houses

Manufacturing

Virtual Component

(IP) Providers

ARM

debis Systemhaus (now Infineon)

Symbionics Ltd (now Cadence)

ARM

Symbionics Ltd (now Cadence)

SOC Creator and System Integrator Enabling the Electronic Design Chain
the platform based design concept taking design block reuse to the next level

Foundation Block

+ Reference Design

Pre-Qualified/Verified

Foundation-IP*

Scaleable

bus, test, power, IO,

clock, timing architectures

MEM

Hardware IP

Processor(s), RTOS(es) and SW architecture

CPU

FPGA

SW IP

Programmable

Foundry-Specific

Pre-Qualification

Foundry Targetting Flow

The Platform-Based Design ConceptTaking Design Block Reuse to the Next Level

Application

Space

Methodology / Flows:

System-level performance

evaluation environment

Rapid Prototype for

End-Customer Evaluation

*IP can be hardware (digital

or analogue) or software.

IP can be hard, soft or

‘firm’ (HW), source or

object (SW)

SoC Derivative Design

Methodologies

the platform based design concept platform type examples

DMA

DSP

CPU

MPEG

C

MEM

I

O

The Platform-Based Design ConceptPlatform Type Examples

SONICs Architecture

Improv JAZZ Platform

{

SiliconBackplane™

(patented)

system house requirements exploring and developing on top of soc platforms

Application Space

Platform

Specification

System Platform

Platform

Design Space

Exploration

Architectural Space

System House Requirements… exploring and developing on top of SoC Platforms

Platform Based Design Objectives

  • Define the application instance to be implemented to satisfy product requirements defined by consumer
  • Specify the system platform together with suppliers accordingly
  • Evaluate top down different instances of SOC platforms
slide8

System Houses and SOC Providers ……enabling a close communication!

"The increasing complexity of telecom applications requires that we spend more time upfront exploring system architectures and IP alternatives. The Cierto VCC environment assisted us in providing a platform to clearly articulate these needs to our IP providers and we believe it will help architect the next-generation system design solutions.”

Jan-Olof Kismalm, Director, Microelectronics,Corporate Function Technology,Telefonaktiebolaget LM Ericsson,January 10th 2000

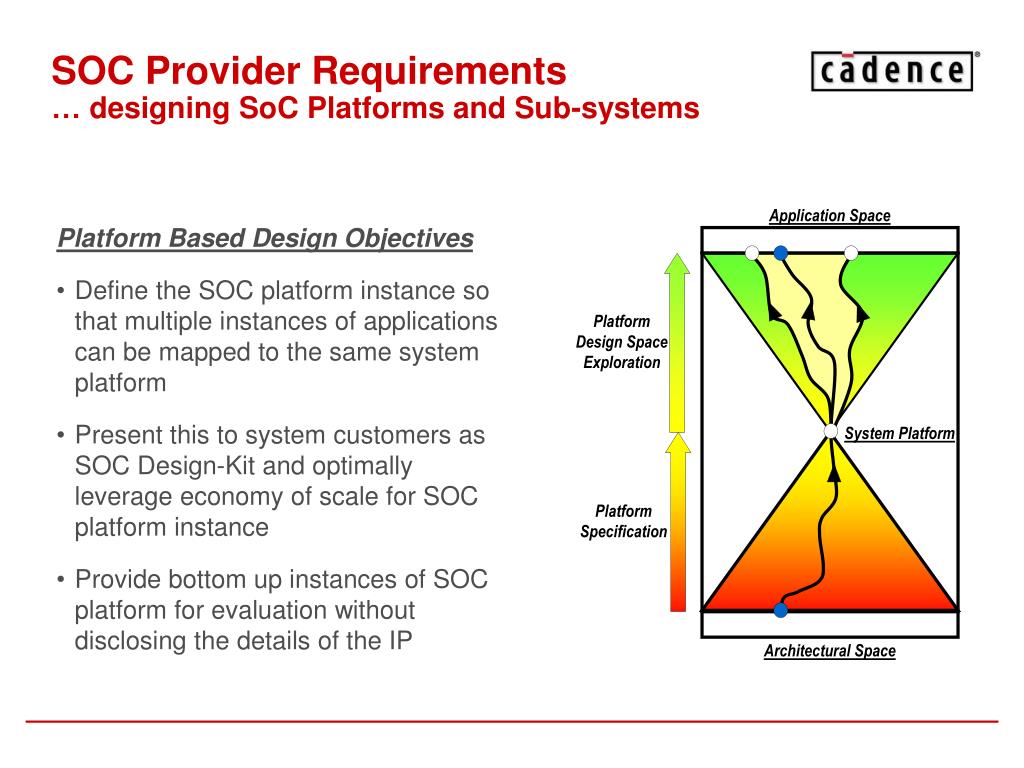

soc provider requirements designing soc platforms and sub systems
Platform Based Design Objectives

Define the SOC platform instance so that multiple instances of applications can be mapped to the same system platform

Present this to system customers as SOC Design-Kit and optimally leverage economy of scale for SOC platform instance

Provide bottom up instances of SOC platform for evaluation without disclosing the details of the IP

Application Space

Platform

Design Space

Exploration

System Platform

Platform

Specification

Architectural Space

SOC Provider Requirements… designing SoC Platforms and Sub-systems
customer testimonials
Customer Testimonials!

"As an original development partner during the development of VCC our focus has been the modeling of the IP in our SOCplatforms. The memory and cache modeling features in VCC 2.0 will allow us and our customers to explore the impact of different memory hierarchies on overall system performance before we commit to implementation of our SOC platforms. VCC 2.0 will significantly optimize the interactionwith our SOC customers to negotiate the system specification.“

Jean-Marc ChateauDirector of Design, Consumer and Micro GroupsST Microelectronics

September 25th, 2000

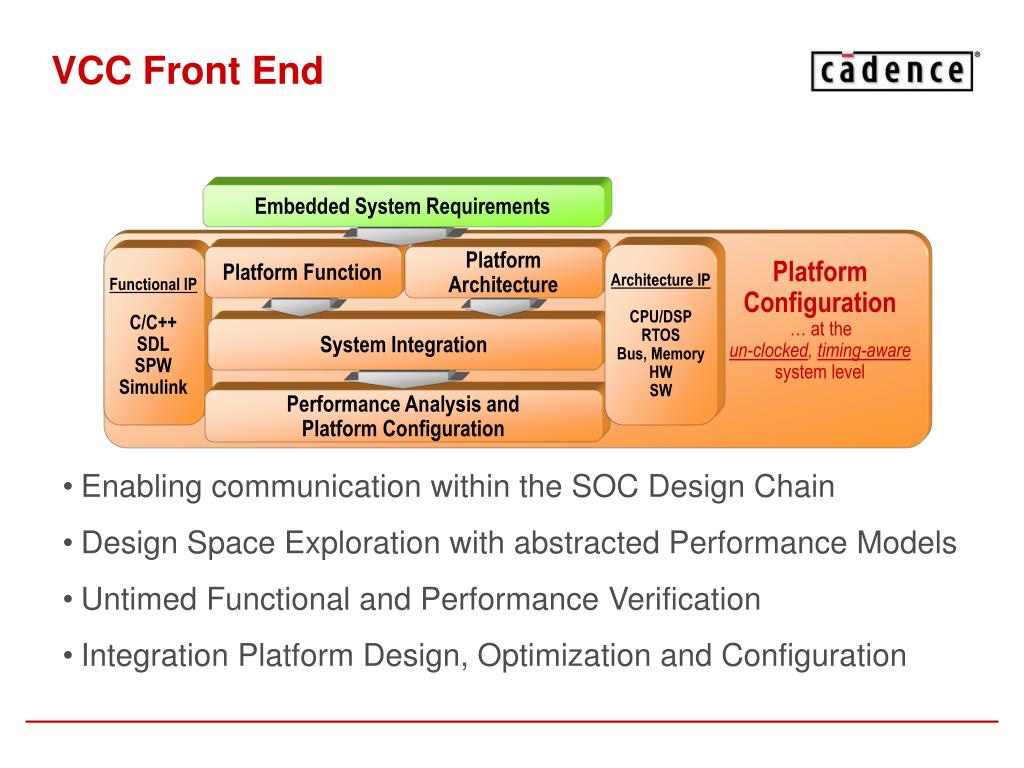

vcc front end

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Performance Analysis and Platform Configuration

VCC Front End
  • Enabling communication within the SOC Design Chain
  • Design Space Exploration with abstracted Performance Models
  • Untimed Functional and Performance Verification
  • Integration Platform Design, Optimization and Configuration

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

vcc front end functional integration and analysis

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Performance Analysis and Platform Configuration

VCC Front EndFunctional Integration and Analysis

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

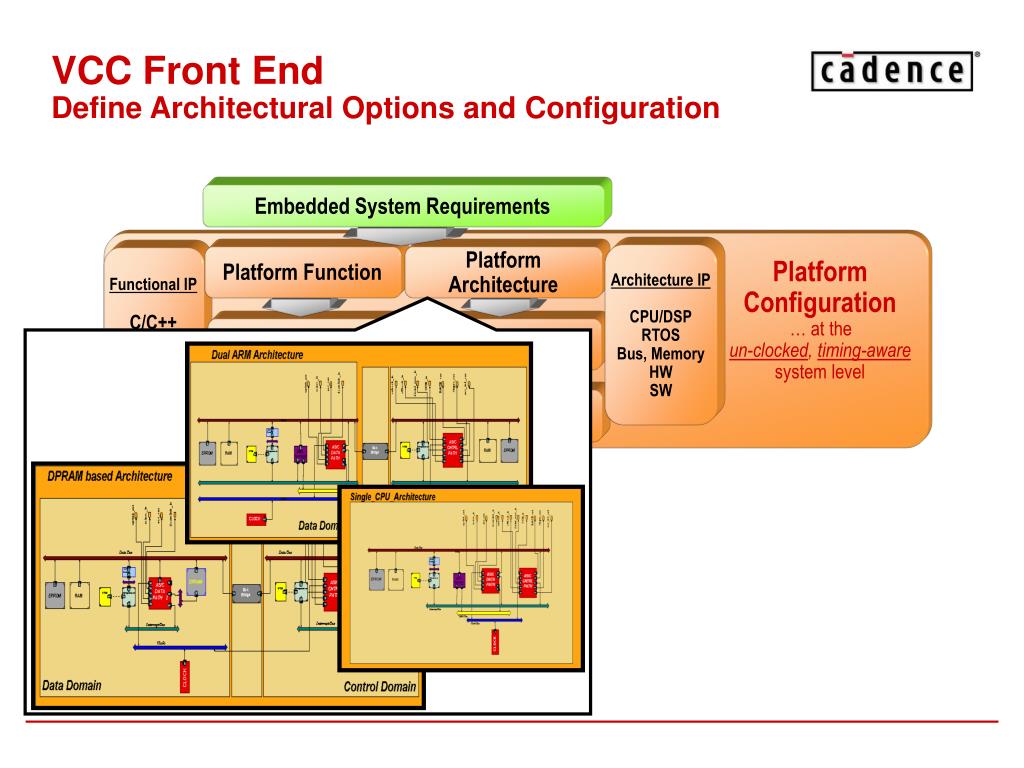

vcc front end define architectural options and configuration

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Performance Analysis and Platform Configuration

VCC Front EndDefine Architectural Options and Configuration

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

vcc front end define function architecture mapping

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Performance Analysis and Platform Configuration

VCC Front EndDefine Function Architecture Mapping

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

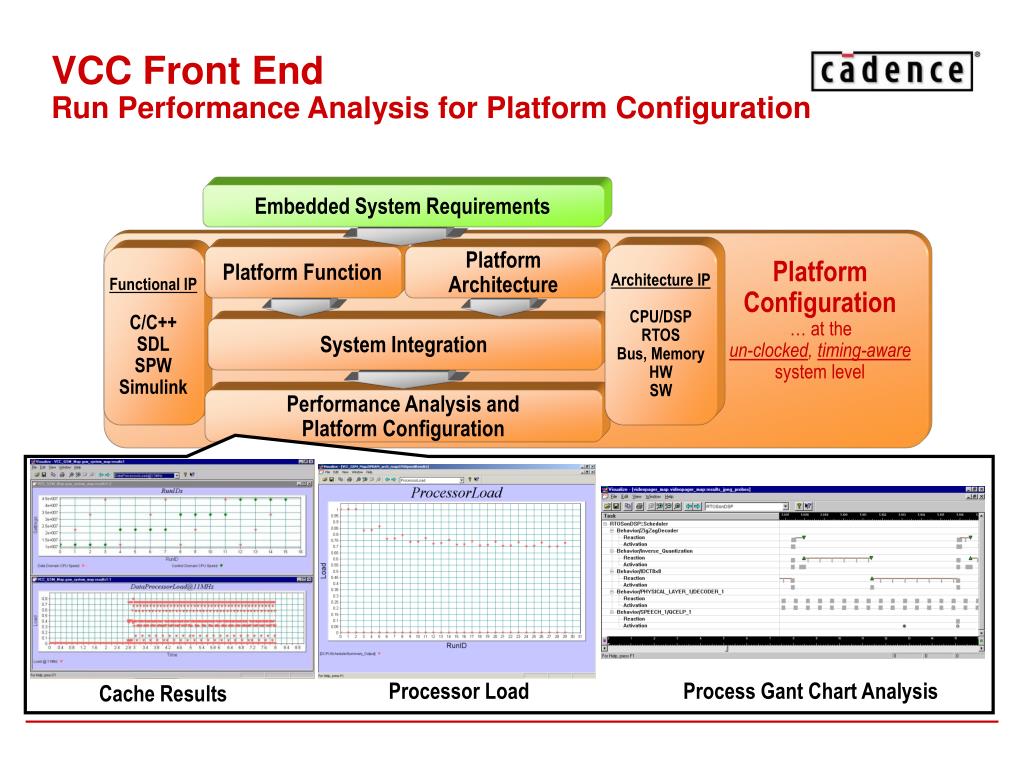

vcc front end run performance analysis for platform configuration

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Performance Analysis and Platform Configuration

VCC Front EndRun Performance Analysis for Platform Configuration

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

Processor Load

Process Gant Chart Analysis

Cache Results

vcc backend

CommunicationRefinement, Integration & Synthesis

Software

Assembly

Hardware

Assembly

Implementation Level Verification

Synthesis / Place & Route etc.

VCC Backend
  • Linking System Level Design to Implementation
    • Fast track to prototyping
    • Fast track to software development
    • Design consistency through the design flow

Design Export… after initial platform configuration through design refinement and communication synthesis!

vcc backend communication refinement and synthesis

VCC Model

VCC Model to RTOS Protocol Component

RTOS

VCC Model

RTOS to CPU Protocol Component

Bus Slave to VCC Model Component

CPU

Bus Slave

CPU to Bus Protocol Component

Bus to Bus Slave Component

Bus

Bus

Bus Model

CommunicationRefinement, Integration & Synthesis

Software

Assembly

Hardware

Assembly

Implementation Level Verification

Synthesis / Place & Route etc.

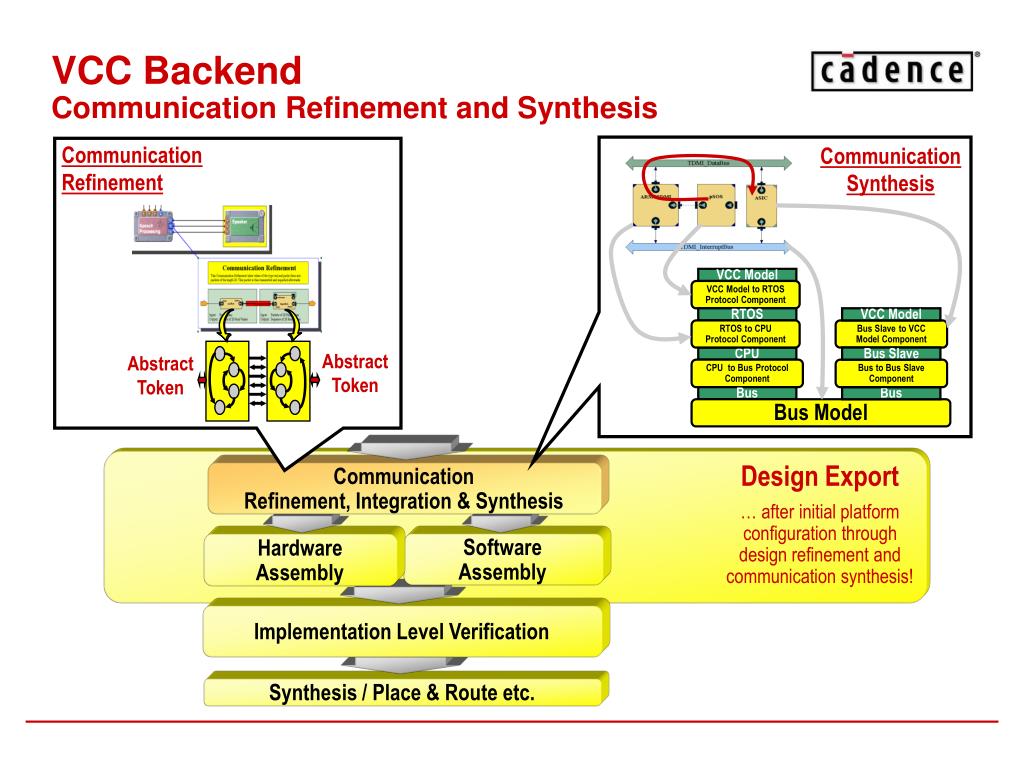

VCC BackendCommunication Refinement and Synthesis

Communication

Refinement

Communication

Synthesis

Abstract

Token

Abstract

Token

Design Export… after initial platform configuration through design refinement and communication synthesis!

vcc backend export to implementation design and test bench

VCCSystem ExplorationCommunication Refinement

CommunicationRefinement, Integration & Synthesis

Flow To Implementation

Hardware

Top-level

System

Test Bench

Software

on RTOS

Software

Assembly

Hardware

Assembly

Implementation Level Verification

Synthesis / Place & Route etc.

VCC BackendExport to Implementation (Design and Test Bench)

Design Export… after initial platform configuration through design refinement and communication synthesis!

vcc flow summary

Architecture IP

CPU/DSPRTOS

Bus, Memory

HWSW

Functional IP

C/C++

SDL

SPW

Simulink

Platform Configuration… at theun-clocked, timing-awaresystem level

Embedded System Requirements

Platform Function

Platform Architecture

System Integration

Design Export… after initial platform configuration through design refinement and communication synthesis!

Performance Analysis and Platform Configuration

CommunicationRefinement, Integration & Synthesis

Software

Assembly

Hardware

Assembly

Implementation Level Verification

Synthesis / Place & Route etc.

VCC Flow Summary
how did we use abstraction in the past step 1 layout to transistor
Digital Abstraction

Switching delay of the transistor

Interconnect delay between transistors

1970’s

The design complexity exceeds what designers can comprehend and think through at the layout level

Transistor level simulation allows to verify the logic of digital and analog designs based on transistor switching characteristics

Transistor Model

Capacity Load

abstract

1970’s

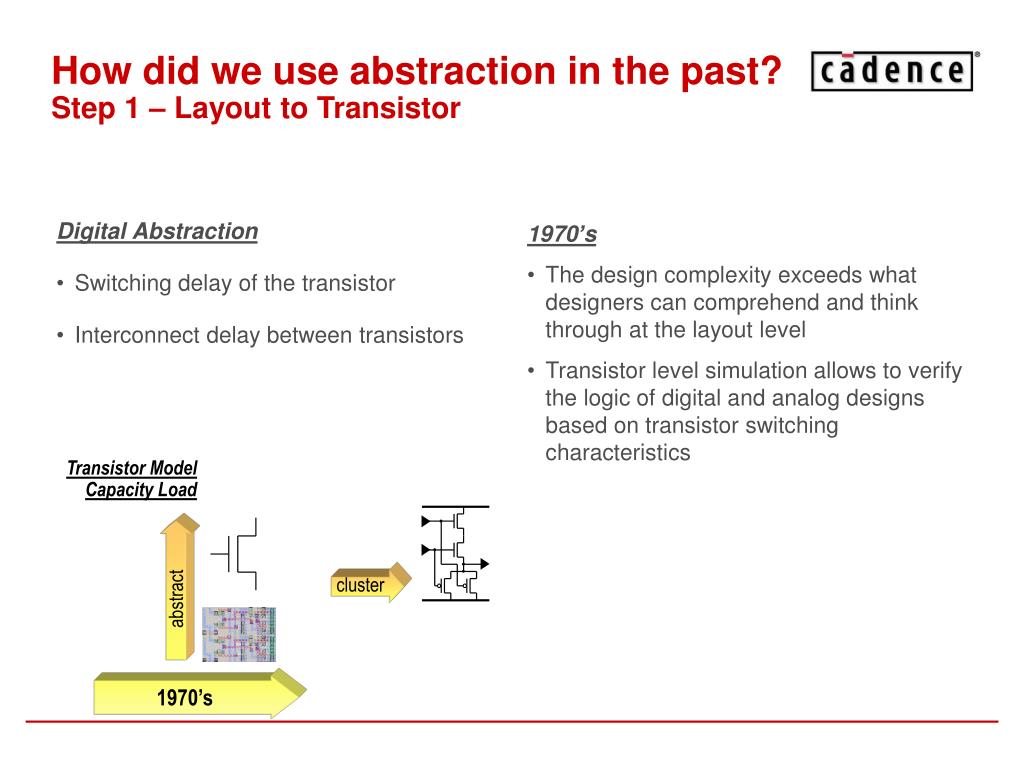

How did we use abstraction in the past?Step 1 – Layout to Transistor

cluster

how did we use abstraction in the past step 2 transistors to gates

Gate Level Model

Capacity Load

Transistor Model

Capacity Load

cluster

cluster

abstract

abstract

1970’s

1980’s

How did we use abstraction in the past?Step 2 – Transistors to Gates
  • Digital Abstraction
  • Gate delay
  • Interconnect delay between gates
  • 1980’s
  • The design complexity exceeds what designers can comprehend and simulate at the transistor level
  • Gate level simulation allows to verify the logic of digital designs based on gate switching characteristics.
how did we use abstraction in the past step 3 gates to rtl hdl

Gate Level Model

Capacity Load

RTL

cluster

abstract

abstract

1990’s

How did we use abstraction in the past?Step 3 – Gates to RTL-HDL
  • Digital Abstraction
  • Not really a abstraction of performance (e.g. SDF only used for gate to layout to gate)
  • Textual statements result in “many gates” after synthesis
  • 1990’s
  • The design complexity exceeds what designers can comprehend and simulate at the gate level alone
  • HDL is first used for fast verification, synthesis allows translation of text into gates
  • Synthesis algorithms map text to actual registers and logic in between based on characterized gate and wire-load libraries
  • Gate and wire-load delays are refined after layout. SDF emerges as format

1980’s

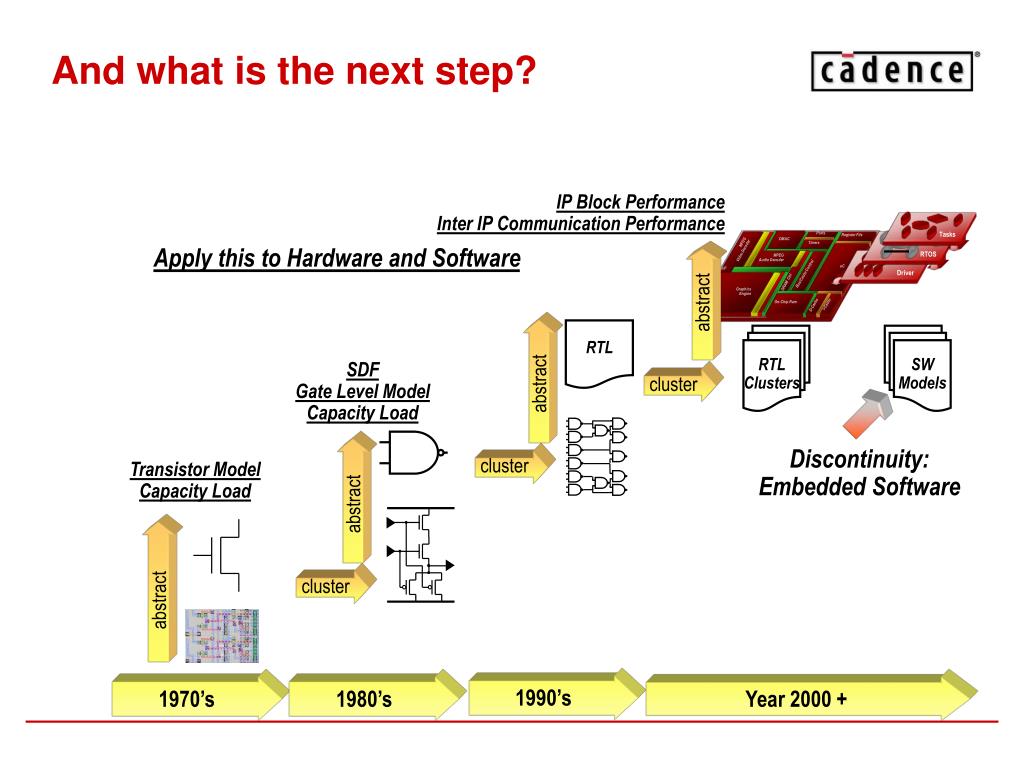

so what did we do all the time

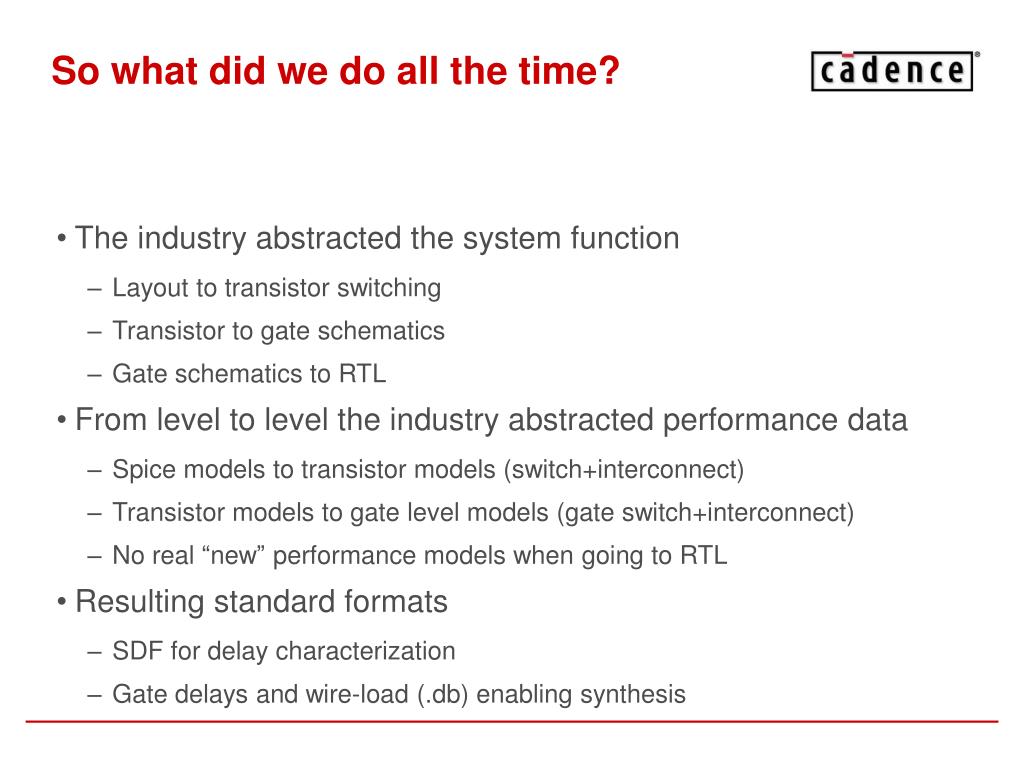

So what did we do all the time?
  • The industry abstracted the system function
    • Layout to transistor switching
    • Transistor to gate schematics
    • Gate schematics to RTL
  • From level to level the industry abstracted performance data
    • Spice models to transistor models (switch+interconnect)
    • Transistor models to gate level models (gate switch+interconnect)
    • No real “new” performance models when going to RTL
  • Resulting standard formats
    • SDF for delay characterization
    • Gate delays and wire-load (.db) enabling synthesis

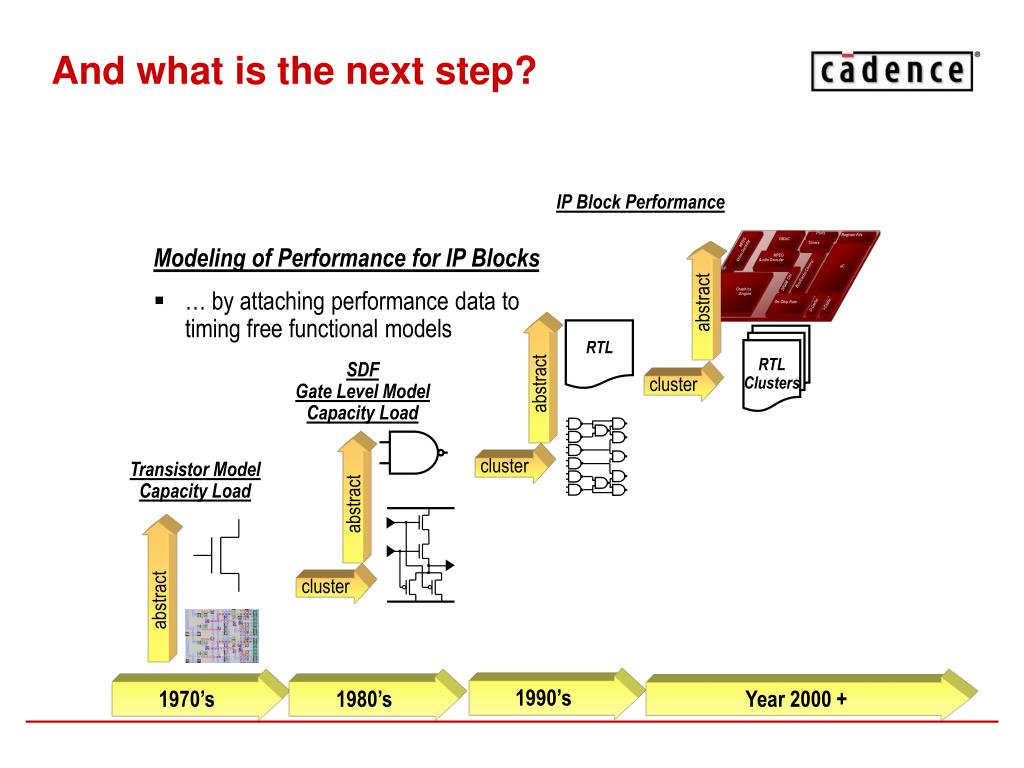

and what is the next step

IP Block Performance

DMAC

uC

Register File

Ports

Timers

  • Modeling of Performance for IP Blocks
  • … by attaching performance data to timing free functional models

MPEG

Audio Decoder

MPEGVideo Decoder

Graphics

Engine

I/F

Bus/Cache Control

On-Chip Ram

abstract

RTL

RTL

Clusters

I-Cache

D-Cache

DRAM Ctrl

SDFGate Level Model

Capacity Load

cluster

cluster

Transistor Model

Capacity Load

cluster

abstract

abstract

abstract

1990’s

1970’s

1980’s

And what is the next step?

Year 2000 +

and what is the next step1

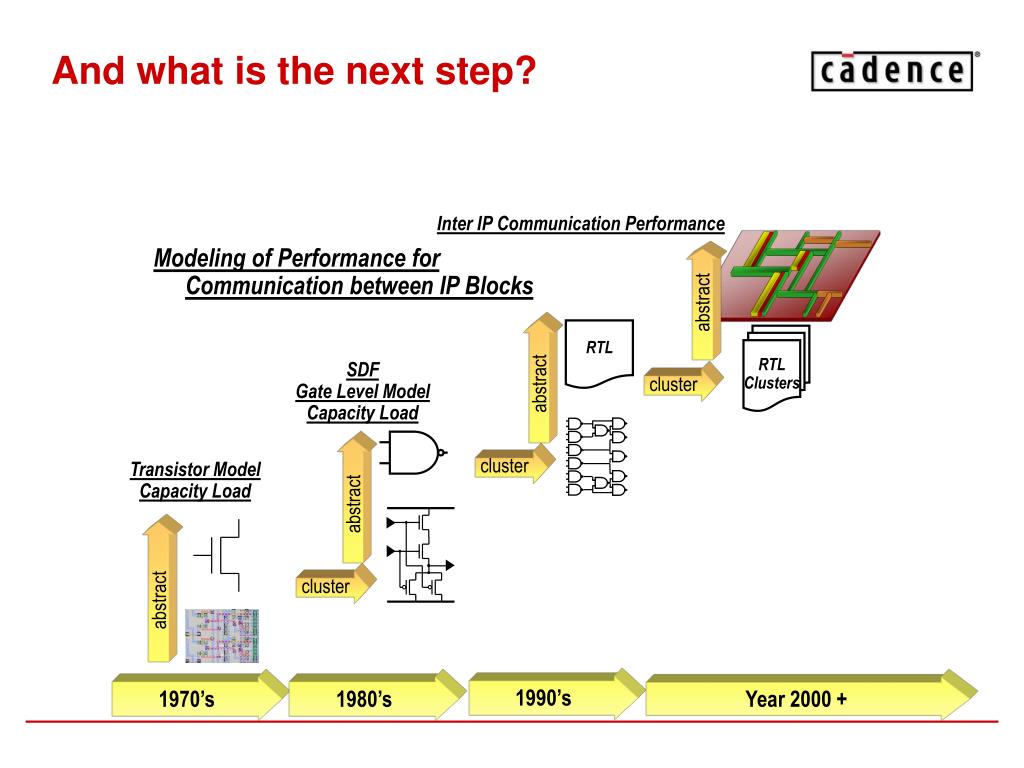

Inter IP Communication Performance

Modeling of Performance for Communication between IP Blocks

abstract

RTL

RTL

Clusters

SDFGate Level Model

Capacity Load

cluster

cluster

Transistor Model

Capacity Load

cluster

abstract

abstract

abstract

1990’s

1970’s

1980’s

And what is the next step?

Year 2000 +

and what is the next step2

IP Block Performance

Inter IP Communication Performance

Tasks

DMAC

uC

Register File

RTOS

Ports

Timers

Apply this to Hardware and Software

MPEG

Audio Decoder

Driver

MPEGVideo Decoder

Graphics

Engine

I/F

On-Chip Ram

abstract

RTL

RTL

Clusters

SW

Models

I-Cache

D-Cache

Bus/Cache Control

DRAM Ctrl

SDFGate Level Model

Capacity Load

cluster

Discontinuity:

Embedded Software

cluster

Transistor Model

Capacity Load

cluster

abstract

abstract

abstract

1990’s

1970’s

1980’s

And what is the next step?

Year 2000 +

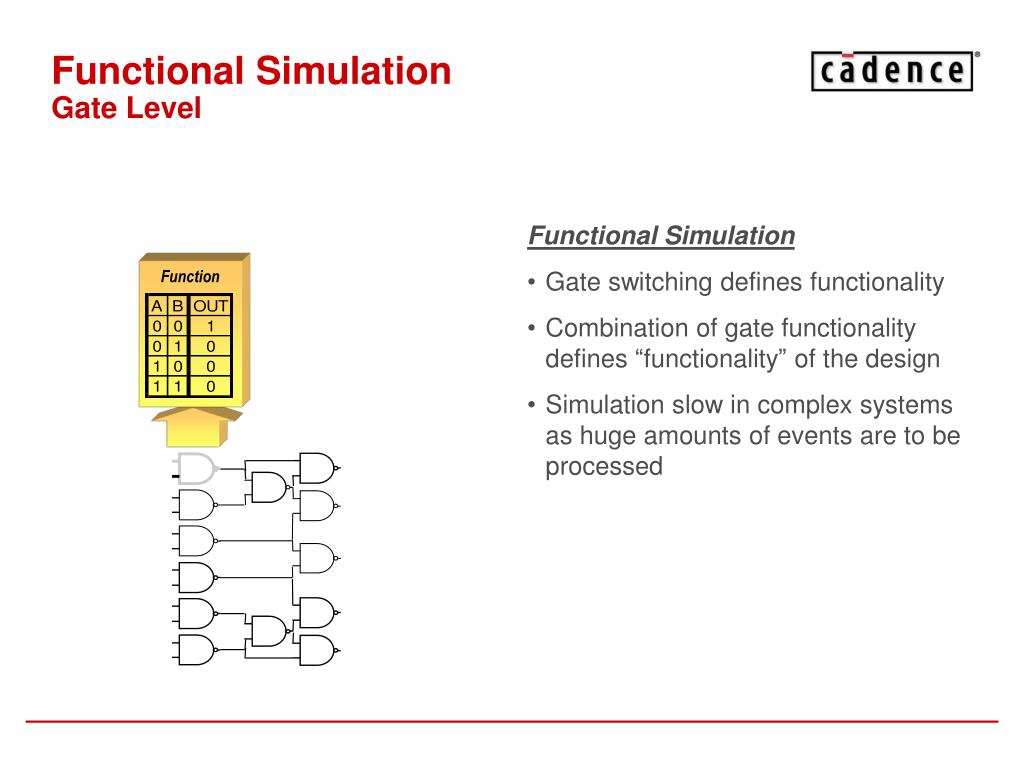

functional simulation gate level
Functional Simulation

Gate switching defines functionality

Combination of gate functionality defines “functionality” of the design

Simulation slow in complex systems as huge amounts of events are to be processed

Function

Functional SimulationGate Level

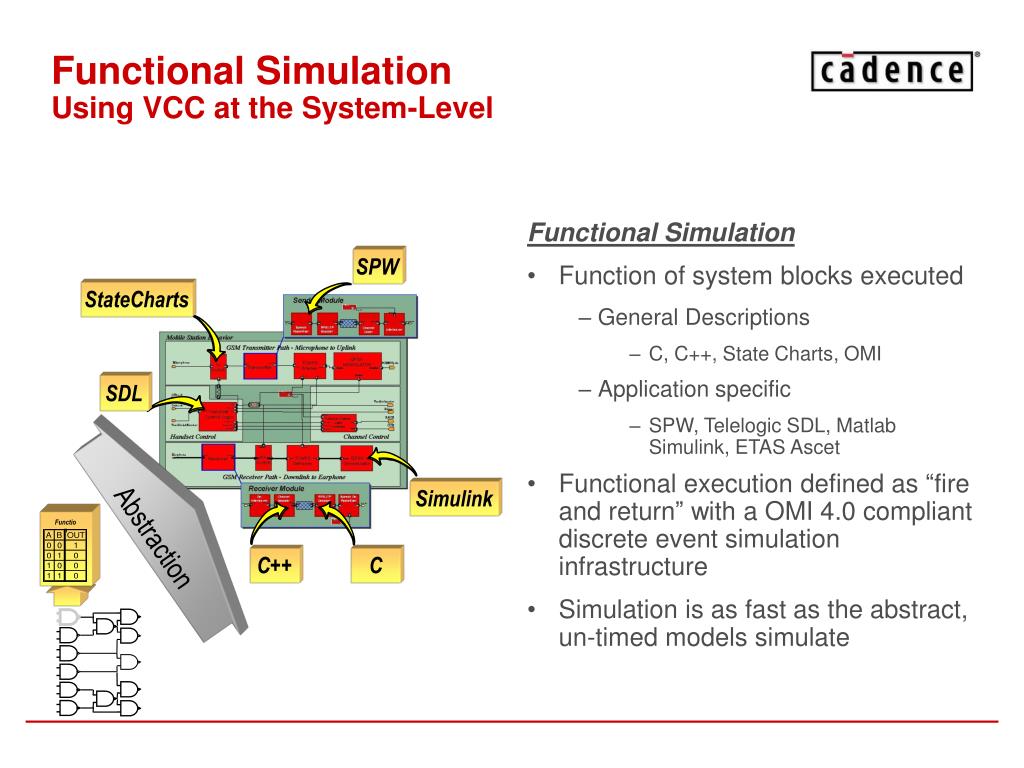

functional simulation using vcc at the system level
Functional Simulation

Function of system blocks executed

General Descriptions

C, C++, State Charts, OMI

Application specific

SPW, Telelogic SDL, Matlab Simulink, ETAS Ascet

Functional execution defined as “fire and return” with a OMI 4.0 compliant discrete event simulation infrastructure

Simulation is as fast as the abstract, un-timed models simulate

SPW

StateCharts

Function

SDL

Simulink

C++

C

Functional SimulationUsing VCC at the System-Level

Abstraction

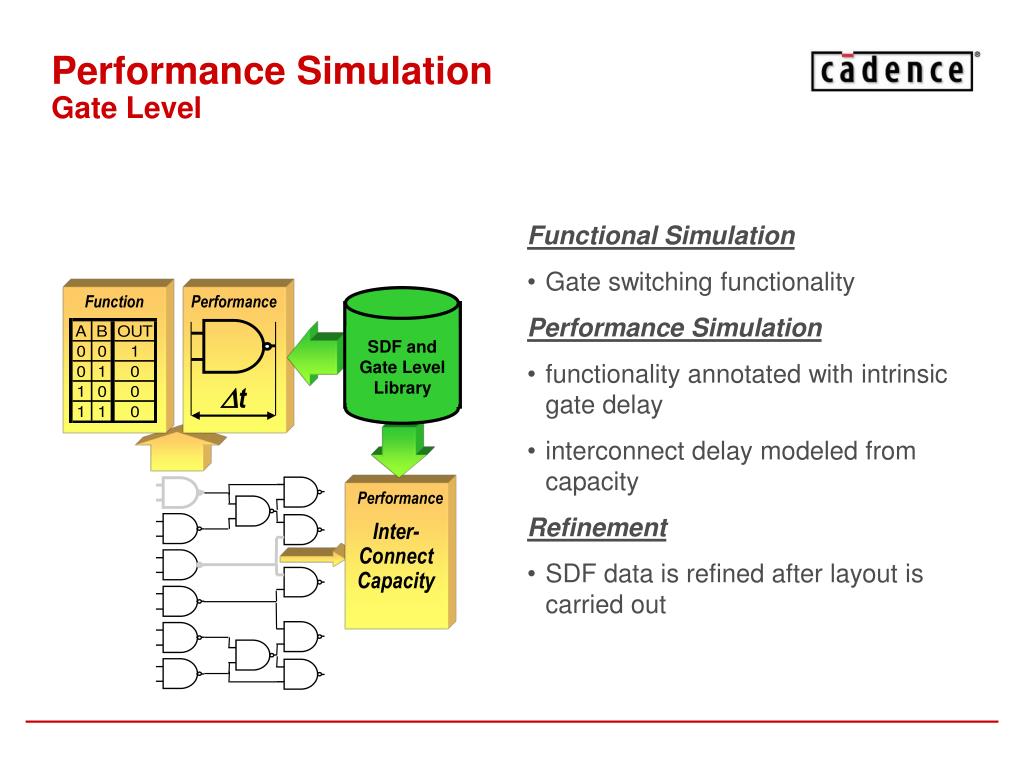

performance simulation gate level
Functional Simulation

Gate switching functionality

Performance Simulation

functionality annotated with intrinsic gate delay

interconnect delay modeled from capacity

Refinement

SDF data is refined after layout is carried out

Function

Performance

SDF andGate Level

Library

Dt

Performance

Inter-

Connect

Capacity

Performance SimulationGate Level
vcc performance simulation system level block performance modeling
Performance Simulation

functionality annotated with intrinsic delay models

Delay Script and Inline Models, refined after implementation

Function

Performance

Dt

VCC Performance SimulationSystem-Level Block Performance Modeling

Performance

Abstraction

Interleaver

Dt

IP Functional Model

Forward Error Correction

FEC() {

f = x.read();

// FEC function here

y.write(r);

}

Inline

Delay

Model

Scripted

Delay

Model

Annotated IP Functional Model

FEC() {

f = x.read();

// FEC function part A here

__DelayCycles(60*cps);

// FEC function part B here

__DelayCycles(78*cps);

// FEC function part C here

__DelayCycles(23*cps);

y.write(r);

}

IP Functional Model

Forward Error Correction

FEC() {

f = x.read();

// FEC function here

y.write(r);

}

FEC on CPU

// FEC_ip_implem

delay() {

input(x);

run();

delay(200*cps);

output(y);

}

FEC in slow HW

// FEC_ip_implem

delay() {

input(x);

run();

delay(128*cps);

output(y);

}

FEC in fast HW

Delay Script

// FEC_ip_implem

delay() {

input(x);

run();

delay(64*cps);

output(y);

}

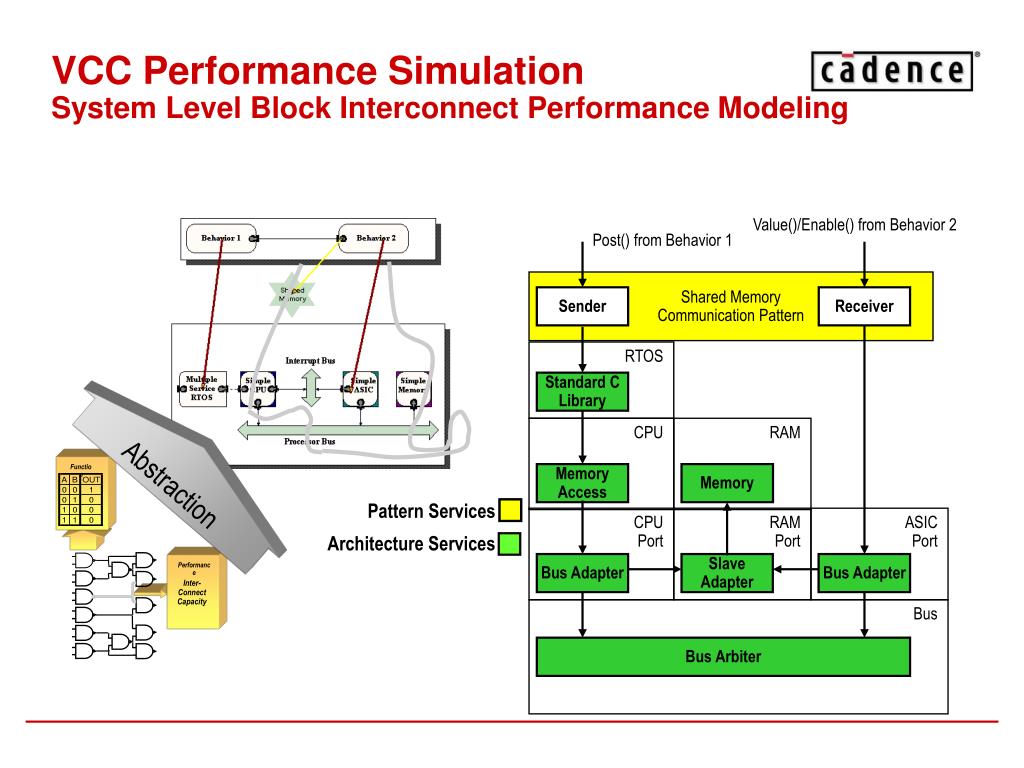

vcc performance simulation system level block interconnect performance modeling

Value()/Enable() from Behavior 2

Post() from Behavior 1

Shared Memory

Communication Pattern

Function

Sender

Receiver

RTOS

Standard C

Library

CPU

RAM

Memory

Access

Memory

Inter-

Connect

Capacity

Performance

Pattern Services

CPU

Port

RAM

Port

ASIC

Port

Architecture Services

Bus Adapter

Slave

Adapter

Bus Adapter

Bus

Bus Arbiter

VCC Performance SimulationSystem Level Block Interconnect Performance Modeling

Abstraction

vcc performance simulation enabled through architecture services in vcc

A

B

Post(5)

Value()

SemProt_Recv

SwMutexes

SemProt_Send

SemProt_Send

mutex_lock;memcpy;

signal

setEnabled

wait;memcpy;

signal

RTOS

Pattern Services

Architecture Services

MemoryAccess

Mem

CPU

SlaveAdapter

BusMaster

BusArbiter

VCC Performance SimulationEnabled through Architecture Services in VCC

Semaphore

Protected

User Visible

write

read

busIndication

busIndication

busRequest

busRequest

arbiterRequest/Release

arbiterRequest/Release

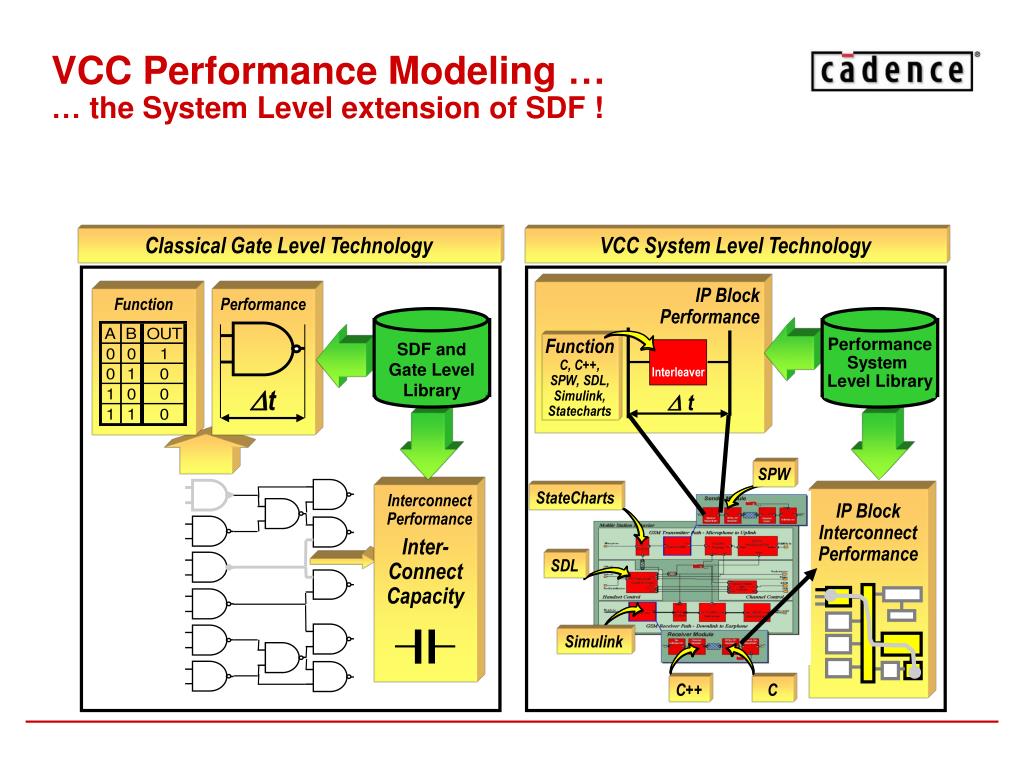

vcc performance modeling the system level extension of sdf

Classical Gate Level Technology

VCC System Level Technology

SDF andGate Level

Library

IP BlockPerformance

Function

Performance

Performance

System

Level Library

FunctionC, C++,SPW, SDL,Simulink,

Statecharts

Interleaver

Dt

D t

SPW

StateCharts

Inter-

Connect

Capacity

InterconnectPerformance

IP BlockInterconnectPerformance

SDL

Simulink

C++

C

VCC Performance Modeling …… the System Level extension of SDF !

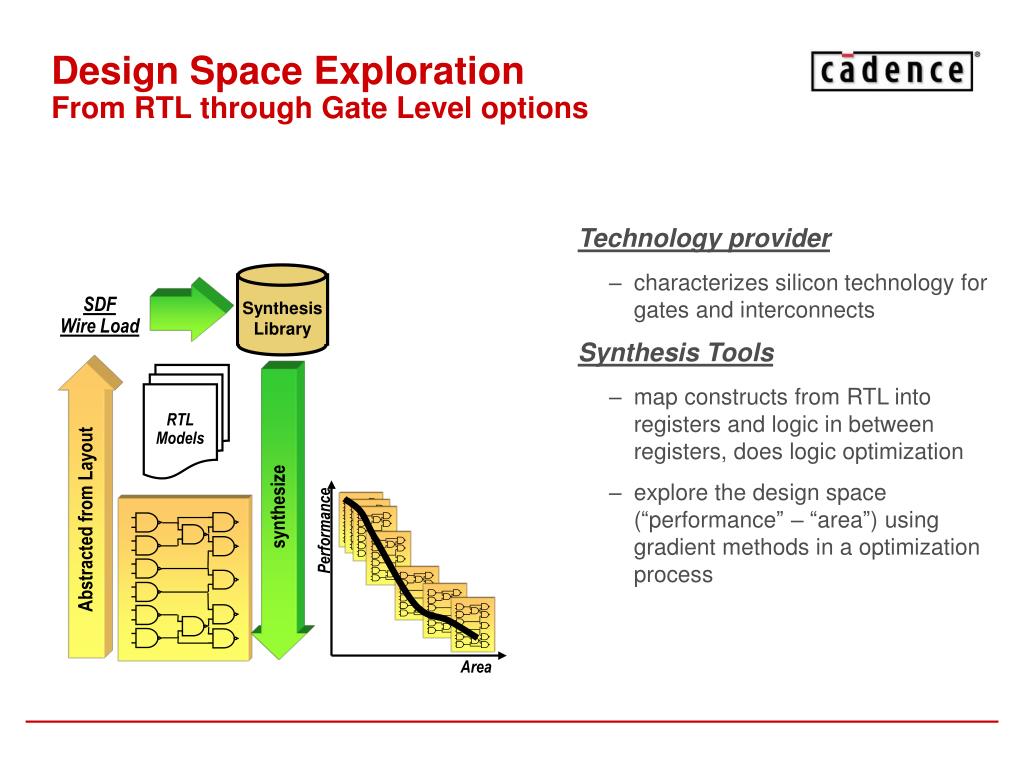

design space exploration from rtl through gate level options
Technology provider

characterizes silicon technology for gates and interconnects

Synthesis Tools

map constructs from RTL into registers and logic in between registers, does logic optimization

explore the design space (“performance” – “area”) using gradient methods in a optimization process

Synthesis

Library

SDF

Wire Load

RTL

Models

Abstracted from Layout

synthesize

Performance

Area

Design Space Exploration From RTL through Gate Level options

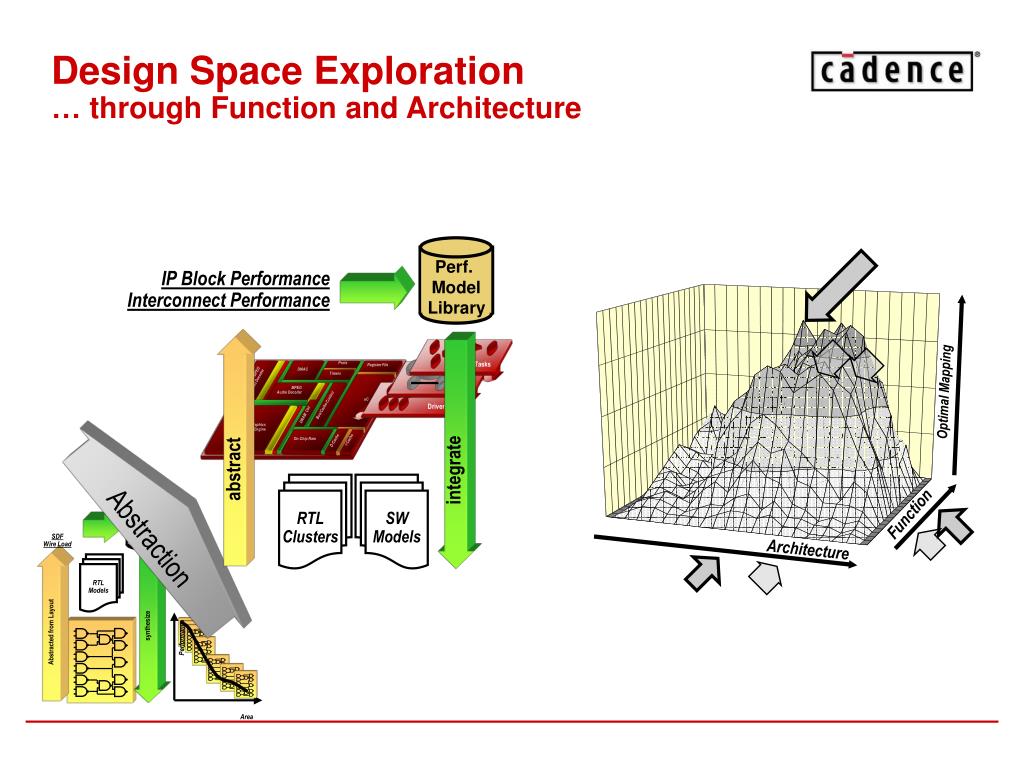

design space exploration through function and architecture

Tasks

DMAC

uC

Register File

Ports

RTOS

Perf.

Model

Library

Timers

Synthesis

Library

MPEG

Audio Decoder

IP Block Performance

Interconnect Performance

MPEGVideo Decoder

Driver

Graphics

Engine

I/F

On-Chip Ram

I-Cache

abstract

RTL

Clusters

SW

Models

D-Cache

Bus/Cache Control

Optimal Mapping

DRAM Ctrl

Function

SDF

Wire Load

Architecture

RTL

Models

Abstracted from Layout

synthesize

integrate

Performance

Area

Design Space Exploration… through Function and Architecture

Abstraction

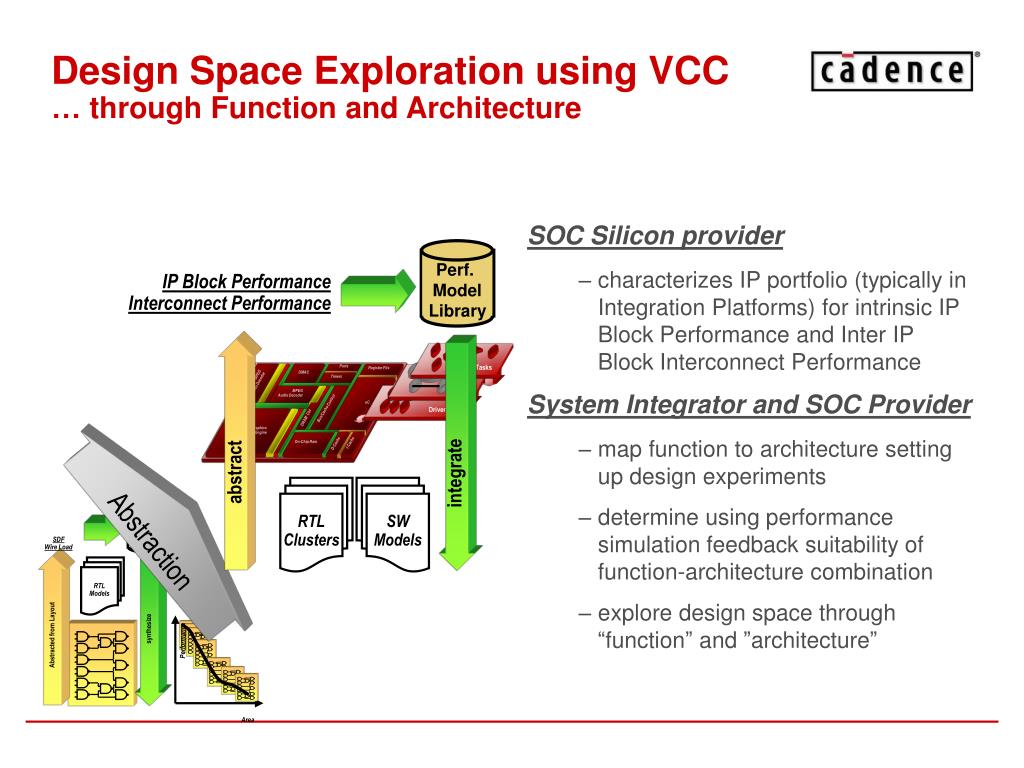

design space exploration using vcc through function and architecture
SOC Silicon provider

characterizes IP portfolio (typically in Integration Platforms) for intrinsic IP Block Performance and Inter IP Block Interconnect Performance

System Integrator and SOC Provider

map function to architecture setting up design experiments

determine using performance simulation feedback suitability of function-architecture combination

explore design space through “function” and ”architecture”

Tasks

DMAC

uC

Register File

Ports

RTOS

Perf.

Model

Library

Timers

Synthesis

Library

MPEG

Audio Decoder

IP Block Performance

Interconnect Performance

MPEGVideo Decoder

Driver

Graphics

Engine

I/F

On-Chip Ram

I-Cache

abstract

RTL

Clusters

SW

Models

D-Cache

Bus/Cache Control

DRAM Ctrl

SDF

Wire Load

RTL

Models

Abstracted from Layout

synthesize

integrate

Performance

Area

Design Space Exploration using VCC… through Function and Architecture

Abstraction

how to get the performance numbers ip block performance modeling
Top Down Flow

In a pure top down design flow the performance models are “Design Requirements” for functional models

They are refined using bottom up techniques in due course throughout the project

Bottom Up Flow

SOC Provider characterizes IP portfolio, e.g. of a Integration platform

using HDL model simulation

using software simulation on ISS

using benchmarking on SOC

IP Functional Model

Forward Error Correction

FEC() {

f = x.read();

// FEC function here

y.write(r);

}

Inline

Delay

Model

Scripted

Delay

Model

Annotated IP Functional Model

FEC() {

f = x.read();

// FEC function part A here

__DelayCycles(60*cps);

// FEC function part B here

__DelayCycles(78*cps);

// FEC function part C here

__DelayCycles(23*cps);

y.write(r);

}

IP Functional Model

Forward Error Correction

FEC() {

f = x.read();

// FEC function here

y.write(r);

}

FEC on CPU

// FEC_ip_implem

delay() {

input(x);

run();

delay(200*cps);

output(y);

}

FEC in slow HW

// FEC_ip_implem

delay() {

input(x);

run();

delay(128*cps);

output(y);

}

FEC in fast HW

Delay Script

// FEC_ip_implem

delay() {

input(x);

run();

delay(64*cps);

output(y);

}

How to get the performance numbers…IP Block Performance Modeling
how to get the performance numbers ip block interconnect performance modeling
Top Down Flow

Datasheets for architectural IP information are entered in parameters for architectural services

Can be done fast by System Integrator without SOC Provider!

Refinement with SOC Provider models

Bottom Up Flows

Architectural IP is profiled using HDL simulation, ISS or silicon and data is entered in VCC architectural services

Value()/Enable() from Behavior 2

Post() from Behavior 1

Shared Memory

Communication Pattern

Sender

Receiver

RTOS

Standard C

Library

CPU

RAM

Memory

Access

Memory

Pattern Services

CPU

Port

RAM

Port

ASIC

Port

Architecture Services

Bus Adapter

Slave

Adapter

Bus Adapter

Bus

Bus Arbiter

How to get the performance numbers… IP Block Interconnect Performance Modeling
how to get the performance numbers software estimation for ansi c code whitebox c
Estimation of software performance prior to implementation

CPU characterized as Virtual Processor Model

Using a Virtual Machine Instruction Set

Used for dynamic control SW estimation during performance simulation taking into account bus loading, memory fetching, and register allocation

Value

True co-design: SW estimation using annotation into C Code (as opposed to to simulation in instruction simulators used in co-verification)

Good for early system scheduling, processor load estimation

Two orders of magnitude faster than ISS

Greater than 80 percent accuracy

Enables pre-implementation decision but is not a verification model

How to get the performance numbers…Software Estimation for ANSI C code (“Whitebox C”)
how to get the performance numbers virtual processor model characterization methods
Data Book Approach

CPU data book information to count cycles and estimate VIM

Calibration Suite using “Best Fit”

Run Calibration Suite on VIM and ISS

Solve a set of linear equations to minimize difference

Application Specific Calibration Suite

using the “Best Fit” method but use application specific routines for automotive, wireless telecom, multimedia etc.

Exact Count on ISS

cycle counts exactly derived from ISS run

Filter specific commands out (e.g. OPi etc.)

How to get the performance numbers…Virtual Processor Model Characterization Methods
how to get the performance numbers software estimation for ansi c code whitebox c1
Virtual MachineInstruction Set Model

LD,3.0 Load from Data Memory

LI,1.0 Load from Instr. Mem.

ST,3.0 Store to Data Memory

OP.c,3.0 Simple ALU Operation

OP.s,3.0

OP.i,4.0

OP.l,4.0

OP.f,4.0

OP.d,6.0

MUL.c,9.0 Complex ALU Operation

MUL.s,10.0

MUL.i,18.0

MUL.l,22.0

MUL.f,45.0

MUL.d,55.0

DIV.c,19.0

DIV.s,110.0

DIV.i,118.0

DIV.l,122.0

DIV.f,145.0

DIV.d,155.0

IF,5.0 Test and Branch

GOTO,2.0 Unconditional Branch

SUB,19.0 Branch to Subroutine

RET,21.0 Return from Subroutine

How to get the performance numbers…Software Estimation for ANSI C code (“Whitebox C”)
how to get the performance numbers software estimation for ansi c code whitebox c2

Assembler

VirtualProcessorModel

ld #event,R1

ld #proc,R2

add R1,R2,R3

ld (R3),R4

ldi #0x1, R5

and R4, R5, R6

cmp R0, R6, R7

br R7, LTRUE

ba LFALSE



Analyse

basic blocks

compute delays

char *event;

int proc;

if (*(event+proc) & 0x1: 0x0)

...

ANSI C

Input

ld

ld

op

ld

li

op

ts

--

br

Œ

Whitebox C

declare ports

Ž

Generate new C

with delay counts



Compile

generated C and

run natively

Architecture

Characterization

Performance

Estimation

How to get the performance numbers…Software Estimation for ANSI C code (“Whitebox C”)
architecture service
Architecture Service
  • The service is the element that defines the functionality of architecture
  • A service is coded in C++ and performs a specific role to model architecture, for example:
    • bus arbitration
    • memory access
    • interrupt propagation
    • etc.
example of services
Example of Services

ASIC

Bus

Behavior

Post

Pattern

Sender

BusMaster

BusArbiter

Mem

BusSlave

Memory

example of services1
Example of Services
  • Behavior calls Post, i.e., send a communication
  • Pattern hears Post and directs ASIC block’s BusMaster to send a communication
  • BusMaster asks the Bus Block’s BusArbiter for use of the bus
  • BusArbiter grants the bus, so communication can go to Memory Block
  • Memory Block’s BusSlave receives communication and forwards to memory
  • Memory stores communication.
categories of services
Categories of Services
  • Pattern Service
    • services that coordinate the communication of architecture services
  • Architecture Service
    • services that define the functionality of architecture
  • Internal Service
    • generic, default service used during functional simulation
pattern service
Pattern Service
  • A pattern coordinates architectural services that collectively model a communication path from sender to receiver
  • Patterns are composed of a sender service and a receiver service
    • Sender service defines Post
    • Receiver service defines Enabled/Value
  • Both the sender and receiver service direct the actions of architecture services to send/receive communication

Post

Pattern

Sender

Enabled/

Value

Pattern

Receiver

basic example
Basic Example
  • Let’s assume two behaviors.
  • b1 and b2 talk to each other:
    • b1 says Post; b2 says Value
    • and visa versa
basic example cont
Basic Example (cont)
  • What does it mean for b1 to talk to b2?
  • What does it mean for b1 to say Post?
  • What does it mean for b2 to say Value?
  • We should consider an architecture to give meaning to b1 and b2.
  • We should consider how the behavior blocks map to the architecture.
basic example cont1
Basic Example (cont)
  • Let’s assume the following architecture:
basic example cont2
Basic Example (cont)
  • Here we map the behavior to the architecture:
basic example cont3
Basic Example (cont)
  • What do we see in the mapping diagram?
    • b1 is mapped to software.
    • b2 is mapped to hardware.
    • b1 to b2 communication is set to Shared Memory.
    • b2 to b1 communication is set to to Interrupt Register Mapped.
  • For simplicity’s sake, we’re focusing on b1-to-b2 communication.
    • b2 to b1 will be ignored for now.
  • If b1 talks to b2, how does that look when mapped to an architecture?
    • What happens when b1 says Post?
    • What happens when b2 says Value?
    • Note b1 to b2 is shared memory communication.
basic example cont4
Basic Example (cont)
  • Using Shared Memory, we have the following sequence of communication:

1. b1 writes to memory:

b1 è RTOS è CPU è Bus è Mem

2. b2 reads from memory:

b2 è ASIC è Bus è Mem

basic example cont5
Basic Example (cont)
  • So b1 talks to b2 through the various architecture components:
    • b1 says Post and that becomes a write to memory.
    • b2 says Value and that becomes a read from memory.
  • What is the underlying mechanism that propagates Post/Value through the architecture?
    • It’s something called the “service”.
architectural services
Architectural Services
  • More basic than the architecture block is the service.
  • The service is the atomic (unsplittable) piece that composes the architecture block.
  • The next diagrams overlay the services on top of architectural blocks.
slide62

Architecture

SimpleMemory

Memory

FCFSSlaveAdapter

TDMI_DataBus

BusArbiter

ASIC

eCos

SimpleCPU

FCFSBusAdapter

CPUMemoryAccess

StandardCLibrary

FCFSBusAdapter

Service Example

service example cont

Architecture

Pattern

b1

b2

Sender

Receiver

Service Example (cont)
commercial example st microelectronics
IP models support codesign efforts

By Benoit Clement System-Level Design Engineer

Doha Benjelloun System-Level Design Engineer

Co-Design Methodology for Systems &Architecture (CMSA)

STMicroelectronics, Grenoble, France

http://www.eetimes.com/story/OEG20010913S0069

Commercial ExampleST Microelectronics
