Creating ICD10 Test Data Using Tools you Already Own Using Excel, UltraEdit, and Batch files to build test data
Introduction • This presentation provides fives steps that users can follow to automate test file creation. • The example is for creating files used in a code set release where the test files could be identical with the exception of four fields which needed to have a unique code per file.
Four Steps • Build a “Template” file • Preparing your file for Excel • Using Excel to update the data • Using batch files

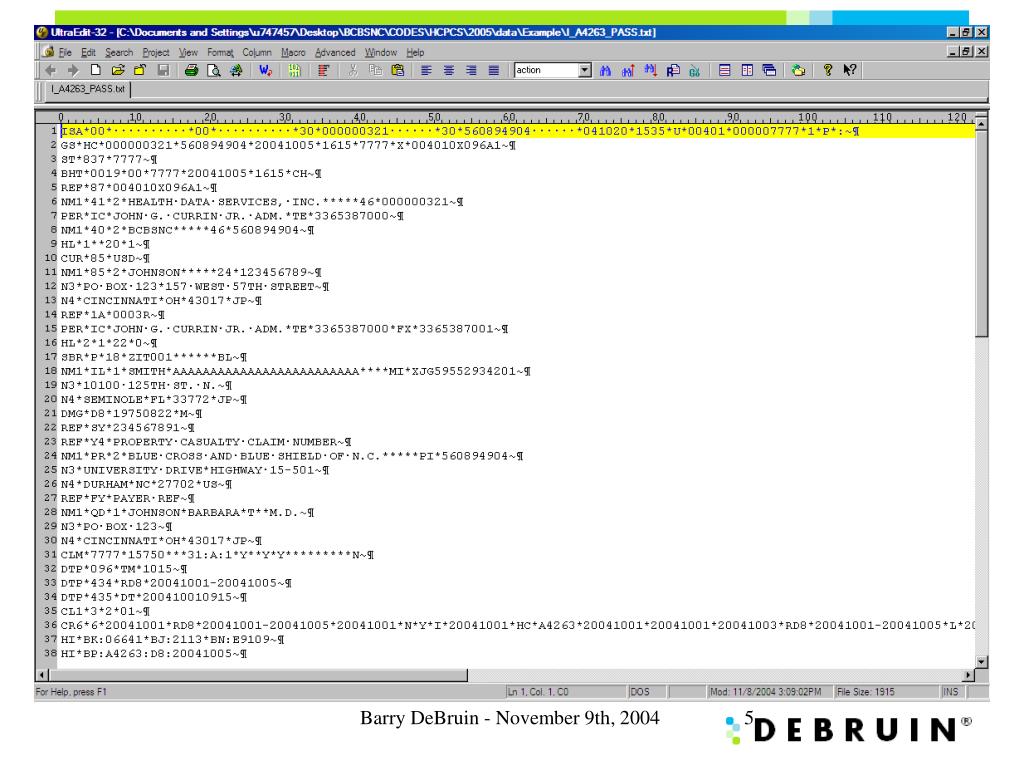

Build a “Template” file • Start with a clean file (no errors, IG edits, business edits, etc.) • In our example we’re building X12 837I’s (Institutional health care claims) beginning with the following file.

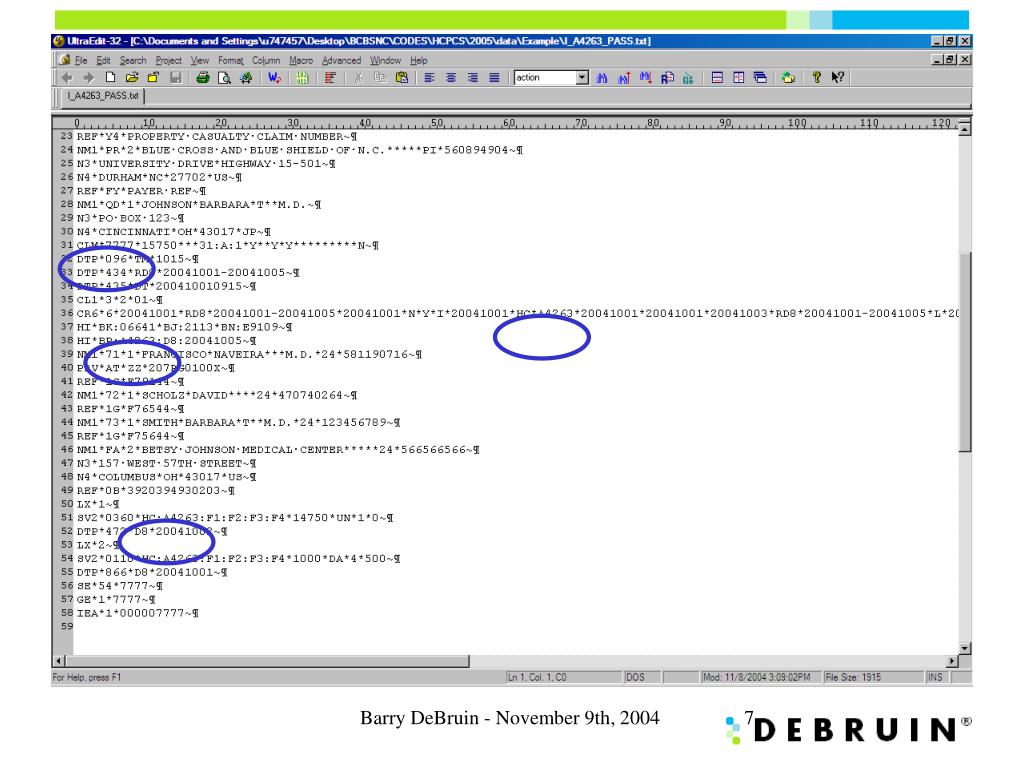

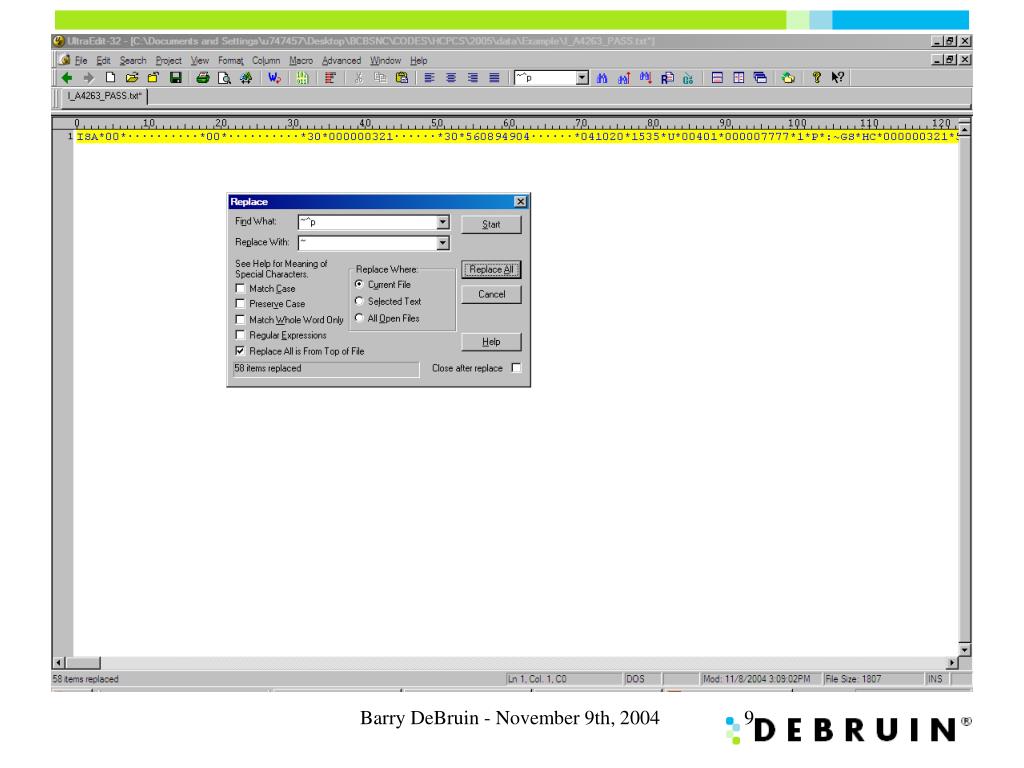

Barry DeBruin - November 9th, 2004 Preparing your file for Excel First we determine differences needed for each file: • We need to change the HCPCS code in three places and modify the CLM01 for tracking. • To isolate the fields to update, insert a TAB before and after the field. • Once this is completed, we’ll also need to unwrap the file by removing the carriage return/line feeds to give us a continuous string of data (~^p with ~). NOTE: The same commands can be used in Word. Here’s how using UltraEdit…
Barry DeBruin - November 9th, 2004 Using Excel to update the data • Copy the string of data from UltraEdit to a new workbook in Excel. • The tabs will separate your data into their own columns. • Autofill as many rows as you need test files.

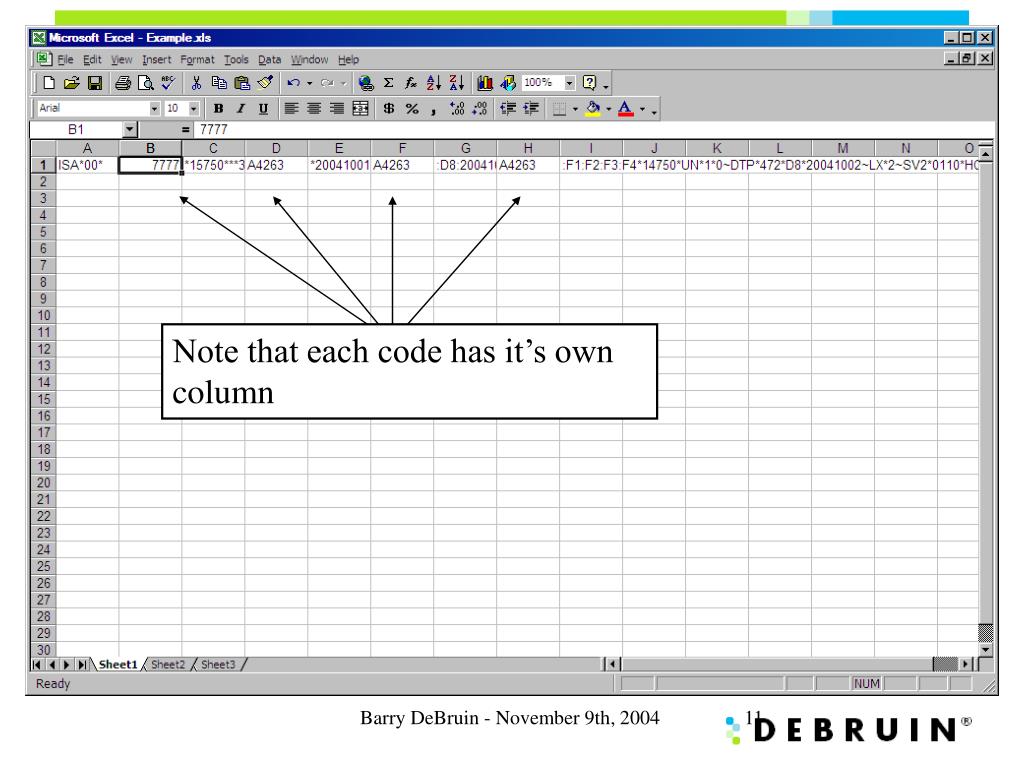

Barry DeBruin - November 9th, 2004 Note that each code has it’s own column
Barry DeBruin - November 9th, 2004 • Highlight the entire row. • Autofill by using the black cross (hold cursor over black dot) • Drag it down as many rows as needed.

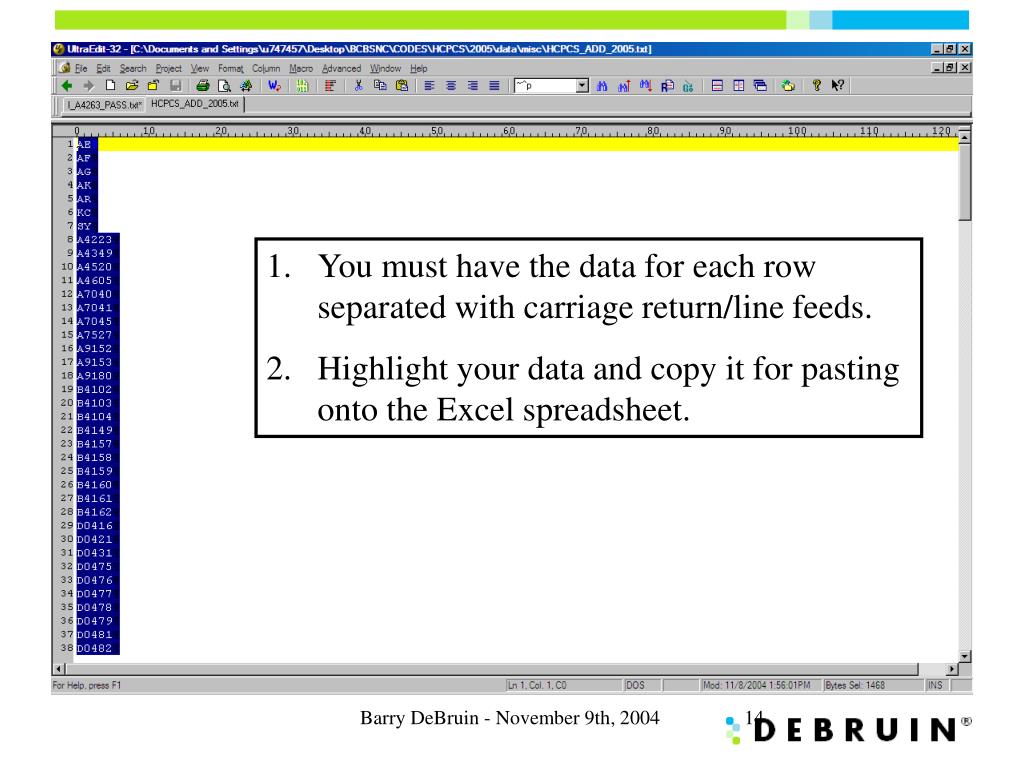

Barry DeBruin - November 9th, 2004 • You must have the data for each row separated with carriage return/line feeds. • Highlight your data and copy it for pasting onto the Excel spreadsheet.

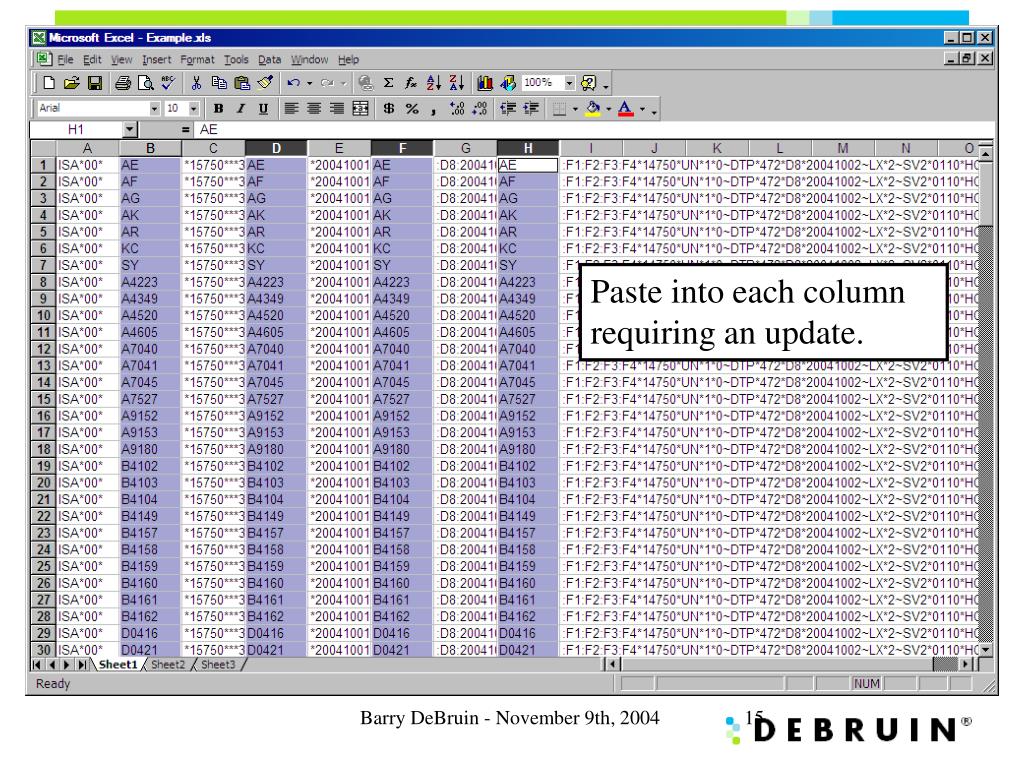

Barry DeBruin - November 9th, 2004 Paste into each column requiring an update.

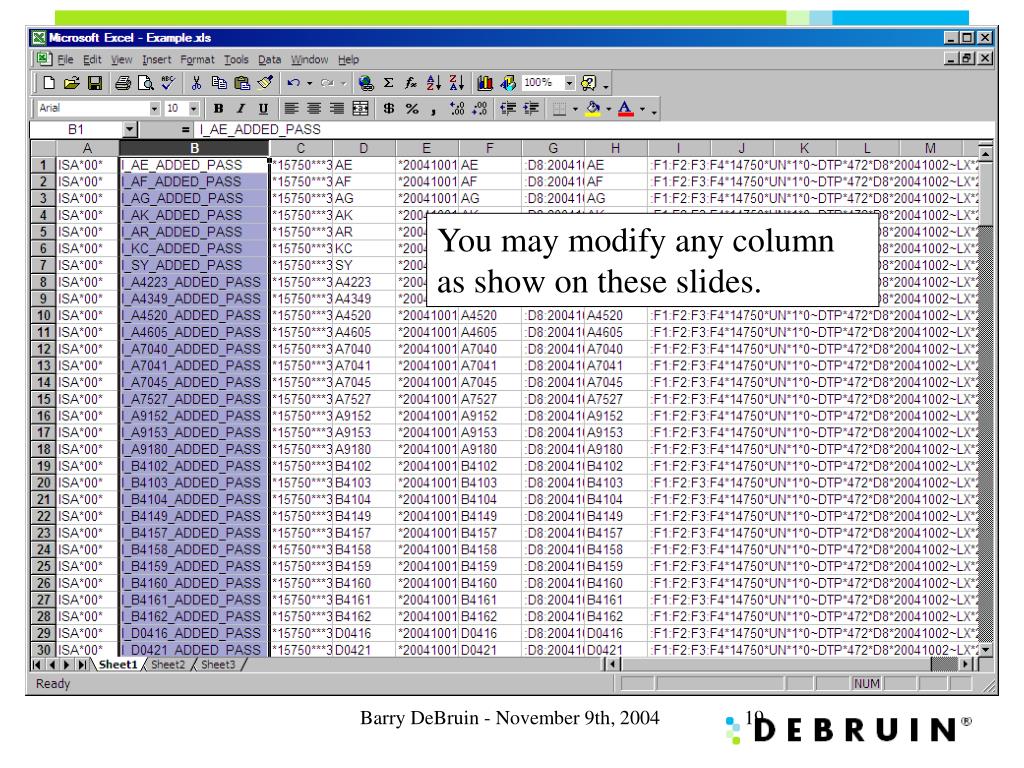

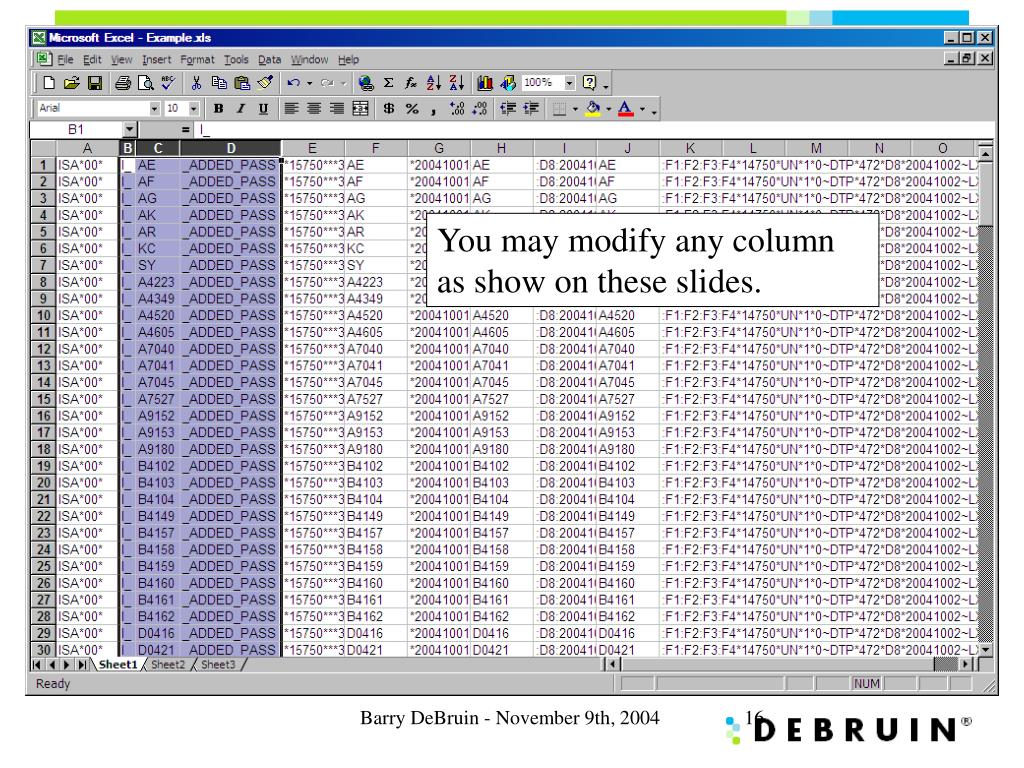

Barry DeBruin - November 9th, 2004 You may modify any column as show on these slides.

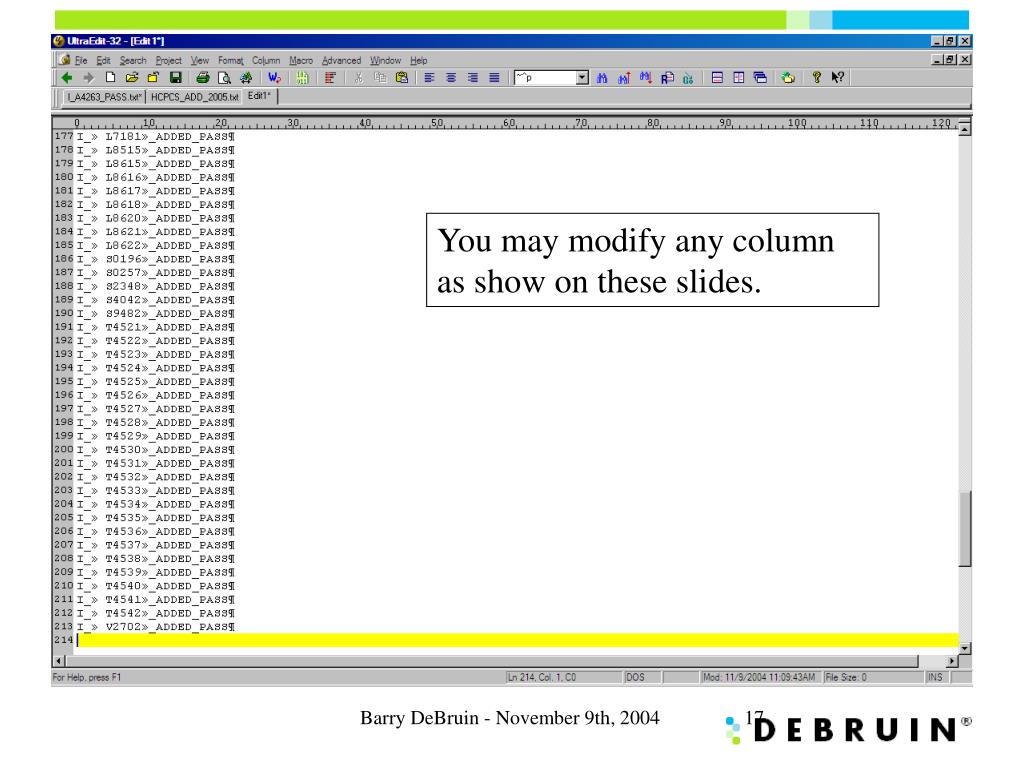

Barry DeBruin - November 9th, 2004 You may modify any column as show on these slides.
Barry DeBruin - November 9th, 2004 You may modify any column as show on these slides.
Barry DeBruin - November 9th, 2004 You may modify any column as show on these slides.
Barry DeBruin - November 9th, 2004 Using batch files Now we’ll create a batch file to pipe data to multiple files. • Copy the data from the spreadsheet into a text file and save. • Remove all TAB characters.
Barry DeBruin - November 9th, 2004 Using batch files, cont’d. Using UltraEdit we can use column mode to build a working batch file. • Save this file as a batch file (*.bat). • Identify a unique text pattern on each line. • Using the FINDSTR function from a DOS batch file we can build our individual files using each rows unique “Text Pattern” (aka Regular Expressions). • The syntax is as follows:FINDSTR /R "ISA.*I_AE_ADDED_PASS" Example.txt > I_AE_ADDED_PASS.txt

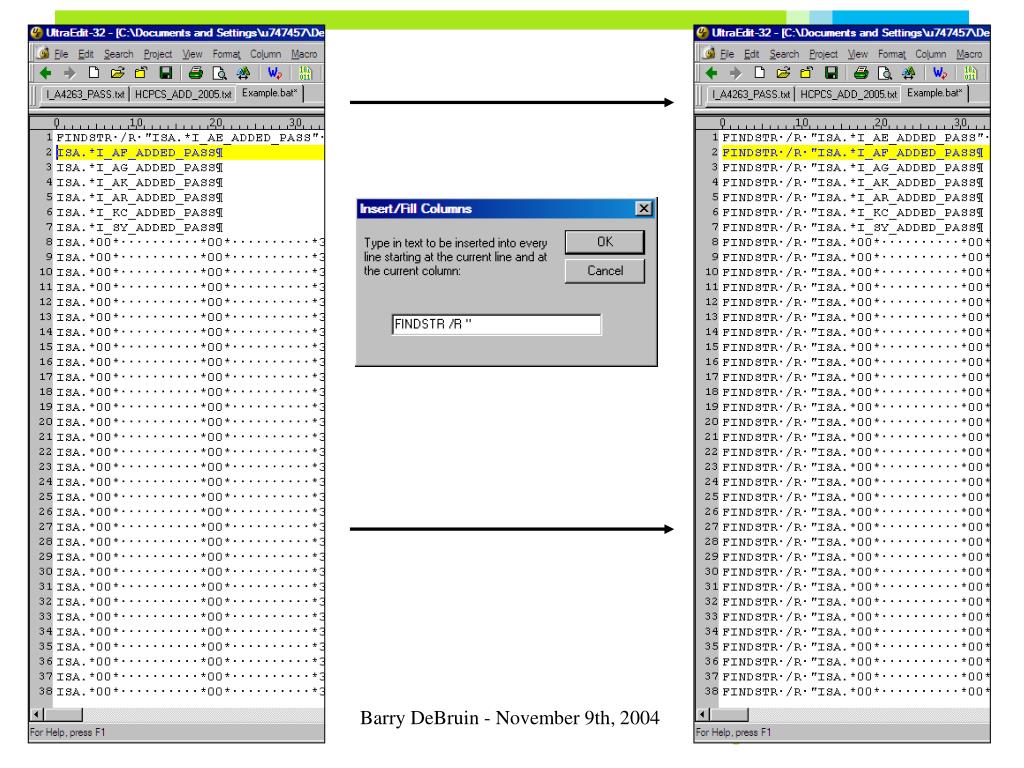

Barry DeBruin - November 9th, 2004 Cursor is here Using Column mode we can insert character into a specific column thereby building our batch file. Here we are inserting a period in the fourth column to begin building our regular expression.

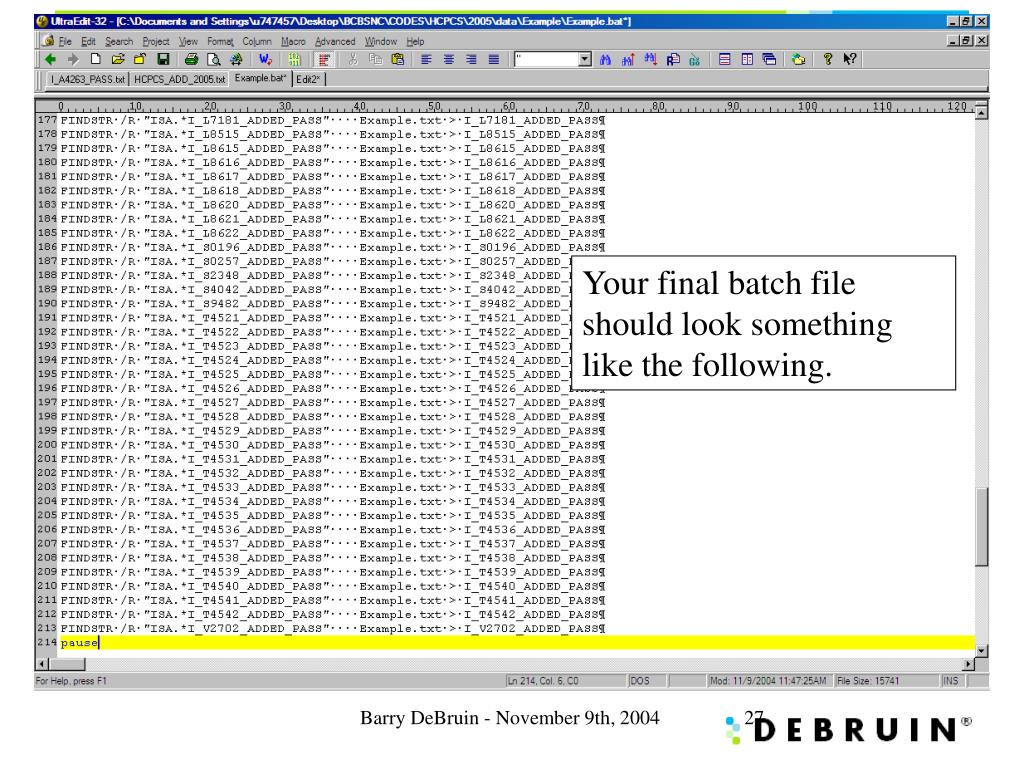

Barry DeBruin - November 9th, 2004 Your final batch file should look something like the following.

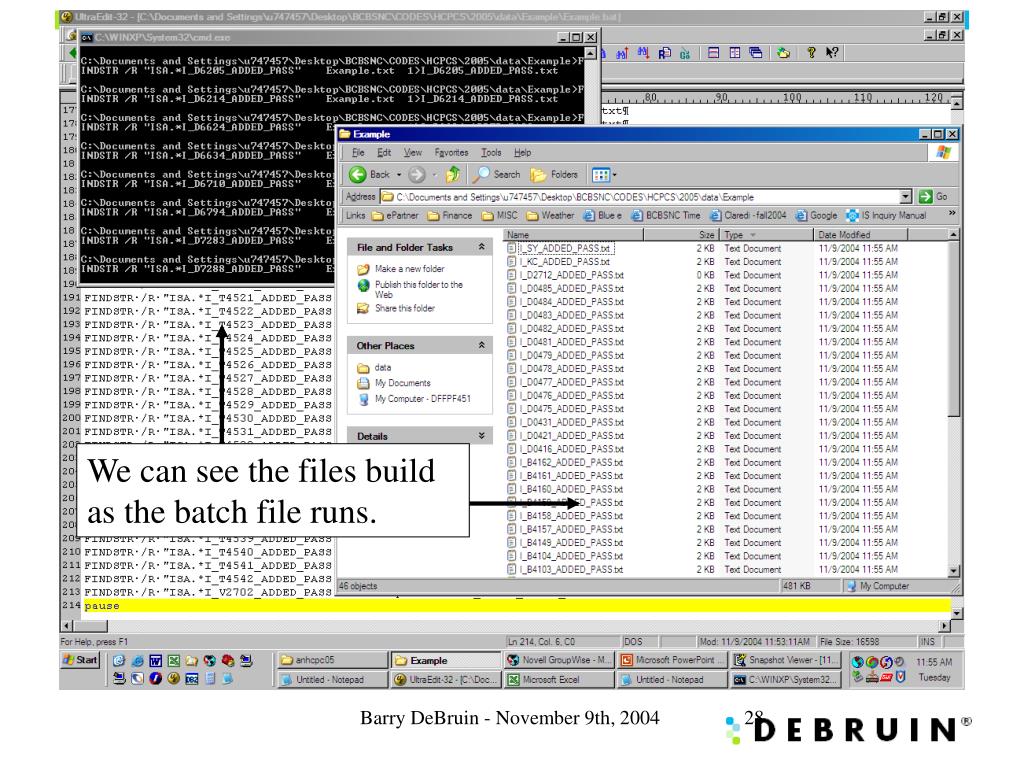

Barry DeBruin - November 9th, 2004 We can see the files build as the batch file runs.
