  1. Stacks contd. ADS Lecture 11

  2. Singly Linked list-based Stack • Top of stack is head of list (can insert elements at head in constant time, at tail in linear time) • To perform operation size in constant time, keep track of size via instance variable • Implement generic stack using generic linked list pop() head head e3 e1 e2 e3 e4 e2 e4 e5 e2 e3 e4 null null head null push(e5) ADS Lecture 11

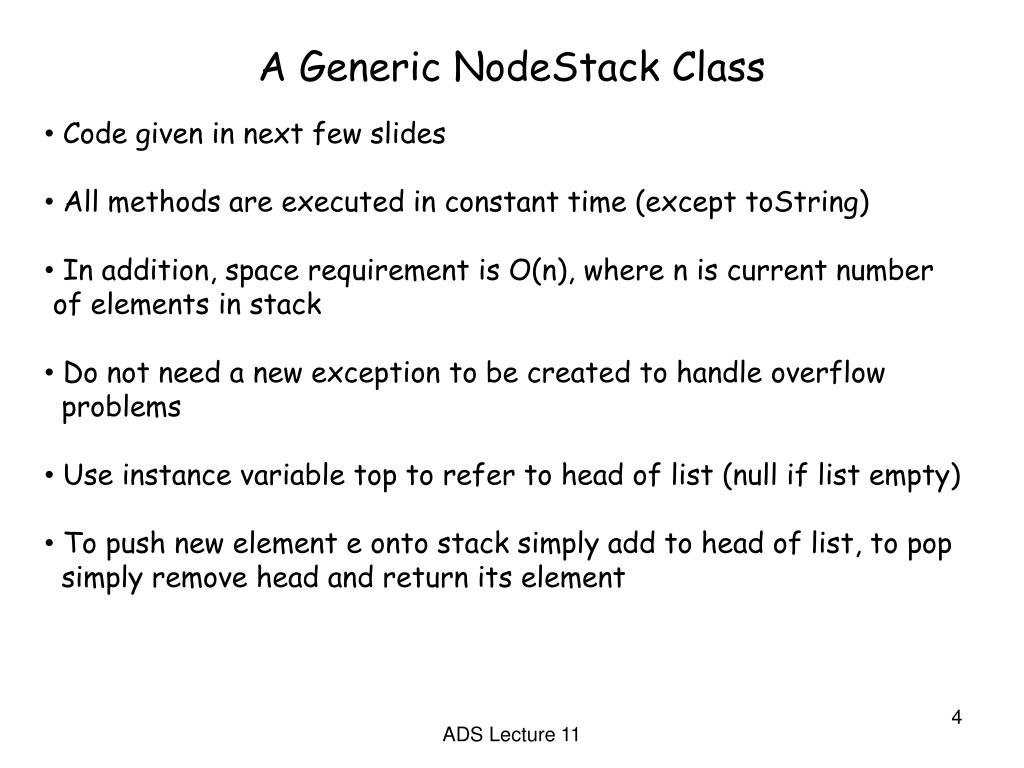

  3. A Generic NodeStack Class • Code given in next few slides • All methods are executed in constant time (except toString) • In addition, space requirement is O(n), where n is current number of elements in stack • Do not need a new exception to be created to handle overflow problems • Use instance variable top to refer to head of list (null if list empty) • To push new element e onto stack simply add to head of list, to pop simply remove head and return its element 4 ADS Lecture 11

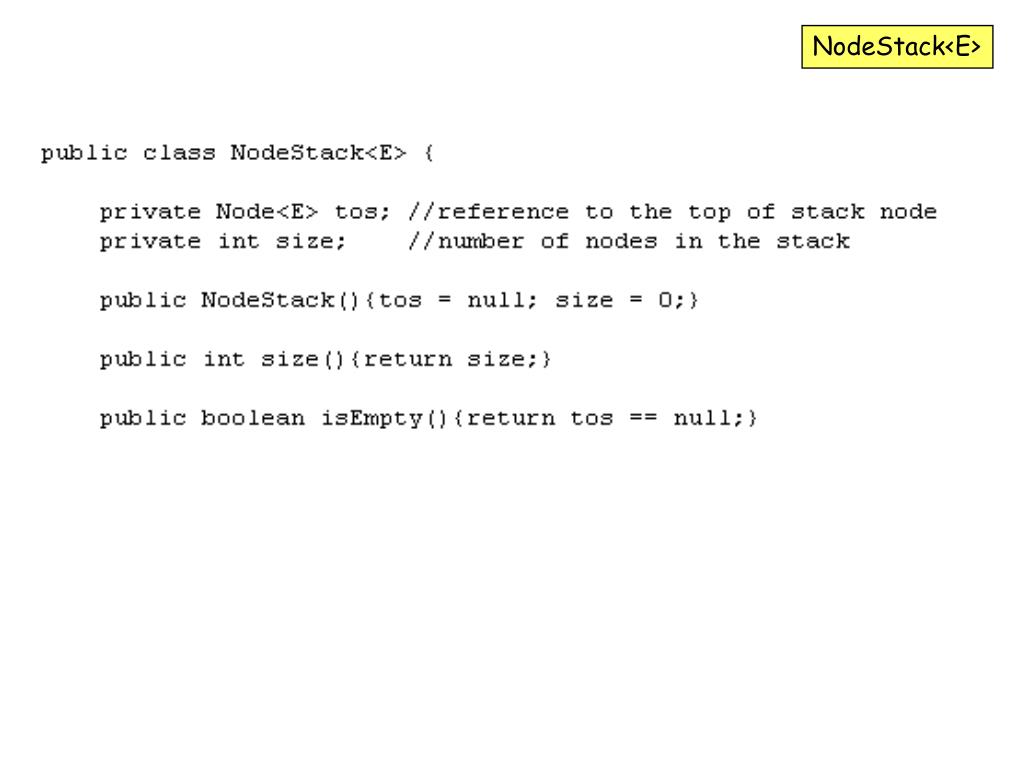

  4. NodeStack<E>

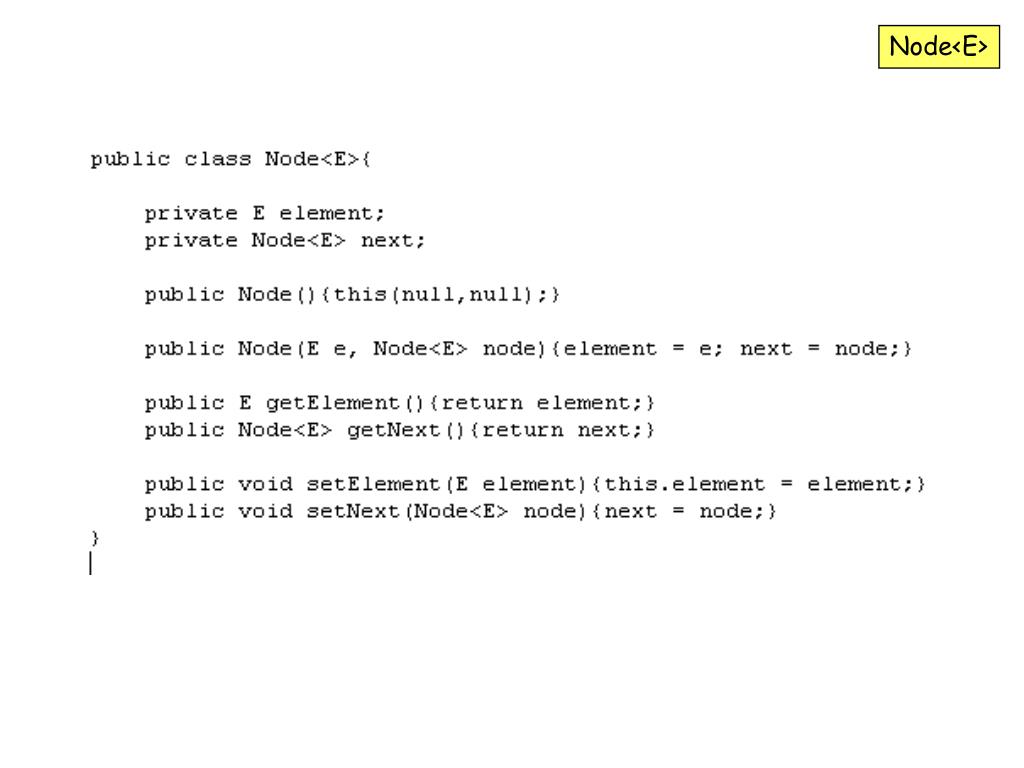

  5. Node<E>

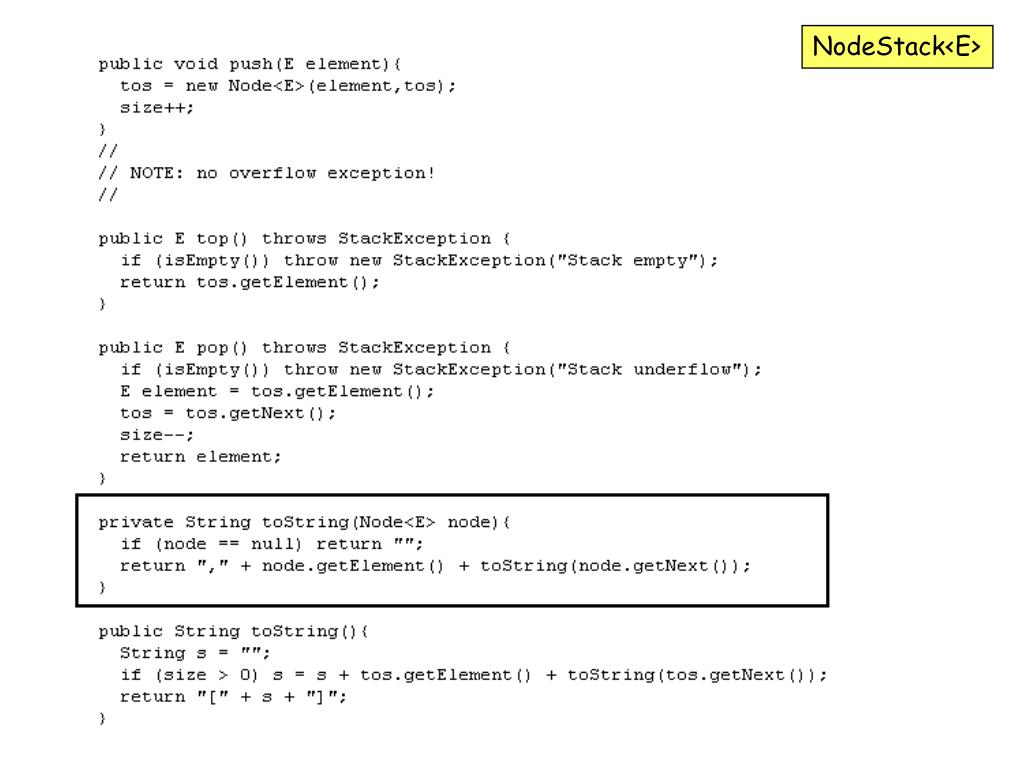

  6. NodeStack<E>

  7. NodeStack<E>

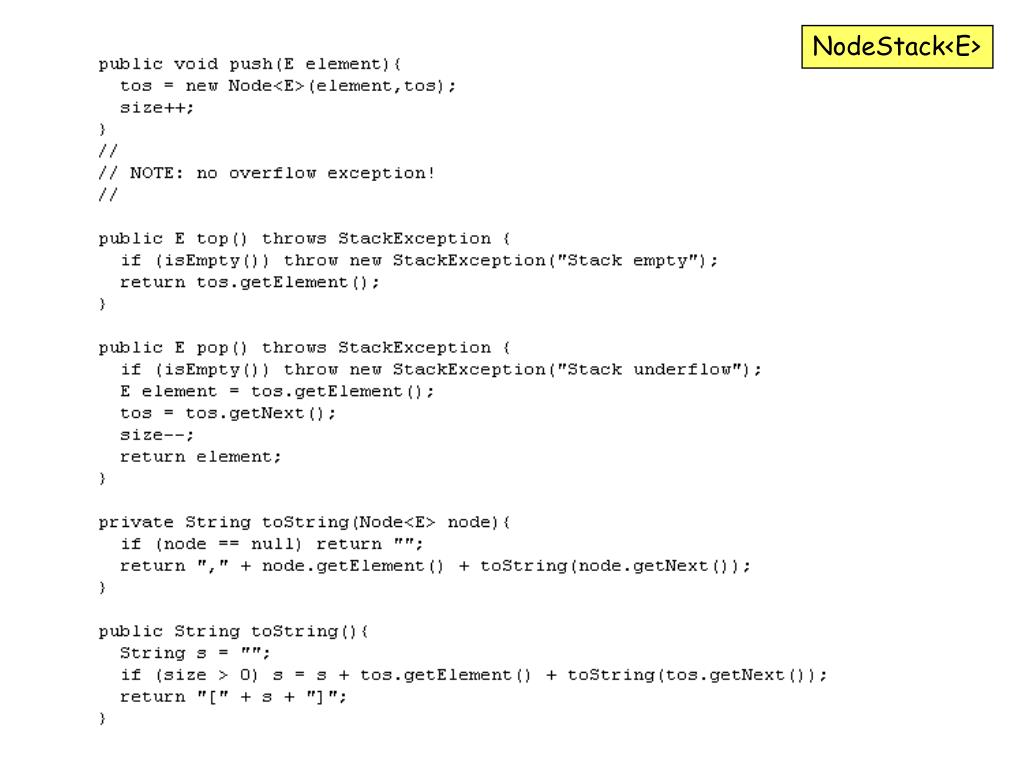

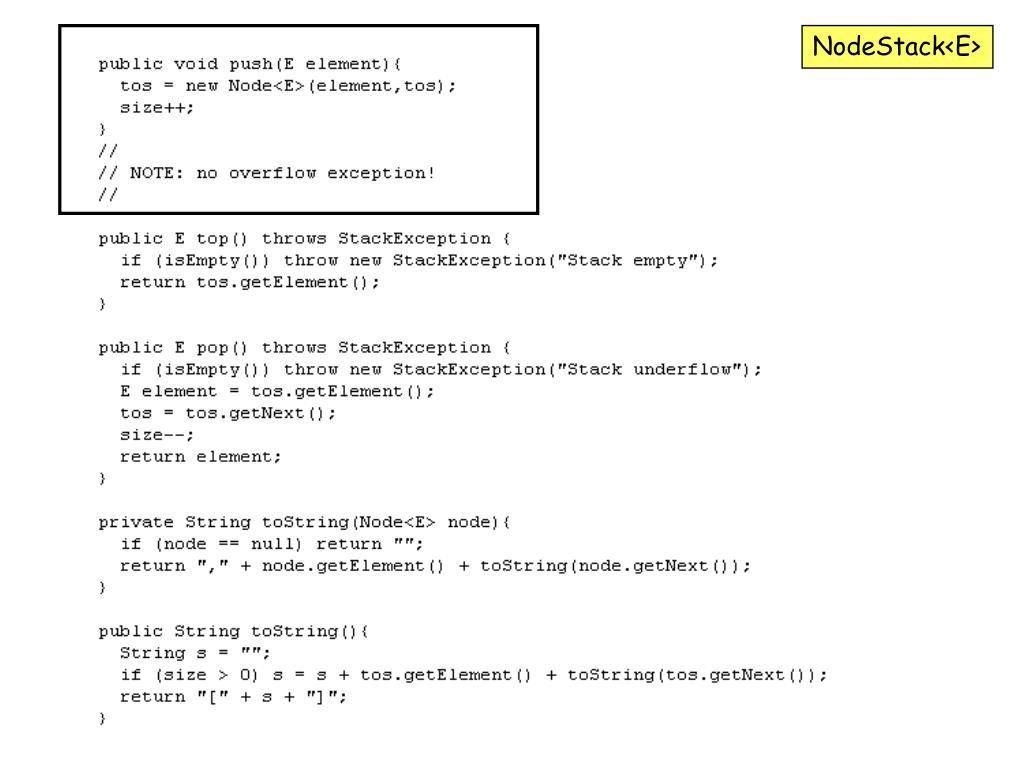

  8. NodeStack<E>

  9. NodeStack<E>

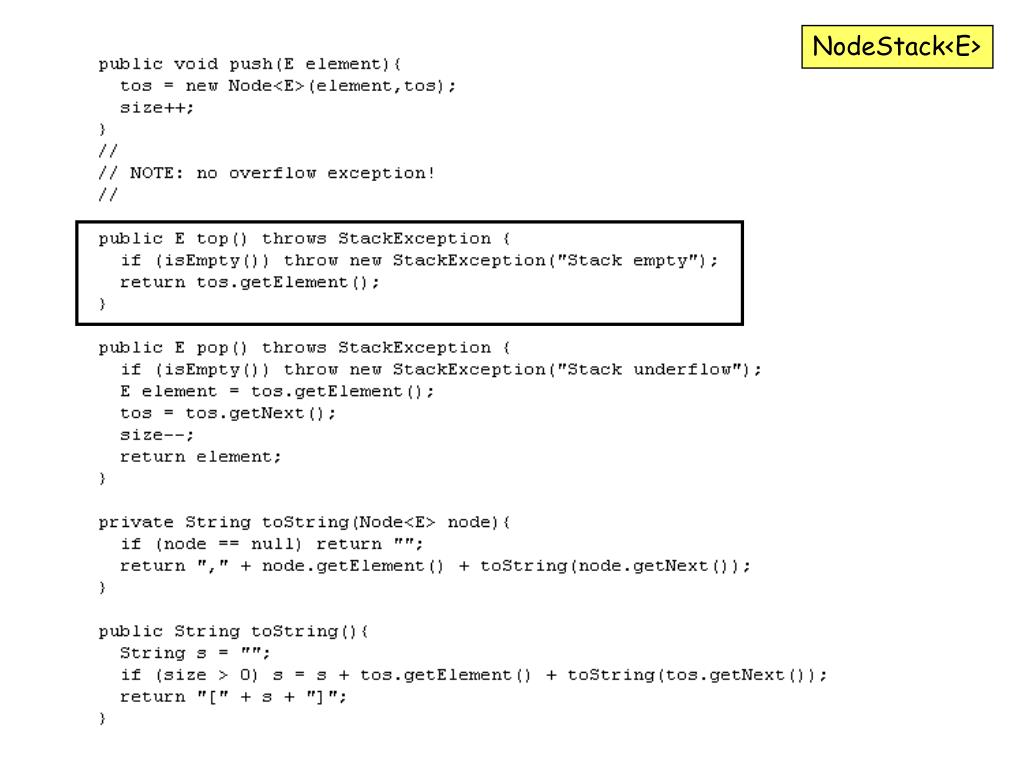

  10. NodeStack<E>

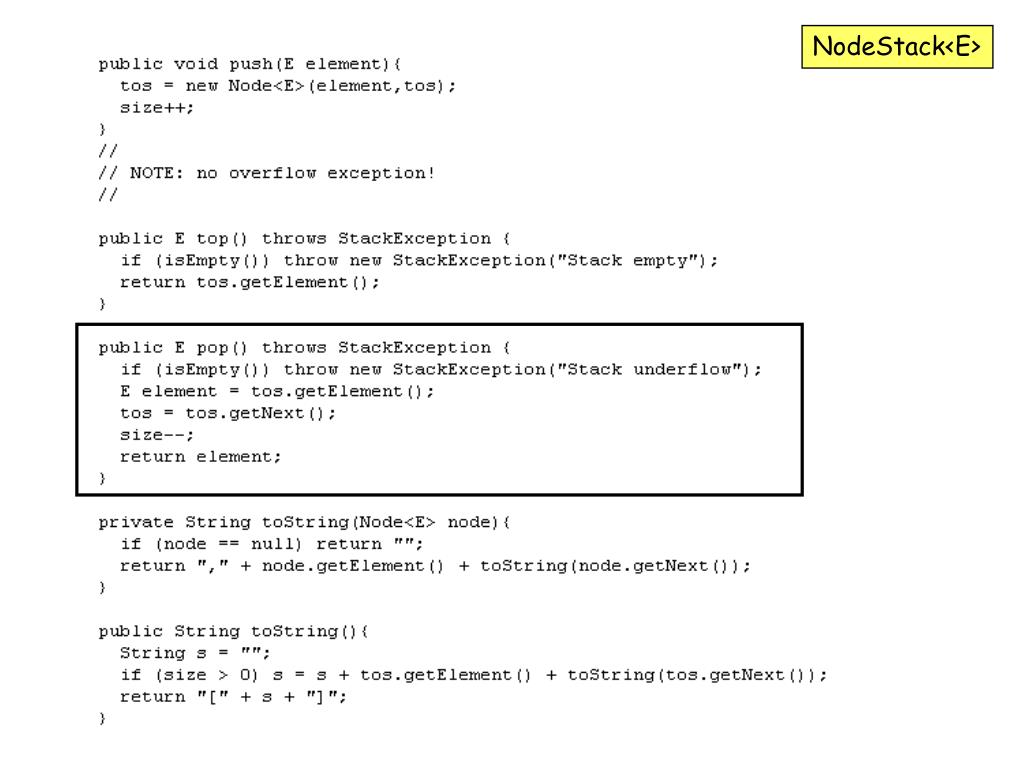

  11. NodeStack<E>

  12. NodeStack<E>

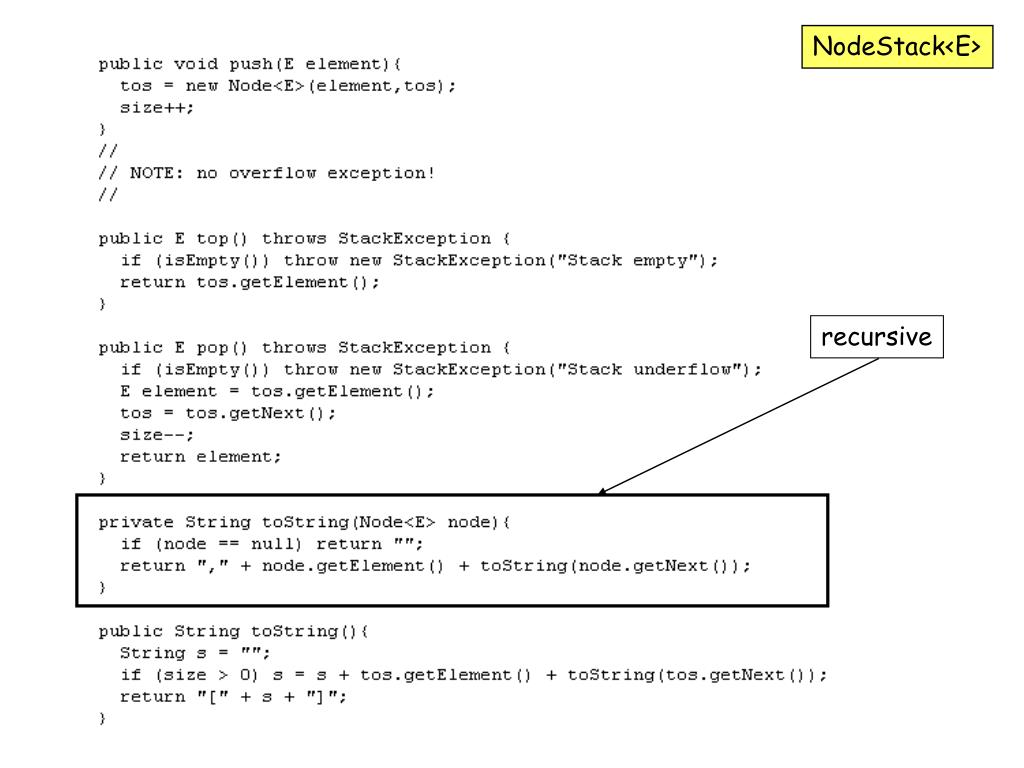

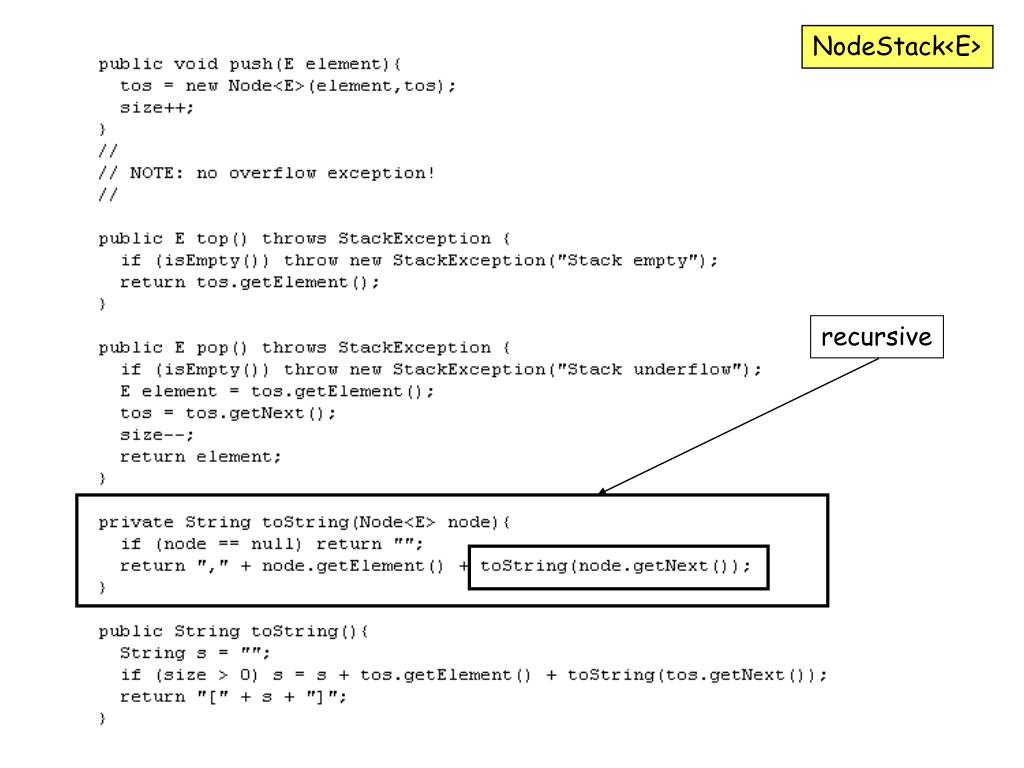

  13. NodeStack<E> recursive

  14. NodeStack<E> recursive

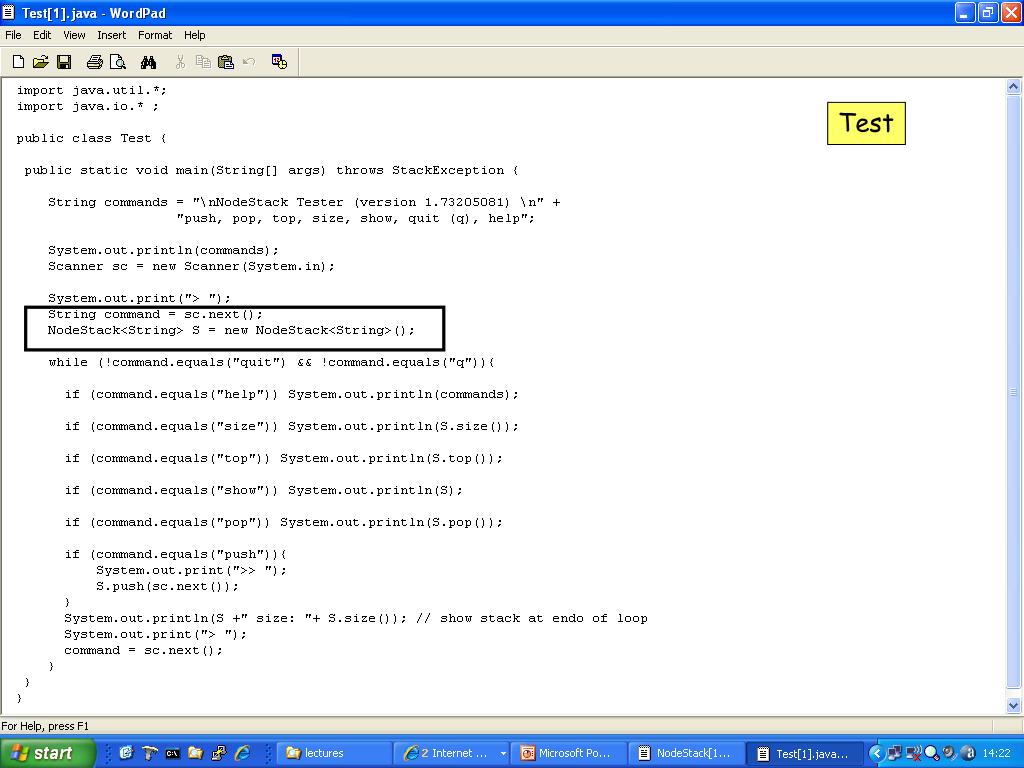

  15. Test

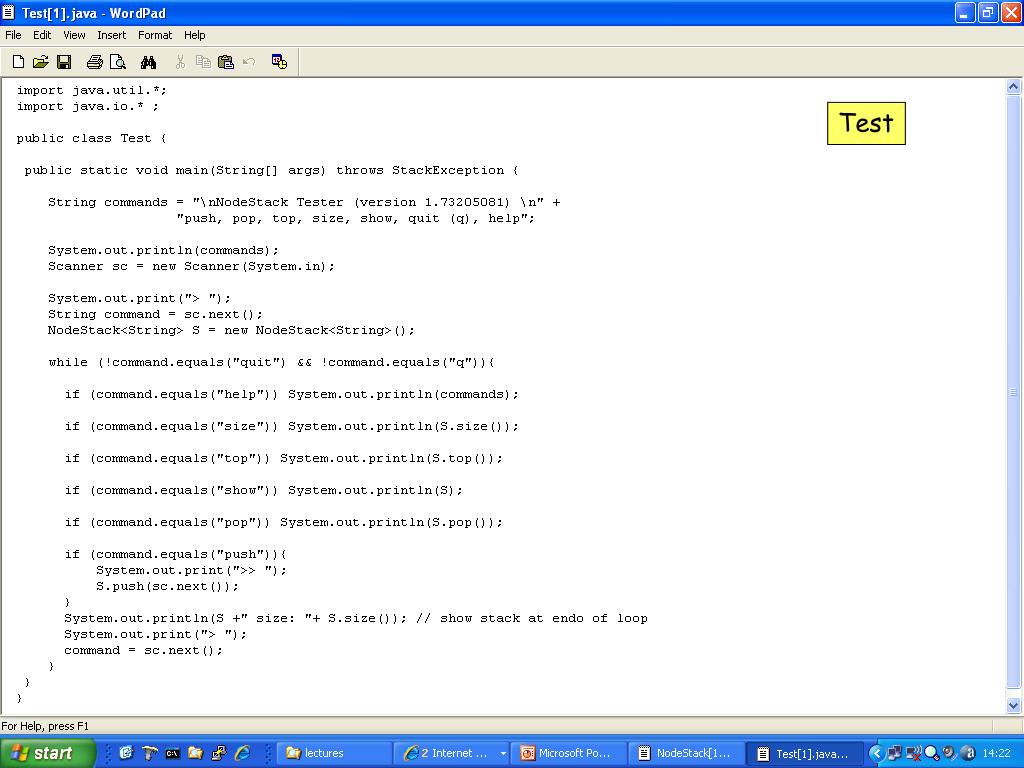

  16. Test

  17. Another example of using a stack … a (simple integer) Reverse Polish Calculator

  18. Random fact #5

  19. Random fact #5 In 1973, amongst physicist, computer scientists, …, the HP35 was the “must have” item. It was cool, exotic (first commercial rpn calculator), and most importantly … it felt good! “Felt good”? … the keys had a “click”, i.e. a push and then “click” like a micro switch. Really beautiful. It cost me 1 month’s pay (about £70 as a student in 1973)

  20. end of random fact #5

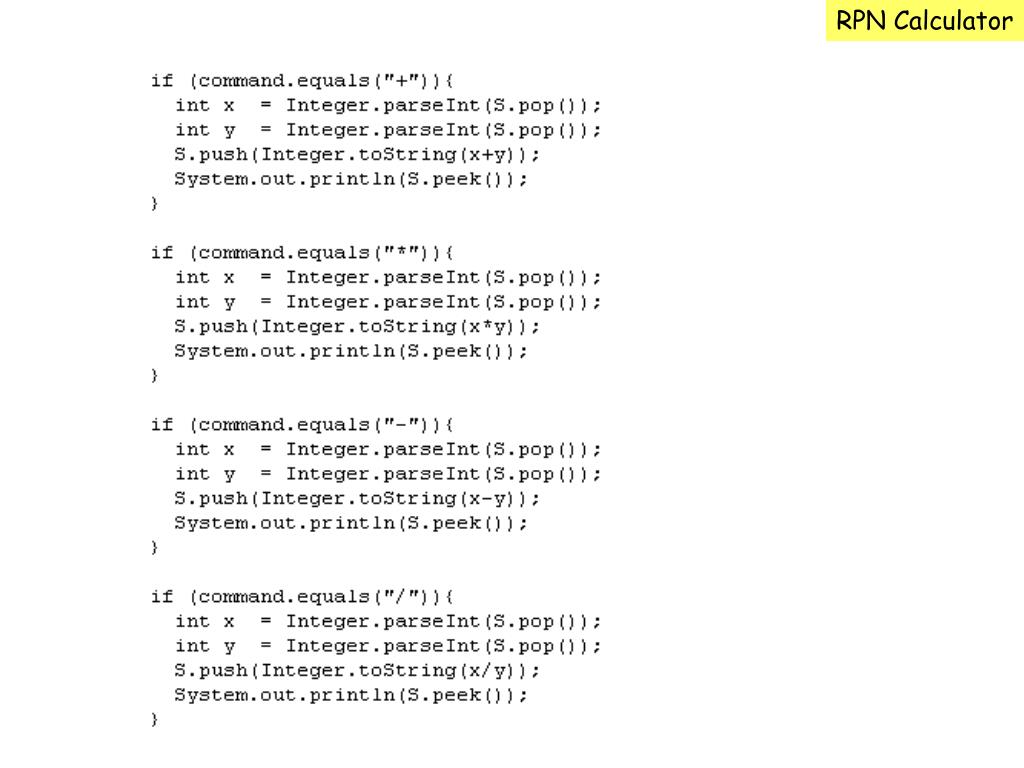

  21. RPN Calculator

  22. RPN Calculator

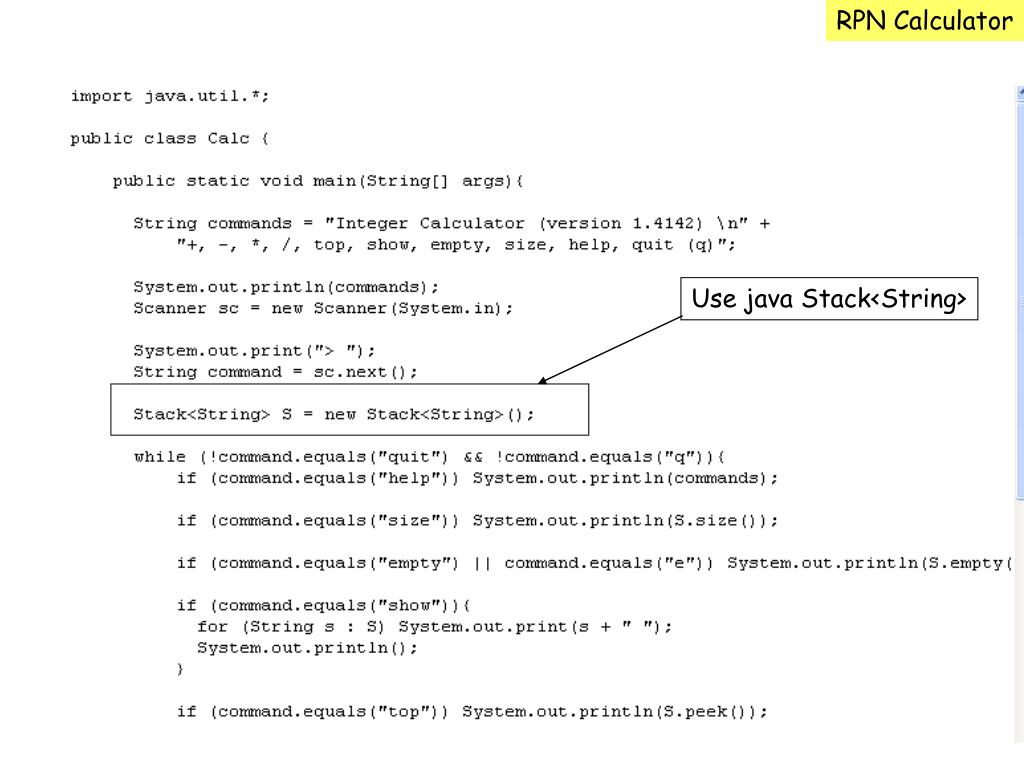

  23. RPN Calculator Use java Stack<String>

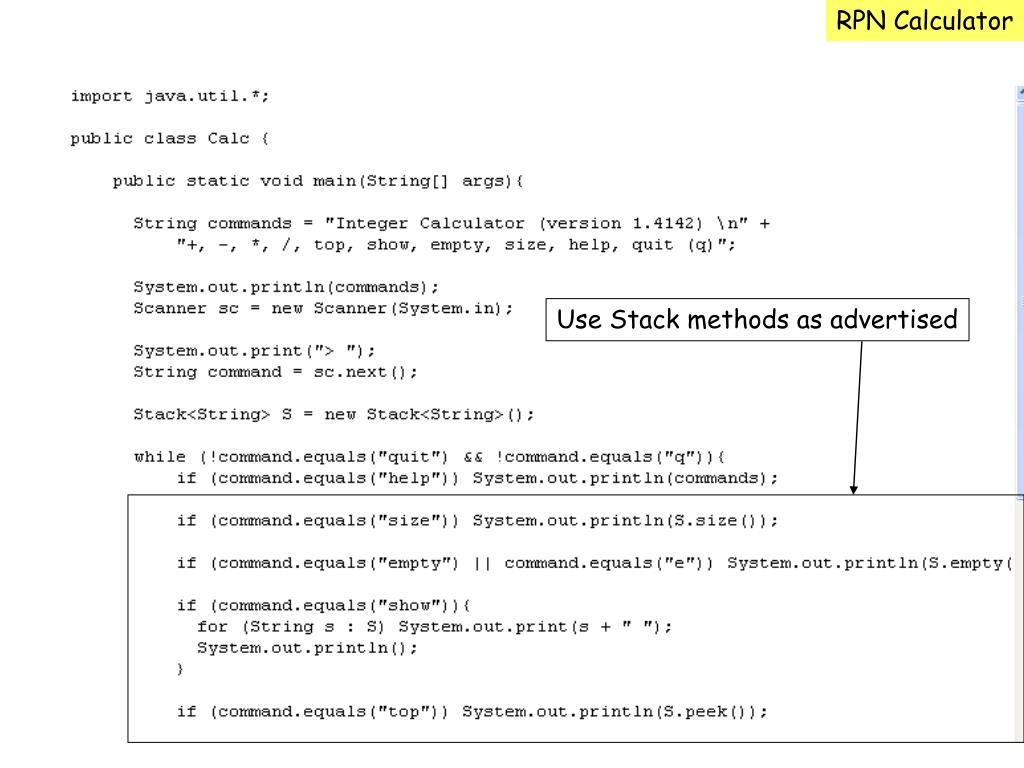

  24. RPN Calculator Use Stack methods as advertised

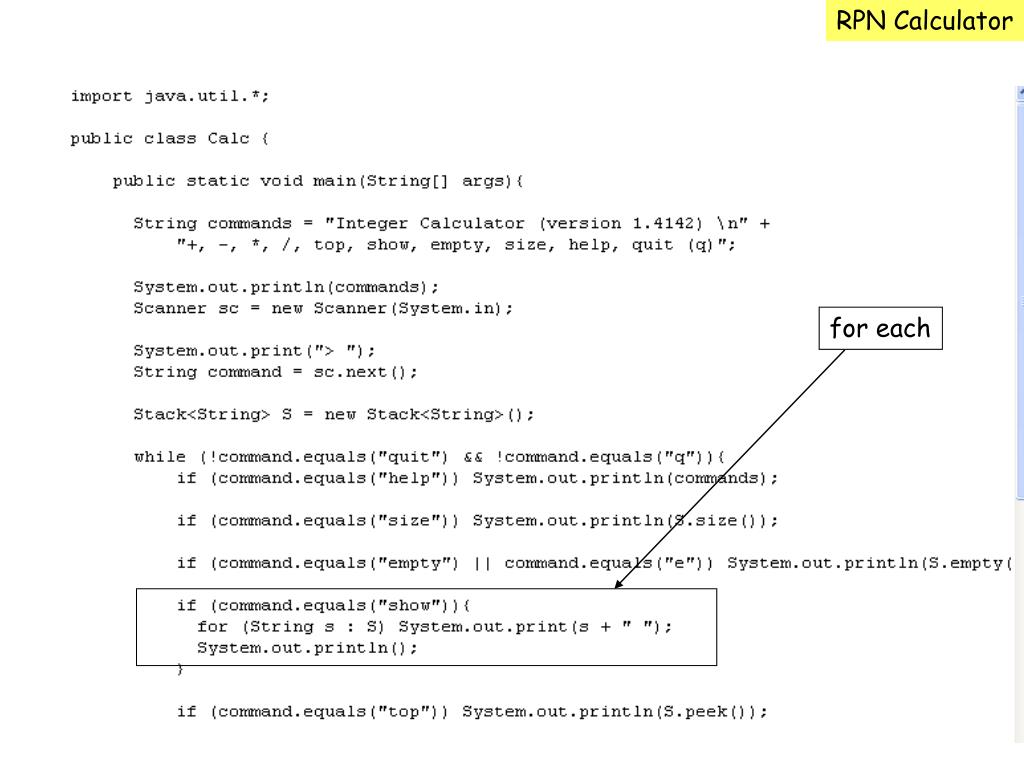

  25. RPN Calculator for each

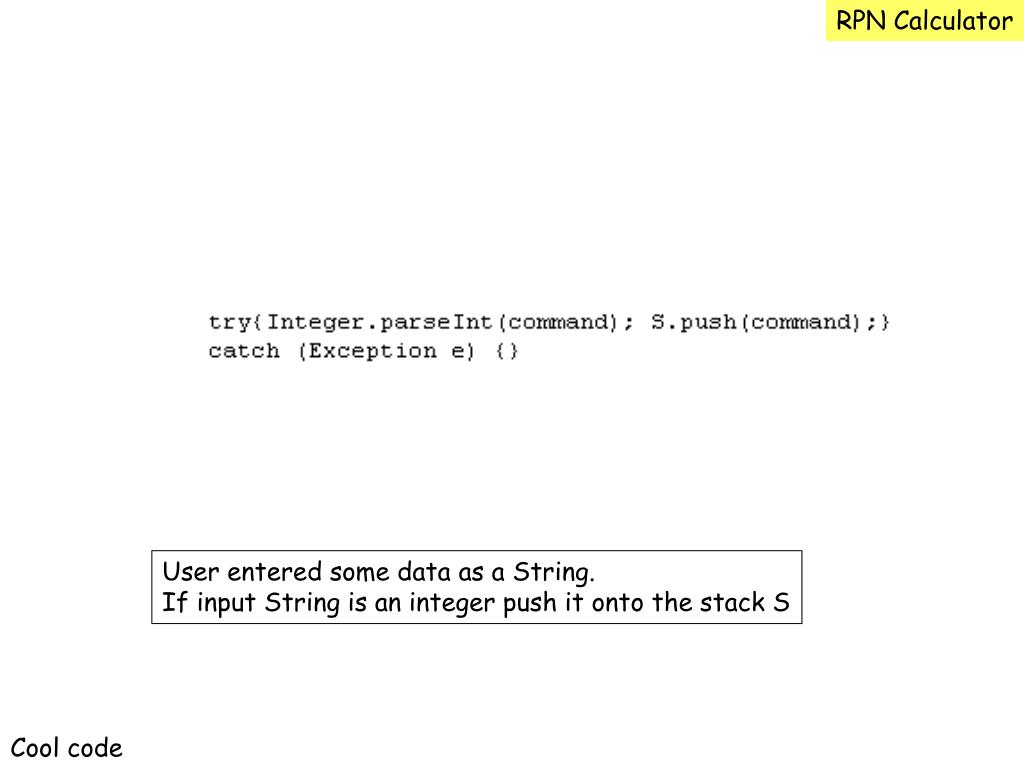

  26. RPN Calculator User entered some data as a String. If input String is an integer push it onto the stack S Cool code

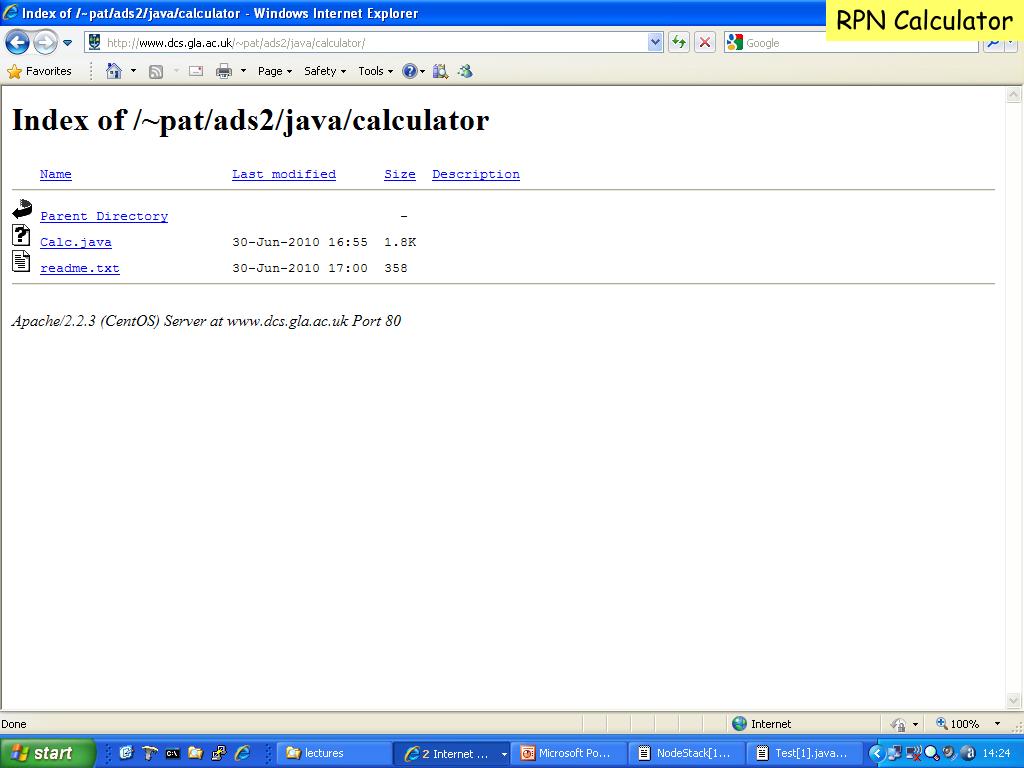

  27. RPN Calculator

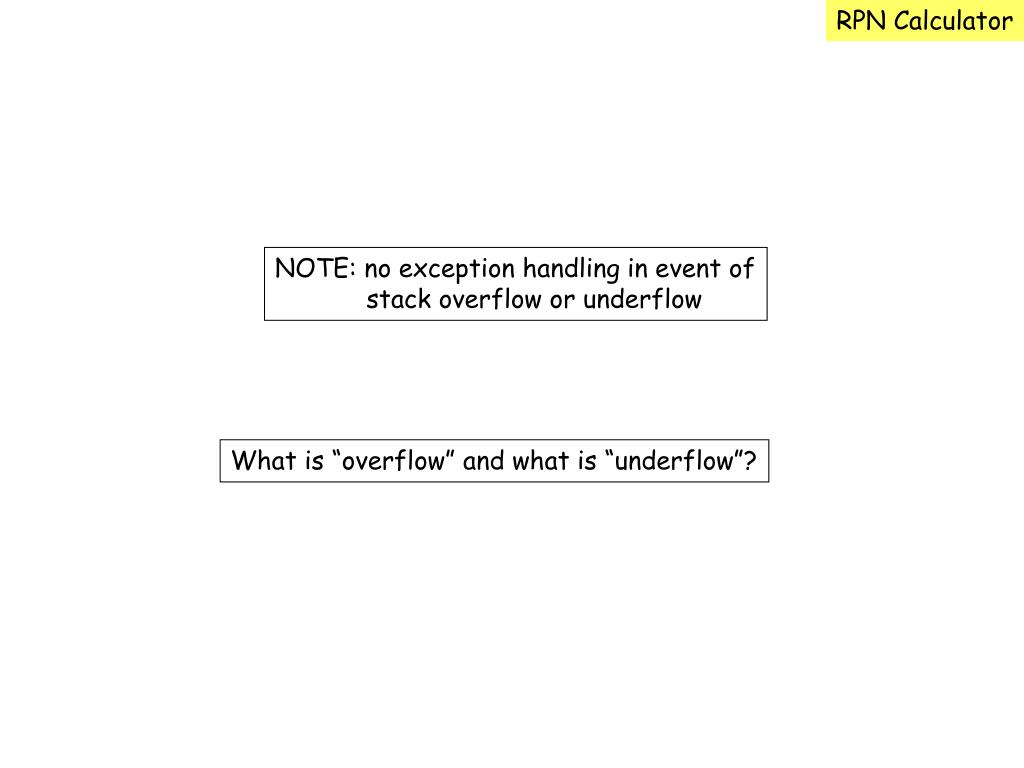

  28. RPN Calculator NOTE: no exception handling in event of stack overflow or underflow What is “overflow” and what is “underflow”?
