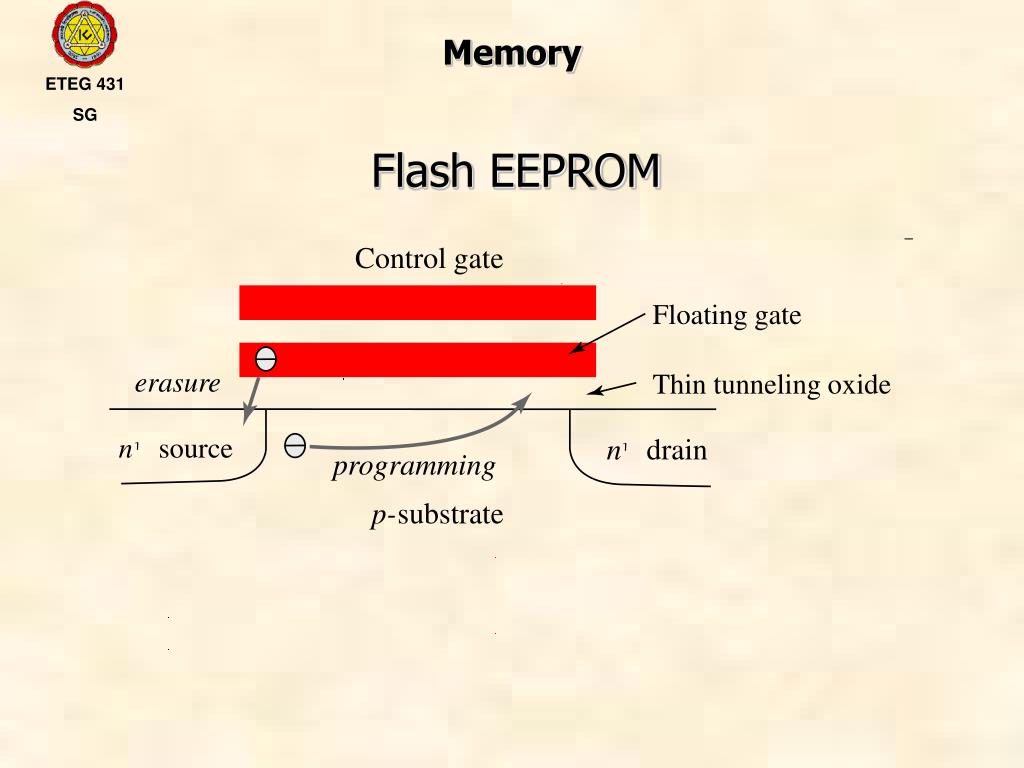

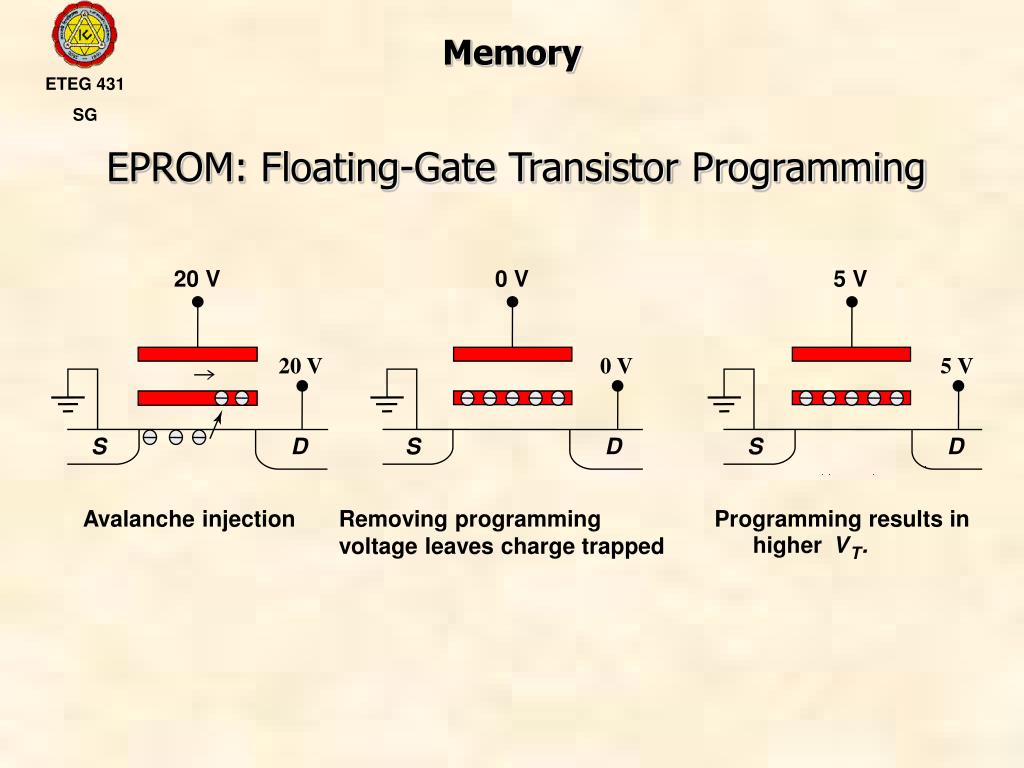

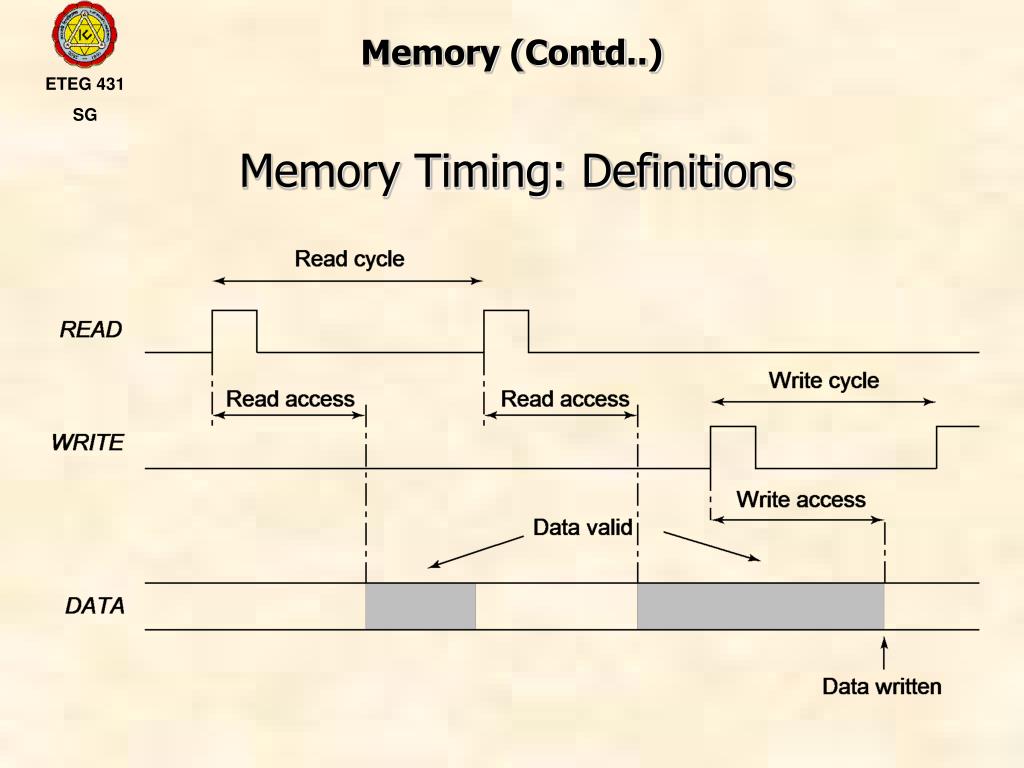

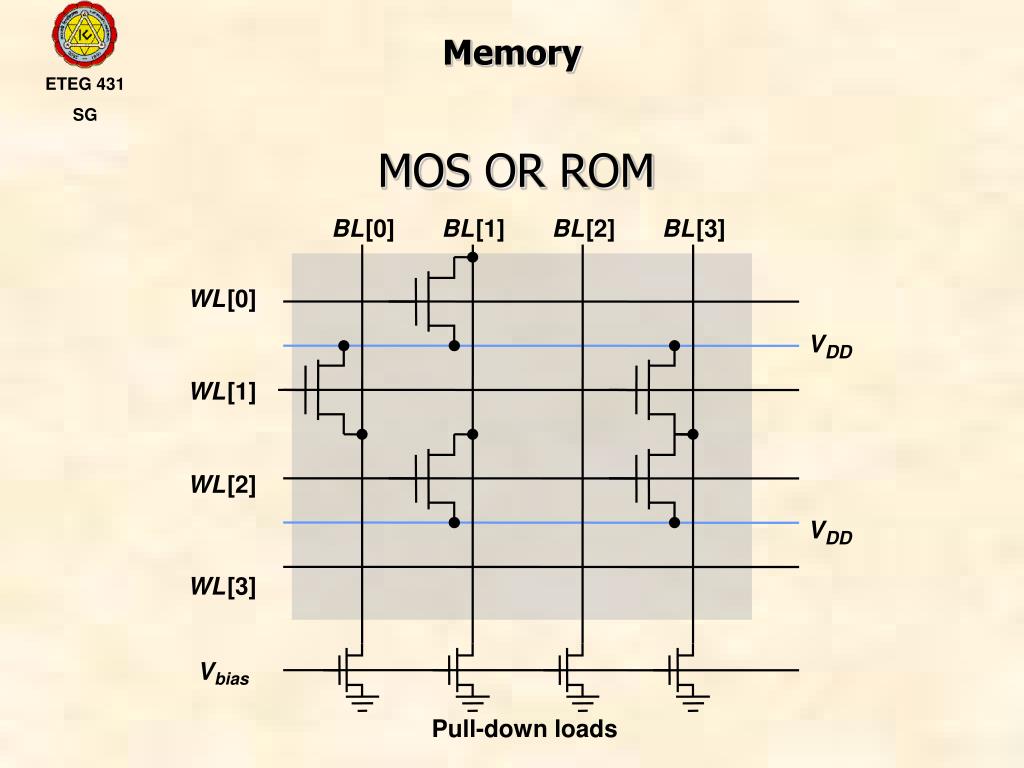

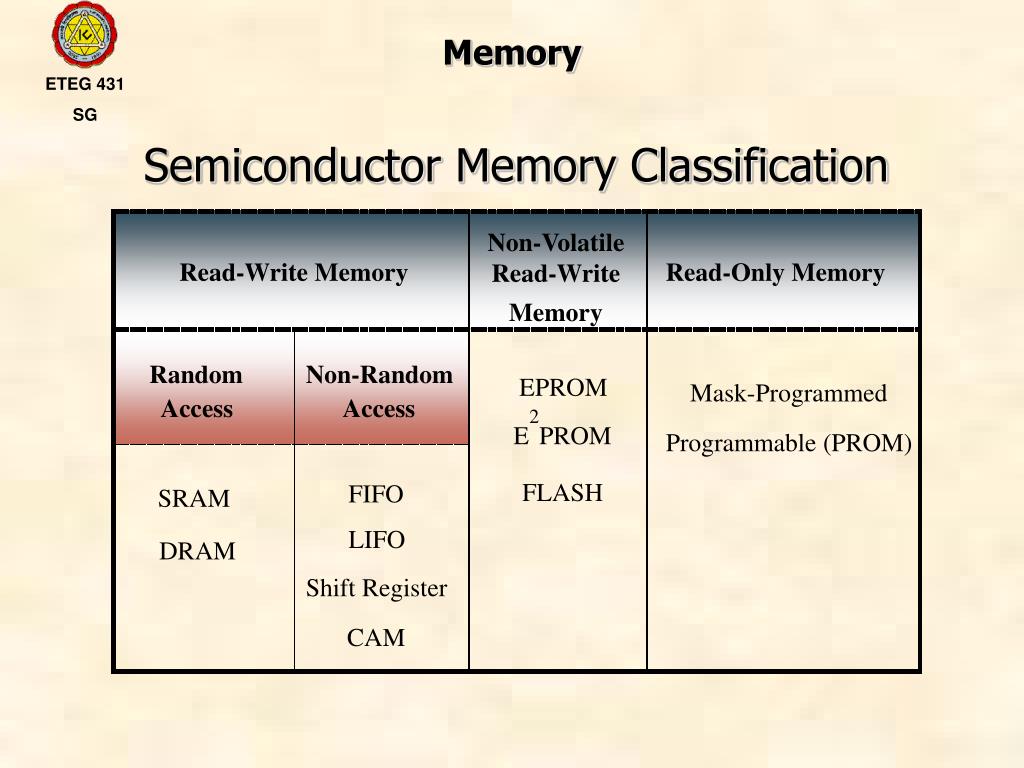

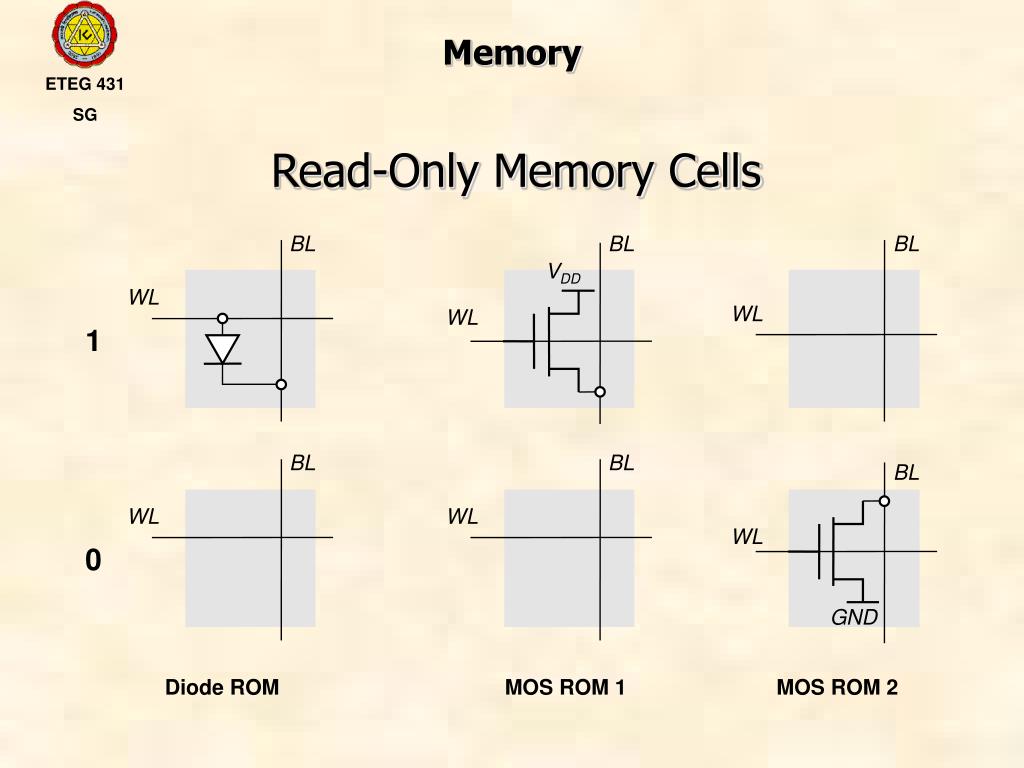

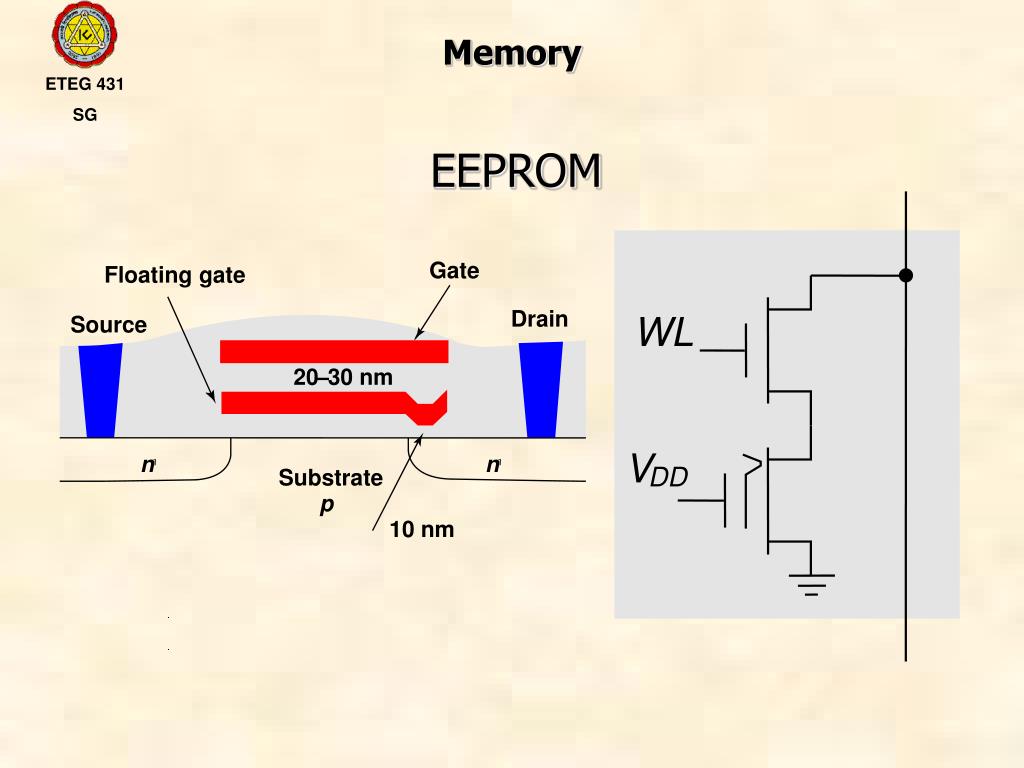

ETEG 431 SG. Memory (Contd..). Memory Timing: Definitions. Non-Volatile Read-Write Memory. Read-Write Memory. Read-Only Memory. Random. Non-Random. EPROM. Mask-Programmed. Access. Access. 2. E. PROM. Programmable (PROM). FLASH. FIFO. SRAM. LIFO. DRAM. Shift Register. CAM.
