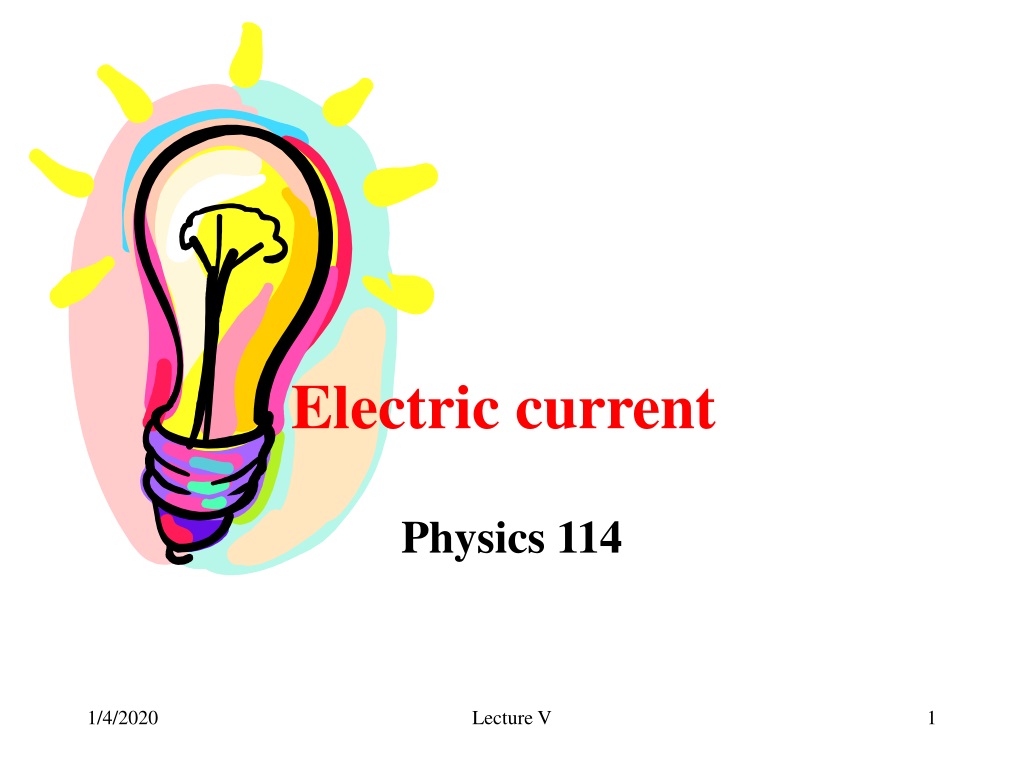

  1. Electric current Physics 114 Lecture V

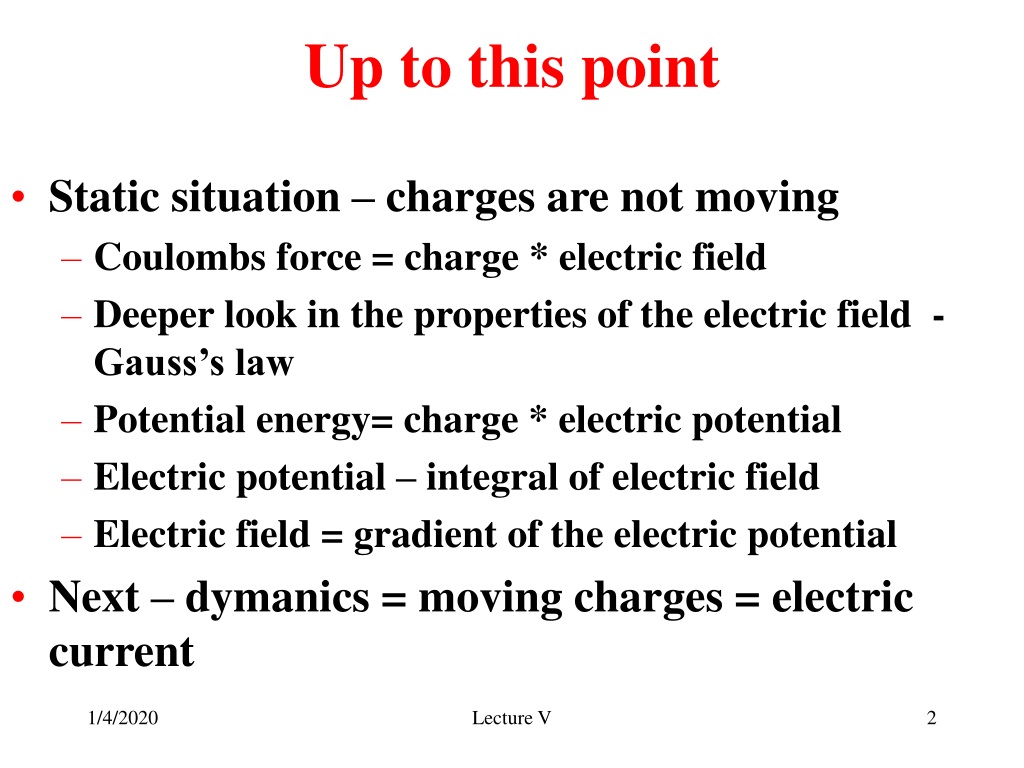

  2. Up to this point • Static situation – charges are not moving • Coulombs force = charge * electric field • Deeper look in the properties of the electric field - Gauss’s law • Potential energy= charge * electric potential • Electric potential – integral of electric field • Electric field = gradient of the electric potential • Next – dymanics = moving charges = electric current Lecture V

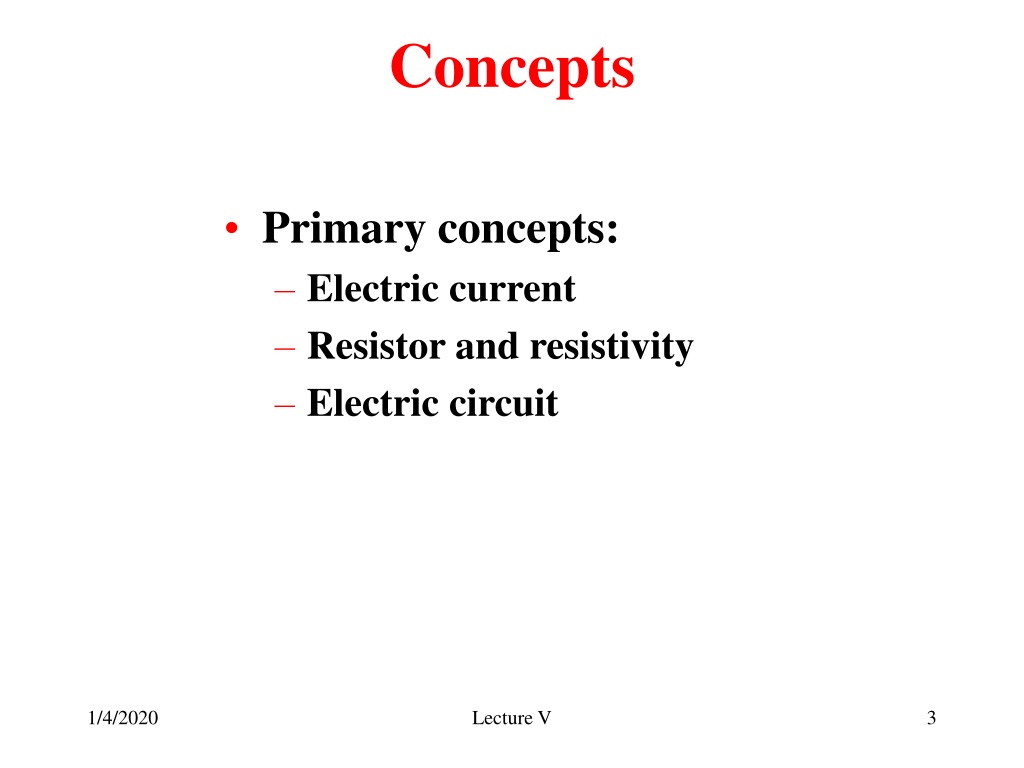

  3. Concepts • Primary concepts: • Electric current • Resistor and resistivity • Electric circuit Lecture V

  4. Laws • Ohm’s law • Power in electric circuits Lecture V

  5. Electric current - - - - - - - + + + + + + + • A flow of charge is called an electric current Note: net charge =0 • It is measured in ampere (A=C/s) • Need free charge to have electric current. Use conductors. Lecture V

  6. Skiing  electric circuit High PE High PE Low PE Skiers Charges go from points with high PE to low PE To complete the circuit need a device that brings you back to high PE: Ski lift Battery Low PE Lecture V

  7. Electric circuit • Need free charge  electric circuit must consist of conductive material (wires). • Electric circuit must be closed. • Battery supplies constant potential difference – voltage. e - • Battery converts • chemical energy into • electric energy. Symbol for battery Lecture V

  8. Electric circuit b). Will not work, Circuit is at the same potential (+), no potential difference - voltage. c). Will work. a). Will not work, Circuit is not closed Lecture V

  9. Ohm’s law • Electric current is proportional to voltage. • Coefficient in this dependence is called resistance R • Resistance is measured in Ohm (W = V/A) I R V Lecture V

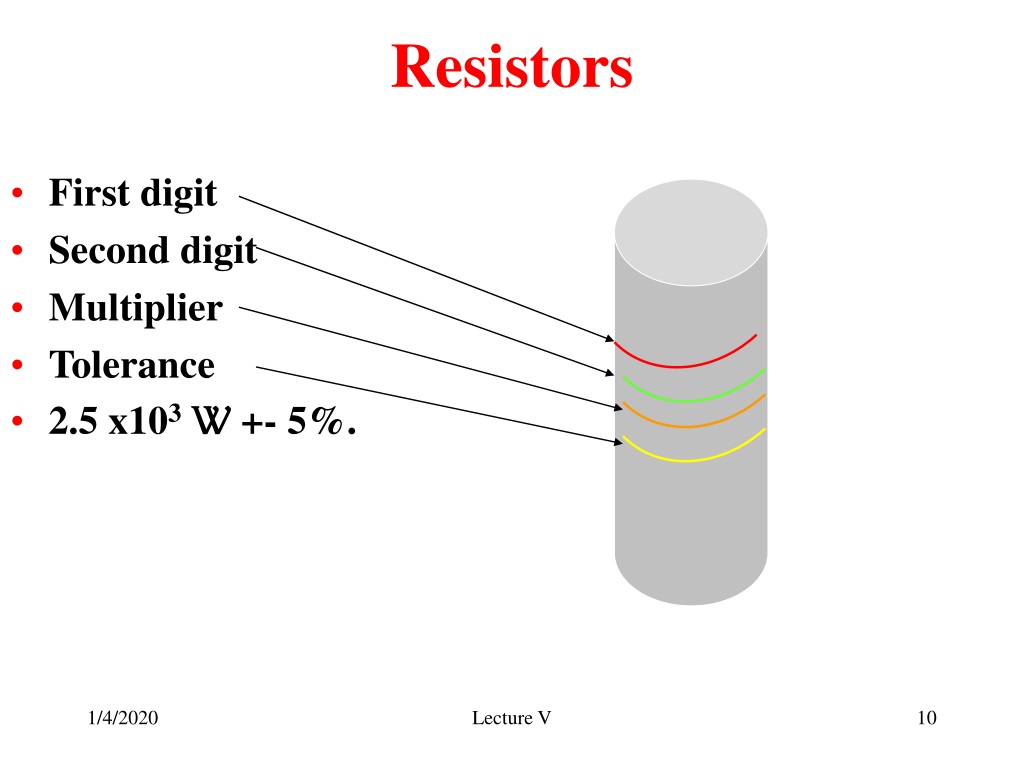

  10. Resistors • First digit • Second digit • Multiplier • Tolerance • 2.5 x103W +- 5%. Lecture V

  11. Resistivity • traffic Electric current • Long narrow street  high resistance • Condition of the road  material property called resistivityr. r is measured in W m L – length of the conductor A – its area. Lecture V

  12. Resistance and Temperature • When electrons move through the conductor they collide with atoms: • Resistivity grows with temperature ( more collisions) r0 – resistivity measured at some reference temperature T0 a – temperature coefficient of resistivity Lecture V

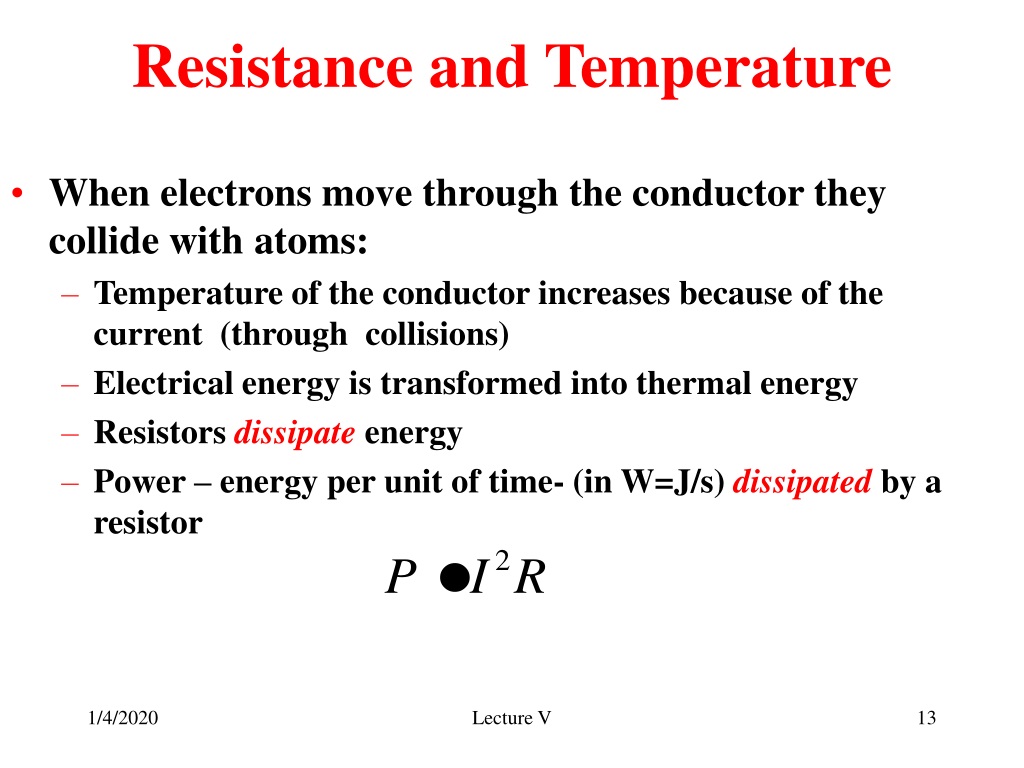

  13. Resistance and Temperature • When electrons move through the conductor they collide with atoms: • Temperature of the conductor increases because of the current (through collisions) • Electrical energy is transformed into thermal energy • Resistors dissipate energy • Power – energy per unit of time- (in W=J/s) dissipated by a resistor Lecture V

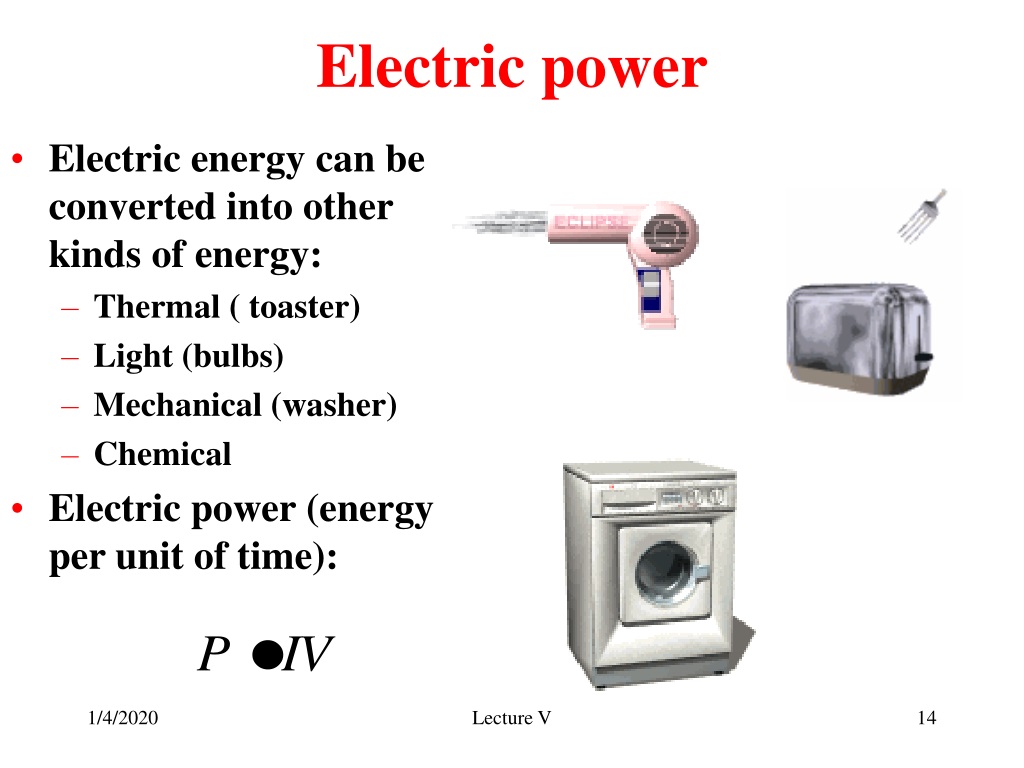

  14. Electric power • Electric energy can be converted into other kinds of energy: • Thermal ( toaster) • Light (bulbs) • Mechanical (washer) • Chemical • Electric power (energy per unit of time): Lecture V

  15. Test problem • You have an open working refrigerator in your room. It makes your room • A hotter • B colder Lecture V

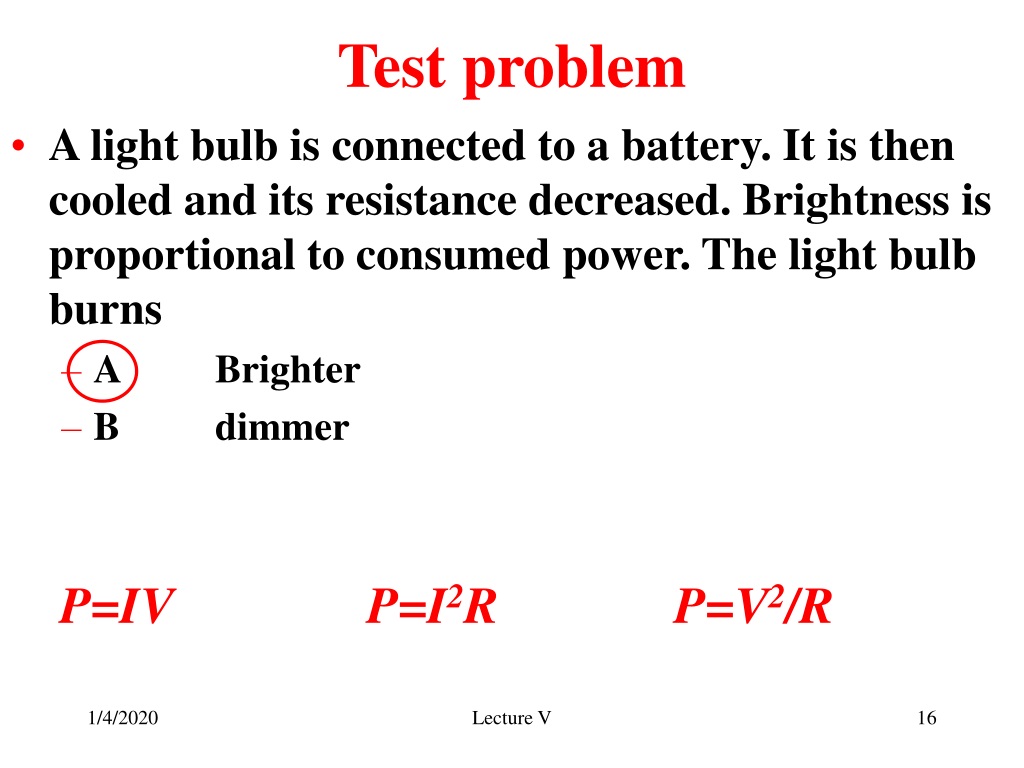

  16. Test problem • A light bulb is connected to a battery. It is then cooled and its resistance decreased. Brightness is proportional to consumed power. The light bulb burns • A Brighter • B dimmer P=IV P=I2R P=V2/R Lecture V

  17. Alternating current (AC) • Voltage changes sign  current changes the direction I Req ~ Lecture V

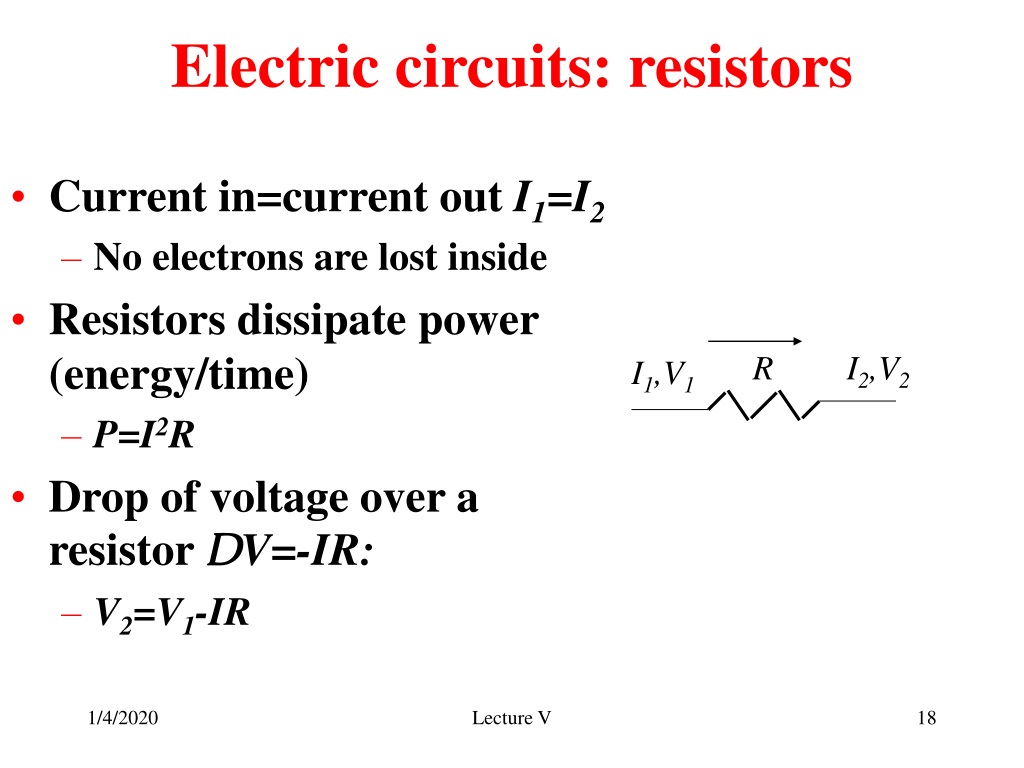

  18. Electric circuits: resistors • Current in=current out I1=I2 • No electrons are lost inside • Resistors dissipate power (energy/time) • P=I2R • Drop of voltage over a resistor DV=-IR: • V2=V1-IR R I2,V2 I1,V1 Lecture V

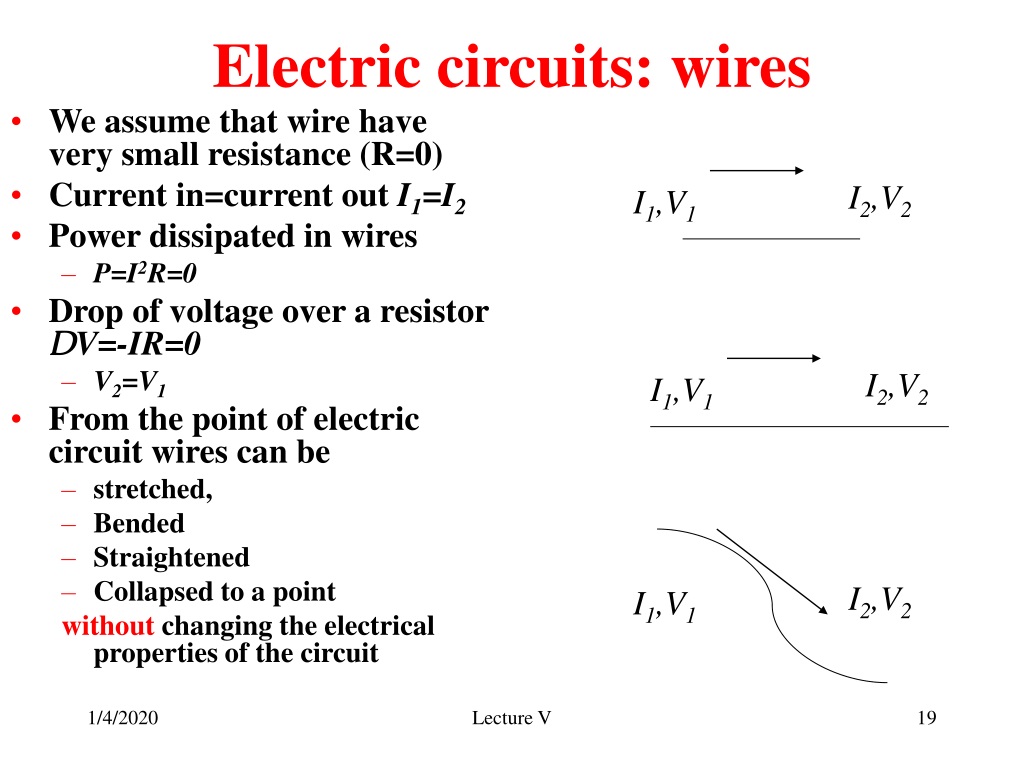

  19. Electric circuits: wires I2,V2 I1,V1 • We assume that wire have very small resistance (R=0) • Current in=current out I1=I2 • Power dissipated in wires • P=I2R=0 • Drop of voltage over a resistor DV=-IR=0 • V2=V1 • From the point of electric circuit wires can be • stretched, • Bended • Straightened • Collapsed to a point without changing the electrical properties of the circuit I2,V2 I1,V1 I2,V2 I1,V1 Lecture V

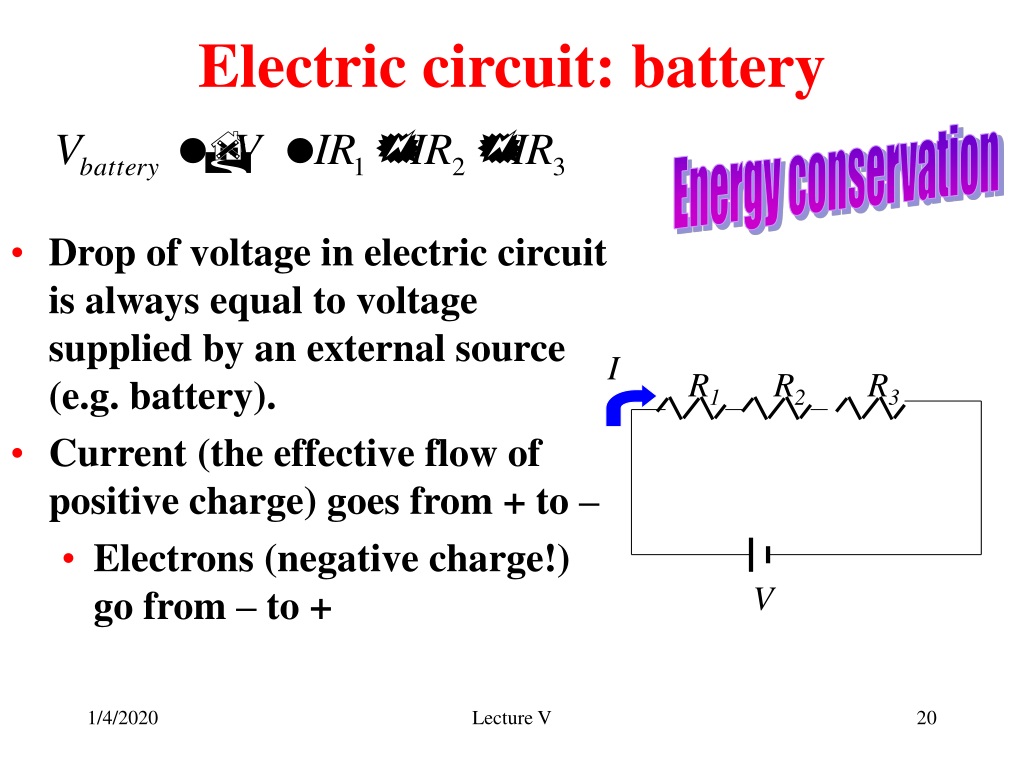

  20. Electric circuit: battery R1 R2 R3 Energy conservation • Drop of voltage in electric circuit is always equal to voltage supplied by an external source (e.g. battery). • Current (the effective flow of positive charge) goes from + to – • Electrons (negative charge!) go from – to + I V Lecture V

  21. Electric circuits: branches • Charge is conserved • Current – what goes in, goes out I1 I I2 I I3 V Lecture V

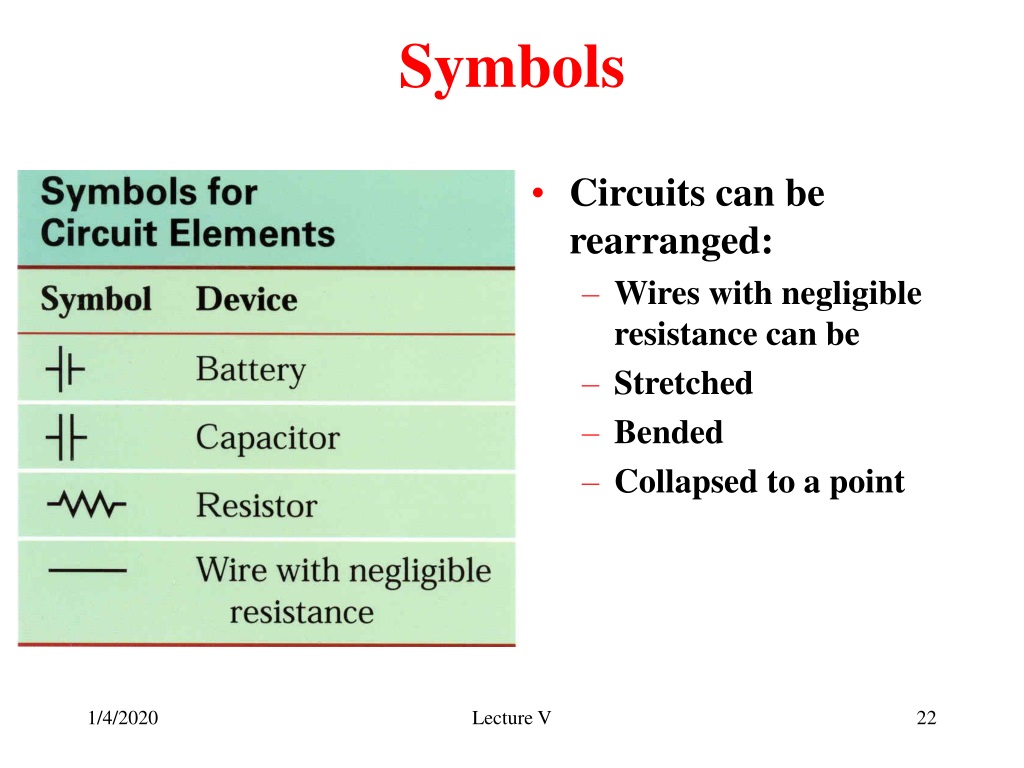

  22. Symbols • Circuits can be rearranged: • Wires with negligible resistance can be • Stretched • Bended • Collapsed to a point Lecture V

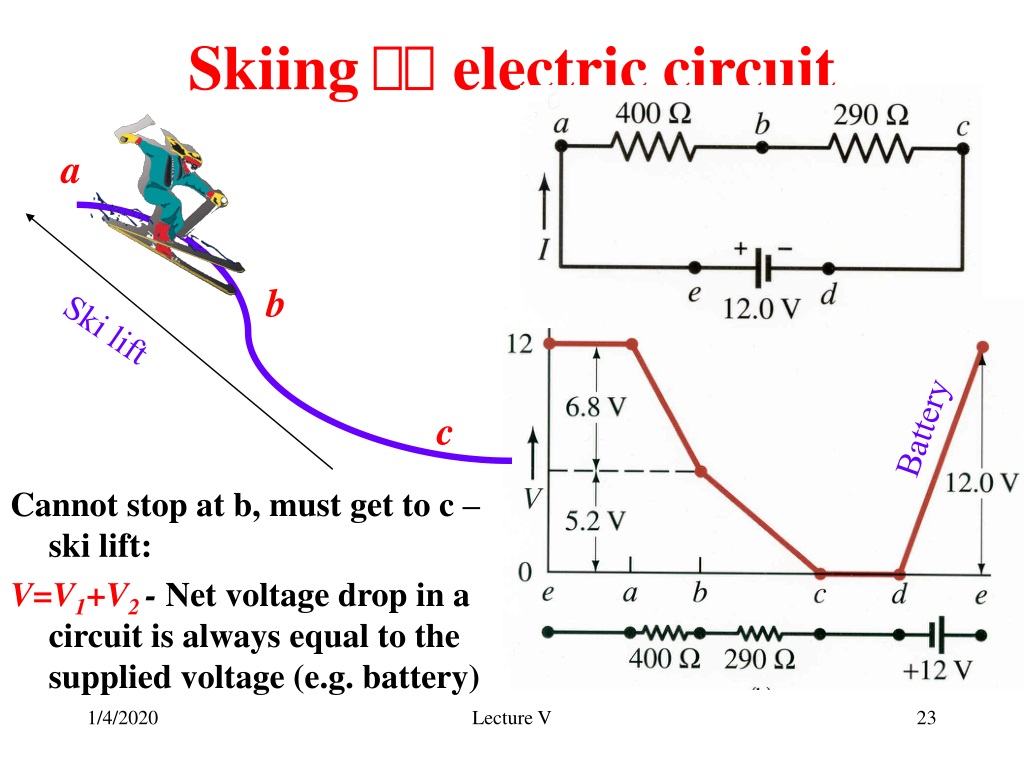

  23. Skiing  electric circuit a Cannot stop at b, must get to c – ski lift: V=V1+V2- Net voltage drop in a circuit is always equal to the supplied voltage (e.g. battery) b Ski lift c Battery Lecture V

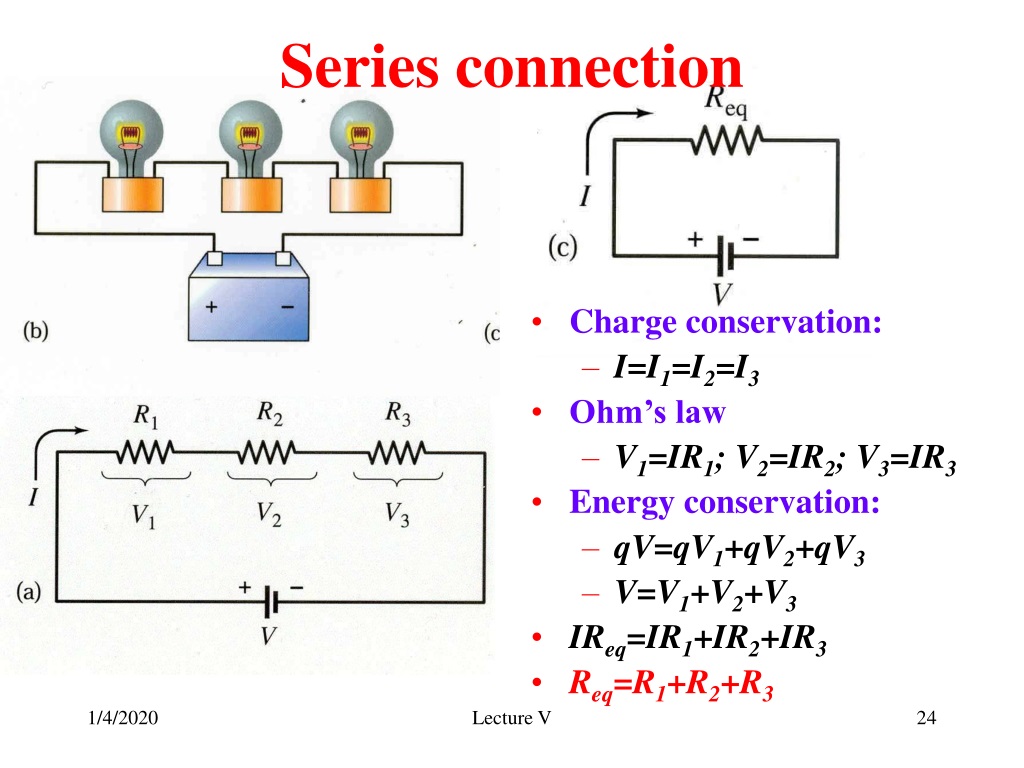

  24. Series connection • Charge conservation: • I=I1=I2=I3 • Ohm’s law • V1=IR1; V2=IR2; V3=IR3 • Energy conservation: • qV=qV1+qV2+qV3 • V=V1+V2+V3 • IReq=IR1+IR2+IR3 • Req=R1+R2+R3 Lecture V

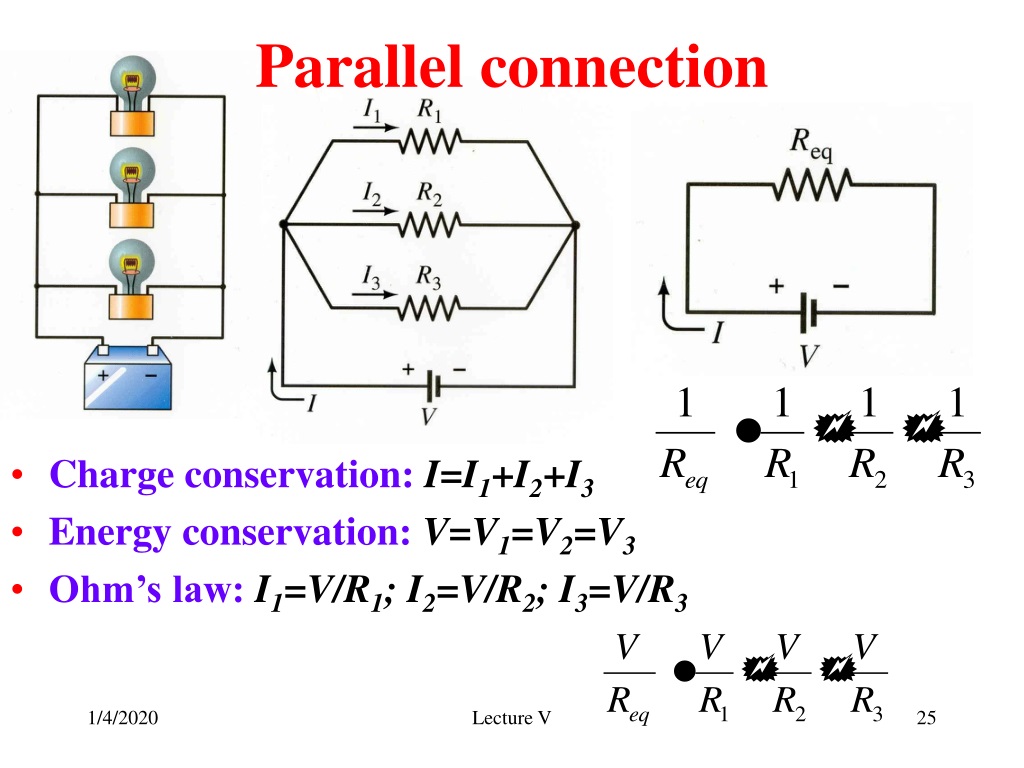

  25. Parallel connection • Charge conservation:I=I1+I2+I3 • Energy conservation: V=V1=V2=V3 • Ohm’s law: I1=V/R1; I2=V/R2; I3=V/R3 Lecture V

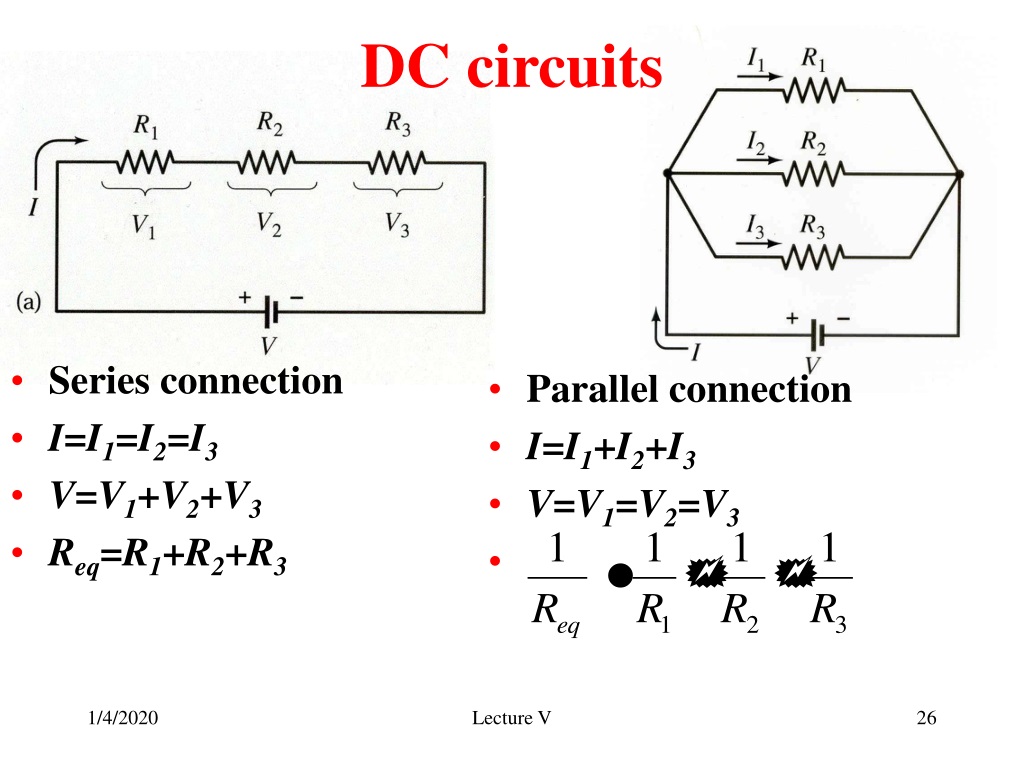

  26. DC circuits • Series connection • I=I1=I2=I3 • V=V1+V2+V3 • Req=R1+R2+R3 • Parallel connection • I=I1+I2+I3 • V=V1=V2=V3 Lecture V

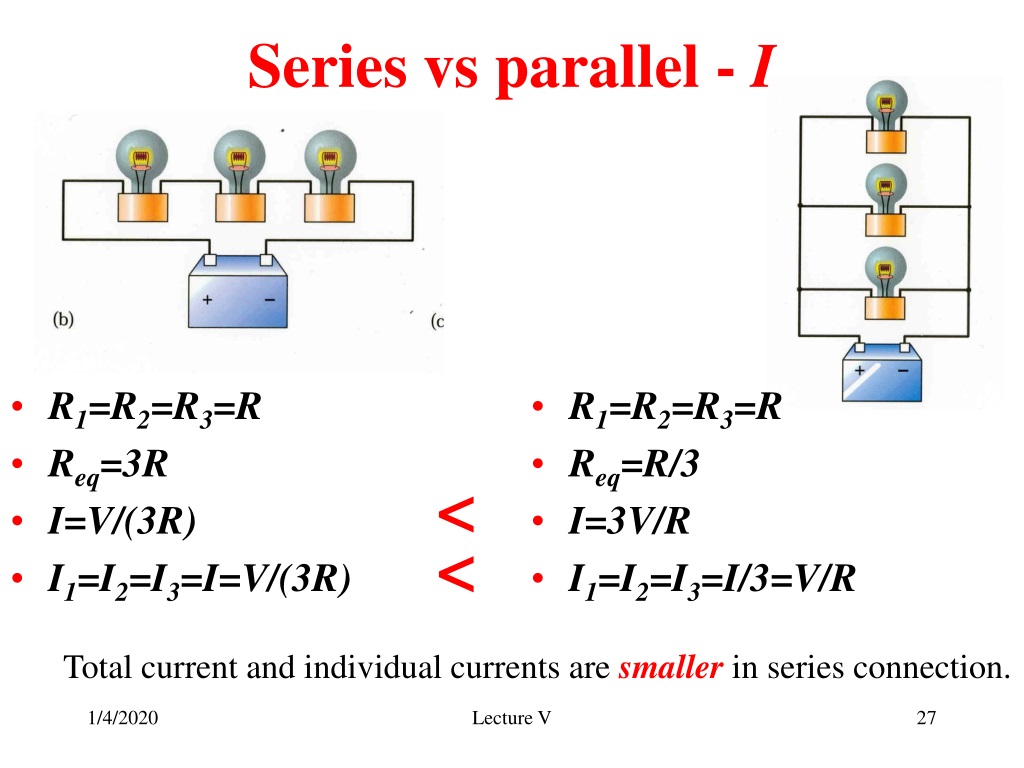

  27. R1=R2=R3=R Req=3R I=V/(3R) I1=I2=I3=I=V/(3R) R1=R2=R3=R Req=R/3 I=3V/R I1=I2=I3=I/3=V/R Series vs parallel - I < < Total current and individual currents are smaller in series connection. Lecture V

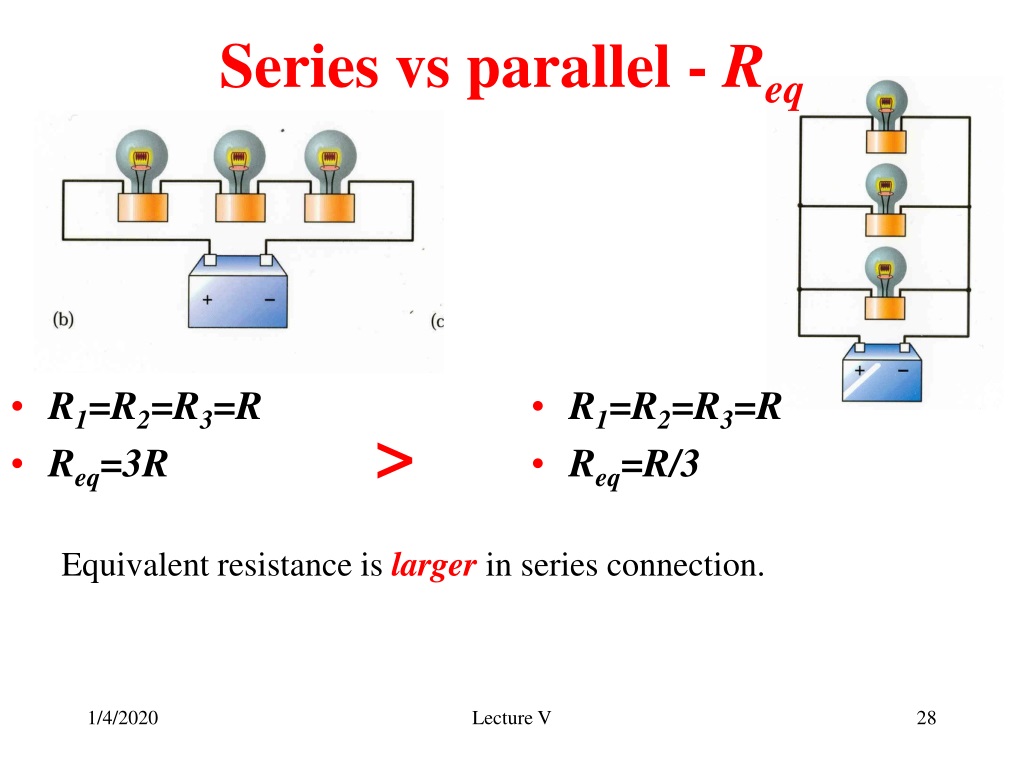

  28. R1=R2=R3=R Req=3R R1=R2=R3=R Req=R/3 Series vs parallel - Req > Equivalent resistance is larger in series connection. Lecture V

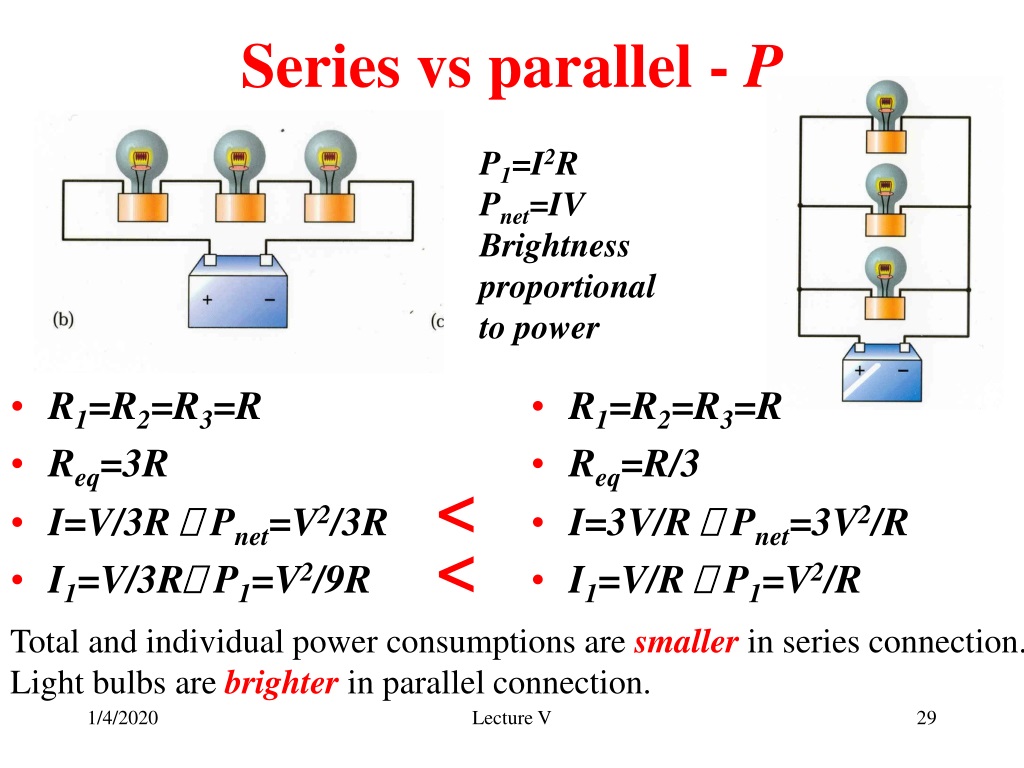

  29. R1=R2=R3=R Req=3R I=V/3R  Pnet=V2/3R I1=V/3R P1=V2/9R R1=R2=R3=R Req=R/3 I=3V/R  Pnet=3V2/R I1=V/R  P1=V2/R Series vs parallel - P P1=I2R Pnet=IV Brightness proportional to power < < Total and individual power consumptions are smaller in series connection. Light bulbs are brighter in parallel connection. Lecture V
