  1. BEGINNERS GUIDE TO FIBER OPTIC CONNECTORS

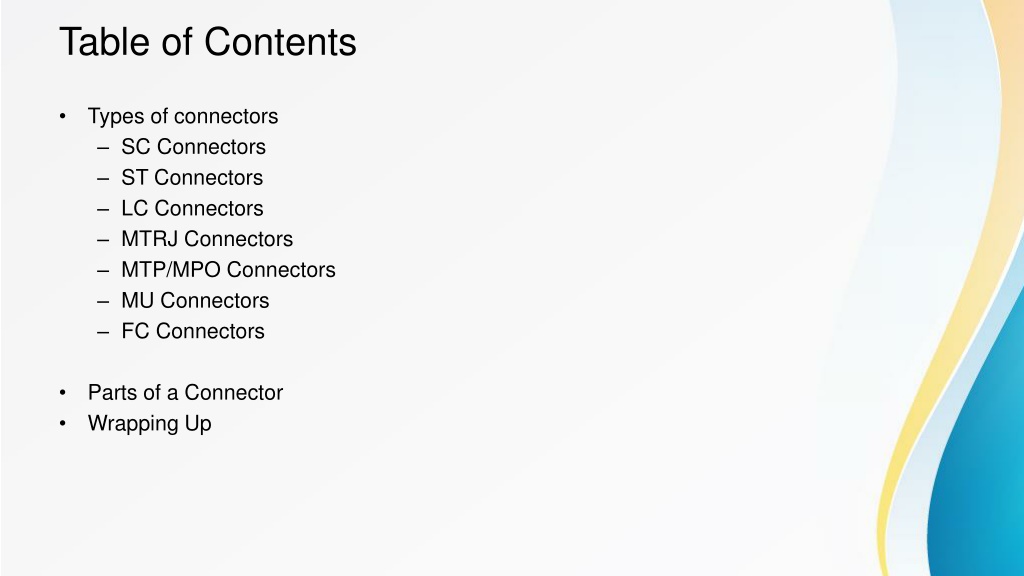

  2. Table of Contents

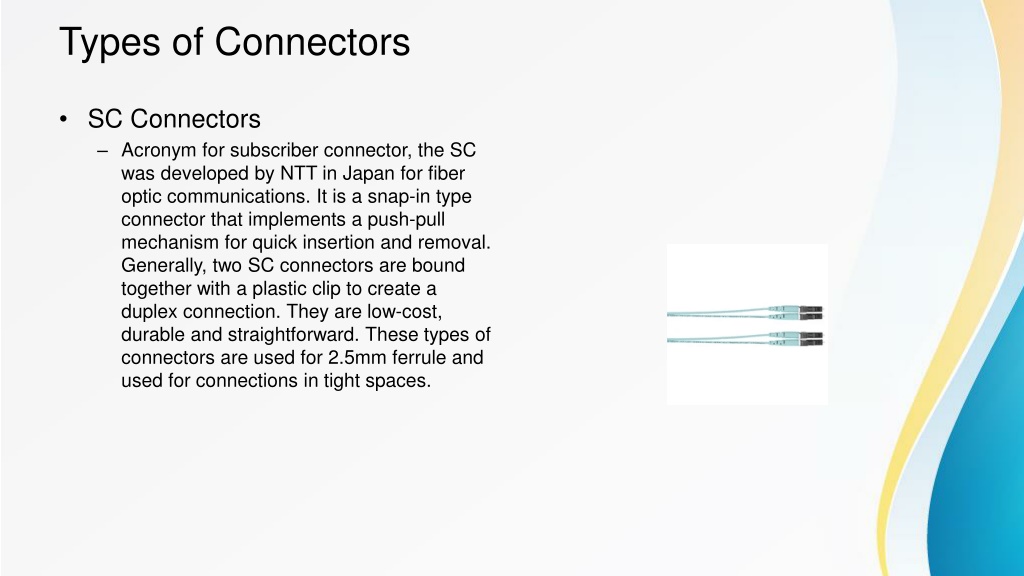

  3. Types of Connectors • SC Connectors • Acronym for subscriber connector, the SC was developed by NTT in Japan for fiber optic communications. It is a snap-in type connector that implements a push-pull mechanism for quick insertion and removal. Generally, two SC connectors are bound together with a plastic clip to create a duplex connection. They are low-cost, durable and straightforward. These types of connectors are used for 2.5mm ferrule and used for connections in tight spaces.

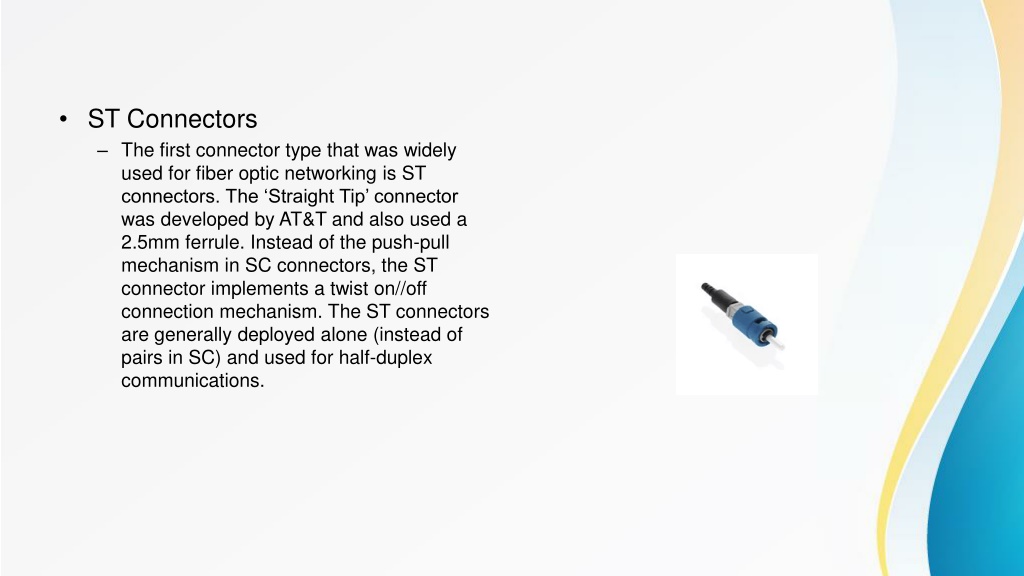

  4. ST Connectors • The first connector type that was widely used for fiber optic networking is ST connectors. The ‘Straight Tip’ connector was developed by AT&T and also used a 2.5mm ferrule. Instead of the push-pull mechanism in SC connectors, the ST connector implements a twist on//off connection mechanism. The ST connectors are generally deployed alone (instead of pairs in SC) and used for half-duplex communications.

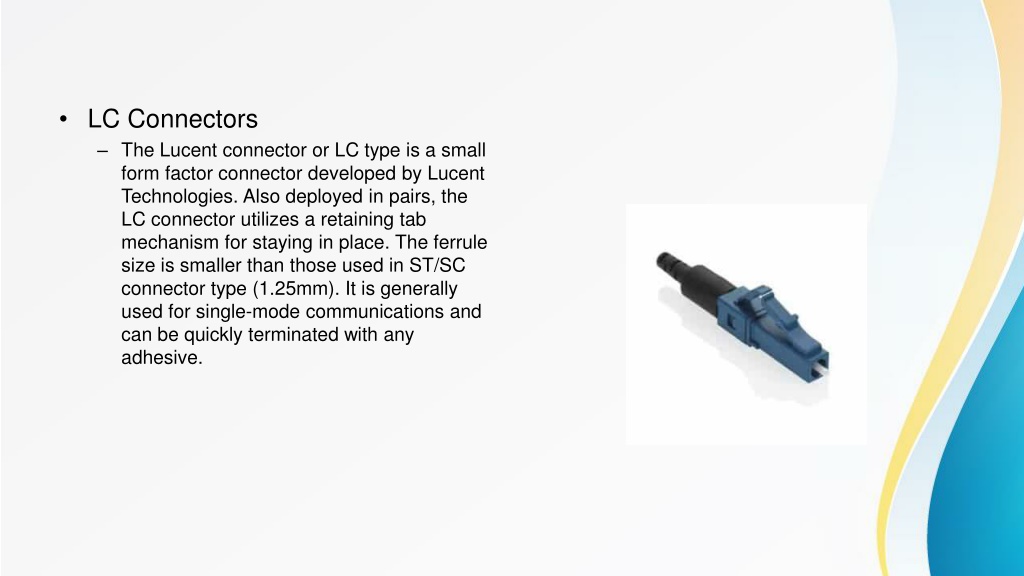

  5. LC Connectors • The Lucent connector or LC type is a small form factor connector developed by Lucent Technologies. Also deployed in pairs, the LC connector utilizes a retaining tab mechanism for staying in place. The ferrule size is smaller than those used in ST/SC connector type (1.25mm). It is generally used for single-mode communications and can be quickly terminated with any adhesive.

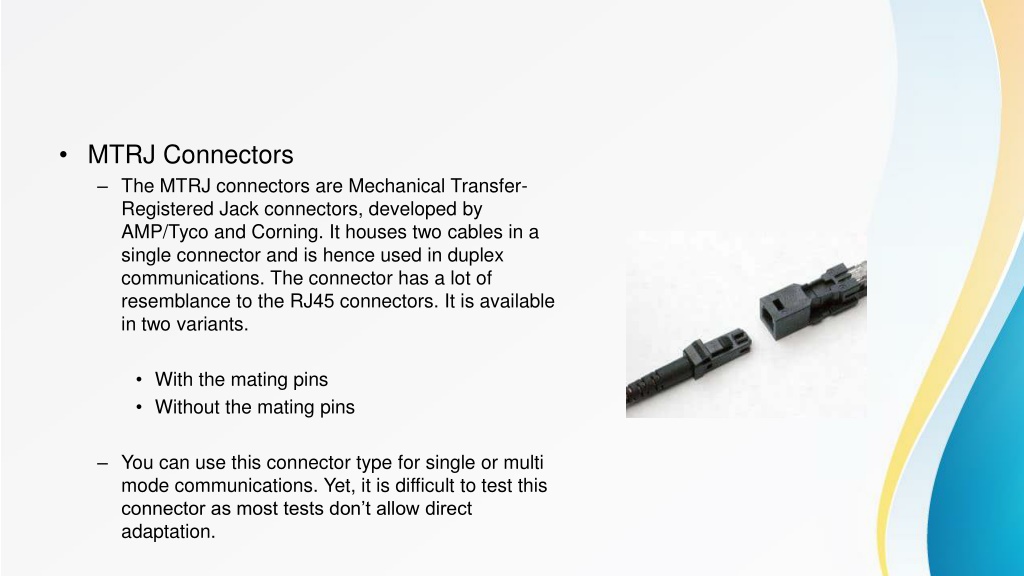

  6. MTRJ Connectors • The MTRJ connectors are Mechanical Transfer-Registered Jack connectors, developed by AMP/Tyco and Corning. It houses two cables in a single connector and is hence used in duplex communications. The connector has a lot of resemblance to the RJ45 connectors. It is available in two variants. • With the mating pins • Without the mating pins • You can use this connector type for single or multi mode communications. Yet, it is difficult to test this connector as most tests don’t allow direct adaptation.

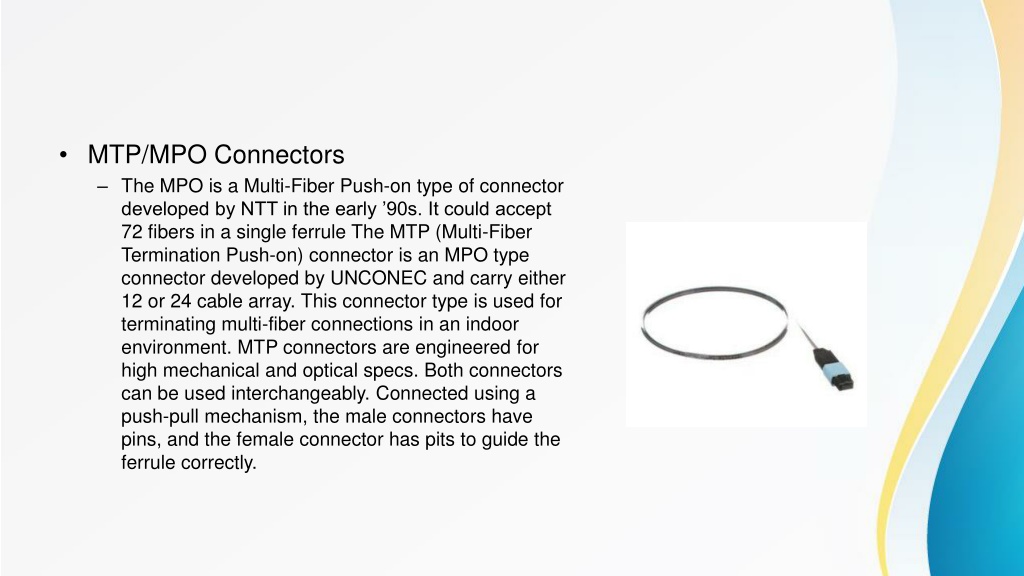

  7. MTP/MPO Connectors • The MPO is a Multi-Fiber Push-on type of connector developed by NTT in the early ’90s. It could accept 72 fibers in a single ferrule The MTP (Multi-Fiber Termination Push-on) connector is an MPO type connector developed by UNCONEC and carry either 12 or 24 cable array. This connector type is used for terminating multi-fiber connections in an indoor environment. MTP connectors are engineered for high mechanical and optical specs. Both connectors can be used interchangeably. Connected using a push-pull mechanism, the male connectors have pins, and the female connector has pits to guide the ferrule correctly.

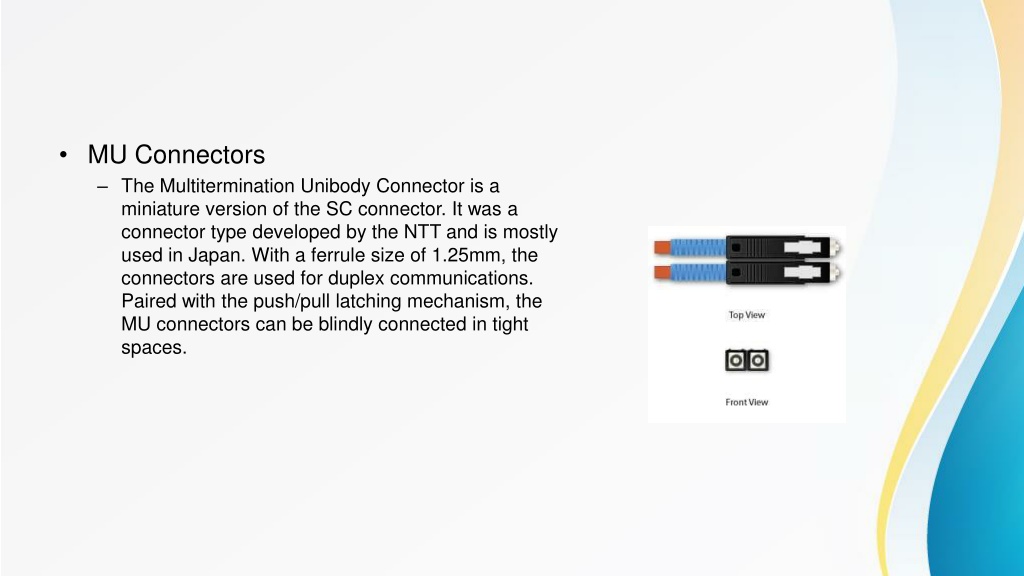

  8. MU Connectors • The Multitermination Unibody Connector is a miniature version of the SC connector. It was a connector type developed by the NTT and is mostly used in Japan. With a ferrule size of 1.25mm, the connectors are used for duplex communications. Paired with the push/pull latching mechanism, the MU connectors can be blindly connected in tight spaces.

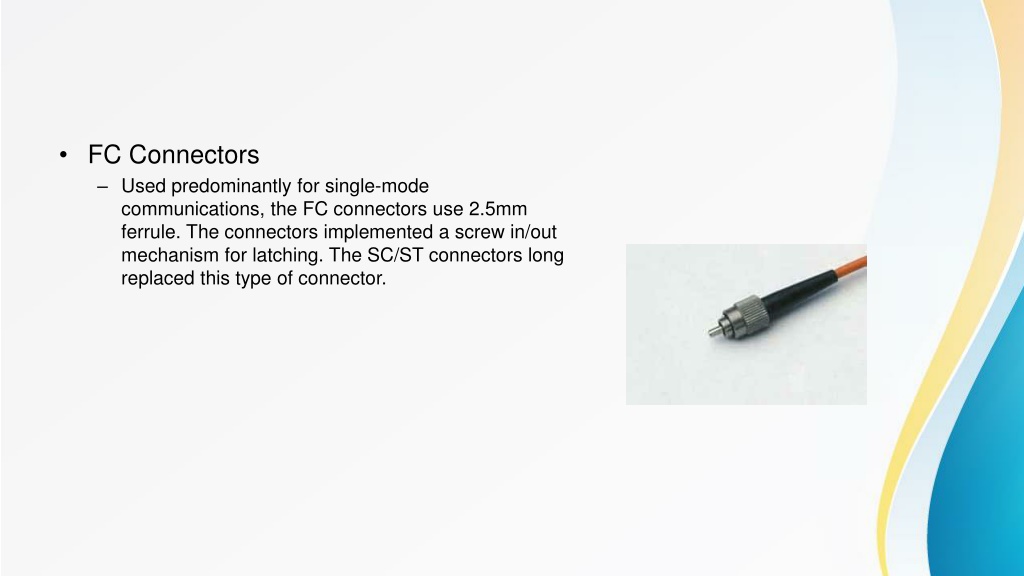

  9. FC Connectors • Used predominantly for single-mode communications, the FC connectors use 2.5mm ferrule. The connectors implemented a screw in/out mechanism for latching. The SC/ST connectors long replaced this type of connector.

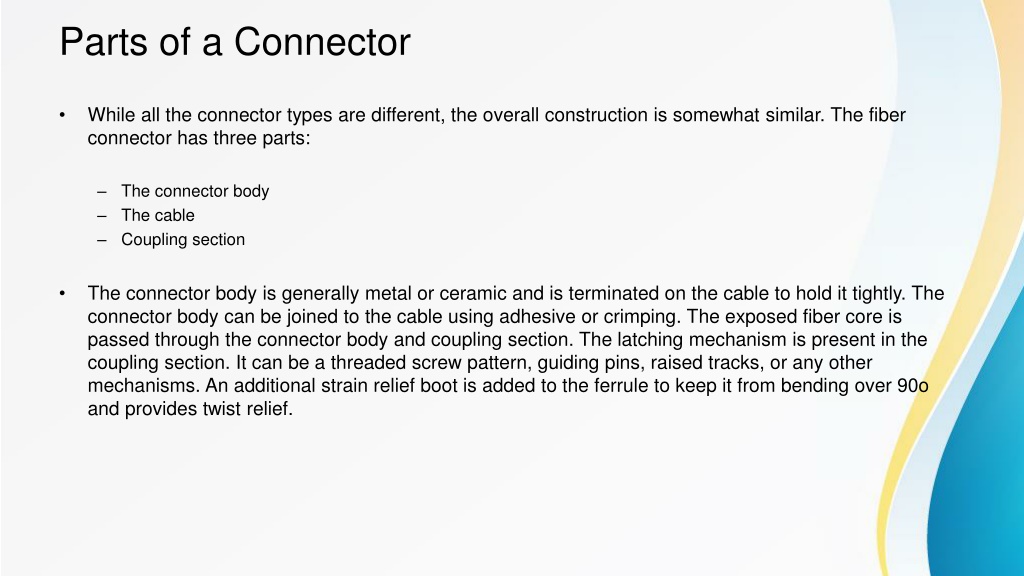

  10. Parts of a Connector

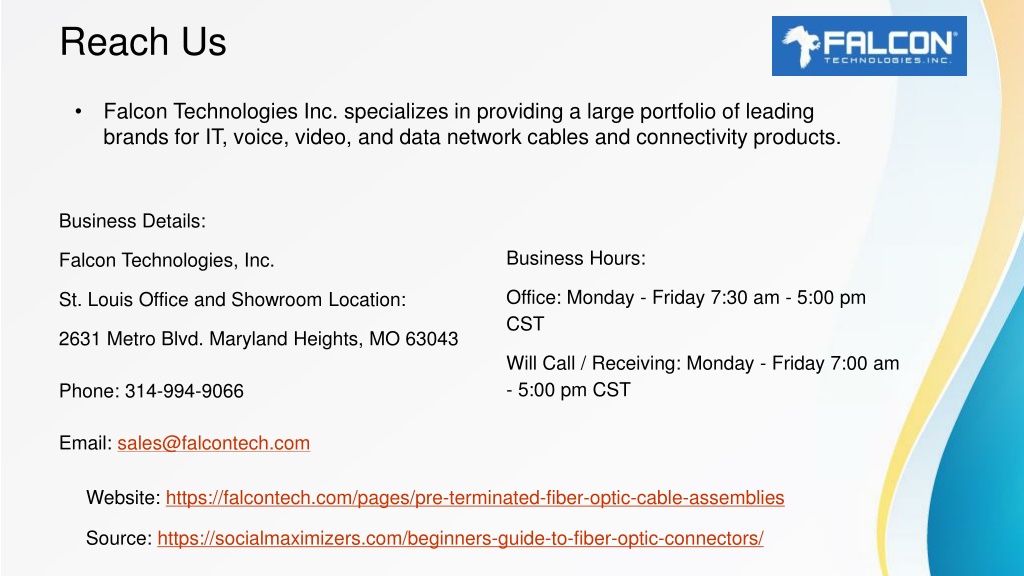

  11. Reach Us • FalconTechnologies Inc. specializes in providing a large portfolio of leading brands for IT, voice, video, and data network cables and connectivity products. Business Details: Falcon Technologies, Inc. St. Louis Office and Showroom Location: 2631 Metro Blvd. Maryland Heights, MO 63043 Phone: 314-994-9066 Email: sales@falcontech.com Business Hours: Office: Monday - Friday 7:30 am - 5:00 pm CST Will Call / Receiving: Monday - Friday7:00 am - 5:00 pm CST Website: https://falcontech.com/pages/pre-terminated-fiber-optic-cable-assemblies Source: https://socialmaximizers.com/beginners-guide-to-fiber-optic-connectors/
