Unpacking the Differences: Cube vs. Plate Beamsplitters in Teleprompters and Mic

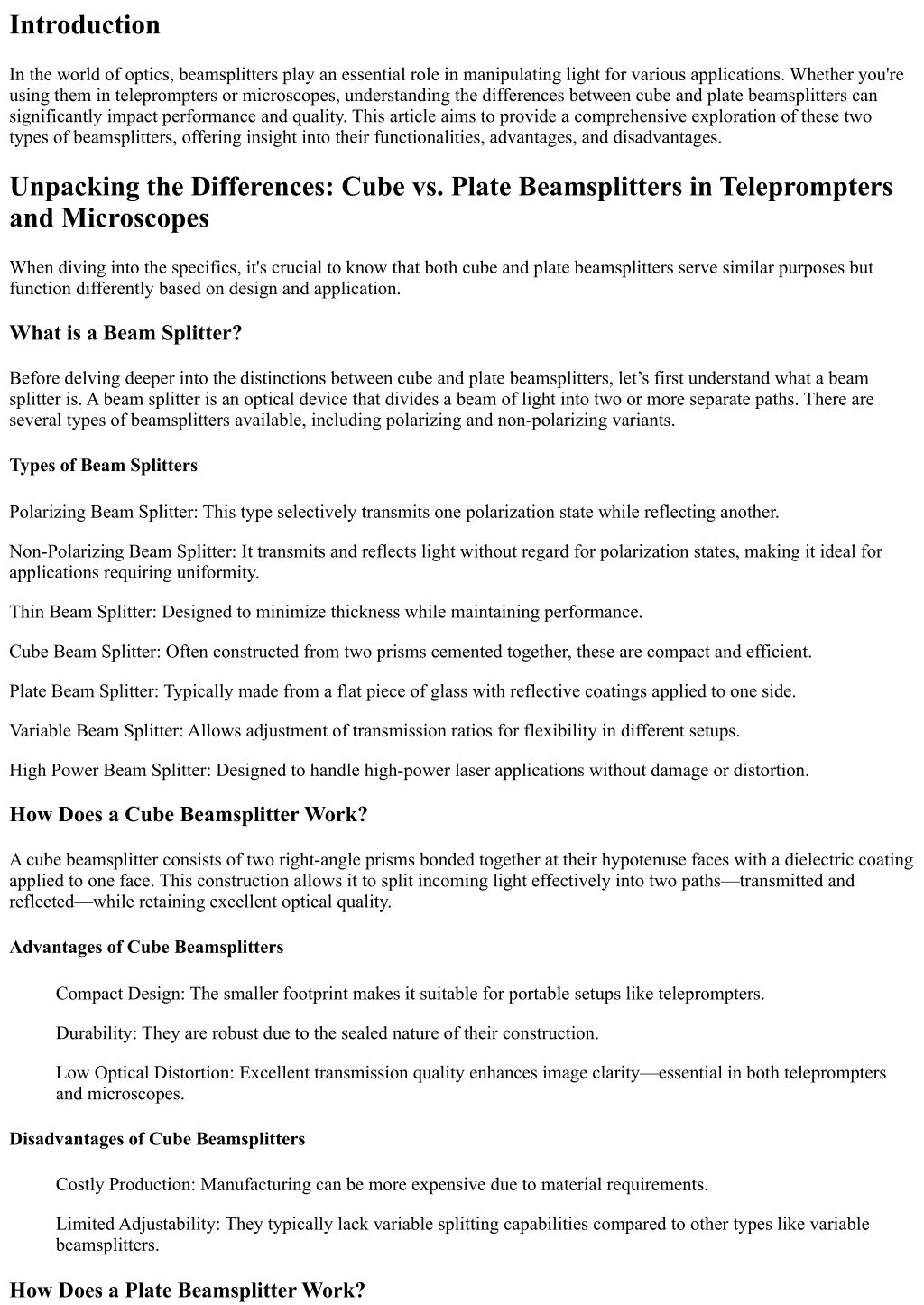

1. Introduction In the world of optics, beamsplitters play an essential role in manipulating light for various applications. Whether you're using them in teleprompters or microscopes, understanding the differences between cube and plate beamsplitters can significantly impact performance and quality. This article aims to provide a comprehensive exploration of these two types of beamsplitters, offering insight into their functionalities, advantages, and disadvantages. Unpacking the Differences: Cube vs. Plate Beamsplitters in Teleprompters and Microscopes When diving into the specifics, it's crucial to know that both cube and plate beamsplitters serve similar purposes but function differently based on design and application. What is a Beam Splitter? Before delving deeper into the distinctions between cube and plate beamsplitters, let’s first understand what a beam splitter is. A beam splitter is an optical device that divides a beam of light into two or more separate paths. There are several types of beamsplitters available, including polarizing and non-polarizing variants. Types of Beam Splitters Polarizing Beam Splitter: This type selectively transmits one polarization state while reflecting another. Non-Polarizing Beam Splitter: It transmits and reflects light without regard for polarization states, making it ideal for applications requiring uniformity. Thin Beam Splitter: Designed to minimize thickness while maintaining performance. Cube Beam Splitter: Often constructed from two prisms cemented together, these are compact and efficient. Plate Beam Splitter: Typically made from a flat piece of glass with reflective coatings applied to one side. Variable Beam Splitter: Allows adjustment of transmission ratios for flexibility in different setups. High Power Beam Splitter: Designed to handle high-power laser applications without damage or distortion. How Does a Cube Beamsplitter Work? A cube beamsplitter consists of two right-angle prisms bonded together at their hypotenuse faces with a dielectric coating applied to one face. This construction allows it to split incoming light effectively into two paths—transmitted and reflected—while retaining excellent optical quality. Advantages of Cube Beamsplitters Compact Design: The smaller footprint makes it suitable for portable setups like teleprompters. Durability: They are robust due to the sealed nature of their construction. Low Optical Distortion: Excellent transmission quality enhances image clarity—essential in both teleprompters and microscopes. Disadvantages of Cube Beamsplitters Costly Production: Manufacturing can be more expensive due to material requirements. Limited Adjustability: They typically lack variable splitting capabilities compared to other types like variable beamsplitters. How Does a Plate Beamsplitter Work?

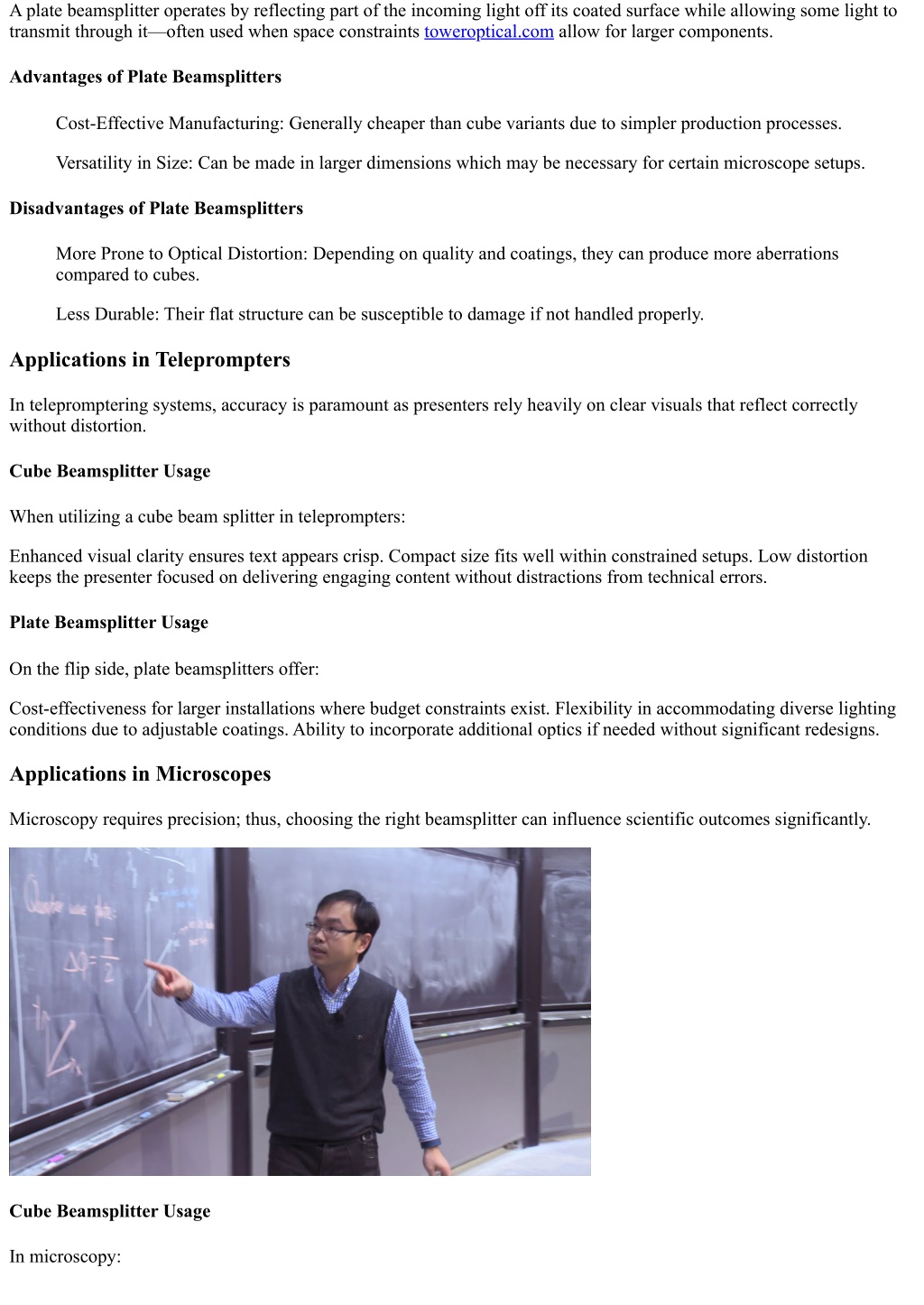

2. A plate beamsplitter operates by reflecting part of the incoming light off its coated surface while allowing some light to transmit through it—often used when space constraints toweroptical.com allow for larger components. Advantages of Plate Beamsplitters Cost-Effective Manufacturing: Generally cheaper than cube variants due to simpler production processes. Versatility in Size: Can be made in larger dimensions which may be necessary for certain microscope setups. Disadvantages of Plate Beamsplitters More Prone to Optical Distortion: Depending on quality and coatings, they can produce more aberrations compared to cubes. Less Durable: Their flat structure can be susceptible to damage if not handled properly. Applications in Teleprompters In telepromptering systems, accuracy is paramount as presenters rely heavily on clear visuals that reflect correctly without distortion. Cube Beamsplitter Usage When utilizing a cube beam splitter in teleprompters: Enhanced visual clarity ensures text appears crisp. Compact size fits well within constrained setups. Low distortion keeps the presenter focused on delivering engaging content without distractions from technical errors. Plate Beamsplitter Usage On the flip side, plate beamsplitters offer: Cost-effectiveness for larger installations where budget constraints exist. Flexibility in accommodating diverse lighting conditions due to adjustable coatings. Ability to incorporate additional optics if needed without significant redesigns. Applications in Microscopes Microscopy requires precision; thus, choosing the right beamsplitter can influence scientific outcomes significantly. Cube Beamsplitter Usage In microscopy:

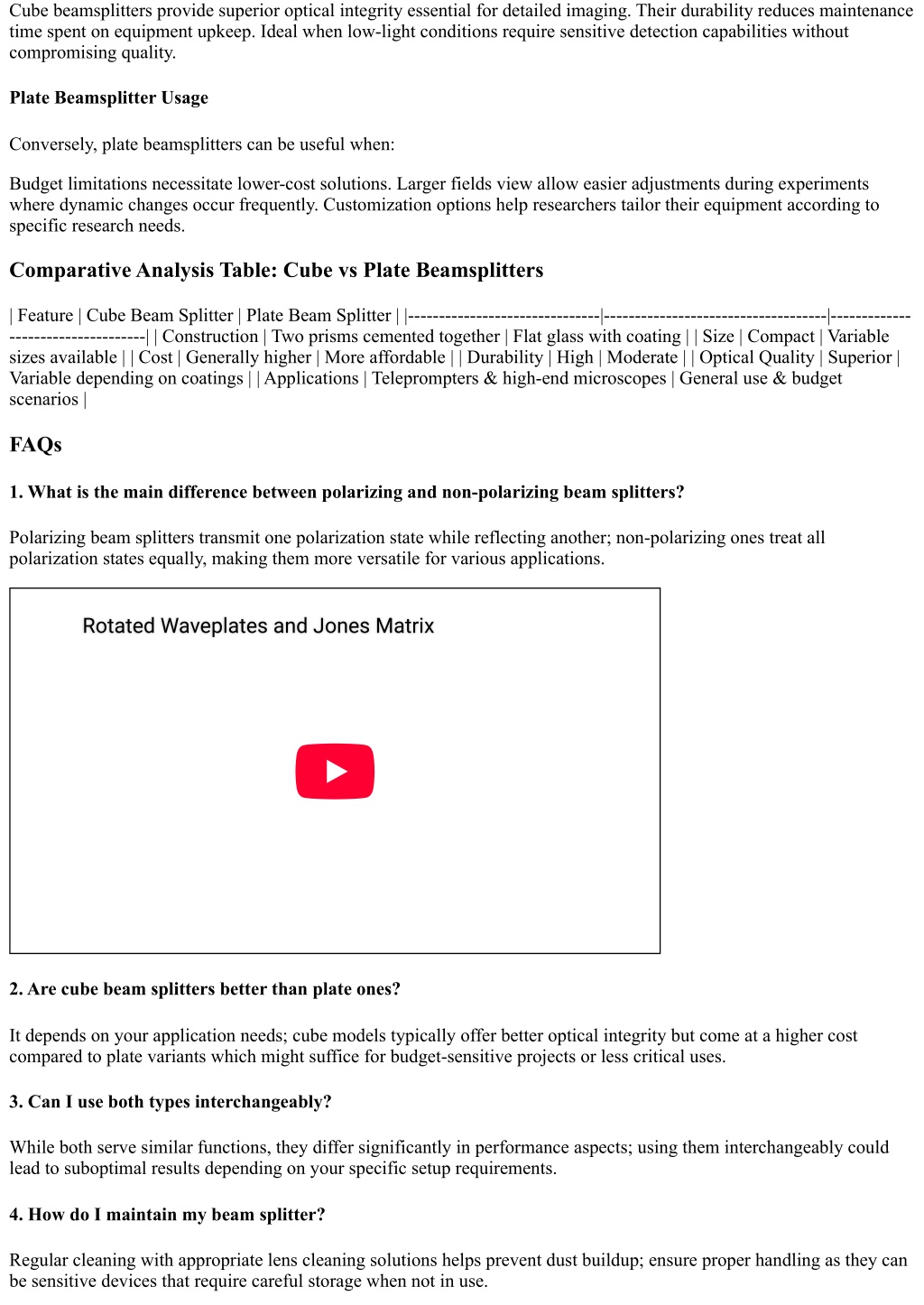

3. Cube beamsplitters provide superior optical integrity essential for detailed imaging. Their durability reduces maintenance time spent on equipment upkeep. Ideal when low-light conditions require sensitive detection capabilities without compromising quality. Plate Beamsplitter Usage Conversely, plate beamsplitters can be useful when: Budget limitations necessitate lower-cost solutions. Larger fields view allow easier adjustments during experiments where dynamic changes occur frequently. Customization options help researchers tailor their equipment according to specific research needs. Comparative Analysis Table: Cube vs Plate Beamsplitters | Feature | Cube Beam Splitter | Plate Beam Splitter | |-------------------------------|------------------------------------|------------- ----------------------| | Construction | Two prisms cemented together | Flat glass with coating | | Size | Compact | Variable sizes available | | Cost | Generally higher | More affordable | | Durability | High | Moderate | | Optical Quality | Superior | Variable depending on coatings | | Applications | Teleprompters & high-end microscopes | General use & budget scenarios | FAQs 1. What is the main difference between polarizing and non-polarizing beam splitters? Polarizing beam splitters transmit one polarization state while reflecting another; non-polarizing ones treat all polarization states equally, making them more versatile for various applications. Rotated Waveplates and Jones Matrix Rotated Waveplates and Jones Matrix 2. Are cube beam splitters better than plate ones? It depends on your application needs; cube models typically offer better optical integrity but come at a higher cost compared to plate variants which might suffice for budget-sensitive projects or less critical uses. 3. Can I use both types interchangeably? While both serve similar functions, they differ significantly in performance aspects; using them interchangeably could lead to suboptimal results depending on your specific setup requirements. 4. How do I maintain my beam splitter? Regular cleaning with appropriate lens cleaning solutions helps prevent dust buildup; ensure proper handling as they can be sensitive devices that require careful storage when not in use.

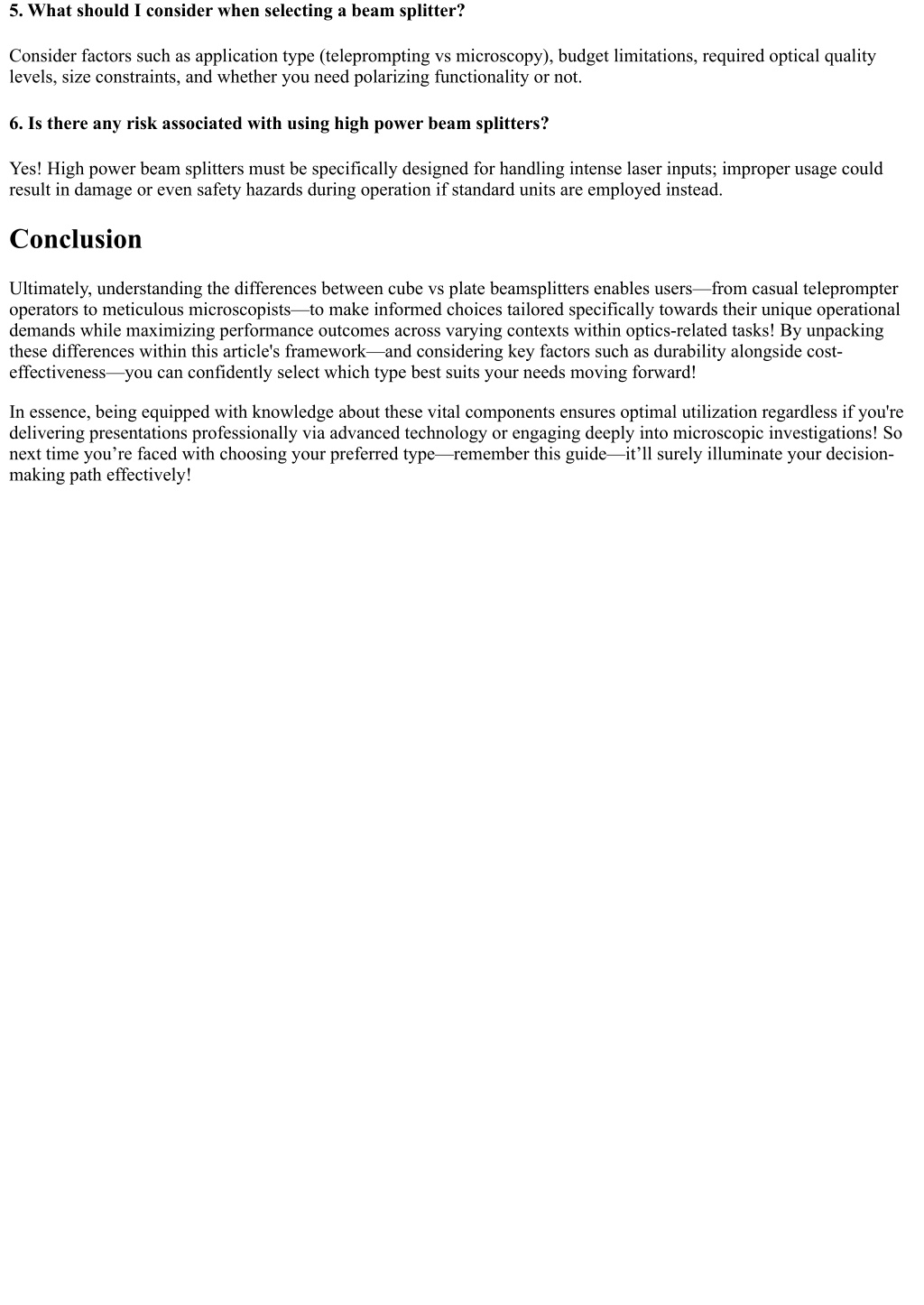

4. 5. What should I consider when selecting a beam splitter? Consider factors such as application type (teleprompting vs microscopy), budget limitations, required optical quality levels, size constraints, and whether you need polarizing functionality or not. 6. Is there any risk associated with using high power beam splitters? Yes! High power beam splitters must be specifically designed for handling intense laser inputs; improper usage could result in damage or even safety hazards during operation if standard units are employed instead. Conclusion Ultimately, understanding the differences between cube vs plate beamsplitters enables users—from casual teleprompter operators to meticulous microscopists—to make informed choices tailored specifically towards their unique operational demands while maximizing performance outcomes across varying contexts within optics-related tasks! By unpacking these differences within this article's framework—and considering key factors such as durability alongside cost- effectiveness—you can confidently select which type best suits your needs moving forward! In essence, being equipped with knowledge about these vital components ensures optimal utilization regardless if you're delivering presentations professionally via advanced technology or engaging deeply into microscopic investigations! So next time you’re faced with choosing your preferred type—remember this guide—it’ll surely illuminate your decision- making path effectively!
