Introduction to FinFet. Haiying Zhao. What does FinFet look like. 3D view of FinFET. 3D view of multi-fin FinFET. What does FinFet look like. Moore’s law and scaling theory. Ideal scaling: Reduce W,L by a factor of a

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Introduction to FinFet' - winola


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what does finfet look like
What does FinFet look like

3D view of FinFET

3D view of multi-fin FinFET

moore s law and scaling theory
Moore’s law and scaling theory

Ideal scaling:

Reduce W,L by a factor of a

Reduce the threshold voltage and supply voltage by a factor of a

Increasing all of the doping levels by a

(W,L,tox,VDD,VTH, etc, are scaled down by a factor a)

For a ideal square-law device, Id is reduced by a, but gm and intrinsic gain

Gm* ro remain the same.

As scaling into submicron region, Short Channel effects prevent further scaling.

slide5

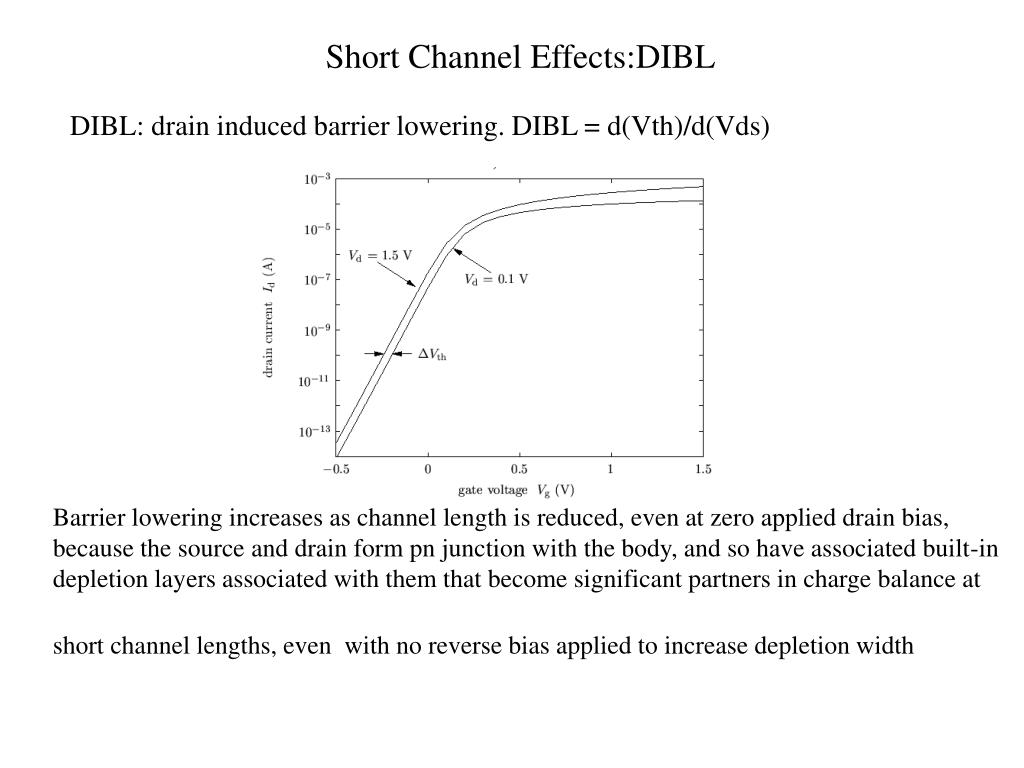

Short Channel Effects:DIBL

Barrier lowering increases as channel length is reduced, even at zero applied drain bias, because the source and drain form pn junction with the body, and so have associated built-in depletion layers associated with them that become significant partners in charge balance at short channel lengths, even with no reverse bias applied to increase depletion width

DIBL: drain induced barrier lowering. DIBL = d(Vth)/d(Vds)

short channel effects subthreshold swing
Short Channel Effects: Subthreshold swing

Biasing a nmos in subthreshold resgion, Vgs < Vth, Vds is large enough.

Id = u Cd W/L (KT/q)^2 (exp(Vgs – Vth)/M))

Cd is capacitance of the depletion layer under gate.

M = (1 + Cd/Cox)*KT/q

Id = f(Vgs-Vth)

To turn off the transistor, How much reduction of (Vgs-Vth) could lead to a small enough Id.

Subthreshold Swing S = d(Vgs)/d(log(Id)) = 2.3 KT/q( 1+ Cd/Cox)

The smaller S is , the better it is.

Bad Subthreshold Swing will result in higher off-state current if the Vgs applied to turn off the transistor is the same.

short channel effects velocity saturation

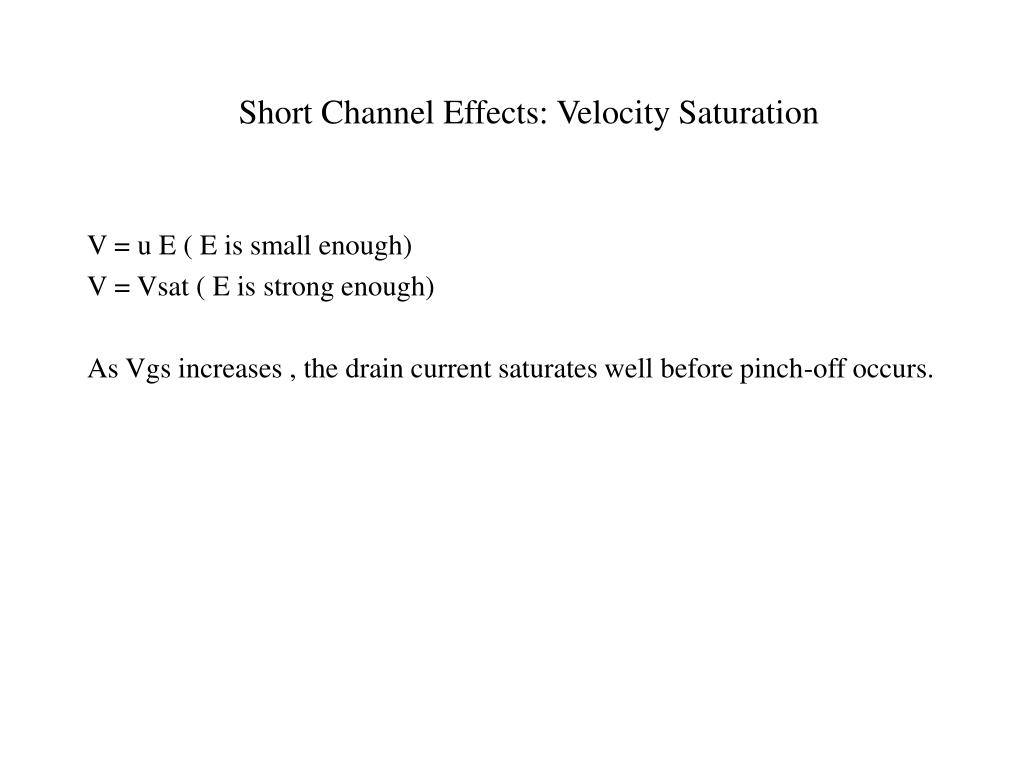

Short Channel Effects: Velocity Saturation

V = u E ( E is small enough)

V = Vsat ( E is strong enough)

As Vgs increases , the drain current saturates well before pinch-off occurs.

slide8

Short Channel Effects:DIBL

Barrier lowering increases as channel length is reduced, even at zero applied drain bias, because the source and drain form pn junction with the body, and so have associated built-in depletion layers associated with them that become significant partners in charge balance at short channel lengths, even with no reverse bias applied to increase depletion width

DIBL: drain induced barrier lowering. DIBL = d(Vth)/d(Vds)

conclusion
Conclusion

To reduce short channel effects, we need to reduce Xd(channel depletion layer thickness), Xj( Junction depletion width),Xox (oxide layer thickness under gate).

The scale length of bulk MOSFET is an indication of Lg. Lg>

dealing with short channel effects in bulk mosfet
Dealing with Short Channel Effects in bulk MOSFET

1.Increasing body doping concentration

2.Using halo implant

High doping density results in:

Lower carrier mobility;

high tunneling effect which increases off-state currents;

Larger depletion capacitors leading to high subthreshold swing which increases off-state currents;

Larger parasitic capacitance, Cgd, Cds.

dealing with short channel effects in fully depleted silicon on insulator soi
Dealing with Short Channel Effects in Fully depleted Silicon on Insulator (SOI)

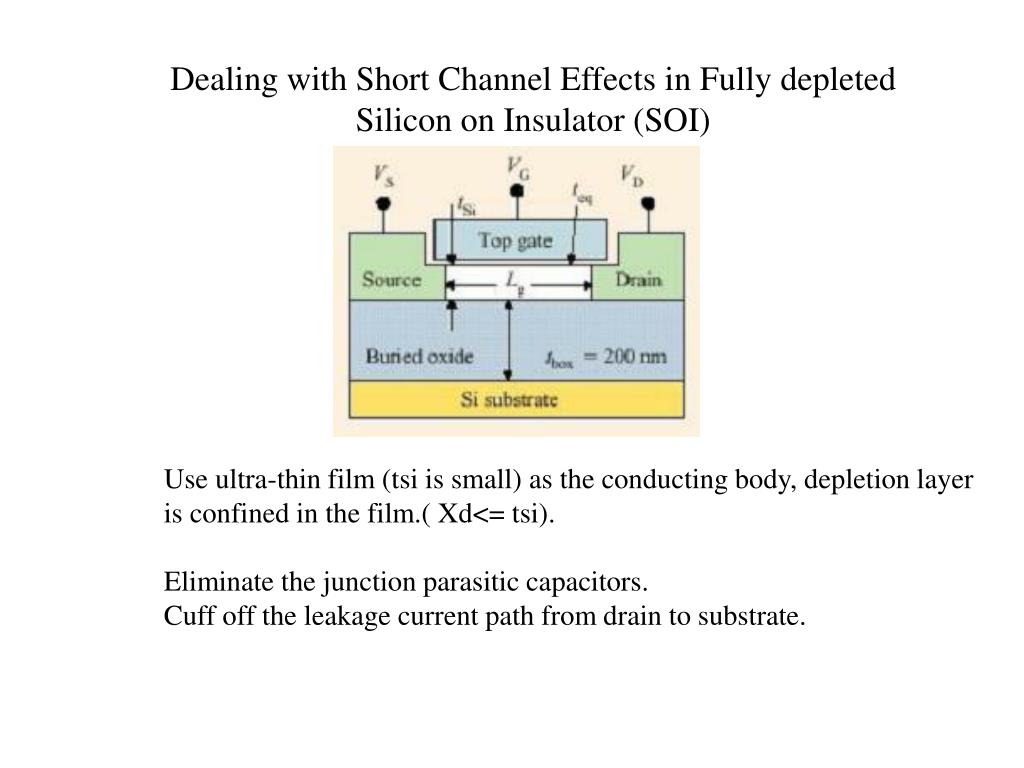

Use ultra-thin film (tsi is small) as the conducting body, depletion layer is confined in the film.( Xd<= tsi).

Eliminate the junction parasitic capacitors.

Cuff off the leakage current path from drain to substrate.

from fd soi to finfet
From FD/SOI to FinFET

Bend up the gate and narrow the gate. Fin width = 2* film thickness

The effect body thickness is reduced by 2. Xd can be regarded as

Fin width /2. To obtain good control of SCE, Leff > 1.5*Wfin ( Fin width).

Finfet can operate at two mode, single gate and double gate.

finfet characteristics
FinFet characteristics

Lg = 15nm

Some values:

Threshold Voltage = 0.196 V

Subthreshold Slope = 72 mV/decade

Off Current = 70 A/m

DIBL = 64.67 mV/V

Lg = 30nm

approximate dc i v equations
Approximate dc I-V equations?

Square law?

One way is using nth power law to computer the FinFet current.

finfet challenges or opportunities
FinFet: Challenges or Opportunities

Carrier mobility:

Lightly doped or undoped fin body increases carrier mobility.

Short channel length enables velocity overshoot, which increases mobility.

Low Vth decreases the vertical electric field ,which increases carrier mobility.

finfet challenges or opportunities16
FinFet: Challenges or Opportunities

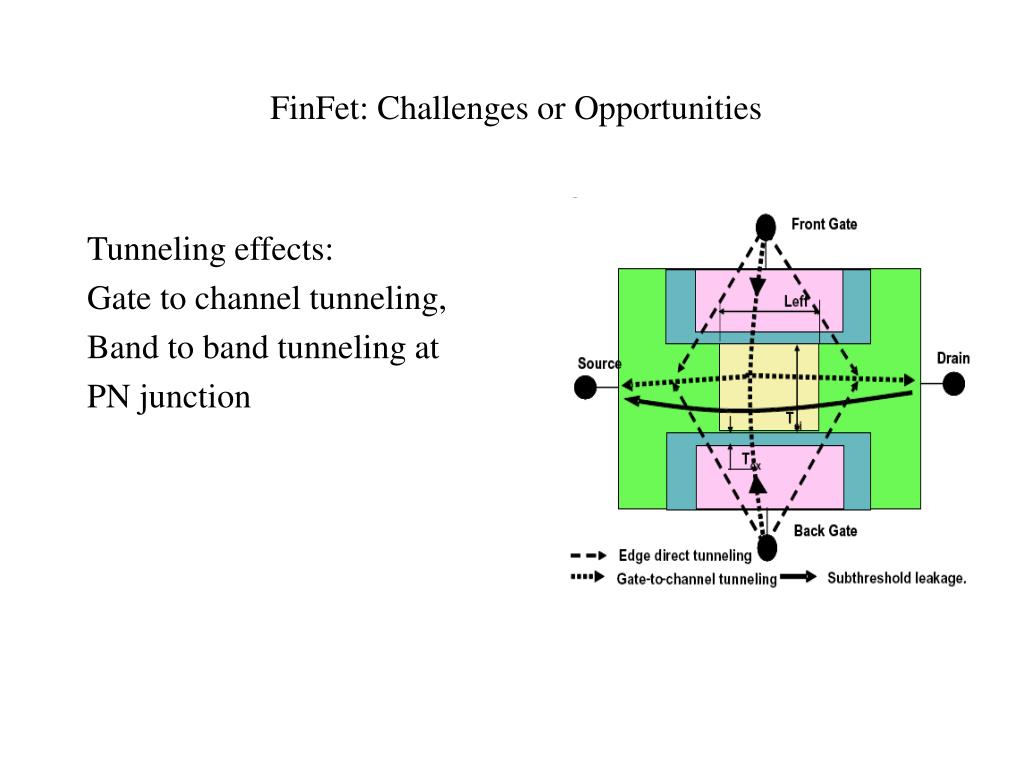

Tunneling effects:

Gate to channel tunneling,

Band to band tunneling at

PN junction

finfet challenges or opportunities17
FinFet: Challenges or Opportunities

Parasitic resistance: a raised source/drain structure can be used to reduce the parasitic resistance.

However, the overlap capacitance is increased.

Prasitic resistance is the main adverse factor which prevents finfets’ application, which leads to lower speed and high noise.

finfet big advantages
FinFet: big advantages
  • Having excellent control of short channel effects in submicron regime and making transistors still scalable. Due to this reason, the small- length transistor can have a larger intrinsic gain compared to the bulk counterpart.
  • Much Lower off-state current compared to bulk counterpart.
  • Promising matching behavior.
applications
Applications
  • Low power design in digital circuit, such as RAM, because of its low off-state current.
  • Power amplifier or other application in analog area which requires good linearity.
