  1. The Advanced Technology Microwave Sounder (ATMS): New Capabilities for Atmospheric Sensing William J. Blackwell NASA Suomi NPP Meeting 21-22 June 2012 This work was sponsored by the National Oceanographic and Atmospheric Administration under Air Force Contract FA8721-05-C-0002. Opinions, interpretations, conclusions, and recommendations are those of the authors and are not necessarily endorsed by the United States Government.

  2. Outline • Overview • Performance/Validation • New Capabilities • Water resources • Eco Forecasting • Disasters • Public Health/AQ • Summary

  3. Advanced Technology Microwave Sounder (ATMS) ATMS is a 22 channel MW sounder Frequencies range from 23-183 GHz Total-power, two-point external calibration Continuous cross-track scanning, with torque & momentum compensation Orbits: 833 km (JPSS); 824 km (NPP); sun-synchronous Thermal control by spacecraft cold plate Contractor: Northrop Grumman Electronics Systems (NGES) 70 cm

  4. ATMS Development • ATMS NPP unit (“F1") developed by NASA/Goddard • ATMS NPP unit delivered in 2005 • ATMS JPSS-1 unit (“F2”) currently in development (antenna and TVAC testing in 2011/12, delivery in 2013) • Principal challenges/advantages: • Reduced size/power relative to AMSU • Scan drive mechanism • MMIC technology • Improved spatial coverage (no gaps between swaths) • Nyquist spatial sampling of temperature bands (improved information content relative to AMSU-A)

  5. Atmospheric Transmission at Microwave Wavelengths ATMS channels The frequency dependence of atmospheric absorption allows different altitudes to be sensed by spacing channels along absorption lines

  6. Outline • Overview • Performance/Validation • New Capabilities • Water resources • Eco Forecasting • Disasters • Public Health/AQ • Summary

  7. Spectral Differences: ATMS vs. AMSU/MHS AMSU/MHS ATMS • ATMS has 22 channels and AMSU/MHS have 20, with polarization differences between some channels • − QV = Quasi-vertical; polarization vector is parallel to the scan plane at nadir • − QH = Quasi-horizontal; polarization vector is perpendicular to the scan plane at nadir AMSU-A Exact match to AMSU/MHS Only Polarization different Unique Passband MHS Unique Passband, and Pol. different from closest AMSU/MHS channels

  8. Spatial Differences: ATMS vs. AMSU/MHS Beamwidth (degrees) Spatial sampling ATMS scan period: 8/3 sec; AMSU-A scan period: 8 sec ATMS measures 96 footprints per scan (30/90 for AMSU-A/B)

  9. Summary of Key Sensor Parameters

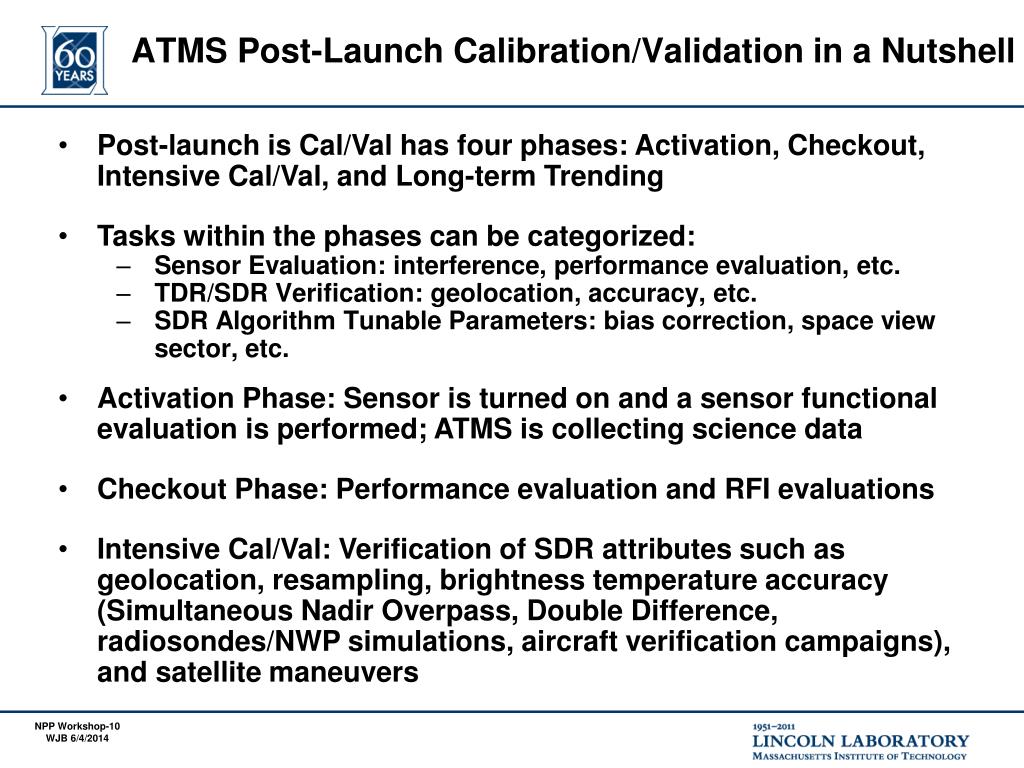

  10. ATMS Post-Launch Calibration/Validation in a Nutshell • Post-launch is Cal/Val has four phases: Activation, Checkout, Intensive Cal/Val, and Long-term Trending • Tasks within the phases can be categorized: • Sensor Evaluation: interference, performance evaluation, etc. • TDR/SDR Verification: geolocation, accuracy, etc. • SDR Algorithm Tunable Parameters: bias correction, space view sector, etc. • Activation Phase: Sensor is turned on and a sensor functional evaluation is performed; ATMS is collecting science data • Checkout Phase: Performance evaluation and RFI evaluations • Intensive Cal/Val: Verification of SDR attributes such as geolocation, resampling, brightness temperature accuracy (Simultaneous Nadir Overpass, Double Difference, radiosondes/NWP simulations, aircraft verification campaigns), and satellite maneuvers

  11. ATMS 23.8-GHz Channel 23.8-GHz Brightness Temperature (K)

  12. Passive Infrared MeasurementsProvide High Spatial Resolution The NPP CrIS sensor provides 15km horizontal and 1km vertical resolution

  13. Passive Microwave Measurements Provide Low Spatial Resolution, but Penetrate Clouds The NPP ATMS sensor provides 35km horizontal and 3km vertical resolution

  14. AMSU-A: Large, Positive Forecast Impact RAOB RAOB AMSU-A AMSU-A RAOB RAOB AMSU-A AMSU-A Source: Gelaro, Rienecker et al., 2008, NASA GMAO

  15. Outline • Overview • Performance/Validation • New Capabilities • Water resources • Eco Forecasting • Disasters • Public Health/AQ • Summary

  16. Passive Microwave Sounder Data for Disaster Management Severe Weather 1: Hurricanes and Tropical Cyclones Severe Weather 2: Floods and Flash Floods Severe Weather 3: Remote and Data Sparse Regions Severe Weather 4: Aviation Decision Support Climate Fingerprinting Data Assimilation Level 1 and 2A/2B Products (and Derived Products) Product Validation

  17. Passive Microwave Radiation & Precipitation NASA Goddard Laboratory of Atmospheres Hurricane Floyd GOES Satellite microwave sensors can penetrate storm clouds and reveal precipitation with global coverage TRMM/NASA Precipitation Parameters Radiance Brightness temperature [Kelvin] “forward model” or radiance simulation

  18. Frequency Dependence of Precipitation 45 km 35 km Visible

  19. Precipitation Modeling Cloud Resolving Models (CRMs) explicitly solve the time-varying math equations of storms at high spatial and temporal resolution We use the PSU/NCAR mesoscale model (known as MM5) with initial conditions having grid spacing of 20 to 40 km Movies: Klemp-Wilhelmson numerical model – squall line Credits: Morris Weisman, Chris Davis, Bill Skamarock, Joe Klemp, and Tim Scheitlin from UCAR

  20. Qualitative Radar Validation Composite radar over GOES visible image Simulated composite radar using MM5 output data

  21. ATMS Precipitation Retrieval:Improvements Relative to AMSU precipitation rate (mm/hr) Source: Surussavadee and Staelin

  22. ATMS Storm Mapping:Improvements Relative to AMSU water path (mm) Source: Surussavadee and Staelin

  23. Summary • ATMS on-orbit performance has been excellent • Cal/val activities in progress to optimize calibration parameters • AMSU capabilities will be continued and expanded • Precipitation products look to be markedly improved from AMSU

  24. Backup Slides

  25. Utility of Aircraft Underflights What do aircraft measurements provide that we cannot get anywhere else? • Why not just compare to radiosondes or NWP? • Direct radiance comparisons • Removes modeling errors • Mobile platform • High spatial & temporal coincidence achievable • Spectral response matched to satellite • With additional radiometers for calibration • Higher spatial resolution than satellite • Additional instrumentation deployed • Coincident video data • Dropsondes Example video image Solar glint Ocean Clouds

  26. ATMS 23.8 GHzDecember 7, 2011

  27. New Products:Precipitation Rate Image credit: C. Surussavadee

  28. Backup Slides

  29. NPOESS Preparatory Project • Launch site: Vandenberg AFB • Launch vehicle: Boeing Delta II • Spacecraft: Ball Aerospace Commercial Platform 2000 • Instruments: VIIRS, CrIS, ATMS, OMPS, & CERES • Orbits: 824 km (NPP); sun-synchronous with a 1:30 p.m. local-time ascending node crossing NPP (NPOESS Preparatory Project) Oct. 28, 2011 Launch National Polar-orbiting Operational Environmental Satellite System → Joint Polar Satellite System

  30. ATMS Data Products 1FOV = ATMS “Field of View”; FOR = CrIMSS “Field of Regard” RDR, TDR, SDR, and EDR products will be available via CLASS

  31. ATMS On-Orbit FOV Characterization • Spacecraft maneuvers (constant pitch up or roll, for example) could be used to sweep antenna beam across vicarious calibration sources • Moon (probably too weak/broad for pattern assessment) • Earth’s limb (requires atmospheric characterization) • Focus of today’s presentation • Land/sea boundary (good for verification of geolocation) • With knowledge of the atmospheric state, the antenna pattern can be recovered with deconvolution techniques • Objectives of this study - quantitatively assess: • The benefits of various maneuvers • How accurately can the pattern be recovered? • The limitations of this approach • How much roll/pitch is needed for an adequate measurement? • The error sources and their impact

  32. TB’s Across Earth/Space Transition LIMB (STANDARD ATMOSPHERE) SURFACE BEYOND STANDARD ATMOSPHERE 62.17°

  33. 54 183 425 118 NPOESS Airborne Sounder Testbed NAST • OBJECTIVES • Satellite calibration/validation • Simulate spaceborne instruments • (i.e. CrIS, ATMS, IASI) • Preview high resolution products • Evaluate key EDR algorithms • INSTRUMENTS: NAST-I & NAST-M • NAST- I: IR Interferometer Sounder • NAST- M: Microwave Sounder • 5 Bands: 23/31 (to be added), 54, 118, 183, 425 GHz ~100km NAST- M Cruising altitude: ~17-20 km Cross-track scanning: - 65º to 65º

  34. MetOp Satellite Validation JAIVEx Tb Comparison AMSU-A April 20th, 2007 collection GHz Bias 50.3 -0.25K 52.8 1.4K 53.75 -0.2K Gulf of Mexico -0.2K 54.4 AMSU-A (MetOp) [Kelvin] 54.94 -0.9K <20min MetOp path NAST-M [Kelvin]
