sizing of vents

Aniket Shende 61

Rahul Sheth 62

Kunal Shinde 63

Advait Soni 64

Chaitanya Sudrik 65

Sizing of Vents


Venting systems include

  • Venting devices, piping or vent header systems, disposal systems

Vent systems required for

  • Purging, Cleaning
  • Safety Considerations
venting systems
Venting systems:
  • Venting devices

Valves-PRVs, PSVs

-conventional , balanced

Rupture disks, Breaking Pins

Pressure Vacuum Vents

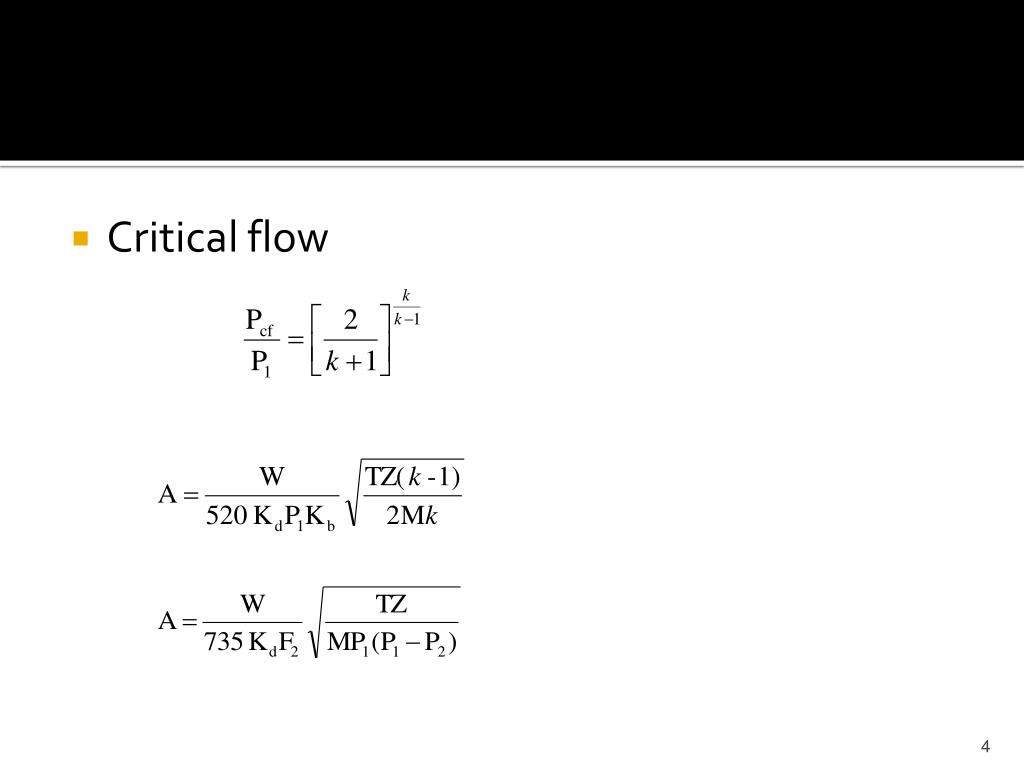

Sizing of Relief Valves


Relief headers

Worst case scenarios

Standard pressure drop calculations

  • Disposal Systems

Quenching, Chilling

Separation of vapors and liquids

Flares- ground, elevated

methods for vent sizing
Methods for vent sizing
  • No universal method of vent sizing for all situations
  • If vent size is too large then the venting system becomes uneconomical
  • If it is inadequate then it can cause accidents
  • Codes:
  • API 2000 standards
  • NFPA 30
  • OSHA
purging process
Purging Process:
  • Complex fluid dynamic process
  • Discharge flow, pressure decay depend on gas properties, vent line configuration, gas flow
safety considerations
Safety considerations:
  • Process considerations

1)Valve malfunction, equipment failure

2) Sudden rise in feed inlet pressure

3) Runaway exothermic reactions

4) Process gas exceeding explosion limits

5) Dust explosion

  • Fire considerations

1) External fire adjacent to pressurized vessels

2) External Ignition

methods for vent sizing9
Methods for vent sizing
  • K- factor Method
  • RUST Method
  • Vent Ratio Method
  • Nomograph or Cubic law Method
1 k factor method
1. K factor method
  • Factor K Method by Simmonds and Cubbage
  • For compact rectangular vessels
  • Max. explosion pressure in vented vessel related to vent area

Av is area of smallest side

  • For St 2 gas mixtures

Vessel volume between 1 to 1000 m3

  • L/D ratio less than 5:1
  • Does not account for vent ducts
rust method
RUST Method
  • Spherical flame front propogation
  • Used for equipments in soap and detergent industries
  • Rust equation
  • The shape factor C is defined as

Limited to maximum rate of pressure rise of 345 bar /s

  • L/D ratio should be less than 2.5:1
  • Does not account for vent ducts
vent ratio method
Vent Ratio Method
  • Put forth by Palmer (1973)
  • Vent Ratio = Area of Vent
  • Simplest method for sizing of vents

Volume of vessel

vent ratio method16
Vent Ratio Method
  • Vent ratios for various size ranges provided
  • Vent ratios on the basis of experiments in Hartmann apparatus
  • The Hartmann apparatus measures the maximum rate of pressure rise in the vessel for a given size range
drawbacks of vent ratio method
Drawbacks of Vent Ratio Method
  • Can be used for vessels of up to 30 cu.m only
  • For larger vessels, predicted vent size much greater than actually required and hence uneconomical
  • Assumes homogenous conditions and rapid propagation of flame throughout the reactor – conditions true in case of smaller vessels
nomograph or cubic law method
Nomograph or Cubic law Method
  • Method developed by Heinrich and Bartknetcht
  • Based on a cubic relation between maximum rate of pressure rise and inverse of the volume
  • (dP/dt)max α V ^ (-1/3)
nomograph or cubic law method21
Nomograph or Cubic law Method
  • Nomographs are used to determine vent size
nomograph or cubic law method22
Nomograph or Cubic law Method
  • P stat - the vent opening pressure
  • P red – reduced pressure from P max
  • First determine the P red
  • From the volume of the reactor and P red draw a horizontal line onto the second graph and intersect it with the appropriate K st value
  • The horizontal axis gives the vent area
drawbacks of nomograph or cubic law method
Drawbacks of Nomograph or Cubic law Method
  • Lowest pressure is 0.2 barg
  • Vessel volume must be between 1 and 1000 cubic m
  • The vessel Length: Diameter ratio should be lesser than 5:1
selection of vent sizing method
Selection of Vent sizing method
  • Weak vessels- Vent ratio method
  • Low maximum rate of pressure size-RUST method
  • Turbulent dust clouds- Vent ratio method
selection of vent sizing method25
Selection of Vent sizing method
  • Vessel Shape- for conical vessels Nomograph method more suitable
  • For cylindrical vessels K- factor method more useful
