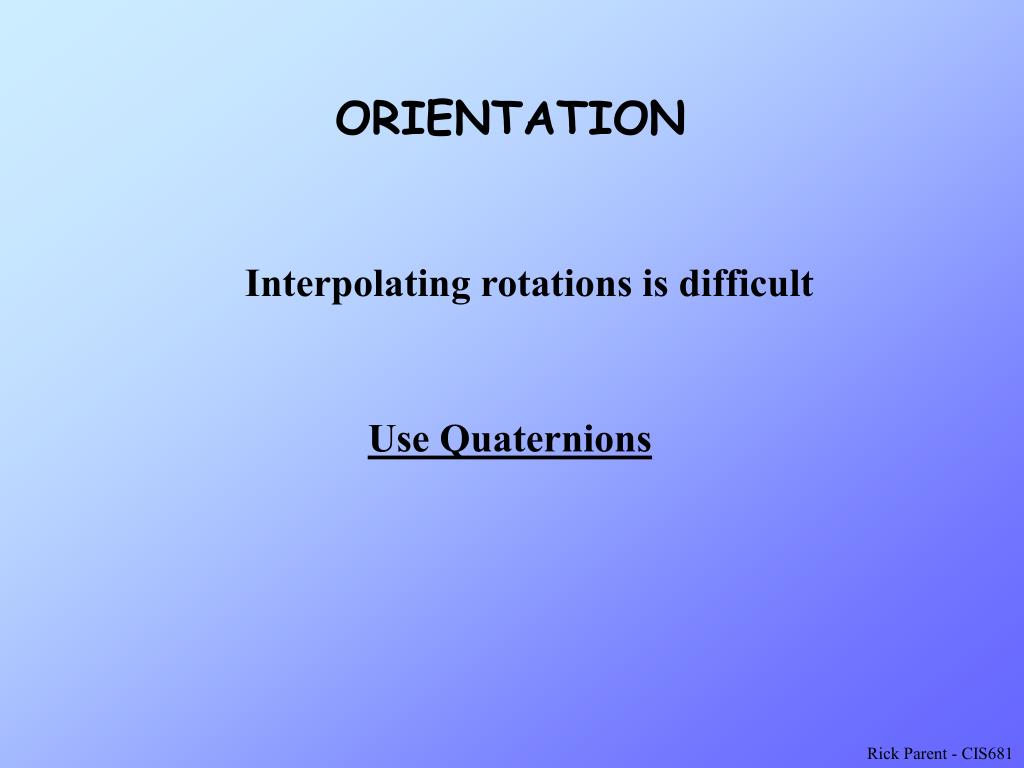

  1. ORIENTATION Interpolating rotations is difficult Use Quaternions

  2. Object Representation • Define object in world space • Object space data • Scale • Rotation • Translation Desired operations Interpolation between transformations Concatenation of one transformation after another Handle scale, rotation, translation, independently Rotation deserves special attention!

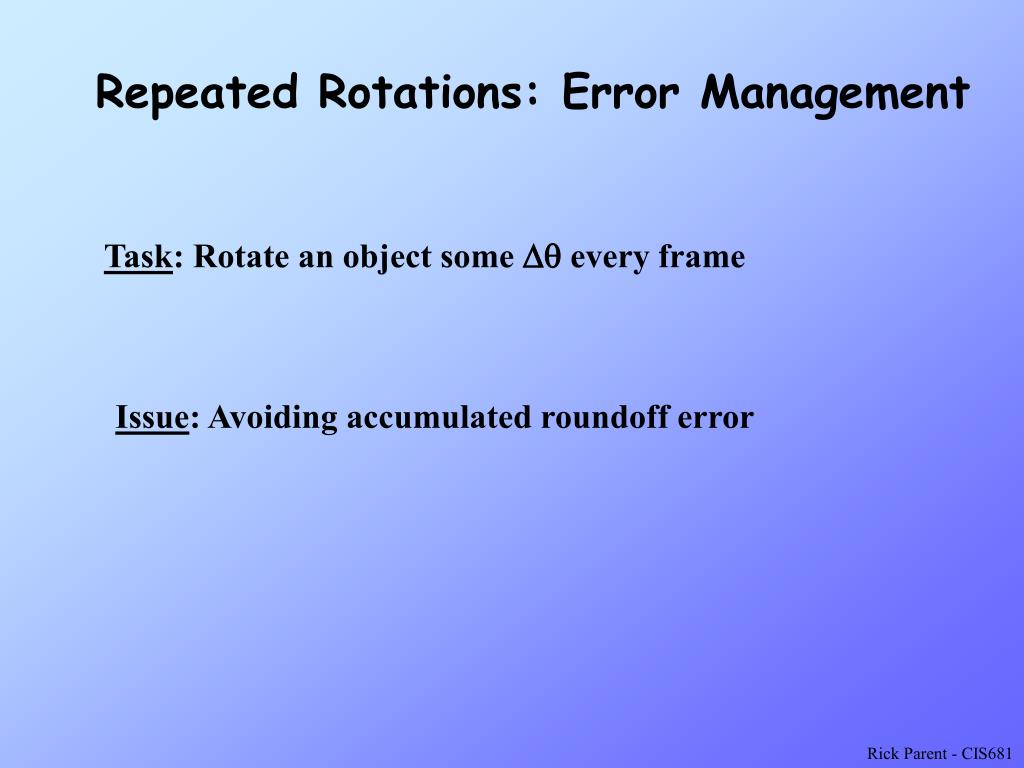

  3. Repeated Rotations: Error Management Task: Rotate an object some Dq every frame Issue: Avoiding accumulated roundoff error

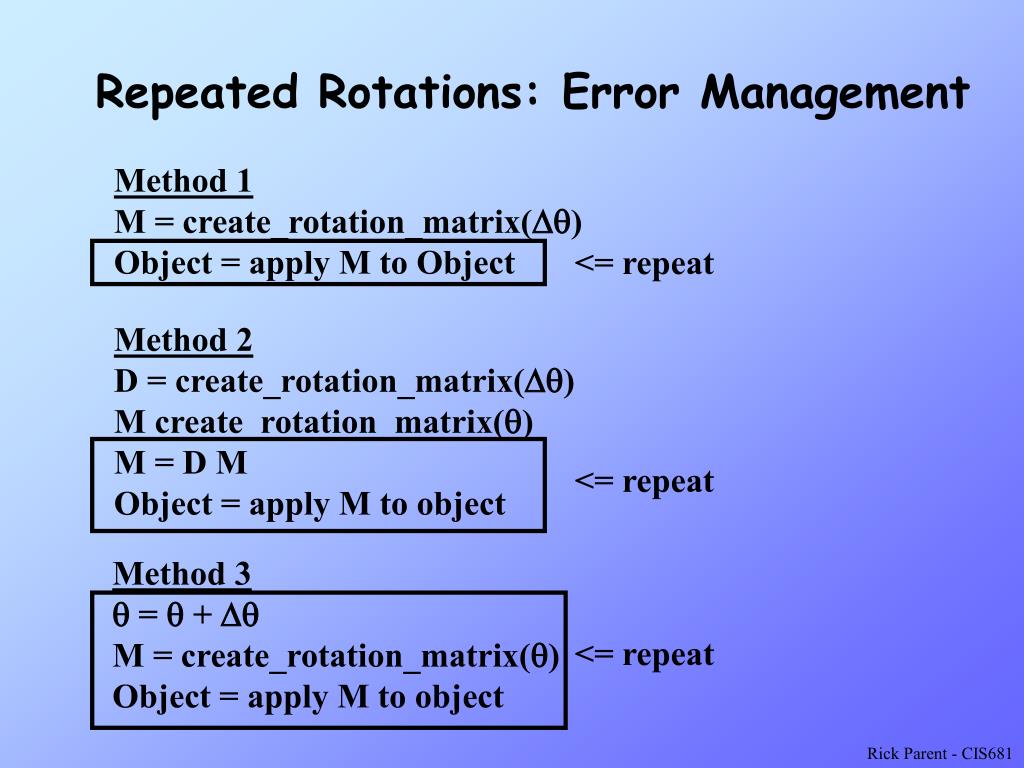

  4. <= repeat <= repeat <= repeat Repeated Rotations: Error Management Method 1 M = create_rotation_matrix(Dq) Object = apply M to Object Method 2 D = create_rotation_matrix(Dq) M create_rotation_matrix(q) M = D M Object = apply M to object Method 3 q = q + Dq M = create_rotation_matrix(q) Object = apply M to object

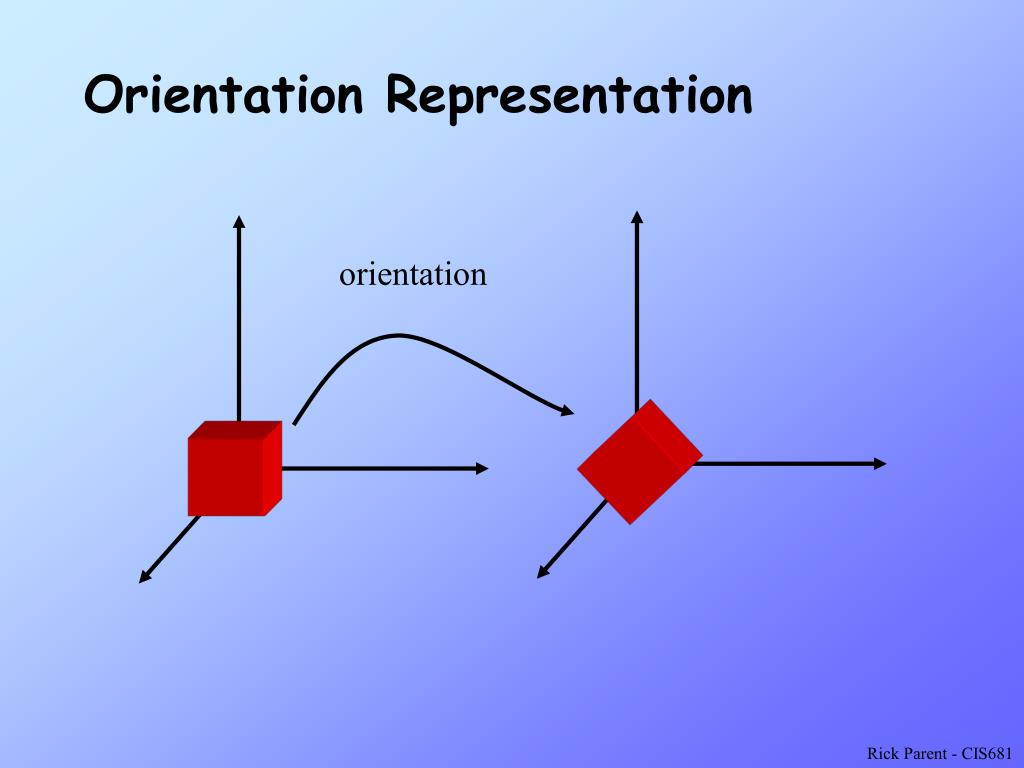

  5. Orientation Representation orientation

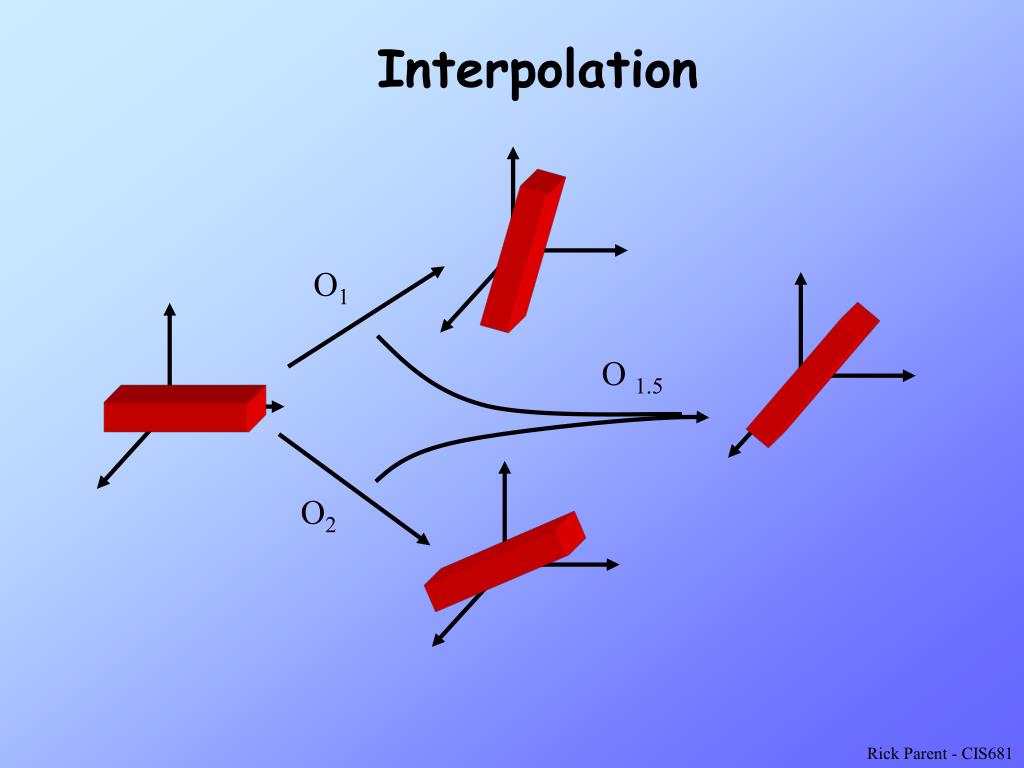

  6. O1 O 1.5 O2 Interpolation

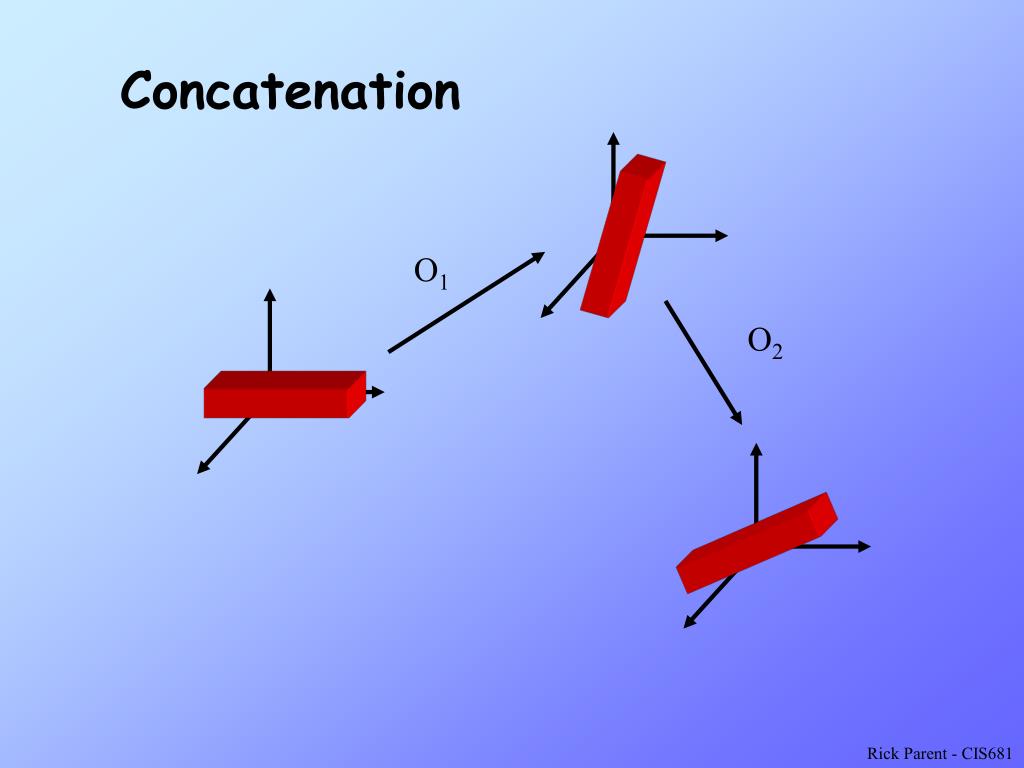

  7. O1 O2 Concatenation

  8. Orientation Representation Rotation Matrix Fixed Angles Euler Angles Axis-Angle Quaternion

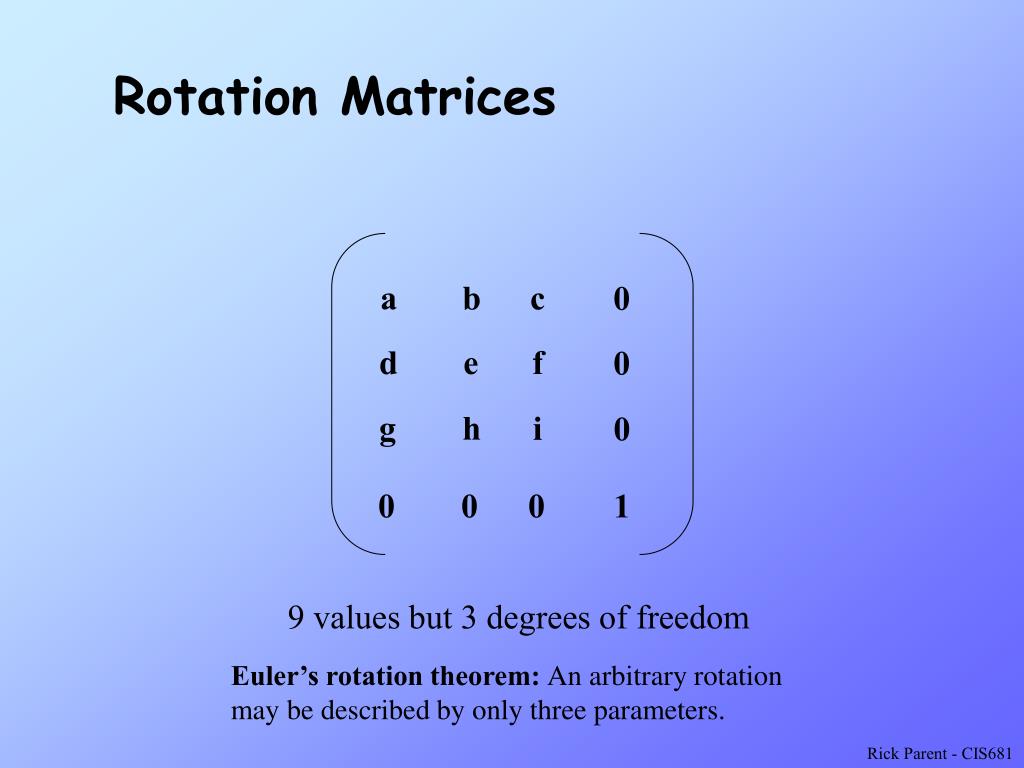

  9. c a b 0 d e f 0 g h i 0 0 0 0 1 Rotation Matrices 9 values but 3 degrees of freedom Euler’s rotation theorem: An arbitrary rotation may be described by only three parameters.

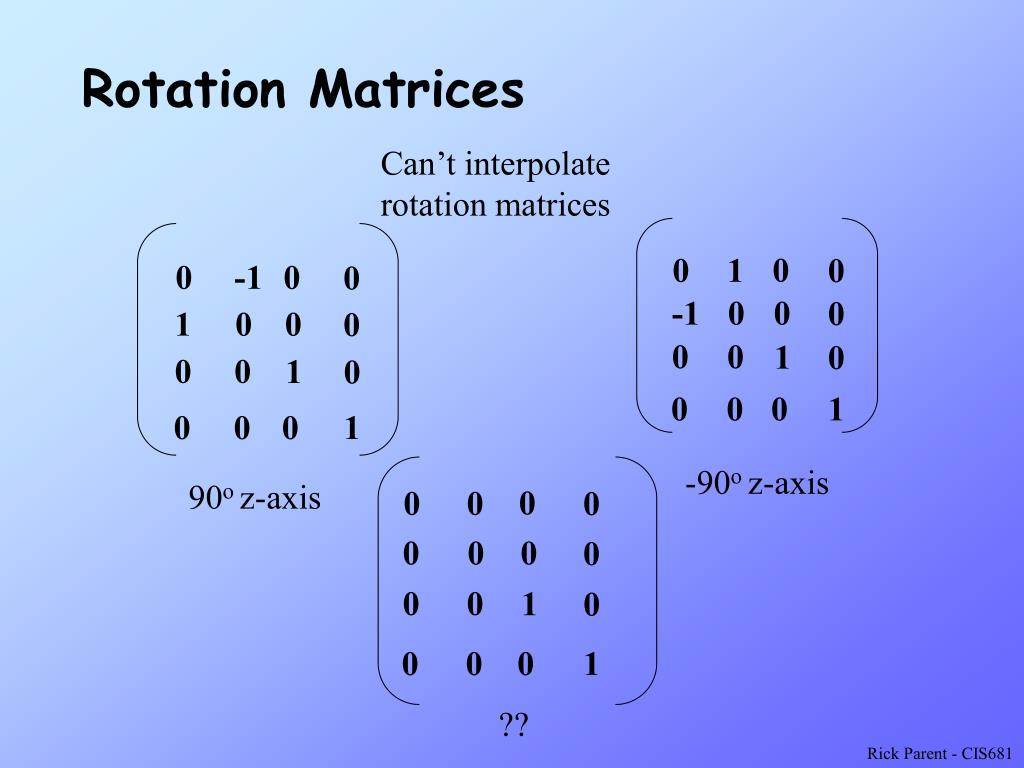

  10. 0 -1 0 0 0 0 1 0 1 0 0 0 -1 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 1 ?? Rotation Matrices Can’t interpolate rotation matrices -90o z-axis 90o z-axis

  11. Y X Z Fixed Angles Ordered triple of rotations about global axes, any triple can be used that doesn’t immediately repeat an axis, e.g., x-y-z, is fine, so is x-y-x. But x-x-z is not. E.g., (qz, qy, qx) Q = Rx(qx). Ry(qy). Rz(qz). P

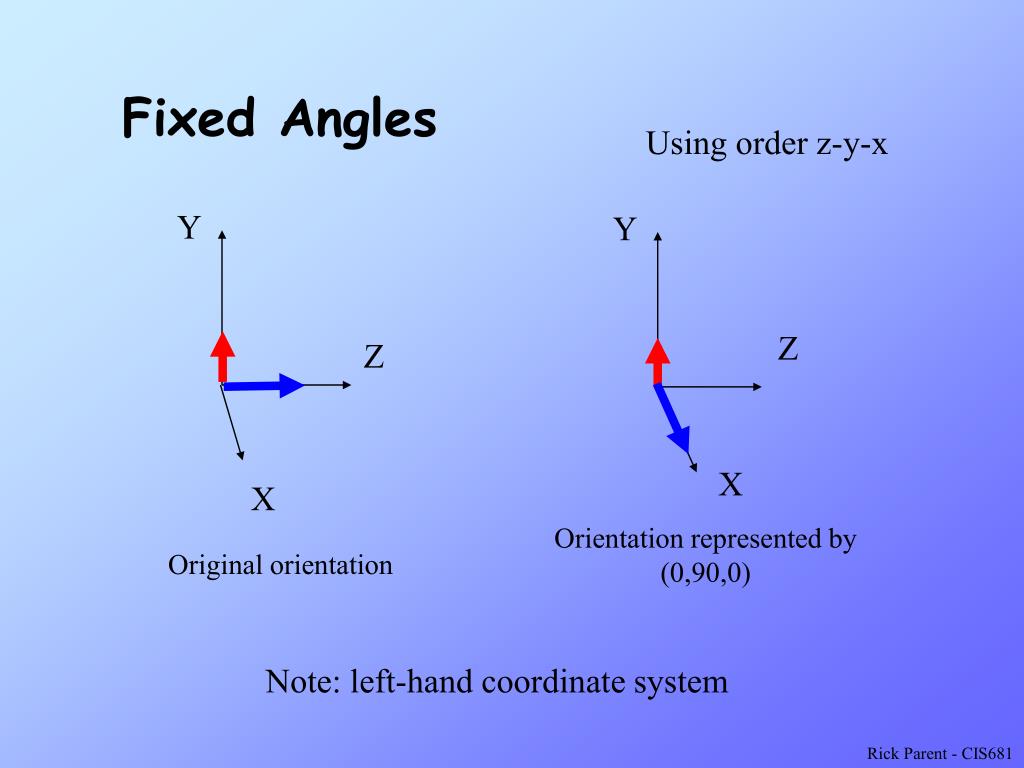

  12. Y Y Z Z X X Fixed Angles Using order z-y-x Orientation represented by (0,90,0) Original orientation Note: left-hand coordinate system

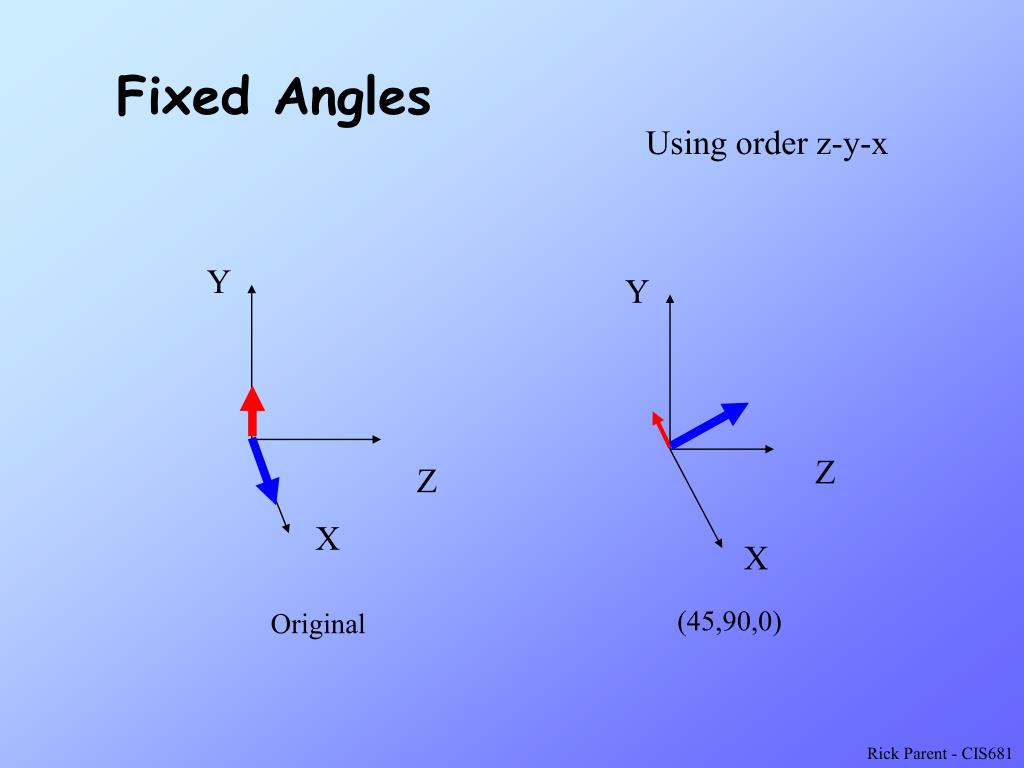

  13. Y Z X Fixed Angles Using order z-y-x Y Z X (45,90,0) Original

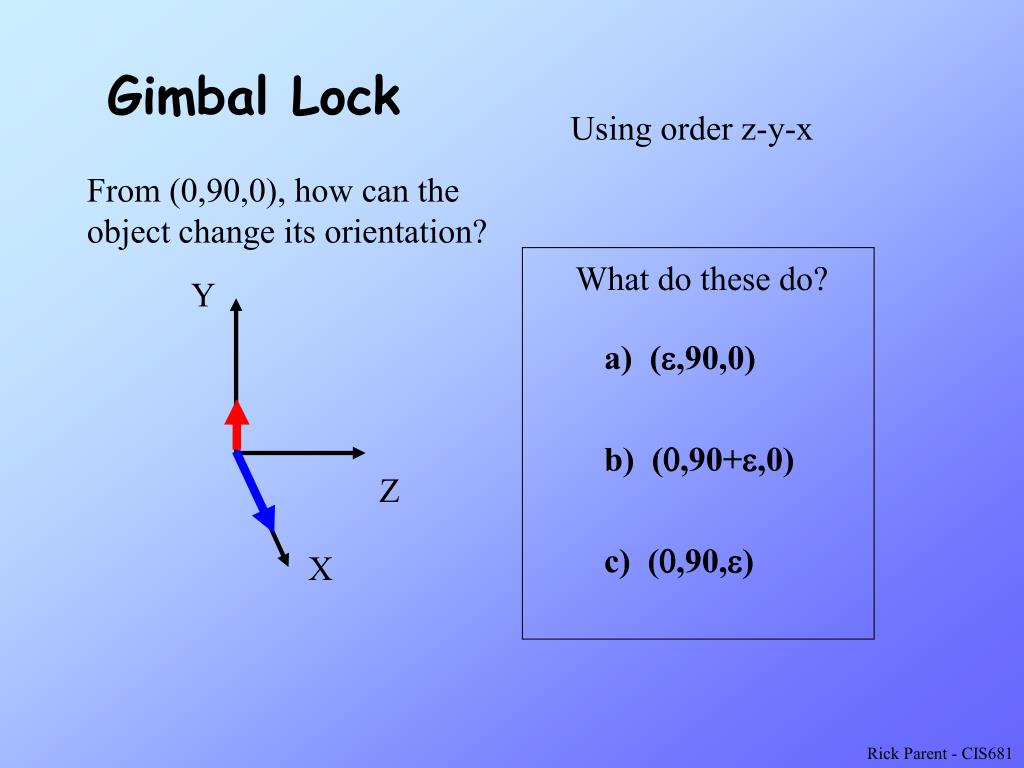

  14. Y Z X Gimbal Lock Using order z-y-x From (0,90,0), how can the object change its orientation? What do these do? a) (e,90,0) b) (0,90+e,0) c) (0,90,e)

  15. Y Y Is same as X-axis rotation Z Z X X (0,90,0) (0,90,45) Fixed Angles (0,90,0) (-45,90,0) Changing Z-axis parameter

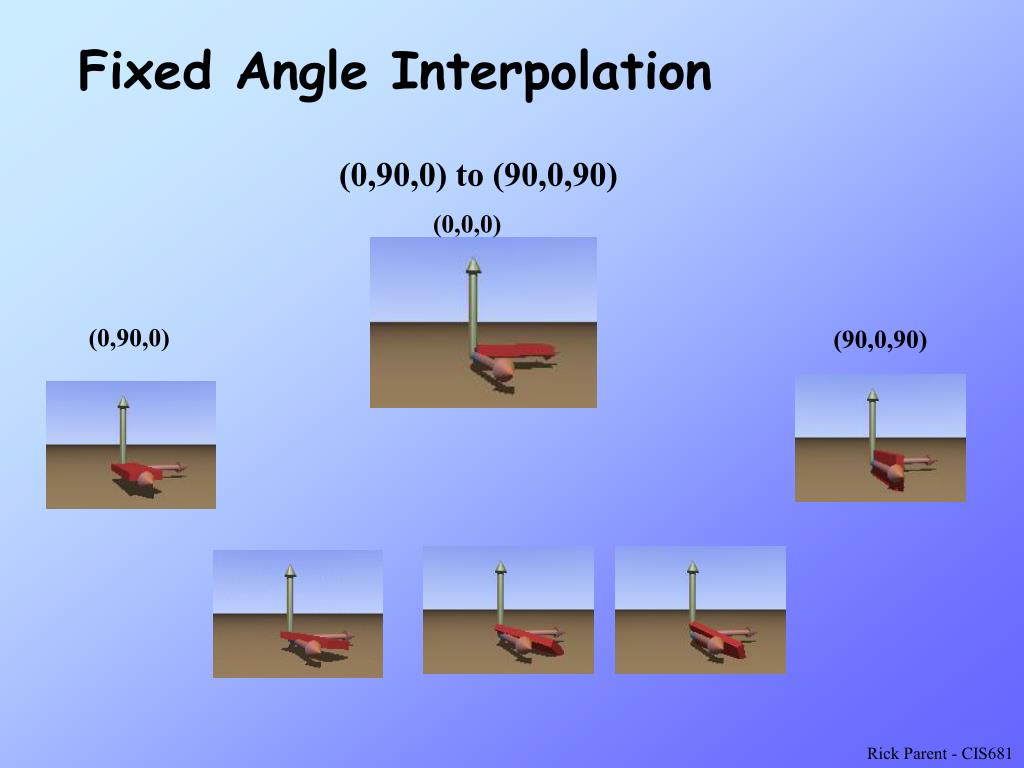

  16. Fixed Angle Interpolation (0,90,0) to (90,0,90) (0,0,0) (0,90,0) (90,0,90)

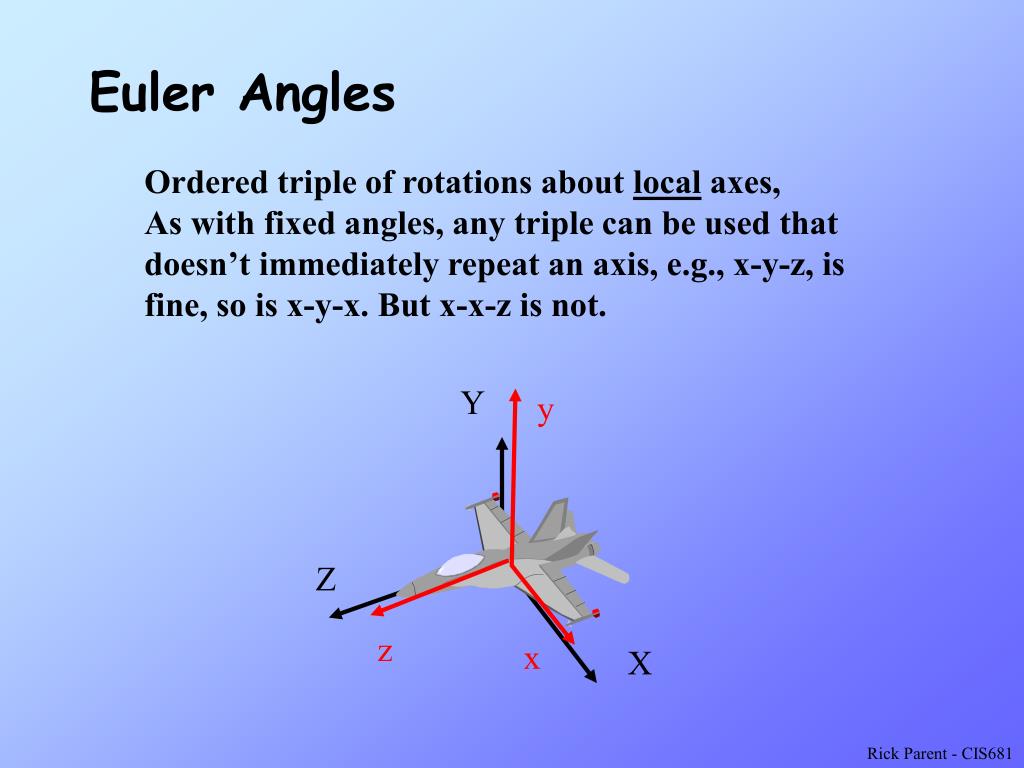

  17. Y y Z z x X Euler Angles Ordered triple of rotations about local axes, As with fixed angles, any triple can be used that doesn’t immediately repeat an axis, e.g., x-y-z, is fine, so is x-y-x. But x-x-z is not.

  18. Y y Z z x X Euler Angles Use (z,y,x) Show that Euler angle ordering is equivalent to reverse ordering in fixed angles …and so has the same problems

  19. Axis-Angle Rotate object by q around A (Ax,Ay,Az,q) A q Y Z X Euler’s rotation theorem: An arbitrary rotation may be described by only three parameters. ?

  20. Axis-Angle Interpolation 1. Interpolate axis from A1 to A2 Rotate axis about A1 x A2 to get A A1 q1 A Y q A2 A1 x A2 2. Interpolate angle from q1 to q2 to get q q2 Z X 3. Rotate object by q around A

  21. Quaternions Has the same information as axis-angle but in a more computational-friendly form q =[s,v] =[s,x,y,z] A q (cos(q/2),sin(q/2)*A)

  22. Quaternions Basic math operations

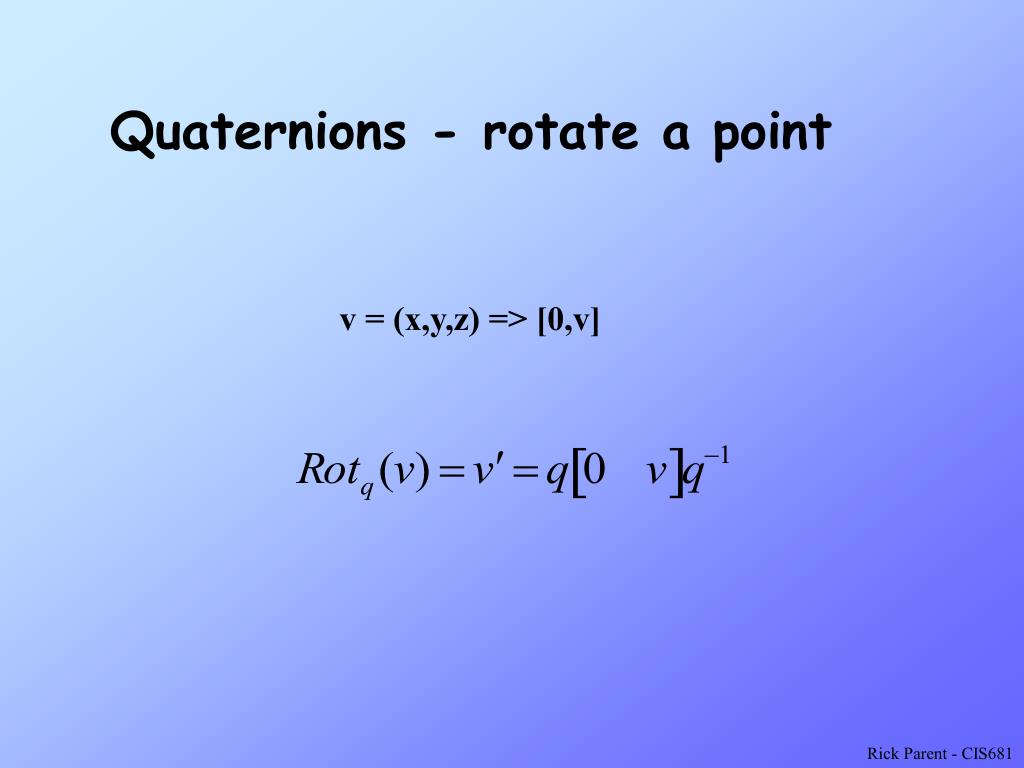

  23. Quaternions - rotate a point v = (x,y,z) => [0,v]

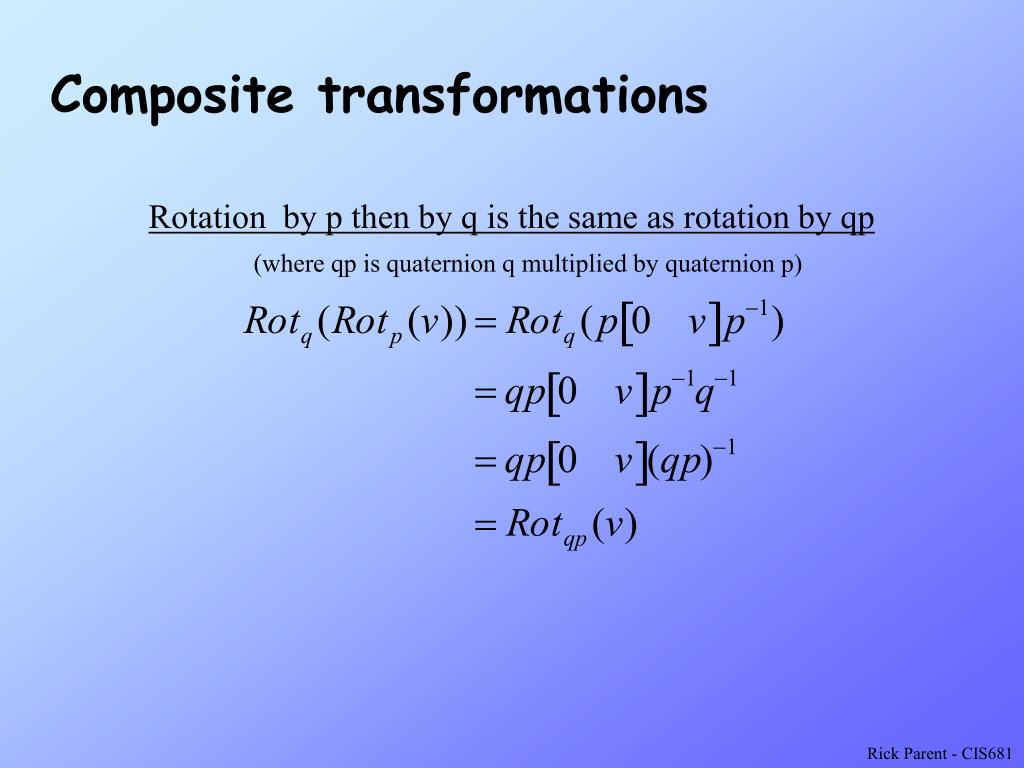

  24. Composite transformations Rotation by p then by q is the same as rotation by qp (where qp is quaternion q multiplied by quaternion p)

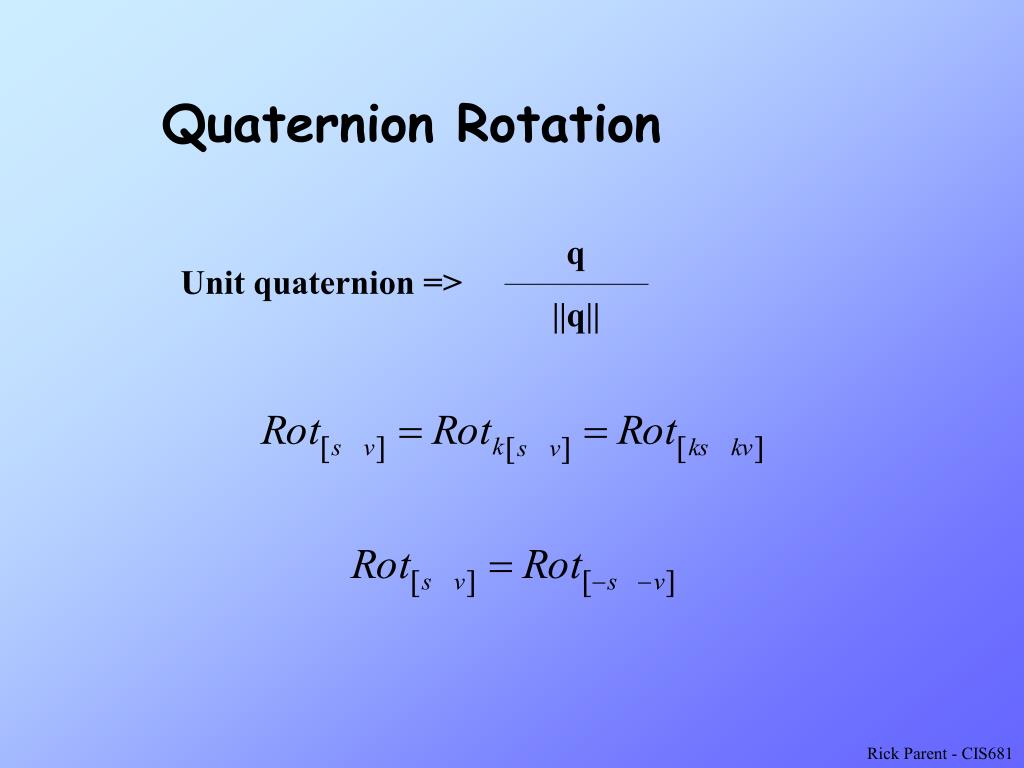

  25. Quaternion Rotation q Unit quaternion => ||q||

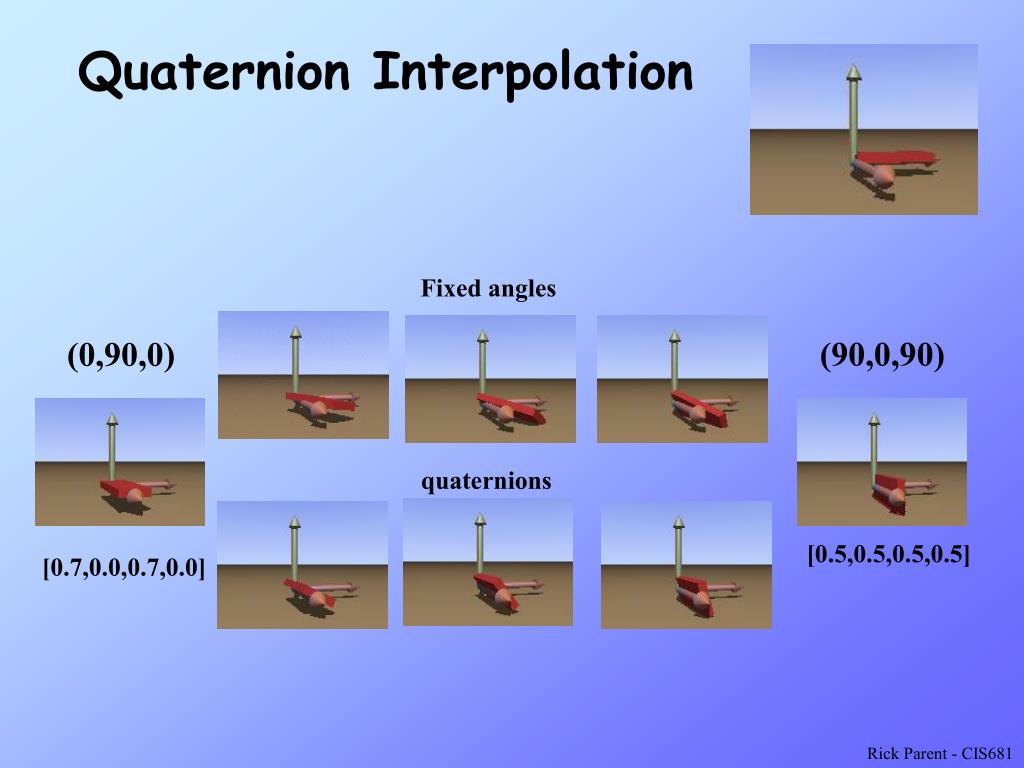

  26. Quaternion Interpolation Fixed angles (90,0,90) (0,90,0) quaternions [0.5,0.5,0.5,0.5] [0.7,0.0,0.7,0.0]

  27. Quaternion Interpolation Linearly interpolating fixed angles from (0,90,0) to (90,0,90) Interpolating quaternions from (0.5,0.0,1.0,0.0) to (0.5,0.5,0.5,0.5) using sphereical linear interpolation
