  1. Introducing ArcGIS Chapter 1

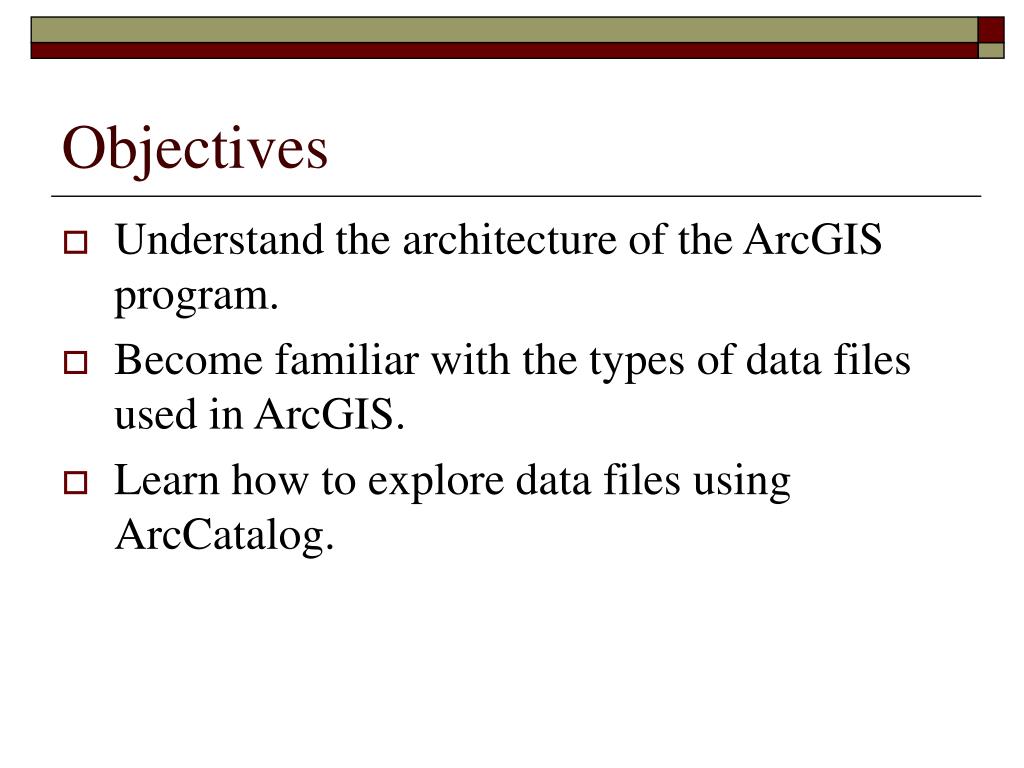

  2. Objectives • Understand the architecture of the ArcGIS program. • Become familiar with the types of data files used in ArcGIS. • Learn how to explore data files using ArcCatalog.

  3. Storing Map Data • Vector vs. Raster • x, y coordinates (sometimes z) • Attribute • Information represented • (i.e., soil type) • Georeferenced • Tied to a specific location on the Earth’s surface

  4. Vector Model • Features • X, Y coordinates • Points • Lines • Polygons

  5. Vector Model • Point • 1 x, y coordinate • Line • 2 x, y coordinates • Nodes • Polygon • More than 2 x, y coordinates • Vertex (vertices)

  6. Vector Model • Feature Classes • 1 type of geometry • Share a table containing their attributes • Have like attributes

  7. Vector Model • FID (feature identification code) • Thematic mapping • Displaying features based on their value

  8. Vector Model • Storing feature classes • Shapefiles (shp) • One feature class • Coverages

  9. More storage… • Feature Datasets • Roads • Traffic lights • Railroads • Gas stations

  10. Fact of the day…. A regular hen's egg has about 7,000 tiny pores in its shell.

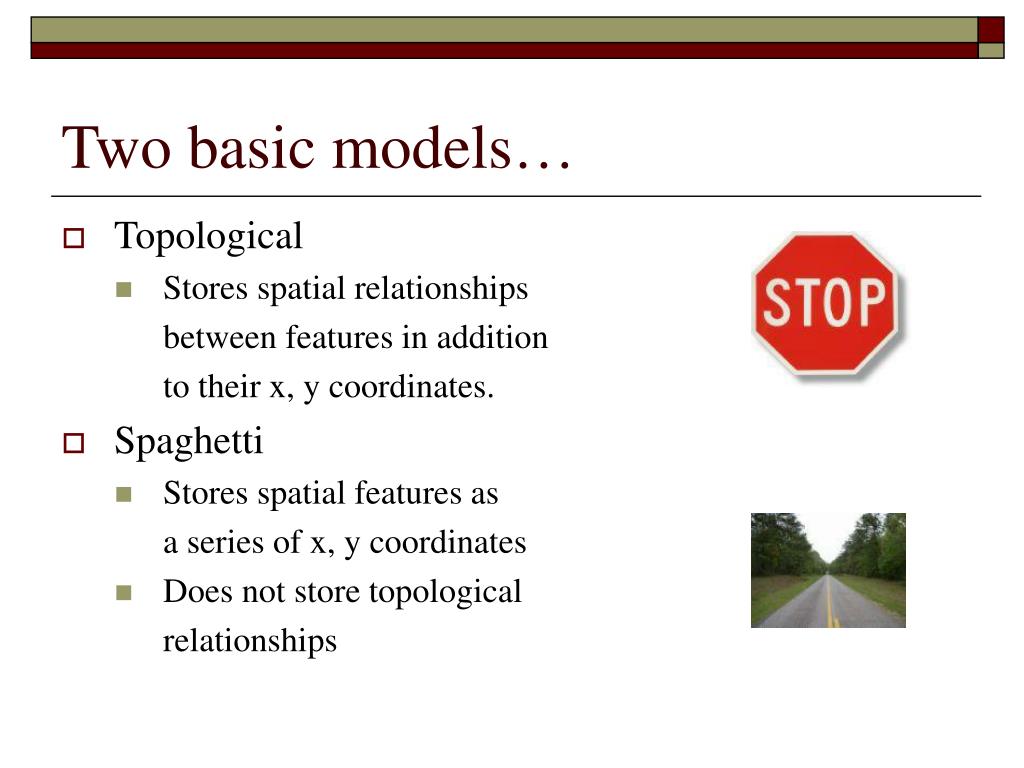

  11. Two basic models… • Topological • Stores spatial relationships between features in addition to their x, y coordinates. • Spaghetti • Stores spatial features as a series of x, y coordinates • Does not store topological relationships

  12. Benefits of Vector • Stores with high degree of precision • Flexibility • Mapmaking • Compact storage • Certain types of analysis

  13. Drawbacks of Vector • Does not store continuous information well • Elevation, precipitation, etc. • Time consuming analysis for some types

  14. Raster Model

  15. Raster Model • Grid-cell • Row and column • Land use • Resolution • Higher=more precise • Lower=less precise

  16. Two types of Raster • Discrete • Few values repeat themselves • Roads • Continuous • Range smoothly from one location to another • Elevation

  17. Benefits of Raster • Continuous data • Analysis are simple to perform • Map algebra • Algebraic expression

  18. Drawbacks to Raster • Precision vs. storage • Ability to store attributes • To store geology and infiltration values, need two rasters

  19. ArcGIS overview • ArcMap • Display, analyze, edit spatial data • ArcCatalog • Viewing and maintaining spatial data files • ALWAYS use to delete, copy, rename, move files

  20. ArcToolbox • Collection of tools and functions • More can be downloaded

  21. Data Files • Shapefiles • Only one feature class • Points, lines, polygons • Green icons • Must contain: • .shp • The main file that stores the feature geometry • .shx • The file that stores the index of the feature geometry • .dbf • The database of attributes

  22. Coverages • Oldest • Multiple feature sets • .adf (arc data file) • Yellow icons

  23. Geodatabases • Multiple feature classes • Include tables • Rules • Stop light must be on road • 2 types: • Personal • Ind. & Microsoft Access • Enterprise • Groups and editing

  24. Database connections • Permits users to log in and utilize data from an enterprise geodatabase.

  25. Layer Files • Does not contain spatial data • How it should be displayed • Store symbols

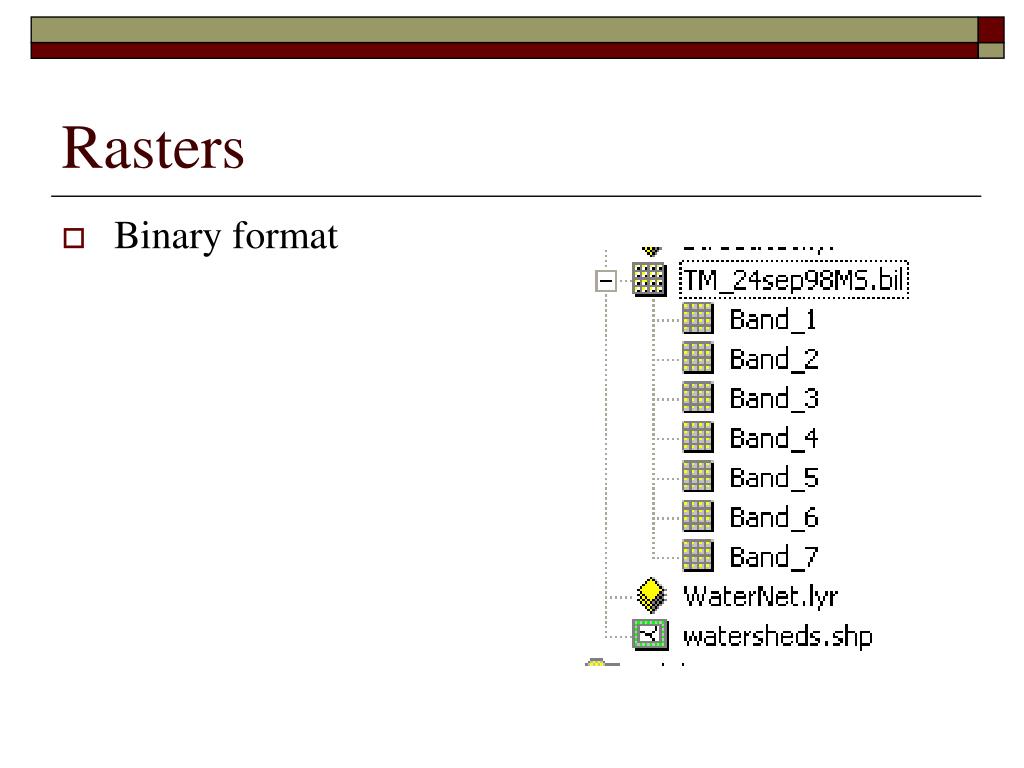

  26. Rasters • Binary format

  27. Tables • Unassociated with spatial data set • Standalone tables • .dbf (dBase format)

  28. Others • Grids • Raster format • Internet Servers • Image=print • Feature=download • TINs • Triangulated Irregular Networks • 3-D

  29. CAD drawings • Created in CAD can be read by ArcGIS • Cannot be edited unless converted

  30. Metadata • Data about data • Who created? • Time relevant? • Coordinate system? • What the fields mean?

  31. Context Menus • Right click on name

  32. Left click on symbol

  33. Right click on symbol

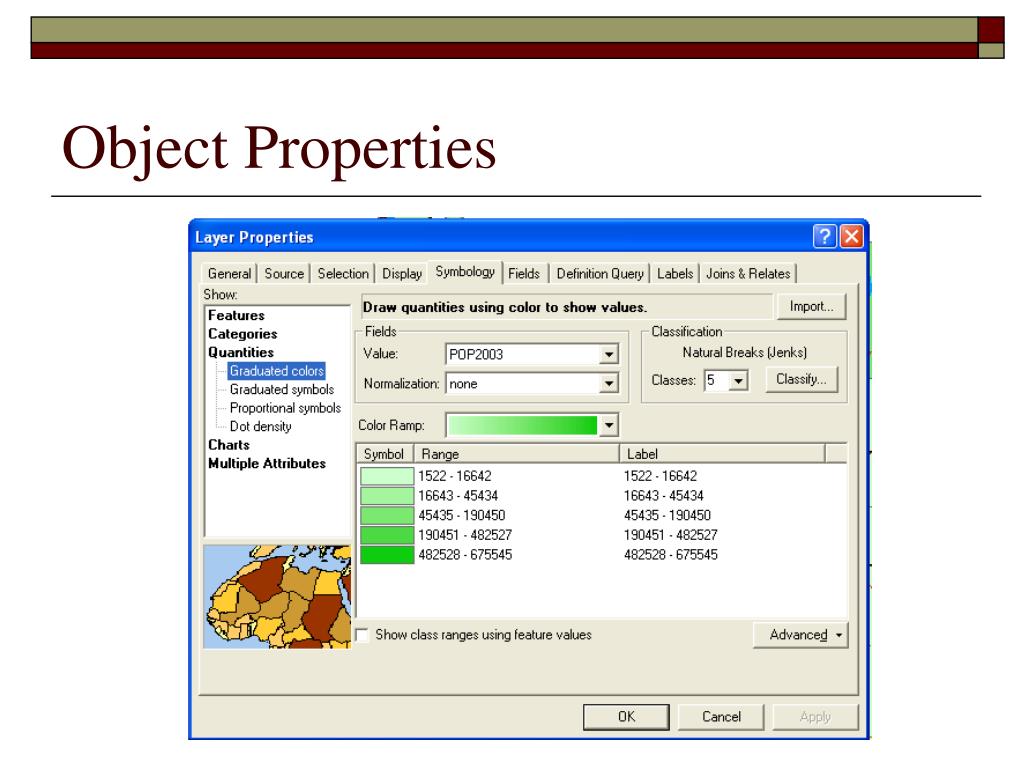

  34. Object Properties

  35. Arc Catalog • ALWAYS used to copy, delete, rename, modify spatial data. • Viewing files

  36. Preview tab • Geography or Table

  37. Metadata • Decode what the information is telling you!!!

  38. ArcToolbox • About 30 tools • Develop your own tools • ModelBuilder

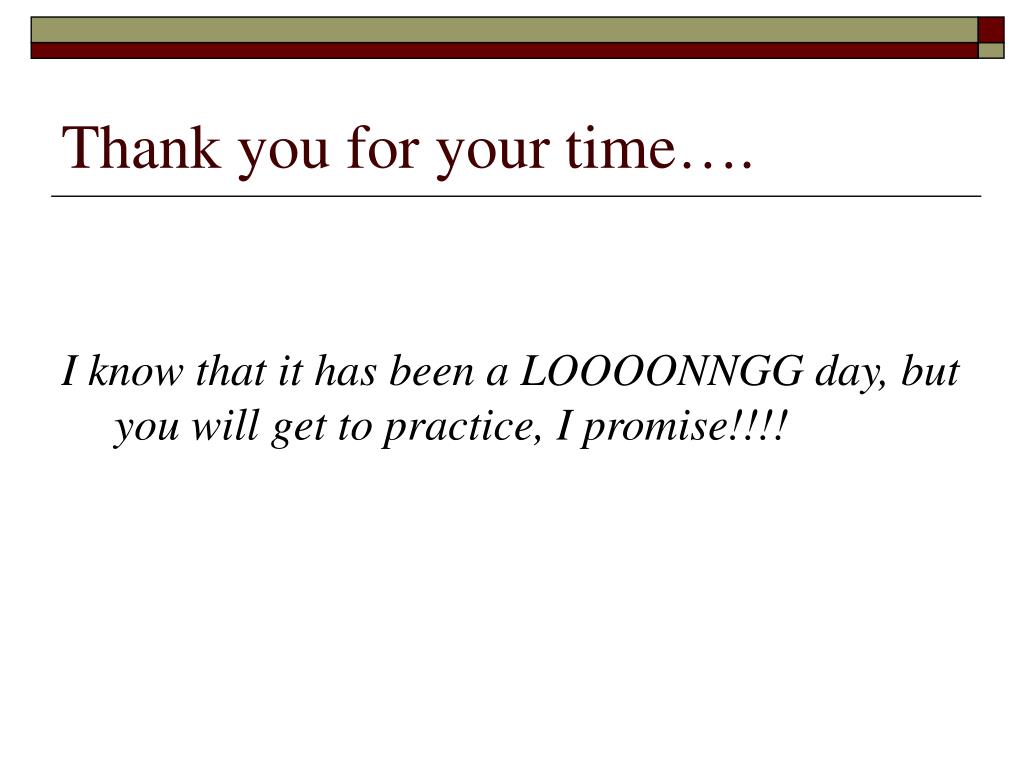

  39. Thank you for your time…. I know that it has been a LOOOONNGG day, but you will get to practice, I promise!!!!
