scaling proof carrying code to production compilers and security policies

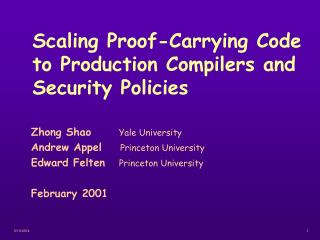

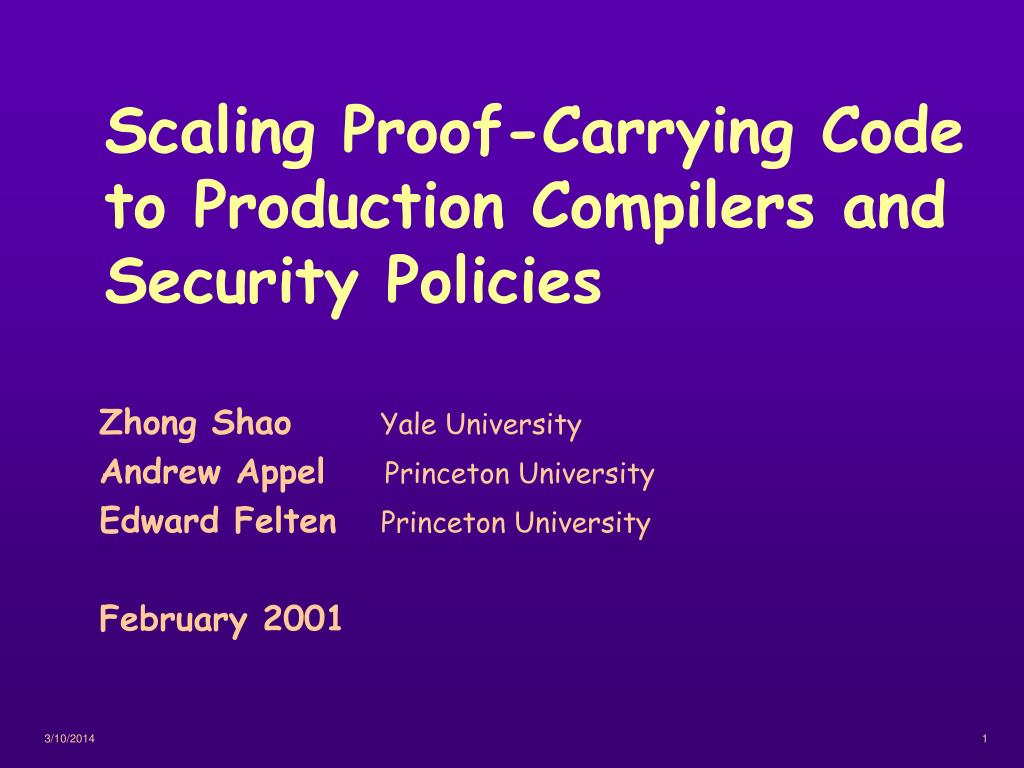

Scaling Proof-Carrying Code to Production Compilers and Security Policies

Zhong Shao Yale University

Andrew Appel Princeton University

Edward Felten Princeton University

February 2001

problem motivation
Problem & Motivation

How to enforce advanced security policies in the presence of malicious mobile code?

Why ?

  • The world is getting more net-centric

(Sun “the network is the computer”; Microsoft .NET)

  • Mobile code will define the platform

(e.g., Java VM, Microsoft Common Language Runtime)

mobile code threats attacks
Mobile code can:

Overwrite memory

Read private memory

Create machine code and jump to it

Execute illegal instructions

Obtain control

Infinite-loop (in a system without interrupts)

……

Abuse of API calls:

Read files on disk

Write files on disk

Obtain critical locks

Denial of service

Perform operations without holding required lock

……

Mobile Code Threats & Attacks
examples of advanced security policies
Execute no more than N instructions between API calls

Hold at most N locks at once

Read/write only from readable/writable locations

Sequence API operations according to a security automaton [Schneider]

Any packet sent must be a copy of some packet received

Any message sent must be logged to a file

Domain specific ones: don’t withdraw more than $100 from my bank account

Moral: need something more powerful than JVM, SFI, sandboxing, …

The traditional notion of “type safety” is not enough !

Examples of Advanced Security Policies
mobile code system a closer look

Code

Verifier

OK

JIT Compiler

native code

Trusted

Computing

Base

Execute

Core Runtime

(e.g., garbage collector)

The “verifier” is not the whole story: the JIT, core runtime and core API must not break the “security policy” !

Core API

Mobile Code System: A Closer Look

Bytecode

Code Producer

Host Environment

Source

Program

load r3, 4(r2)

add r2,r4,r1

store 1, 0(r7)

store r1, 4(r7)

……

Compiler

Bare HW (disk,net-acc,…)

our approach

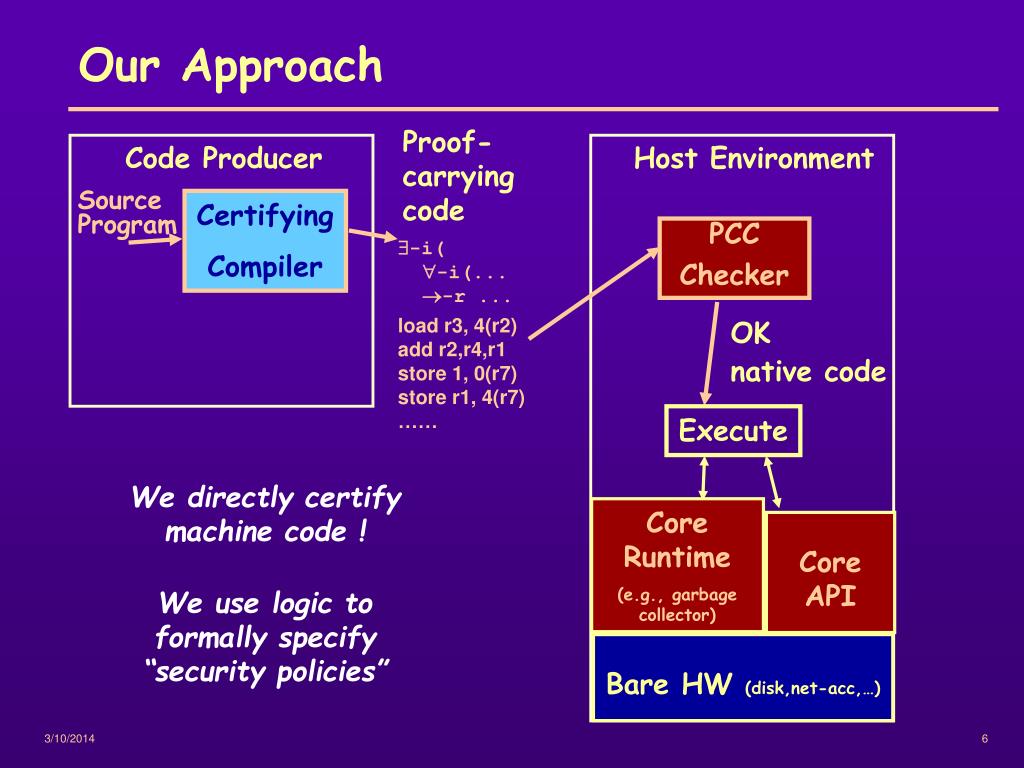

Our Approach

Proof-carrying code

Code Producer

Host Environment

Source

Program

Certifying

Compiler

$-i(

-i(...

-r ...

PCC

Checker

OK

load r3, 4(r2)

add r2,r4,r1

store 1, 0(r7)

store r1, 4(r7)

……

native code

Execute

We directly certify machine code !

We use logic to formally specify “security policies”

Core Runtime

(e.g., garbage collector)

Core API

Bare HW (disk,net-acc,…)

our approach cont d
Our Approach (cont’d)

Code Producer

Host Environment

Foundational PCC

Source

Program

Certifying

Compiler

$-i(

-i(...

-r ...

FPCC Checker

OK

load r3, 4(r2)

add r2,r4,r1

store 1, 0(r7)

store r1, 4(r7)

……

native code

Execute

We construct our security policies and proofs from First Principles --- the standard “higher-order predicate logic”

Core Runtime

(e.g., garbage collector)

Core API

Bare HW (disk,net-acc,…)

our approach cont d8

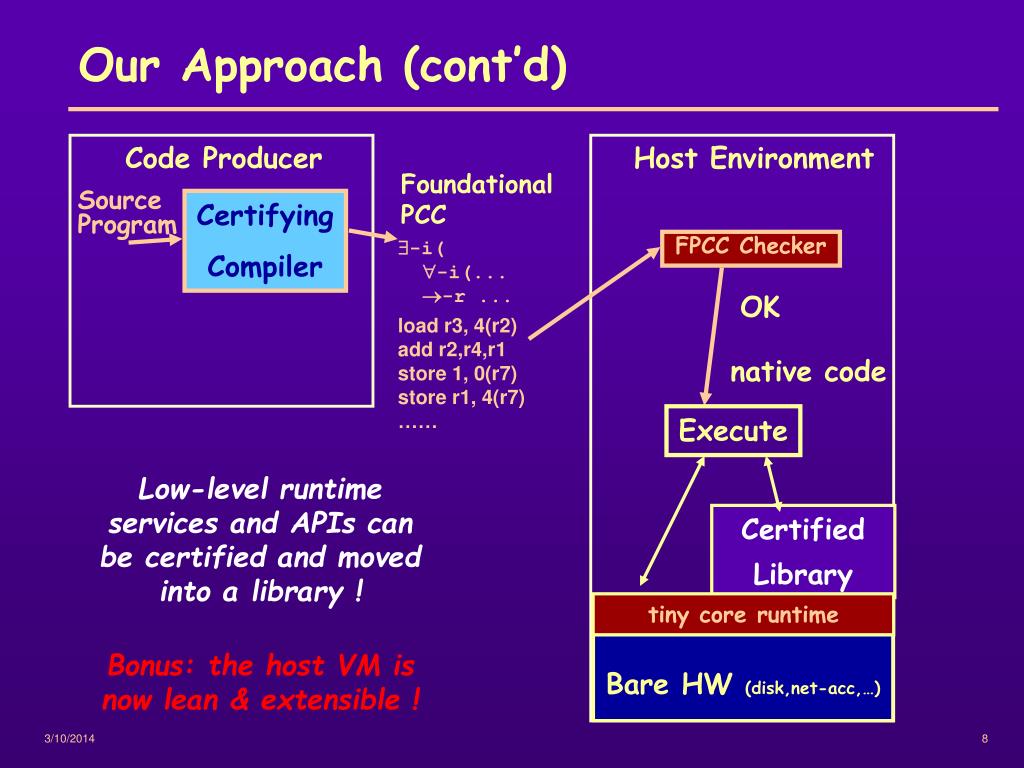

Our Approach (cont’d)

Code Producer

Host Environment

Foundational PCC

Source

Program

Certifying

Compiler

$-i(

-i(...

-r ...

FPCC Checker

OK

load r3, 4(r2)

add r2,r4,r1

store 1, 0(r7)

store r1, 4(r7)

……

native code

Execute

Low-level runtime services and APIs can be certified and moved into a library !

Bonus: the host VM is now lean & extensible !

Certified

Library

tiny core runtime

Bare HW (disk,net-acc,…)

size of trusted computing base

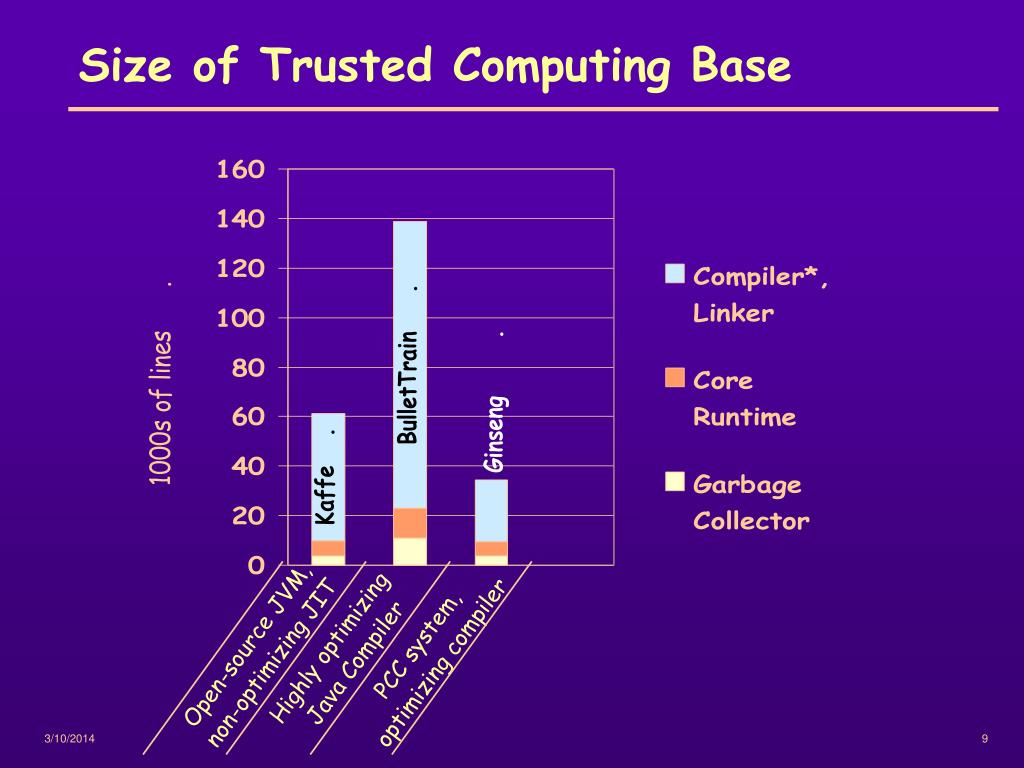

Size of Trusted Computing Base

PCC system,

optimizing compiler

Highly optimizing

Java Compiler

Open-source JVM,

non-optimizing JIT

smallest imaginable tcb
Smallest imaginable TCB

Foundational Proof-Carrying Code

conventional vs foundational pcc
“Conventional” vs. Foundational PCC

Warning: these are research goals, not measurements of a built system. Your mileage may vary.

project organization
Project Organization

Felten, Appel

Princeton U.

Distributed

Authentication

Frameworks:

Proof-Carrying

Authentication

Appel, Felten

Princeton U.

Mobile Code

Security:

Proof-Carrying

Code

Shao

Yale U.

Certifying

Compilers:

FLINT/Java

FLINT/ML

Language- &

machine-

independent

mobile code

safe lang.

interop.

Secure

Key

Distribution

File servers

Secure

Linking

PCC systems

for Java, ML

pcc system a closer look

Hints

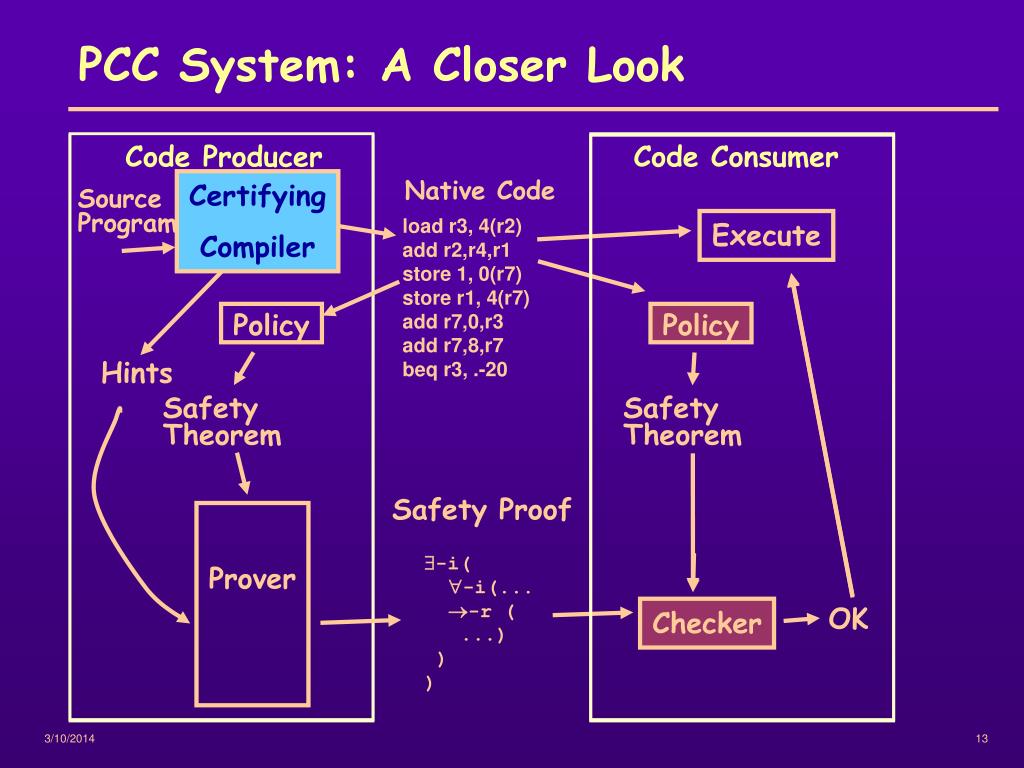

PCC System: A Closer Look

Code Producer

Code Consumer

Native Code

Certifying

Compiler

Source

Program

Execute

load r3, 4(r2)

add r2,r4,r1

store 1, 0(r7)

store r1, 4(r7)

add r7,0,r3

add r7,8,r7

beq r3, .-20

Policy

Policy

Safety

Theorem

Safety

Theorem

Safety Proof

Prover

$-i(

-i(...

-r (

...)

)

)

OK

Checker

phases of a compiler

type-check

type-check

type-check

type-check

type-check

Phases of a Compiler

Traditional

compiler

Certifying

compiler

Source Program

type-check

Parse, Semantic

untyped

High-level intermed.

lang (IL)

Analysis,

Optimization

untyped

Medium-level IL

Code Generation

untyped

Low-level IL

Register Allocation

untyped

Typed

Machine Language

construction of proofs for pcc

prove

prove

prove

prove

specify

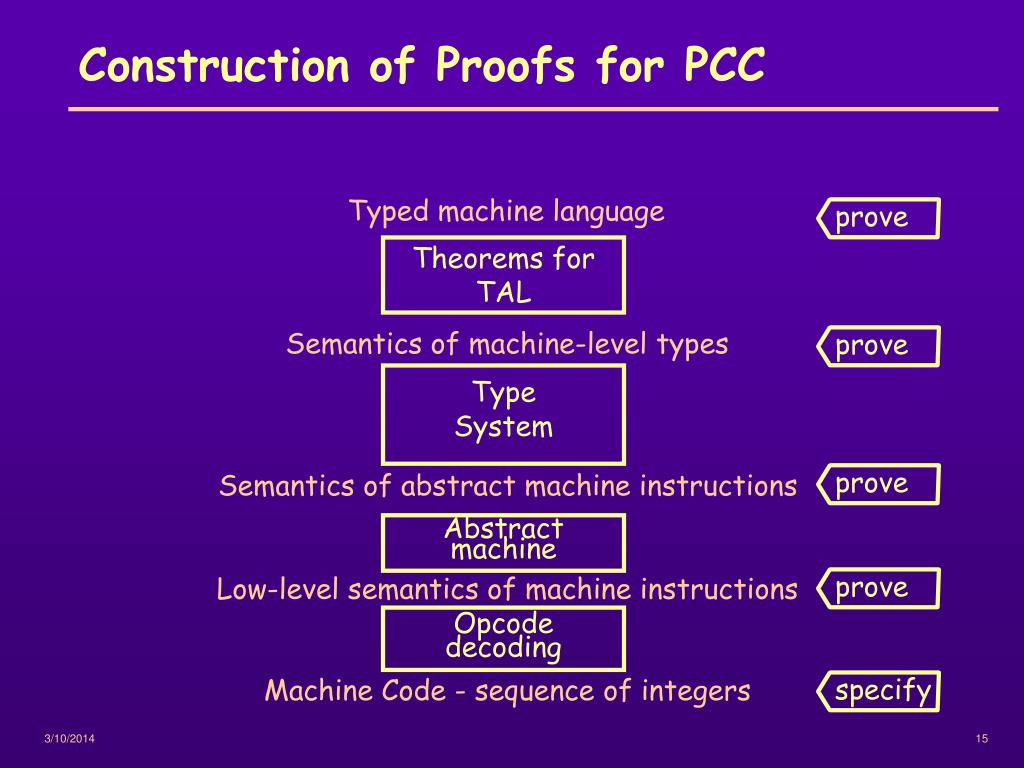

Construction of Proofs for PCC

Typed machine language

Theorems for TAL

Semantics of machine-level types

Type

System

Semantics of abstract machine instructions

Abstract machine

Low-level semantics of machine instructions

Opcode decoding

Machine Code - sequence of integers

compiler prover interface

Year 1

Year 2

Year 3

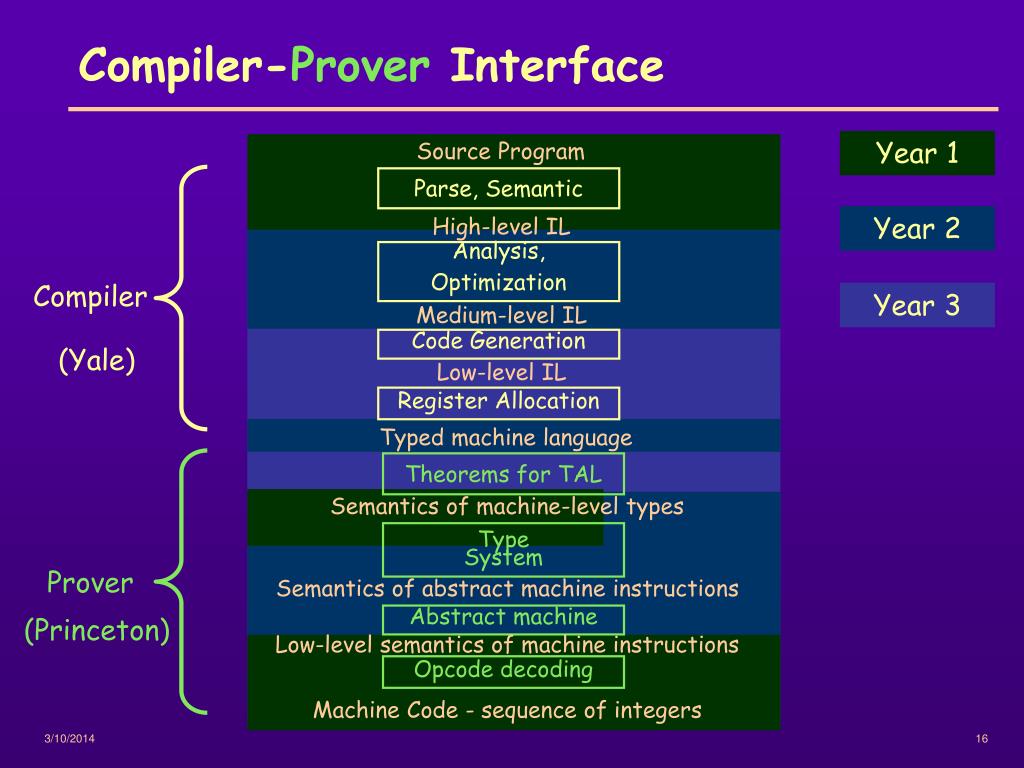

Compiler-Prover Interface

Source Program

Parse, Semantic

High-level IL

Analysis,

Optimization

Compiler

Medium-level IL

Code Generation

(Yale)

Low-level IL

Register Allocation

Typed machine language

Theorems for TAL

Semantics of machine-level types

Type

System

Prover

Semantics of abstract machine instructions

Abstract machine

(Princeton)

Low-level semantics of machine instructions

Opcode decoding

Machine Code - sequence of integers

the flint certifying compiler

type-check

type-check

type-check

The FLINT Certifying Compiler

ML

Java

Add new front-ends to build new certifying compilers !

Safe C

Parse & semantic

Parse & semantic

Parse & semantic

Goal: to build a FLINT VM that uses low-level typed mobile code, and can run on any device !

Currently used & released by SML/NJ; the Java and C front-ends are under active development.

High-level FLINT

Analysis & Optimization

Medium-level FLINT

Code Gen.

Low-level FLINT

Hints

Safety

Theorem

Theorem

Prover

Program for execution

flint meets fpcc
FLINT meets FPCC
  • Relevant problems:
    • How to specify policy
    • How to prove consistency of policy
    • Reference implementation of host-side of API
    • Strategies to generate & prove code conformant with policy
  • New version of FLINT can express invariants, props & proofs in its type system:
    • Use Curry-Howard Isomorphism
    • Typed FPCC is more user-friendly and scalable
    • Backward compatibility with existing APIs (e.g., JVM)
main technical results last 6 months
Theoretical foundations

Models for security policies in proof-carrying code

Indexed model of recursive types

Fully reflexive intensional type analysis in type-erasure semantics [TIC’00]

Type-preserving compilation of Mini-Java [FOOL’00]

Type-preserving GC [POPL’01] & Principled scavenging [PLDI’01]

A generic framework for certified binary

Progress on implementation

Built proof-carrying authorization prototype (browser/webserver)

Indexed model of types

Mutable fields

Typed machine language

Prototype JVML-to-FLINT compiler

Prototype typesafe GC

New FLINT backend with proof-passing typed ILs

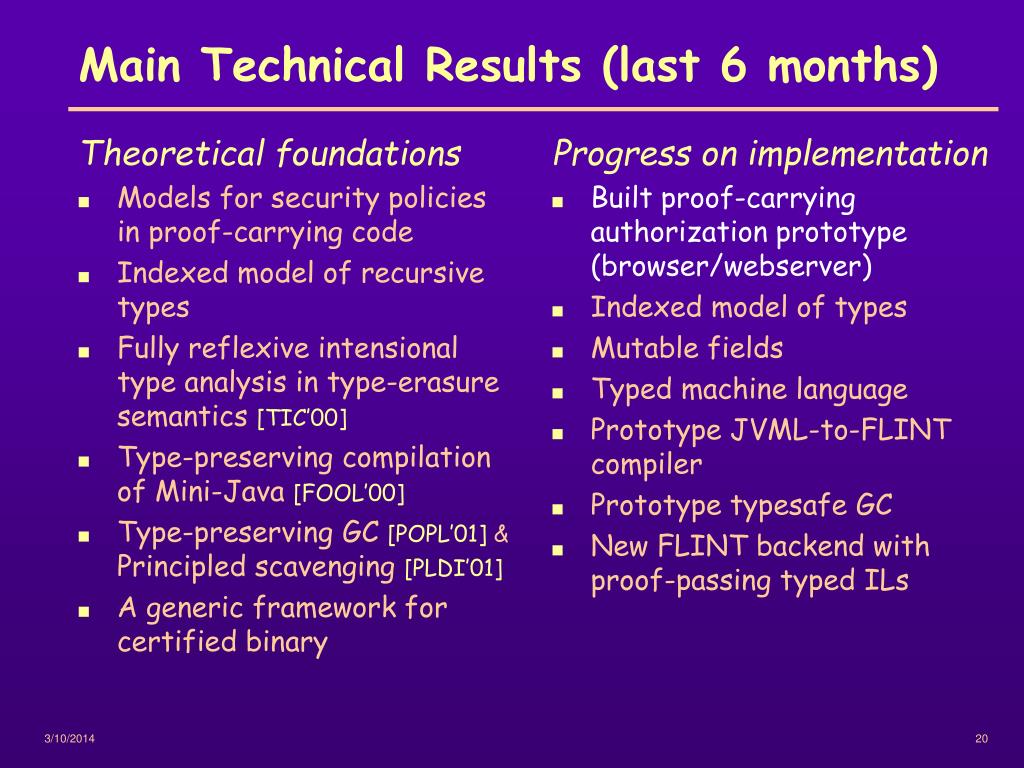

Main Technical Results (last 6 months)
web server browser prototype
Web server/browser prototype

get http://...

Web Server

Custom

Proxy

Server

Browser

authenticate

proof

web page

Prover

Checker

  • Built by Felten and students (Bauer, Schneider) at Princeton
  • Implementation is complete
  • Flexible, extensible, general
  • Can’t probe system for axioms (security policy available to client on a need-to-know basis)
components of pca prototype
Components of PCA prototype

Client

Server

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

COTS components

Custom Java code

Twelf system from CMU

sample exchange access a protected page
Sample exchange: access a protected page

Alice : GET https://server/midterm.html

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

HTTPS protocol allows secure transmission and session IDs

server generate the goal to be proved
Server: Generate the goal to be proved

P1 = says @ (key @ “serverkey”)

@ (goal @ “https://server/midterm.html” @ “sid”)

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

server challenges client proofs
Server: Challenges; Client: Proofs

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

Authorization required: prove P1 : Bob

client generate the proof
Client: Generate the proof
  • Self-signed assumptions
  • ACLs
  • Server time
  • Hints

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

client send the proof
Client: send the proof

Alice : GET https://server/midterm.html

pf (says @ (key @ “serverkey”)

@ (goal @ “http://server/midterm.html”

@ “sid”)) = …

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

server check the proof serve the request
Server: check the proof, serve the request

Alice : GET https://server/midterm.html

pf (says @ (key @ “serverkey”)

@ (goal @ “http://server/midterm.html”

@ “sid”)) = …

Client (Alice)

Server (Bob)

Web

browser

HTTPproxy

HTTP server

Hintserver

Prover

Prop.Gen.

Checker

Here you go: midterm.html : Bob

project summary four questions
Project Summary (Four Questions)
  • Threats & attacks we consider:
    • Malicious mobile code; abuse of API calls
  • Assumptions we make:
    • Policies employed use consistent rules
    • Proofs are based on consistent axioms
    • Hardware & code in (minimized) TCB are “well-behaved”
  • Policies we can enforce:
    • Any security policies with formal specifications

(expressible in Higher-Order Predicate Logic)

conclusions
Conclusions
  • Mobile code will define the platform (e.g., JVM, .NET)
  • Enforcing “advanced” security policies requires building “new infrastructure”:
    • Certifying compiler for mainstream languages (Java, C)
    • Efficient prover and checker
    • Tools & libraries that facilitate certified programming

But the payoff is huge !

    • Highly extensible & secure runtime (w. tiny kernel)
    • Language- & platform-indep. certified code&proof libraries
  • Making it practical is challenging but extremely promising
    • Don’t have to deploy the whole thing in one day
    • Technologies for compiler & theorem-proving are quite mature
    • Most security policies are simple (not for “full correctness”)
