  1. Mobility, Security, andProof-Carrying CodePeter LeeCarnegie Mellon University Lecture 1 Course Overview July 10, 2001 Lipari School on Foundations of Wide Area Network Programming

  2. Opportunities and Challenges

  3. On June 4, 1996, the Arianne 5 took off on its maiden flight. 40 seconds into its flight it veered off course and exploded. It was later found to be an error in reuse of a software component. For the next two years, virtually every research presentation used this picture. Arianne 5

  4. “Better, Faster, Cheaper” • In 1999, NASA lost both the Mars Polar Lander and the Climate Orbiter. • Later investigations determined software errors were to blame. • Orbiter: Component reuse error. • Lander: Precondition violation.

  5. USS Yorktown “After a crew member mistakenly entered a zero into the data field of an application, the computer system proceeded to divide another quantity by that zero. The operation caused a buffer overflow, in which data leaked from a temporary storage space in memory, and the error eventually brought down the ship's propulsion system. The result: the Yorktown was dead in the water for more than two hours.”

  6. Programmable mobile devices • By 2003, one in five people will own a mobile communications device. • Nokia expects to sell 500M Java-enabled phones in 2003. • Most of these devices will be power and memory limited.

  7. Observations • Failures often due to simple problems “in the details.” • Reuse is critical but perilous. • Performance still matters a lot.

  8. Safety Engineering • Small theorems about large programs would be useful. • Need clearly specified interfaces and checking of interface compliance. • Must not sacrifice performance.

  9. But in the Real World?

  10. Security Attacks • According to CERT, the majority of security attacks exploit • input validation failure • buffer overflow • VBS http://www.cert.org/summaries/CS-2000-04.html

  11. BSOD embarrassments

  12. Warrantees? LIMITED WARRANTY. Microsoft warrants that (a) the SOFTWARE PRODUCT will perform substantially in accordance with the accompanying written materials for a period of ninety (90) days from the date of receipt, … LIMITATION OF LIABILITY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL MICROSOFT OR ITS SUPPLIERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, …) ARISING OUT OF THE USE OF … THE SOFTWARE PRODUCT… MICROSOFT’S ENTIRE LIABILITY … SHALL BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY PAID BY YOU FOR THE SOFTWARE PRODUCT OR U.S. $5.00; PROVIDED...

  13. Automotive Analogy • “If the automobile had followed the same development as the computer, a Rolls-Royce would today cost $100, get a million miles per gallon, and ...

  14. Automotive Analogy • “If the automobile had followed the same development as the computer, a Rolls-Royce would today cost $100, get a million miles per gallon, and explode once a year killing everyone inside." • - Robert Cringely

  15. Mobile/Wireless Devices • In ‘97, 101M mobile phones vs 82M PCs. (40% vs 14%.) • 95% phones will be WAP enabled by ‘04. • 64Mbits of RAM in 2002. • Battery life a primary factor. • Efficiency and bandwidth will still be precious.

  16. Bluetooth • 670M Bluetooth-enabled devices by ‘03. • 70% of mobile phones Bluetooth-enabled by ‘04. • Priceline.com’s grocery-store scenario. • Commercial world creates demand for “push” technologies.

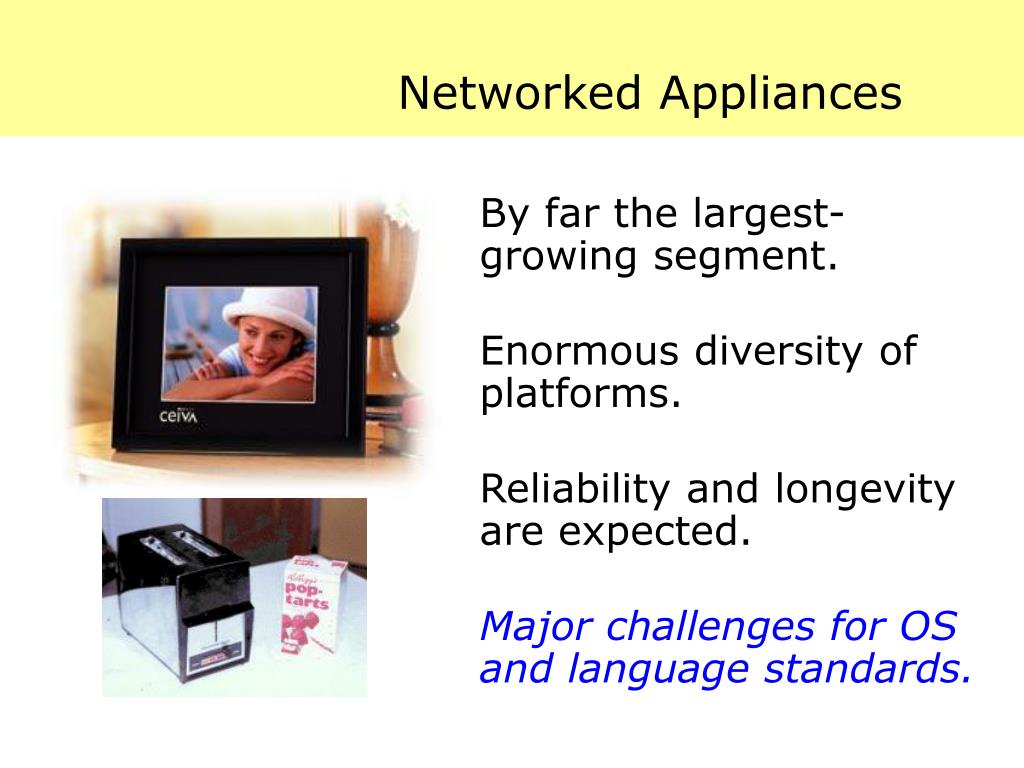

  17. Networked Appliances • By far the largest-growing segment. • Enormous diversity of platforms. • Reliability and longevity are expected. • Major challenges for OS and language standards.

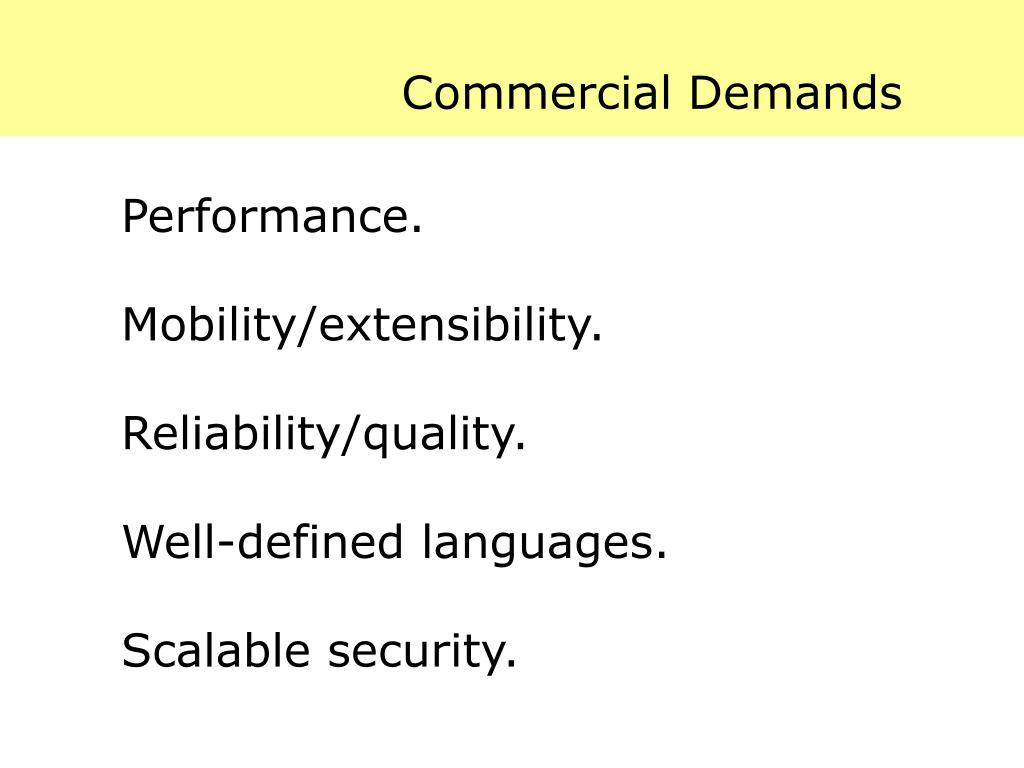

  18. Commercial Demands • Performance. • Mobility/extensibility. • Reliability/quality. • Well-defined languages. • Scalable security.

  19. Opportunities • High assurance depends fundamentally on our ability to reason about programs. • The opportunities for computational logic, type theory, and formal semantics are great.

  20. Challenges • The impact and cost of software failures will increase, as will the demand for extensibility. • The distinction between “safety-critical” and “consumer electronics” software will fade away. • Somebody will provide technology for “safe” systems. Will it be us?

  21. Is the World Ready?

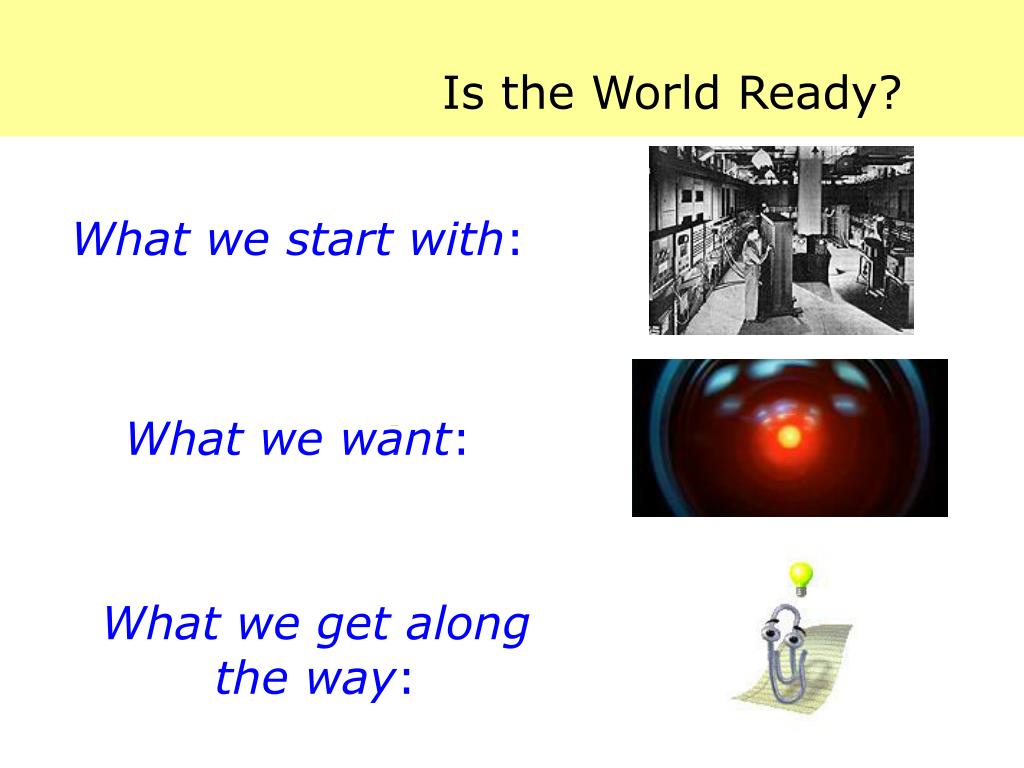

  22. What we start with: What we want: What we get along the way: Is the World Ready?

  23. Is the World Ready? What we start with: What we want: What we get along the way:

  24. Cheese and the Sum Total of Human Knowledge

  25. The Code Safety Problem

  26. The Code Safety Problem Please install and execute this.

  27. Is this safe to execute? CPU Code Safety Code Trusted Host

  28. Trust is based on personal authority, not program properties Scaling problems? CPU Approach 1Trust the Code Producer Code sig PK1 PK2 PK1 PK2 Trusted 3rd Party Trusted Host

  29. Expensive Limited in expressive power (Why?) CPU Approach 2Baby-sit the Program Code Execution monitor E.g., Software Fault Isolation [Wahbe & Lucco], Inline Reference Monitors [Schneider] Trusted Host

  30. Limited in expressive power Expensive and/or big CPU Approach 3Java Code Verifier Interp/ JIT Trusted Host

  31. Theorem Prover Flexible and powerful. CPU Approach 4Formal Verification Code But really really really hard and must be correct. Trusted Host

  32. CPU A Key Idea: Explicit Proofs Code Certifying Prover Proof Checker Proof Trusted Host

  33. No longer need to trust this component. CPU A Key Idea: Explicit Proofs Code Certifying Prover Proof Checker Proof

  34. Typically native or VM code Formal proof or “explanation” of safety Proof-Carrying Code[Necula & Lee, OSDI’96] A rlrrllrrllrlrlrllrlrrllrrll… B

  35. Reasonable in size (0-10%). No longer need to trust this component. Simple, small (<52KB), and fast. CPU Proof-Carrying Code Code Certifying Prover Proof Checker Proof

  36. But... • ...How to generate the proofs? • Proving theorems about real programs is hard. • Most useful safety properties of low-level programs are undecidable. • Theorem-proving systems are unfamiliar to programmers and hard to use even for experts.

  37. The Role ofProgramming Languages • Civilized programming languages can provide “safety for free”. • Well-formed/well-typed  safe. • Idea: Arrange for the compiler to “explain” why the target code it generates preserves the safety properties of the source program.

  38. The Role ofJava in this Short Course • Java will be the main focus of the PCC examples in this course. • Java is just barely a civilized programming language. • We can and should do better.

  39. Java • Java is a worthwhile subject of research. • However, it contains many outrageous and mostly inexcusable design errors. • As researchers, we should not forget that we have already done much better, and must continue to do better in the future.

  40. Certifying Compilers[Necula & Lee, PLDI’98] • Intuition: • Compiler “knows” why each translation step is semantics-preserving. • So, have it generate a proof that safety is preserved. • “Small theorems about big programs.” • Don’t try to verify the whole compiler, but only each output it generates.

  41. Object code Source code Proof Looks and smells like a compiler. CPU % spjc foo.java bar.class baz.c -ljdk1.2.2 Automation viaCertifying Compilation Certifying Prover Certifying Compiler Proof Checker

  42. Overview of the Necula/Lee Approach to PCC

  43. Note • Our current approach seems to work for many problems. • But it is the only one we have tried — there are many others. • PCC is a general concept and we have just barely scratched the surface.

  44. Overview of Our Approach OK, but let me quickly look over the instructions first. Please install and execute this. Code producer Host

  45. Overview of Our Approach Code producer Host

  46. Overview of Our Approach This store instruction is dangerous! Code producer Host

  47. Overview of Our Approach Can you prove that it is always safe? Code producer Host

  48. Overview of Our Approach Yes! Here’s the proof I got from my certifying Java compiler! Can you prove that it is always safe?  Code producer Host

  49. Overview of Our Approach Your proof checks out. I believe you because I believe in logic.  Code producer Host

  50. Course Overview
