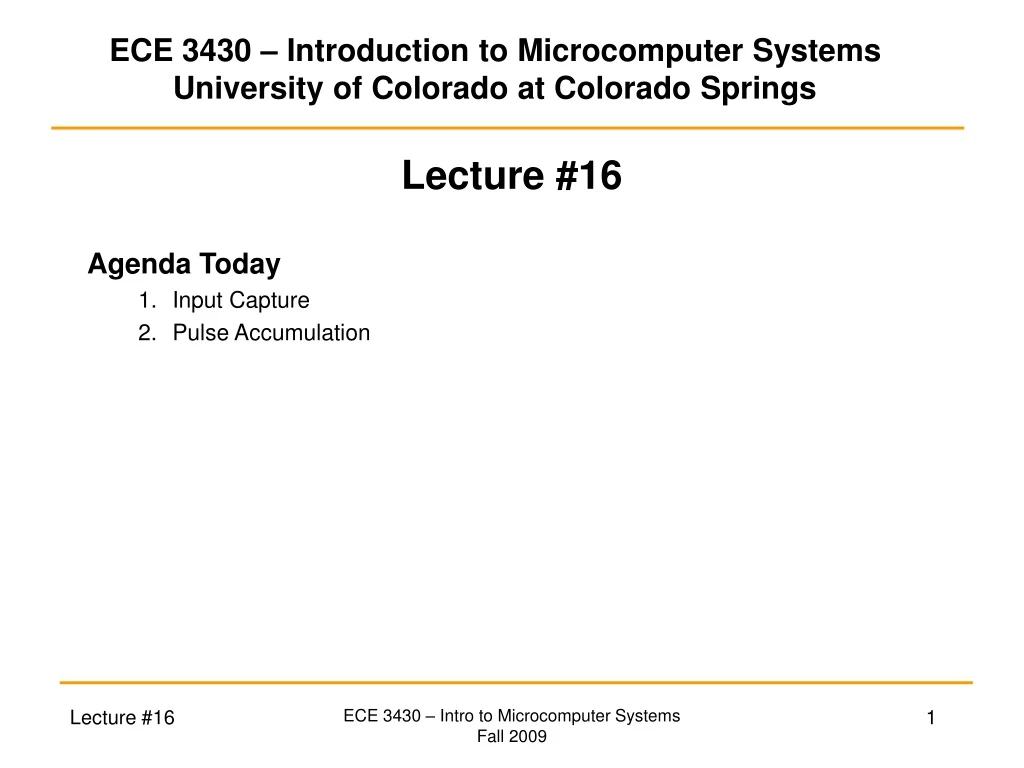

1. ECE 3430 – Introduction to Microcomputer SystemsUniversity of Colorado at Colorado Springs Lecture #16 Agenda Today • Input Capture • Pulse Accumulation ECE 3430 – Intro to Microcomputer Systems Fall 2009

2. Input Capture Input Capture Function - Sometimes a microcontroller needs to measure time between externally generated “events”. A feature of some microcontrollers, called input capture allows the timer sub-system to measure these time periods. - The HC11 (D3) provides 3 input capture channels. Each channel has an associated input pin on the microcontroller. External events are captured through these pins. - When an external event occurs on a given input pin, the value of the main timer (TCNT) is latched (or sampled) into a dedicated 16-bit register. Each input capture channel has a dedicated 16-bit capture register. - If another event occurs, a new TCNT value is latched in over the previous and can be compared to the first event to obtain a relative time between events.Ex) Event 1 Event 2 (TCNT = $0100) (TCNT = $0200) If pre-scale factor is 1, TCNT is clocked at 2 MHz--so each timer tick is worth 500ns of real-time.Time Between Events = ($0200 - $0100) (time per TCNT clocks) = ($100) (500ns) = (256) (500ns) = 128us ECE 3430 – Intro to Microcomputer Systems Fall 2009

3. Input Capture Input Capture Function Details - Input capture channels 1-3 use port A pins 2-0. On the D3, these are always input pins (their directionality cannot be changed): PA2 = Input Capture 1 PA1 = Input Capture 2 PA0 = Input Capture 3 - The external event captured can either be a rising or falling edge of a digital signal (or both). The edge sensitivity can be defined independently for all three channels via bits in the following control register: TCTL2 @ memory location $0021EDGxBEDGxA 0 0 Capture disabled 0 1 Capture on rising edges 1 0 Capture on falling edges 1 1 Capture on any edge ECE 3430 – Intro to Microcomputer Systems Fall 2009

4. Input Capture Input Capture Function Details - There is a 4th input capture channel on the D3—but it is shared with an output compare channel which we will talk about later. - When the input capture triggers, the current “TCNT” value is latched into dedicated 16-bit registers: Input Capture Channel 1 = TIC1 = {$0010 : $0011} Input Capture Channel 2 = TIC2 = {$0012 : $0013} Input Capture Channel 3 = TIC3 = {$0014 : $0015} - From the perspective of software, these registers are READ-ONLY! - When the trigger occurs, a “flag bit” will be set in the TFLG1 register ($0023) IC1F = Input Capture 1 Event IC2F = Input Capture 2 Event IC3F = Input Capture 3 Event - These flags can be cleared by writing a ‘1’ to the corresponding flag bit: ICxF = 0 = flag cleared, waiting for input capture event (RESET state) ICxF = 1 = flag set, input capture event occurred sometime in the past ECE 3430 – Intro to Microcomputer Systems Fall 2009

5. Input Capture Input Capture Function (Optional Interrupt) - Just as with the timer overflow, successful capture of an event can generate an interrupt—however this is not a requirement! - Just like all HC11 interrupts, each input capture channel has a relative priority. Input capture channel 1 has a higher priority than the other input capture channels (see HC11 interrupt vector table). - Just like many other HC11 interrupts, there is both a global and local interrupt mask involved: Global mask = I-flag in the CCR (this is a maskable interrupt)Local mask = ICxI bit in TMSK1 register ($0022)ICxI = 0 = Disabled (Reset State)ICxI = 1 = Enabled ECE 3430 – Intro to Microcomputer Systems Fall 2009

6. Input Capture Input Capture Function ApplicationsComparing Arrival Times - You can attach three wires to the HC11 and monitor edges as they come in to see which is first. TIC1 TIC2 TIC3Period Measurement - Measuring ‘rising edge’ to ‘rising edge’ of a signal is the definition of PERIOD. Can also do ‘falling edges’. Delta TCNT ECE 3430 – Intro to Microcomputer Systems Fall 2009

7. Input Capture Input Capture Function ApplicationsPulse Width Measurements - ‘rising edge’ to ‘falling edge’ is the pulse width. 3 Extra External IRQ Inputs - In addition to XIRQ and IRQ, you can use PA2, PA1, PA0 for general-purpose external interrupt lines.Flip Flop Behavior - When an edge hits the HC11, we will be notified. We can grab data off of any other pin when this occurs (in an ISR?)  D Q ECE 3430 – Intro to Microcomputer Systems Fall 2009

8. Input Capture Input Capture Function ApplicationsDuty Cycle Measurements - Measure of the “high time” with respect to total period. Typically expressed as a percent. Duty Cycle % = /T  T ECE 3430 – Intro to Microcomputer Systems Fall 2009

9. Input Capture Input Capture Function Watch out for timer rollover! - If TCNT rolls over between input capture events. Ex) Capture 1 = $FFF0 Capture 2 = $0005 - We need to add code to track if TCNT rolls over. However, we know how to do this? - The “timer overflow interrupt” will tell us when TCNT rolls-over. We can add an ISR that will increment a counter every time this happens. We can read the counter each time an input capture event occurs to see if there was TCNT roll-over. - It is possible to account for one or more timer overflows—but if we account for more than one timer overflow, our arithmetic will exceed 16-bit limits and we’ll have to use multi-precision arithmetic in the HC11. ECE 3430 – Intro to Microcomputer Systems Fall 2009

10. Pulse Accumulator Pulse Accumulator- Sometimes it is desirable to have an external circuit count external events. The external events manifest themselves as digital pulses—either 0->1->0 pulses or 1->0->1 pulses. - Some microcontrollers provide a circuit to do just this. It is called pulse accumulation. - The HC11 (D3) has a single pulse accumulator on-chip peripheral device. - The pulse accumulator can either count external events (event counting mode) or count the number of E-clock cycles that occur when the pulse accumulator input is asserted (gated time accumulation mode). - The pulse accumulator input pin is shared with port A: PAI = Pulse Accumulator Input = PA7 (Note: PA7 must be configured as an input)- When the PAI input sees an event (event counting mode), it will increment an 8-bit counter: PACNT = Pulse Accumulator Counter ($0027) - This counter can be read from and written to by software—but it is not affected by reset. ECE 3430 – Intro to Microcomputer Systems Fall 2009

11. Pulse Accumulator Pulse Accumulator Modes- There are two modes of operation for the pulse accumulator:Event Counting Mode - PACNT will increment on every active edgePAIPACNT - In the “event counting mode”, you can select to count on either the ‘rising’ or ‘falling’ edge of PAI (similar to input capture). 0 1 2 3 4 5 6 7 8 ECE 3430 – Intro to Microcomputer Systems Fall 2009

12. Pulse Accumulator Pulse Accumulator Modes or Gated Time Accumulation - The 8-bit counter is increment by Eclk/64 that is GATED by PAI. - PAI de-asserted = Counter holds current value, ignores clock - PAI asserted = Counter increments at a rate of Eclk/64PAIPACNT - In the “Gated Time Accumulation”, you can select whether PAI is treated active-high or active-low. 0 1 2 3 4 5 6 7 8 Eclk64 PAI input may be inverted PACNT 8-bit counter PAI Eclk64 ECE 3430 – Intro to Microcomputer Systems Fall 2009

13. Pulse Accumulator Pulse Accumulator Modes - The pulse accumulation feature can be enabled or disabled via the PAEN bit in the PACTL register ($0026). PAEN = 0 = Disabled (RESET state) PAEN = 1 = Enabled (DDRA7 bit in PACTL should be zero so PA7 is an input) - To select which mode the pulse accumulator is in, we use the PAMOD bit in the PACTL register ($0026): PAMOD = 0 = Event Counter (RESET state) PAMOD = 1 = Gated Time Accumulator- To select the ‘edge’ (event counter) or ‘level’ sensitivity (gated time accumulation), we use the PEDGE bit in the PACTL register ($0026):PAMODPEDGE Event Counter 0 0 falling edge increments counter (RESET state) Event Counter 0 1 rising edge increments counter Gated Time Accum 1 0 PAI = 1 = enables counting = active-high Gated Time Accum 1 1 PAI = 0 = enables counting = active-low ECE 3430 – Intro to Microcomputer Systems Fall 2009

14. Pulse Accumulator Pulse Accumulator Flags - Two events can be monitored by checking status flags in a flag register: 1) An event (an edge) 2) PACNT overflow (8-bit counter overflow) - There are two flags that will indicate when either of the above events occur. Both flags reside in the TFLG2 register ($0025): PAIF = Pulse Accumulator Input Edge Flag PAIF = 0 = waiting for an event (RESET state) PAIF = 1 = an event has occurred PAOVF = Pulse Accumulator Overflow Flag PAOVF = 0 = waiting for overflow (RESET state) PAOVF = 1 = overflow has occurred - To clear these flags, we write a ‘1’ to the the flag bit (write-one-to-clear). - Each time an event occurs, these flags will be set by the hardware. To use again, software must clear the flag. ECE 3430 – Intro to Microcomputer Systems Fall 2009

15. Pulse Accumulator Pulse Accumulator Interrupts (Optional) - Both the ‘Input Edge’ and PACNT counter ‘Overflow’ events on the pulse accumulator can trigger an interrupt if enabled both locally and globally. “Pulse Accumulator Input Edge Interrupt” - Global mask = I-bit in the CCR (this is another maskable interrupt) - Local mask = PAII bit in the TMSK2 register ($0024) PAII = 0 = Interrupt inhibited (RESET state) PAII = 1 = Interrupt requested if PAIF flag set by hardware ECE 3430 – Intro to Microcomputer Systems Fall 2009

16. Pulse Accumulator Pulse Accumulator Interrupts (Optional) “Pulse Accumulator Overflow Interrupt” - Global mask = I-bit in the CCR (maskable interrupt) - Local mask = PAOVI bit in the TMSK2 register ($0024) PAOVI = 0 = Interrupt inhibited (RESET State) PAOVI = 1 = Interrupt requested if PAOVF flag set by hardware ECE 3430 – Intro to Microcomputer Systems Fall 2009

17. Pulse Accumulator Pulse Accumulator Enable - To enable the pulse accumulator, we use the PAEN bit in the PACTL register ($0026): PAEN = 0 = Disabled (RESET state) PAEN = 1 = Enabled- PA7 is a bi-direction pin so if you are using it as PAI, make sure to leave the DDRA7 bit set to input (0 or RESET state). - DDRA7 is bit 7 in the PACTL register. This bit functions the same as DDRA3. Some pink books have a typo. Check yours! ECE 3430 – Intro to Microcomputer Systems Fall 2009
