  1. AHMANSON RANCH WELL No. 1 Photo Documentation of Sampling Procedure June 17, 2003

  2. AhmansonWell 1

  3. Artesian Flow from Corroded Well

  4. Assembling the Sampler

  5. Single Sampler Assembled

  6. Two Samplers Assembled in Tandem

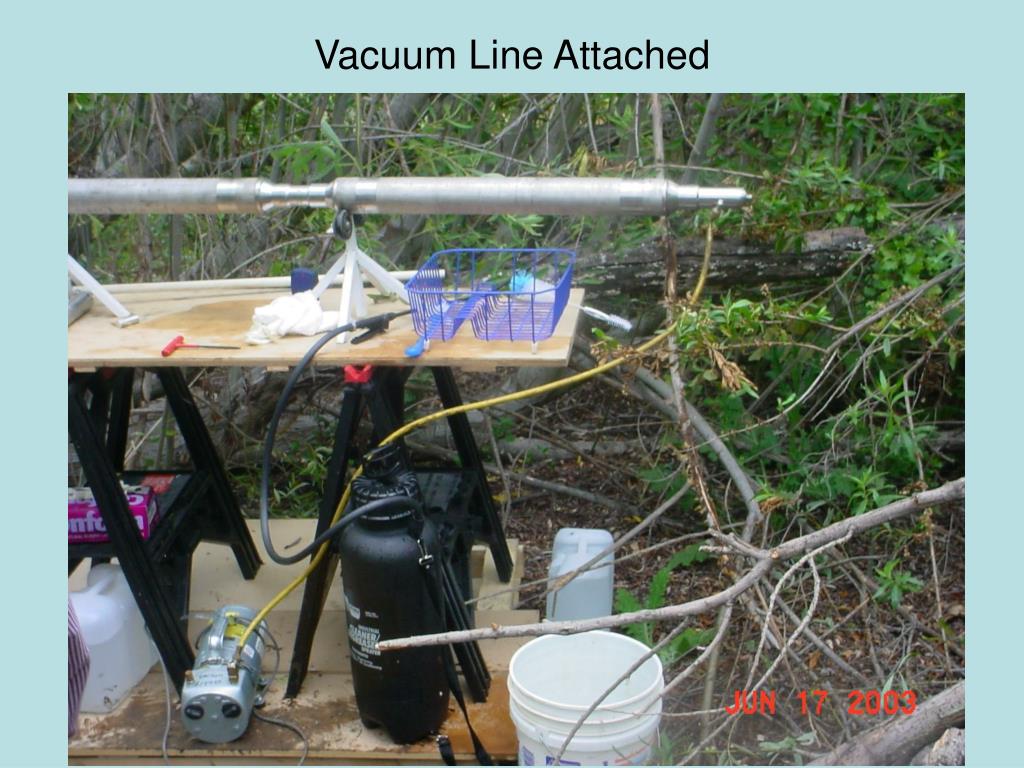

  7. Vacuum Line Attached

  8. Wire Line Attached

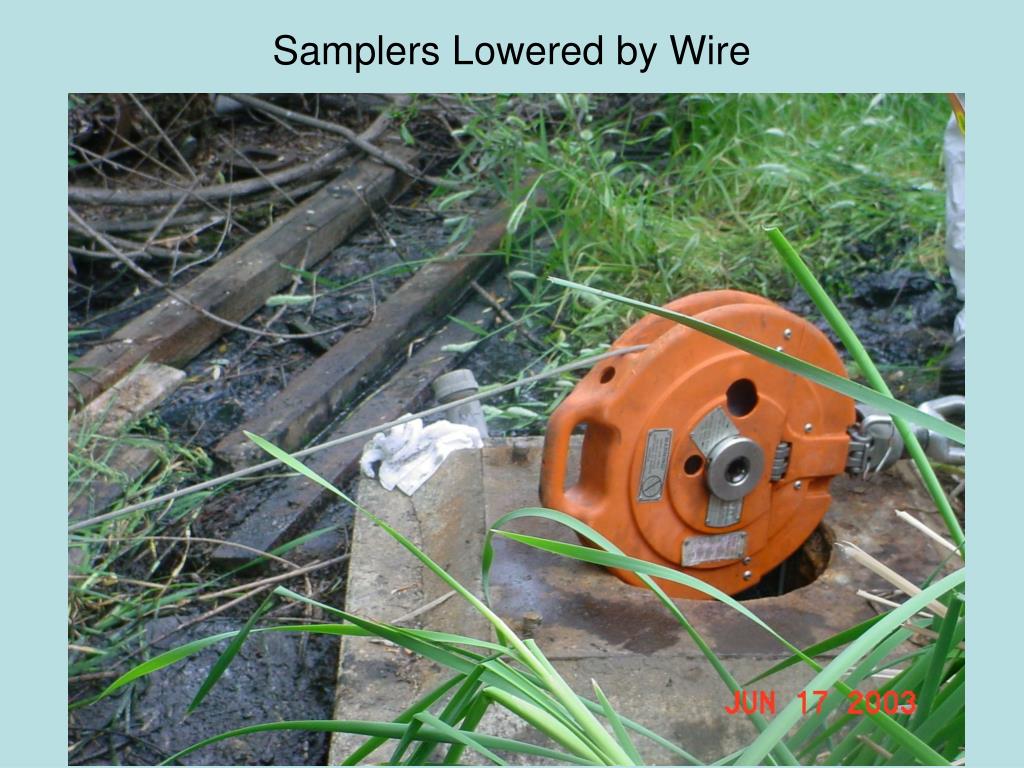

  9. Samplers Lowered by Wire

  10. Van Containing Wire Line Equipment

  11. Controlling & Monitoring Equipment

  12. Depth Readout on Monitor

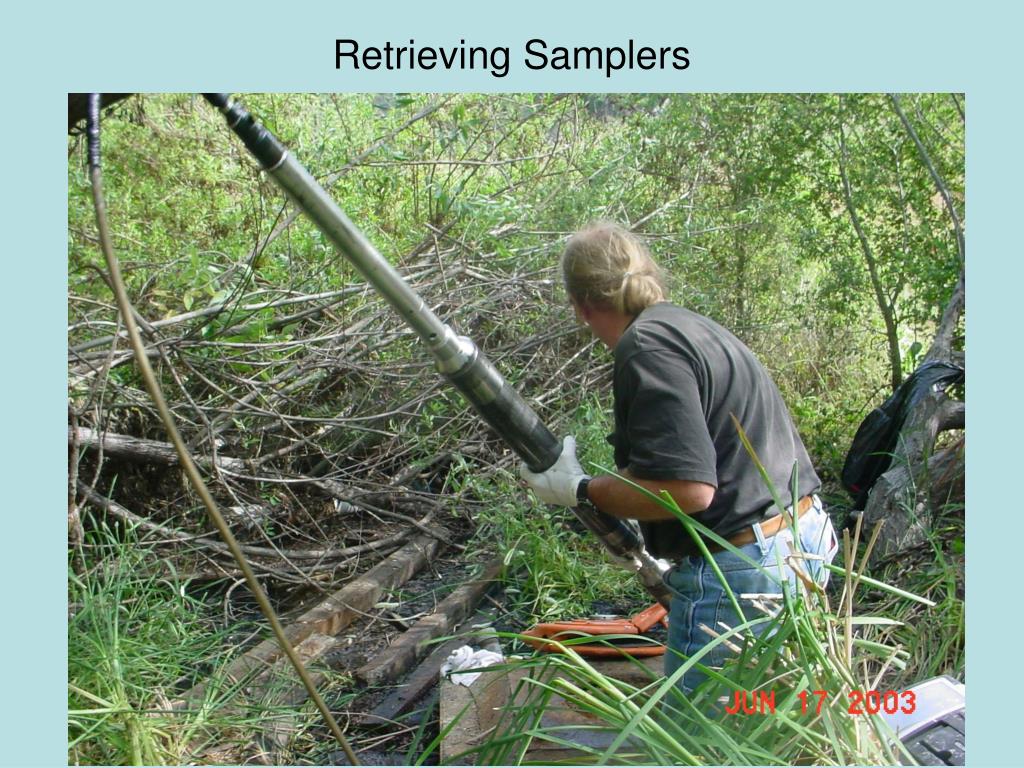

  13. Retrieving Samplers

  14. Retrieving Samplers

  15. Presubsampling Decon Rinse

  16. Lower Sampler Valve

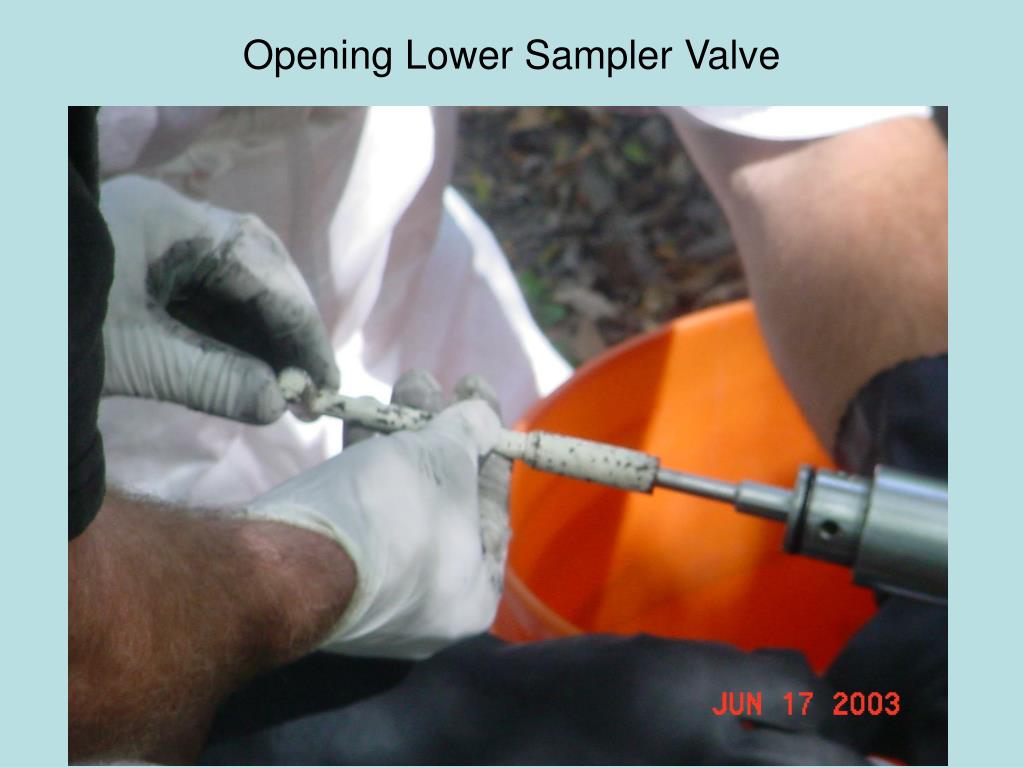

  17. Opening Lower Sampler Valve

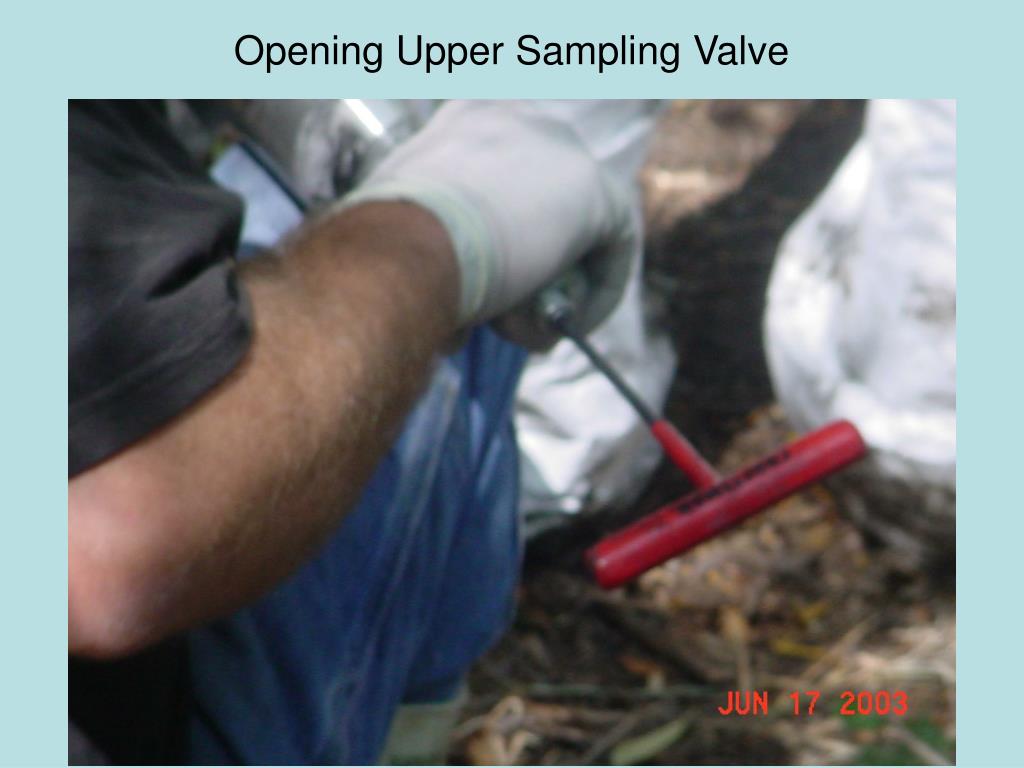

  18. Opening Upper Sampling Valve

  19. Collecting Subsamples

  20. Disassembly for Decon

  21. Disassembly for Decon

  22. Deconning Sampler Parts

  23. Filling for Equipment Blank

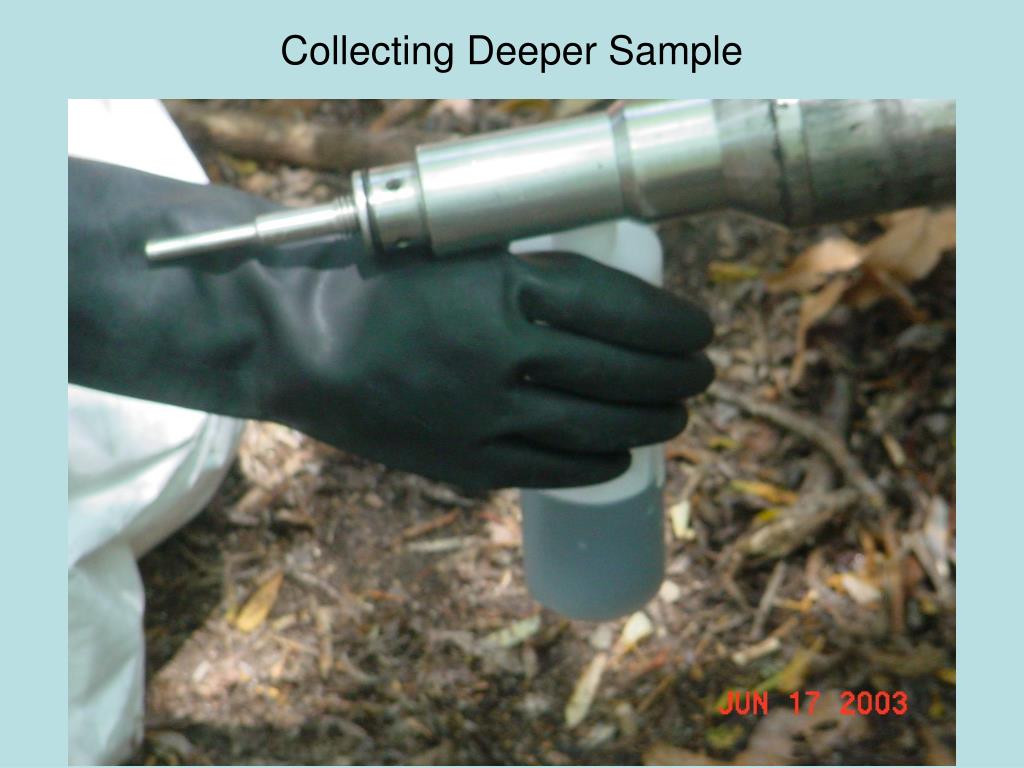

  24. Collecting Deeper Sample

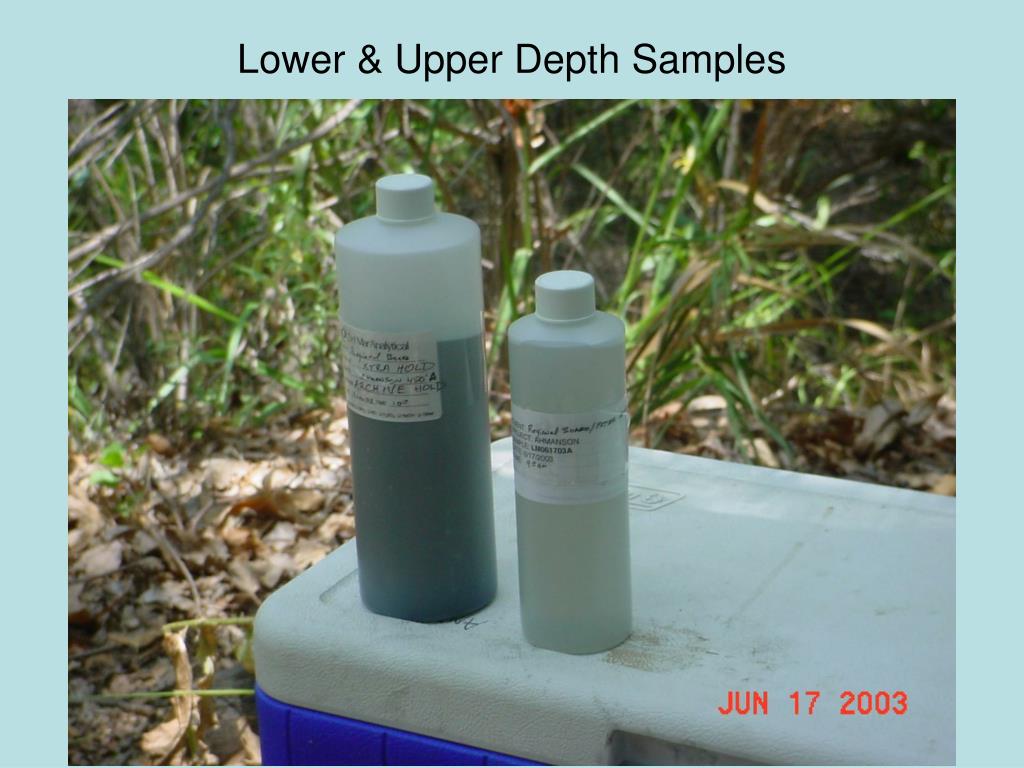

  25. Lower & Upper Depth Samples
