  1. conference management system Jordanian Renewable Energy Society (JRES)

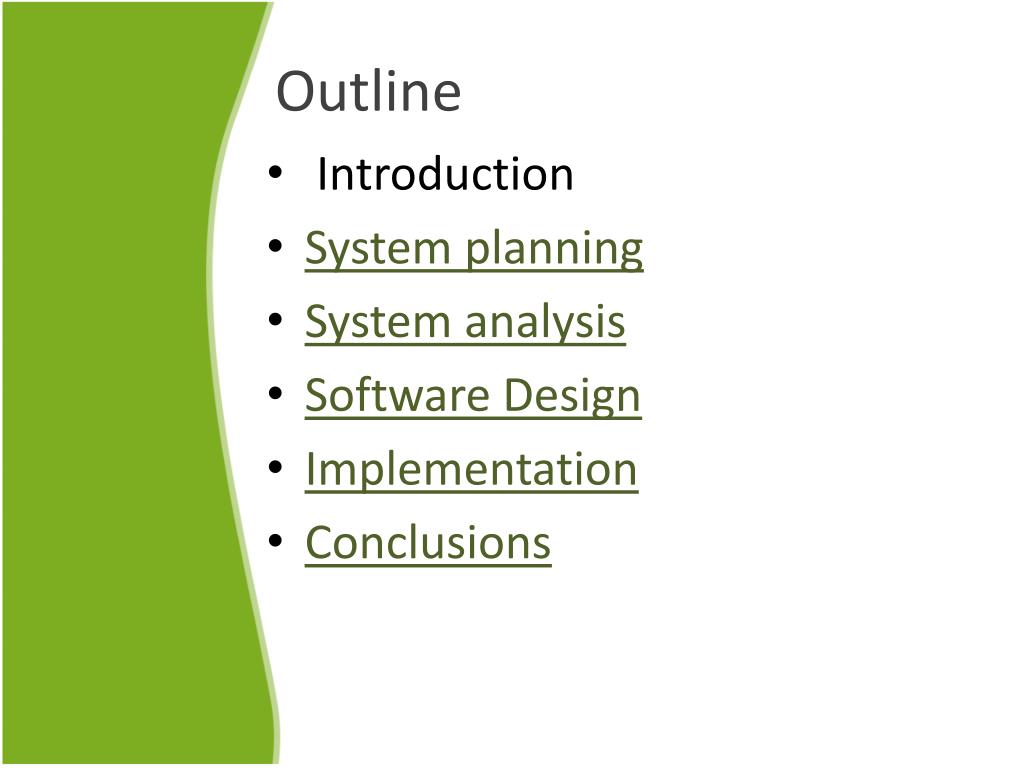

  2. Outline • Introduction • System planning • System analysis • Software Design • Implementation • Conclusions

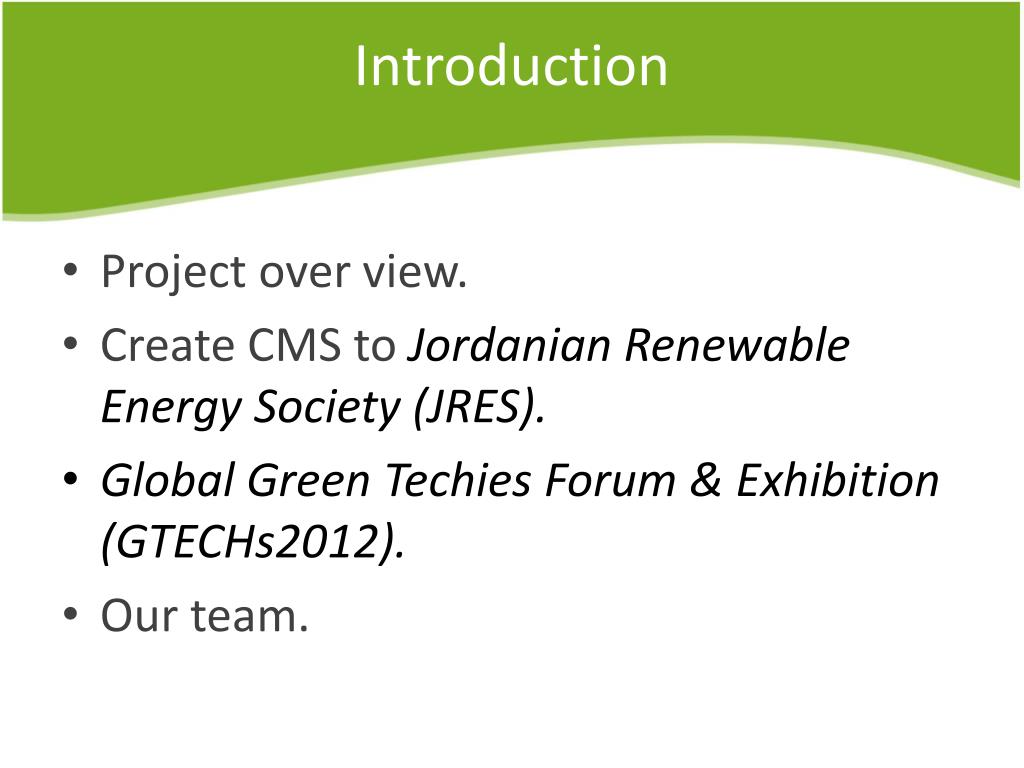

  3. Introduction • Project over view. • Create CMS to Jordanian Renewable Energy Society (JRES). • Global Green Techies Forum & Exhibition (GTECHs2012). • Our team.

  4. System planning • Background • Problem Definition • Objective of the Project • Process model • Feasibility study • Project Activities Plan

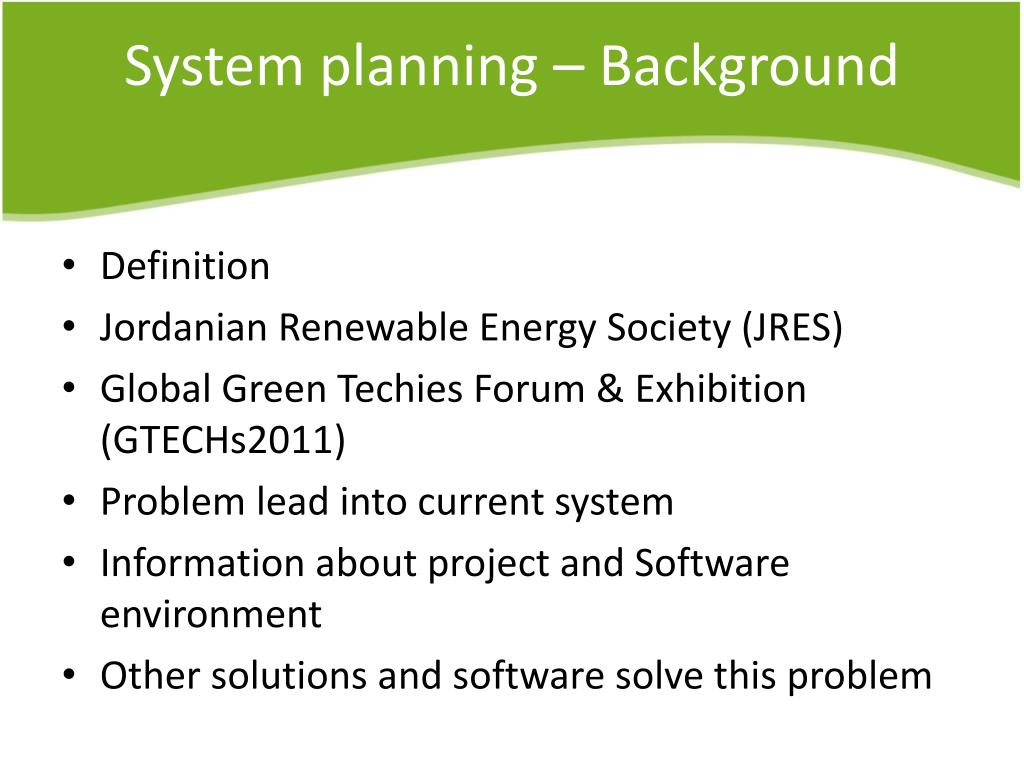

  5. System planning – Background • Definition • Jordanian Renewable Energy Society (JRES) • Global Green Techies Forum & Exhibition (GTECHs2011) • Problem lead into current system • Information about project and Software environment • Other solutions and software solve this problem

  6. System planning - Problem Definition • The attendee need to wait long time before they register. • Need a large room to store the paper and archive the old information . • Hard to contact with attendee and organize the speaker. • Visa problem.

  7. System planning - Objective of the Project • Speed communication with attendee . • Allow the sponsor to register in the system online. • Easy to check back for any information . • Administration of participants, payments and events .

  8. System planning - Process model Iterative and incremental development

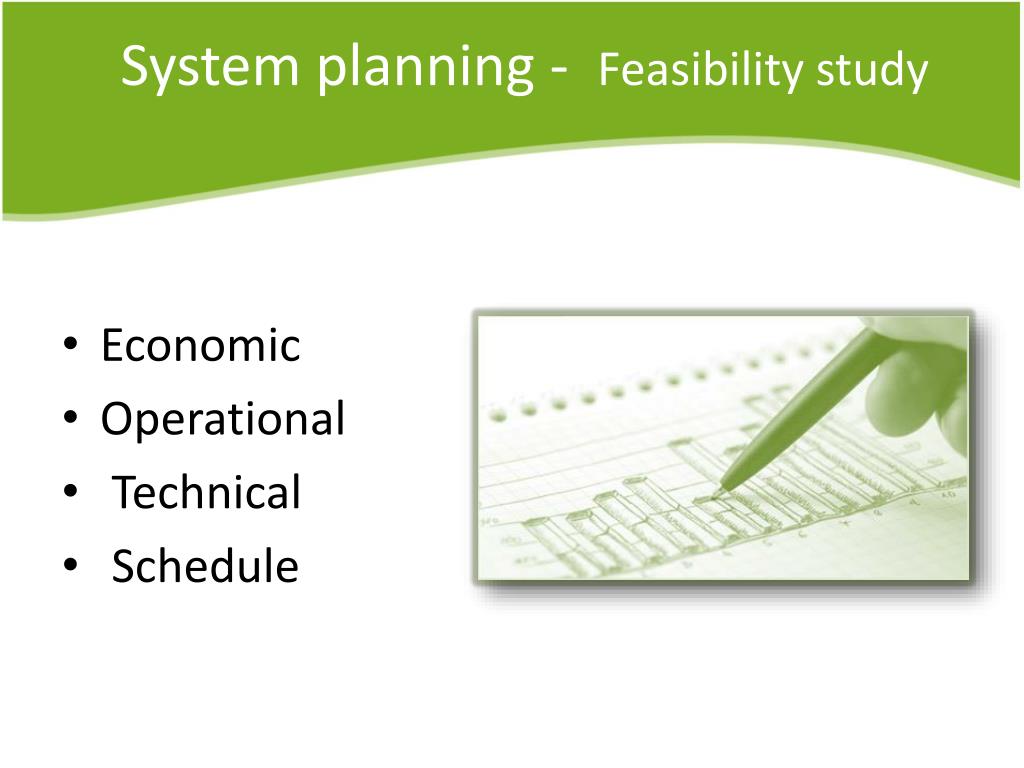

  9. System planning - Feasibility study • Economic • Operational • Technical • Schedule

  10. System planning - Feasibility study Economic feasibility

  11. System planning - Feasibility study Economic feasibility

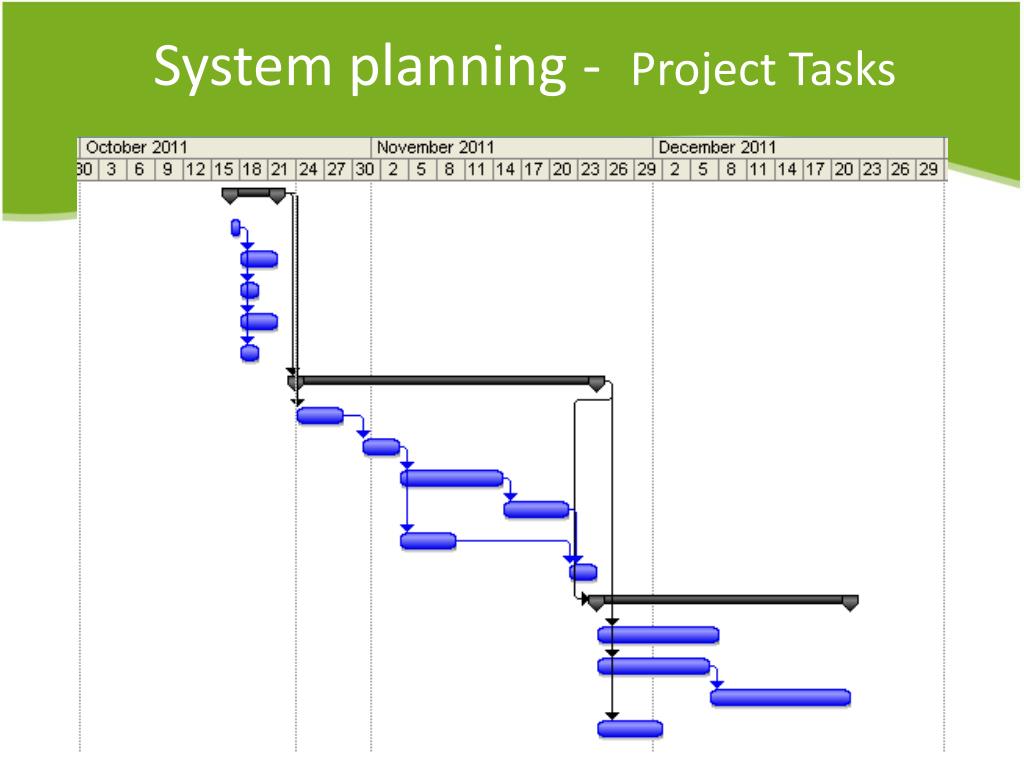

  12. System planning - Project Tasks

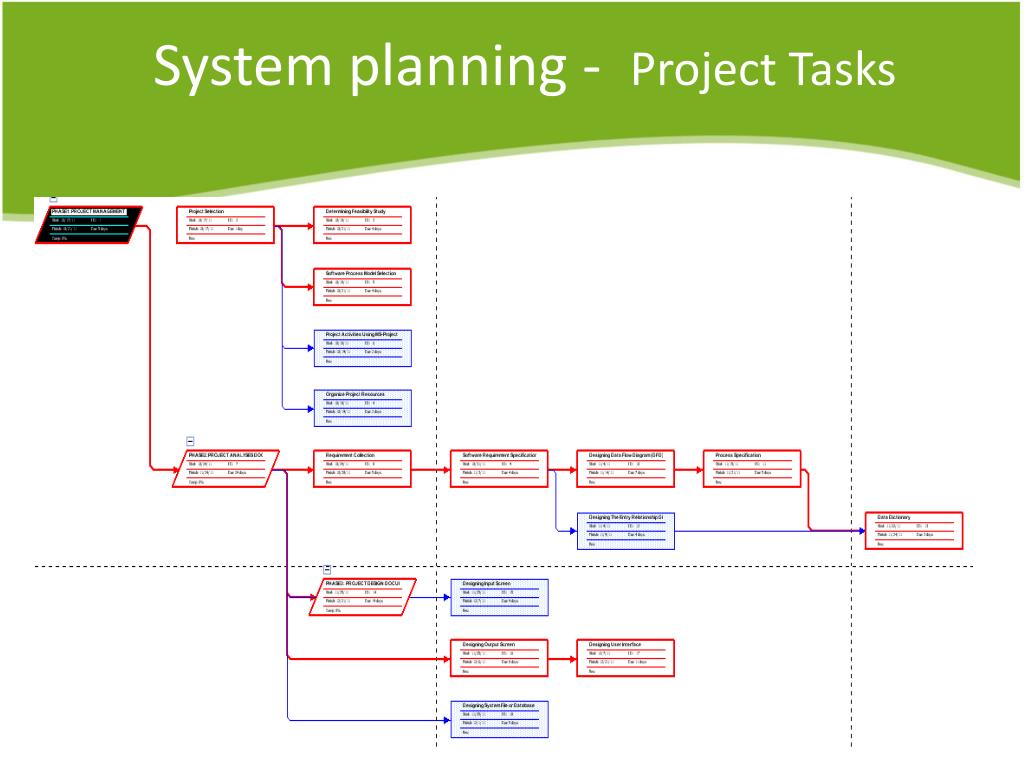

  13. System planning - Project Tasks

  14. System analysis • Requirements Collection • Requirements Analysis • Entity Relationship Diagram (ERD) • Data Flow Diagram (DFD)

  15. System analysis – Requirements Collection • Interviews • Questionnaires • Similar System

  16. System analysis – Requirements Collectioninterview • Interviews:Dr. WaheebEissa Al-Nasser , Professor of Applied Physics at the University of Bahrain

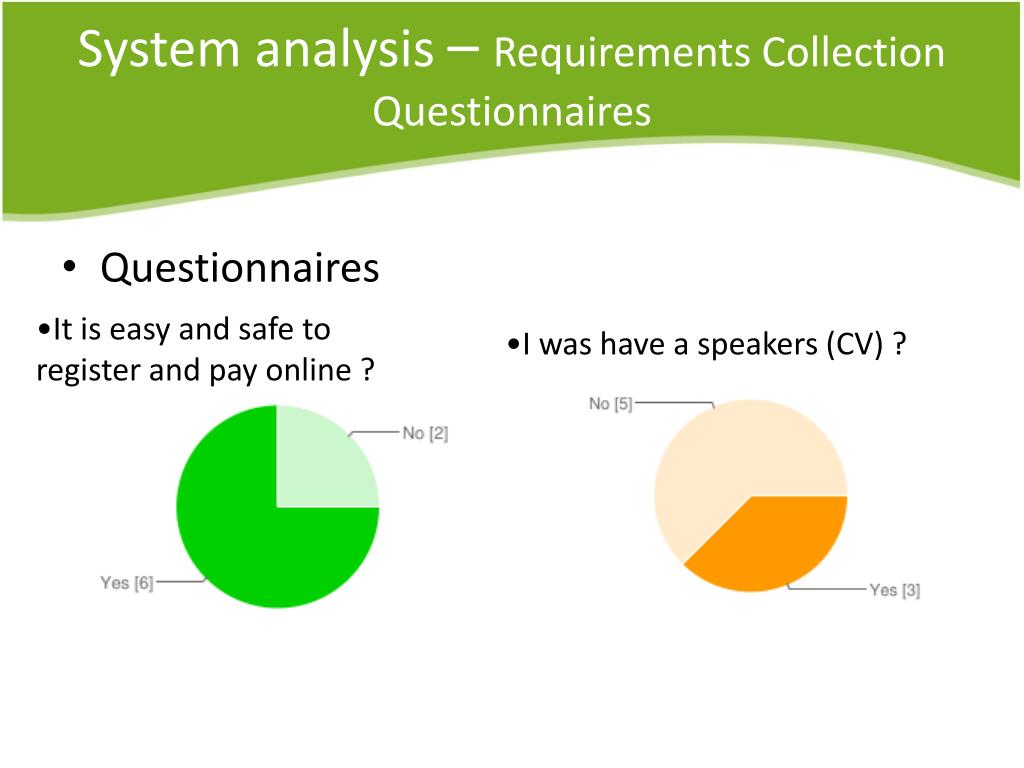

  17. System analysis – Requirements CollectionQuestionnaires • Questionnaires • It is easy and safe to register and pay online ? • I was have a speakers (CV) ?

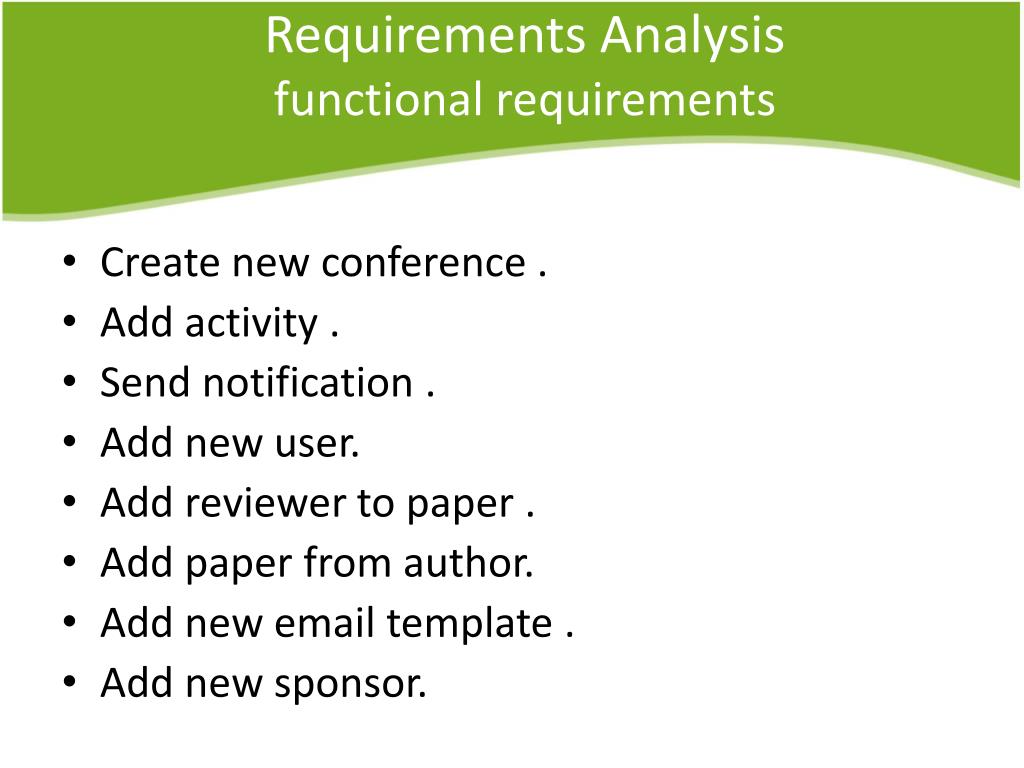

  18. Requirements Analysis functional requirements • Create new conference . • Add activity . • Send notification . • Add new user. • Add reviewer to paper . • Add paper from author. • Add new email template . • Add new sponsor.

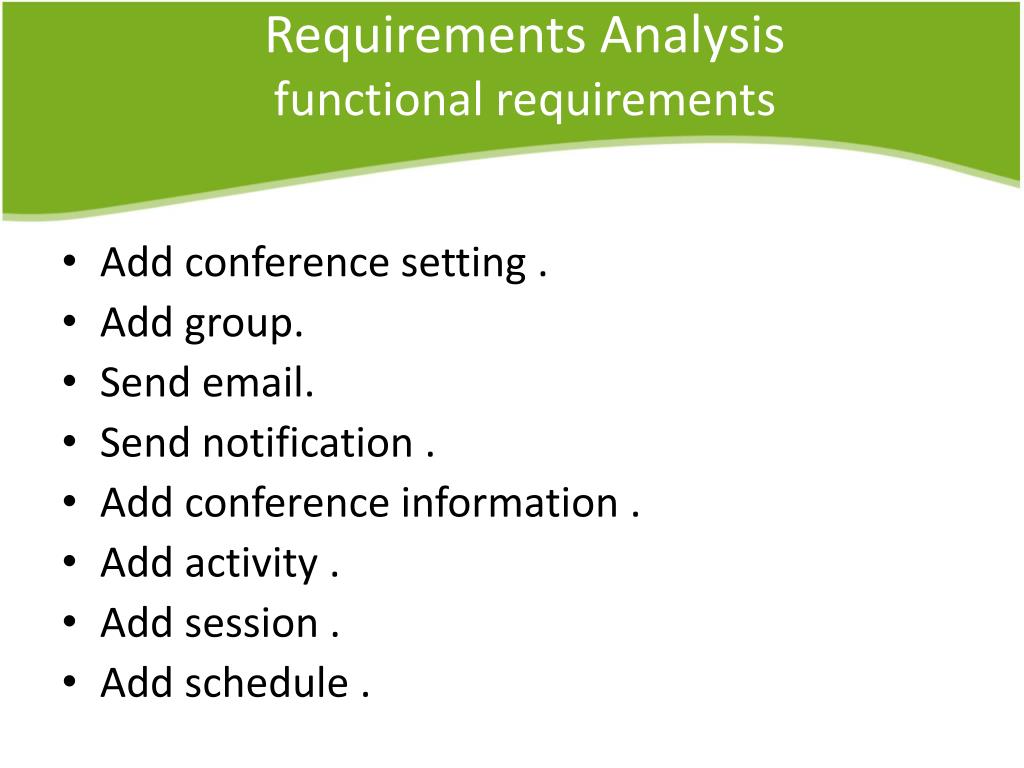

  19. Requirements Analysis functional requirements • Add conference setting . • Add group. • Send email. • Send notification . • Add conference information . • Add activity . • Add session . • Add schedule .

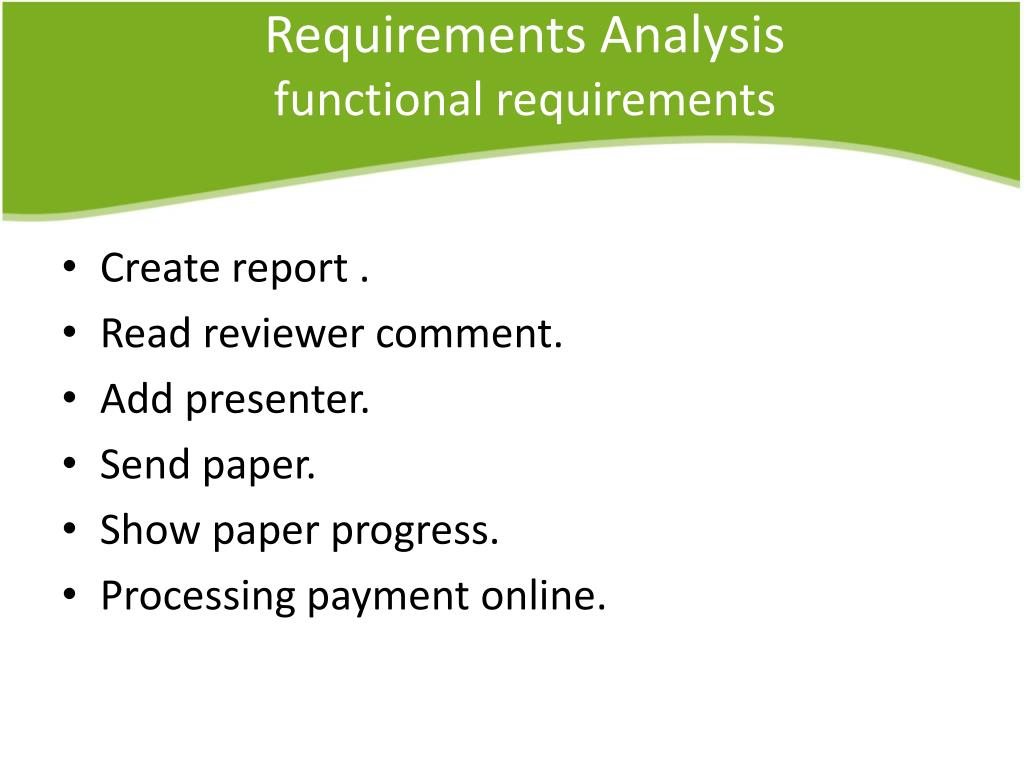

  20. Requirements Analysis functional requirements • Create report . • Read reviewer comment. • Add presenter. • Send paper. • Show paper progress. • Processing payment online.

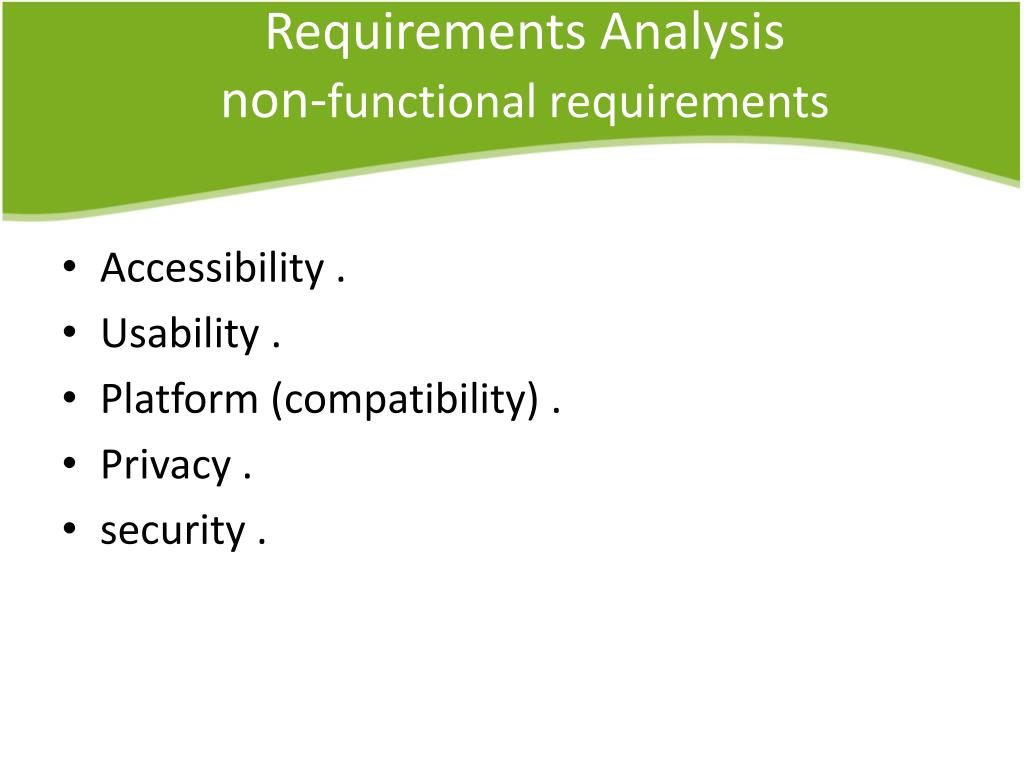

  21. Requirements Analysis non-functional requirements • Accessibility . • Usability . • Platform (compatibility) . • Privacy . • security .

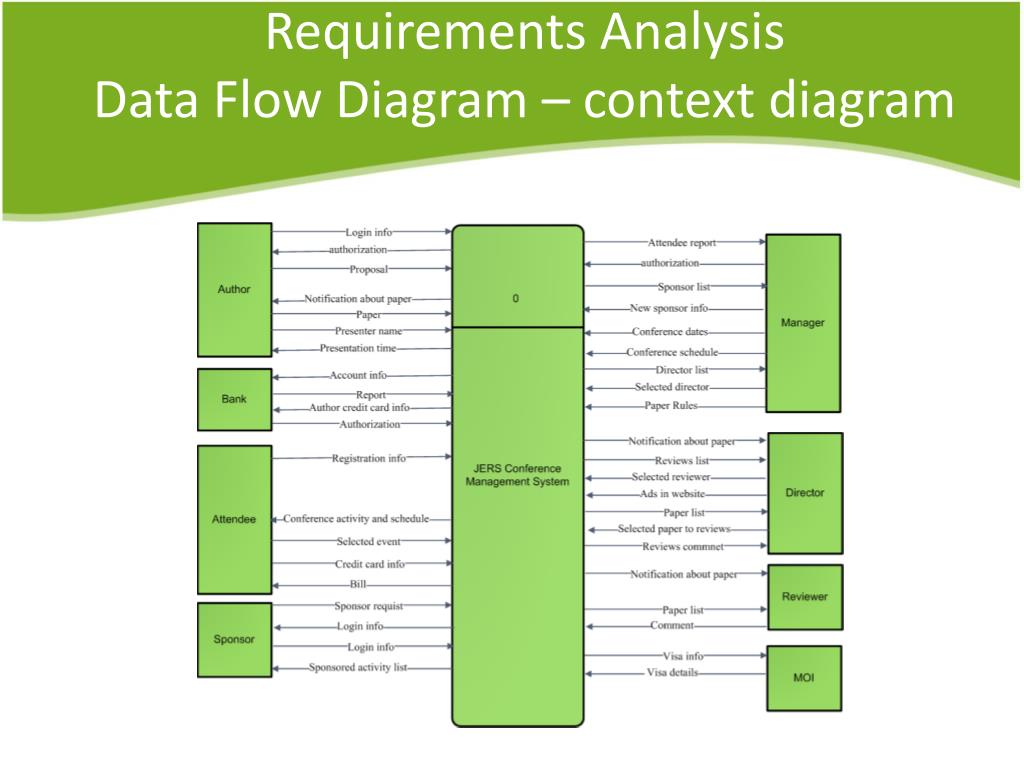

  22. Requirements Analysis Data Flow Diagram – context diagram

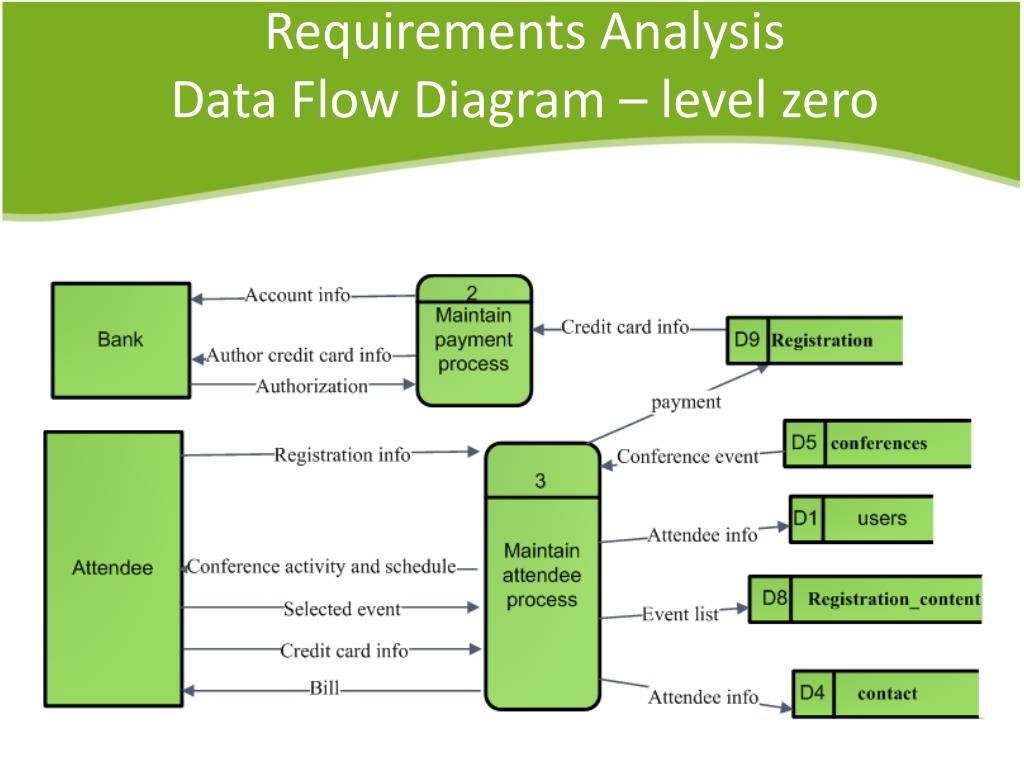

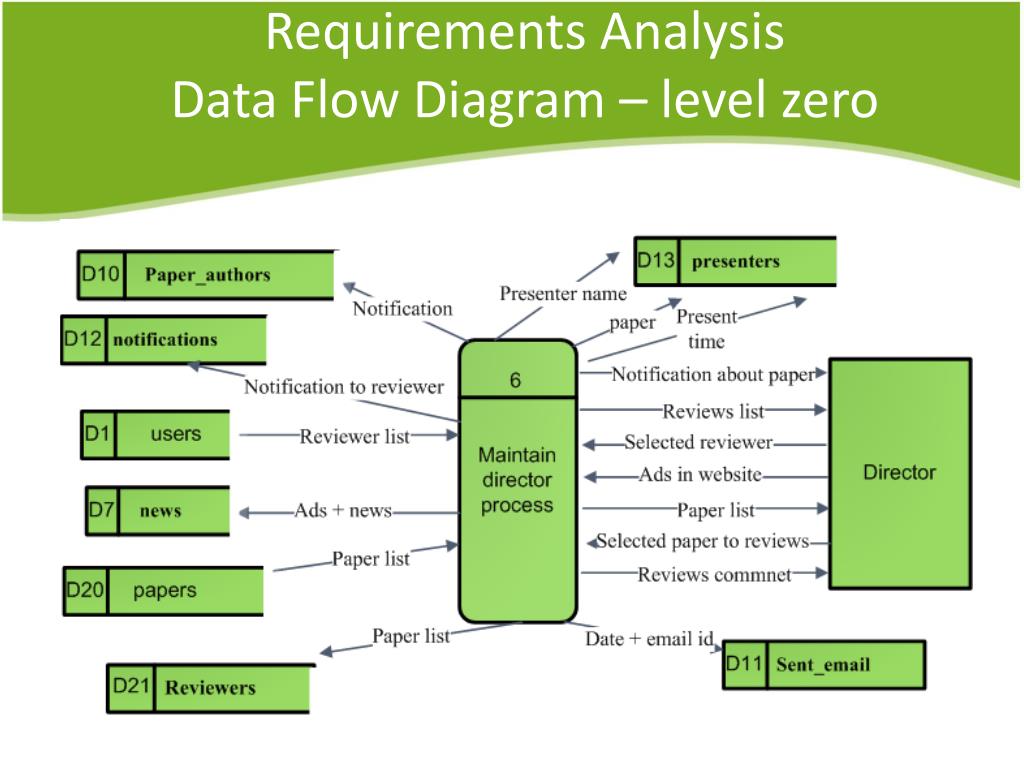

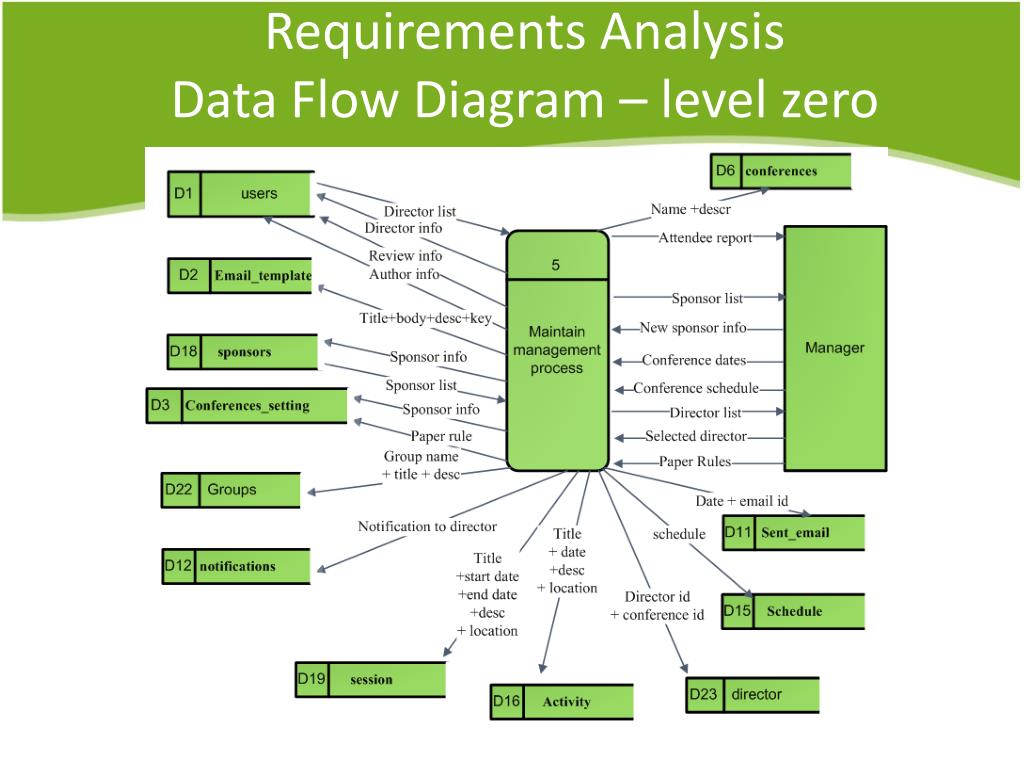

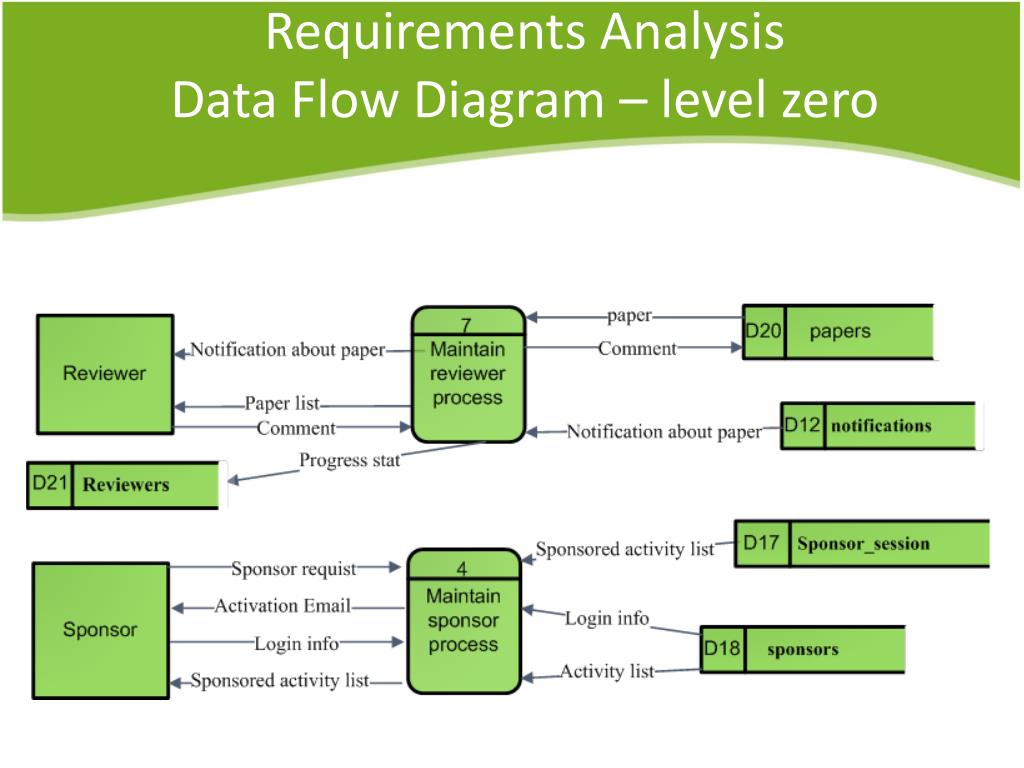

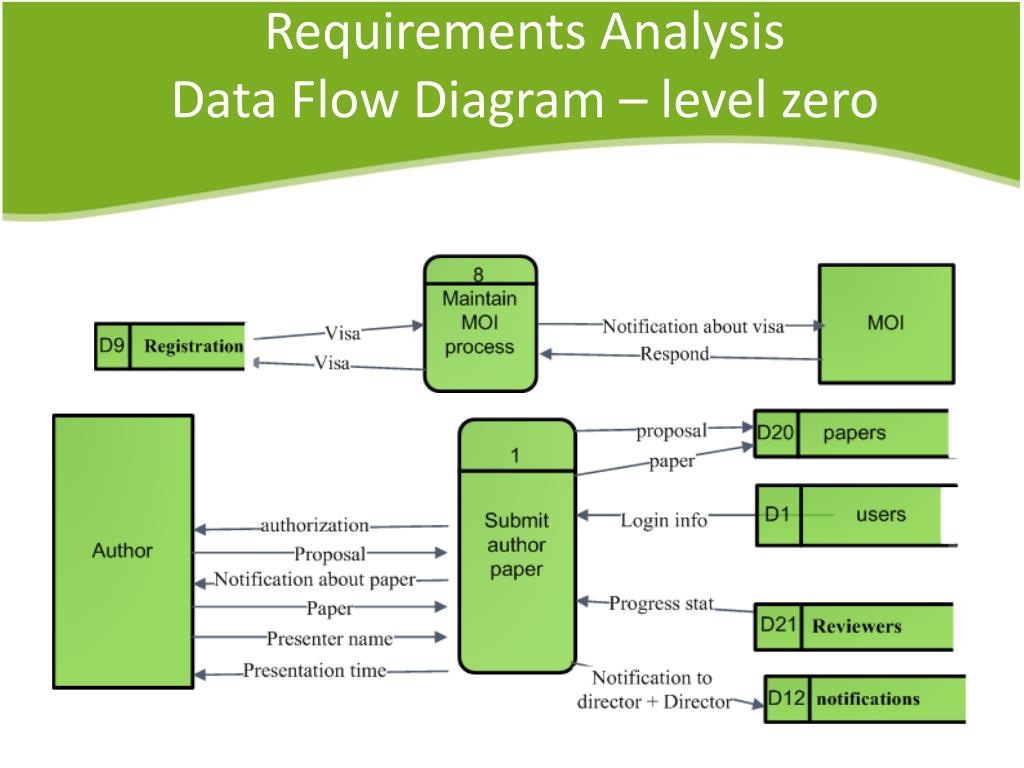

  23. Requirements Analysis Data Flow Diagram – level zero

  24. Requirements Analysis Data Flow Diagram – level zero

  25. Requirements Analysis Data Flow Diagram – level zero

  26. Requirements Analysis Data Flow Diagram – level zero

  27. Requirements Analysis Data Flow Diagram – level zero

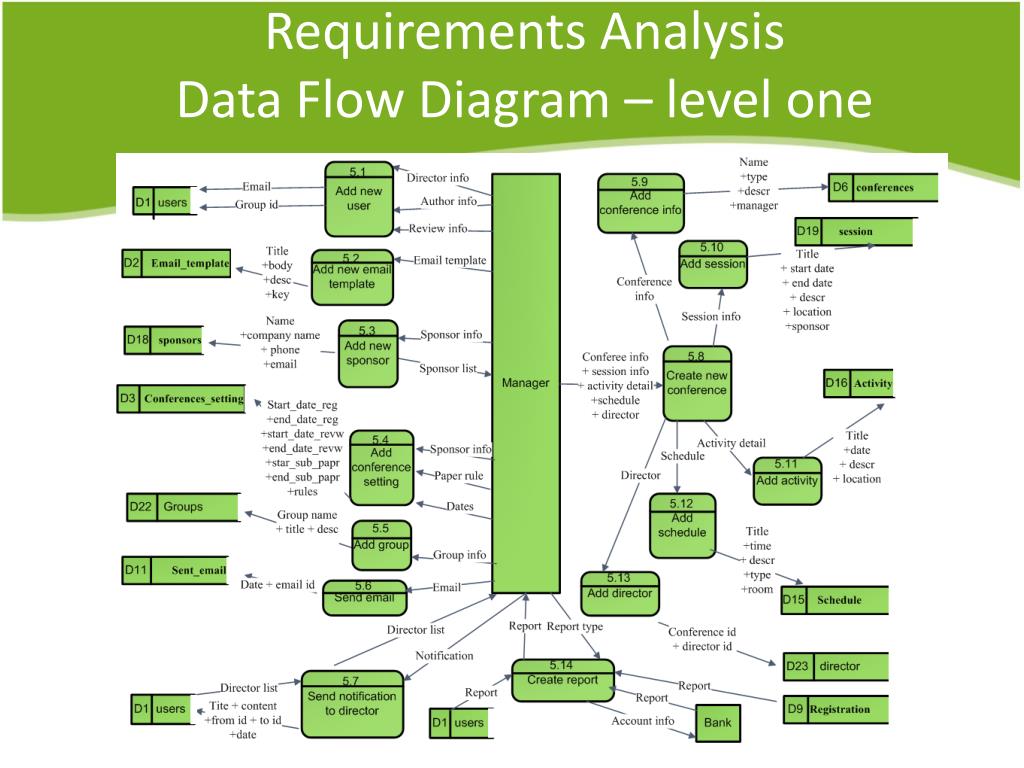

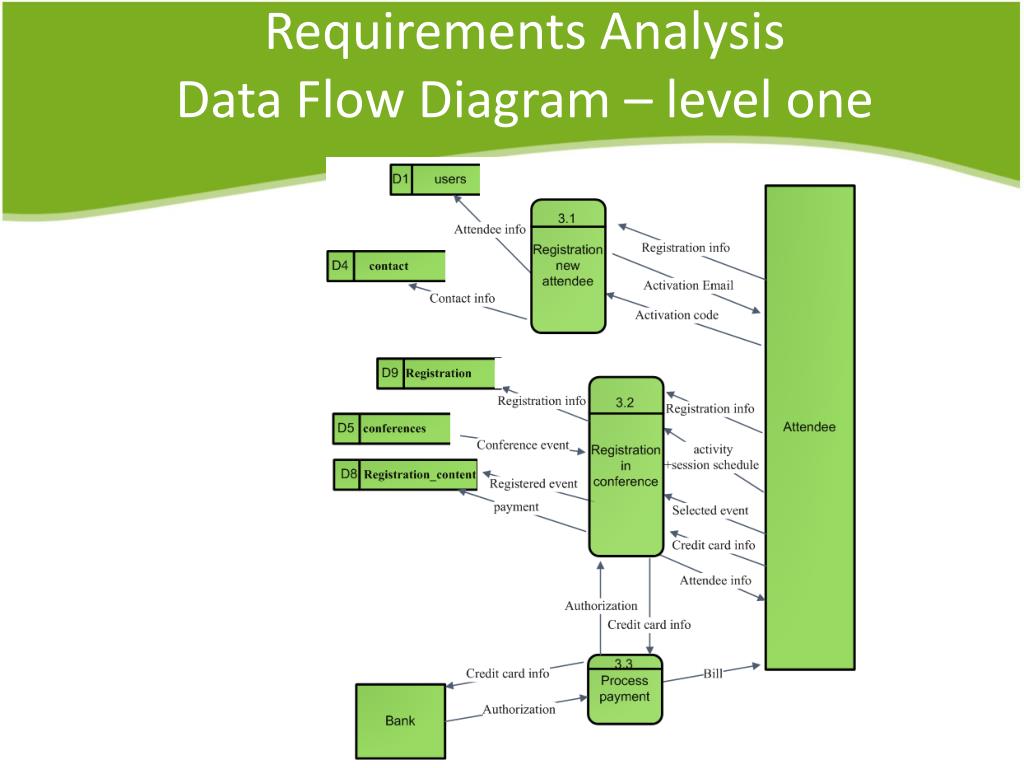

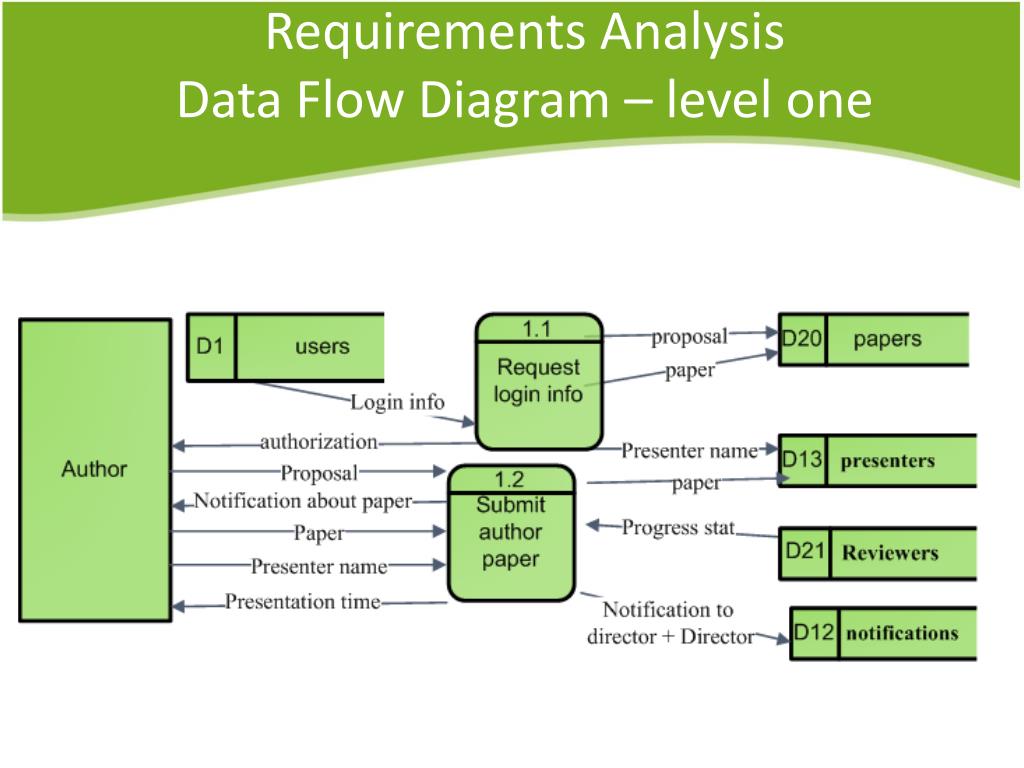

  28. Requirements Analysis Data Flow Diagram – level one

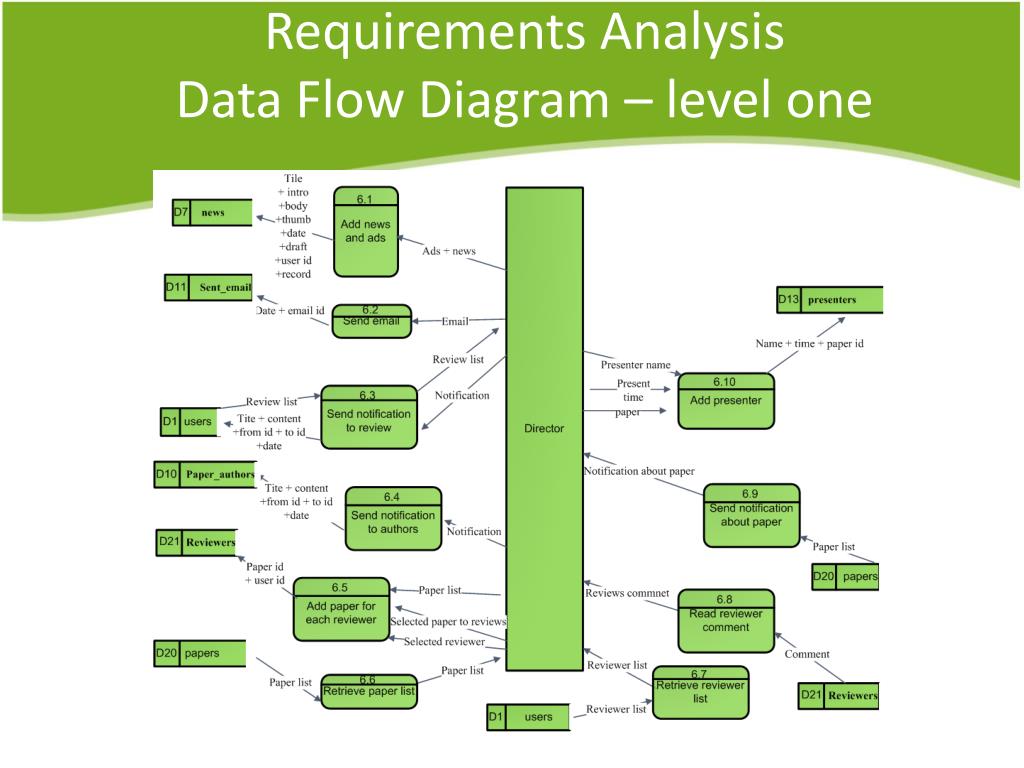

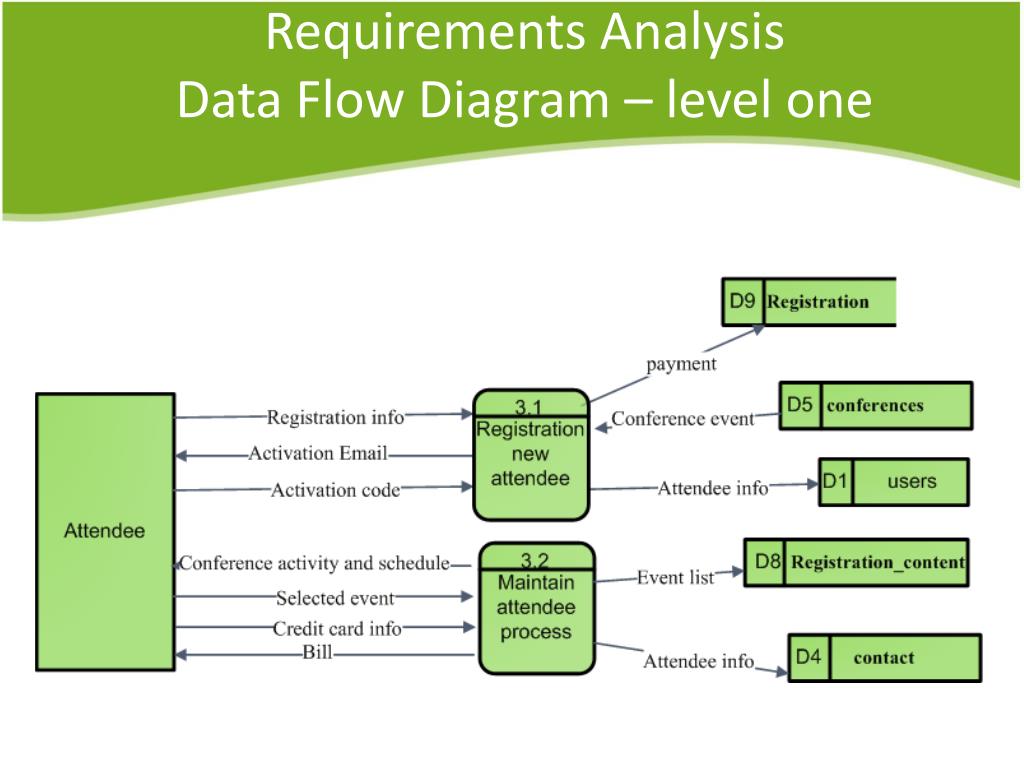

  29. Requirements Analysis Data Flow Diagram – level one

  30. Requirements Analysis Data Flow Diagram – level one

  31. Requirements Analysis Data Flow Diagram – level one

  32. Requirements Analysis Data Flow Diagram – level one

  33. Requirements Analysis Data Flow Diagram – level one

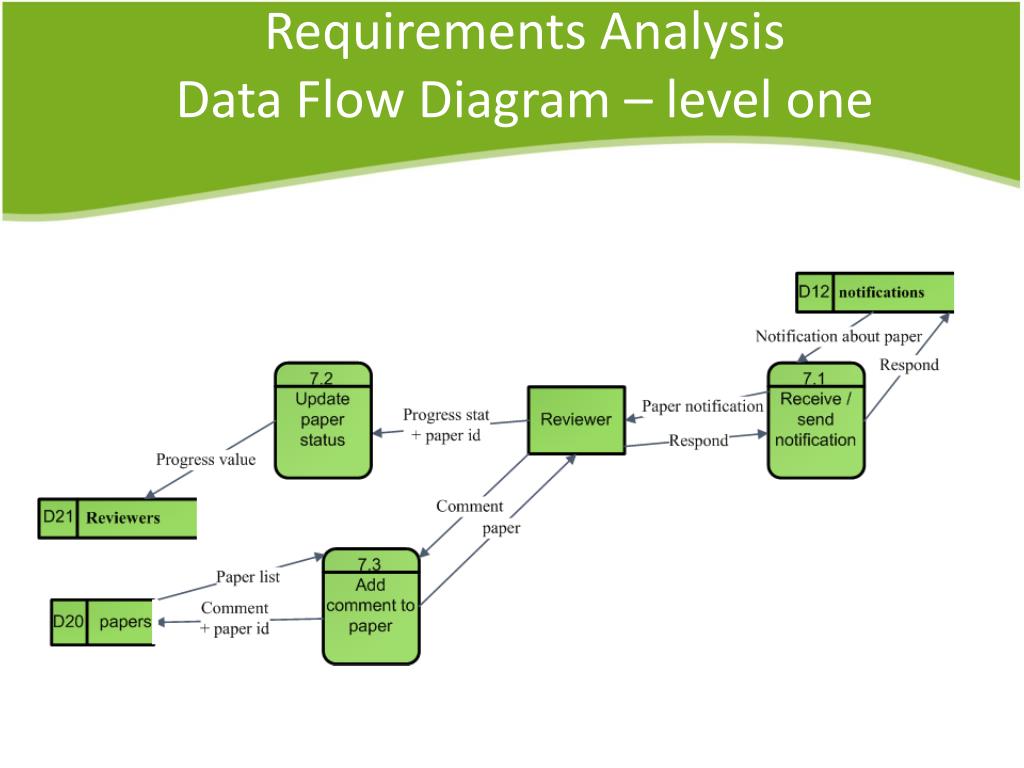

  34. Requirements Analysis Data Flow Diagram – level one

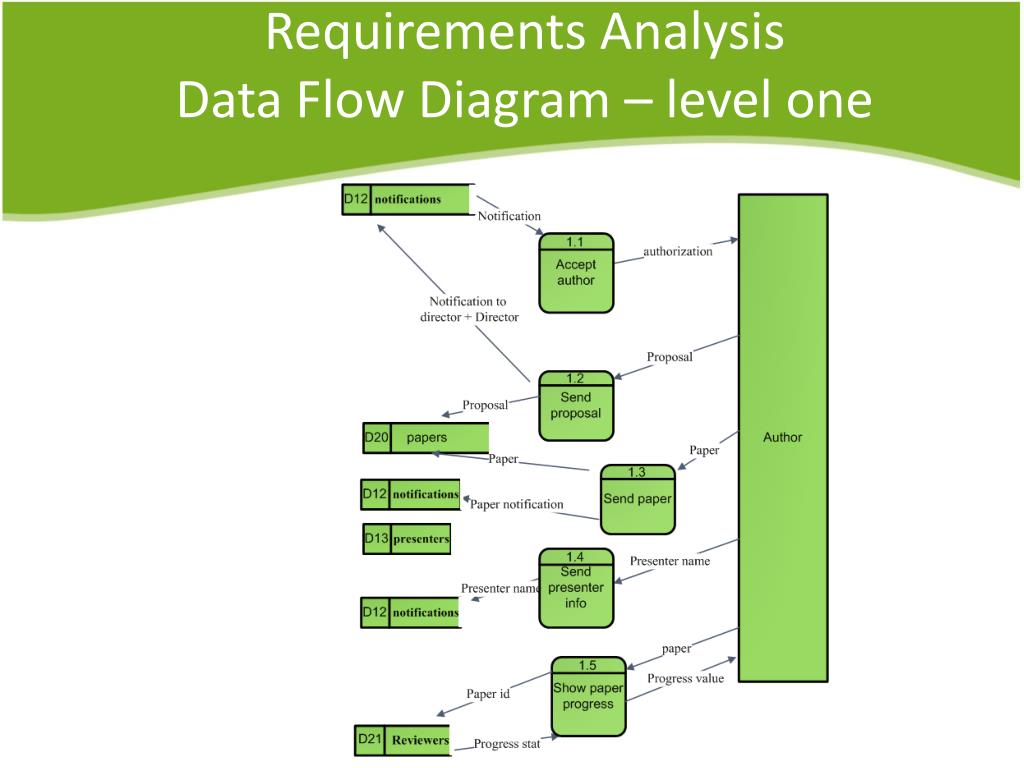

  35. Requirements Analysis Data Flow Diagram – level one

  36. Requirements Analysis Data Flow Diagram – level one

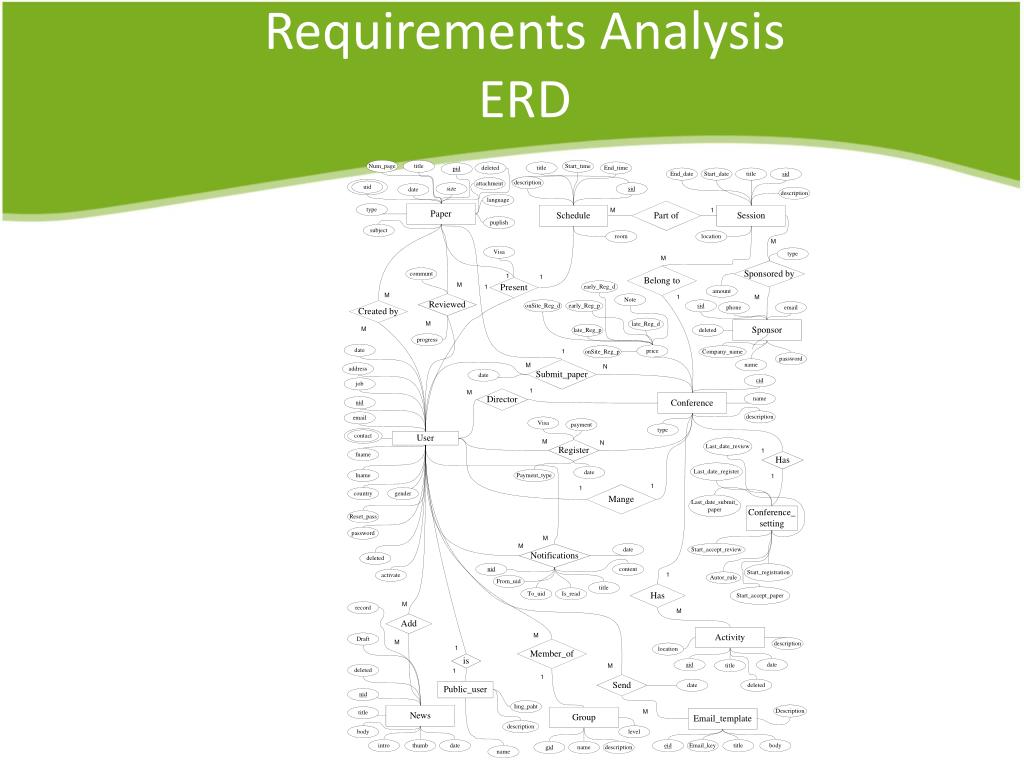

  37. Requirements Analysis ERD

  38. Requirements Analysis Mapping ERD

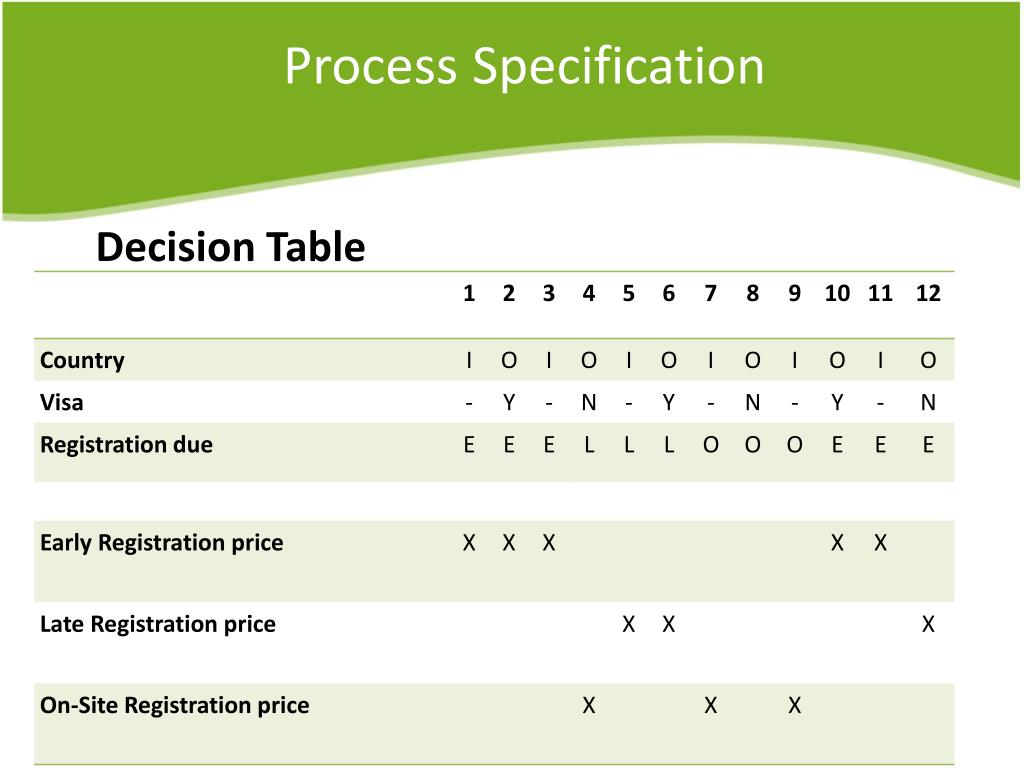

  39. ProcessSpecification Decision Table

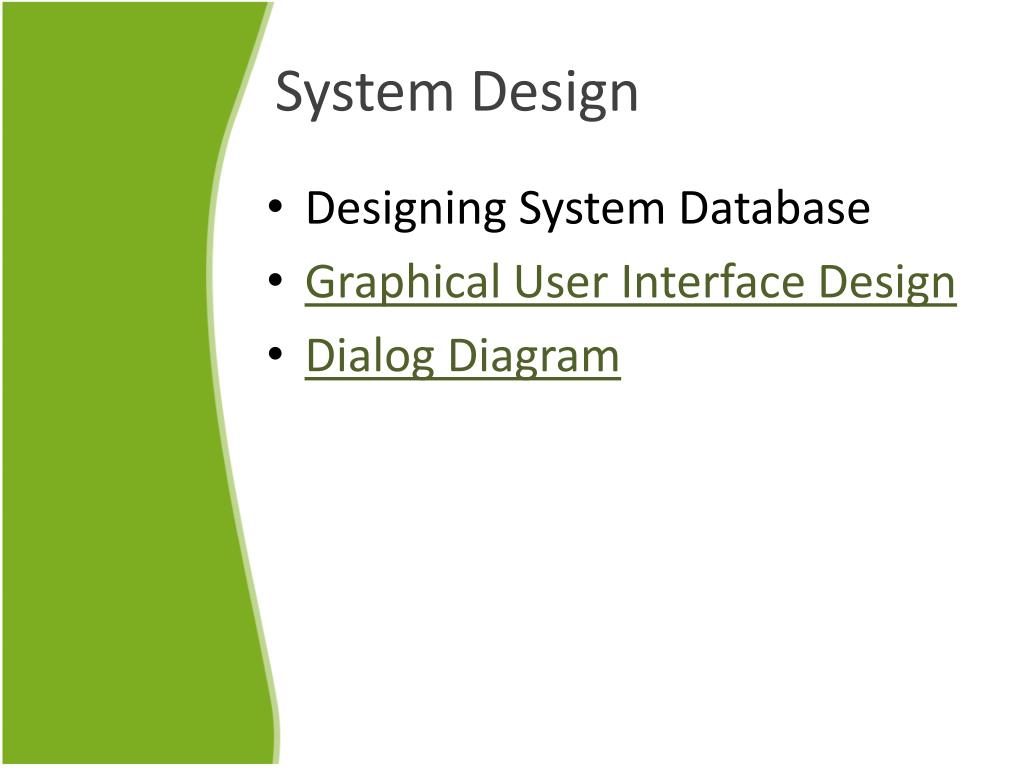

  40. System Design • Designing System Database • Graphical User Interface Design • Dialog Diagram

  41. System Design-Designing System Database Activity

  42. System Design-Designing System Database conferences_setting

  43. System Design-Designing System Database contact email_template

  44. System Design-Designing System Database Groups

  45. System Design-Designing System Database • news

  46. System Design-Designing System Database Notifications Rest of tables

  47. System Design- Graphical User Interface Designoverview • Users to interact with electronic devices with images rather than text commands • GUI represents the information and actions available to a user through graphical icons and visual indicators

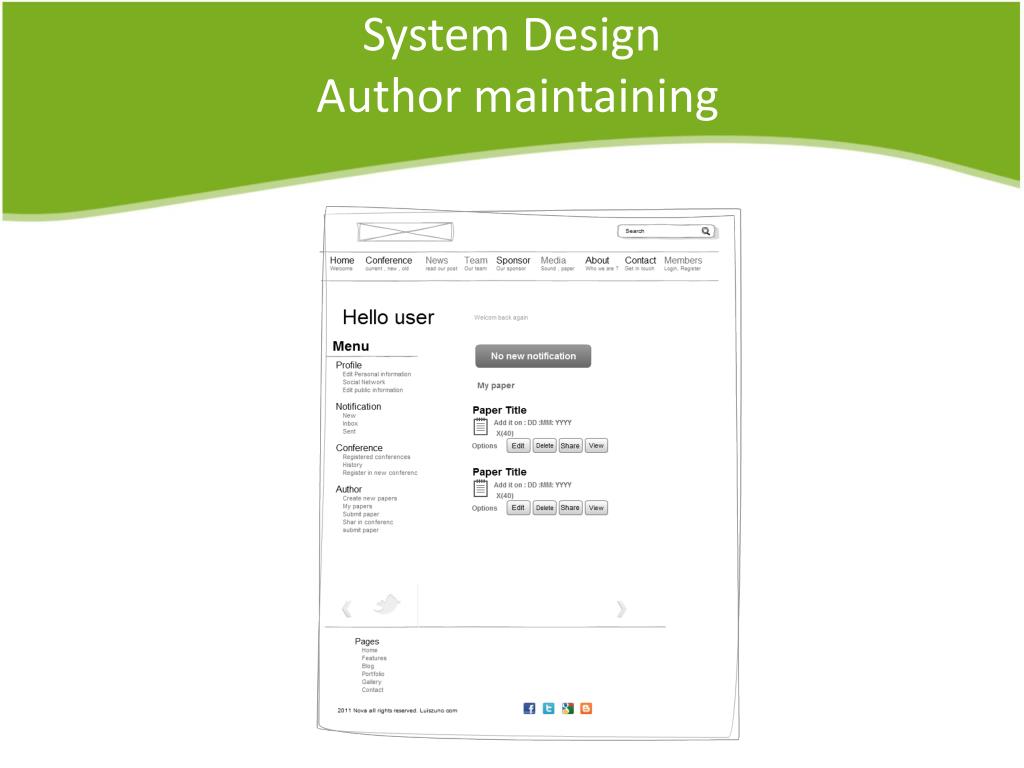

  48. System Design Author maintaining

  49. System Design Author maintaining

  50. System Design Author maintaining
