  1. Welcome to MM150 Unit 6 Seminar

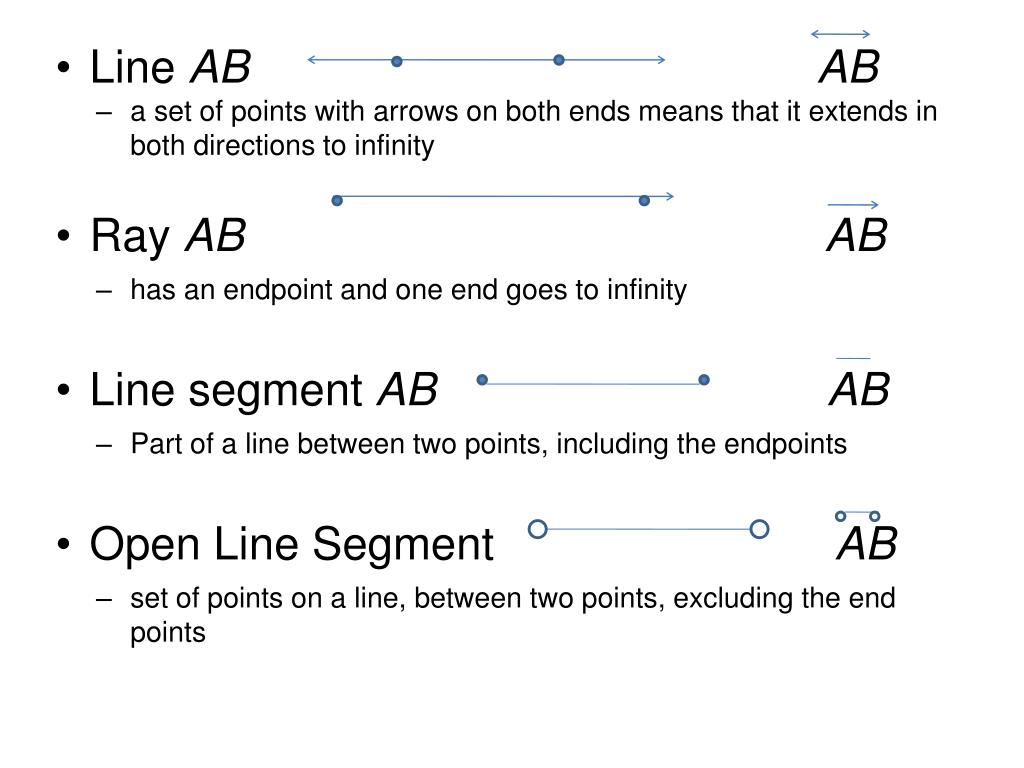

  2. Line ABAB • a set of points with arrows on both ends means that it extends in both directions to infinity • Ray ABAB • has an endpoint and one end goes to infinity • Line segment ABAB • Part of a line between two points, including the endpoints • Open Line Segment AB • set of points on a line, between two points, excluding the end points

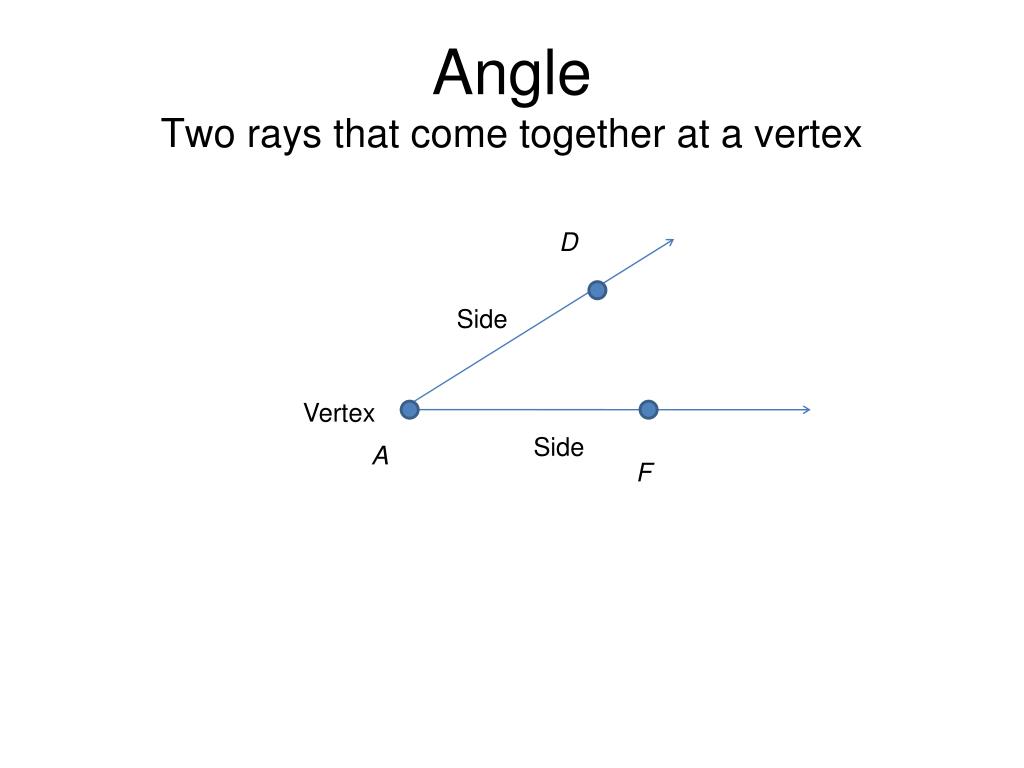

  3. AngleTwo rays that come together at a vertex D Side Vertex Side A F

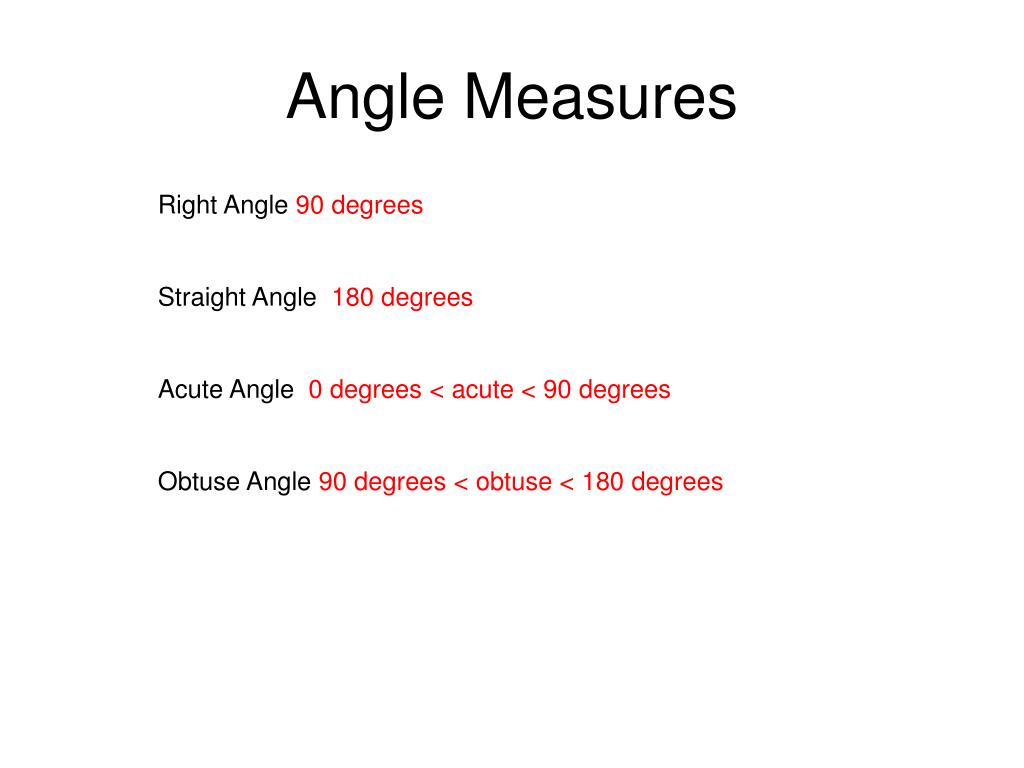

  4. Angle Measures Right Angle 90 degrees Straight Angle 180 degrees Acute Angle 0 degrees < acute < 90 degrees Obtuse Angle 90 degrees < obtuse < 180 degrees

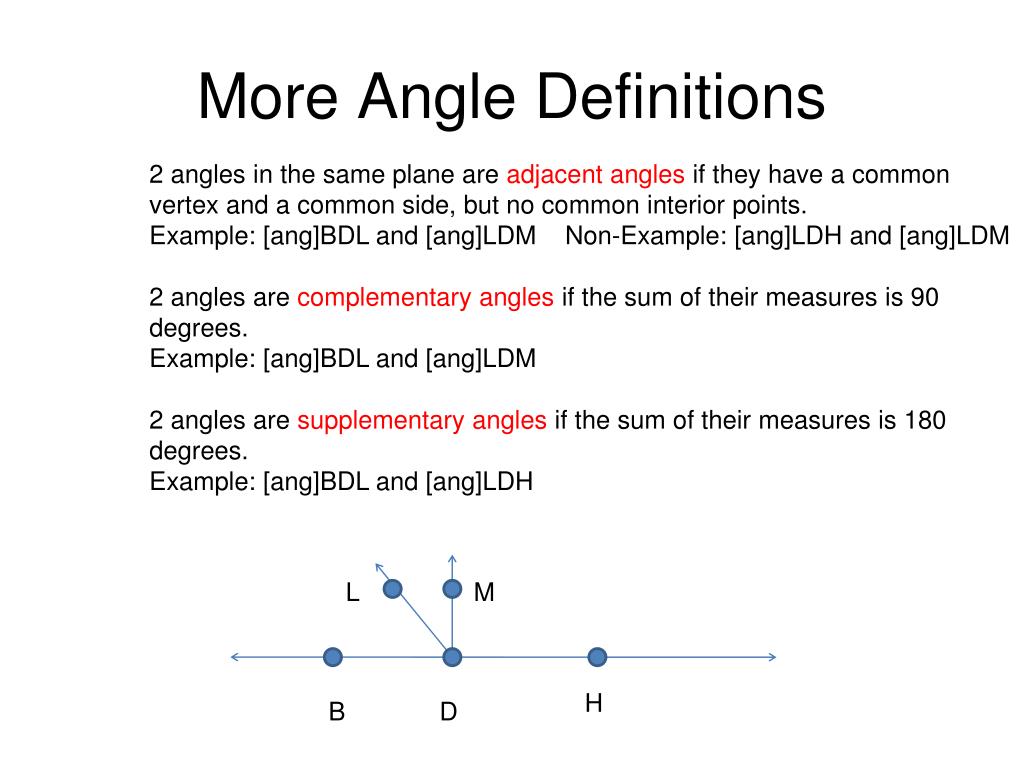

  5. More Angle Definitions 2 angles in the same plane are adjacent angles if they have a common vertex and a common side, but no common interior points. Example: [ang]BDL and [ang]LDM Non-Example: [ang]LDH and [ang]LDM 2 angles are complementary angles if the sum of their measures is 90 degrees. Example: [ang]BDL and [ang]LDM 2 angles are supplementary angles if the sum of their measures is 180 degrees. Example: [ang]BDL and [ang]LDH L M H B D

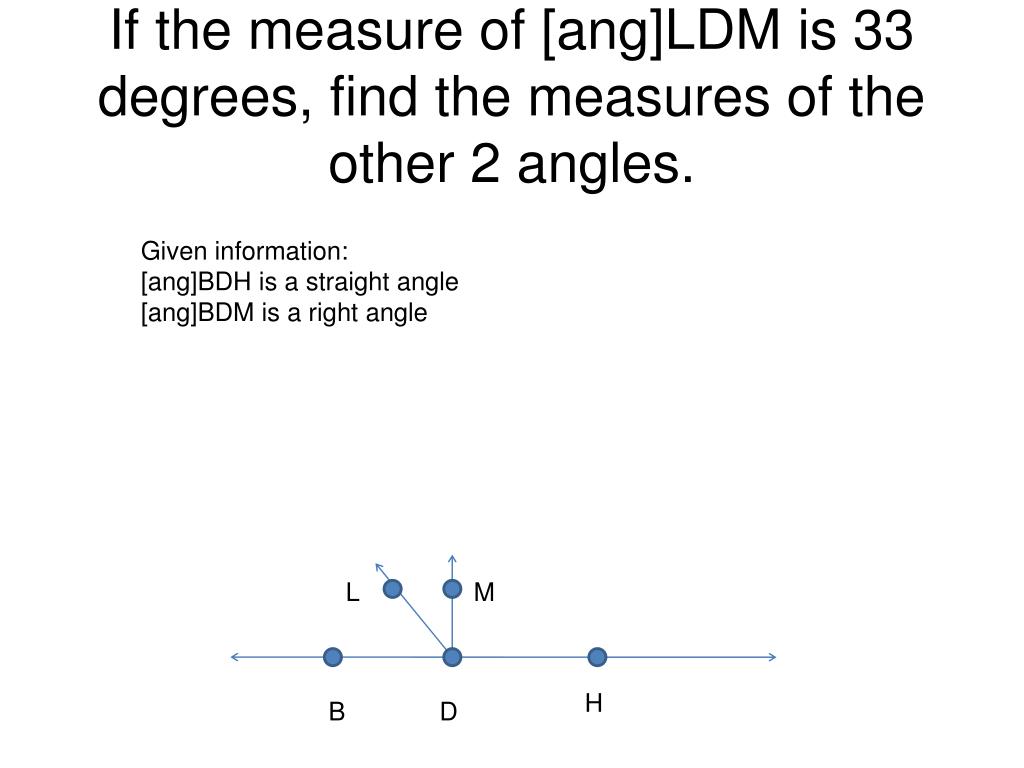

  6. If the measure of [ang]LDM is 33 degrees, find the measures of the other 2 angles. Given information: [ang]BDH is a straight angle [ang]BDM is a right angle L M H B D

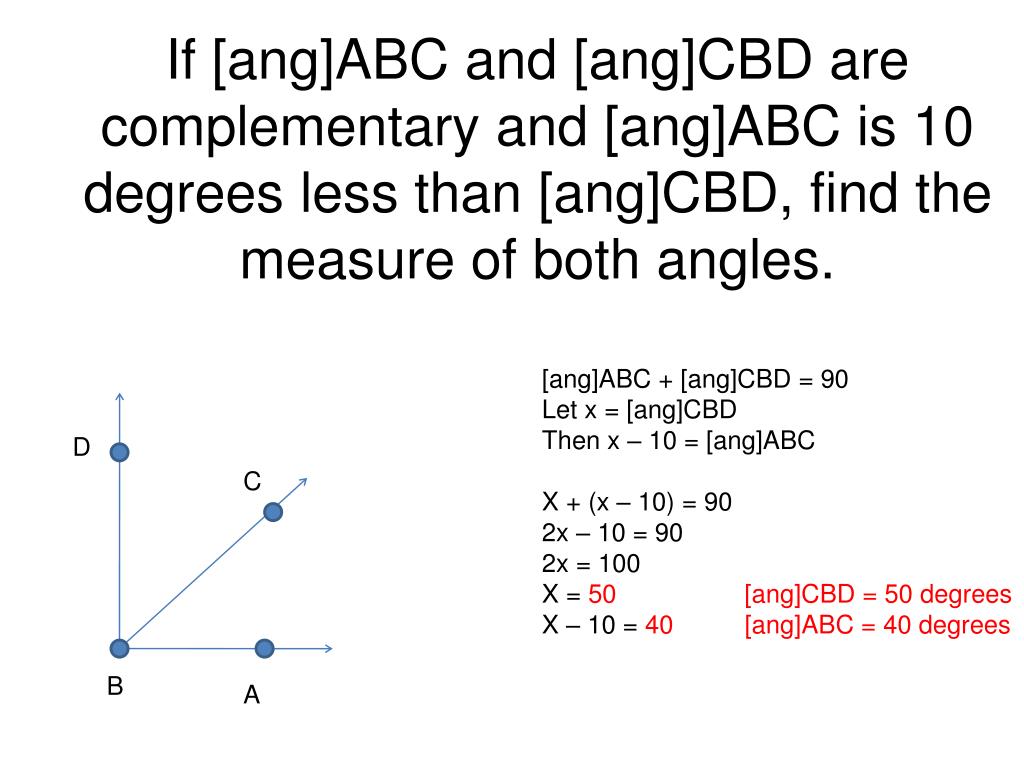

  7. If [ang]ABC and [ang]CBD are complementary and [ang]ABC is 10 degrees less than [ang]CBD, find the measure of both angles. [ang]ABC + [ang]CBD = 90 Let x = [ang]CBD Then x – 10 = [ang]ABC X + (x – 10) = 90 2x – 10 = 90 2x = 100 X = 50 [ang]CBD = 50 degrees X – 10 = 40 [ang]ABC = 40 degrees D C B A

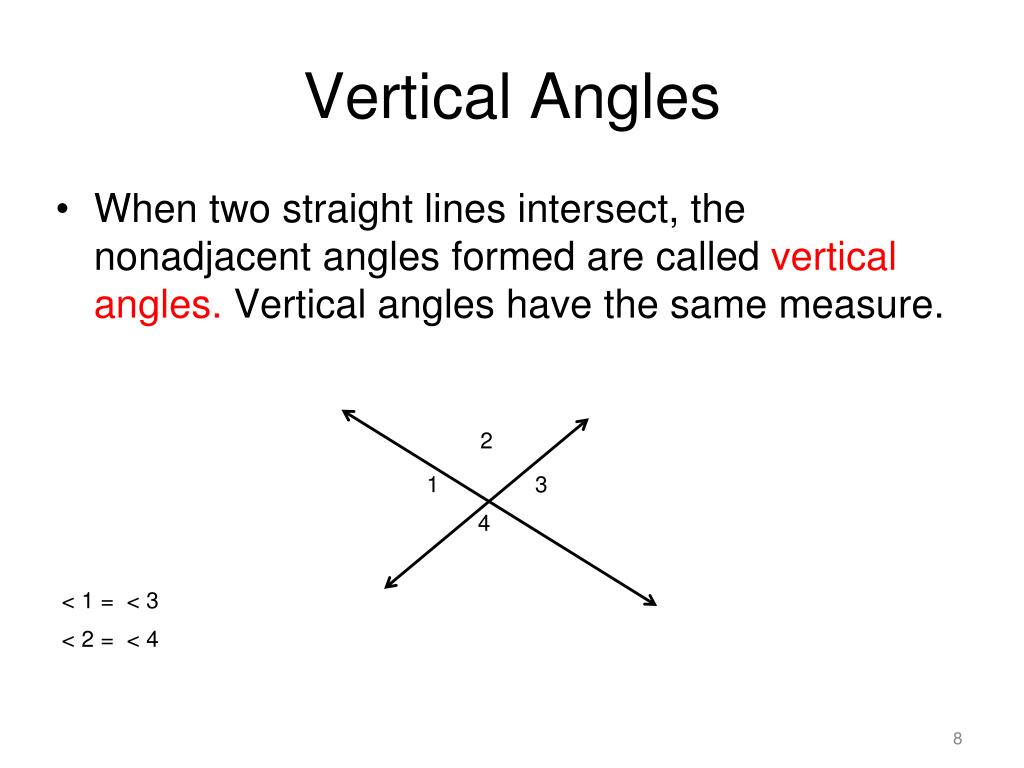

  8. Vertical Angles • When two straight lines intersect, the nonadjacent angles formed are called vertical angles. Vertical angles have the same measure. 2 1 3 4 < 1 = < 3 < 2 = < 4

  9. Parallel Lines Cut by a Transversal 1 2 3 4 5 6 7 8 When two lines are cut by a transversal, 1.) alternate interior angles have the same measure (<3,<6; <4,<5) 2.) corresponding angles have the same measure (<1,<5; <2,<6; <3,<7; <4,<8) 3.) alternate exterior angles have the same measure (<1, <8; <2,<7) * Vertical angles

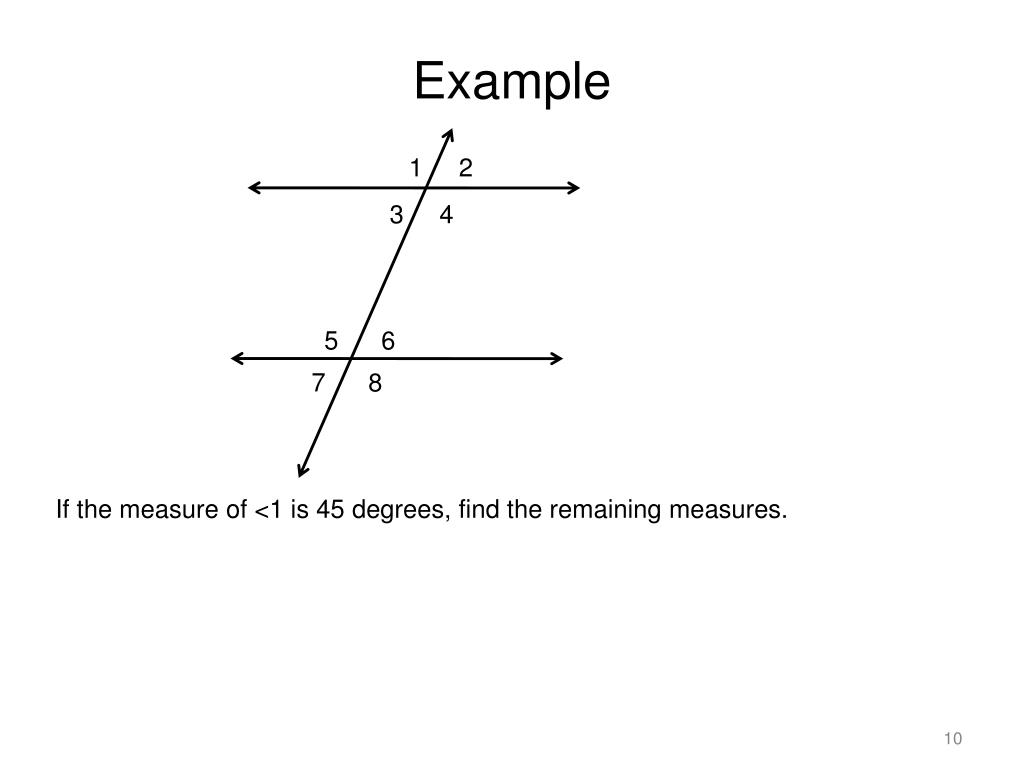

  10. Example 1 2 3 4 5 6 7 8 If the measure of <1 is 45 degrees, find the remaining measures.

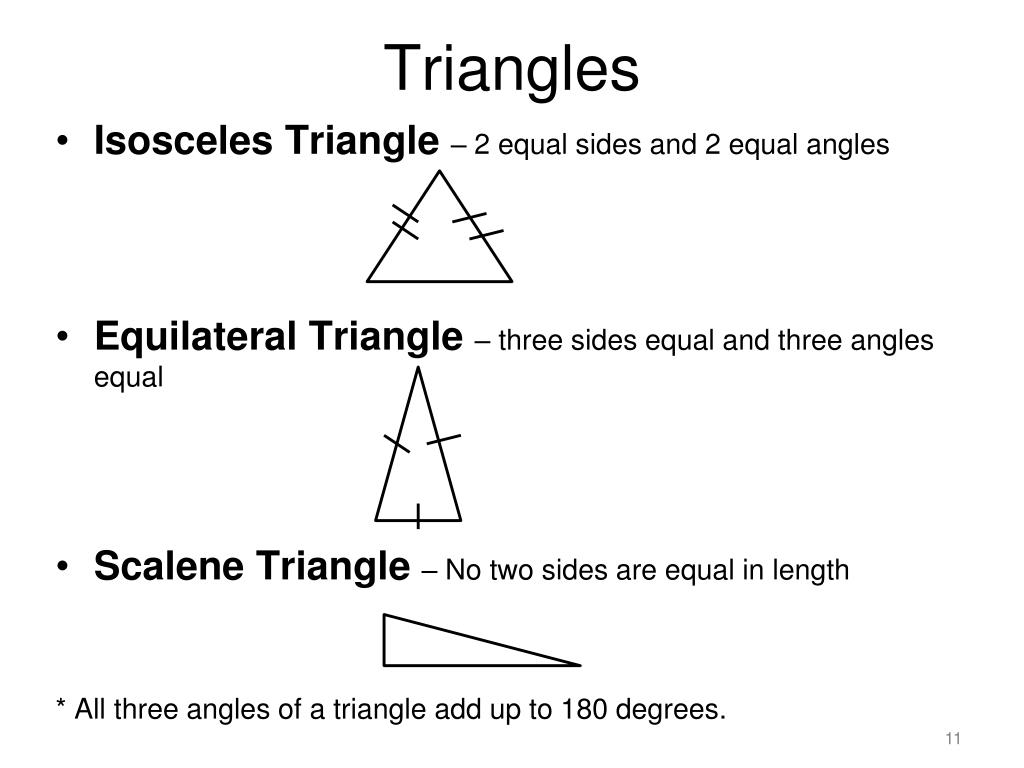

  11. Triangles • Isosceles Triangle – 2 equal sides and 2 equal angles • Equilateral Triangle – three sides equal and three angles equal • Scalene Triangle – No two sides are equal in length * All three angles of a triangle add up to 180 degrees.

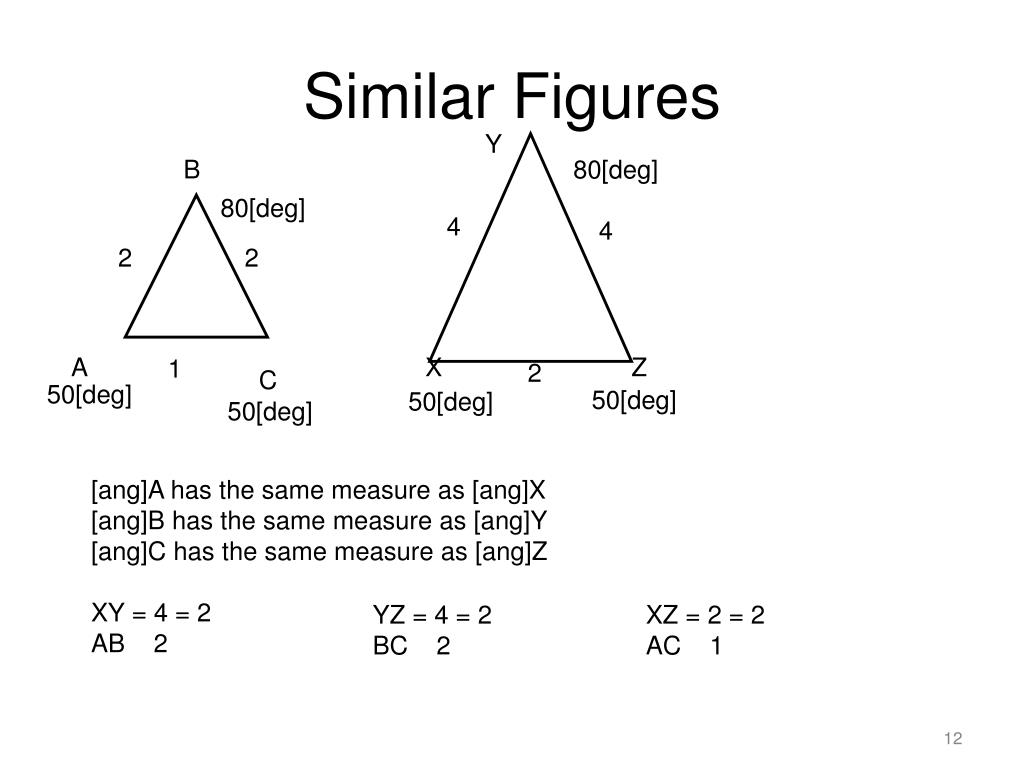

  12. Similar Figures Y B 80[deg] 80[deg] 4 4 2 2 A X Z 1 2 C 50[deg] 50[deg] 50[deg] 50[deg] [ang]A has the same measure as [ang]X [ang]B has the same measure as [ang]Y [ang]C has the same measure as [ang]Z XY = 4 = 2 AB 2 YZ = 4 = 2 BC 2 XZ = 2 = 2 AC 1

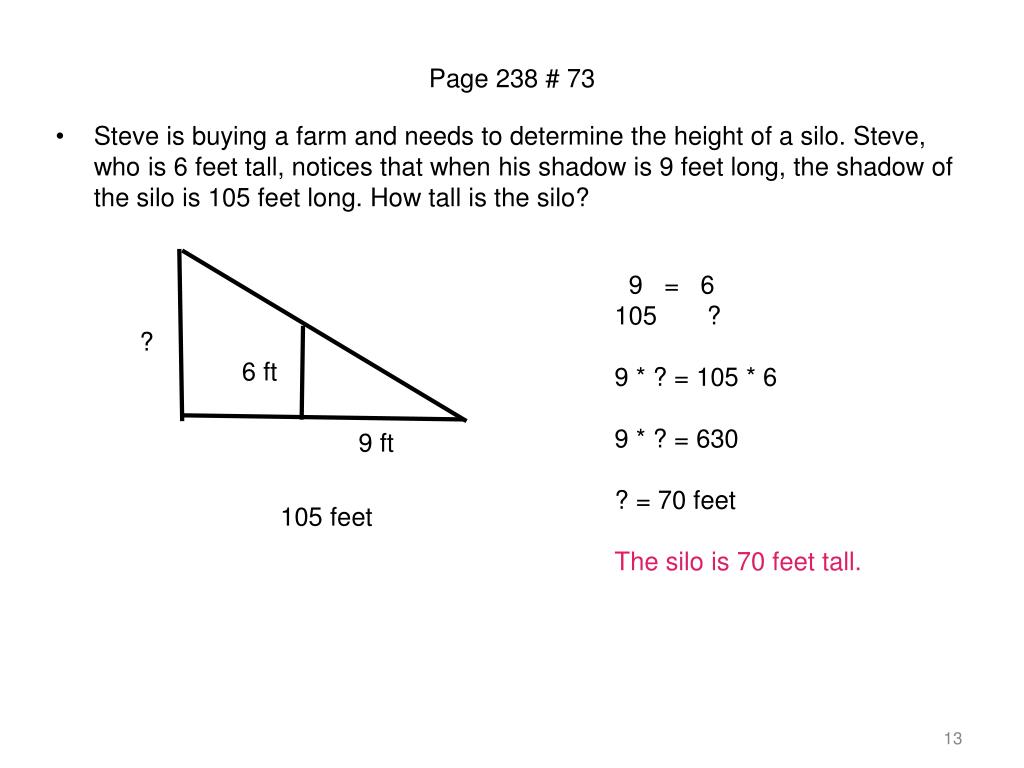

  13. Page 238 # 73 • Steve is buying a farm and needs to determine the height of a silo. Steve, who is 6 feet tall, notices that when his shadow is 9 feet long, the shadow of the silo is 105 feet long. How tall is the silo? 9 = 6 105 ? 9 * ? = 105 * 6 9 * ? = 630 ? = 70 feet The silo is 70 feet tall. ? 6 ft 9 ft 105 feet

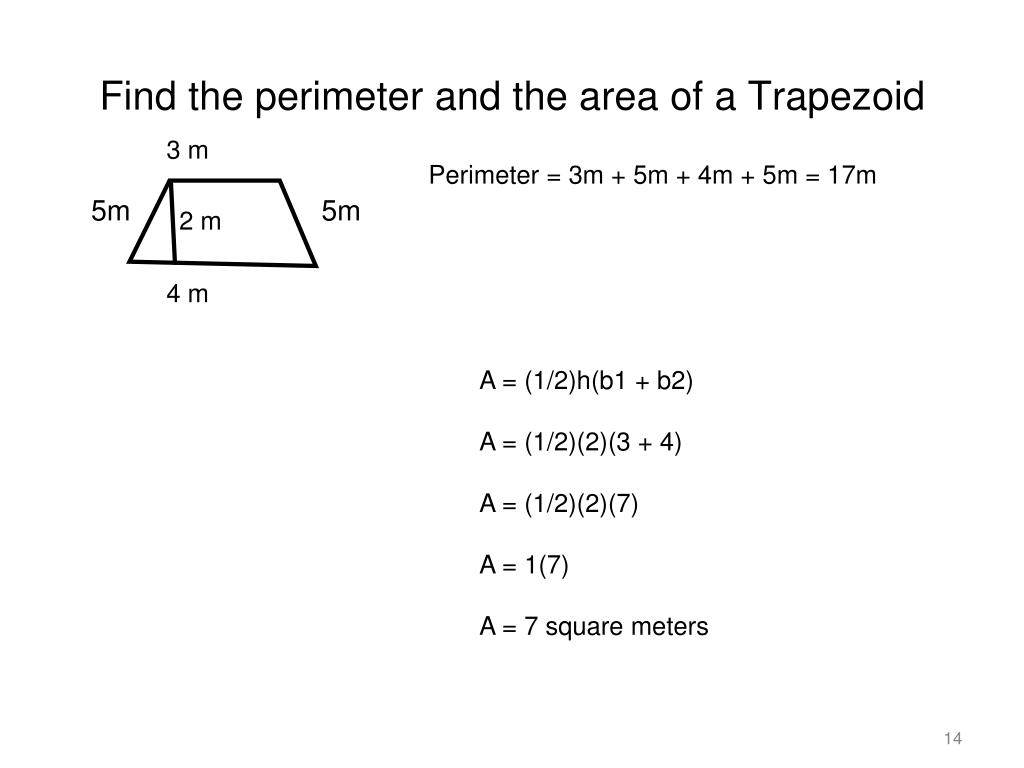

  14. Find the perimeter and the area of a Trapezoid 3 m Perimeter = 3m + 5m + 4m + 5m = 17m 5m 5m 2 m 4 m A = (1/2)h(b1 + b2) A = (1/2)(2)(3 + 4) A = (1/2)(2)(7) A = 1(7) A = 7 square meters

  15. Circle radius is in green diameter is in blue 2r = d Twice the radius is the diameter Circumference C = 2r or 2r Area A =  r2 Find the Circumference and the Area if the diameter is 22 in.

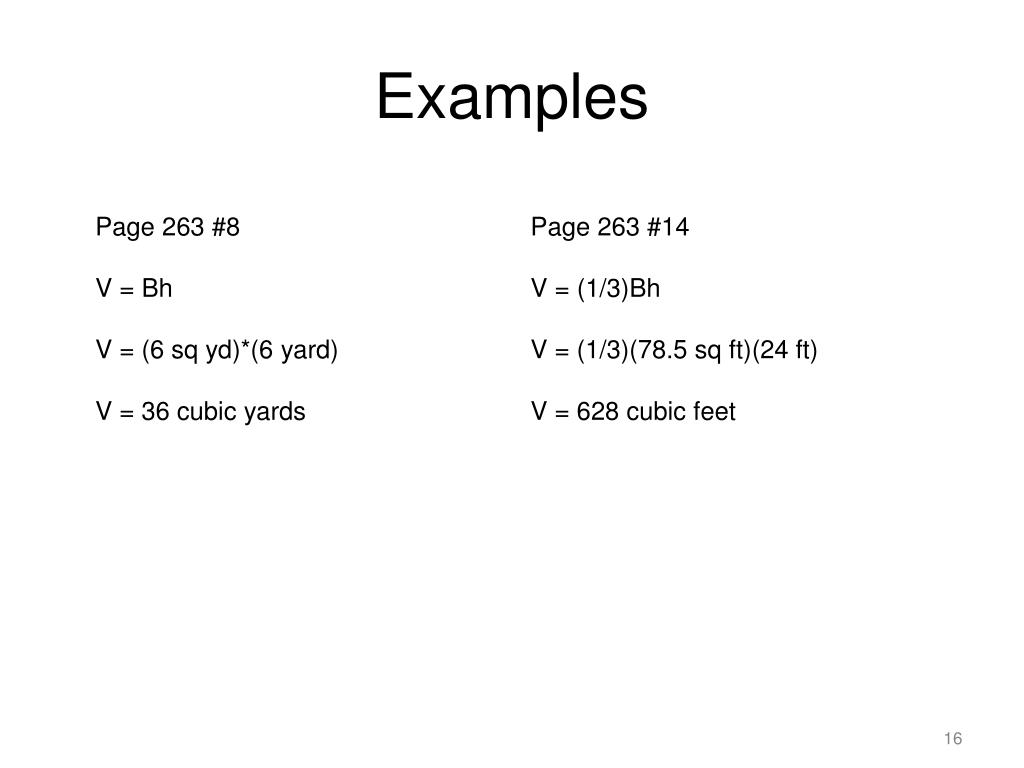

  16. Examples Page 263 #8 V = Bh V = (6 sq yd)*(6 yard) V = 36 cubic yards Page 263 #14 V = (1/3)Bh V = (1/3)(78.5 sq ft)(24 ft) V = 628 cubic feet

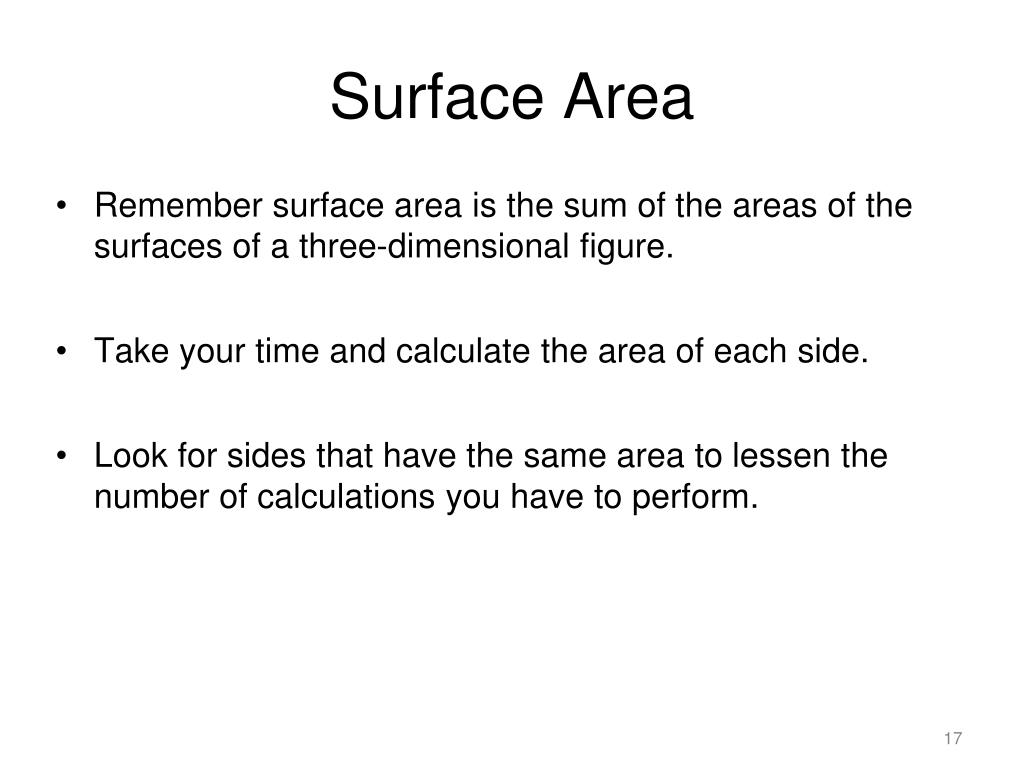

  17. Surface Area • Remember surface area is the sum of the areas of the surfaces of a three-dimensional figure. • Take your time and calculate the area of each side. • Look for sides that have the same area to lessen the number of calculations you have to perform.

  18. Examples Page 263 #8 Area of the 2 Bases 3 yd * 2 yd = 6 sq yd Area of 2 sides 2 yd * 6 yd = 12 sq yd Area of other 2 sides 3 yd * 6 yd = 18 sq yd Surface area 6 + 6 + 12 + 12 + 18 + 18 = 72 sq yd Page 263 #14 Surface area of a cone SA = [pi]r2 + [pi]r*sqrt[r2 + h2] SA = 3.14 * (5)2 + 3.14 * 5 * sqrt[52 + 242] SA = 3.14 * 25 + 3.14 * 5 * sqrt[25 + 576] SA = 78.5 + 15.7 sqrt[601] SA = 78.5 + SA = sq ft

  19. Polygons

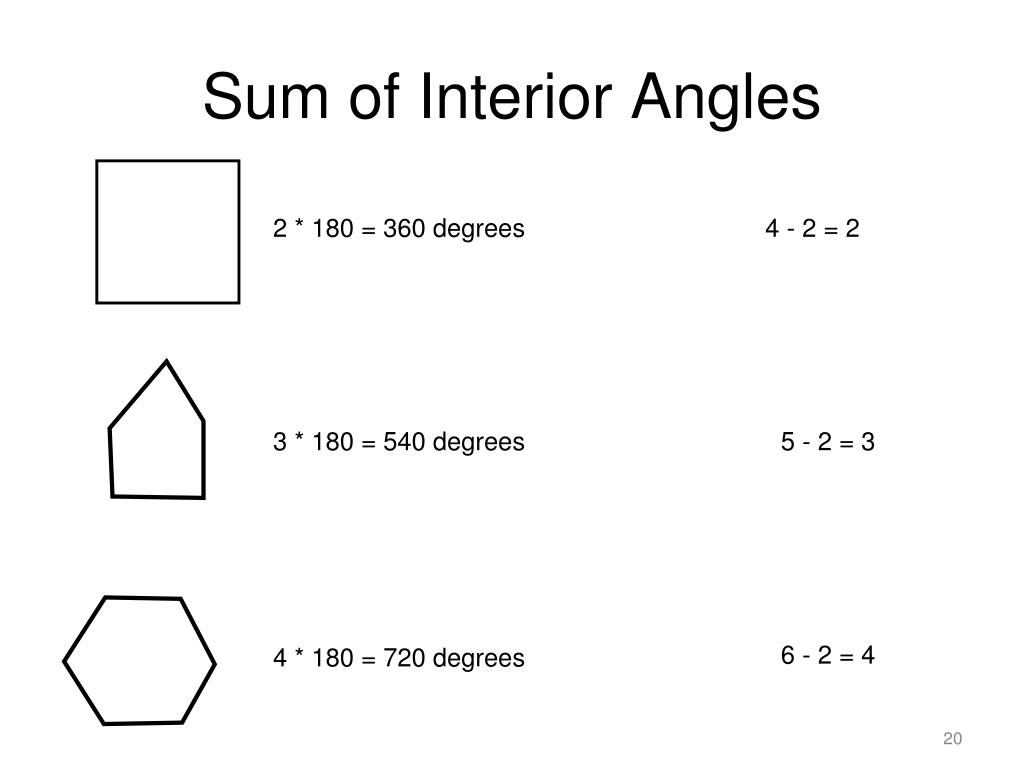

  20. Sum of Interior Angles 2 * 180 = 360 degrees 4 - 2 = 2 3 * 180 = 540 degrees 5 - 2 = 3 6 - 2 = 4 4 * 180 = 720 degrees

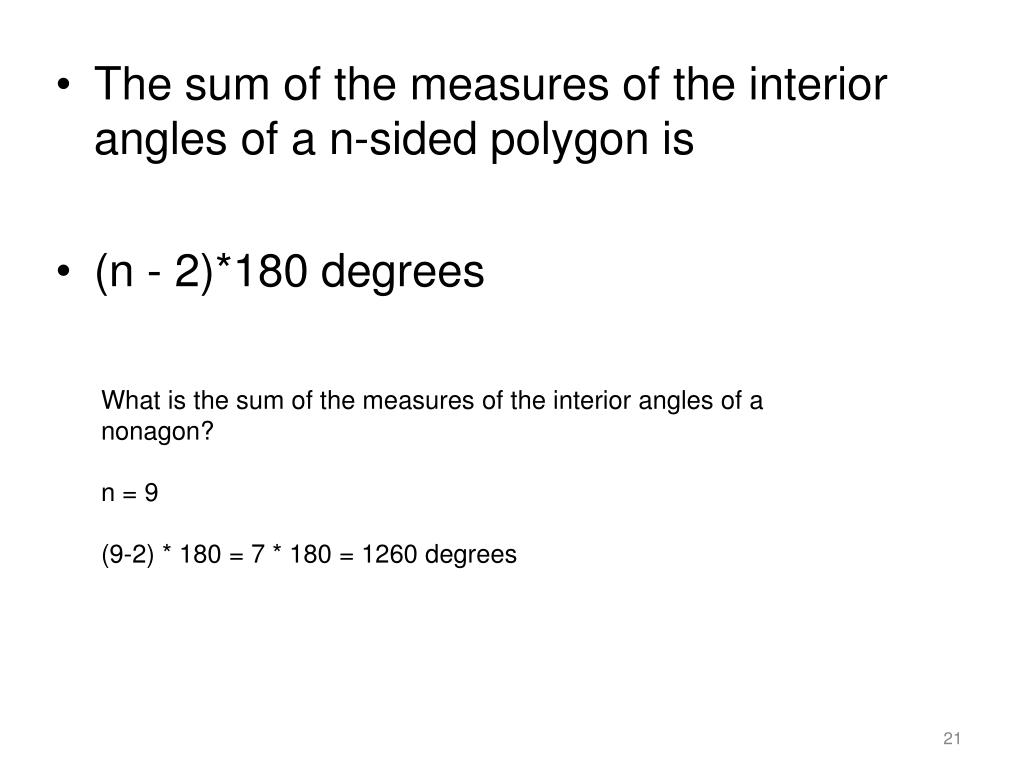

  21. The sum of the measures of the interior angles of a n-sided polygon is • (n - 2)*180 degrees What is the sum of the measures of the interior angles of a nonagon? n = 9 (9-2) * 180 = 7 * 180 = 1260 degrees

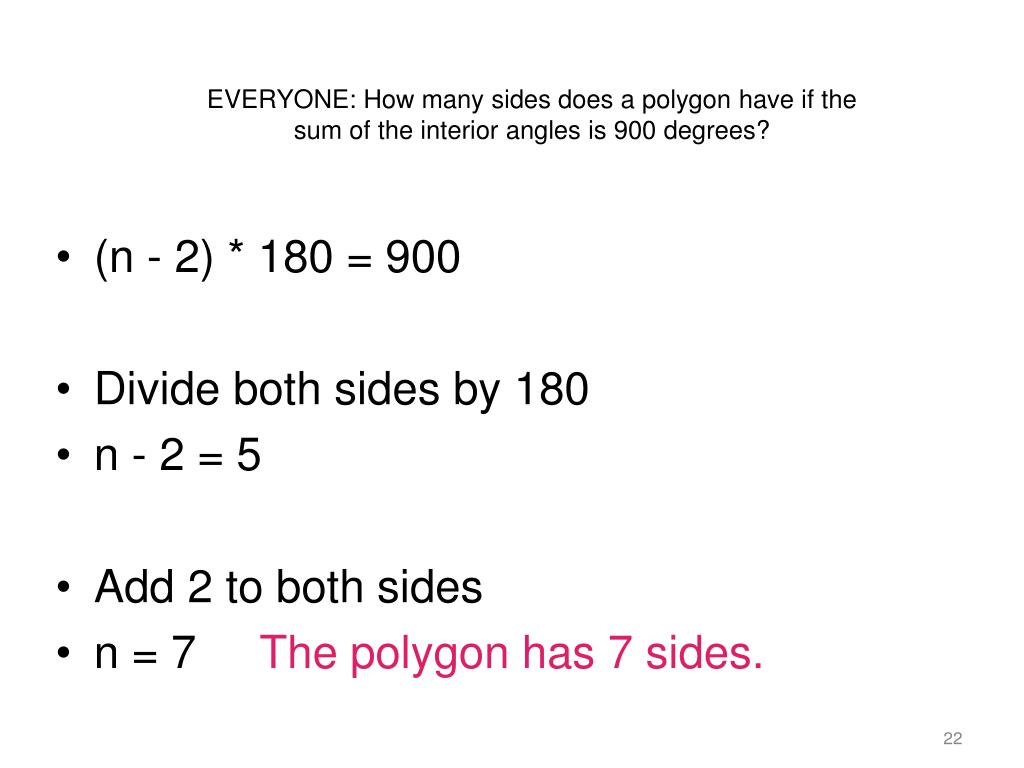

  22. EVERYONE: How many sides does a polygon have if thesum of the interior angles is 900 degrees? • (n - 2) * 180 = 900 • Divide both sides by 180 • n - 2 = 5 • Add 2 to both sides • n = 7 The polygon has 7 sides.

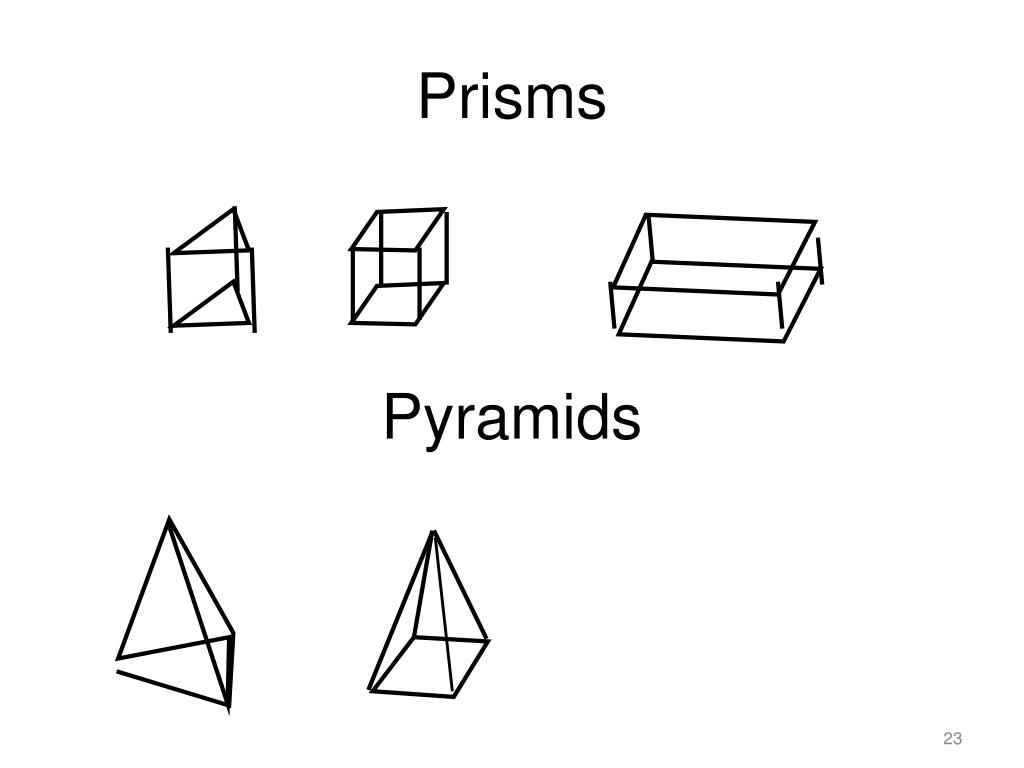

  23. Prisms Pyramids
