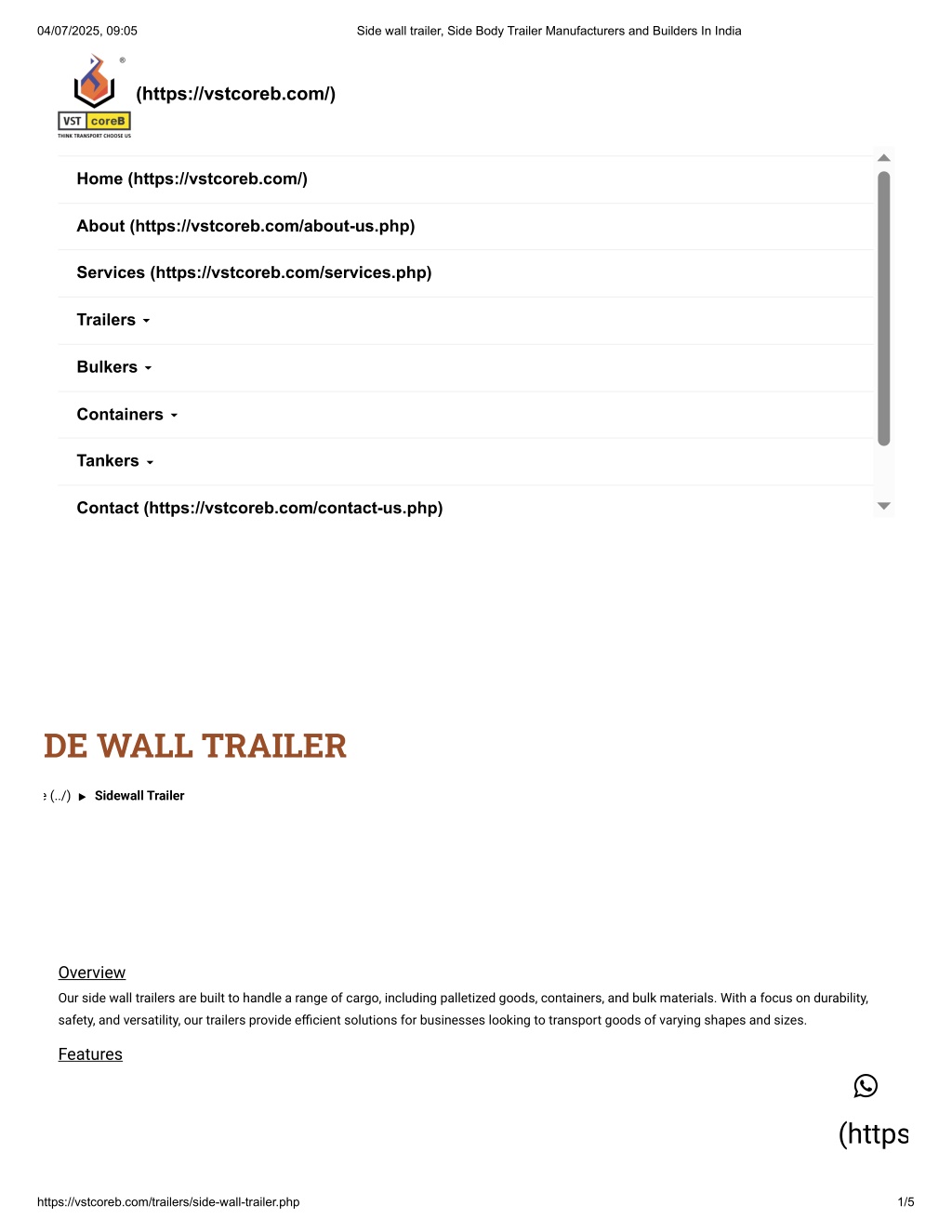

  1. 04/07/2025, 09:05 Side wall trailer, Side Body Trailer Manufacturers and Builders In India (https://vstcoreb.com/) Home (https://vstcoreb.com/) About (https://vstcoreb.com/about-us.php) Services (https://vstcoreb.com/services.php) Trailers Bulkers Containers Tankers Contact (https://vstcoreb.com/contact-us.php) DE WALL TRAILER e (../)  Sidewall Trailer Overview Our side wall trailers are built to handle a range of cargo, including palletized goods, containers, and bulk materials. With a focus on durability, safety, and versatility, our trailers provide efficient solutions for businesses looking to transport goods of varying shapes and sizes. Features  (https https://vstcoreb.com/trailers/side-wall-trailer.php 1/5

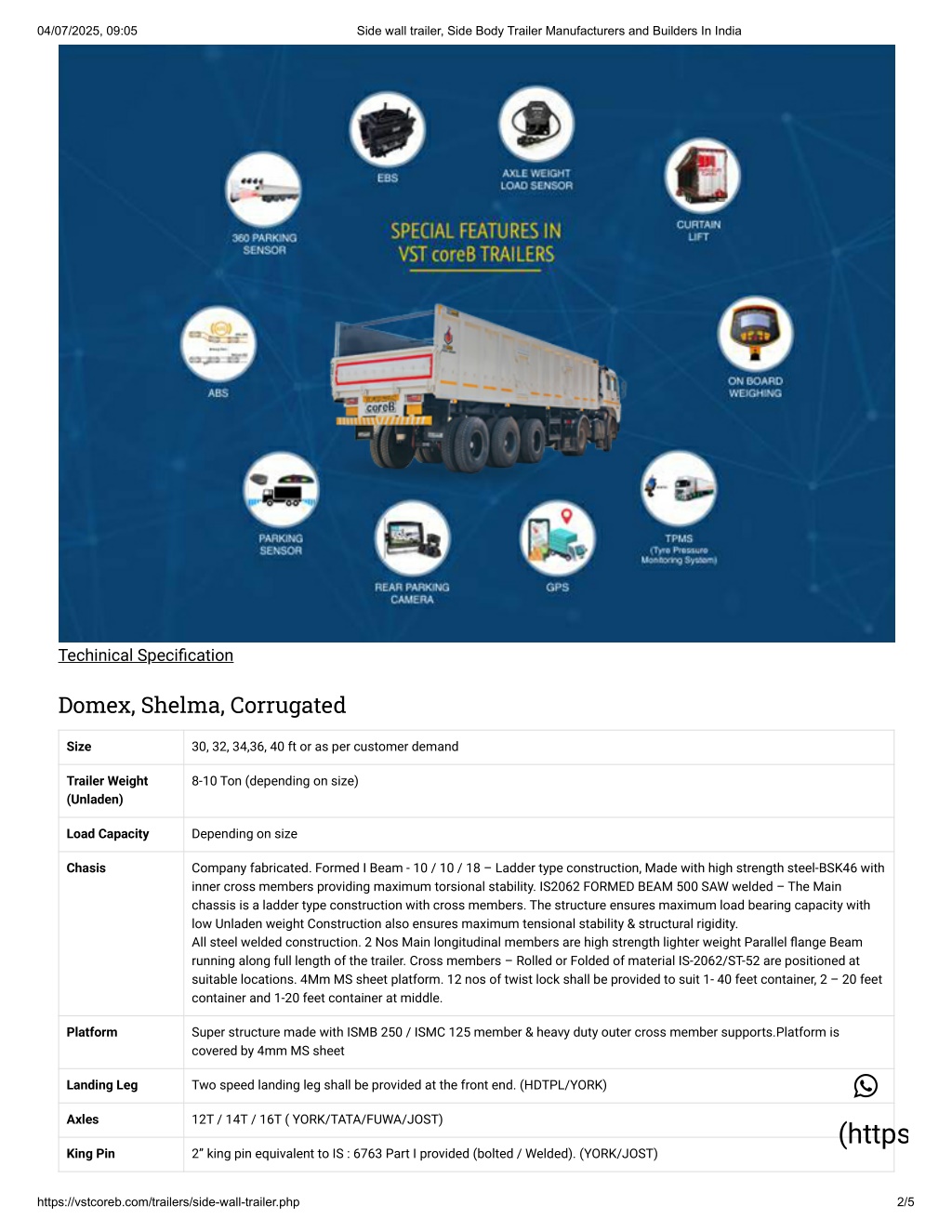

  2. 04/07/2025, 09:05 Side wall trailer, Side Body Trailer Manufacturers and Builders In India Techinical Speci?cation Domex, Shelma, Corrugated 30, 32, 34,36, 40 ft or as per customer demand Size 8-10 Ton (depending on size) Trailer Weight (Unladen) Depending on size Load Capacity Company fabricated. Formed I Beam - 10 / 10 / 18 – Ladder type construction, Made with high strength steel-BSK46 with inner cross members providing maximum torsional stability. IS2062 FORMED BEAM 500 SAW welded – The Main chassis is a ladder type construction with cross members. The structure ensures maximum load bearing capacity with low Unladen weight Construction also ensures maximum tensional stability & structural rigidity. All steel welded construction. 2 Nos Main longitudinal members are high strength lighter weight Parallel flange Beam running along full length of the trailer. Cross members – Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 4Mm MS sheet platform. 12 nos of twist lock shall be provided to suit 1- 40 feet container, 2 – 20 feet container and 1-20 feet container at middle. Chasis Super structure made with ISMB 250 / ISMC 125 member & heavy duty outer cross member supports.Platform is covered by 4mm MS sheet Platform  Two speed landing leg shall be provided at the front end. (HDTPL/YORK) Landing Leg 12T / 14T / 16T ( YORK/TATA/FUWA/JOST) Axles (https 2” king pin equivalent to IS : 6763 Part I provided (bolted / Welded). (YORK/JOST) King Pin https://vstcoreb.com/trailers/side-wall-trailer.php 2/5
