Presentation Transcript

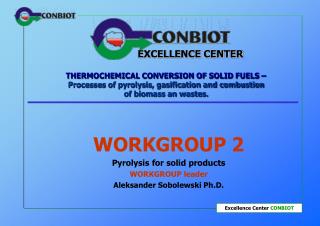

slide1
EXCELLENCE CENTER

THERMOCHEMICAL CONVERSION OF SOLID FUELS – Processes of pyrolysis, gasification and combustionof biomass an wastes.

WORKGROUP 2

Pyrolysis for solid products

WORKGROUP leader

Aleksander Sobolewski Ph.D.

slide2
Scope of activity

Processes for upgrading solid products by pyrolysis:

  • Development and implementation of ecologically safe and effective technologies of waste plastics and waste tyres utilisation,
  • Implementing of adsorption technologies for „end-of-pipe” cleaning of industrial gases and wastewater,
  • Development of technologies for activated carbon production and regeneration,
  • Development of gas cleaning technology (tar removal).
slide3
Professionals
  • Aleksander Sobolewski Ph.D. - WG 2 leader
  • Zbigniew Robak Ph.D. - Carbochemistry (pyrolysis)
  • Monika Kosewska M.Sc. - Chemistry (pyrolysis)
  • Bogumiła Latkowska M.Sc. - Designing (gas cleaning)
  • Sławomir Stelmach M.Sc. - Chemical engineering (adsorption)
  • Henryk Fitko M. Sc. - Process engineering
  • Ryszard Wasielewski M.Sc. - Carbochemistry (waste processing)
  • Rafał Bigda M.Sc. - Chemistry
slide4
WG 2 - equipment

Pyrolysis testing stand:

  • type: fix-bed
  • charge: ~5kg/test
  • temperature: up to 1000oC
  • atmosphere: N2 or combustion gases
  • heat exchange: direct or indirect
  • heating: electrical (2 zones)
  • control: automatictemperature
  • regulation
slide5
WG 2 - equipment

Gasification testing stand:

  • type: fix-bed
  • charge: ~1kg/test
  • temperature: up to 1100oC
  • reaction agents: CO2, H2O, air
  • heat exchange: indirect
  • heating: electrical (1 zone)
  • control: manual temperature
  • regulation
slide6
Testing

Temperature profile in standard pyrolysis tests:

Test conditions:

  • charge:~3kg/test
  • final temperature:450-700oC
  • testing time: up to 120 min
  • analysis of solid product
  • analysis of gaseous products
slide7
THERMAL PROCESSING OF WASTE PLASTICS

RAW MATERIAL

PROCESS

PRODUCT

Product is a full value solid fuel.

THERMOLYSIS

Karboterm

Two stage process

WP/bitum ratio : 4 / 1

Temp. : 350oC

Time: 60 min

Ash : 10 %

Heating value : 30000 kJ/kg

Sulfur : < 0,8 %

Chlorine : < 0,2 %

100.000 Mg of wasteplastics

per year in Poland

Composition

Description:

Prepared waste plastics are thermally processed with an addition of carbo- or petrochemical bitumens. The reduction of volatile hydrocarbons and elimination of chlorine from polymer decay are characteristic for the process.

Hot liquid semi-product is cooled by mixing with a grained hard coal.

Product application:

Karboterm is a full value component for a coal blend in coking plants or a fuel in power plants with a grained hard coal.

slide8
THERMAL PROCESSING OF WASTE TYRES

RAW MATERIAL

PROCESS

PRODUCT

Thermal treatment of waste rubber shreds includs two following processes

Final products properties are comparable to commercial powder activated carbon used in adsorptive gas cleaning

Char

PYROLYSIS

150.000 Mg of used tyres

per year in Poland

Ash : 11,6 %

Methylene blue number : 3 cm3/g

Jodine number : 160 mg /g

BET (nitrogen) : 80-110 m2/g

Temp. : 600 oC

Time: 120 min

Activated carbon

Properties

ACTIVATION

Particle size : 3-10 mm

Moisture : 1,2 %

Ash : 5,5 %

Volatile matter : 68,6 %

Fixed carbon : 24,7 %

Ash : 14,7 %

Methylene blue number : 25 cm3/g

Jodine number : 670 mg /g

BET (nitrogen) : 623 m2/g

Temp. : 850 oC

Time: 45 min

Activation agent : steam

Product application:

Adsorptive clean-up of flue gases from municipal wastes incineration plants.

.

slide9
THERMAL TREATMENT OF SEWAGE SLUDGE

RAW MATERIAL

PROCESS

PRODUCT

Treatment of sewage sludge includs two following processes:

Char

PRETREATMENT

Ash : 40-70 %

BET (nitrogen) : 80-110 m2/g

360.000 Mg of municipal,

700.000 Mg of industrial

sewage sludge per year in Poland

Drying & Peletizing

Temp. : 70oC

Time: 10-15 min

Sewage sludge properties

  • Product application:
  • Dry granuled sludge:
  • Gardening fertylizer
  • Coking blend component
  • Char:
  • Adsorptive clean-up of flue gases,
  • Improvement agent for biological treatment of wastewater.

PYROLYSIS

wet dry

Organic matter 15 % 52 %

Ash: 10 % 38 %

Moisture: 75 % 10 %

Particle size - 2-10 mm

Temp. : 400-700 oC

Time: 120 min

slide10
Conference cycle : „Thermochemical conversion of biomass and wastes”

Task 1.2

„Properties and application of biomass and waste pyrolysis products”

Scope:

  • Examination of the properties of solid products from biomass and wastes pyrolysis,
  • Copyrolysis of biomass and wastes with fossil fuels,
  • Adsorptive properties of solid products from biomass and wastes pyrolysis,
  • Refining of pyrolysis products (carbon black, carbonising and reducting agents, catalyst carriers, binders, filling materials for plastic and rubber).

Speakers: DMT(D), CPM(F), CSIC(ES), IUT(F).

slide11
Twinnings

Task 3.4

Co-operation with research centres from Germany and France in the field of biomass and industrial waste pyrolysis and of effective using refined pyrolysis products in the environmental protection processes.

Partners: DMT - Deutsche Montan Technologie GmbH (Germany)

CPM – Centre de Pyrolyse de Marienau (France)

Activities:

  • commonly co-ordinated research projects with DMT and CPM in the field of refining solid products of biomass and waste pyrolysis,
  • young researcher intership in DMT : using and refining of pyrolysis products,
  • young researcher intership in CPM : indirect and direct pyrolysis.
slide12
Twinnings

Task 3.5

Co-operation with research center from Spain in the field of biomass and industrial waste pyrolysis especially effective using of refined pyrolysis products.

Partner: CSIC – Instituto de Carboquimica (Spain)

Activities:

  • commonly co-ordinated research projects with CSIC in the field of refining solid products of biomass and waste pyrolysis (carbon black, carburizing and reducting agents, binders, filling material for rubber),
  • young researcher intership in CSIC : using of pyrolytic char for carbon black production and filling material for rubber industry.
slide13
Competence evaluation:

very good

Competence evaluation:

excellent

WG 2 – Competence:

  • Today :
  • Our technological knowledge (pyrolysis and gasification),
  • Experience of solid wastes processing,
  • Our existing databases.
  • Tomorrow :
  • Cooperation with European centres in the field of biomass and waste processing,
  • New processes for effective waste utilization (hydrogen, methanol),
  • Development of existing databases.
