Ece122 30 lab 2 cmos design

The George Washington UniversitySchool of Engineering and Applied ScienceDepartment of Electrical and Computer Engineering

ECE122 – 30

Lab 2: CMOS Design

Jason Woytowich

September 9, 2005


Hierarchical design strategy
Hierarchical Design Strategy

  • Complex designs should be broken down into manageable pieces.

CPU

Bus Interface

Register File

Execution Unit

Control Unit

ALU

FPU

Adder

Shifter

Multiplier


Hierarchical design strategy1
Hierarchical Design Strategy

  • Proper breakdown of the circuit decreases the difficulty of your design and testing.

  • Low level module implementations can be reused within the same design, or in other designs.

  • Low level modules can be replaced with functionally equivalent implementations.


Lab activity cmos buffer
Lab activity – CMOS Buffer

  • Build a CMOS buffer out of CMOS inverter modules. Test your design.


Gate delay
Gate Delay

  • Gate Delay is the amount of time it takes a change of input to appear as a change on the output.

  • Gate Delay is measured from the 50% point on the input signal to the 50% point on the output.

Input

Output

tp


Gate delay1
Gate Delay

  • We also characterize the transition time of a signal. In this case we use the 10% and 90% points.

90%

10%

tpLH

90%

10%

tpHL


Gate delay2
Gate Delay

  • The load capacitance severely affects the gate delay.

Inv1

Inv2


Lab activity gate delays
Lab activity – Gate Delays

  • Using a single inverter as a load, find the gate delays of your inverter and your buffer. Check 0->1 and 1->0 transitions.

tp


Scmos library
SCMOS Library

  • Scalable CMOS Library

  • Contains (just about) every digital logic component you need to build anything.

  • And, Or, Xor, Nand, Nor, Xnor, Inv, Buf, Flip-flops, Pads, Capacitors, Resistors

  • Each of these components has a specific layout mapped to it.

  • It does not layout individual transistors.


Lab activity gate delays1
Lab activity – Gate delays

  • Compare the gate delays of the library buffer with yours.

  • Be sure to use the same load or the measurements are meaningless.


Lab activity multiple inputs

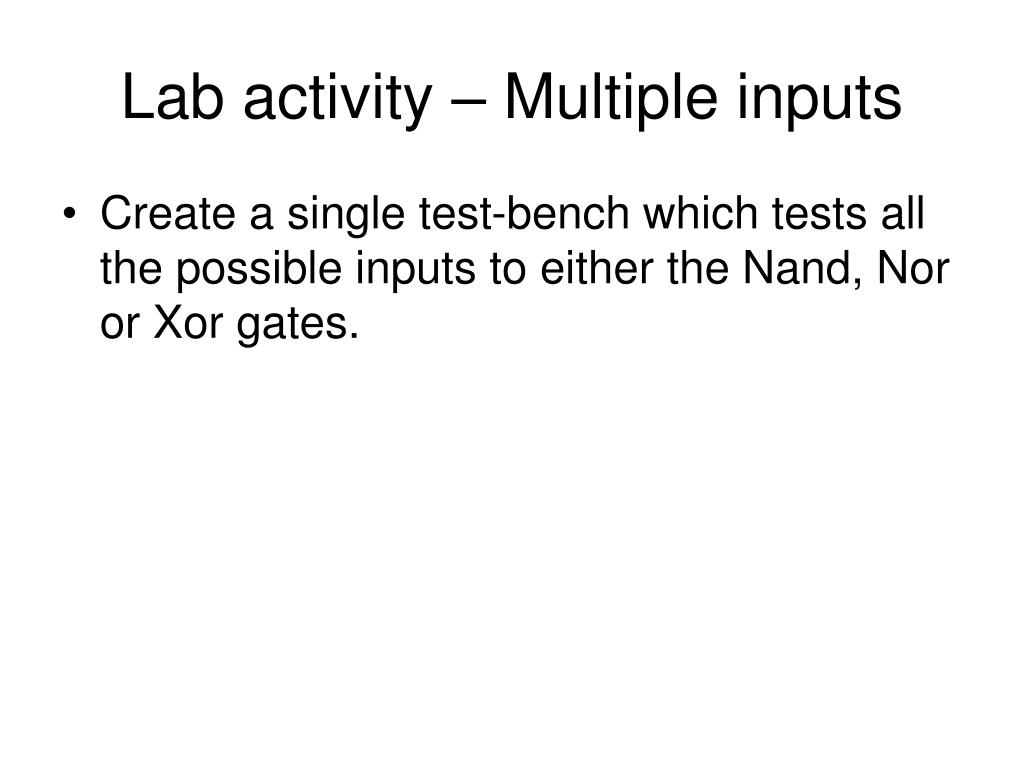

Lab activity – Multiple inputs

  • Create a single test-bench which tests all the possible inputs to either the Nand, Nor or Xor gates.


Voltage transfer characteristic
Voltage Transfer Characteristic

  • Vin on the X-Axis and Vout on the Y-Axis

5V

Vout

0V

0V

5V

Vin


Homework
Homework

  • Using the ml2_125 model file, create an inverter so that it has a symmetric VTC.

  • Adjust only Wn and Wp. Keep Ln,p constant. Use a 10pF load.

  • Find the tpHL tpLH and tp for your inverter using the same inverter as a load.

  • Vary the size from 1 to 100 times the width in increments of 10. Keep (Wn/Wp) constant.
