  1. TETRA Data Applicationsfor Gas and OilDubai, September 2013Funk-Electronic Piciorgros GmbHMichael D. Piciorgros (CEO)

  2. Why and not …. P25 DMR WiMAX WiFi GSM, Edge, 2G, 3G, (4G) Other digital Wireless Systems

  3. … because ? Try to compare all technical and commercial aspects of the following presentation with the optional technologies and the decision will be easy!

  4. Requirements forGas and OilApplications

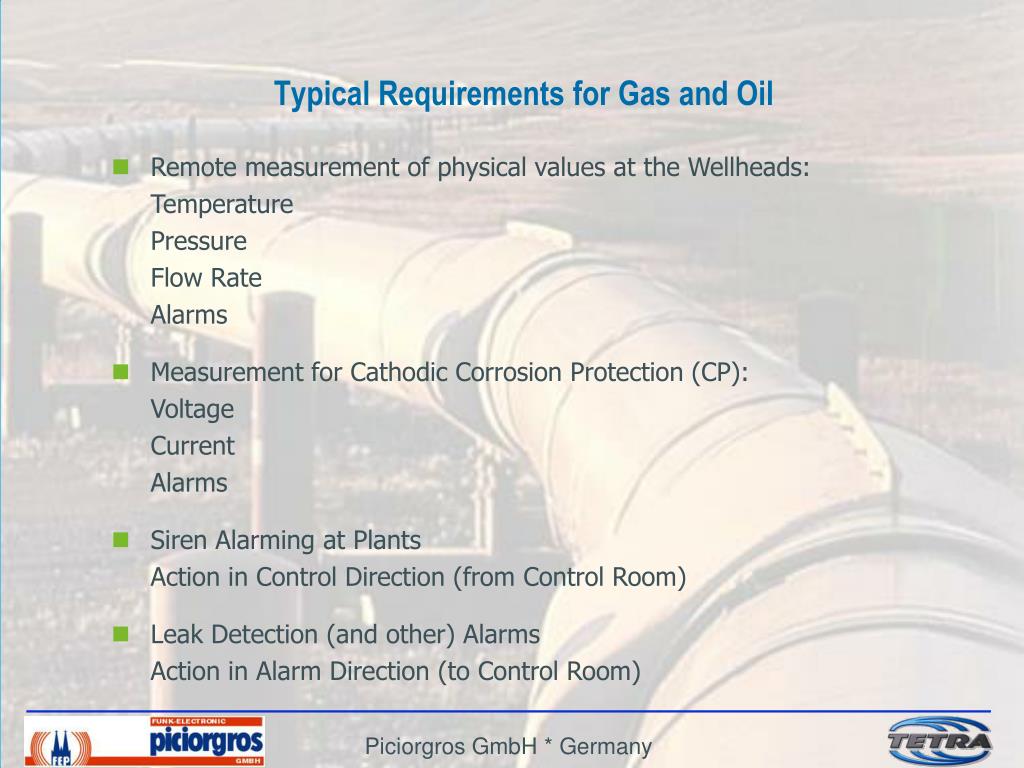

  5. Typical Requirements for Gas and Oil • Remote measurement of physical values at the Wellheads: Temperature Pressure Flow Rate Alarms • Measurement for Cathodic Corrosion Protection (CP): Voltage Current Alarms • Siren Alarming at Plants Action in Control Direction (from Control Room) • Leak Detection (and other) Alarms Action in Alarm Direction (to Control Room)

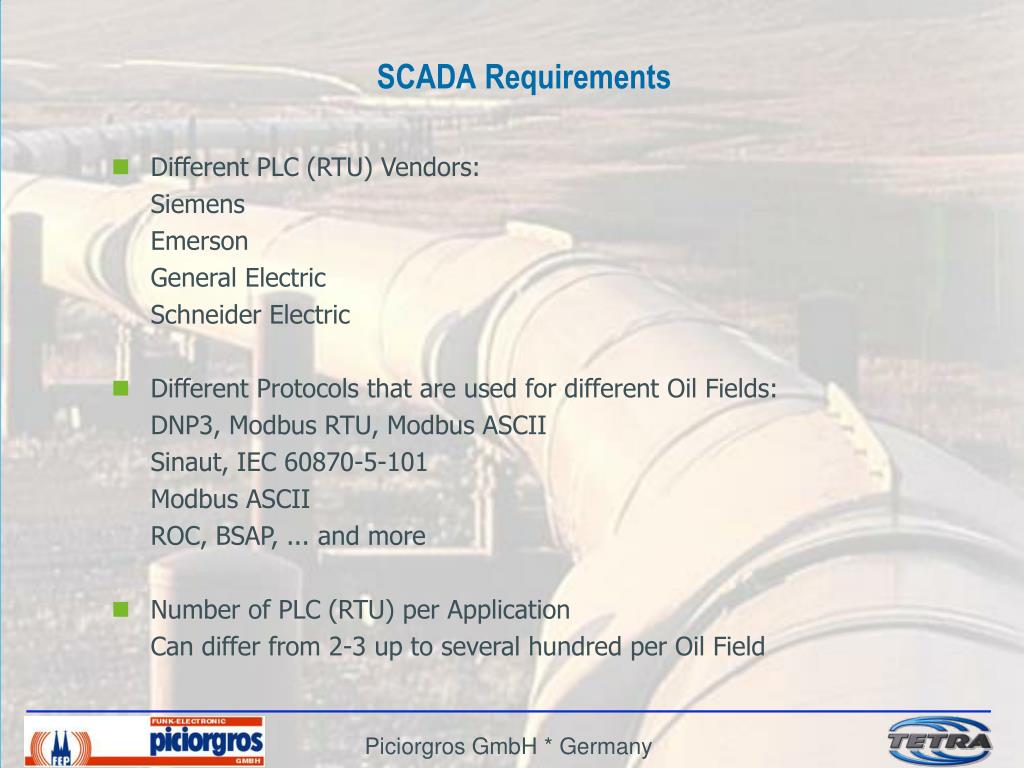

  6. SCADA Requirements • Different PLC (RTU) Vendors: Siemens Emerson General Electric Schneider Electric • Different Protocols that are used for different Oil Fields: DNP3, Modbus RTU, Modbus ASCII Sinaut, IEC 60870-5-101 Modbus ASCII ROC, BSAP, ... and more • Number of PLC (RTU) per Application Can differ from 2-3 up to several hundred per Oil Field

  7. CP (Cathodic Protection) Requirements • Low Polling speed: Polling can be one per hour or even less • Direct Access of Voltage and Current from Gas or Oil Pipeline: Low data volume and low data speed application Embedded I/O Requirement from TETRA device

  8. Additional Requirements: • Secured Communication: Authentication Encryption • On Shore and Off Shore Applications (Oil Platforms) • Parallel use of Voice and Data • Wide Temperature operating range • Mixed IP and non IP based Data Communication • Over The Air (OTA) Software Upgrade • Remote Configuration Access to Outstations via WEB Browser

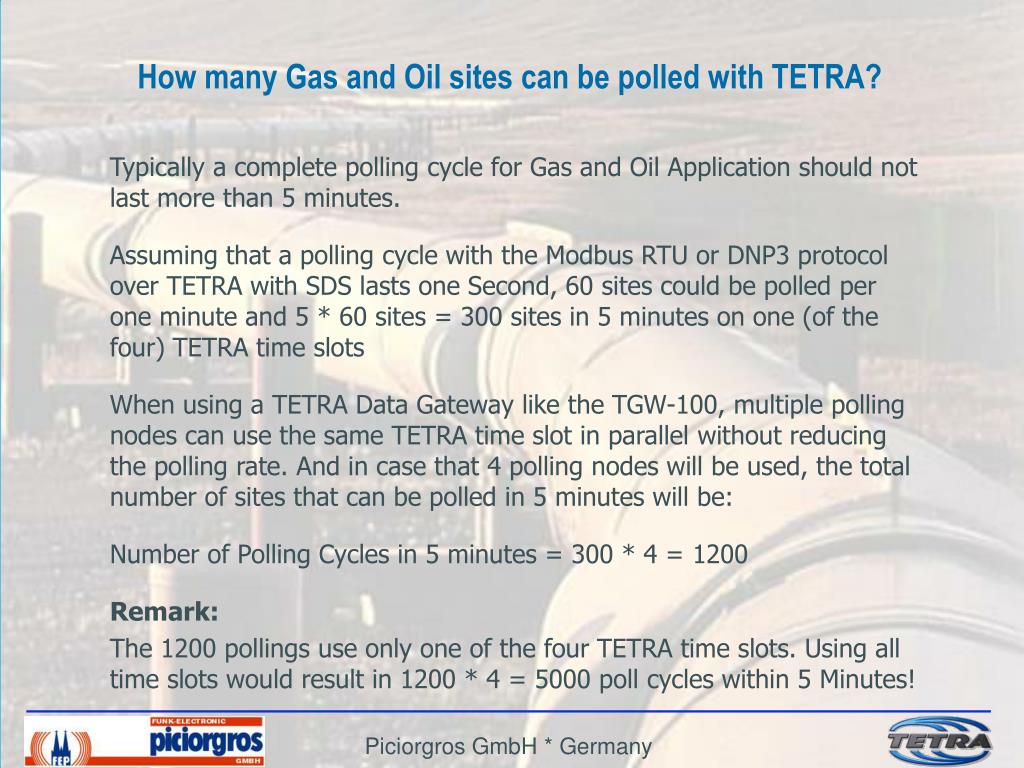

  9. How many Gas and Oil sites can be polled with TETRA? Typically a complete polling cycle for Gas and Oil Application should not last more than 5 minutes. Assuming that a polling cycle with the Modbus RTU or DNP3 protocol over TETRA with SDS lasts one Second, 60 sites could be polled per one minute and 5 * 60 sites = 300 sites in 5 minutes on one (of the four) TETRA time slots When using a TETRA Data Gateway like the TGW-100, multiple polling nodes can use the same TETRA time slot in parallel without reducing the polling rate. And in case that 4 polling nodes will be used, the total number of sites that can be polled in 5 minutes will be: Number of Polling Cycles in 5 minutes = 300 * 4 = 1200 Remark: The 1200 pollings use only one of the four TETRA time slots. Using all time slots would result in 1200 * 4 = 5000 poll cycles within 5 Minutes!

  10. TETRA Modem Design

  11. TETRA Modem for DIN Rail mounting with two serial Ports, one Ethernet Port and an Audio (voice) Port

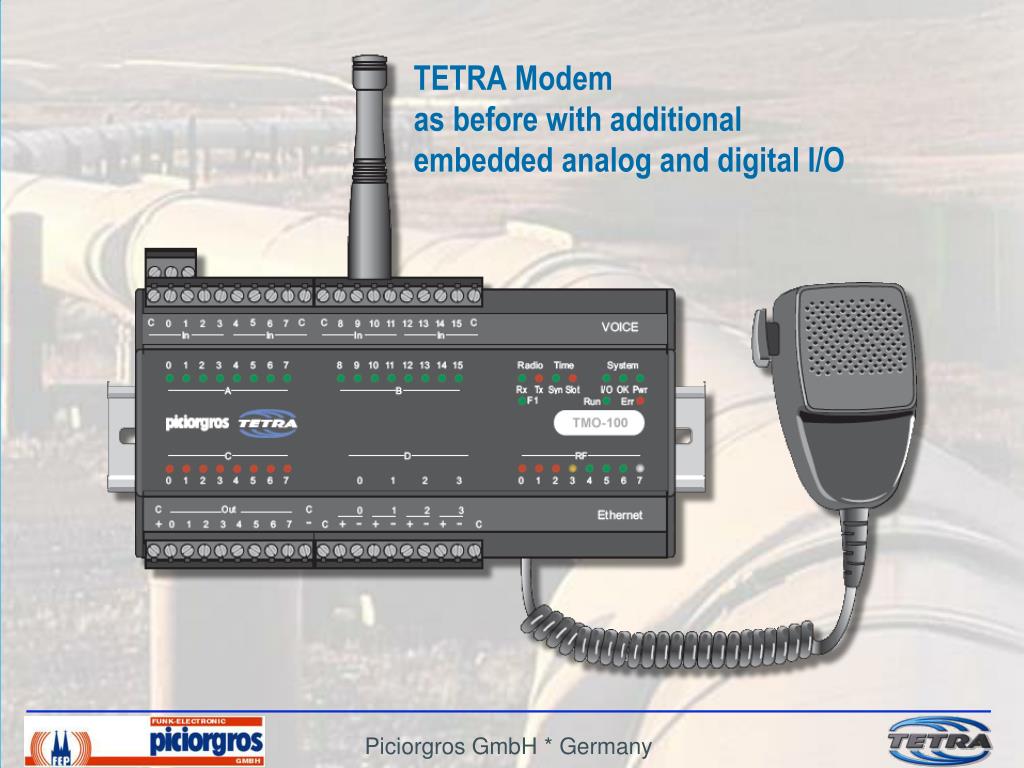

  12. TETRA Modemas before with additional embedded analog and digital I/O

  13. TETRA Data Network Structure Radio-to-Radio Communication

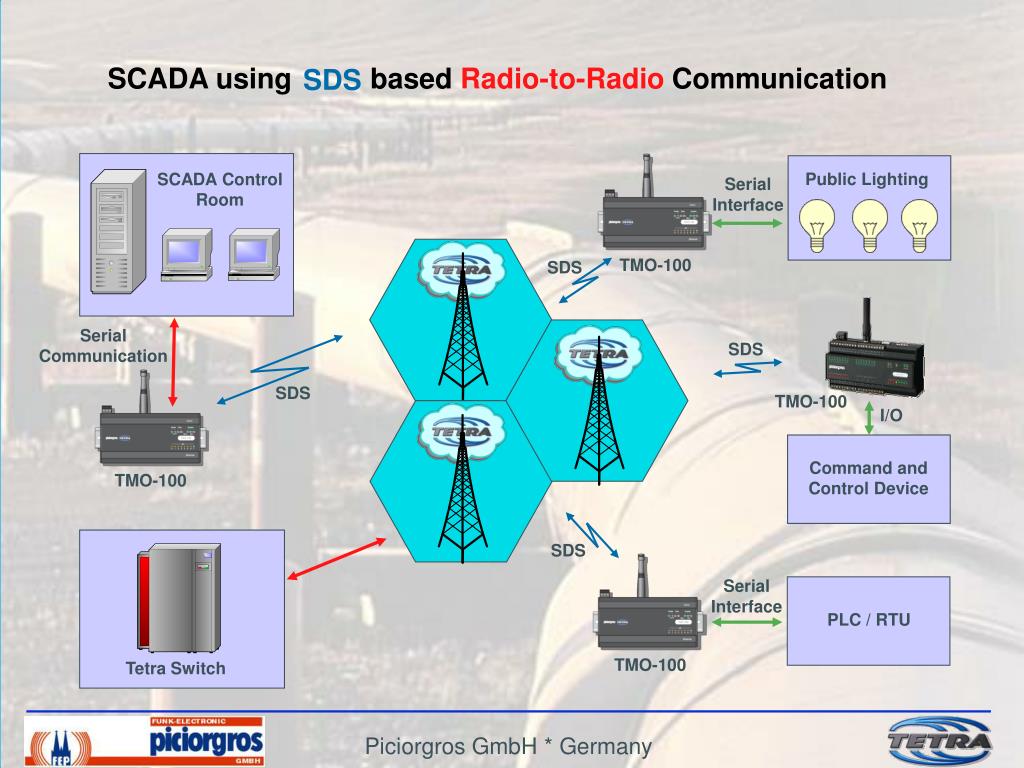

  14. SCADA using based Radio-to-Radio Communication SDS Public Lighting SCADA Control Room Serial Interface TMO-100 SDS Serial Communication SDS SDS TMO-100 I/O Command and Control Device TMO-100 SDS Serial Interface PLC / RTU TMO-100 Tetra Switch

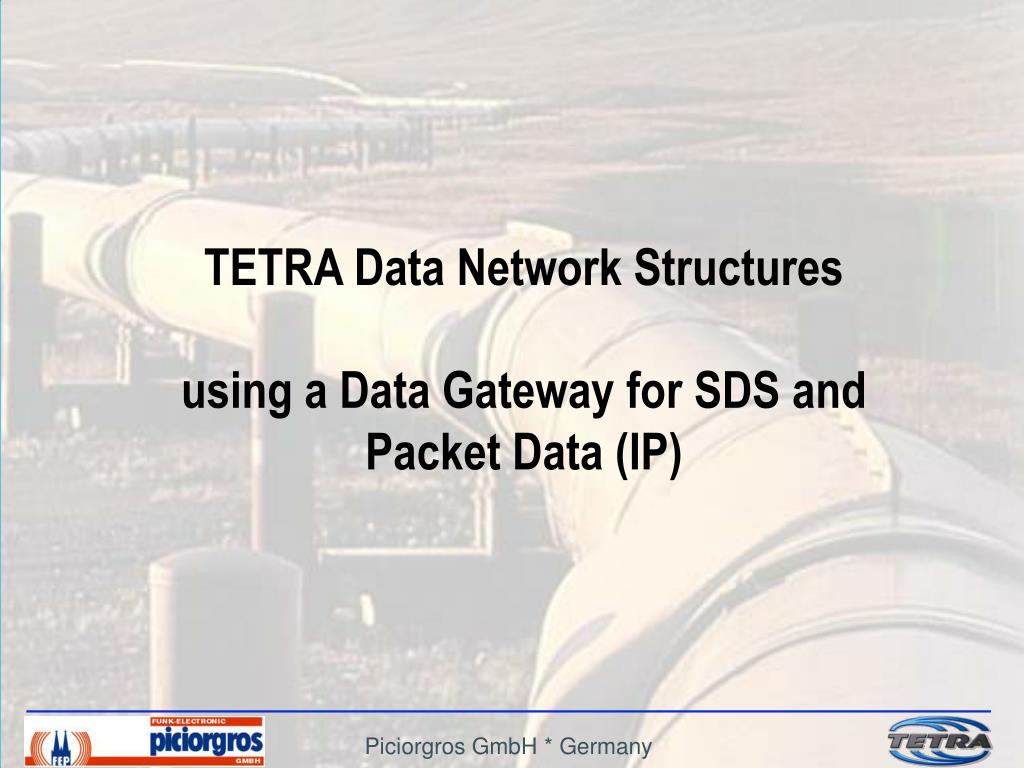

  15. TETRA Data Network Structures using a Data Gateway for SDS and Packet Data (IP)

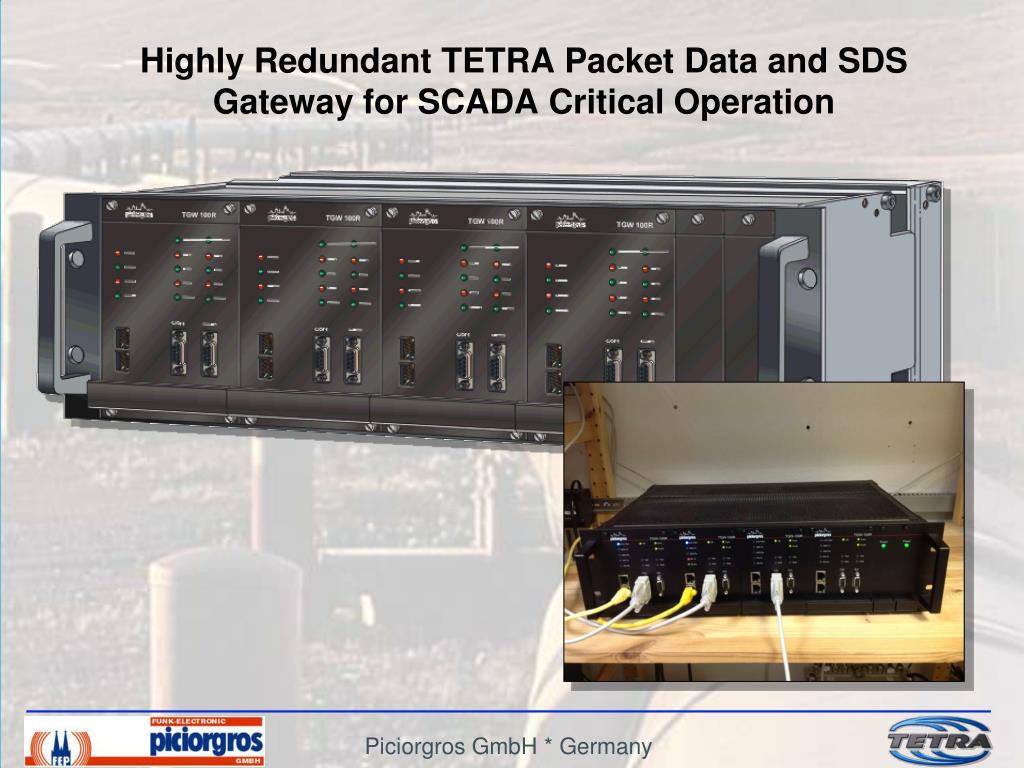

  16. Highly Redundant TETRA Packet Data and SDS Gateway for SCADA Critical Operation

  17. Highly Redundant TETRA Packet Data Gateway for SCADA Critical Operation Supported Protocols: MODBUS-RTU IEC60870-5-101 DNP3 ROC BSAP PakBus Siemens SINAUT any customer specific or proprietary protocols

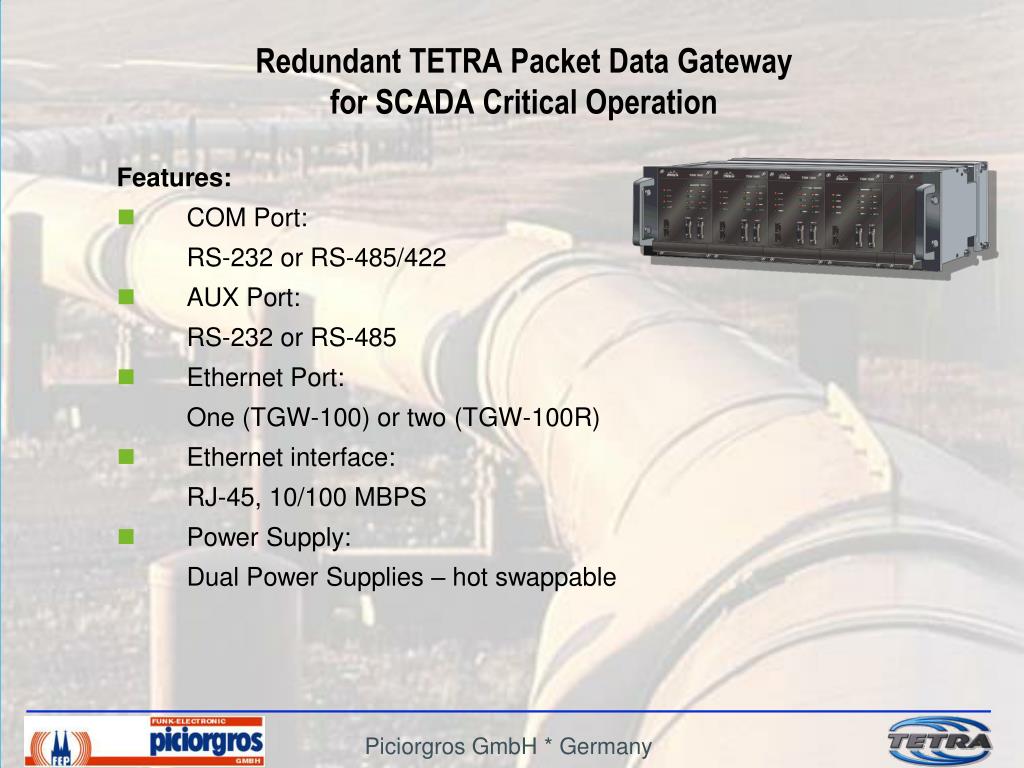

  18. Redundant TETRA Packet Data Gateway for SCADA Critical Operation Features: COM Port: RS-232 or RS-485/422 AUX Port: RS-232 or RS-485 Ethernet Port: One (TGW-100) or two (TGW-100R) Ethernet interface: RJ-45, 10/100 MBPS Power Supply: Dual Power Supplies – hot swappable

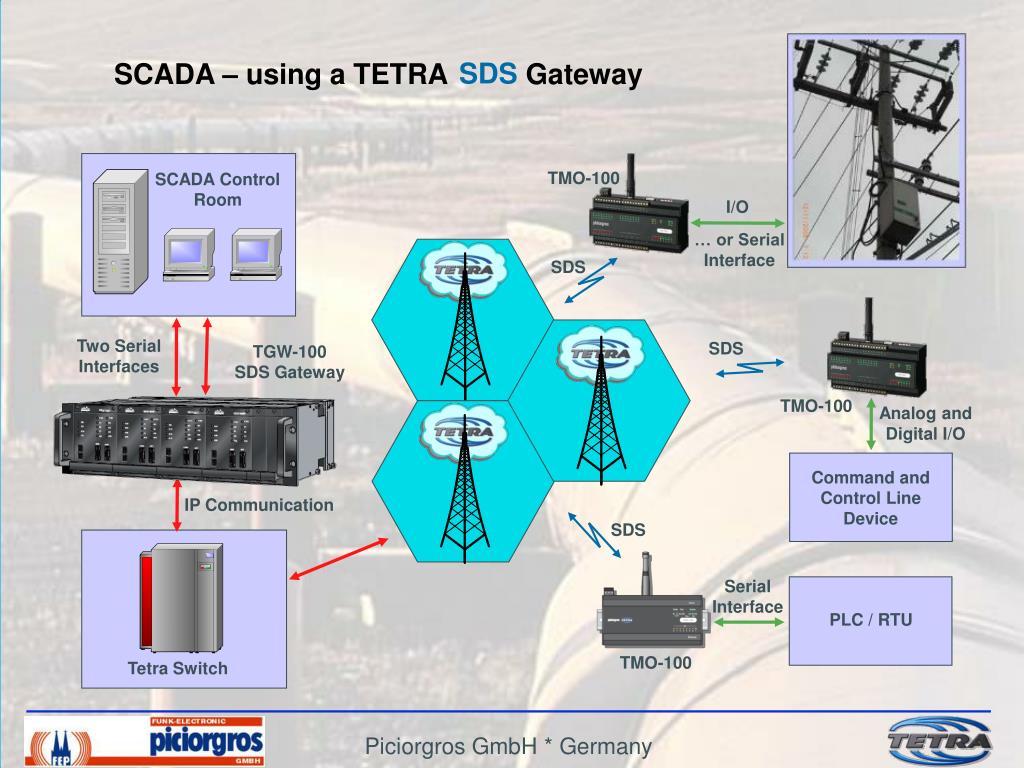

  19. SCADA – using a TETRA Gateway SDS TMO-100 SCADA Control Room I/O … or Serial Interface SDS Two Serial Interfaces SDS TGW-100SDS Gateway TMO-100 Analog and Digital I/O Command and Control Line Device IP Communication SDS Serial Interface PLC / RTU TMO-100 Tetra Switch

  20. Performance Test with SDS-Gateway on ONE SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Link: One SCCH Data Compression: OFF Data nodes: One or more polling nodes, each polling 10 TMO-100 Protocol: Modbus RTU Polling Target: Polling different numbers of bytes from inside the TMO-100

  21. Performance Test with SDS-Gateway on FOUR SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Link: MCCH plus three SCCH Data Compression: OFF Data nodes: One or more polling nodes, each polling 10 TMO-100 Protocol: Modbus RTU Polling Target: Polling different numbers of bytes from inside the TMO-100

  22. SCADA – using a Gateway Packet Data TMO-100 SCADA Control Room I/O … or Serial Interface PD Two Serial Interfaces PD TGW-100SDS Gateway TMO-100 Analog and Digital I/O Command and Control Line Device, CP Interface IP Communication PD Serial Interface PLC / RTU TMO-100 Tetra Switch

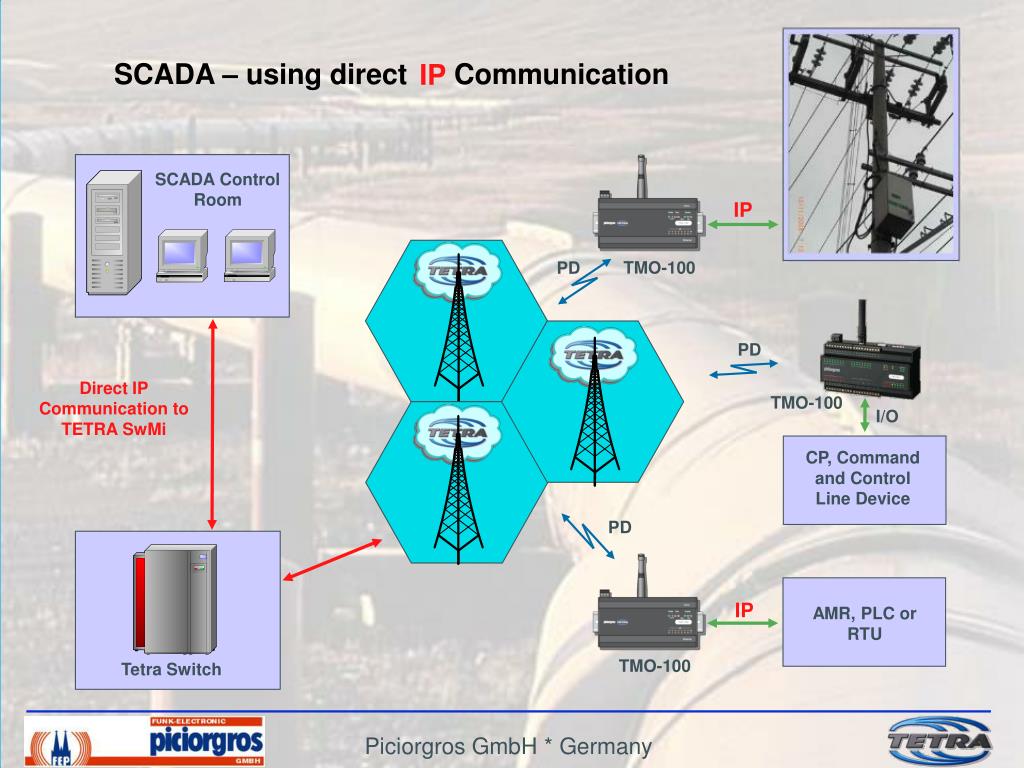

  23. SCADA – using direct Communication IP SCADA Control Room IP TMO-100 PD PD Direct IP Communication to TETRA SwMi TMO-100 I/O CP, Command and Control Line Device PD IP AMR, PLC or RTU TMO-100 Tetra Switch

  24. TMO-100TETRA Data ModemFeature List

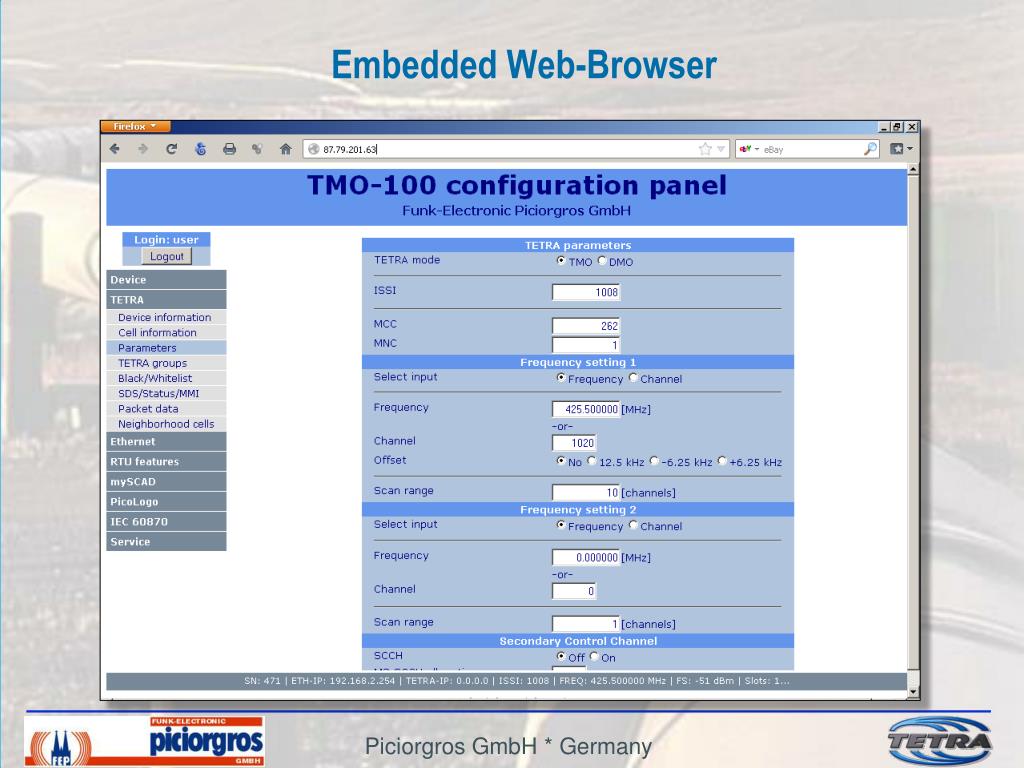

  25. Embedded Web-Browser

  26. Embedded IP and TETRA Router

  27. Embedded mySCAD Micro SCADA

  28. Embedded mySCAD Micro SCADA

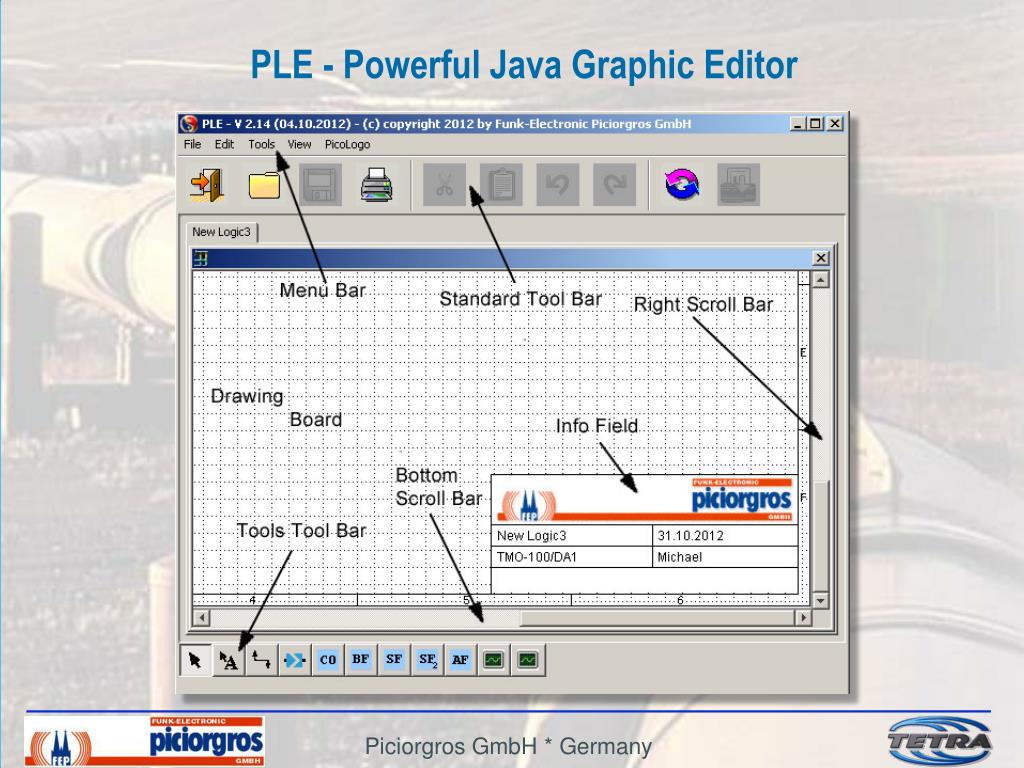

  29. PLE - Powerful Java Graphic Editor

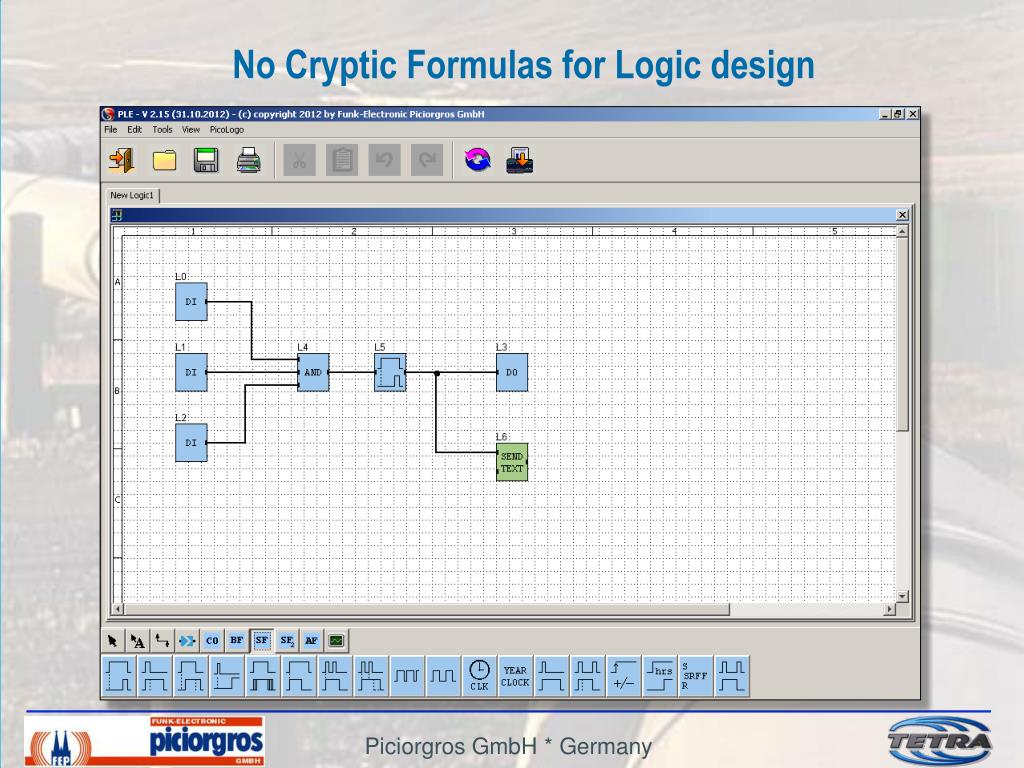

  30. No Cryptic Formulas for Logic design

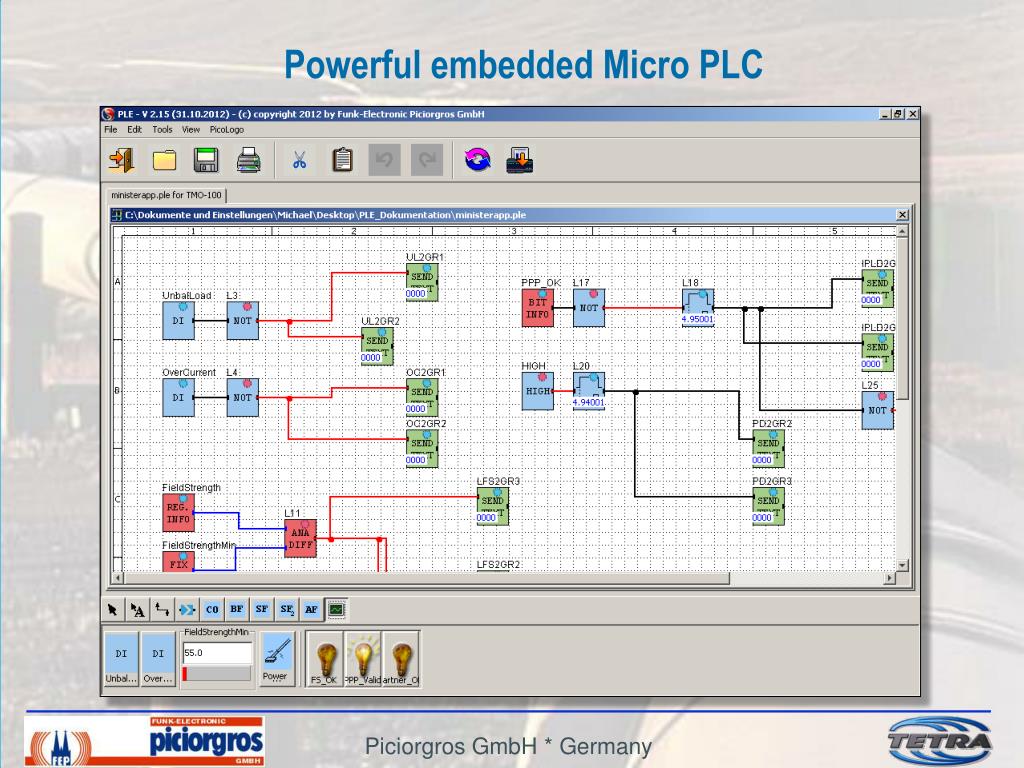

  31. Powerful embedded Micro PLC

  32. TMO-100TETRA Data ModemFeatures

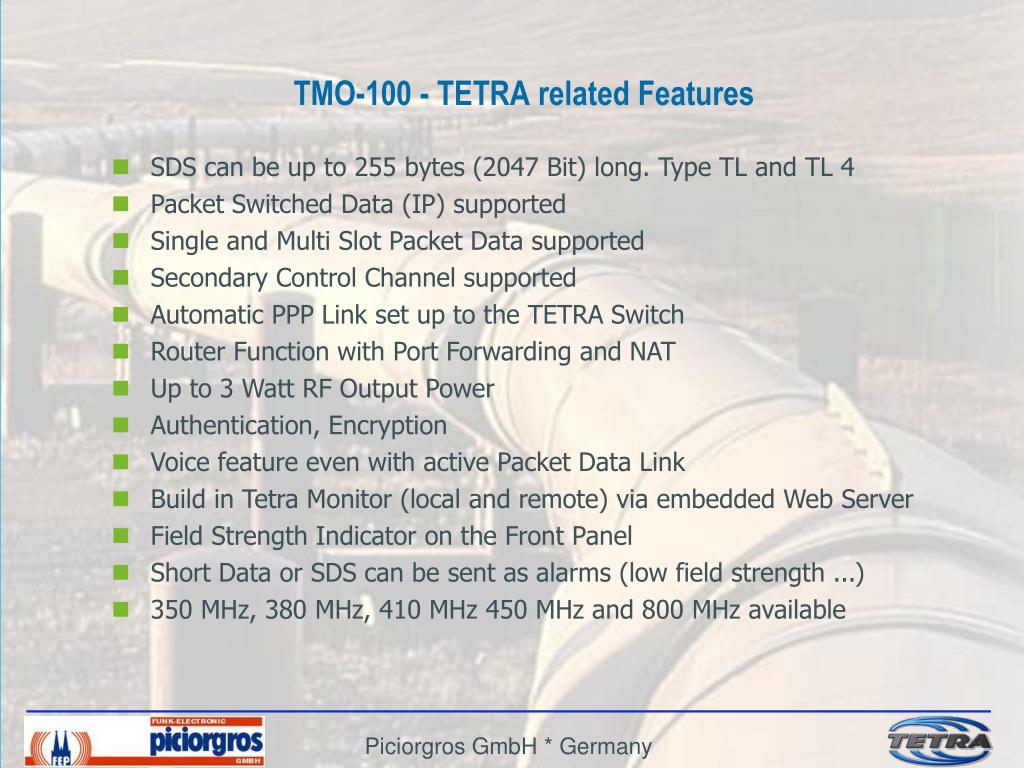

  33. TMO-100 - TETRA related Features • SDS can be up to 255 bytes (2047 Bit) long. Type TL and TL 4 • Packet Switched Data (IP) supported • Single and Multi Slot Packet Data supported • Secondary Control Channel supported • Automatic PPP Link set up to the TETRA Switch • Router Function with Port Forwarding and NAT • Up to 3 Watt RF Output Power • Authentication, Encryption • Voice feature even with active Packet Data Link • Build in Tetra Monitor (local and remote) via embedded Web Server • Field Strength Indicator on the Front Panel • Short Data or SDS can be sent as alarms (low field strength ...) • 350 MHz, 380 MHz, 410 MHz 450 MHz and 800 MHz available

  34. TMO-100 – Protocol and I/O related Features • All digital and analog I/O isolated • Serial Port COM / AUX available as RS-232 or RS-485/(422) • Level 1 Protocol: Timeout or 3964R • Device Protocol to access internal Registers: Modbus RTU, Modbus IP, IEC60870-5-101 • Serial Protocols supported: Modbus RTU, DNP3, IEC 60870-5-101, PakBus, BSAP, ROC, … user Defined … • Ethernet 10/100 MBit IP-Port for Local Network • UDP and TCP over TETRA supported • E-Mail and TFTP supported • Embedded Web Server as Configuration Tool • Modbus/IP, IEC 60870-5-104, DNP3/IP, … others … • Low Power Consumption: <3 Watt

  35. PicoLogo™ – User Application Interface • Easy to use graphical user interface • Optimized for Tetra Infrastructure • Basic Logic Functions (and, or, exor, … ) • Complex Logic Functions (delay on, delay off, flip flop, …) • Analog Functions (analog compare, … ) • Timer and Clock Functions (time, date, • Dynamic Text Message generation for Alarms and Status • GPS Functions (position, … ) • Modbus RTU Slave (set and read register, coil, … ) • Modbus RTU Master (set and read register, coil, … ) • E-Mail send (sending text and alarm messages by e-mail) • SNMP Trap (automated machine messaging) • … more …

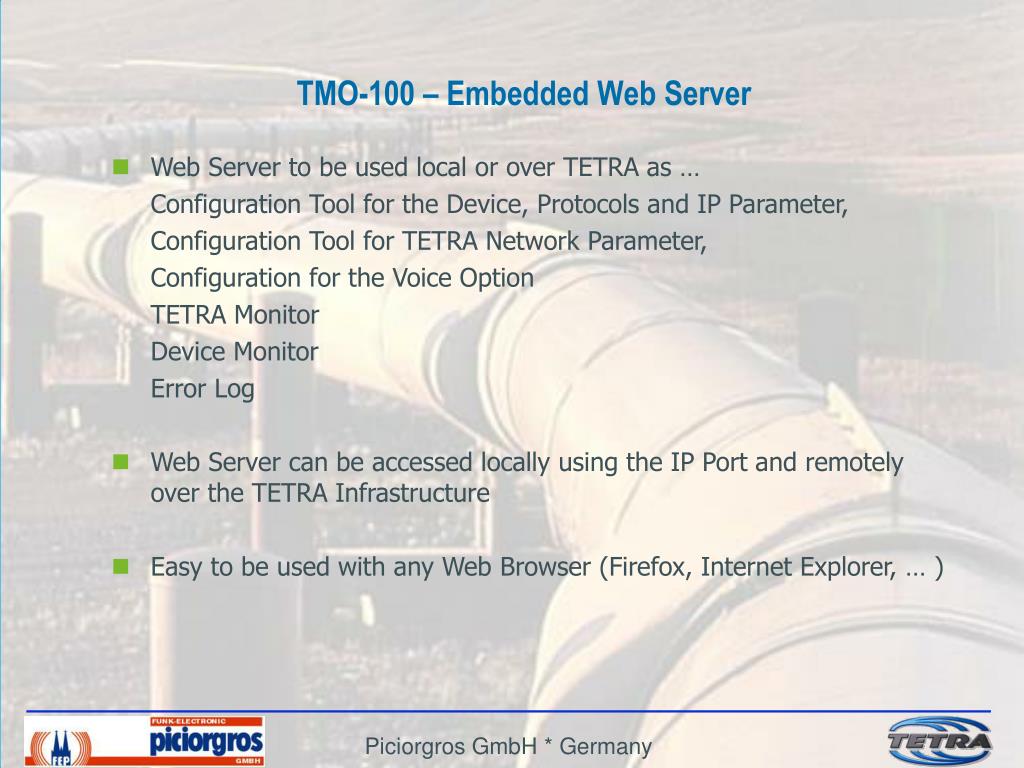

  36. TMO-100 – Embedded Web Server • Web Server to be used local or over TETRA as … Configuration Tool for the Device, Protocols and IP Parameter, Configuration Tool for TETRA Network Parameter, Configuration for the Voice Option TETRA Monitor Device Monitor Error Log • Web Server can be accessed locally using the IP Port and remotely over the TETRA Infrastructure • Easy to be used with any Web Browser (Firefox, Internet Explorer, … )

  37. TMO-100 – Voice Option • Standard 8 Pin Connector for Mic. Speaker handset • One Group Number (GISSI) to be programmed • Eight individual Numbers (ISSI) to be programmed • ISSI and GISSI to be programmed locally or remotely using the embedded Web Server • Select ISSI / GISSI by Voice Handset • Automatic PPP disconnect when pressing PTT • Automatic PPP re connect after Voice timeout or reject

  38. Different SCADA Applications

  39. ME, Gas and Oil

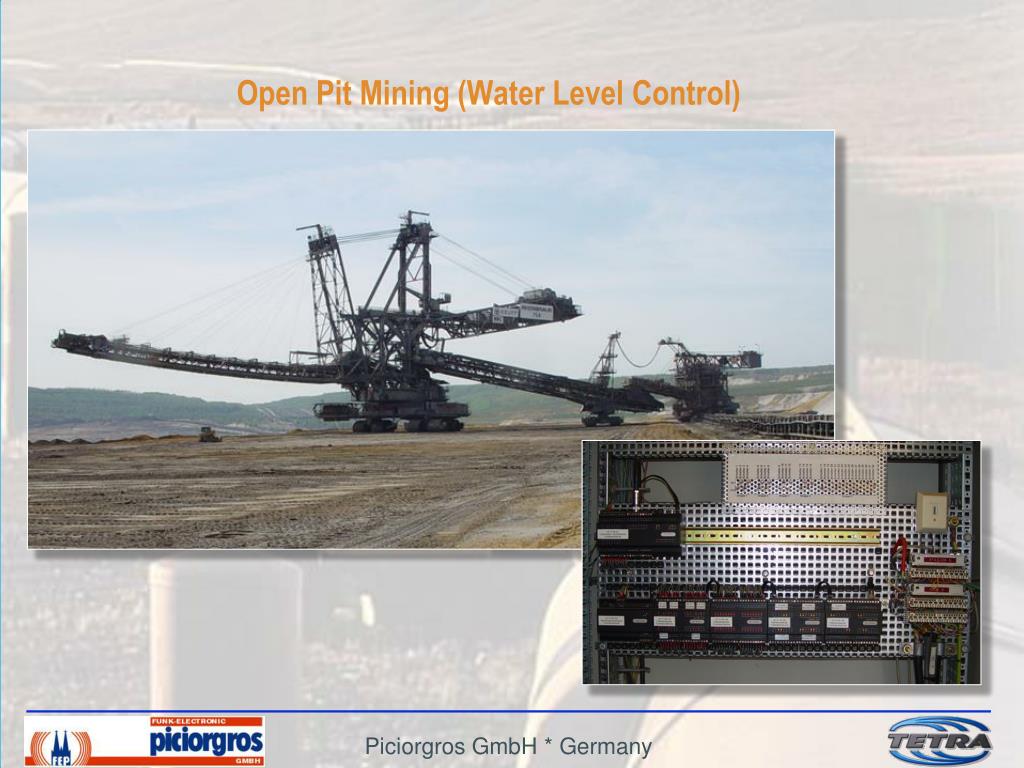

  40. Open Pit Mining (Water Level Control)

  41. Turkey, Mining Application – TETRA DMO Mode

  42. Asia, Utility (Energy Companies) Pole Mounted Switches

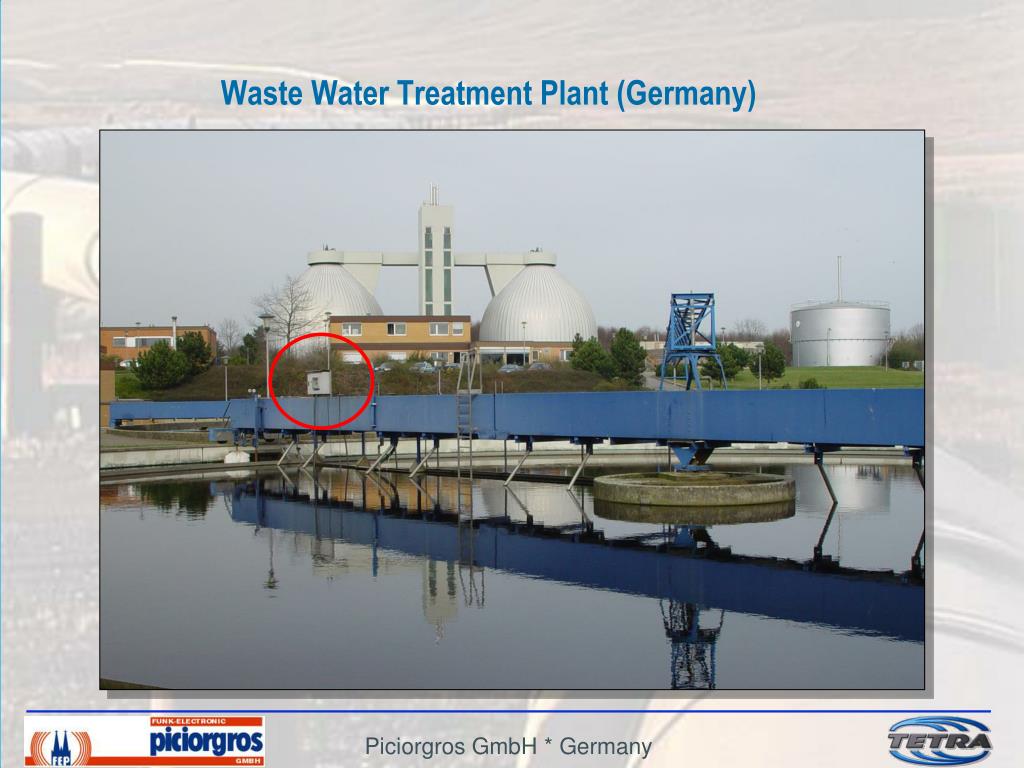

  43. Waste Water Treatment Plant (Germany)

  44. Thank you very much for your interest in our Products Funk - Electronic Piciorgros GmbH Claudiastr. 5 51145 Köln-Porz Germany www.piciorgros.com www.TetraModem.com
