Presentation Transcript

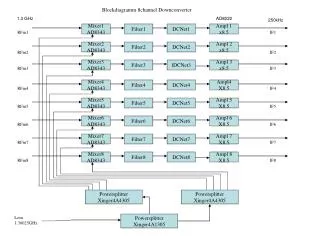

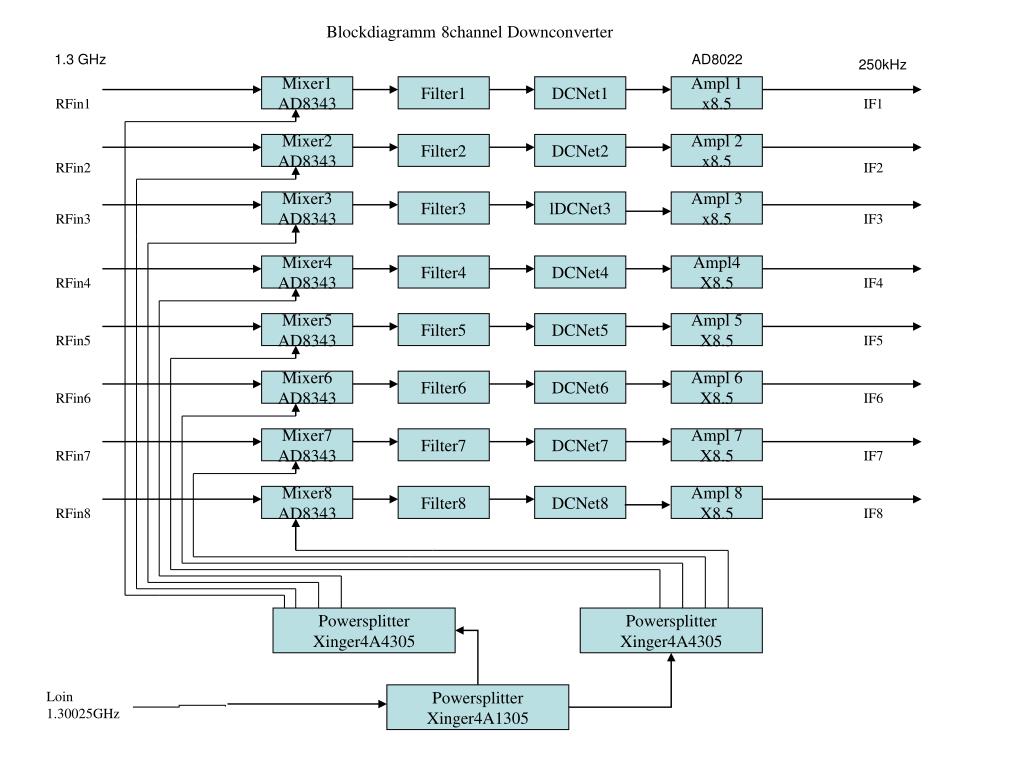

  1. Blockdiagramm 8channel Downconverter 1.3 GHz AD8022 250kHz Mixer1 AD8343 Filter1 DCNet1 Ampl 1 x8.5 RFin1 IF1 Mixer2 AD8343 Filter2 DCNet2 Ampl 2 x8.5 RFin2 IF2 Mixer3 AD8343 Filter3 lDCNet3 Ampl 3 x8.5 RFin3 IF3 Mixer4 AD8343 Filter4 DCNet4 Ampl4 X8.5 RFin4 IF4 Mixer5 AD8343 Filter5 DCNet5 Ampl 5 X8.5 RFin5 IF5 Mixer6 AD8343 Filter6 DCNet6 Ampl 6 X8.5 RFin6 IF6 Mixer7 AD8343 Filter7 DCNet7 Ampl 7 X8.5 RFin7 IF7 Mixer8 AD8343 Filter8 DCNet8 Ampl 8 X8.5 RFin8 IF8 Powersplitter Xinger4A4305 Powersplitter Xinger4A4305 Loin 1.30025GHz Powersplitter Xinger4A1305

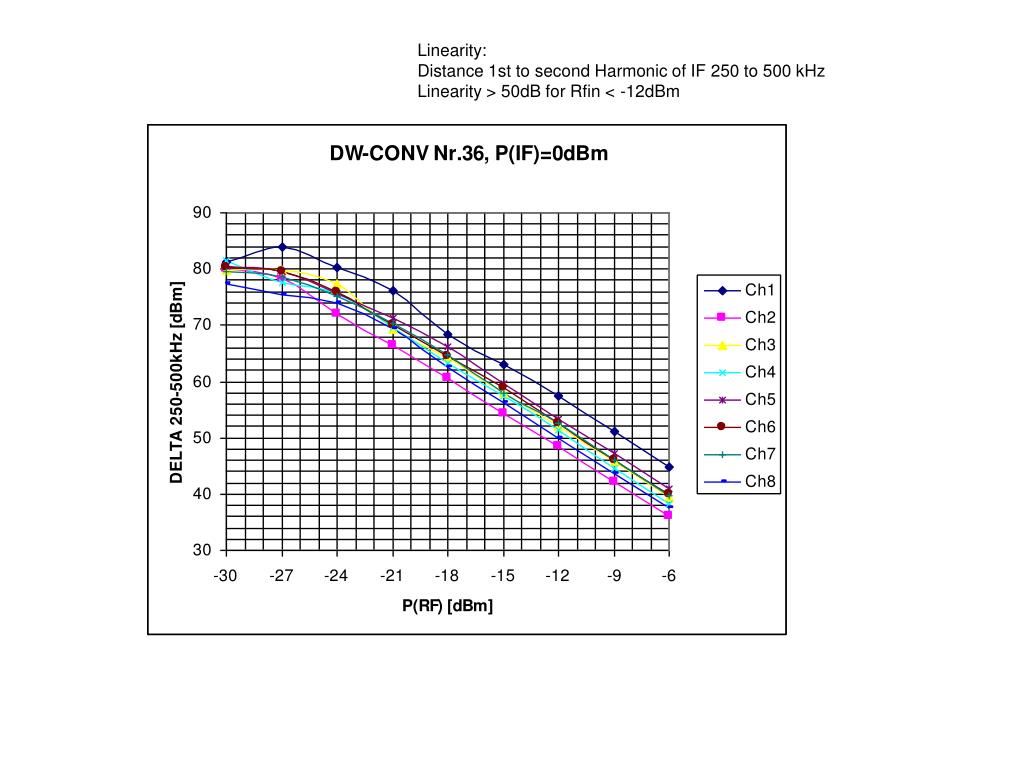

  2. Linearity: Distance 1st to second Harmonic of IF 250 to 500 kHz Linearity > 50dB for Rfin < -12dBm

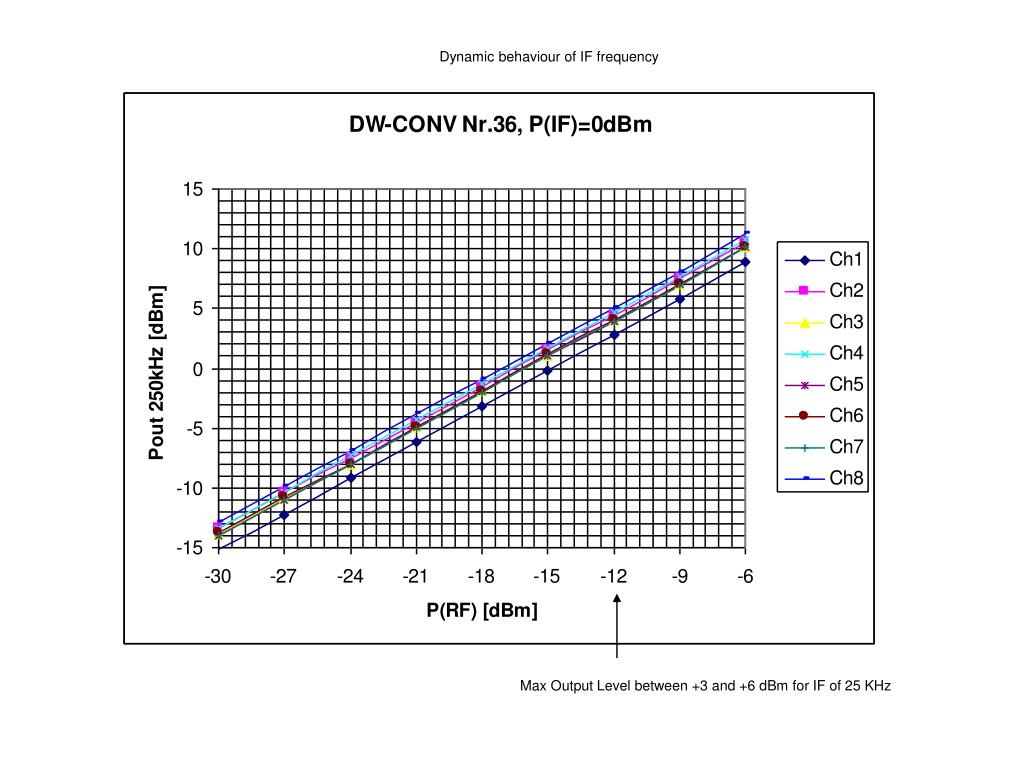

  3. Dynamic behaviour of IF frequency Max Output Level between +3 and +6 dBm for IF of 25 KHz

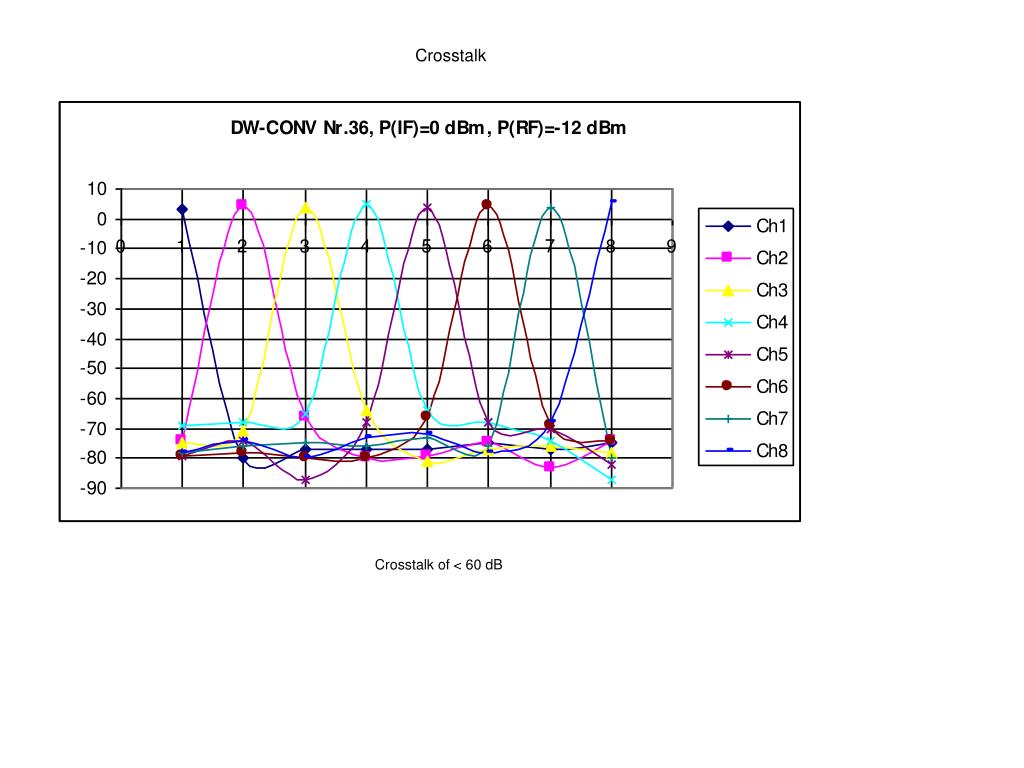

  4. Crosstalk Crosstalk of < 60 dB

  5. Offset Behaviour Offset < 1mV for RFin < -12dBm Temperture Drift < 1mV/deg C or 0.2 deg RF Phaseshift per 1 deg C

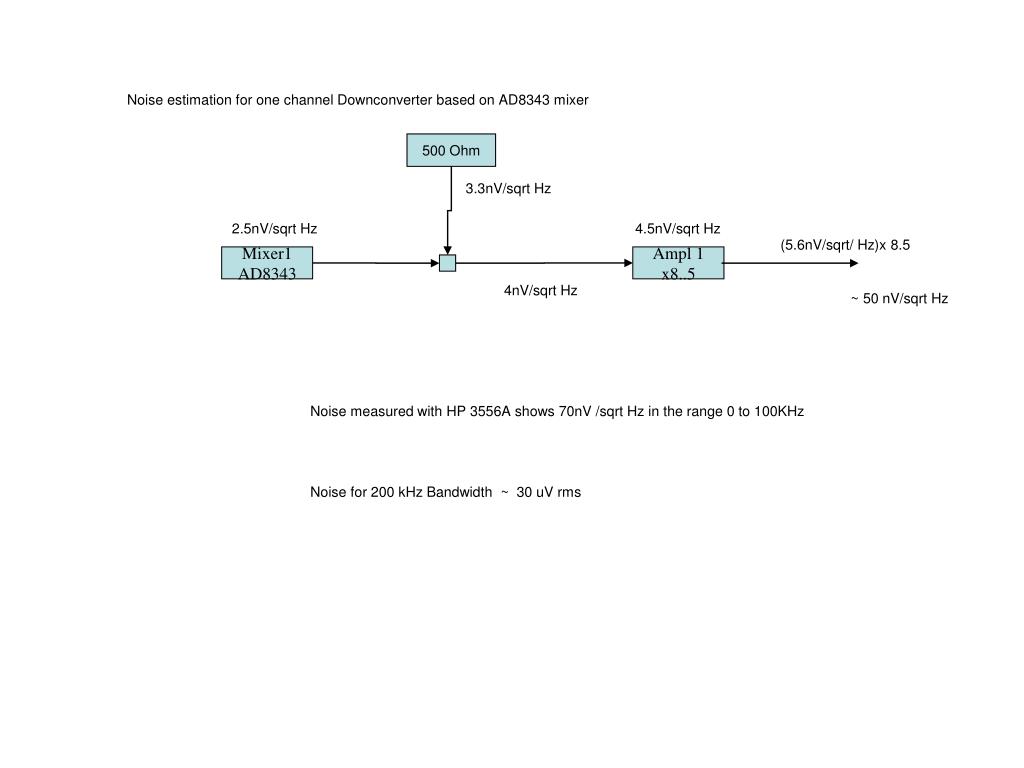

  6. Noise estimation for one channel Downconverter based on AD8343 mixer 500 Ohm 3.3nV/sqrt Hz 2.5nV/sqrt Hz 4.5nV/sqrt Hz (5.6nV/sqrt/ Hz)x 8.5 Mixer1 AD8343 Ampl 1 x8..5 4nV/sqrt Hz ~ 50 nV/sqrt Hz Noise measured with HP 3556A shows 70nV /sqrt Hz in the range 0 to 100KHz Noise for 200 kHz Bandwidth ~ 30 uV rms

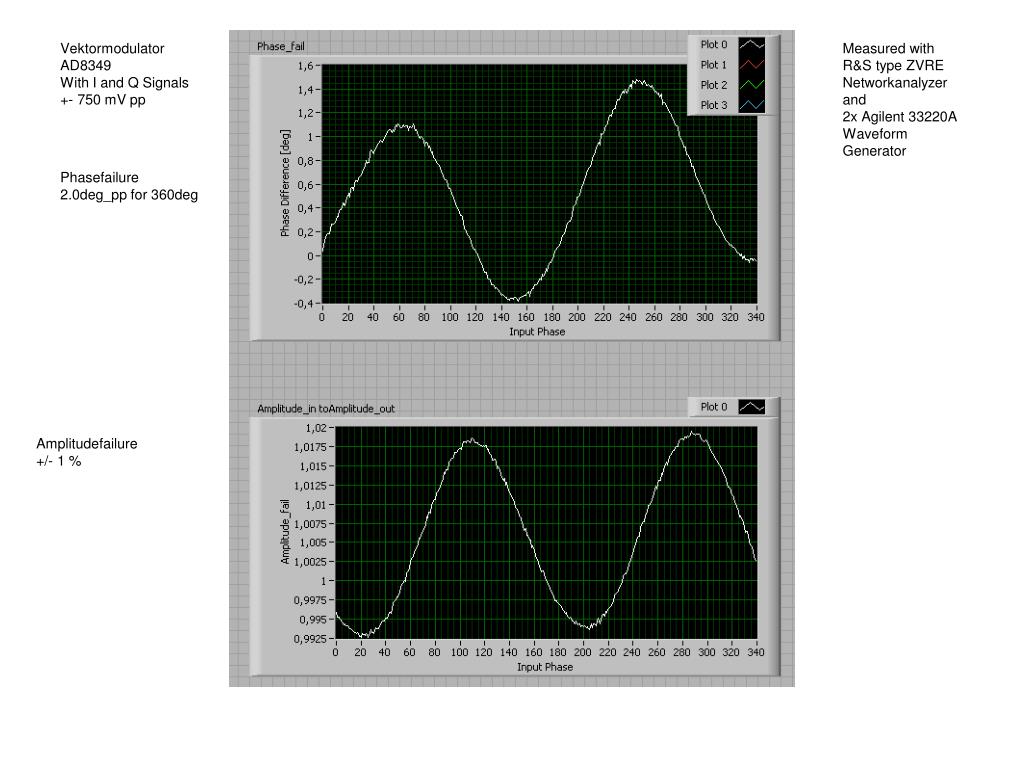

  7. Vektormodulator AD8349 With I and Q Signals +- 750 mV pp Measured with R&S type ZVRE Networkanalyzer and 2x Agilent 33220A Waveform Generator Phasefailure 2.0deg_pp for 360deg Amplitudefailure +/- 1 %

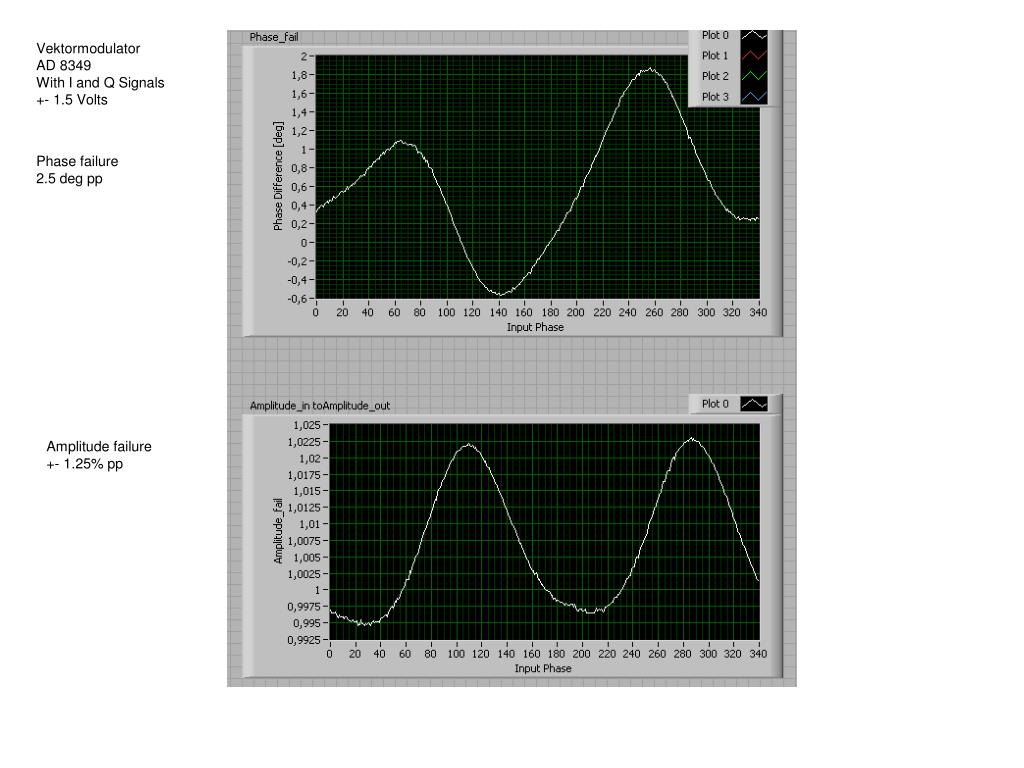

  8. Vektormodulator AD 8349 With I and Q Signals +- 1.5 Volts Phase failure 2.5 deg pp Amplitude failure +- 1.25% pp

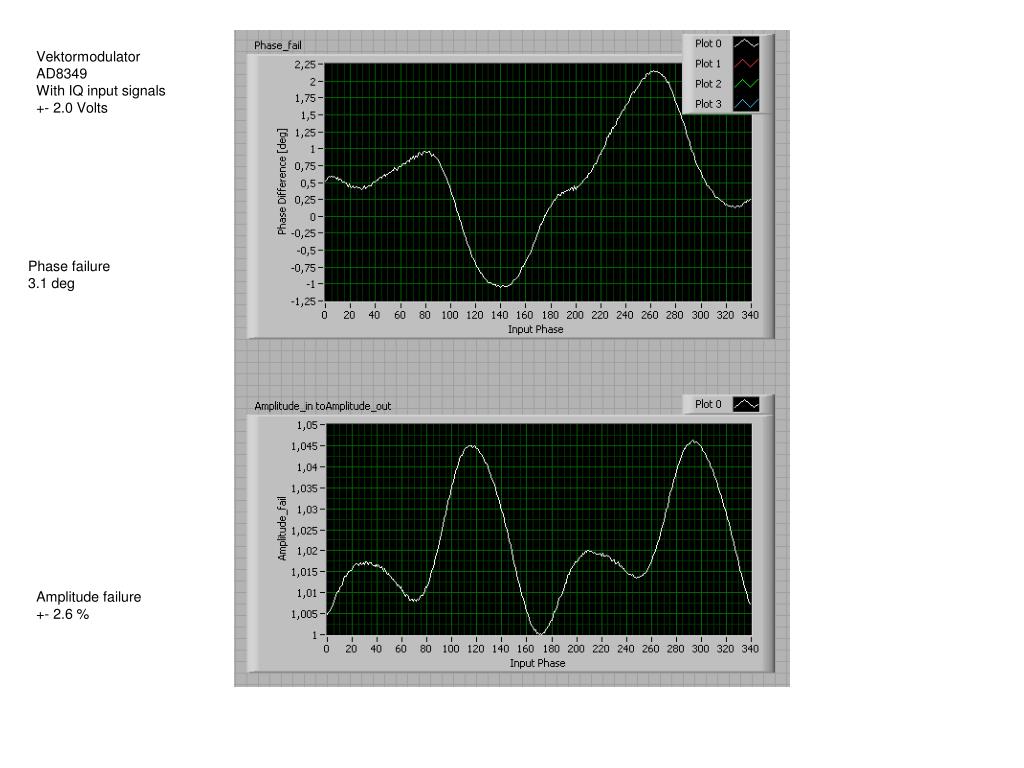

  9. Vektormodulator AD8349 With IQ input signals +- 2.0 Volts Phase failure 3.1 deg Amplitude failure +- 2.6 %
