leah hotchkiss asr junior november 9 2012

Knockout of the prion protein (PrP)-like Sprn gene does not produce embryonic lethality In Combination with PrPC-deficiencyNathalie daude et al.University of ALberta

Leah Hotchkiss

ASR Junior

November 9, 2012

what is a prion


What is a prion?

• Proteinaceous infectious particle

• A misfolded protein

• Causes others proteins to misfold

•Chain reaction leading to exponential growth

•PrP(prion protein) build up

prion diseases


Prion Diseases
  • Neurodegenerative: destruction of the nervous system
  • Fatal
  • Mad Cow Disease
  • Creutzfeldt-Jakob Disease
  • Mouse Scrapie
  • Can occur sporadically, through infection, or be inherited


prp c and prp sc of equal importance


PrPc and PrPsc: Of equal importance
  • PrPc: cellular, already present in the body, has the potential to mutate
    • The root of the problem, without PrPc prion diseases cannot occur
  • PrPsc: scrapie, the mutated version, builds up in the affected areas
    • Acts as a template allowing the disease to proliferate
a new type of prion


A new type of prion
  • Shadoo protein (Sho)
    • Discovered in 2007
    • A PrPC-like protein was being depleted before clinical signs of prion infection occurred
    • The body might be trying to get rid of infection with a misdirected response
    • Similarities to PrPC
      • Share many protein binding partners
      • Found in mammals
      • Member of prion protein family
the unknowns of sho


The unknowns of Sho
  • Structure
  • Specific Location
  • Purpose

Possible Functions

-Protein or RNA chaperone

-Acting as pi, a hypothetical prion accessory protein


the pi hypothesis


The pi Hypothesis
  • PrP, when functioning normally interacts with a partner protein that has two binding sites
  • This partner must be engaged at BOTH sites or else it will result in neuronal death
  • In PrP deficient mice pi is

proposed to take over the role of PrP

key terms


Key terms

Shadoo protein: recently discovered prion-like protein (Sho)

Prion Protein: basic protein that causes a group of neurodegenerative diseases (PrP)

Sprn: Shadooprotein gene

Prnp: Prion protein gene

Knockout: a mutant mouse that has had certain genes deleted and replaced by null alleles

Null allele: a mutant form of the knockout gene that does not have any similar functions to the original gene. Takes the place of the removed allele.

key terms continued


Key terms continued

Phenotype: the observable physical and biochemical characteristics of an organism

Wild type: the form of a gene that is most commonly found in nature

Embryonic Lethality: death of embryo in development

Transient knockdown allele: temporarily silenced allele, decreases expression rather than eliminating it entirely

Constitutive null allele: completely deleted allele, no expression

review of literature
Review of literature

Carlson GA, et al. (1986) Linkage of prion protein and scrapie incubation time genes. Cell 46:503–511.

Westaway D, et al. (1987) Distinct prion proteins in short and long scrapie incubation period mice. Cell 51:651–662.

Büeler H, et al. (1993) Mice devoid of PrP are resistant to scrapie. Cell 73:1339–1347


Tobler I, et al. (1996) Altered circadian activity rhythms and sleep in mice devoid of
prion protein. Nature 380:639–642.

Tobler I, Deboer T, Fischer M (1997) Sleep and sleep regulation in normal and prion
protein-deficient mice. J Neurosci 17:1869–1879.

Mallucci GR, et al. (2002) Post-natal knockout of prion protein alters hippocampal
CA1 properties, but does not result in neurodegeneration. EMBO J 21:202–210.

review of literature1
Review of literature

Shmerling D, et al. (1998) Expression of amino-terminally truncated PrP in the mouse
leading to ataxia and specific cerebellar lesions. Cell 93:203–214.

Flechsig E, Weissmann C (2004) The role of PrP in health and disease. CurrMol Med

review of literature2
Review of literature

Premzl M, et al. (2003) Shadoo, a new protein highly conserved from fish to mammals
and with similarity to prion protein. Gene 314:89–102.

Watts JC, et al. (2007) The CNS glycoprotein Shadoo has PrP(C)-like protective prop-
erties and displays reduced levels in prion infections. EMBO J 26:4038–4050.

Westaway D, et al. (2011) Down-regulation of Shadoo in prion infections traces a pre-
clinical event inversely related to PrP(Sc) accumulation. PLoSPathog 7:e1002391.

Watts JC, et al. (2011) Protease-resistant prions selectively decrease Shadoo protein.
PLoSPathog 7:e1002382.

Miyazawa K, Manuelidis L (2010) Agent-specific Shadoo responses in transmissible
encephalopathies. J NeuroimmunePharmacol 5:155–163.

Watts JC, et al. (2009) Interactome analyses identify ties of PrP and its mammalian
paralogs to oligomannosidic N-glycans and endoplasmic reticulum-derived chaper- ones. PLoSPathog 5

Young R, et al. (2009) The prion or the related Shadoo protein is required for early mouse embryogenesis. FEBS Lett 583:3296–3300.

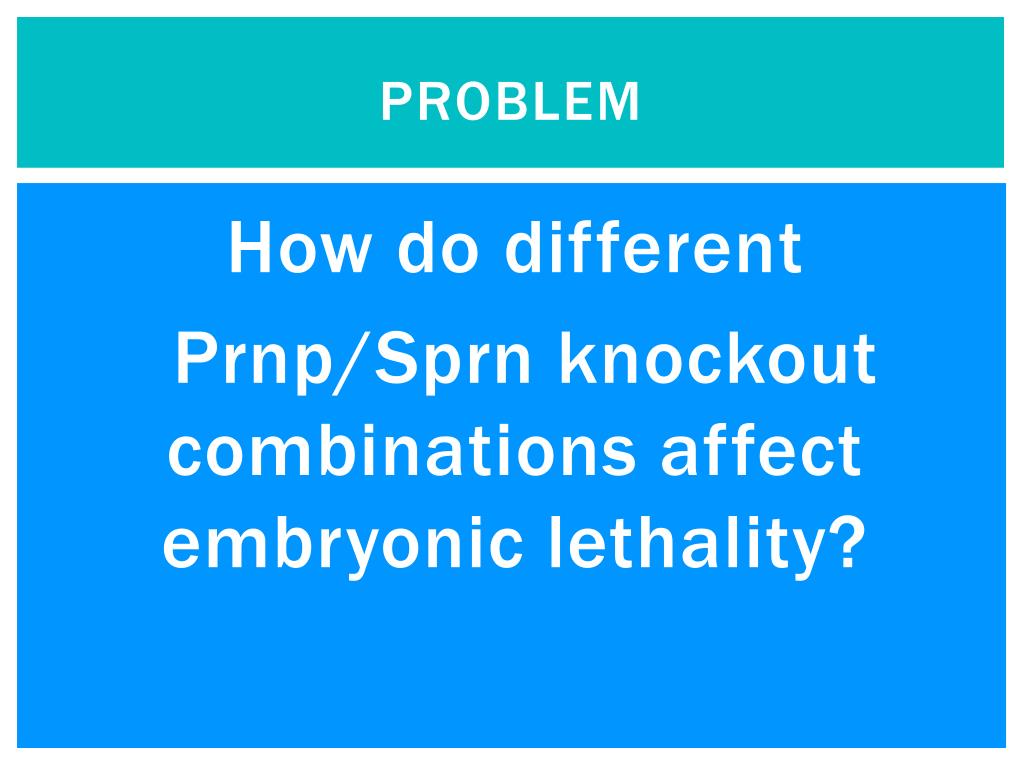

How do different

Prnp/Sprn knockout combinations affect embryonic lethality?


If the Sprn0/0/Prnp0/0 null allele is expressed then it will have a stronger phenotype than the Sprn0/wt/Prnp0/wttransient allele because it will stop gene expression entirely, producing more obvious effects.

creating knockout mice

methods and materials

Creating Knockout mice
  • “Turned off” specific genes in embryonic stem cells
animal husbandry and prion inoculation

methods and materials

Animal husbandry and prion inoculation
  • Mice were contained in groups of up to 5
  • 12 hour light/dark cycle
  • Living conditions and inoculation all in check with the Canadian Council on Animal Care






western blot analyses

methods and materials

Western Blot analyses
  • Used to determine protein concentrations
  • Proteins are separated by gels and homogenate is ground and then blotted to extract protein

Determines WHAT proteins are present


sub cellular fractionation

methods and materials

Sub-Cellular Fractionation
  • Brain samples are homogenized and fractionated to see where specific proteins are located
  • Determining exact location can provide key information for function

Determines WHERE

specific proteins are located



methods and materials

  • Fixing of samples in Carnoy’s fixative
  • Dehydration, processing, and staining to examine brain tissue
  • Different dyes use specific antigens that correspond with protein



overview of experiment

methods and materials

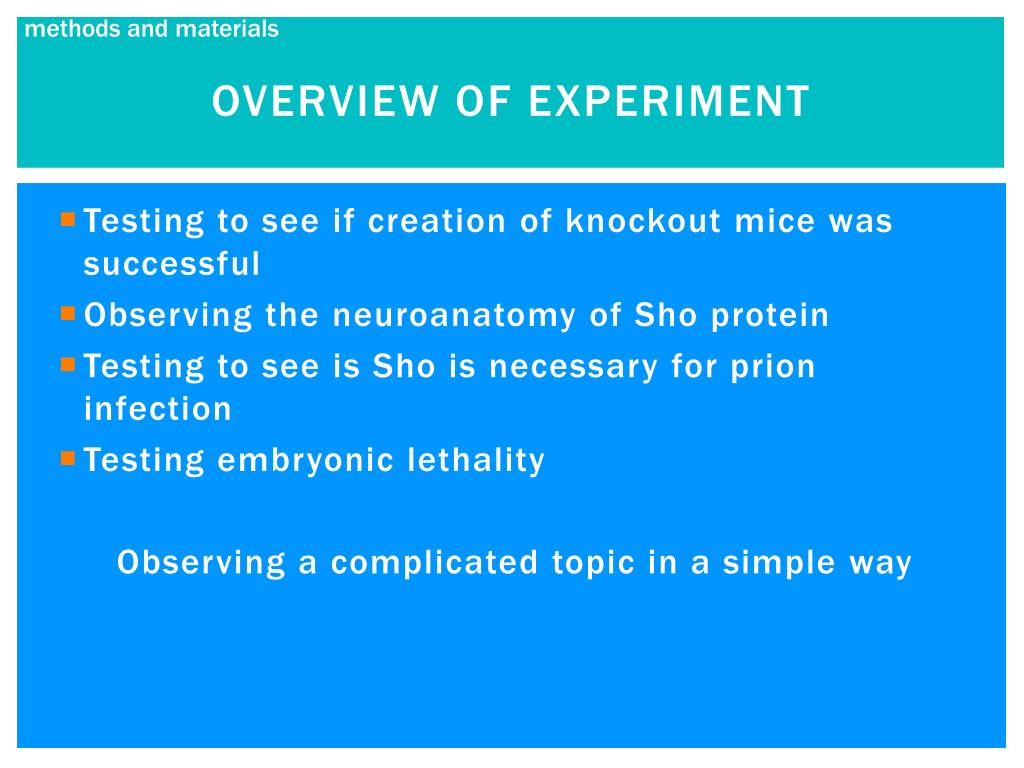

Overview of Experiment
  • Testing to see if creation of knockout mice was successful
  • Observing the neuroanatomy of Sho protein
  • Testing to see is Sho is necessary for prion infection
  • Testing embryonic lethality

Observing a complicated topic in a simple way

verifying knockout mice


Verifying knockout mice

Method: Western blot

Result: Successful creation


No Sprn Expression

observing neuroanatomy of sho protein in comparison to prp c


Observing Neuroanatomy of Sho Protein in comparison to PrPC

Method: Using histology to observe coincidental expression of PrPC and Sho

Result: Sho and PrPC aren’t always expressed in the same place

Dark Area:



Sho being expressed in Prnp0/0

PrP being expressed in Sprn0/0

sho and prion infection
Sho and Prion infection

Method: western blot

Result: PrPSC is visible in all variations whether Sprn is expressed or not

Prion infection is not dependent on the presence of Sho protein

are double knockout mice sprn 0 0 prnp 0 0 embryonic lethal


Are double knockout mice (Sprn0/0/Prnp0/0) embryonic lethal?

Method: generation of Sprn0/0/Prnp0/0 and Sprn0/0/Prnp0/wt mice

Result: Double knockout mice (homozygous pairing) were viable and fertile and continued to reproduce successfully

Wild type knockout mice (heterozygous pairing) resulted in embryonic lethality

Stronger phenotype: embryonic lethality

double knockout histology
Double knockout histology

Method: histology

Result: Double knockout mice are viable, producing a weaker phenotype

No significant changes




If the Sprn0/0/Prnp0/0 null allele is expressed then it will have a stronger phenotype than the Sprn0/wt/Prnp0/wttransient allele because it will stop gene expression entirely, producing more obvious effects.

  • Results were completely unprecedented

Possible Explanation

-Null allele deletion is expressed from early embryogenesis so the body might express a protein with similar function PrPC to allow development to continue normally


  • If prion infection subsists without Sho protein, then the pi theory is unlikely
  • Sho protein expression does not affect PrP expression
  • Sho is more likely to reveal a degradative effect towards PrPSC rather than helping activity towards PrPC
future work
Future work
  • Determine what other proteins could be pi
  • Further examine pi plausibility
  • Look into embryonic development
  • Look into Sho as an agent in neuroprotection and maintenance as PrPC is speculated to be
personal future
Personal Future
  • Communication with Nathalie Daude, University of Alberta

-Ask about research opportunities
