Proposal for Numerical Studies for PIP-II at Fermilab

Proposal for Numerical Studies for PIP-II at Fermilab. Leonid Vorobiev Muons, Inc., Batavia, IL 60510, USA. Introduction. Since 2007- present I’ve been developing software and accelerator designs for Fermilab and Muons Inc., related to : Project X Mu2e Booster upgrade

vidor
Download Presentation

Proposal for Numerical Studies for PIP-II at Fermilab

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

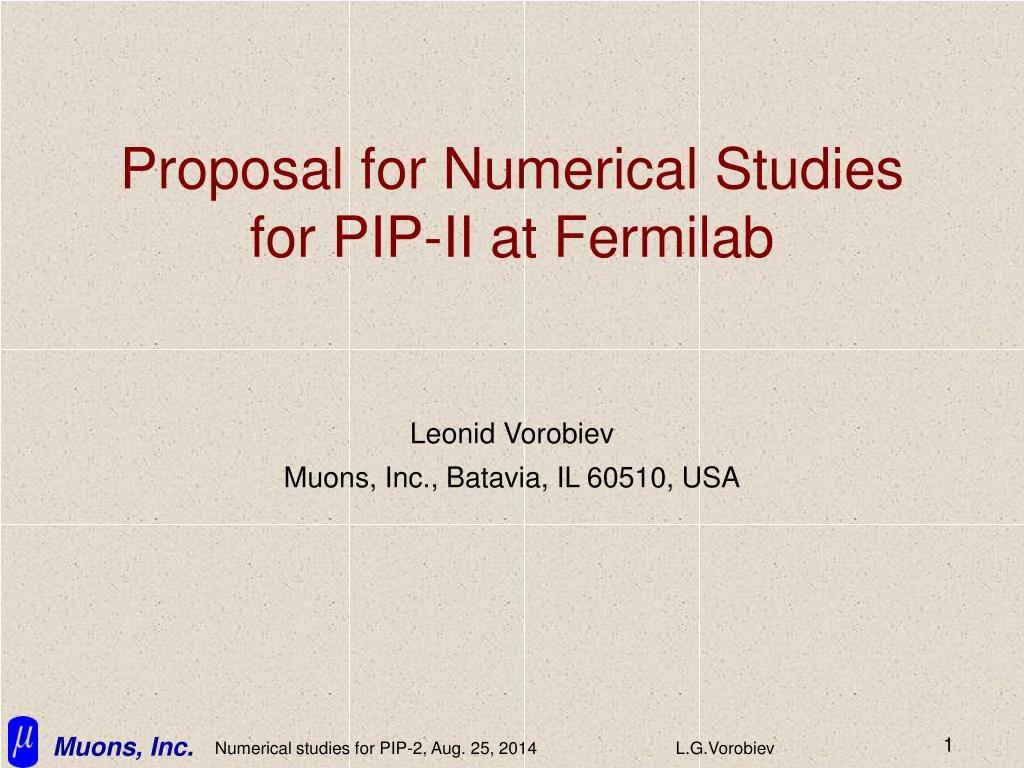

  1. Proposal for Numerical Studies for PIP-II at Fermilab Leonid Vorobiev Muons, Inc., Batavia, IL 60510, USA L.G.Vorobiev

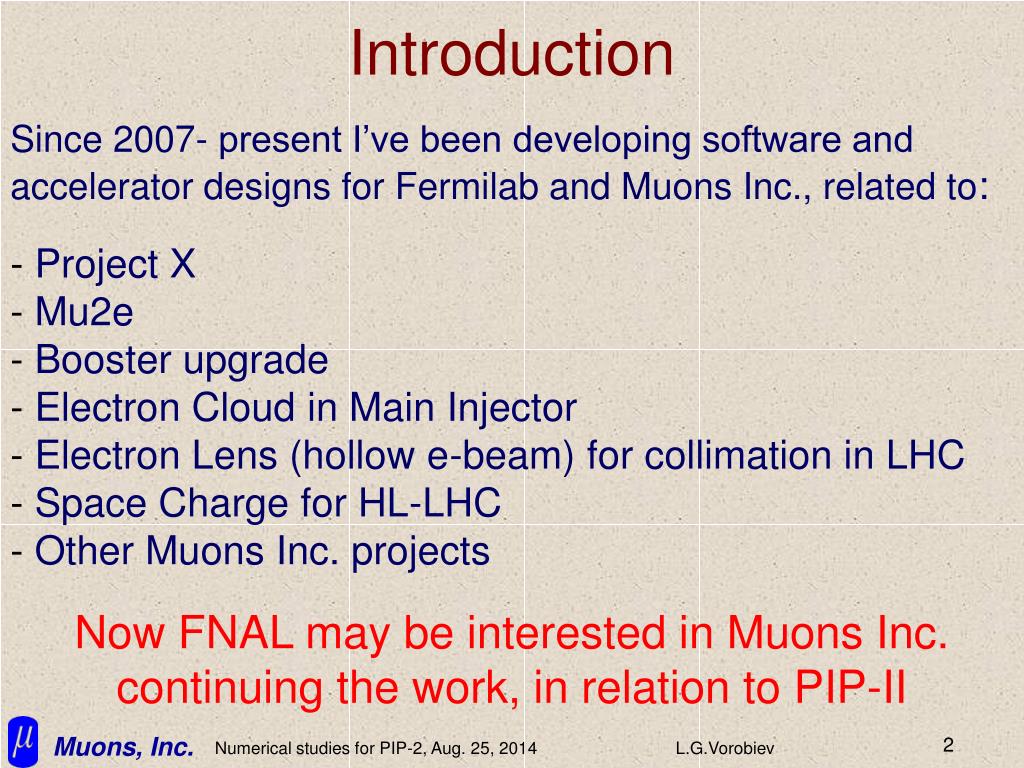

  2. L.G.Vorobiev Introduction • Since 2007- present I’ve been developing software and accelerator designs for Fermilab and Muons Inc., related to: • Project X • Mu2e • Booster upgrade • Electron Cloud in Main Injector • Electron Lens (hollow e-beam) for collimation in LHC • Space Charge for HL-LHC • Other Muons Inc. projects • Now FNAL may be interested in Muons Inc. • continuing the work, in relation to PIP-II

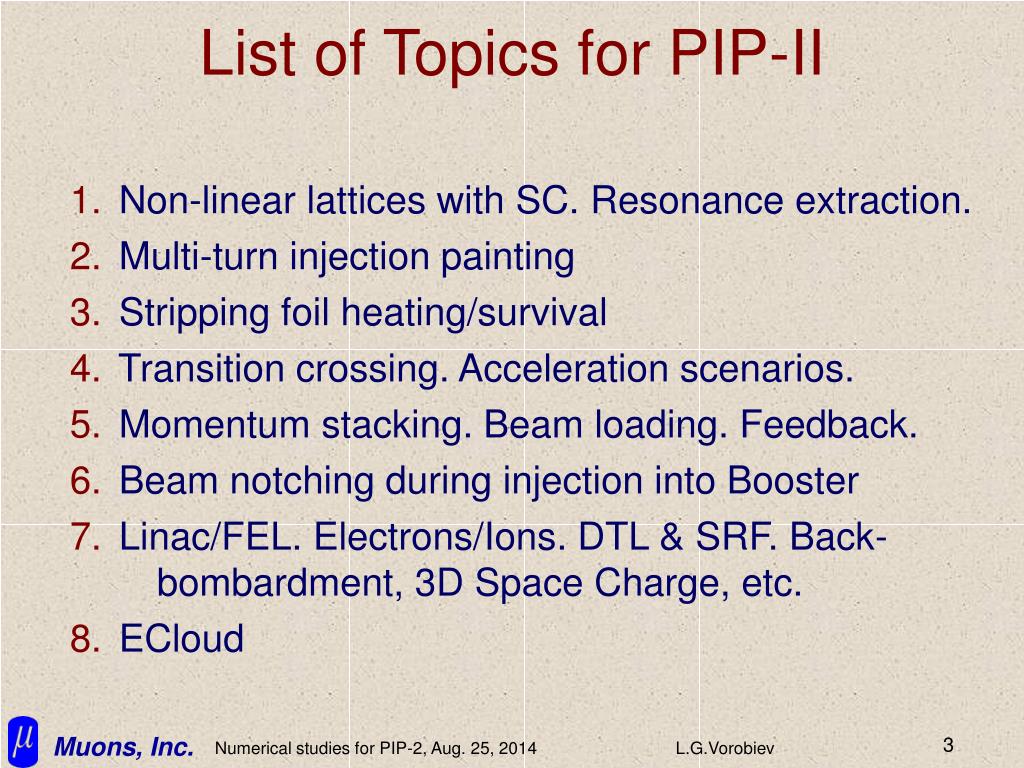

  3. L.G.Vorobiev List of Topics for PIP-II Non-linear lattices with SC. Resonance extraction. Multi-turn injection painting Stripping foil heating/survival Transition crossing. Acceleration scenarios. Momentum stacking. Beam loading. Feedback. Beam notching during injection into Booster Linac/FEL. Electrons/Ions. DTL & SRF. Back- bombardment, 3D Space Charge, etc. ECloud

  4. L.G.Vorobiev 1. Non-linear lattices with SC. Resonance extraction. Non-linear lattices in ORBIT: third-order resonance compared to pure linear lattice Ref.: http://beamdocs.fnal.gov/AD/DocDB/0034/003474/006/APC_meeting_Oct_14_09_final.pdf

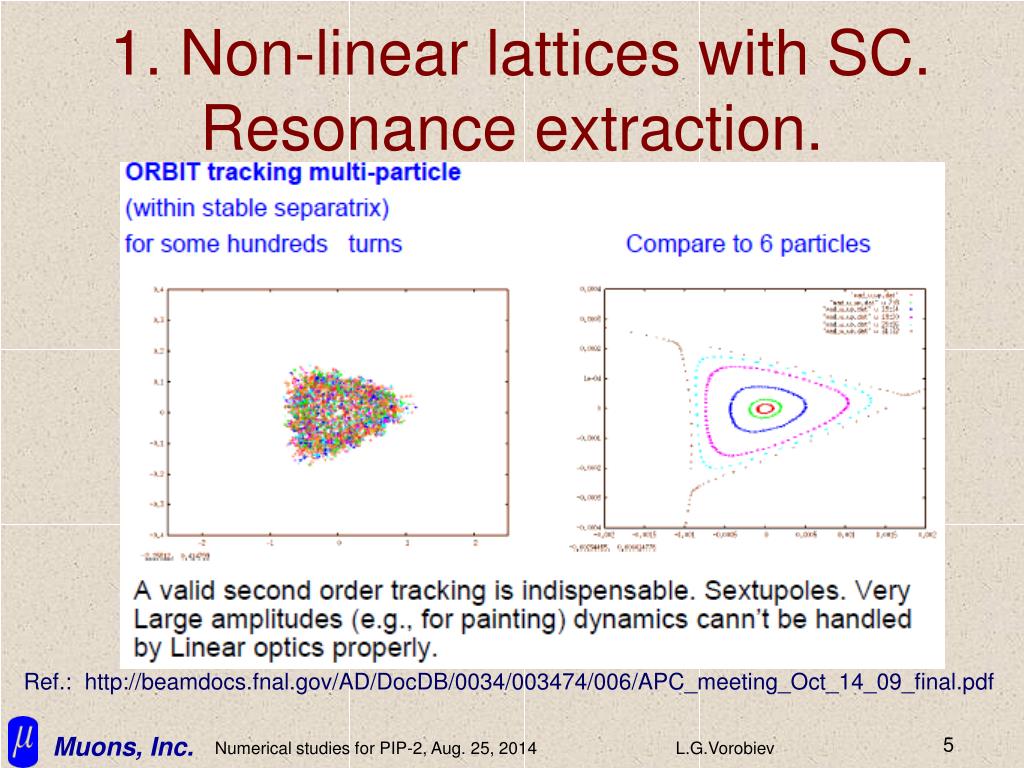

  5. L.G.Vorobiev 1. Non-linear lattices with SC. Resonance extraction. Ref.: http://beamdocs.fnal.gov/AD/DocDB/0034/003474/006/APC_meeting_Oct_14_09_final.pdf

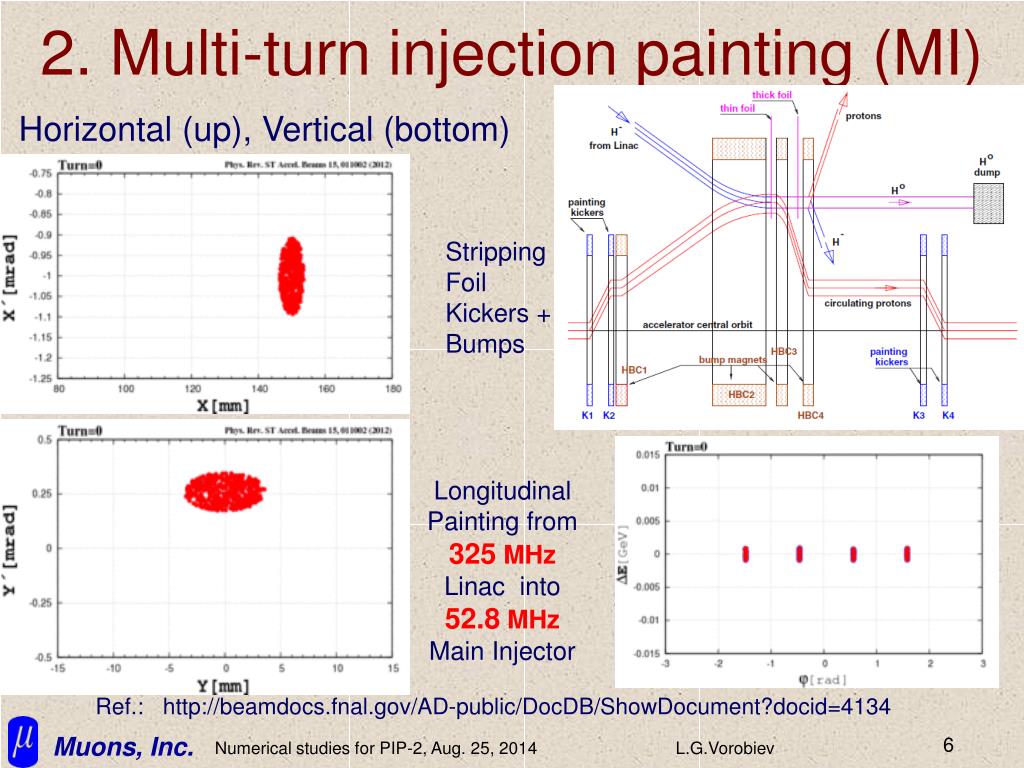

  6. L.G.Vorobiev 2. Multi-turn injection painting (MI) Horizontal (up), Vertical (bottom) Stripping Foil Kickers + Bumps Longitudinal Painting from 325 MHzLinac into 52.8 MHz Main Injector Ref.: http://beamdocs.fnal.gov/AD-public/DocDB/ShowDocument?docid=4134

  7. L.G.Vorobiev 3. Stripping foil issues Scenario A (582-turn injection) Hits on the Foil Particle hit number on the foil during 1st, 4th, and 6th cycles are: 62067, 162470, and 284034, respectively. The totalhit number is 948322. Average number of interactions with foil =33 (for each injected particle). Hit density at the maximum of the distribution =1.31e+14 proton/mm^2 at 2.52e+11 particles injected at every turn. Ref.: http://journals.aps.org/prstab/pdf/10.1103/PhysRevSTAB.15.011002

  8. L.G.Vorobiev 4. Transition crossing. Acceleration scenarios. Rapid-cycling synchrotron FNAL Booster 20,000 turns acceleration ramp Synch. phase – self-consistent Works for Main Injector CERN SC 2013: http://beamdocs.fnal.gov/AD-public/DocDB/ShowDocument?docid=4340

  9. L.G.Vorobiev 5. Momentum stacking. Beam loading. Feedback. Mu2e Exp. at Fermilab: Extinction interval for mu2e detector: NO STRAYPROTONS Long. dynamics w/o (left), with (cent)Beam Loading. Histogram (right) CERN SC 2013: http://beamdocs.fnal.gov/AD-public/DocDB/ShowDocument?docid=4340

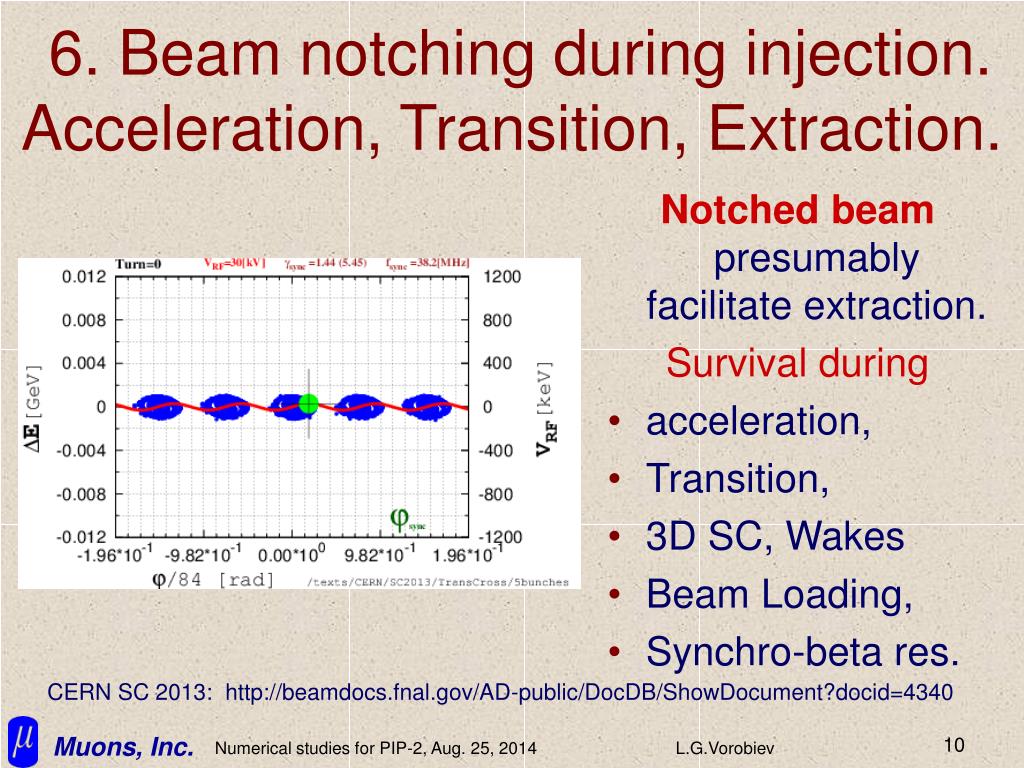

  10. L.G.Vorobiev 6. Beam notching during injection. Acceleration, Transition, Extraction. • Notched beampresumably facilitate extraction. • Survival during • acceleration, • Transition, • 3D SC, Wakes • Beam Loading, • Synchro-beta res. CERN SC 2013: http://beamdocs.fnal.gov/AD-public/DocDB/ShowDocument?docid=4340

  11. L.G.Vorobiev 7. Linac/FEL e-/p/ions. DTL & SRF Back-bombardment, 3D SC, etc PIP – for protons Example FEL – for electrons – serve as software demo for PIP-2: RFQ, DTL normal-conducting/SRF. SuperFish3D SC &GeometryEGun (z=0) + 3SRF Cavities + Undulator (z>120 cm, not shown)

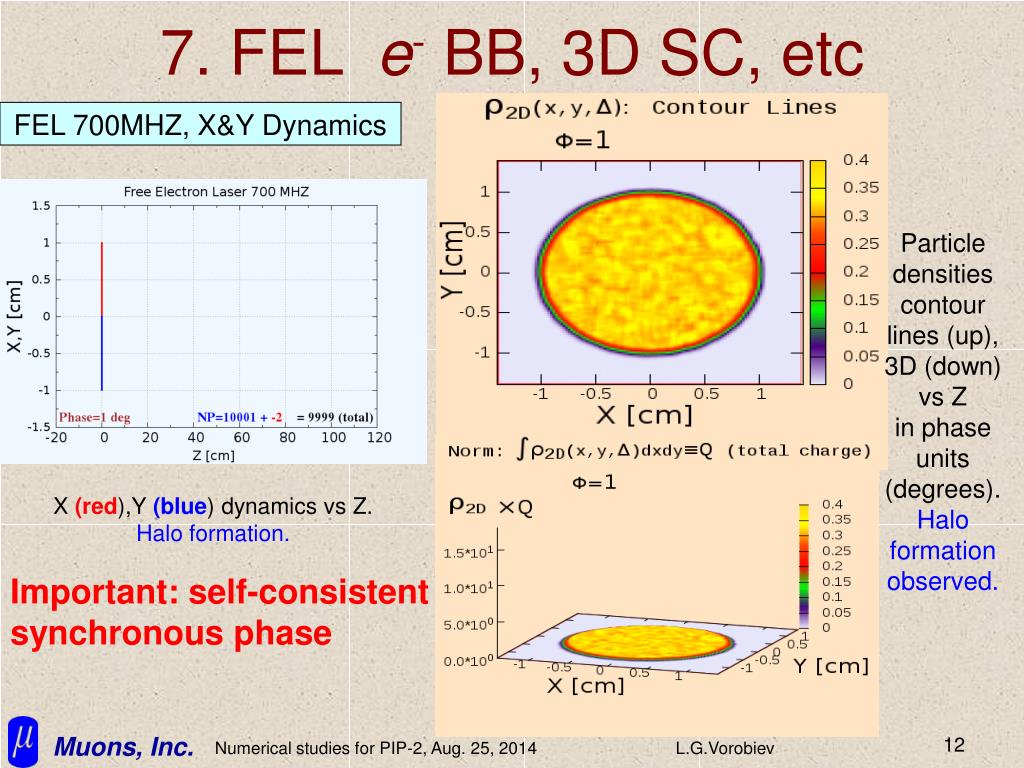

  12. L.G.Vorobiev 7. FEL e- BB, 3D SC, etc FEL 700MHZ, X&Y Dynamics Particle densities contourlines (up),3D (down)vs Zin phase units (degrees). Halo formation observed. X (red),Y (blue) dynamics vs Z.Halo formation. Important:self-consistent synchronous phase

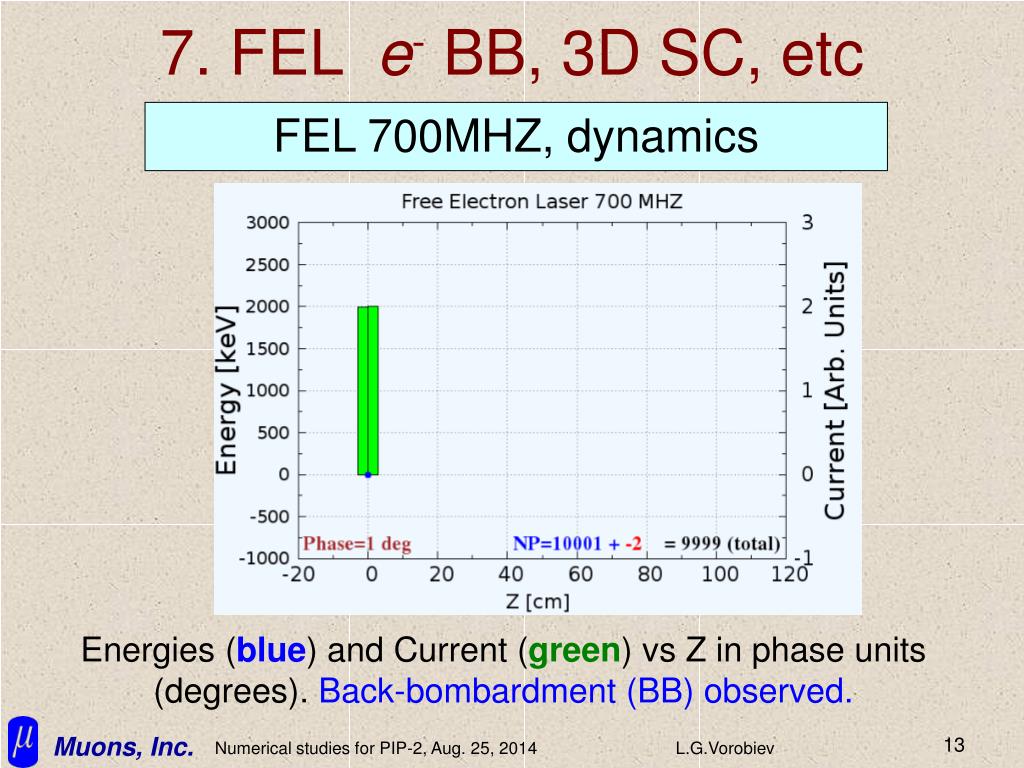

  13. L.G.Vorobiev 7. FEL e- BB, 3D SC, etc FEL 700MHZ, dynamics Energies (blue) and Current (green) vs Z in phase units (degrees). Back-bombardment (BB) observed.

  14. L.G.Vorobiev

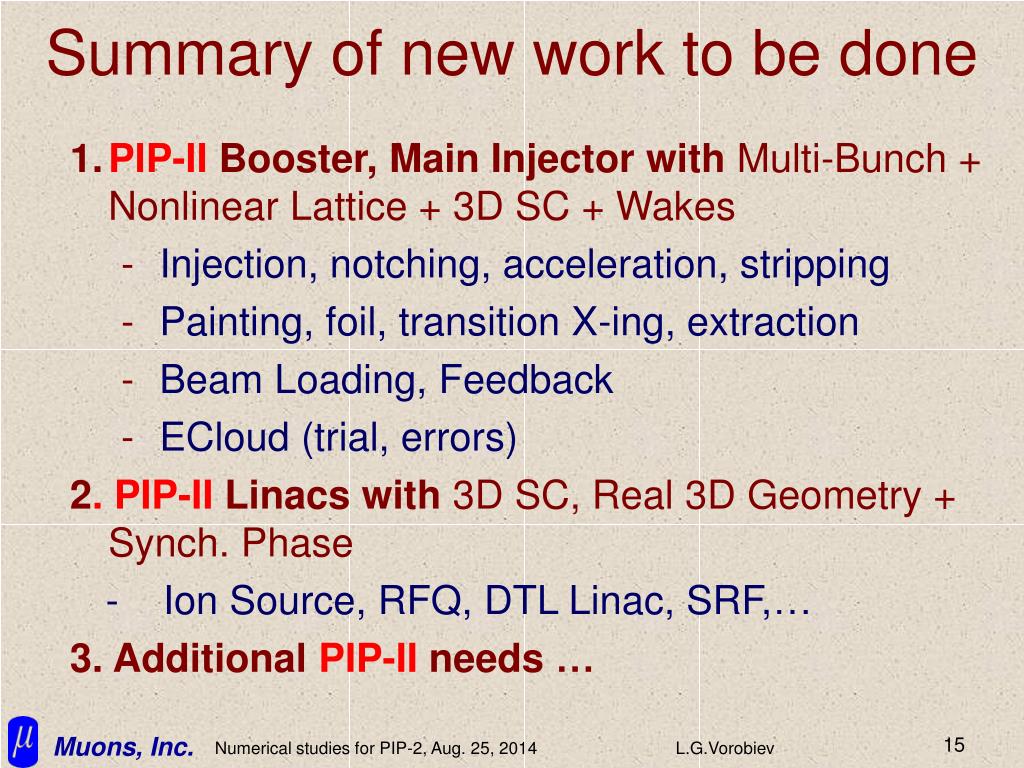

  15. L.G.Vorobiev Summary of new work to be done • PIP-II Booster, Main Injector with Multi-Bunch + Nonlinear Lattice + 3D SC + Wakes • Injection, notching, acceleration, stripping • Painting, foil, transition X-ing, extraction • Beam Loading, Feedback • ECloud (trial, errors) 2. PIP-II Linacs with 3D SC, Real 3D Geometry + Synch. Phase - Ion Source, RFQ, DTL Linac, SRF,… • 3. Additional PIP-II needs …
