Presentation Transcript
Xml draft format for warnings and advisories in japan l.jpg

XML draft formatfor warnings and advisoriesin Japan

9 Dec 20008

Yuichi YAMAKOSHI

Planning Division, JMA

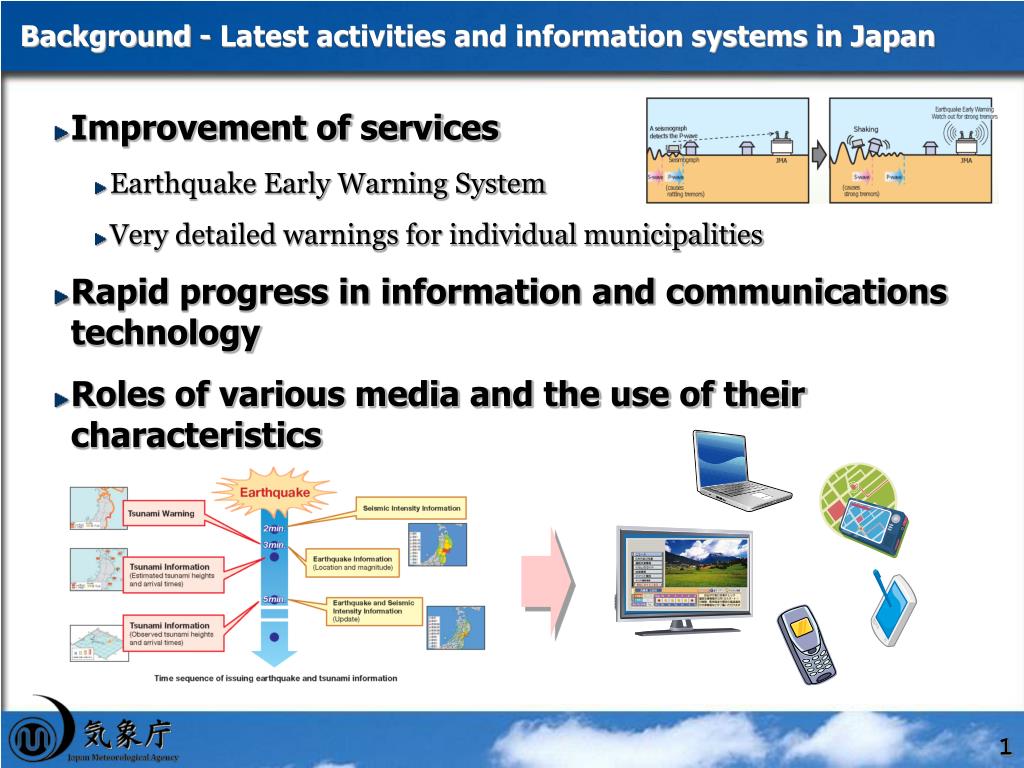

Background latest activities and information systems in japan l.jpg
Background - Latest activities and information systems in Japan

  • Improvement of services

    • Earthquake Early Warning System

    • Very detailed warnings for individual municipalities

  • Rapid progress in information and communications technology

  • Roles of various media and the use of their characteristics

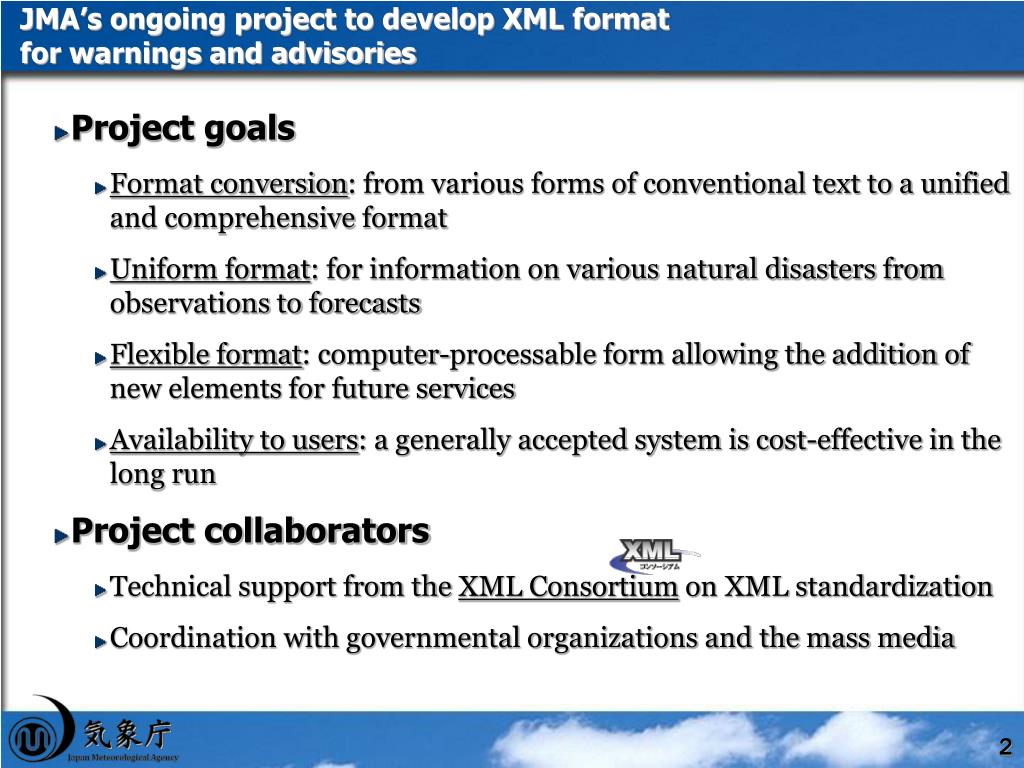

Jma s ongoing project to develop xml format for warnings and advisories l.jpg
JMA’s ongoing project to develop XML format Japan for warnings and advisories

  • Project goals

    • Format conversion: from various forms of conventional text to a unified and comprehensive format

    • Uniform format: for information on various natural disasters from observations to forecasts

    • Flexible format: computer-processable form allowing the addition of new elements for future services

    • Availability to users: a generally accepted system is cost-effective in the long run

  • Project collaborators

    • Technical support from the XML Consortium on XML standardization

    • Coordination with governmental organizations and the mass media


Already operational cap is cap applicable to jma s project l.jpg
Already-operational CAP: Is CAP applicable to JMA’s project?

  • Comparison of JMA’s project and CAP

    • Purpose: Distribution of disaster prevention information

    • Target: All natural hazards (other than human-induced accidents)

    • Content: User requirements for information; compartmentalization and quantification

  • possible by JMA with CAP

    • The essence of JMA’s warnings is expressible with CAP; torrential rain, flooding, storm surges, earthquakes and volcanic eruptions

    • Very detailed observations and forecasts cannot be expressed with CAP; quantitative estimates and time-sequential values


Comparison of jma s project and cap l.jpg
Comparison of JMA’s project and CAP project?

All Hazards

CAP

law enforcement

natural hazards such as severe weather, earthquakes, and tsunami

public safety

detail

quantitative estimates

time-sequential values

JMA’s project


About jma s xml format for warnings and advisories part i l.jpg
About JMA’s XML format for warnings and advisories - Part I

.XSD

.XLS

  • Characteristics and key points of JMA’s XML format

    • A data dictionary derived by analysis and restructuring of conventional information elements

    • Automatic development of an XML schema from the data dictionary

  • Structure of JMA’s XML format

    • Three elements: control part, head part (similar to CAP) and body part (quantitative expression part for each area of meteorology, seismology, volcanology)

    • Reusable basic elements in every part: atmospheric temperature, pressure, magnitude, etc.

    • Extensibility; allows new elements to be added in the future

data dic.

XML schema

<Control>

-Title

-Datetime

- …

Basic elements

<Pressure>,<WindSpeed>,

<Magunitude>,<Tsunami>,

<Head>

-Headline

-TargetArea

- …

Ref.

<Body>

*meteorology

*seismology

*volcanology


About jma s xml format for warnings and advisories part ii l.jpg
About JMA’s XML format for warnings and advisories - Part II

.XSD

[jmx1]

.XML

(v.1.2)

.XML

(v.1.0)

.XML

.XML

(v.2.0)

.XSD

[jmx2]

.XSD

<element name=“Pressure”

type=“float”>

  • Issues discussed in development

    • Data type for physical values in basic elements: float type (not string type)How can invalid values and missing data be described in XML?

    • Management of XML schema: name spacing and version numberHow can forward and backward compatibility between schema and instance be maintained?

  • Applications of JMA’s XML format

    • Computer-processable structure:Various values can be stored from plain text to code values, i.e., binary data

    • Processable with user applicationse.g., Prefectures: outlook for the entire area Municipalities: detailed analysis in individual areas

.XML

<Pressure />

?

?

Detail

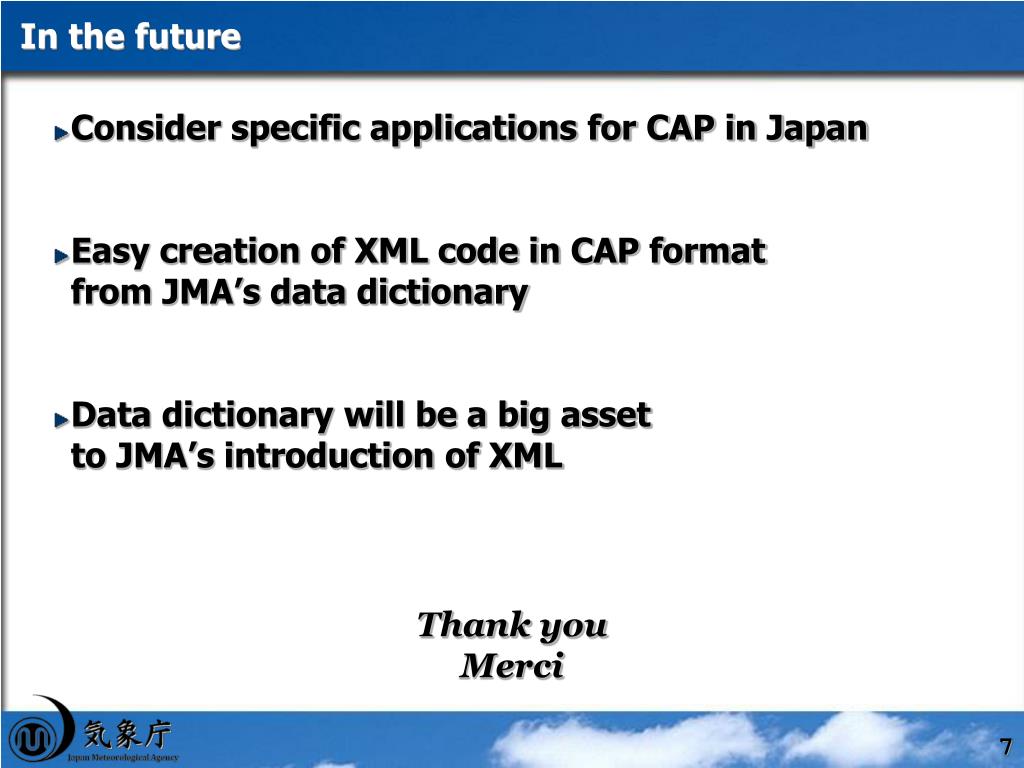

In the future l.jpg
In the future II

  • Consider specific applications for CAP in Japan

  • Easy creation of XML code in CAP format from JMA’s data dictionary

  • Data dictionary will be a big asset to JMA’s introduction of XML

Thank you

Merci
