  1. Module 1 Installation and configuration of Speednet 3.1.1 in SPC

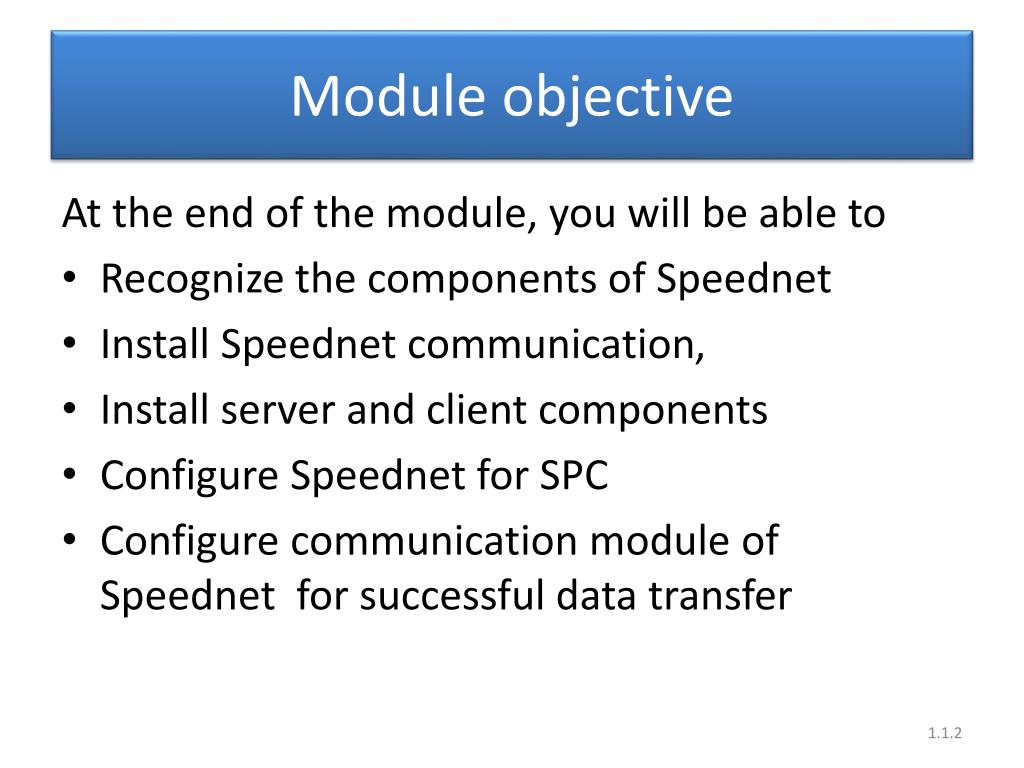

  2. Module objective At the end of the module, you will be able to • Recognize the components of Speednet • Install Speednet communication, • Install server and client components • Configure Speednet for SPC • Configure communication module of Speednet for successful data transfer

  3. Components explained

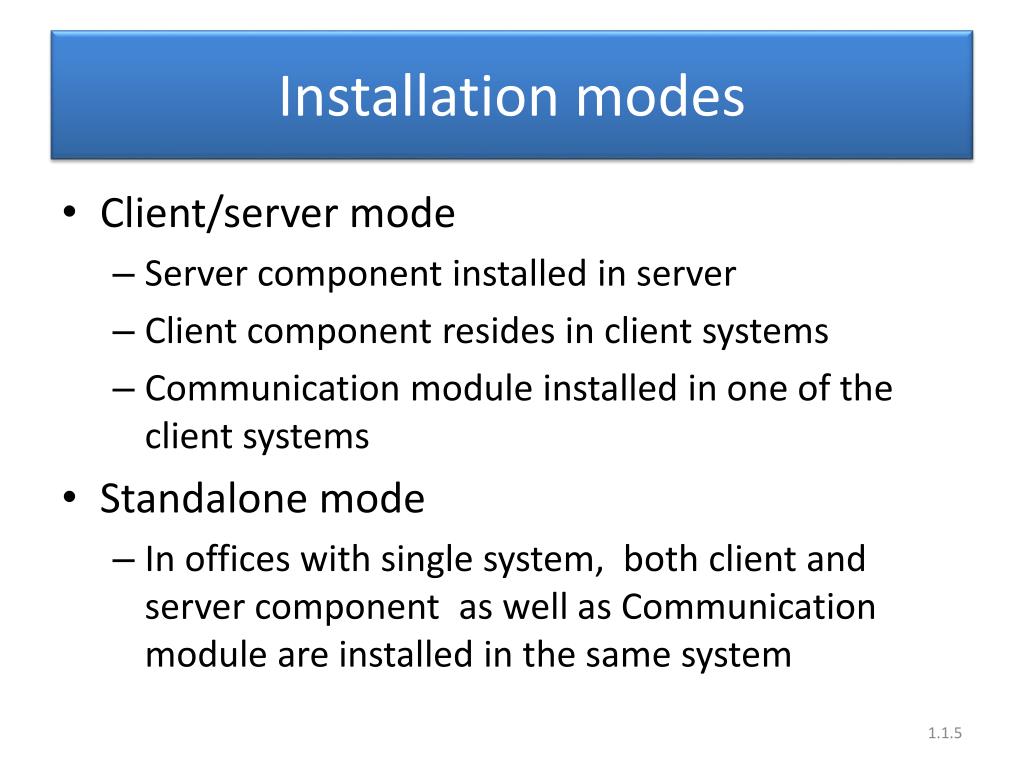

  4. Installation modes • Client/server mode • Server component installed in server • Client component resides in client systems • Communication module installed in one of the client systems • Standalone mode • In offices with single system, both client and server component as well as Communication module are installed in the same system

  5. Installation process

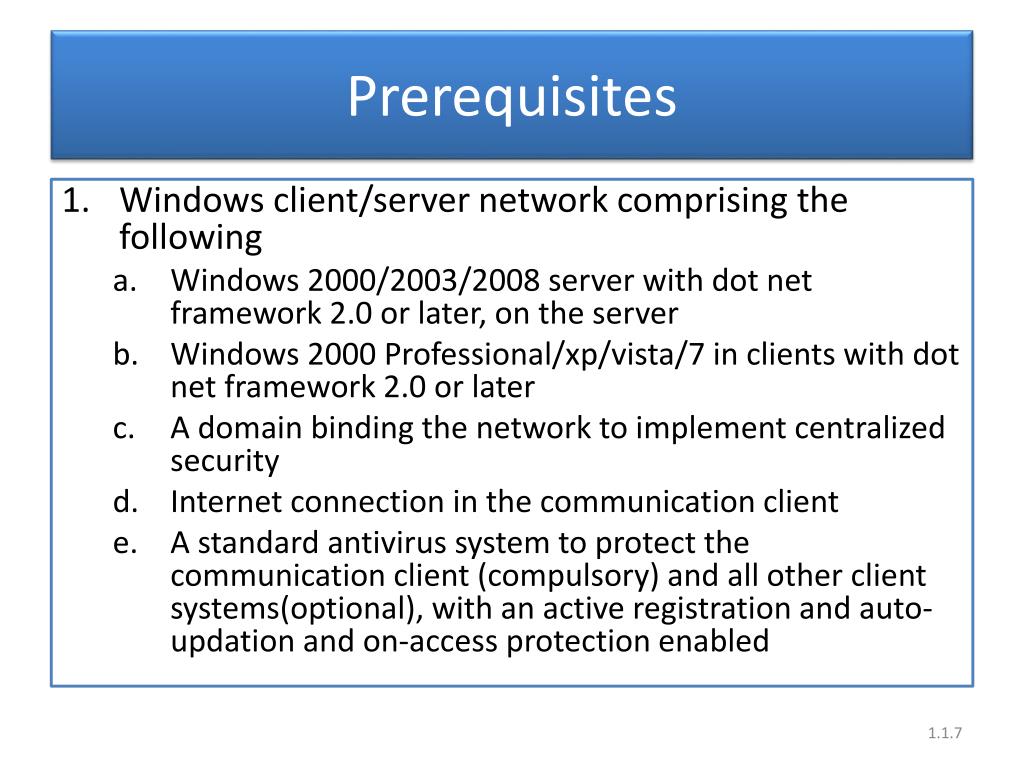

  6. Prerequisites • Windows client/server network comprising the following • Windows 2000/2003/2008 server with dot net framework 2.0 or later, on the server • Windows 2000 Professional/xp/vista/7 in clients with dot net framework 2.0 or later • A domain binding the network to implement centralized security • Internet connection in the communication client • A standard antivirus system to protect the communication client (compulsory) and all other client systems(optional), with an active registration and auto-updation and on-access protection enabled

  7. Pre-requisites (cont’d) • SQL Server 2000/2005/2008 standard edition installed on the server and mixed authentication enabled with a secure SA password • Latest service packs available - Service pack 4 for SQL 2000/ service pack 2 for SQL 2005 (minimum requirement) • Client edition of SQL Server in client systems with no management tools • A domain user account created for each user in the office

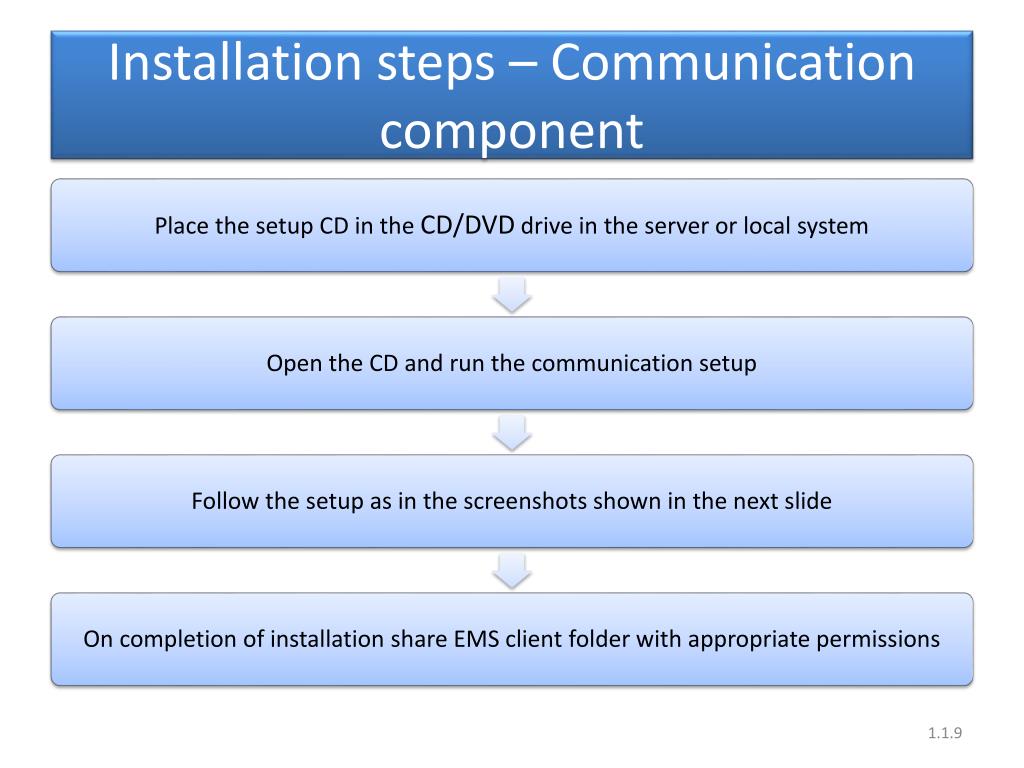

  8. Installation steps – Communication component

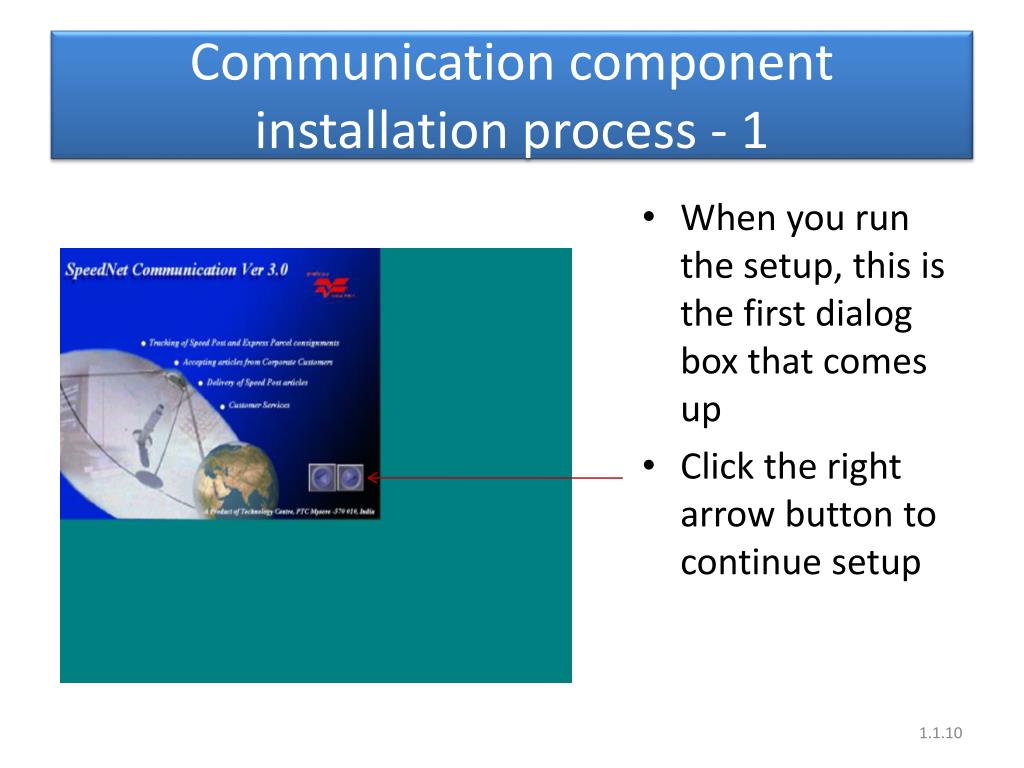

  9. Communication component installation process - 1 • When you run the setup, this is the first dialog box that comes up • Click the right arrow button to continue setup

  10. Communication component installation process - 2 • This is the next step • Here you have the option to change the destination folder using Change Directory button; The default path is C:\EMSClient • Follow the onscreen inst

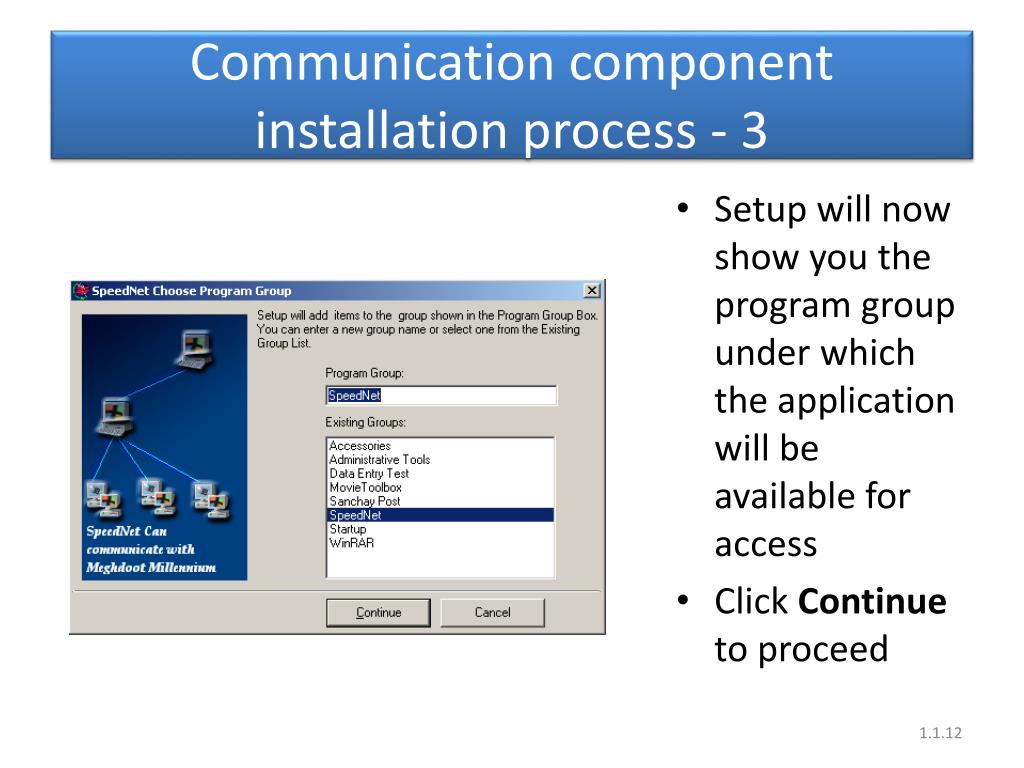

  11. Communication component installation process - 3 • Setup will now show you the program group under which the application will be available for access • Click Continue to proceed

  12. Communication component installation process (final step) • In this step you should select where the module is installed • In offices with Speednet, select the default option SpeedNet • In offices with Point of sale only (extension counters) having internet facility use Point of Sale option (to upload booked data) • This completes the setup

  13. Watch the demo of communication component installation in faculty system

  14. Exercise 1.1.1 – Installation of Speednet communication

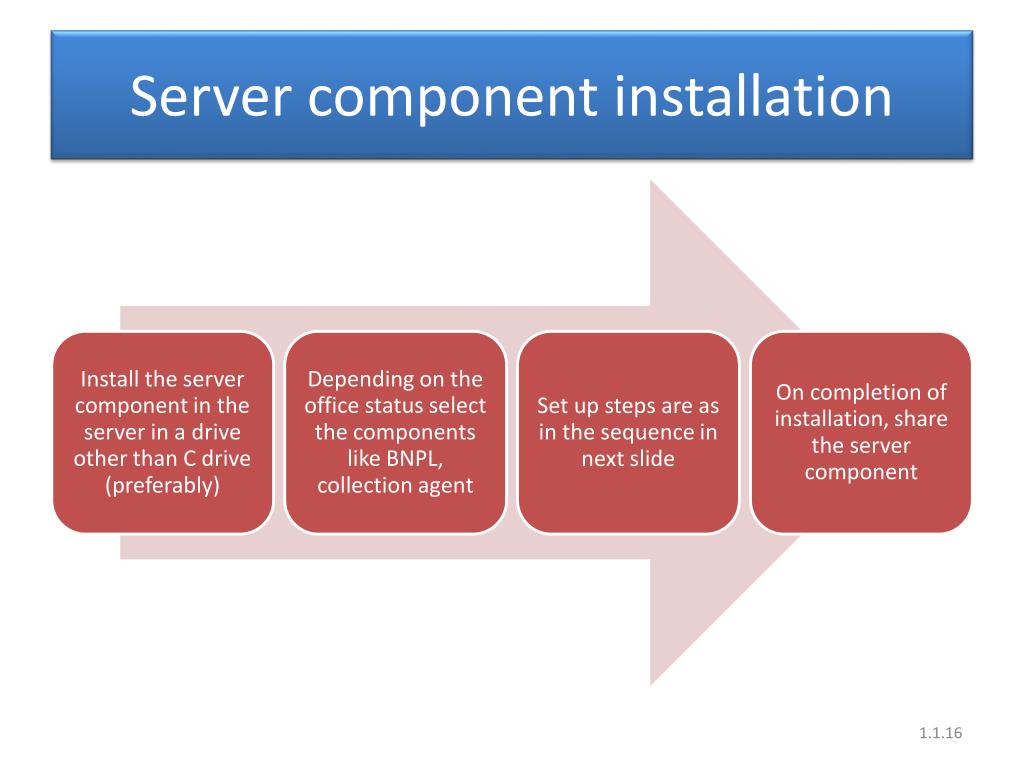

  15. Server component installation

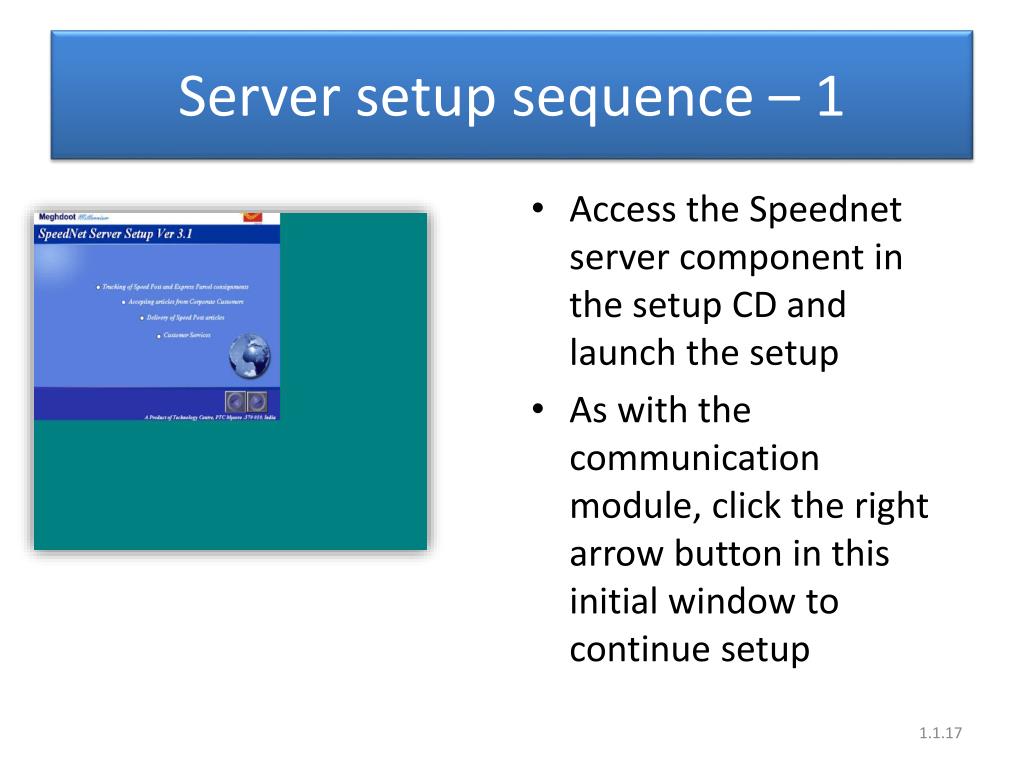

  16. Server setup sequence – 1 • Access the Speednet server component in the setup CD and launch the setup • As with the communication module, click the right arrow button in this initial window to continue setup

  17. Server Setup sequence - 2 • In this dialog box, you are prompted to change the installation path with a default path shown • Change the installation path to a drive other than C to ensure hassle free growth and security • Click the setup icon to continue

  18. Server Setup sequence - 3 • In this final step, choose whether your office is • Delivery office • Handles BNPL and collection agent articles • Install flush data, as per requirements • Click OK to finish setup • Share the SpeednetServer folder in the installation path

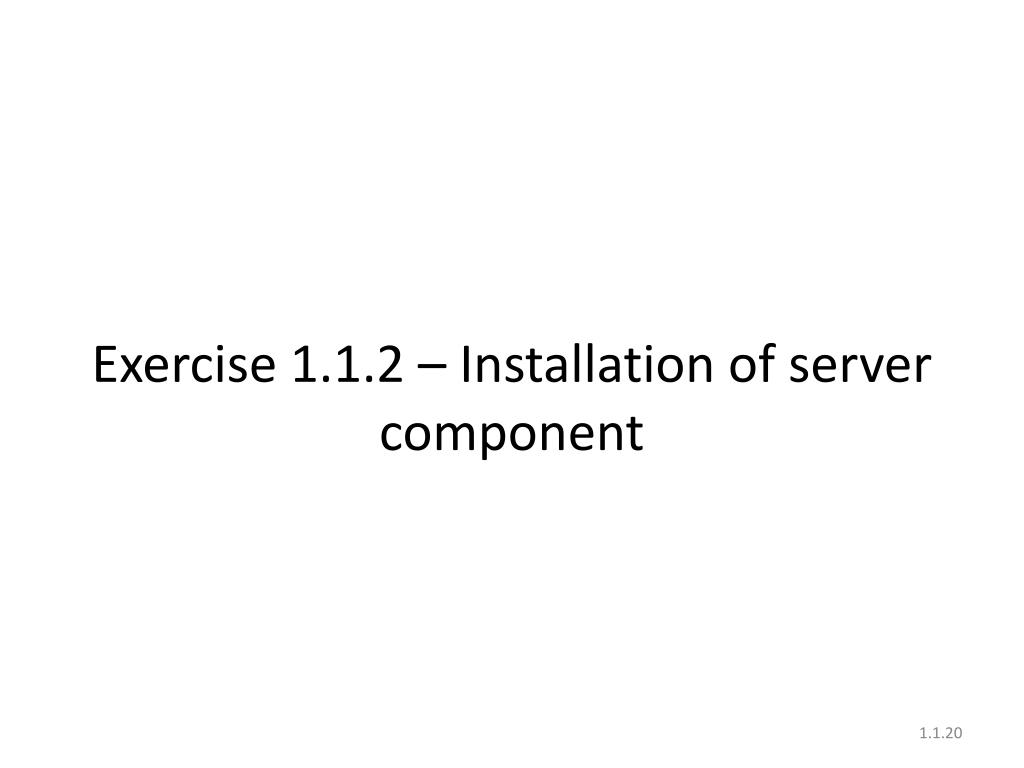

  19. Exercise 1.1.2 – Installation of server component

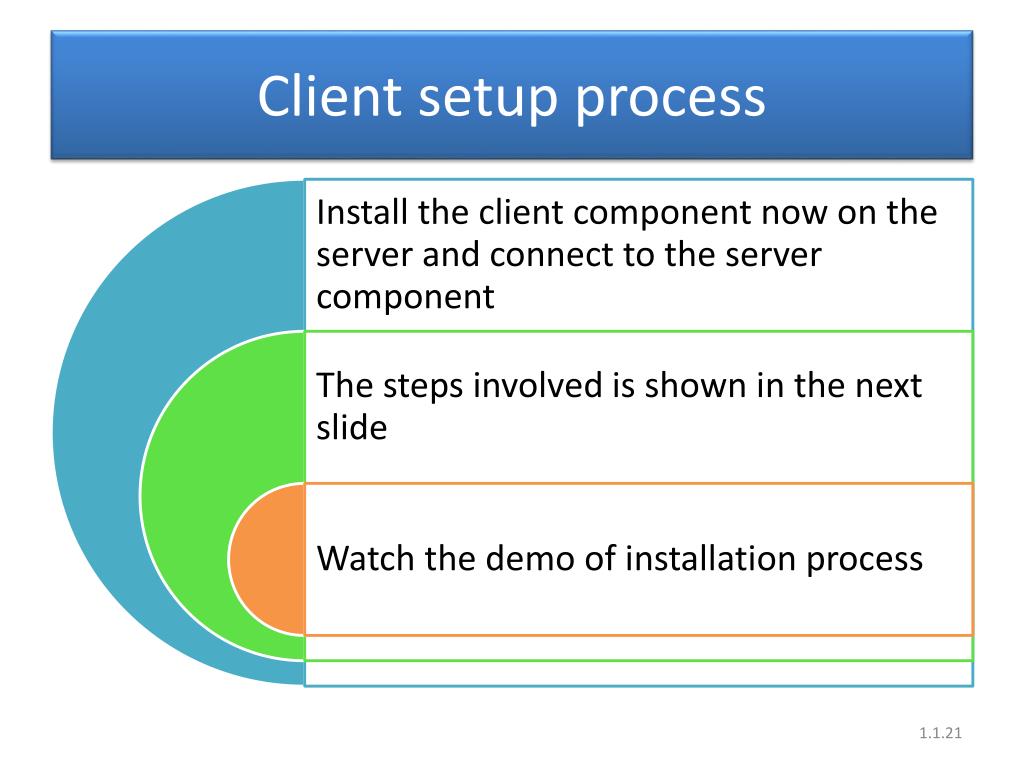

  20. Client setup process

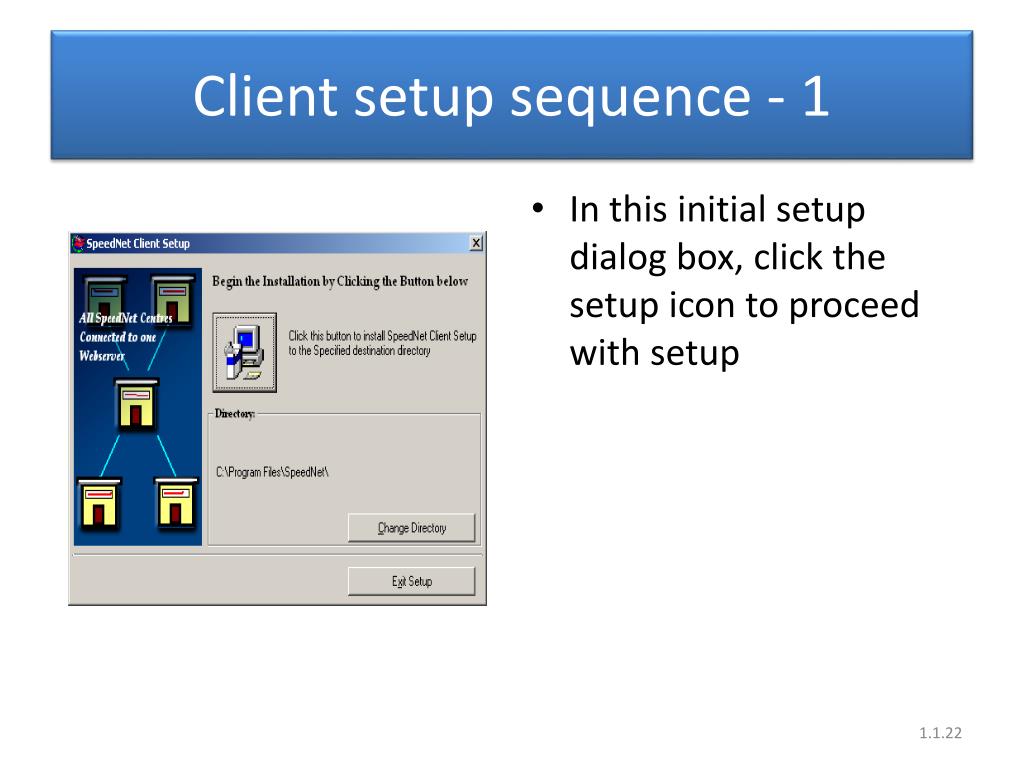

  21. Client setup sequence - 1 • In this initial setup dialog box, click the setup icon to proceed with setup

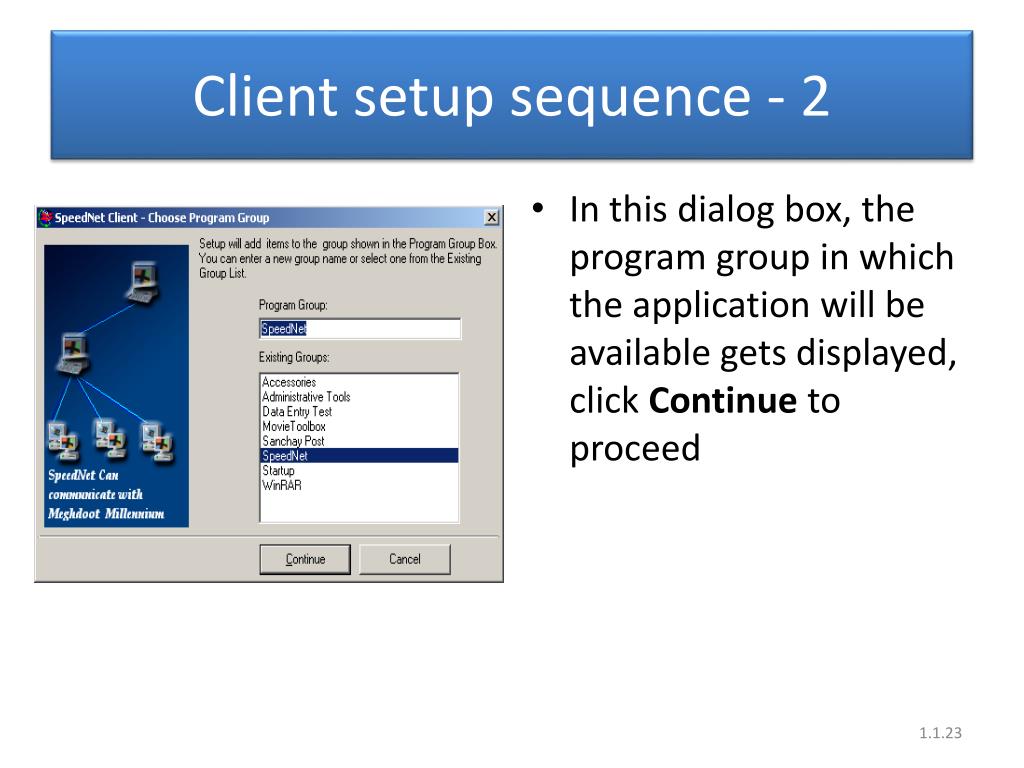

  22. Client setup sequence - 2 • In this dialog box, the program group in which the application will be available gets displayed, click Continue to proceed

  23. Client setup sequence - 3 • The message box Path/file access error that appears is a non critical error; Click Retry and the next dialog box appears • In this dialog box, you should browse and point to the Speednet Server

  24. Client setup sequence - 4 • Now click OK to complete the client setup

  25. Exercise 1.1.3 – Speednet client setup

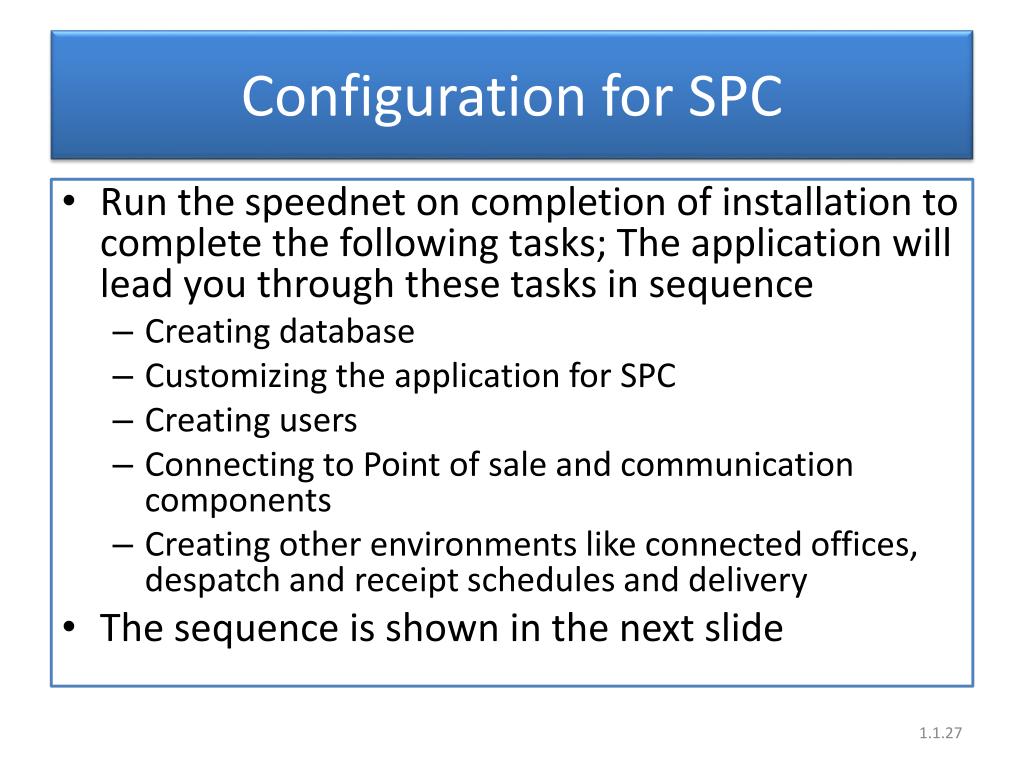

  26. Configuration for SPC • Run the speednet on completion of installation to complete the following tasks; The application will lead you through these tasks in sequence • Creating database • Customizing the application for SPC • Creating users • Connecting to Point of sale and communication components • Creating other environments like connected offices, despatch and receipt schedules and delivery • The sequence is shown in the next slide

  27. Configuration step - 1 • In this dialog box, we create the supervisor

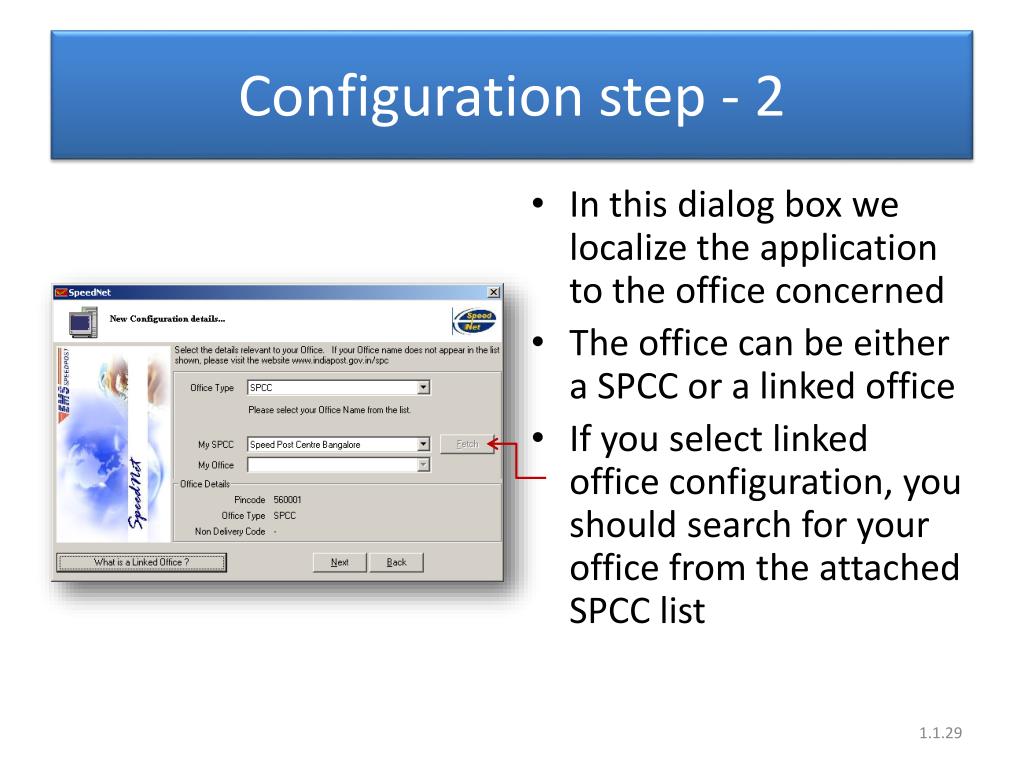

  28. Configuration step - 2 • In this dialog box we localize the application to the office concerned • The office can be either a SPCC or a linked office • If you select linked office configuration, you should search for your office from the attached SPCC list

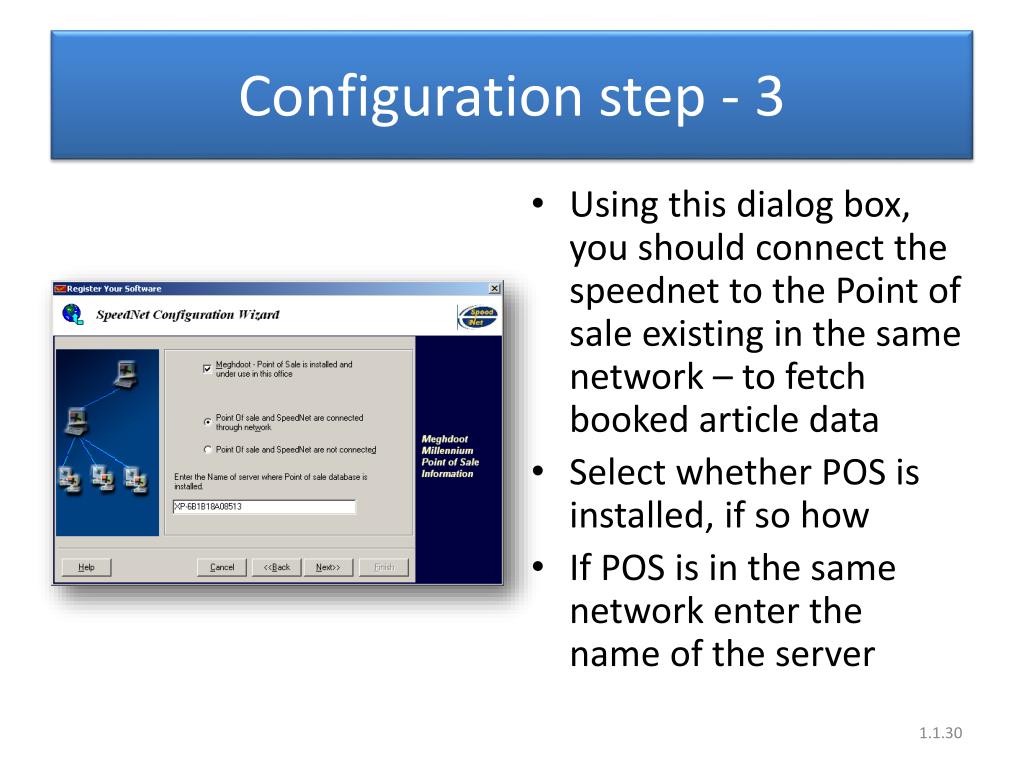

  29. Configuration step - 3 • Using this dialog box, you should connect the speednet to the Point of sale existing in the same network – to fetch booked article data • Select whether POS is installed, if so how • If POS is in the same network enter the name of the server

  30. Configuration step - 4 • In this step, you should select the system and shared folder (EMS Client) where Communication module is installed • Use the Browse button to search and point to the EMS Client in the network and proceed further

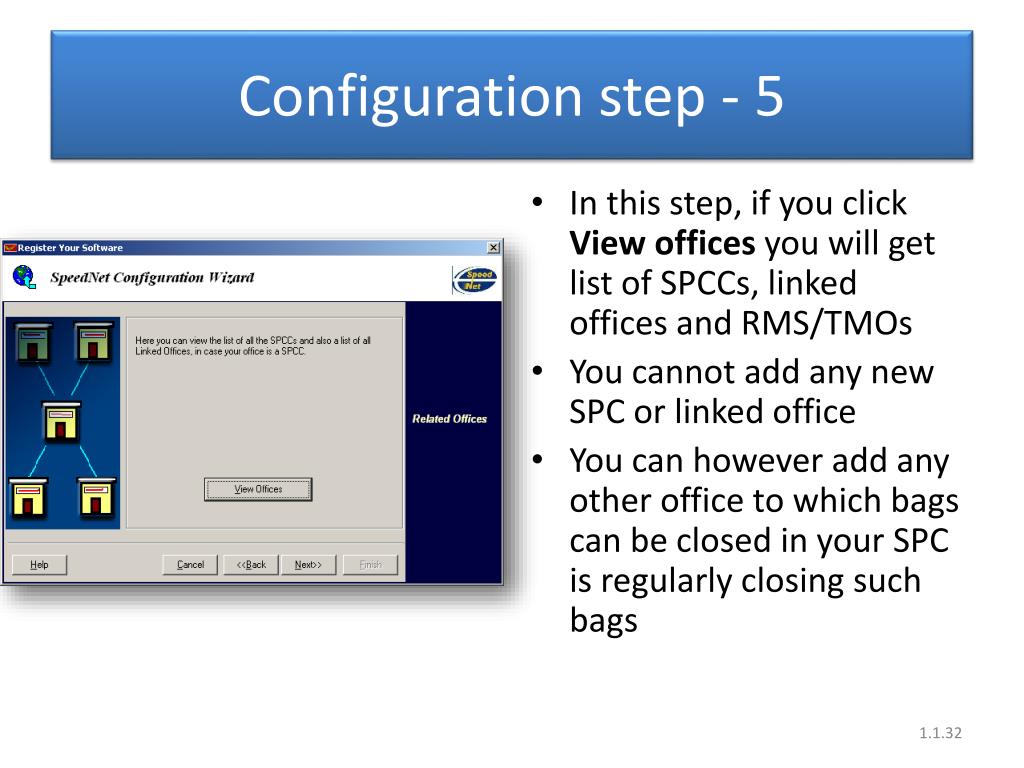

  31. Configuration step - 5 • In this step, if you click View offices you will get list of SPCCs, linked offices and RMS/TMOs • You cannot add any new SPC or linked office • You can however add any other office to which bags can be closed in your SPC is regularly closing such bags

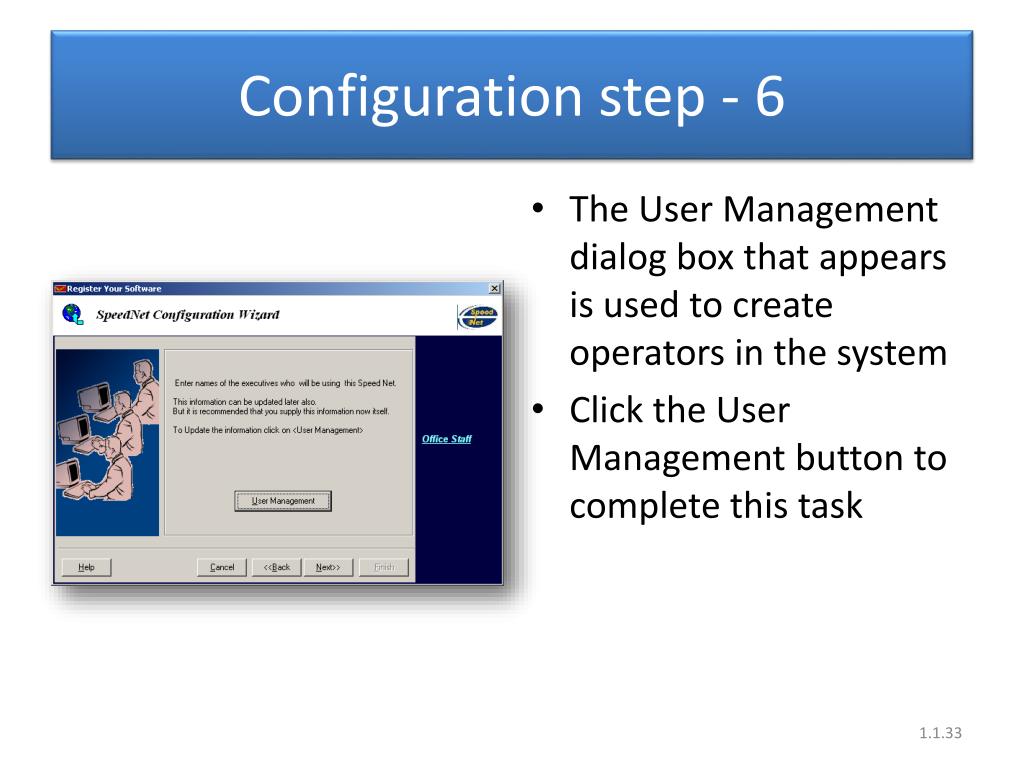

  32. Configuration step - 6 • The User Management dialog box that appears is used to create operators in the system • Click the User Management button to complete this task

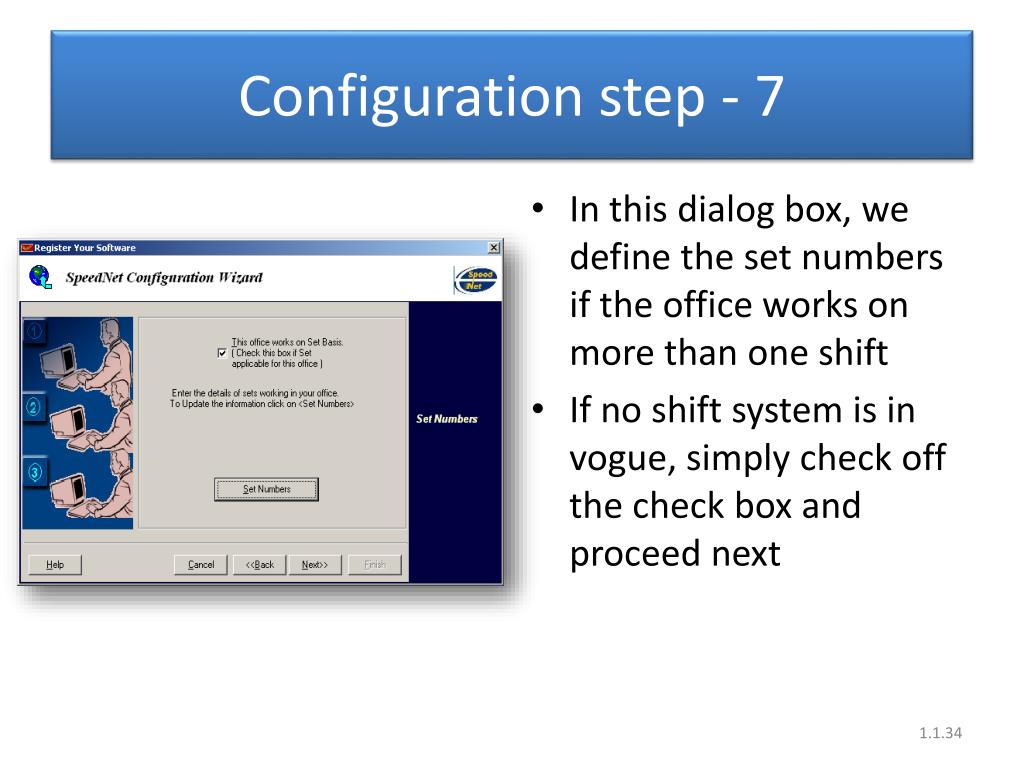

  33. Configuration step - 7 • In this dialog box, we define the set numbers if the office works on more than one shift • If no shift system is in vogue, simply check off the check box and proceed next

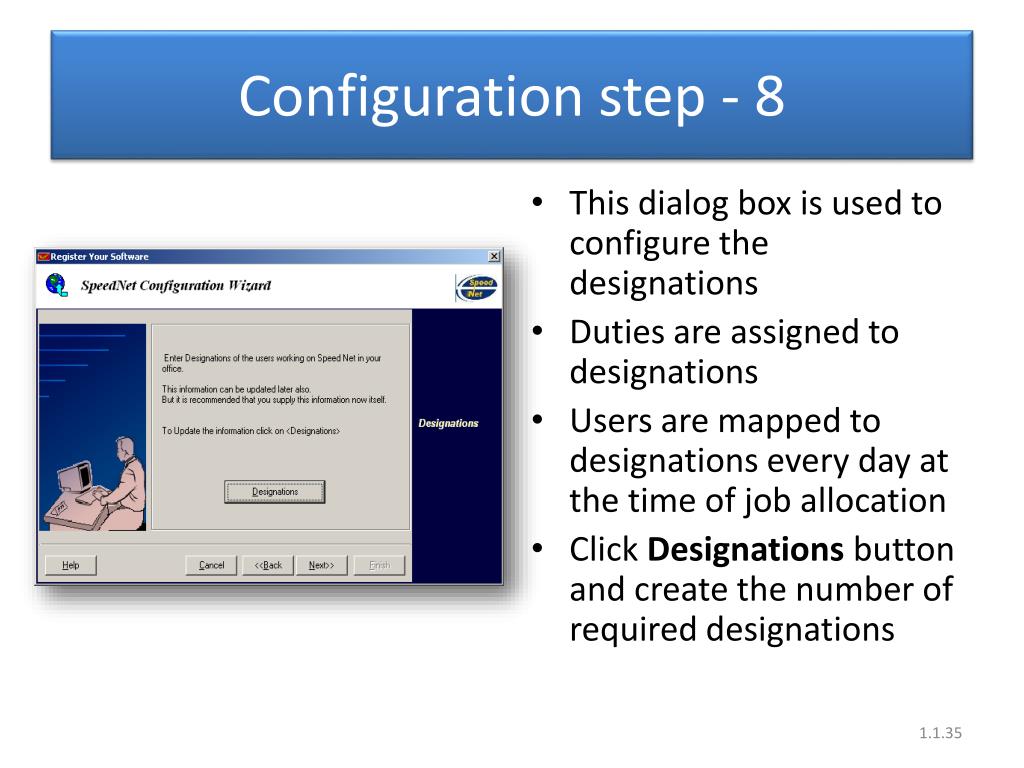

  34. Configuration step - 8 • This dialog box is used to configure the designations • Duties are assigned to designations • Users are mapped to designations every day at the time of job allocation • Click Designations button and create the number of required designations

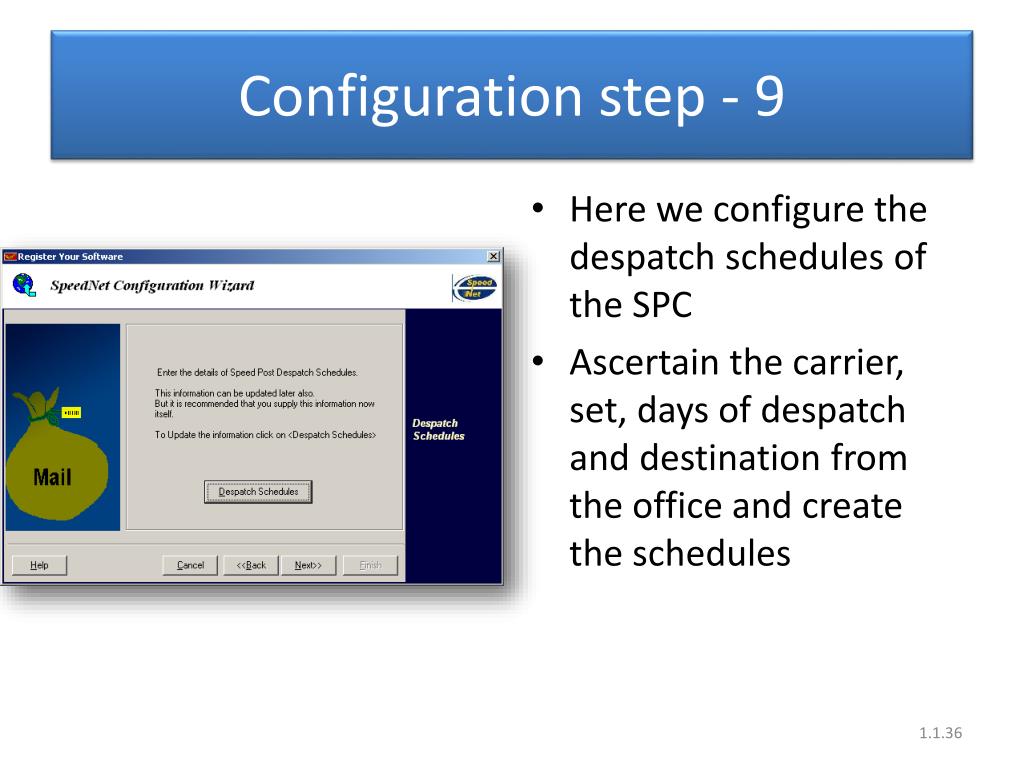

  35. Configuration step - 9 • Here we configure the despatch schedules of the SPC • Ascertain the carrier, set, days of despatch and destination from the office and create the schedules

  36. Configuration step - 10 • In this step, we configure the receipt schedules for the office • Ascertain the existing receipt pattern and configure the schedule similarly as despatch schedule

  37. Configuration step - 11 • Here you need to furnish Delivery environment information • Ascertain the existing environment from the SPC and enter these data • You need to also enter the names of postmen and bulk addressees, if the delivery environment exists

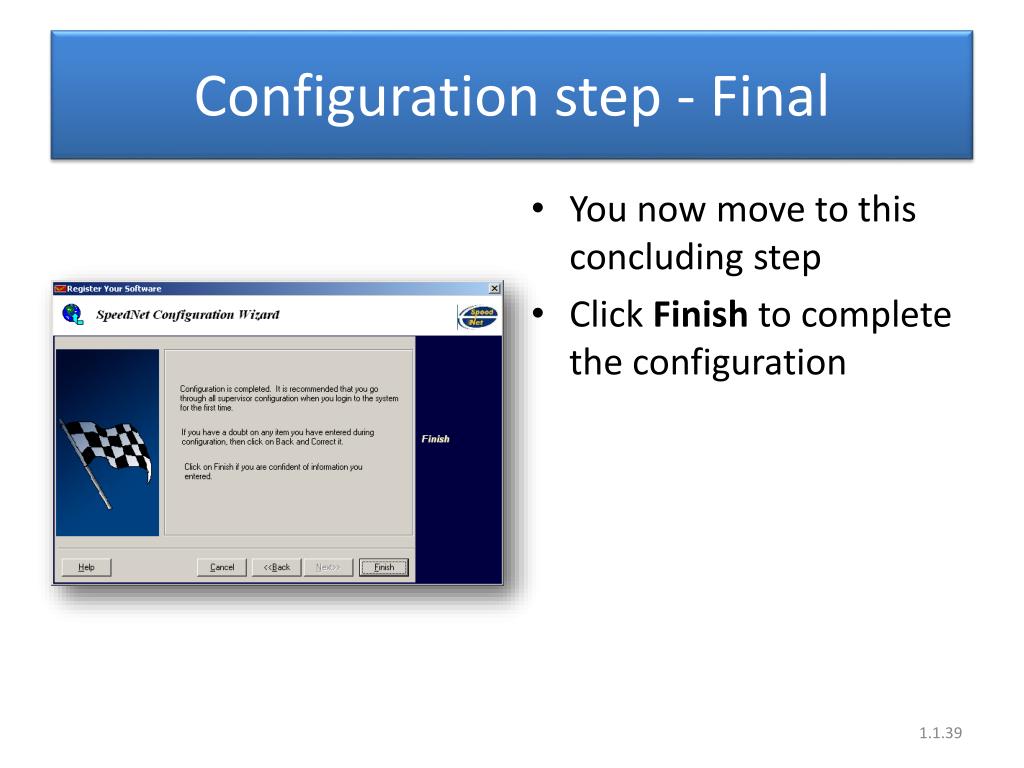

  38. Configuration step - Final • You now move to this concluding step • Click Finish to complete the configuration

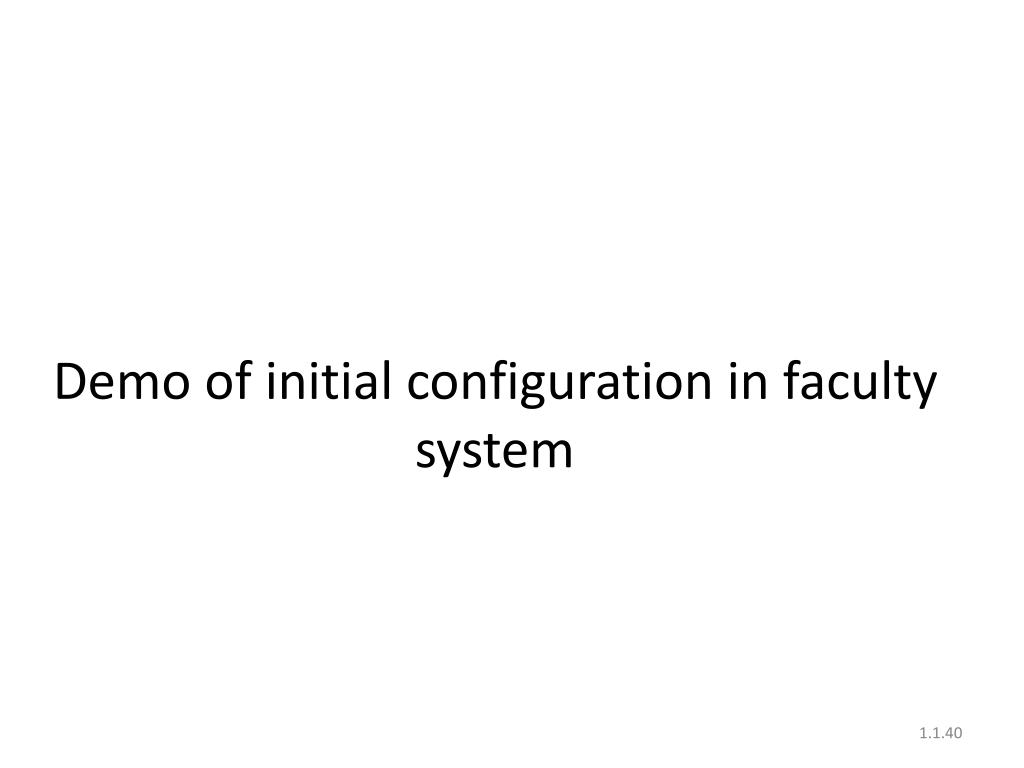

  39. Demo of initial configuration in faculty system

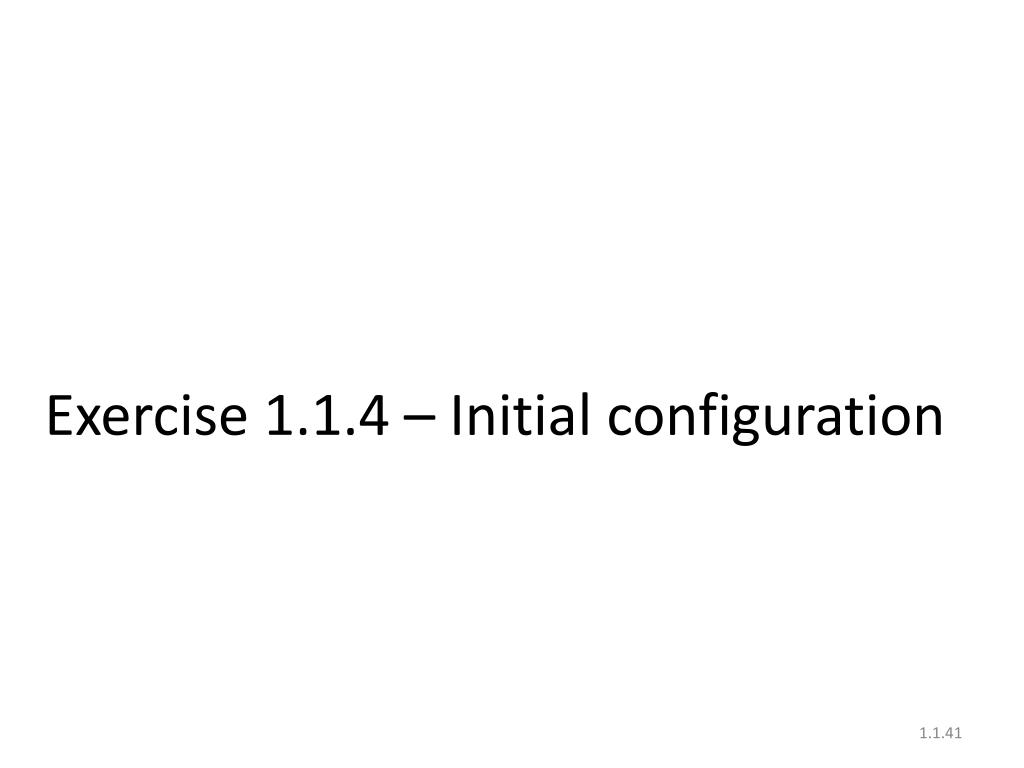

  40. Exercise 1.1.4 – Initial configuration

  41. Further configuration

  42. Local settings • When Speednet is run for first time distance related configuration needs to be completed • In this dialog box you get a list of offices for which aerial distance could not be auto-configured (includes local offices) • You are given option to configure the above offices • Calculate the distance for each office connecting them to SPC concerned and select appropriate distance slab • For linked offices, initially select the distance as in the range of 1-200; Later, you can modify the local offices

  43. Local settings cont’d • Login as supervisor in Speednet to proceed with localising • First create data of existing BNPL customers getting data from SPC • Configure Miscellaneous charges – Discount, Service tax etc.,

  44. Local settings cont’d • Working as supervisor perform duty allocation to designations created based on the need of the office • Use the menu Master – Duty allocation

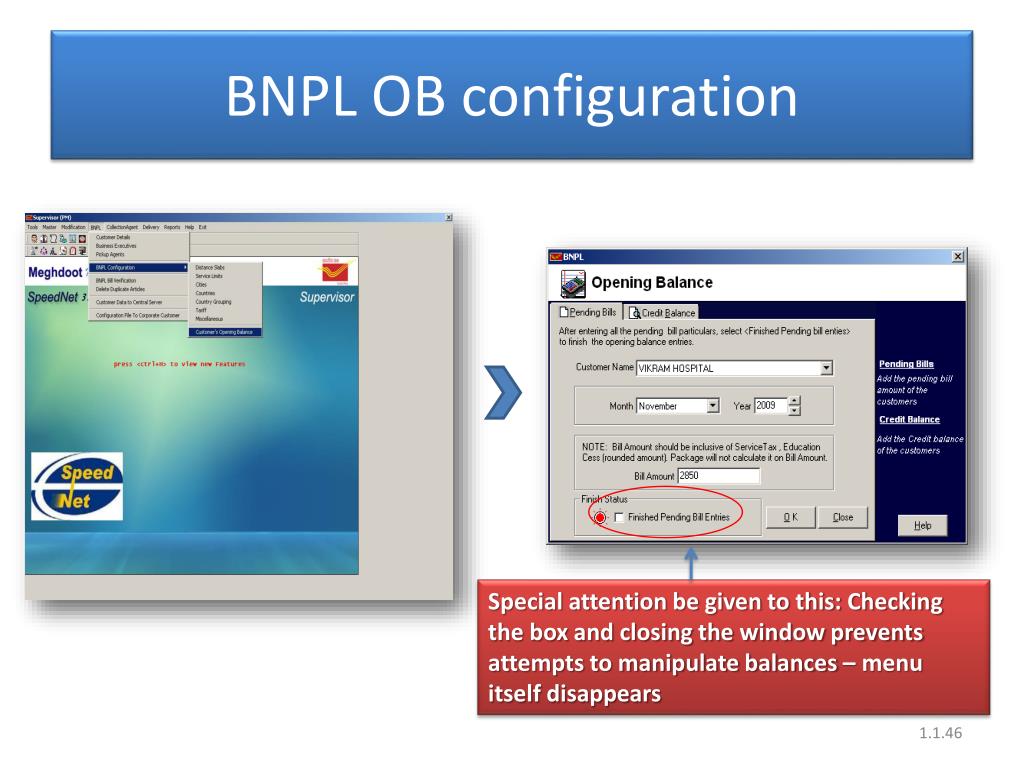

  45. BNPL OB configuration Special attention be given to this: Checking the box and closing the window prevents attempts to manipulate balances – menu itself disappears

  46. Exercise 1.1.5 – Localisation of Speednet

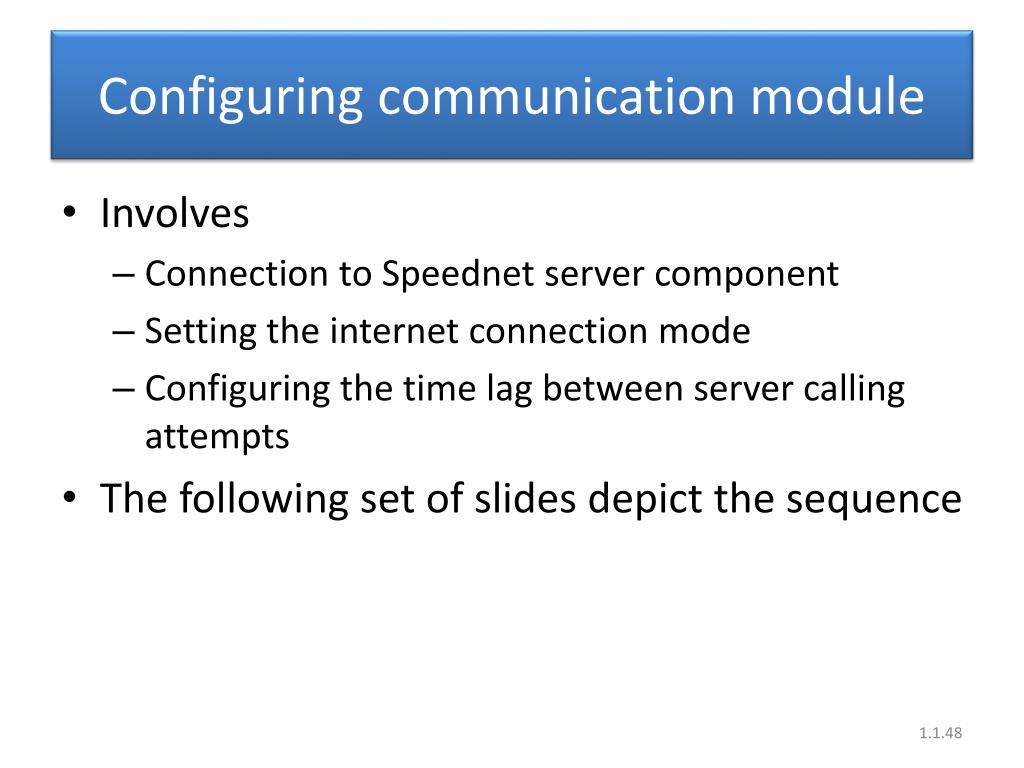

  47. Configuring communication module • Involves • Connection to Speednet server component • Setting the internet connection mode • Configuring the time lag between server calling attempts • The following set of slides depict the sequence

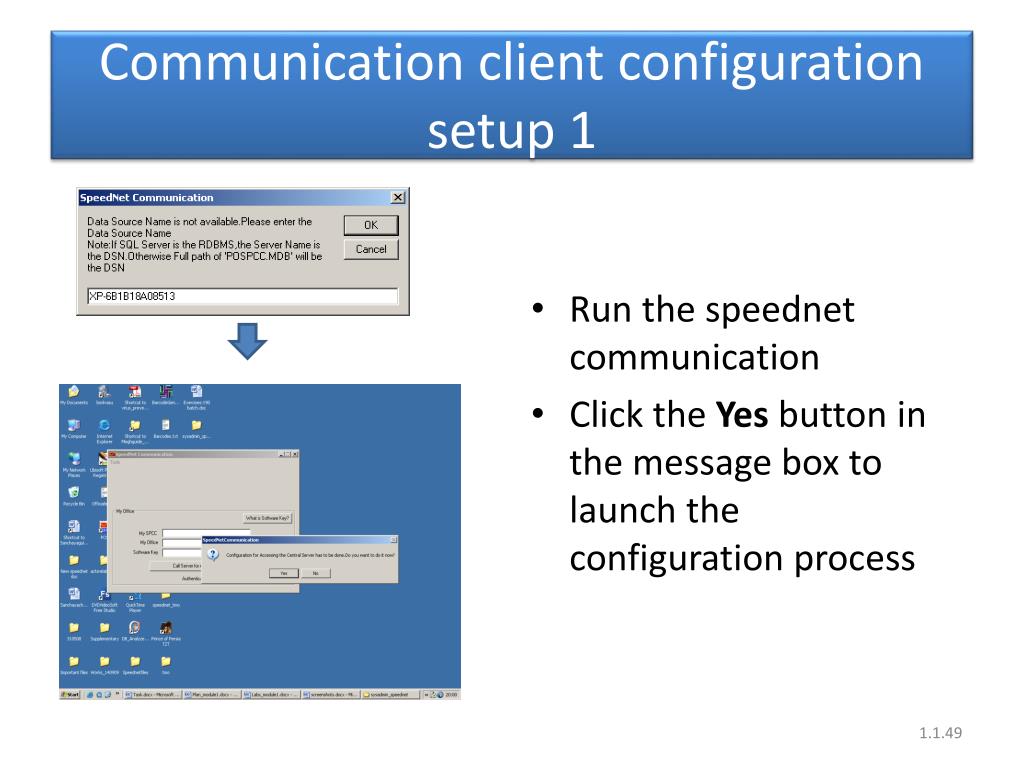

  48. Communication client configuration setup 1 • Run the speednet communication • Click the Yes button in the message box to launch the configuration process

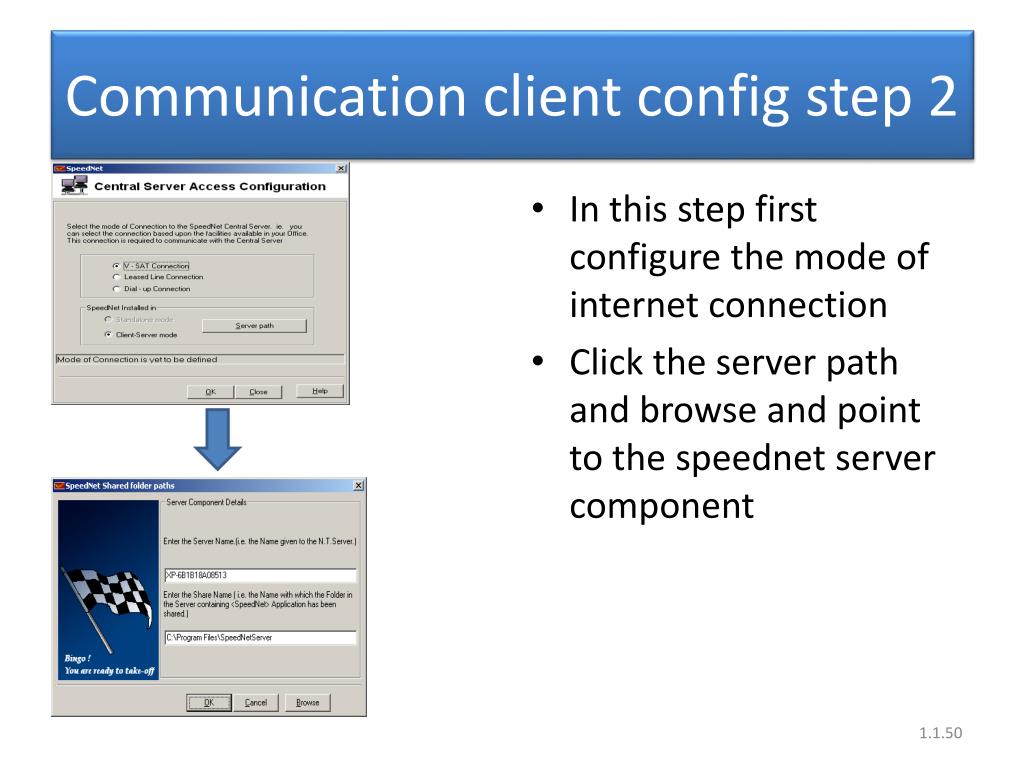

  49. Communication client config step 2 • In this step first configure the mode of internet connection • Click the server path and browse and point to the speednet server component
