Vertical Carousel Storage Systems Frequently Asked Questions

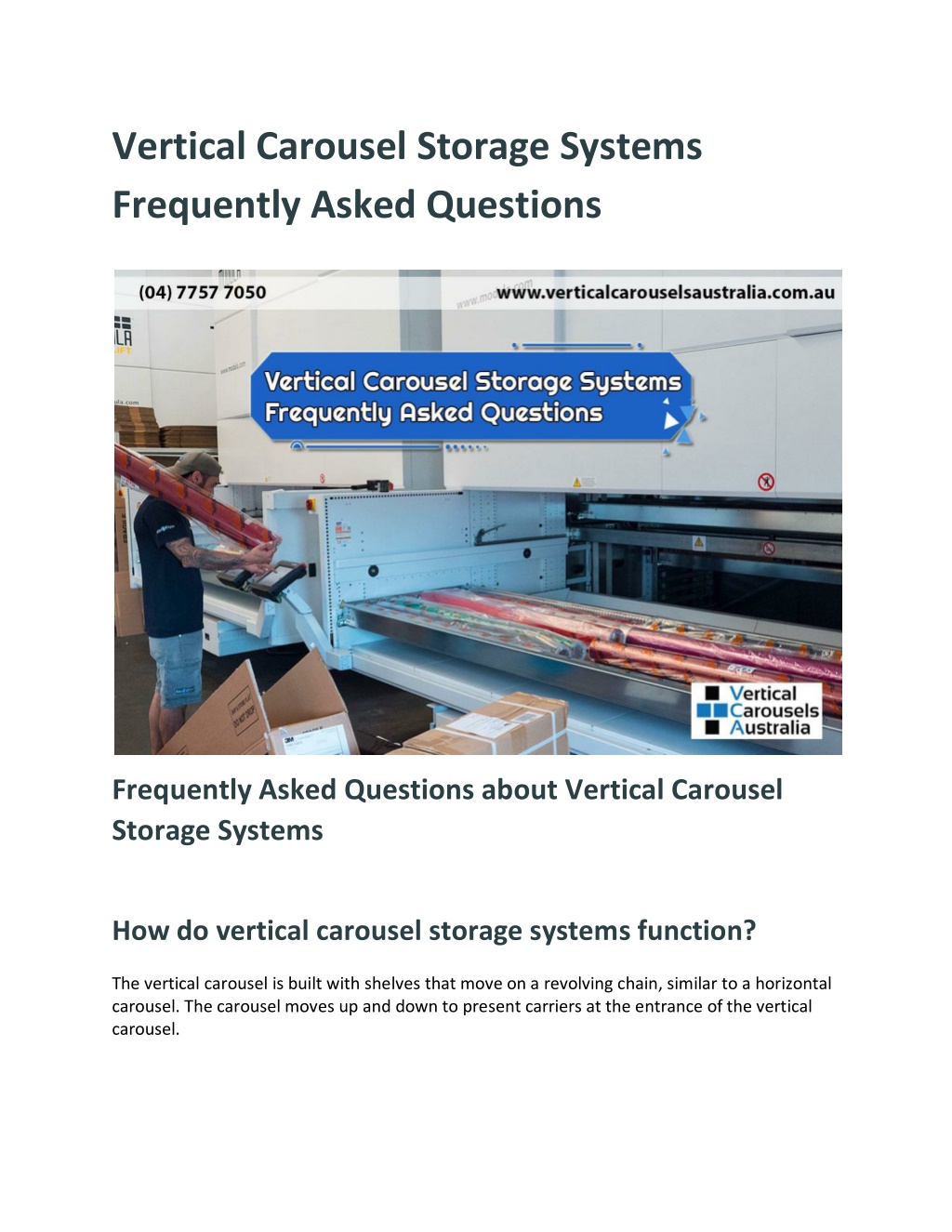

1. Vertical Carousel Storage Systems Frequently Asked Questions Frequently Asked Questions about Vertical Carousel Storage Systems How do vertical carousel storage systems function? The vertical carousel is built with shelves that move on a revolving chain, similar to a horizontal carousel. The carousel moves up and down to present carriers at the entrance of the vertical carousel.

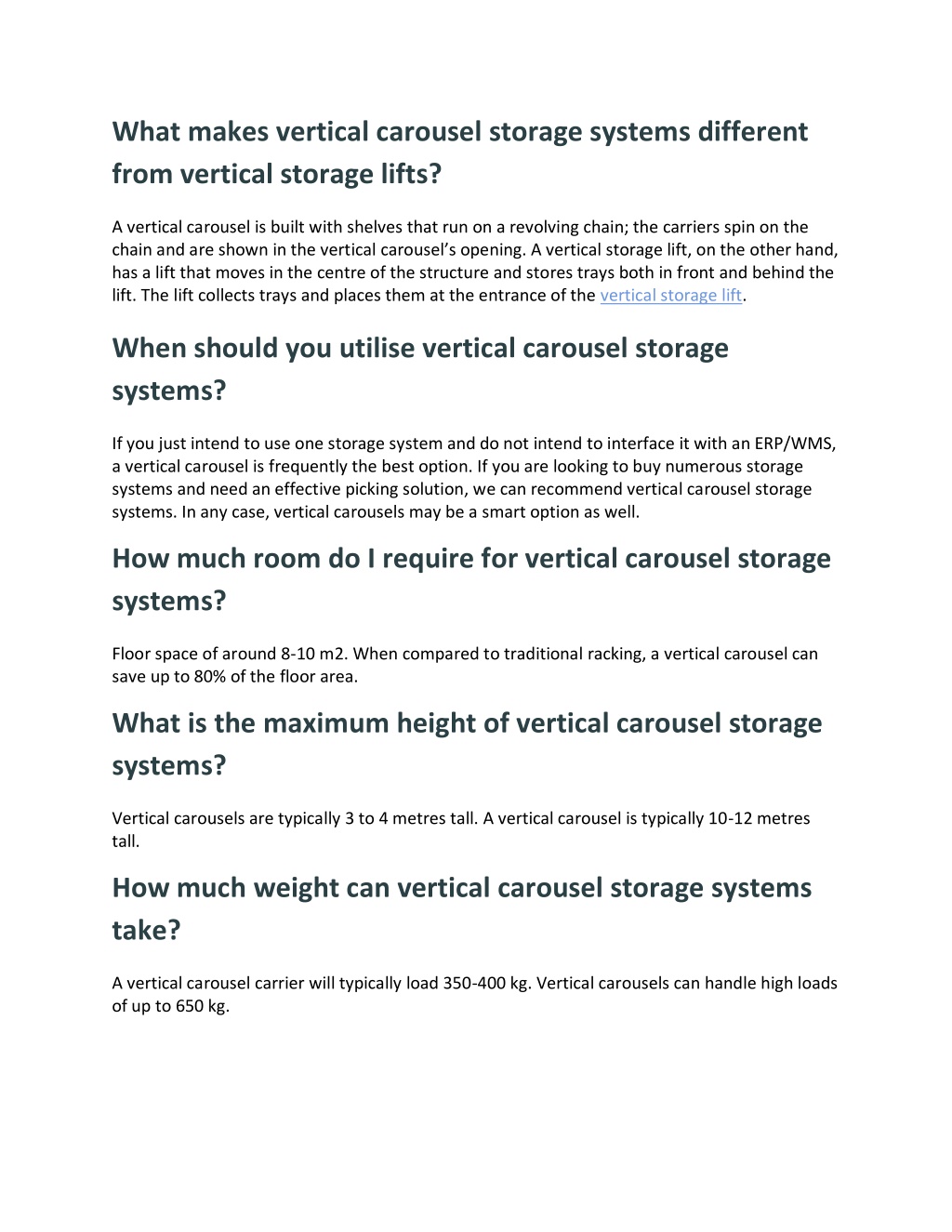

2. What makes vertical carousel storage systems different from vertical storage lifts? A vertical carousel is built with shelves that run on a revolving chain; the carriers spin on the chain and are shown in the vertical carousel’s opening. A vertical storage lift, on the other hand, has a lift that moves in the centre of the structure and stores trays both in front and behind the lift. The lift collects trays and places them at the entrance of the vertical storage lift. When should you utilise vertical carousel storage systems? If you just intend to use one storage system and do not intend to interface it with an ERP/WMS, a vertical carousel is frequently the best option. If you are looking to buy numerous storage systems and need an effective picking solution, we can recommend vertical carousel storage systems. In any case, vertical carousels may be a smart option as well. How much room do I require for vertical carousel storage systems? Floor space of around 8-10 m2. When compared to traditional racking, a vertical carousel can save up to 80% of the floor area. What is the maximum height of vertical carousel storage systems? Vertical carousels are typically 3 to 4 metres tall. A vertical carousel is typically 10-12 metres tall. How much weight can vertical carousel storage systems take? A vertical carousel carrier will typically load 350-400 kg. Vertical carousels can handle high loads of up to 650 kg.

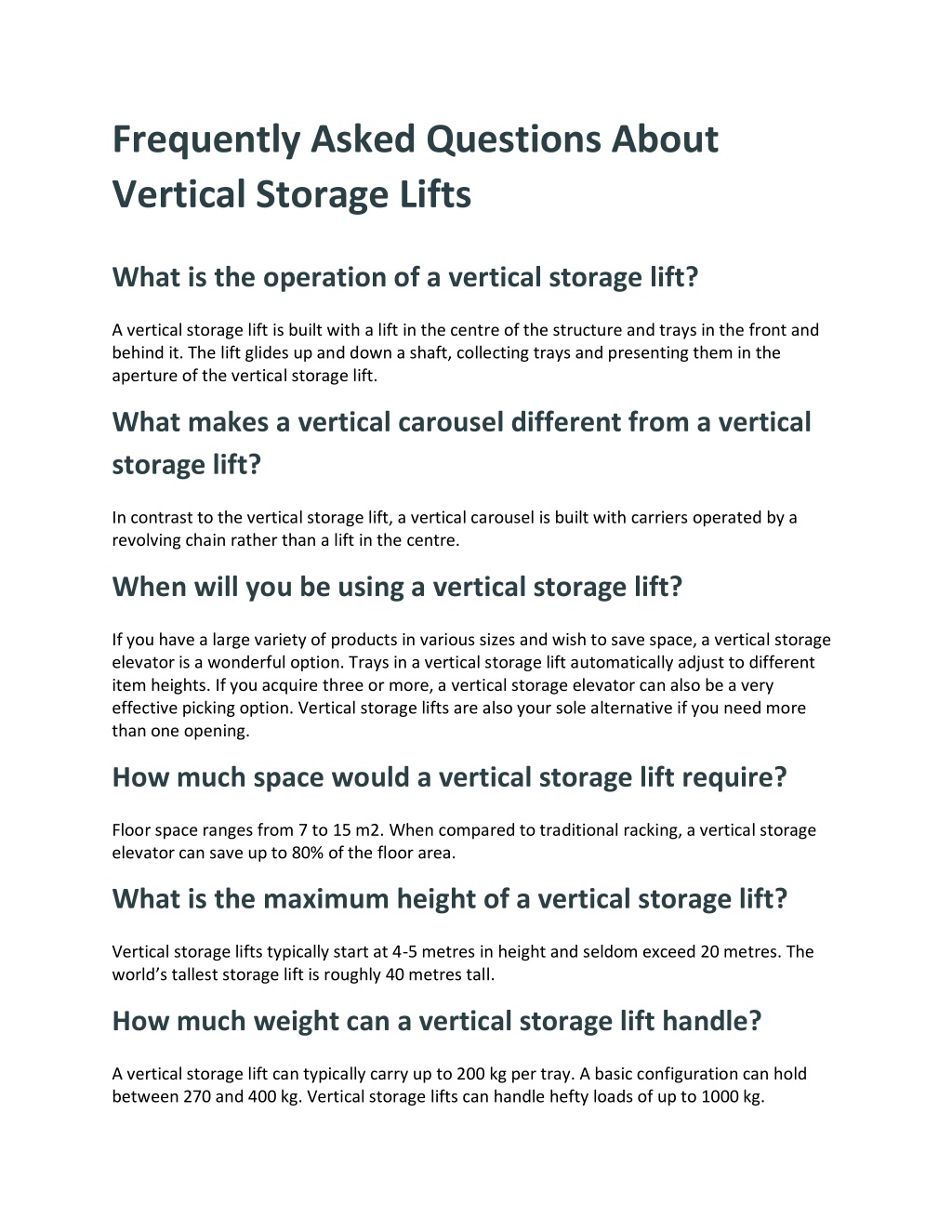

3. Frequently Asked Questions About Vertical Storage Lifts What is the operation of a vertical storage lift? A vertical storage lift is built with a lift in the centre of the structure and trays in the front and behind it. The lift glides up and down a shaft, collecting trays and presenting them in the aperture of the vertical storage lift. What makes a vertical carousel different from a vertical storage lift? In contrast to the vertical storage lift, a vertical carousel is built with carriers operated by a revolving chain rather than a lift in the centre. When will you be using a vertical storage lift? If you have a large variety of products in various sizes and wish to save space, a vertical storage elevator is a wonderful option. Trays in a vertical storage lift automatically adjust to different item heights. If you acquire three or more, a vertical storage elevator can also be a very effective picking option. Vertical storage lifts are also your sole alternative if you need more than one opening. How much space would a vertical storage lift require? Floor space ranges from 7 to 15 m2. When compared to traditional racking, a vertical storage elevator can save up to 80% of the floor area. What is the maximum height of a vertical storage lift? Vertical storage lifts typically start at 4-5 metres in height and seldom exceed 20 metres. The world’s tallest storage lift is roughly 40 metres tall. How much weight can a vertical storage lift handle? A vertical storage lift can typically carry up to 200 kg per tray. A basic configuration can hold between 270 and 400 kg. Vertical storage lifts can handle hefty loads of up to 1000 kg.

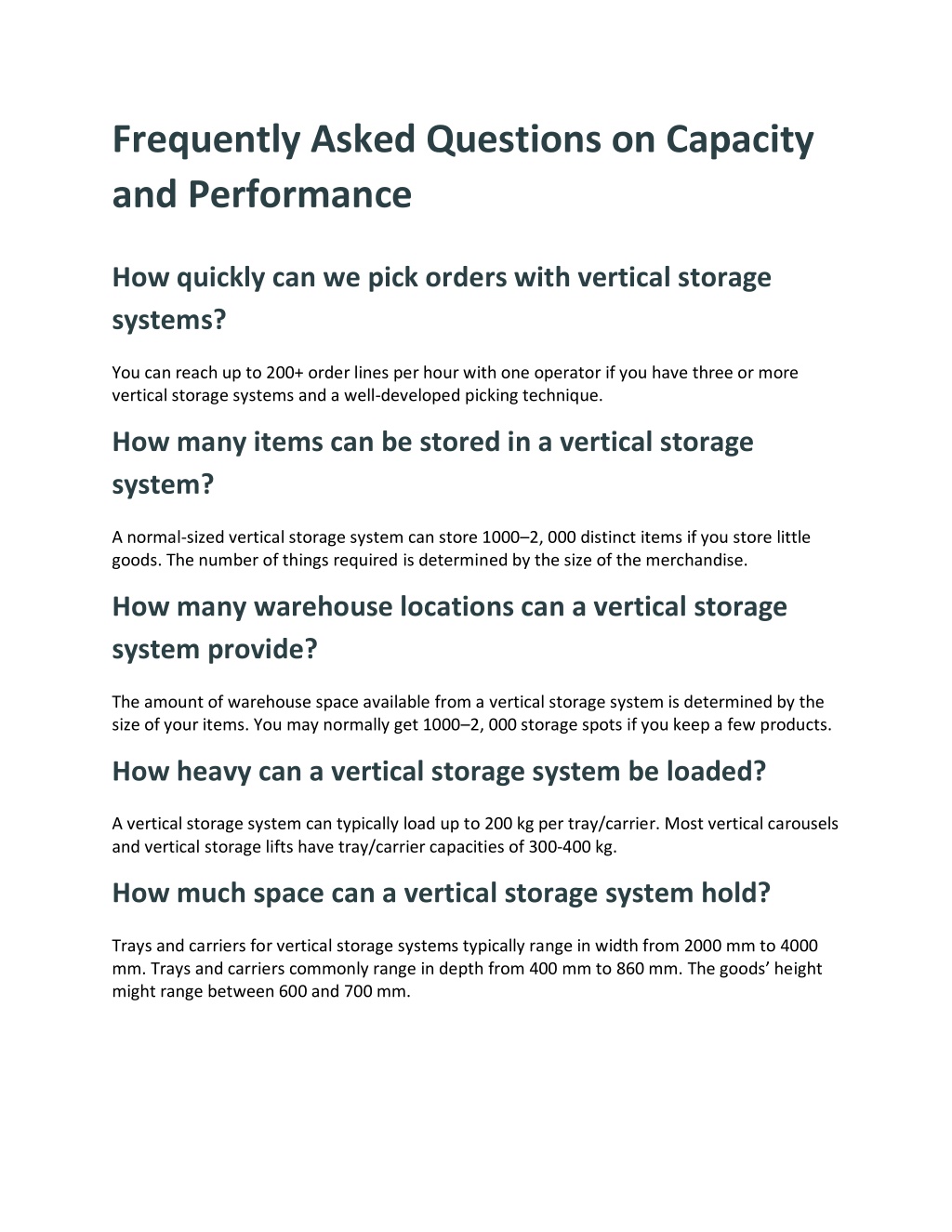

4. Frequently Asked Questions on Capacity and Performance How quickly can we pick orders with vertical storage systems? You can reach up to 200+ order lines per hour with one operator if you have three or more vertical storage systems and a well-developed picking technique. How many items can be stored in a vertical storage system? A normal-sized vertical storage system can store 1000–2, 000 distinct items if you store little goods. The number of things required is determined by the size of the merchandise. How many warehouse locations can a vertical storage system provide? The amount of warehouse space available from a vertical storage system is determined by the size of your items. You may normally get 1000–2, 000 storage spots if you keep a few products. How heavy can a vertical storage system be loaded? A vertical storage system can typically load up to 200 kg per tray/carrier. Most vertical carousels and vertical storage lifts have tray/carrier capacities of 300-400 kg. How much space can a vertical storage system hold? Trays and carriers for vertical storage systems typically range in width from 2000 mm to 4000 mm. Trays and carriers commonly range in depth from 400 mm to 860 mm. The goods’ height might range between 600 and 700 mm.

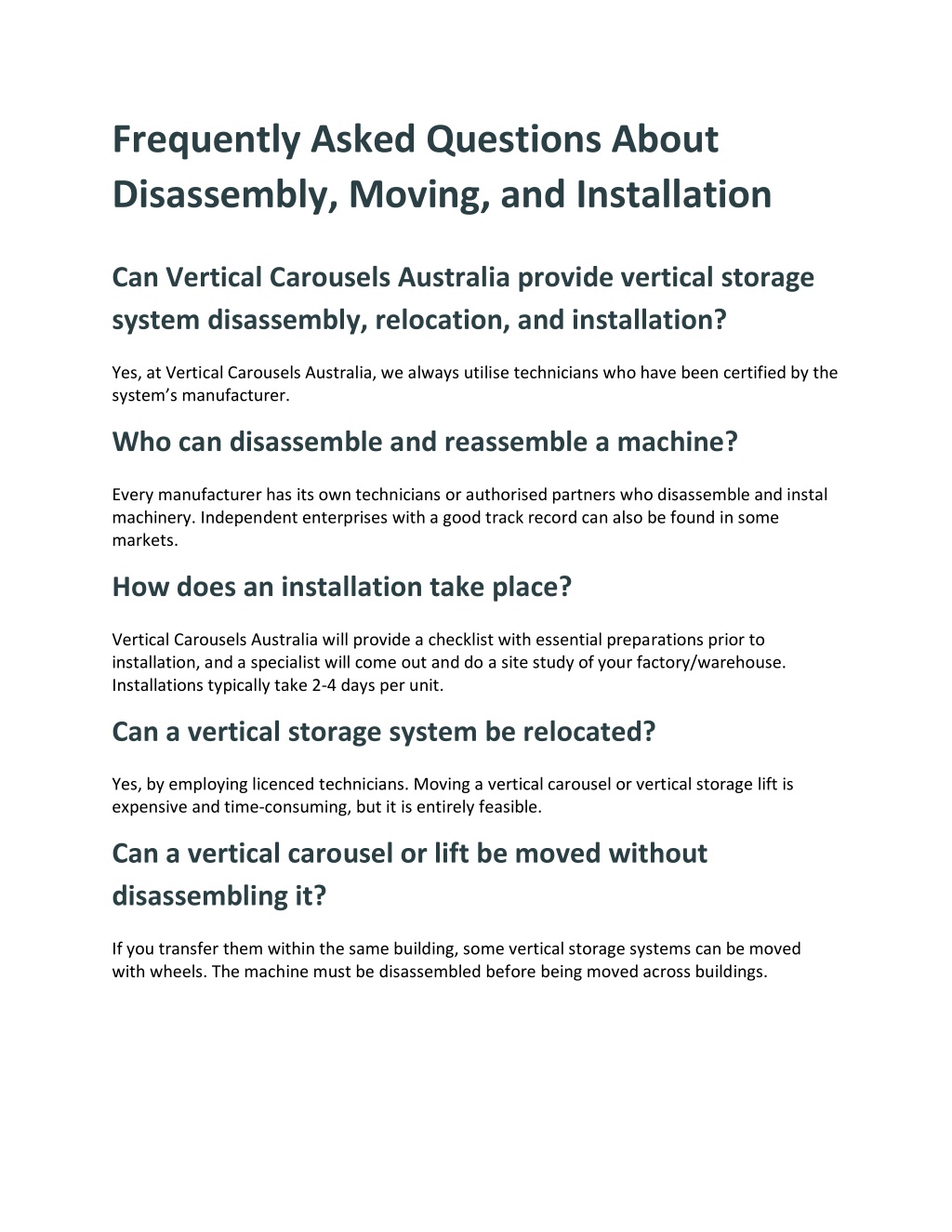

5. Frequently Asked Questions About Disassembly, Moving, and Installation Can Vertical Carousels Australia provide vertical storage system disassembly, relocation, and installation? Yes, at Vertical Carousels Australia, we always utilise technicians who have been certified by the system’s manufacturer. Who can disassemble and reassemble a machine? Every manufacturer has its own technicians or authorised partners who disassemble and instal machinery. Independent enterprises with a good track record can also be found in some markets. How does an installation take place? Vertical Carousels Australia will provide a checklist with essential preparations prior to installation, and a specialist will come out and do a site study of your factory/warehouse. Installations typically take 2-4 days per unit. Can a vertical storage system be relocated? Yes, by employing licenced technicians. Moving a vertical carousel or vertical storage lift is expensive and time-consuming, but it is entirely feasible. Can a vertical carousel or lift be moved without disassembling it? If you transfer them within the same building, some vertical storage systems can be moved with wheels. The machine must be disassembled before being moved across buildings.

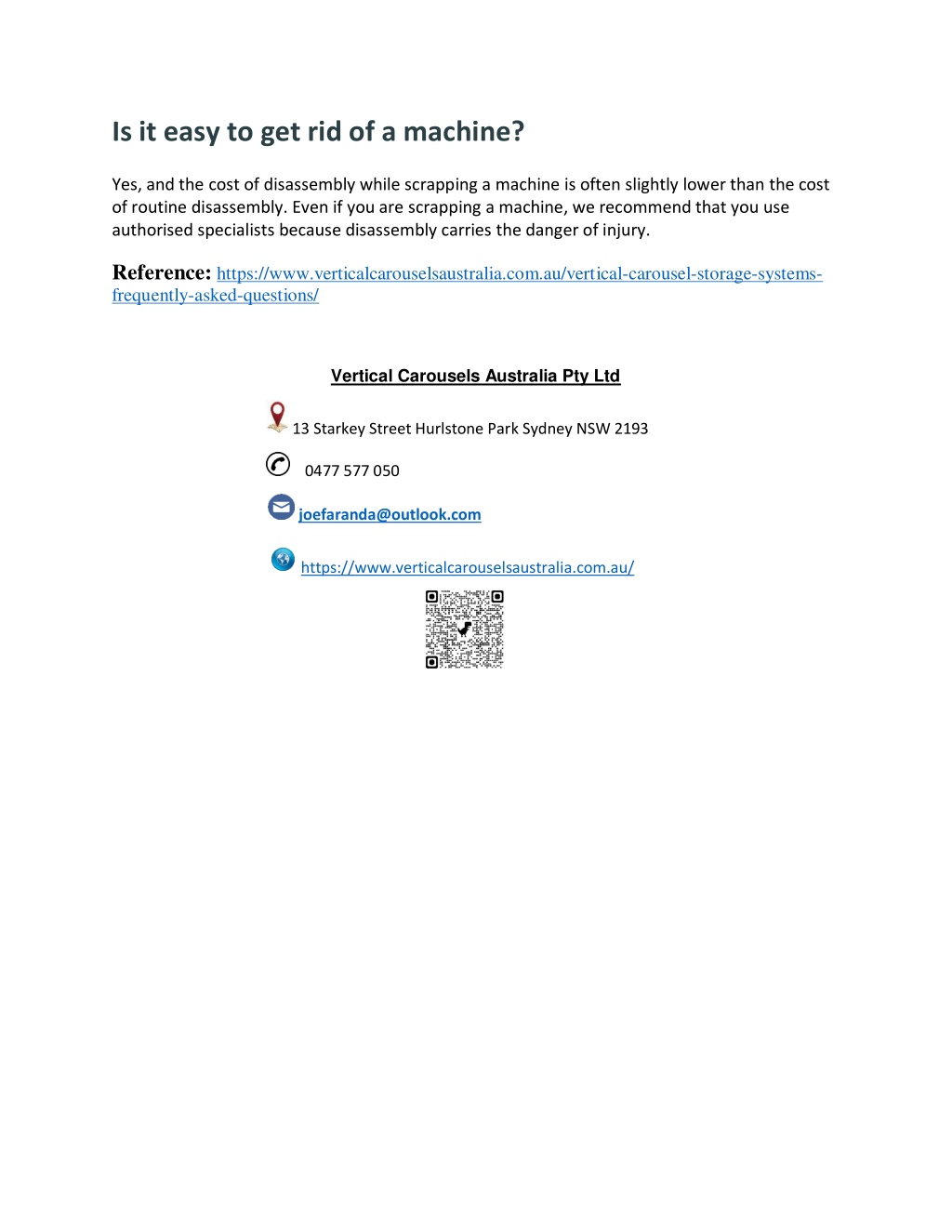

6. Is it easy to get rid of a machine? Yes, and the cost of disassembly while scrapping a machine is often slightly lower than the cost of routine disassembly. Even if you are scrapping a machine, we recommend that you use authorised specialists because disassembly carries the danger of injury. Reference: https://www.verticalcarouselsaustralia.com.au/vertical-carousel-storage-systems- frequently-asked-questions/ Vertical Carousels Australia Pty Ltd 13 Starkey Street Hurlstone Park Sydney NSW 2193 0477 577 050 joefaranda@outlook.com https://www.verticalcarouselsaustralia.com.au/
