Test Metrics

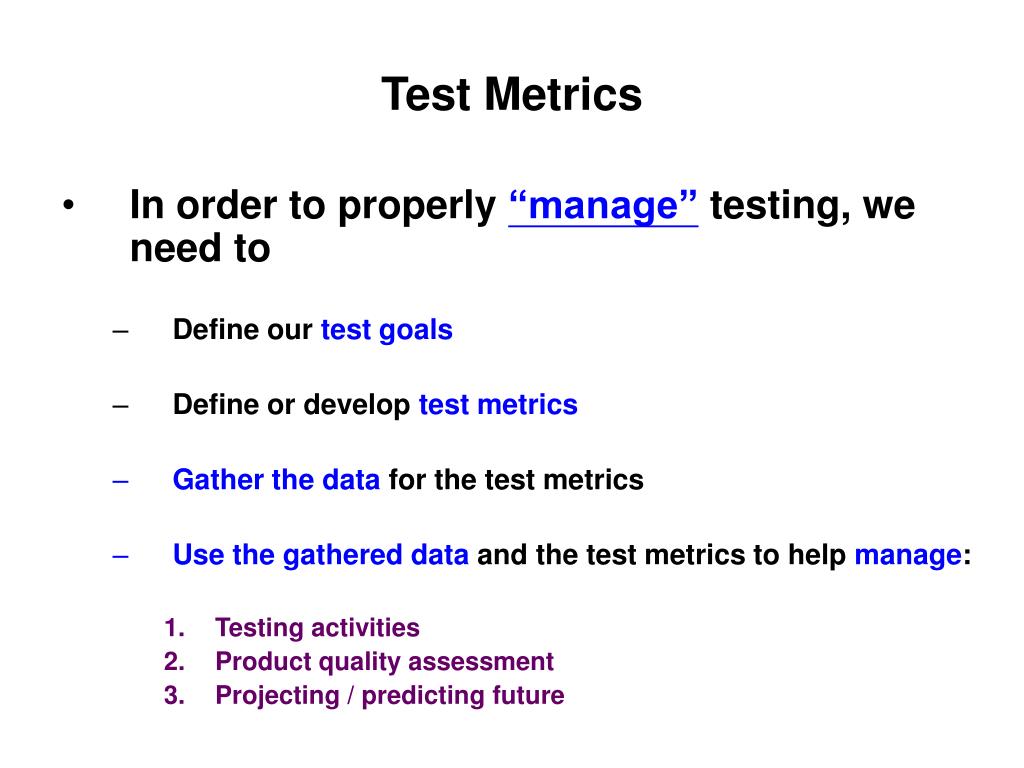

1. Test Metrics • In order to properly “manage” testing, we need to • Define our test goals • Define or develop test metrics • Gather the data for the test metrics • Use the gathered data and the test metrics to help manage: • Testing activities • Product quality assessment • Projecting / predicting future

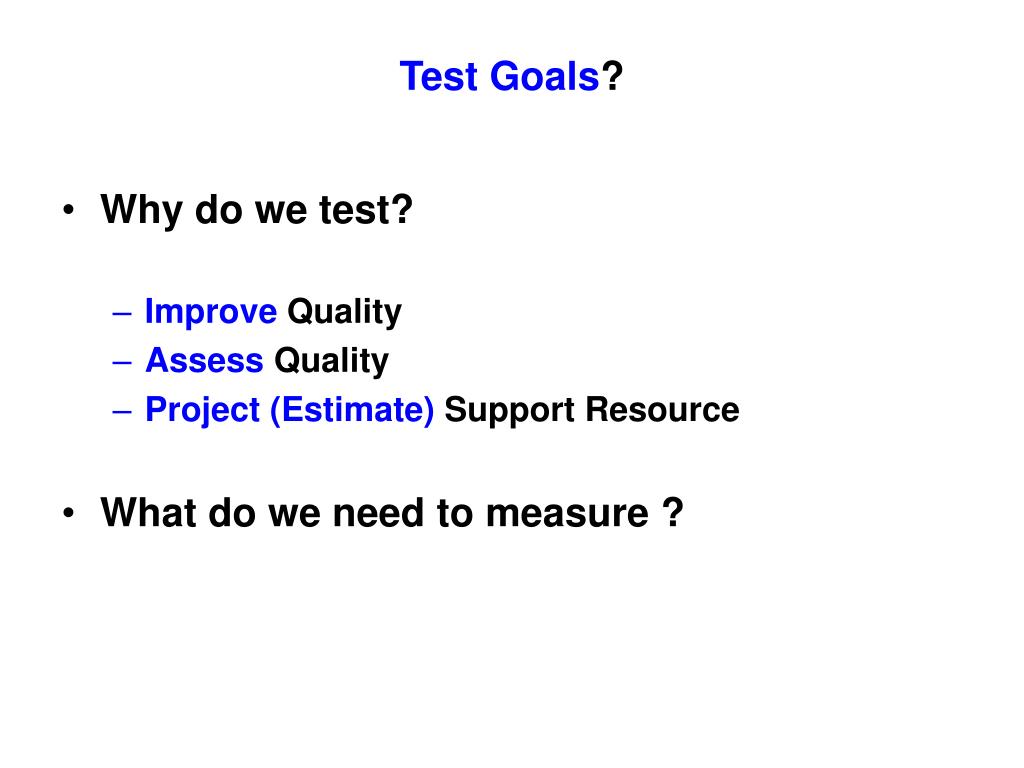

2. Test Goals? • Why do we test? • Improve Quality • Assess Quality • Project (Estimate) Support Resource • What do we need to measure ?

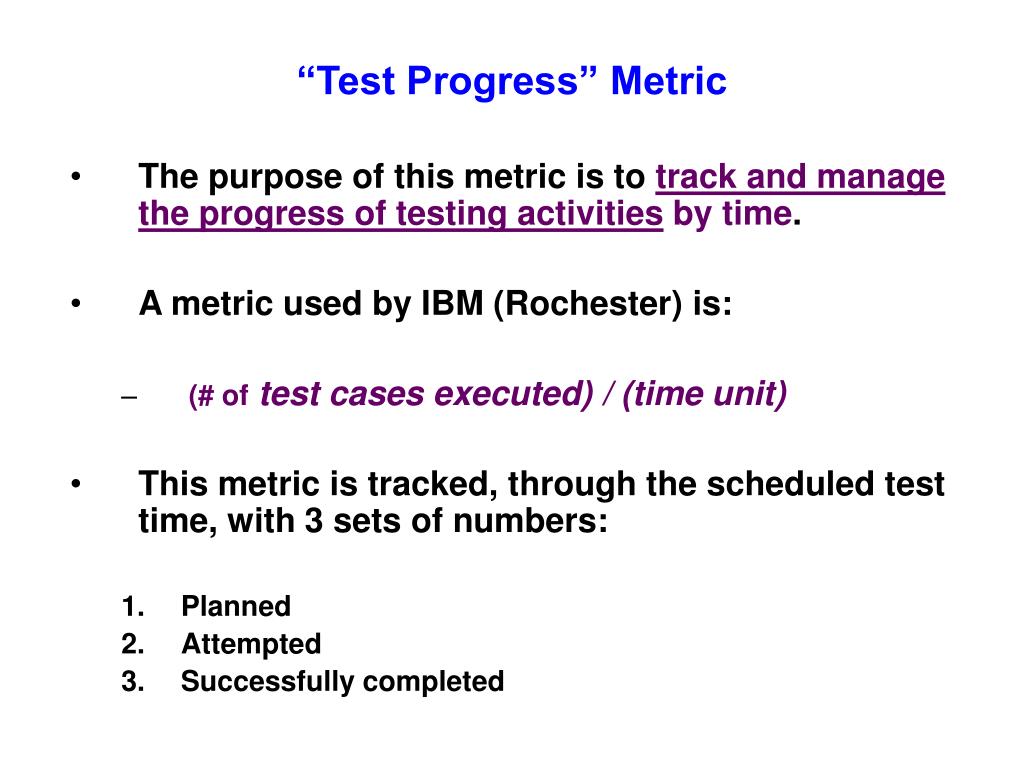

3. The purpose of this metric is to track and managethe progress of testing activities by time. A metric used by IBM (Rochester) is: (# of test cases executed) / (time unit) This metric is tracked, through the scheduled test time, with 3 sets of numbers: Planned Attempted Successfully completed “Test Progress” Metric

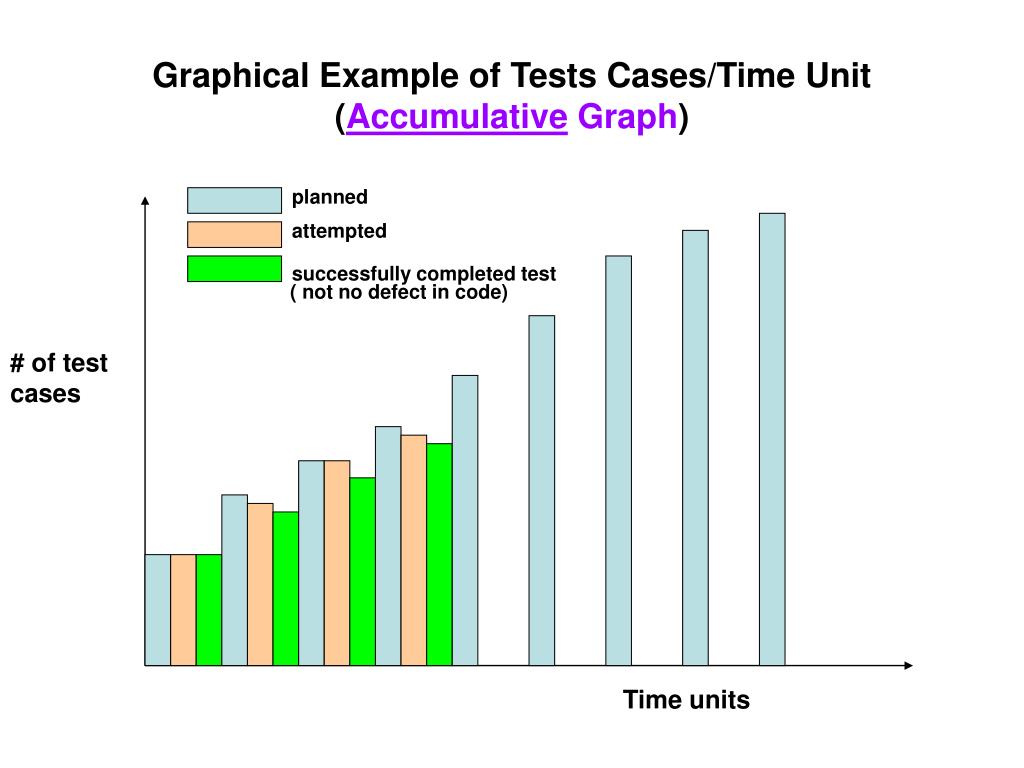

4. Graphical Example of Tests Cases/Time Unit(Accumulative Graph) planned attempted successfully completed test ( not no defect in code) # of test cases Time units

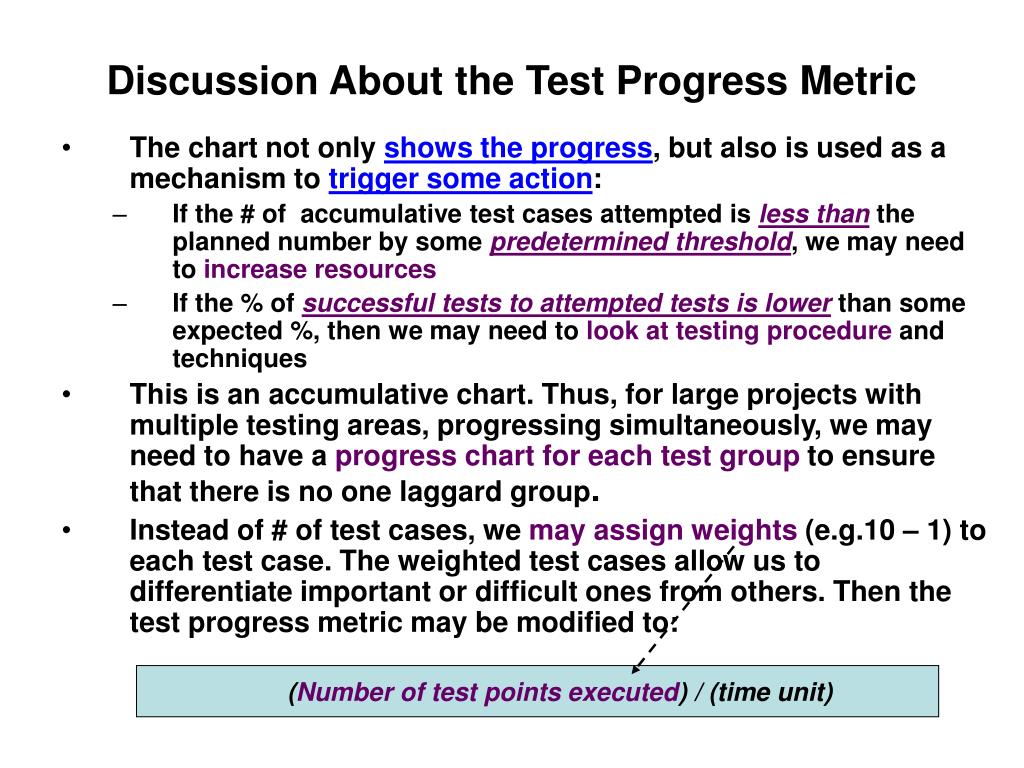

5. Discussion About the Test Progress Metric • The chart not only shows the progress, but also is used as a mechanism to trigger some action: • If the # of accumulative test cases attempted is less than the planned number by some predetermined threshold, we may need to increase resources • If the % of successful tests to attempted tests is lower than some expected %, then we may need to look at testing procedure and techniques • This is an accumulative chart. Thus, for large projects with multiple testing areas, progressing simultaneously, we may need to have a progress chart for each test group to ensure that there is no one laggard group. • Instead of # of test cases, we may assign weights (e.g.10 – 1) to each test case. The weighted test cases allow us to differentiate important or difficult ones from others. Then the test progress metric may be modified to: • (Number of test points executed) / (time unit)

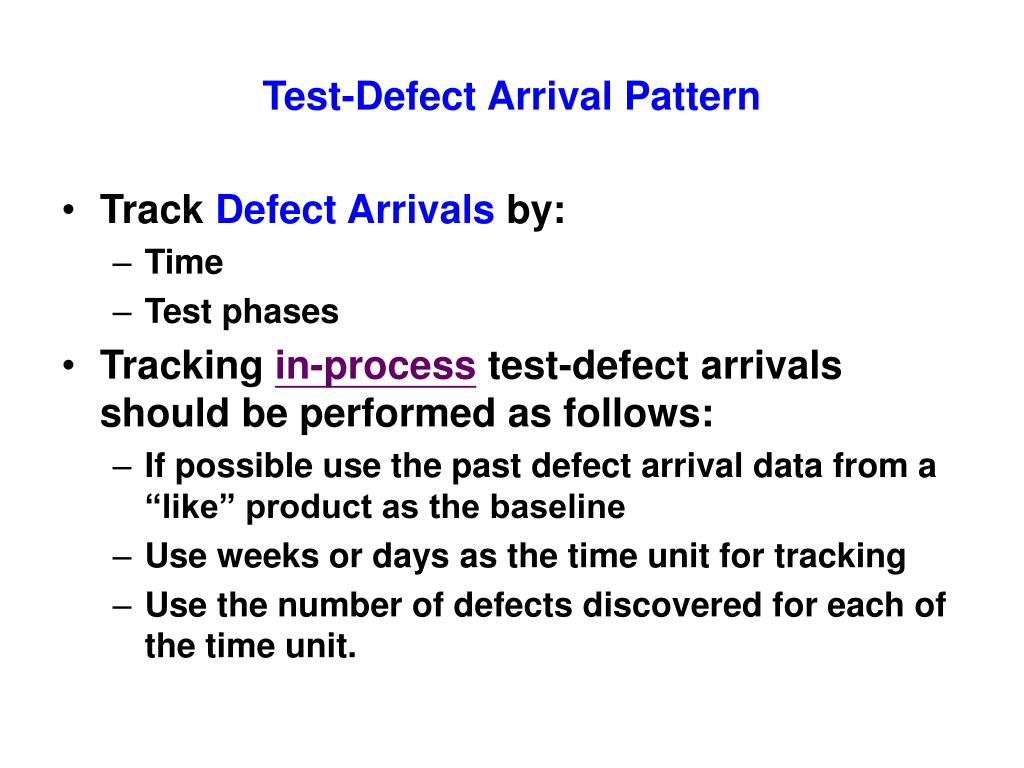

6. Test-Defect Arrival Pattern • Track Defect Arrivals by: • Time • Test phases • Tracking in-processtest-defect arrivals should be performed as follows: • If possible use the past defect arrival data from a “like” product as the baseline • Use weeks or days as the time unit for tracking • Use the number of defects discovered for each of the time unit.

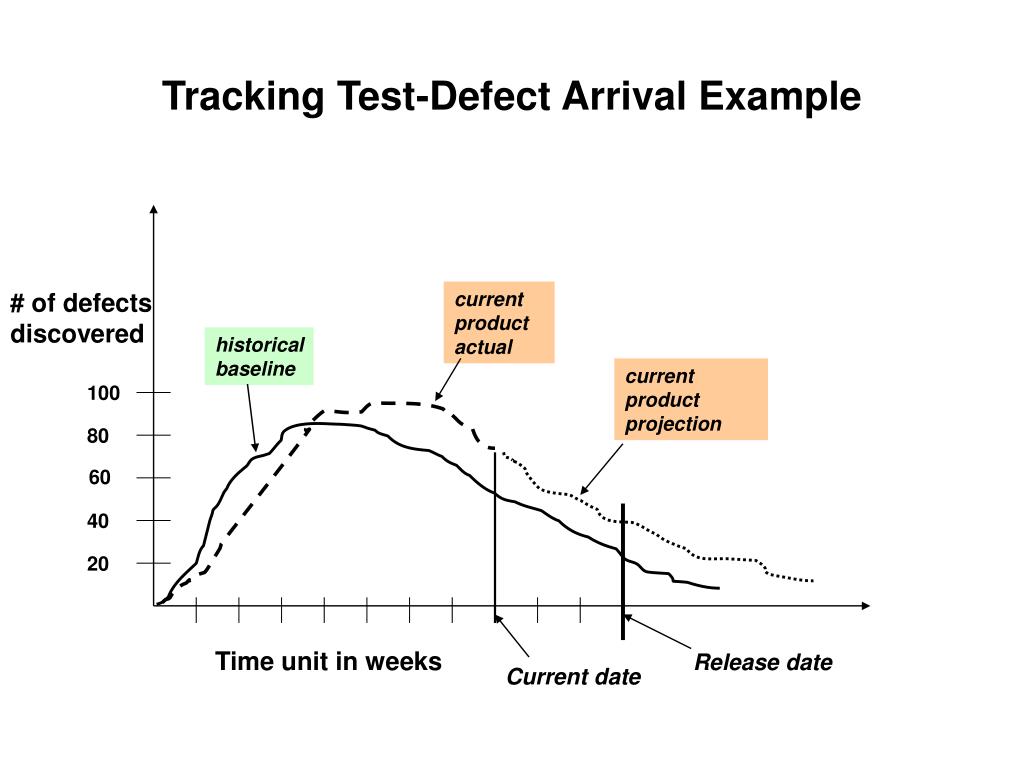

7. Tracking Test-Defect Arrival Example # of defects discovered current product actual historical baseline current product projection 100 80 60 40 20 Time unit in weeks Release date Current date

8. Discussion about Tracking Defect Arrivals • Clearly we would like to see the defect arrivals “peak” as early aspossible, assuming that the arrivals will decrease in the same manner as the “baseline” pattern. • Tracking the test-defect arrival pattern provides us: • Information about in-process data of the current data • Comparative information against “baseline” • Potential projections: • Current product quality versus the baseline product • Defect arrival pattern after the testing period. • The defect types or defect severitycan also be included in the tracking. • Arrivals of % of high severity defects compared to total defects by time unit • Arrivals of different problem types by time unit

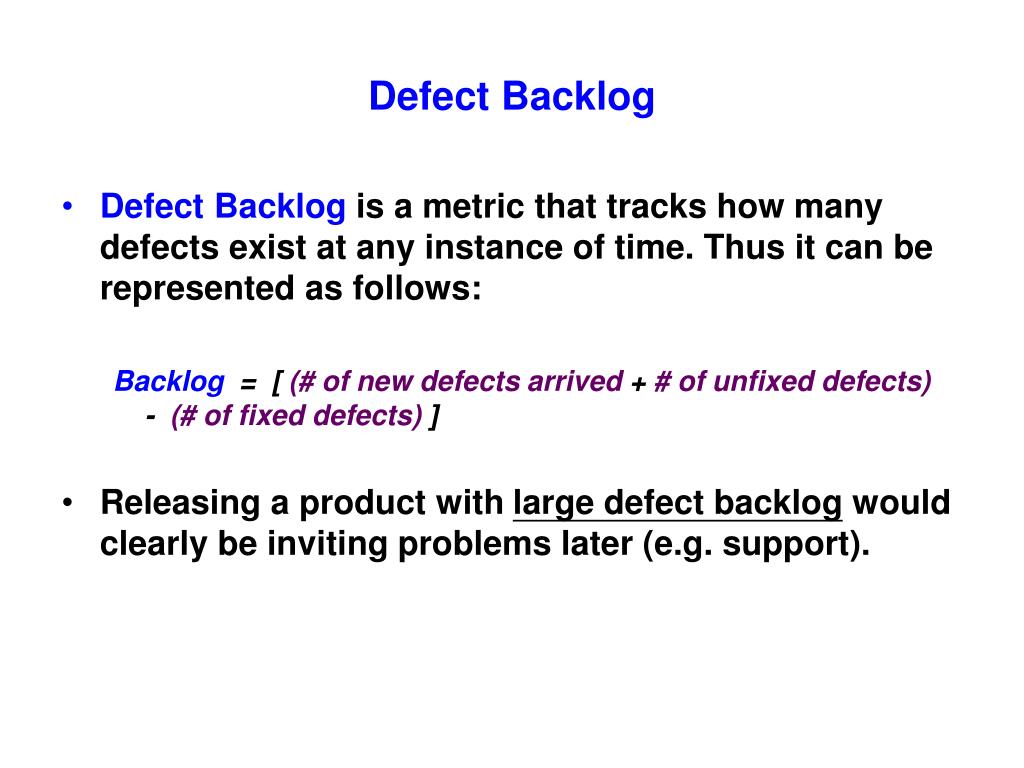

9. Defect Backlog • Defect Backlog is a metric that tracks how many defects exist at any instance of time. Thus it can be represented as follows: Backlog = [ (# of new defects arrived + # of unfixed defects) - (# of fixed defects) ] • Releasing a product with large defect backlog would clearly be inviting problems later (e.g. support).

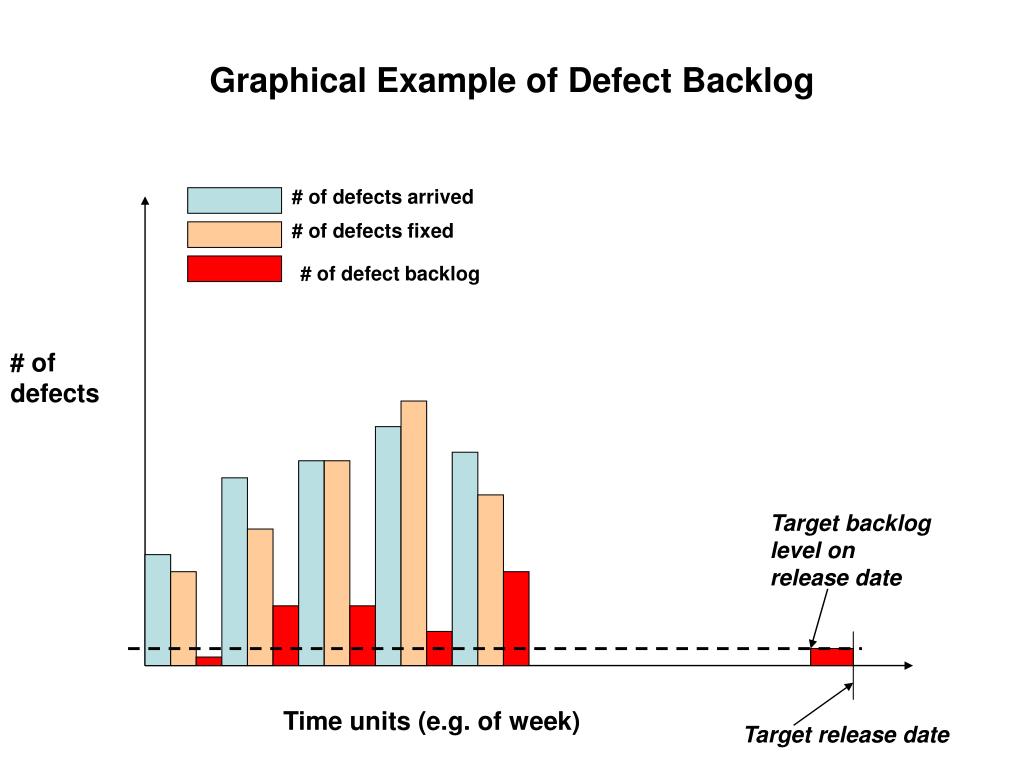

10. Graphical Example of Defect Backlog # of defects arrived # of defects fixed # of defect backlog # of defects Target backlog level on release date Time units (e.g. of week) Target release date

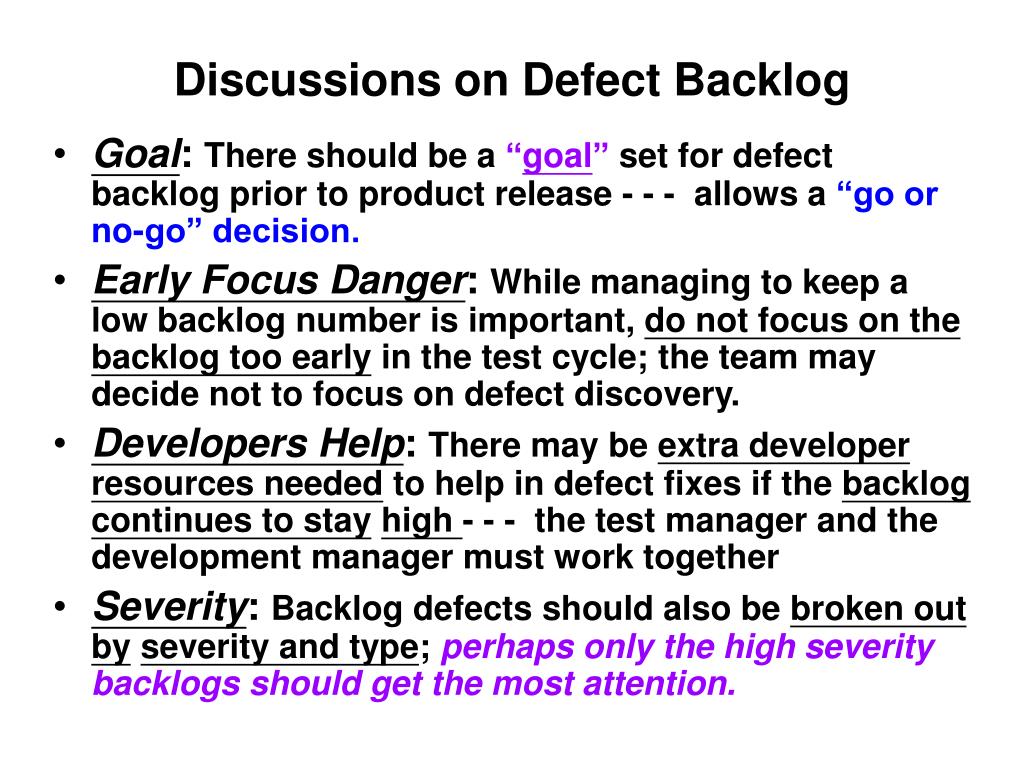

11. Discussions on Defect Backlog • Goal: There should be a “goal” set for defect backlog prior to product release - - - allows a “go or no-go” decision. • Early Focus Danger: While managing to keep a low backlog number is important, do not focus on the backlog too early in the test cycle; the team may decide not to focus on defect discovery. • Developers Help: There may be extra developer resources needed to help in defect fixes if the backlog continues to stayhigh - - - the test manager and the development manager must work together • Severity: Backlog defects should also be broken out byseverity and type; perhaps only the high severity backlogs should get the most attention.

12. Some Other Test Metrics • ( a pseudo test metric) Line of code or function point tracked over development phases - - - if this changes then perhaps testing resources and effort should be altered. • Stress Test metric: • Percentage of CPU utilization over a period of time • # of transactions per time unit over a period of time • # of System Crash and re-IPL’s per unit of time (test metric by defect type) • Mean time to unplanned-IPL (MTI) : • MTI = H/ (I +1) • H =total hours of execution • I = total # of unplanned IPL • We add the one in the denominator to side-step the case where I = 0 problem • Number of “Show-Stoppers” or “Critical” Problems • # of these problems, or % of these problems relative to total number of problems • where these occurred • Cyclomatic number of the software (complexity number = # of basis paths) • # of basis paths covered by the testing • # of problems found on each basis path • # of problems fixed for each basis path

13. Some More Metrics Related to Testing • % of test cases attempted versus planned – indicator for test Progress (project progress) • Number of defects per executed test case – indicator of test case Effectiveness or product Quality • Number of failing test cases without resolution – indicator of test process Effectiveness • % of test cases that “passed” (no problem found) versus executed – indicator of product Quality or “non-effectiveness” of test cases • % of failed fixes – indicator offix-change process Quality • % of code or functional completeness – indicator of completeness of product or product Quality

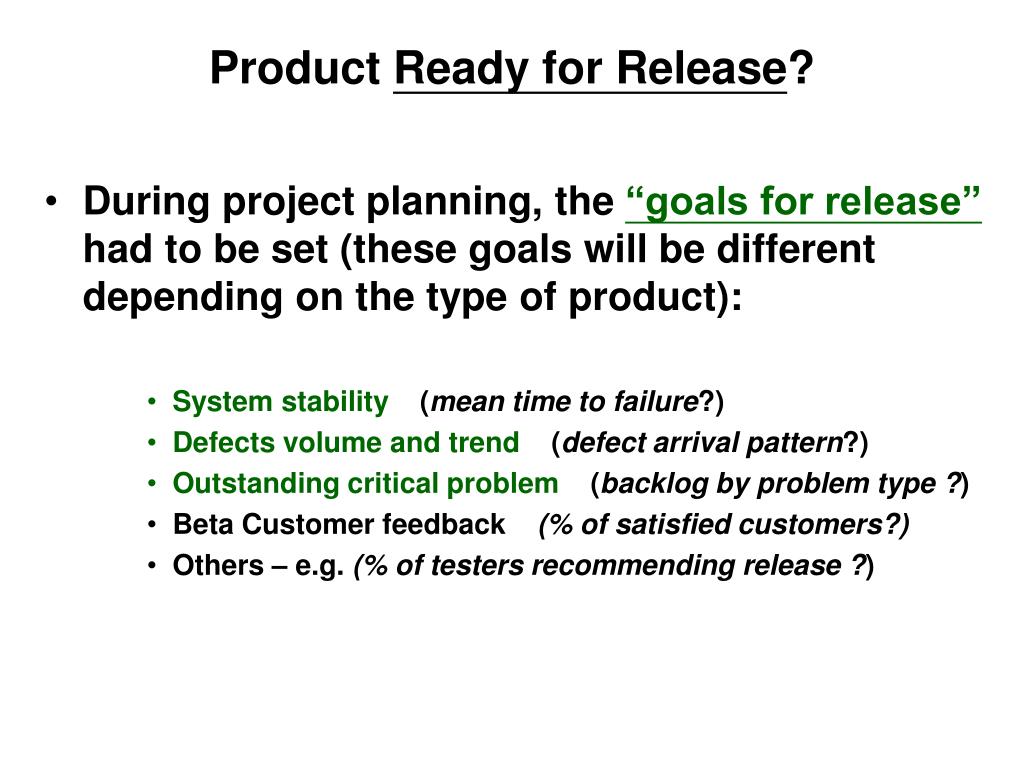

14. Product Ready for Release? • During project planning, the “goals for release” had to be set (these goals will be different depending on the type of product): • System stability (mean time to failure?) • Defects volume and trend (defect arrival pattern?) • Outstanding critical problem (backlog by problem type ?) • Beta Customer feedback (% of satisfied customers?) • Others – e.g. (% of testers recommending release ?)
