use petsc and slepc package to solve large scale linear system quick start

Use PETSC and SLEPC package to solve large scale linear system---quick start

Sheng Yi Wang, Department of Mathematics, National Taiwan University2011/07/29

outline
Outline
  • PETSC

---Vector

---Matrix

---linear system solver

  • SLEPC

---eigenvalue problem solver

  • PBS

PETSC & SLEPC

what is petsc
What is PETSC ??
  • PETSC = Portable Extensible Toolkit for Scientific Computation
  • PETSC is intended for use in large-scale application projects.
  • PETSC support MPI, that can parallel execute.
  • PETSC can interfaces many external software

ex: Matlab, Mathematica, MUMPS…etc

PETSC & SLEPC

what can petsc do

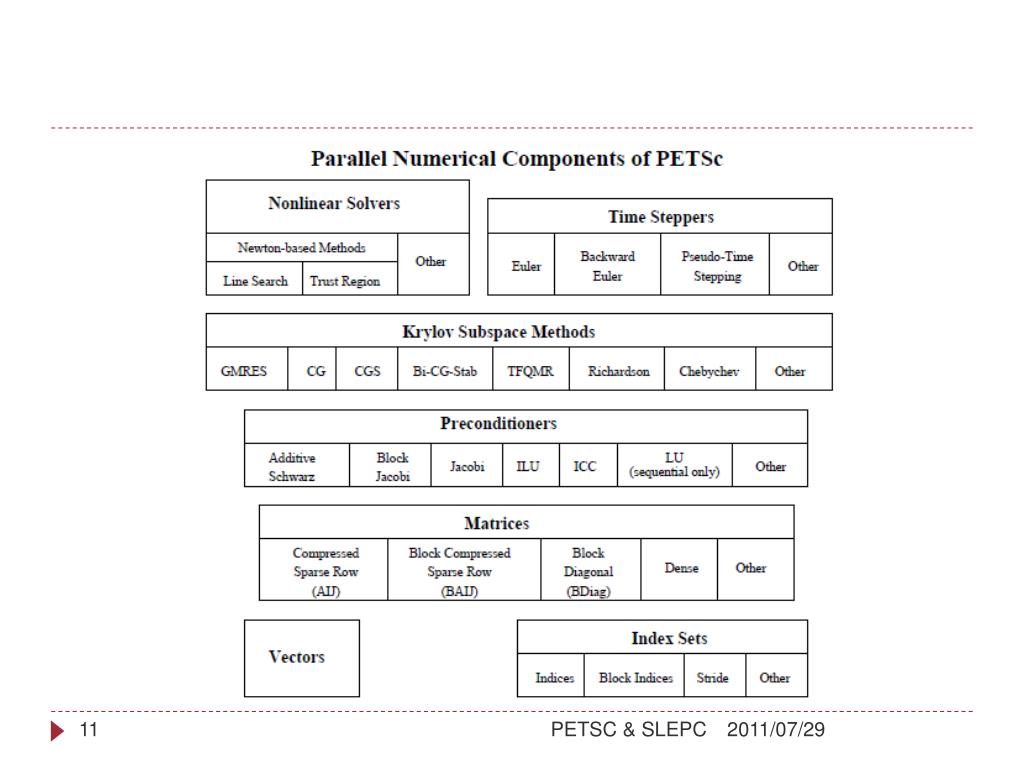

What can PETSC do??
  • Vector operation
  • Matrix operation
  • Linear system ( sparse or dense) Ax=b
  • Nonlinear solver
  • ODE & PDE solve

( steady state or time dependent)

PETSC & SLEPC

user s background
User’s background
  • Some knowledge of parallel (MPI command)
  • You are familiar with C/Fortran language.
  • You are familiar with Linux environment.

PS: PETSC can be installed in Windows

(but you have to install many other packages)

PETSC & SLEPC

how install
How install??
  • Step1 : Set environment variables PETSC_DIR

ex: PETSC_DIR=/home/sywang/petsc-3.1-p8; export PETSC_DIR

  • Step 2. Configure (to check your environment)

---BLAS, C compiler, (MPI) must be installed

ex1: ./configure PETSC_ARCH=intel-64-complex --with-cc=icc --with-fc=ifort --with-debugging=0 --download-c-blas-lapack=1 --download-mpich=1 --with-scalar-type=complex

PETSC & SLEPC

slide7

Ex2: ./configure PETSC_ARCH=intel-64-O3-real --with-cc=gcc --with-fc=gfortran --with-debugging=1 --with-blas-lapack-dir=/opt/intel/mkl/10.2.5.035 --with-mpi-dir=/opt/mpich2 --with-scalar-type=real--download-mumps=1

PETSC & SLEPC

slide8

Step 2: make all

  • Step 3: make test
  • Set PETSC_DIR and PETSC_ARCH to ~/.bashrc
  • If you install PETSC successfully, install SLEPC is very easy

PETSC & SLEPC

slide9

Don’t be afraid, install the PETSC is the most difficult process, after that , all you need to do is the following:

1. Call function

2. Set parameter

3. Show the output and explain the results

PETSC & SLEPC

start using petsc
Start using PETSC

PETSC & SLEPC

declare variables
Declare Variables

Vec sol, rhs;

MatMtx_A;

KSPksp;

PetscInt ii= 10;

PetscScalarvalue[3];

PetscScalarval_rhs;

PetscErrorCodeierr;

PETSC & SLEPC

rough coding
Rough coding

PetscInitialize();

ObjCreate(MPI_comm,&obj);

ObjSetType(obj, );

ObjSetFromOptions(obj, );

ObjSolve(obj, );

ObjGetxxx(obj, );

ObjDestroy(obj);

PetscFinalize()

PETSC & SLEPC

slide14

Vector

PETSC & SLEPC

i vector
I. Vector
  • Vec a
  • VecCreate(MPI_Commcomm,Vec* x)
    • VecCreate(PETSC_COMM_WORLD, &a)
  • VecSetSizes(Vec v, PetscInt n, PetscInt N)
    • VecSetSizes(a,PETSC_DECIDE,20);

PETSC & SLEPC

i vector1
I. Vector
  • VecSet(Vecx,PetscScalar alpha)
    • VecSet(a,1.0)
  • VecSetValues(Vecx,PetscIntni,constPetscInt ix[],const PetscScalar y[],InsertModeiora)
    • VecSetValues(a,1,0,-3, INSERT_VALUES)

InsertMode : INSERT_VALUES, ADD_VALUES

PETSC & SLEPC

i vector2
I. Vector
  • VecSetRandom(Vecx,PetscRandomrctx)
    • VecSetRandom(b,r)
  • VecSetFromOptions(Vecvec)
    • VecSetFromOptions(a)
  • VecDuplicate(Vecv,Vec *newv)
    • VecDuplicate(a,&b)

PETSC & SLEPC

i vector3
I. Vector
  • VecView(a,PETSC_VIEWER_STDOUT_WORLD);
  • VecAssemblyBegin(a);
  • VecAssemblyEnd(a);
  • VecDestroy(a);

PETSC & SLEPC

example presentation
Example presentation
  • Example 1:

Create Vec and use some basic vector operation

PETSC & SLEPC

slide21

Matrix

PETSC & SLEPC

2 matrix
2. Matrix
  • Mat mtx_a
  • MatCreate(MPI_Commcomm,Mat* A)
    • MatCreate(PETSC_SOMM_WORLD,&mtx_a)
  • MatSetSizes(Mat A,intm,intn,intM,int N)
    • MatSetSizes(mtx_a,PETSC_DECIDE, PETSC_DECIDE,10,10)
  • MatSetFromOptions(Mat A)
    • MatSetFromOptions(mtx_a)

PETSC & SLEPC

2 matrix1
2. Matrix
  • MatSetValues(Mat A,PetscIntm,const

PetscIntidxm[],PetscIntn,constPetscInt

idxn[],const PetscScalar v[],InsertMode

addv)

    • MatSetValues(mtx_a,1,1,1,1,2.0,INSERT_VALUE)

PETSC & SLEPC

example
Example
  • I have a small matrix s_a [1 2 ;3 4]

but I want to insert s_a into global matrix mtx_a and the index is (1,2)

MatSetValues(mtx_a,2,1,2,2,s_a,INSERT_VALUE)

0 0 0 0 0

0 0 1 2 0

0 0 3 4 0

0 0 0 0 0

PETSC & SLEPC

2 matrix2
2. Matrix
  • MatAssemblyBegin(Mat, MAT_FINAL_ASSEMBLY)
  • MatAssemblyEnd(Mat ,MAT_FINAL_ASSEMBLY)
  • MatDestroy(Mat )

PETSC & SLEPC

2 matrix matrix free
**2. Matrix: Matrix-Free
  • If you don’t want to create all matrix ( the matrix is too large),PETSC allow users write their own matrix operator
  • extern intmult(Mat,Vec,Vec);

MatCreateShell(comm,m,n,M,N,ctx,&mat); MatShellSetOperation(mat,MATOP_MULT,(void(*)(void))mult);

MatDestroy(mat);

PETSC & SLEPC

2 read matrix from file
2. Read matrix from file
  • In many case, someone has created the matrix, so we don’t rewrite the matrix, we just want to read the matrix and solve them quickly, how to do that??
  • If you have matrix which is ASCII format(just store the nonzero element , i , j, aij)

we can call PETSC function to transfer ASCII to binary file ( PETSC can read them very quickly)

PETSC & SLEPC

binary file
Binary file
  • PetscViewerBinaryOpen(MPI_Commcomm,const char name[],PetscViewerFileTypetype,PetscViewer *binv)
    • PetscViewerBinaryOpen(PETSC_COMM_WORLD,fileout,FILE_MODE_WRITE,&view)

PETSC & SLEPC

example presentation1
Example presentation
  • Example 2:

Read matrix in ASCII format and transfer them to PETSC binary file

  • Example 3:

Read matrix from PETSC binary file and create a vector and use a basic matrix operation

PETSC & SLEPC

slide31

Linear System (KSP)

PETSC & SLEPC

3 linear system solver ksp
3.Linear system solver : KSP
  • Linear system problem: give matrix A and vector b  solve Ax=b
  • The dimension is too large to find inverse, and the matrix is sparse, so we need to use iterative method to solve them.
  • The basic method to solve linear system is Krylov subspace methods.

PETSC & SLEPC

3 linear system solver ksp1
3. Linear system solver : KSP

First of all, set the matrix A and rhs vector b

Declare Variables KSP ksp

  • KSPCreate(MPI_Commcomm,KSP *ksp)
    • KSPCreate(PETSC_COMM_WORLD,&ksp)
  • KSPSetOperators(KSP ksp,MatAmat,MatPmat,MatStructure flag)
    • KSPSetOperators(ksp,A,A, SAME_NONZERO_PATTERN)

PETSC & SLEPC

3 linear system solver ksp2
3. Linear system solver : KSP
  • KSPSetType(KSP ksp, const KSPType type)
    • KSPSetType(ksp,KSPGMRES) -ksp_type
  • KSPSetFromOptions(KSP ksp)
    • KSPSetFromOptions(ksp)
  • KSPSolve(ksp,Vecb,Vec x)
    • KSPSolve(ksp,b,x)
  • KSPGetIterationNumber(KSP ksp,PetscInt *its)
    • KSPGetIterationNumber(ksp,&it)

PETSC & SLEPC

preconditioner
Preconditioner
  • In many case, the matrix A has large condition number, so we need use a proconditoner to reduce condition number
  • PETSC provide many preconditioner, and some of them can use MPI to parallel.

PETSC & SLEPC

3 linear system solver ksp3
3. Linear system solver : KSP
  • KSPSetFromOptions(KSP ksp)
    • KSPSetFromOptions(ksp)
  • KSPGetPC(KSP ksp,PC *pc)
    • KSPGetPC(ksp,&pc)
  • PCSetType(PC pc, PCType type)
    • PCSetType(pc,PCBJACOBI) -pc_type

PETSC & SLEPC

how to parallel
How to Parallel ??
  • MPI- Message Passing Interface

PETSC and SLEPC support MPI and user don’t have to call MPI function

    • mpiexec -np 4 yourprogram
    • mpirun -np 8 -machinefile mf yourprogram
  • PETSC_COMM_SELF PETSC_COMM_WORLD
  • PETSC and SLEPC initial will include mpi.h, so if you want to use MPI function,you can use them, too

PETSC & SLEPC

a ssign parameters at run time
Assign parameters at run time
  • Serial :
    • ./ex4 -ksp_typebcgs -pc_typelu -ksp_rtol 1e-4
    • ./ex4 -ksp_typebcgs -pc_typelu -ksp_rtol 1e-4
    • ./ex4 -ksp_typegmres -pc_typeasm -ksp_rtol 1e-8 -ksp_max_it 20
  • Parallel:

In one node :

    • mpiexec –np 4 ./ex4 -ksp_type cg -pc_typesor - pc_sor_omega 1.8 -ksp_rtol 1e-4 -ksp_view

In multi nodes:

    • mpiexec –np 16 –machinefile mf ./ex4 -ksp_type cg -pc_typeasm -ksp_rtol 1e-4 -ksp_view -ksp_monitor_true_residual

PETSC & SLEPC

example presentation2
Example presentation
  • Example 4 :

Read matrix from a binary file, and call PETSC

function to solve linear system. And show how

to assign parameters at run time

PETSC & SLEPC

makefile

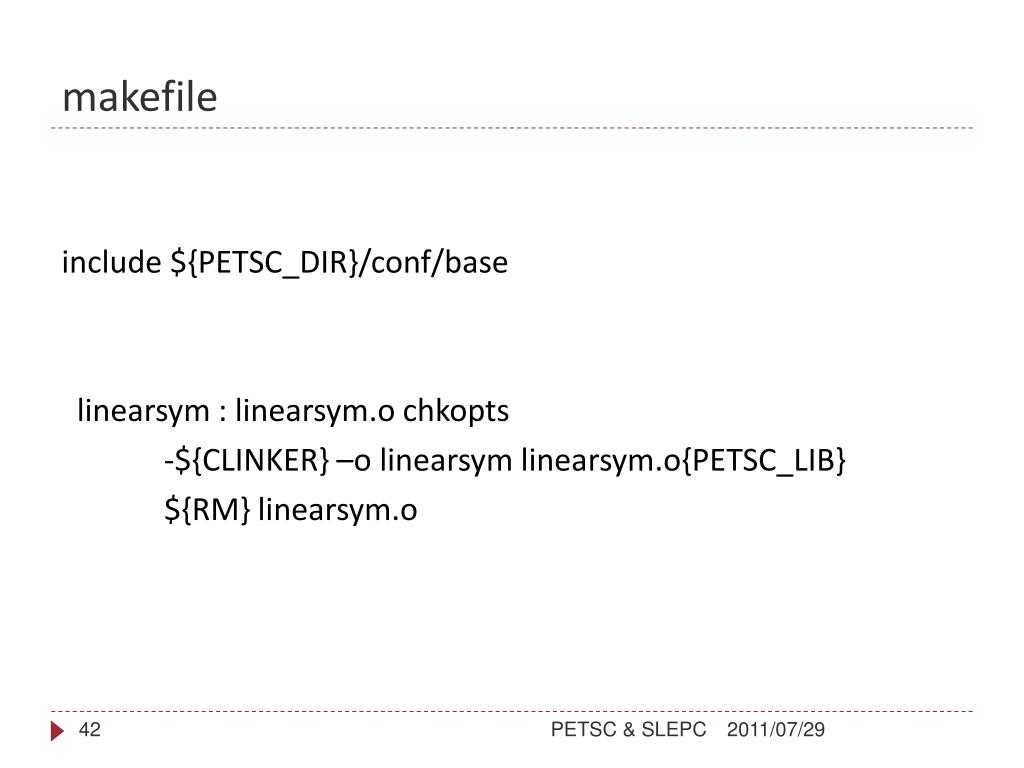

makefile

include ${PETSC_DIR}/conf/base

linearsym : linearsym.ochkopts

-${CLINKER} –o linearsymlinearsym.o{PETSC_LIB}

${RM} linearsym.o

PETSC & SLEPC

bash script
Bash script

#!/bin/bash

for((i=10;i<=30;i=i+5))

do

./linearsym -n $i -ksp_typegmres -pc_typejacobi

-ksp_max_it 100 -ksp_view > result_gmres_$i

done

for((i=10;i<=30;i=i+5))

do

./linearsym -n $i -ksp_type cg -pc_typejacobi

-ksp_max_it 100 -ksp_view > result_cg_$i

done

PETSC & SLEPC

perl bash script like
Perl (bash script like)
  • #!/usr/bin/perl

for ($i=1; $i<=199; $i++) {

$sor_omega=0.01*$i;

system("~/program/openmpi2/bin/mpiexec -np $i -machinefile mf10 ex4 -fin m22103 –ksp_type cg –pc_typesor –pc_sor_omega$sor_omega-log_summary > m22103_cg_sor_omega$sor_omega");

system("echo $i");

sleep(3);}

PETSC & SLEPC

slide45

Eigenvalue (EPS)

PETSC & SLEPC

4 eigenvalue problem solver slepc
4.Eigenvalue Problem Solver: SLEPC
  • SLEPC the Scalable Library for Eigenvalue Problem Computations
  • Standard Eigenvalue problem :

give matrix A, want to find unknown vector x and value k  Ax=kx

  • General Eigenvalue problem :

give matrix A and matrix B, want to find unknown vector x and value k  Ax=kBx

  • Still , the matrix is very large and sparse.

PETSC & SLEPC

how to install slepc
How to install SLEPC
  • Export SLEPC_DIR =/home/sywang/petsc-3.1-p6;
  • ./configure (they will follow the PETSC environmental setting)
  • Make all
  • Make test

PETSC & SLEPC

declare variables1
Declare Variables

EPS eps;

Mat A,B ;

PetscIntii,nn = 10,col[3];

PetscScalar value[3];

PetscScalarkr,ki;

PetscErrorCodeierr;

PETSC & SLEPC

4 eigenvalue problem solver slepc1
4.Eigenvalue Problem Solver: SLEPC
  • EPSCreate(MPI_Commcomm,EPS *eps)
    • EPSCreate(PETSC_COMM_WORLD,eps)
  • EPSSetOperators(EPS eps,MatA,Mat B)
    • EPSSetOperators(eps,A,B)  Ax=kBx
    • EPSSetOperators(eps,A,PETSC_NULL)  Ax=kx
  • EPSSetProblemType(EPS eps,EPSProblemType type)
    • EPSSetProblemType(eps,EPS_HEP) -eps_hermitian
    • EPSSetProblemType(eps,EPS_NHEP) -eps_non_hermitian

PETSC & SLEPC

4 eigenvalue problem solver slepc2
4.Eigenvalue Problem Solver: SLEPC
  • EPSSetType(EPS eps,constEPSType type)
    • EPSSetType(eps,EPSJD) -eps_typejd
  • EPSSetTolerances(EPS eps,PetscRealtol,PetscIntmaxits)
    • EPSSetTolerances(eps,1e-8,200)

-eps_tol 1e-8 –eps_max_it 200

PETSC & SLEPC

eps type
EPS Type

PETSC & SLEPC

4 eigenvalue problem solver slepc3
4.Eigenvalue Problem Solver: SLEPC
  • EPSSetDimensions(EPS eps,PetscIntnev,PetscIntncv)
    • EPSSetDimensions(eps,2,18) -eps_nev 2 -eps_ncv 18
  • EPSCreate(MPI_Commcomm,EPS *eps)
    • EPSSetWhichEigenpairs(eps, EPS_SMALLEST_REAL)

-eps_smallest_real

PETSC & SLEPC

eps which
EPS which

PETSC & SLEPC

4 eigenvalue problem solver slepc4
4.Eigenvalue Problem Solver: SLEPC
  • EPSSolve(eps)
  • EPSView(eps,PETSC_VIEWER_STDOUT_WORLD)

-eps_view

  • EPSGetIterationNumber(eps, &its)
  • EPSGetOperationCounters(EPS eps,PetscInt* ops,PetscInt* dots,PetscInt* lits)
    • EPSGetOperationCounters(eps,PETSC_NULL,PETSC_NULL,&lits)

PETSC & SLEPC

4 eigenvalue problem solver slepc5
4.Eigenvalue Problem Solver: SLEPC
  • EPSGetType(eps,&type)
  • EPSGetDimensions(eps,&nev,&ncv)
  • EPSGetTolerances(eps,&tol,&maxit)
  • EPSGetConverged(eps,&nconv)

PETSC & SLEPC

4 eigenvalue problem solver slepc6
4.Eigenvalue Problem Solver: SLEPC
  • EPSGetEigenpair(EPS eps, PetscInti, PetscScalar *eigr, PetscScalar *eigi, VecVr, Vec Vi)
    • EPSGetEigenpair(eps,i,&kr,&ki,PETSC_NULL,PETSC_NULL)
  • EPSComputeRelativeError(eps,i,&error)
  • EPSDestroy(eps)

PETSC & SLEPC

spectral transformation shift invert
Spectral Transformationshift & invert
  • In many case, the eigenvalue we want is the smallet (but nonzero),if we don’t use shift and invert, it takes many time to find eigenvalue
  • But when you use invert, you will need to solve linear system, they are done by calling PETSC KSP solver

PETSC & SLEPC

spectral transformation
Spectral Transformation
  • EPSCreate(MPI_Commcomm,EPS *eps)
    • EPSCreate(PETSC_COMM_WORLD,eps)
  • ST st;
  • PetscScalar shift = 2.0;
  • EPSGetST(EPS eps,ST* st);
  • STSetShift(ST st,PetscScalar shift);
    • STSetShift(st,2.0); -st_shift
  • STSetType(ST st,STType type);
    • STSetType(st, STSHIFT) -st_type shift

PETSC & SLEPC

spectral transformation1
Spectral Transformation
  • Shift-invert need to solve linear system. We need to call PETSC function
  • In general we, set parameter in command line

ex:

-st_typesinvert -st_ksp_type cg -st_pc_typeasm -st_ksp_rtol 1e-10

-st_typesinvert -st_ksp_typebcgs -st_pc_typesor -st_pc_sor_omega 1.8 -eps_monitor_draw

PETSC & SLEPC

makefile1
makefile
  • all: eigensym

include ${SLEPC_DIR}/conf/slepc_common

eigensym : eigensym.ochkopts

-${CLINKER} -o eigensymeigensym.o{SLEPC_LIB}

${RM} eigensym.o

PETSC & SLEPC

how to get info from petsc and slepc
How to get info from PETSC and SLEPC
  • ./linearsym -ksp_view
  • ./eigensym -eps_view
  • ./linearsym -ksp_monitor
  • ./eigensym -eps_monitor
  • ./eigensym -eps_monitor_draw_all
  • ./linearsym -log_summary

PETSC & SLEPC

example1
Example
  • Example5 :

Read a matrix from a binary file, and find its

eigenvalue

PETSC & SLEPC

slide66
PBS
  • PBS = Portable Batch System
  • PBS is first developed by NASA
  • You need to write a bash script and submit job to the cluster

PETSC & SLEPC

script
Script
  • #PBS -N Job_name
  • #PBS -q queue_name (according to cluster)
  • #PBS -o result_file
  • #PBS -e error_message
  • #PBS -l node=2:ppn=4

#PBS -l nodes=node01:ppn=4+node02:ppn=4

PETSC & SLEPC

slide68
info
  • Submit job : qsubyour_sheell
  • Check job : qstat

qstat -n

  • Check node : pbsmodes

pbsnodes –l free

PETSC & SLEPC

reference
Reference
  • Hands-On Exercises for SLEPC

http://www.grycap.upv.es/slepc/handson/

  • PETSC home page :

http://www.mcs.anl.gov/petsc/petsc-as/

user guide:

http://www.mcs.anl.gov/petsc/petsc-as/snapshots/petsc-current/docs/manual.pdf

  • SLEPC home page :

http://www.grycap.upv.es/slepc/

user guide:

http://www.grycap.upv.es/slepc/documentation/slepc.pdf

  • Matrix market:

http://math.nist.gov/MatrixMarket/

PETSC & SLEPC

slide70

Thank You

PETSC & SLEPC
