New Generation Database Systems: XML Databases University of California, Berkeley School of Information IS 257: Database Management

Lecture Outline • XML and RDBMS • Native XML Databases

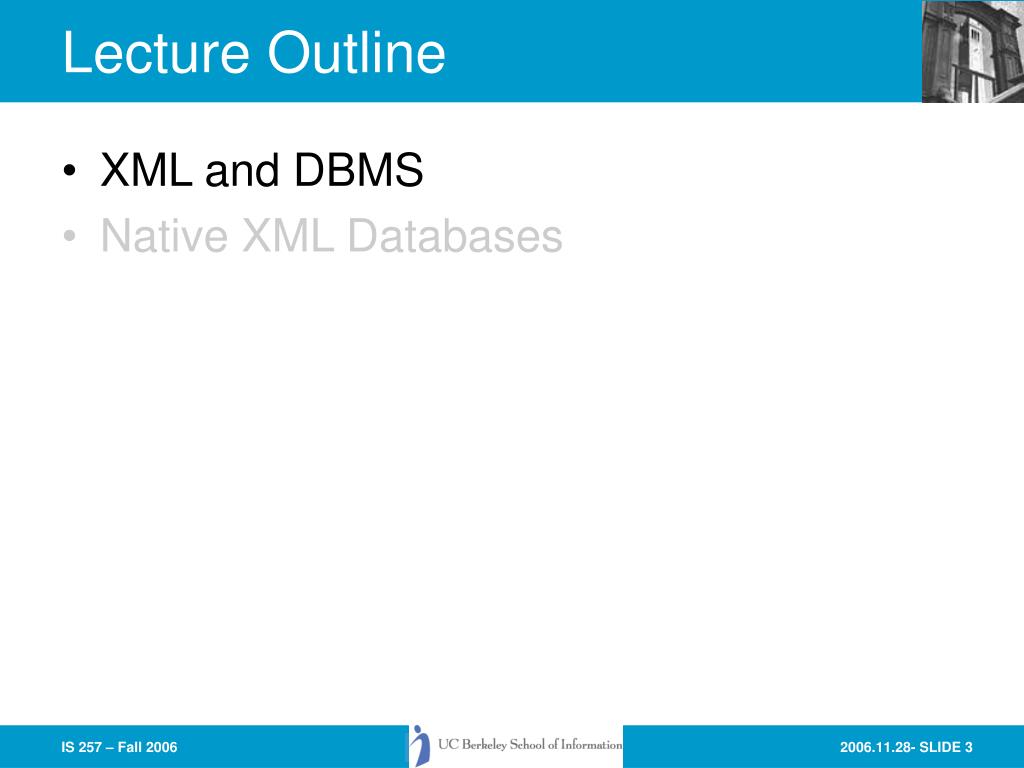

Lecture Outline • XML and DBMS • Native XML Databases

Standards: XML/SQL • As part of SQL3 an extension providing a mapping from XML to DBMS is being created called XML/SQL • The (draft) standard is very complex, but the ideas are actually pretty simple • Suppose we have a table called EMPLOYEE that has columns EMPNO, FIRSTNAME, LASTNAME, BIRTHDATE, SALARY

Standards: XML/SQL • That table can be mapped to: <EMPLOYEE> <row><EMPNO>000020</EMPNO> <FIRSTNAME>John</FIRSTNAME> <LASTNAME>Smith</LASTNAME> <BIRTHDATE>1955-08-21</BIRTHDATE> <SALARY>52300.00</SALARY> </row> <row> … etc. …

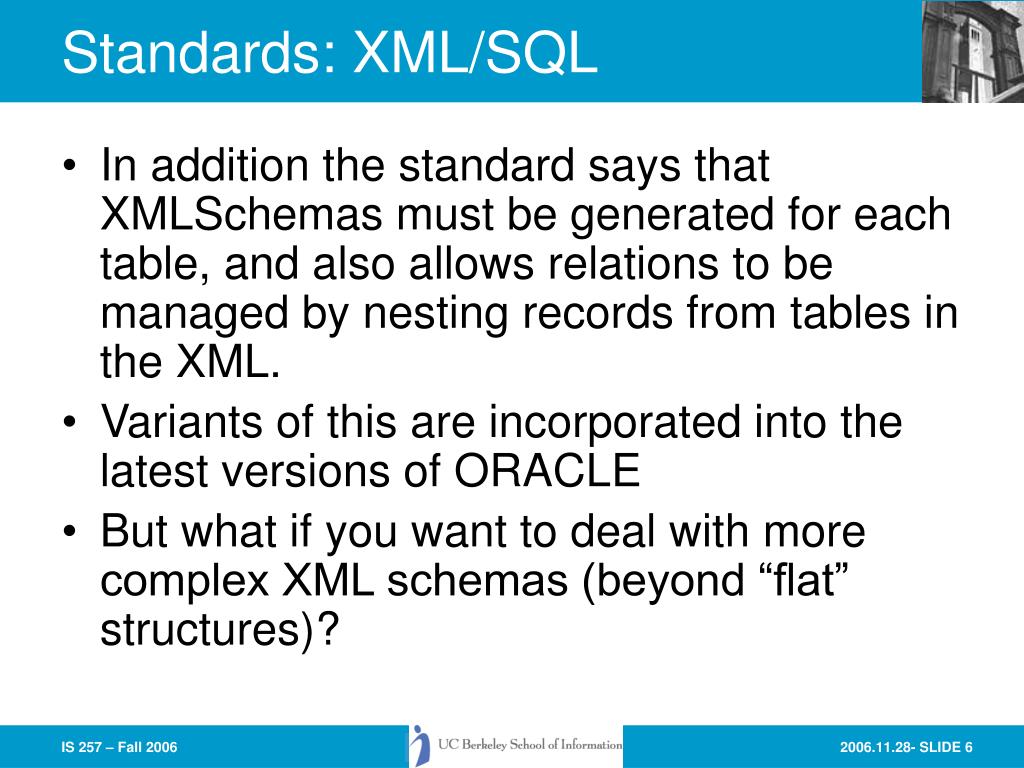

Standards: XML/SQL • In addition the standard says that XMLSchemas must be generated for each table, and also allows relations to be managed by nesting records from tables in the XML. • Variants of this are incorporated into the latest versions of ORACLE • But what if you want to deal with more complex XML schemas (beyond “flat” structures)?

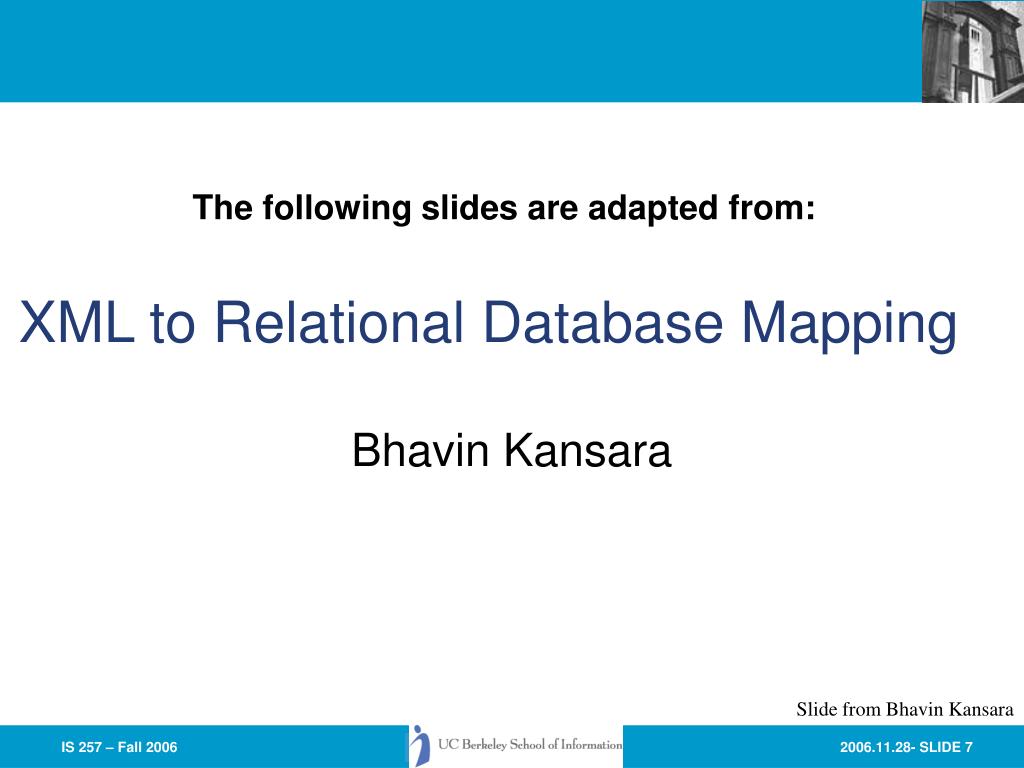

XML to Relational Database Mapping Bhavin Kansara The following slides are adapted from: Slide from Bhavin Kansara

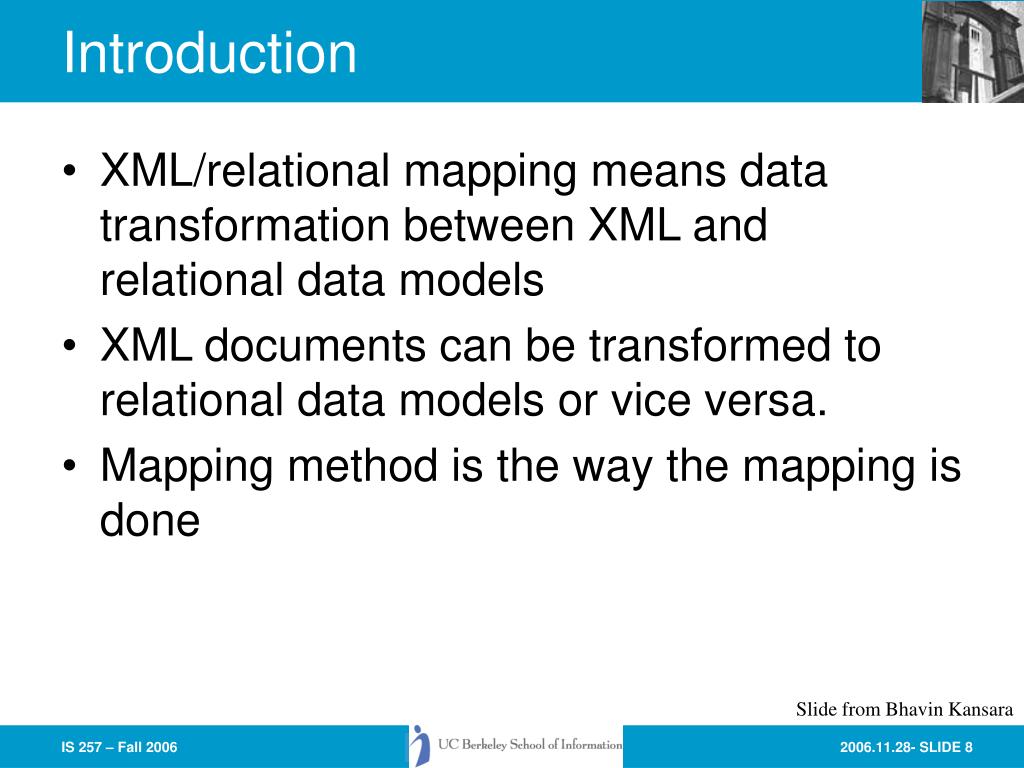

Introduction • XML/relational mapping means data transformation between XML and relational data models • XML documents can be transformed to relational data models or vice versa. • Mapping method is the way the mapping is done Slide from Bhavin Kansara

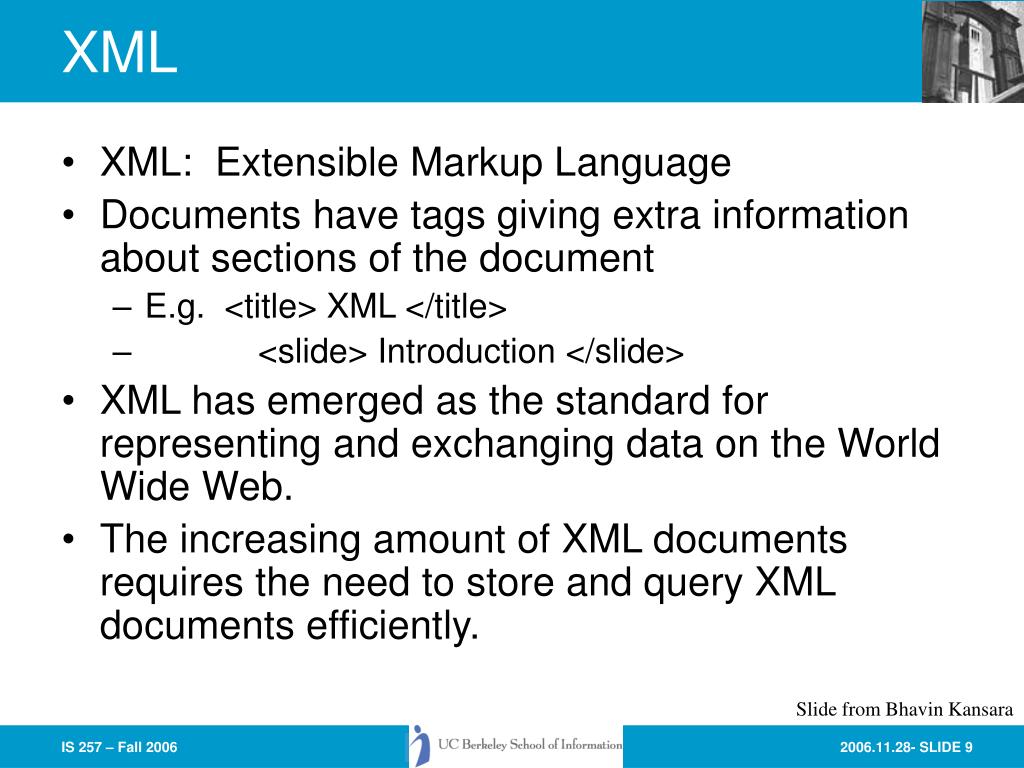

XML • XML: Extensible Markup Language • Documents have tags giving extra information about sections of the document • E.g. <title> XML </title> • <slide> Introduction </slide> • XML has emerged as the standard for representing and exchanging data on the World Wide Web. • The increasing amount of XML documents requires the need to store and query XML documents efficiently. Slide from Bhavin Kansara

XML vs. HTML <name> <first> abc </first> <middle> xyz </middle> <last> def </last> </name> <html> <head> <title>Title of page</title> </head> <body> abc xyz def </body> </html> Slide from Bhavin Kansara HTML tags describe how to render things on the screen, while XML tags describe what thing are. HTML tags are designed for the interaction between humans and computers, while XML tags are designed for the interactions between two computers. Unlike HTML, XML tags tell you what the data means, rather than how to display it

XML Technologies <bib> { for $b in doc("http://bstore1.example.com/bib.xml")/bib/book where $b/publisher = "Addison-Wesley" and $b/@year > 1991 return <book year="{ $b/@year }"> { $b/title } </book> } </bib> <?xml version="1.0" encoding="ISO-8859-1"?> <?xml-stylesheet type="text/xsl" href="simple.xsl"?> <breakfast_menu> <food> <name>Belgian Waffles</name> <price>$5.95</price> <description> two of our famous Belgian Waffles </description> <calories>650</calories> </food> </breakfast_menu> Slide from Bhavin Kansara • Schema Languages DTDs XML Schemas • Query Languages XPath XQuery XSLT • Programming APIs DOM SAX

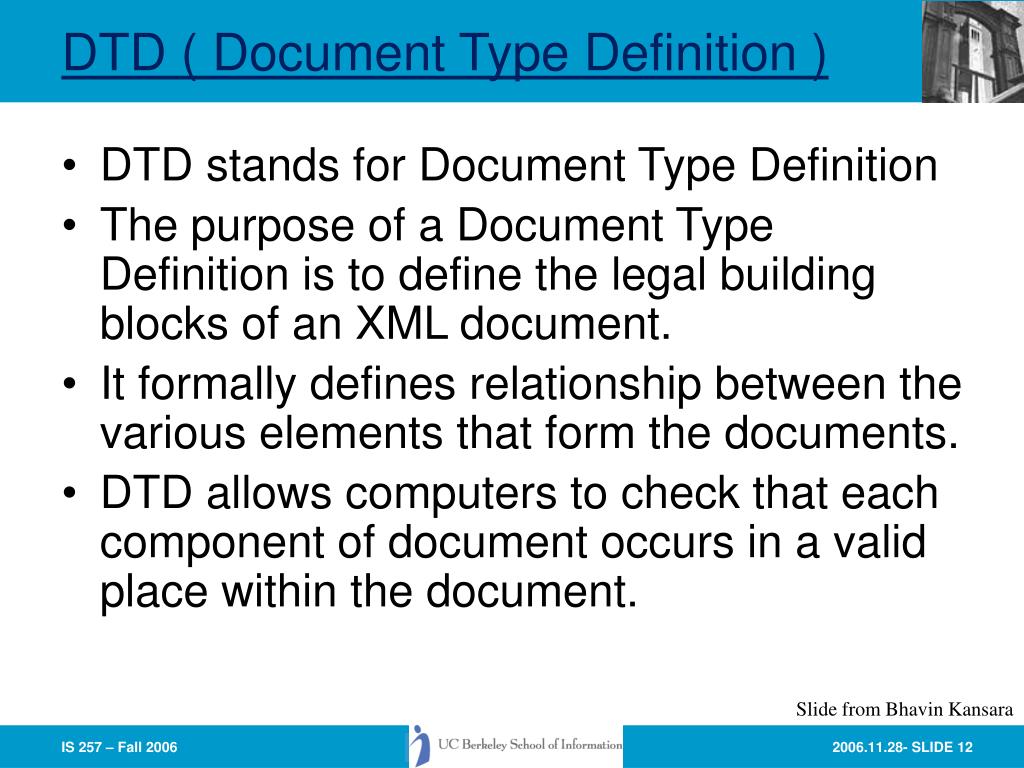

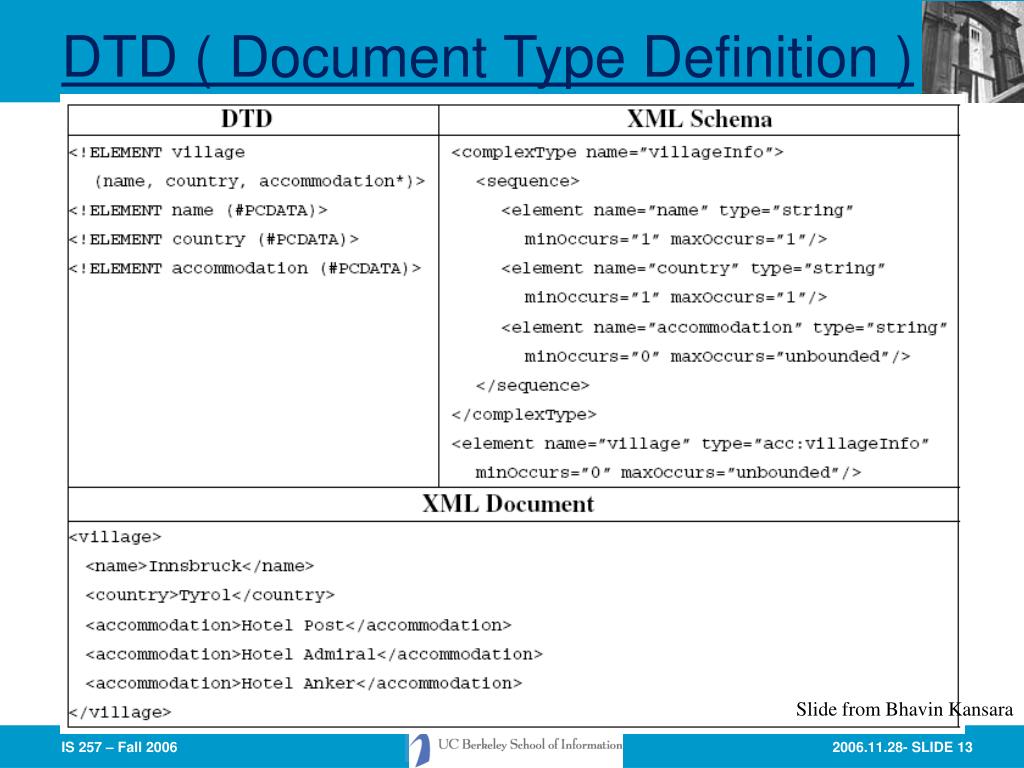

DTD ( Document Type Definition ) Slide from Bhavin Kansara DTD stands for Document Type Definition The purpose of a Document Type Definition is to define the legal building blocks of an XML document. It formally defines relationship between the various elements that form the documents. DTD allows computers to check that each component of document occurs in a valid place within the document.

DTD ( Document Type Definition ) Slide from Bhavin Kansara

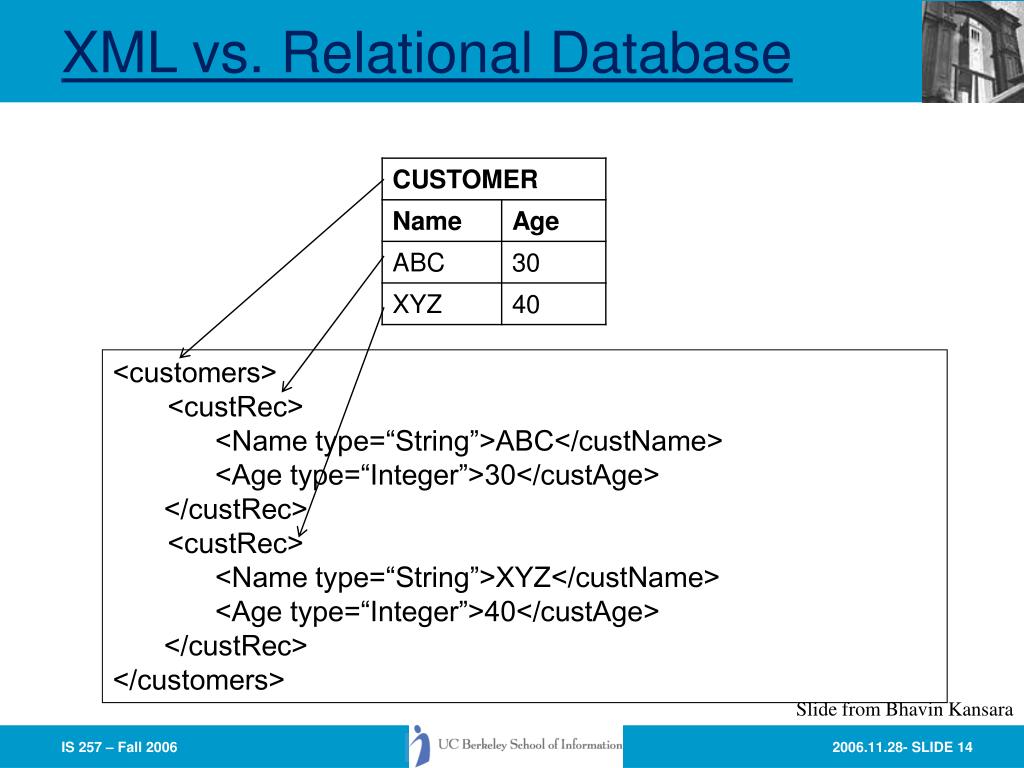

XML vs. Relational Database • <customers> • <custRec> • <Name type=“String”>ABC</custName> • <Age type=“Integer”>30</custAge> • </custRec> • <custRec> • <Name type=“String”>XYZ</custName> • <Age type=“Integer”>40</custAge> • </custRec> • </customers> Slide from Bhavin Kansara

XML vs. Relational Database Slide from Bhavin Kansara

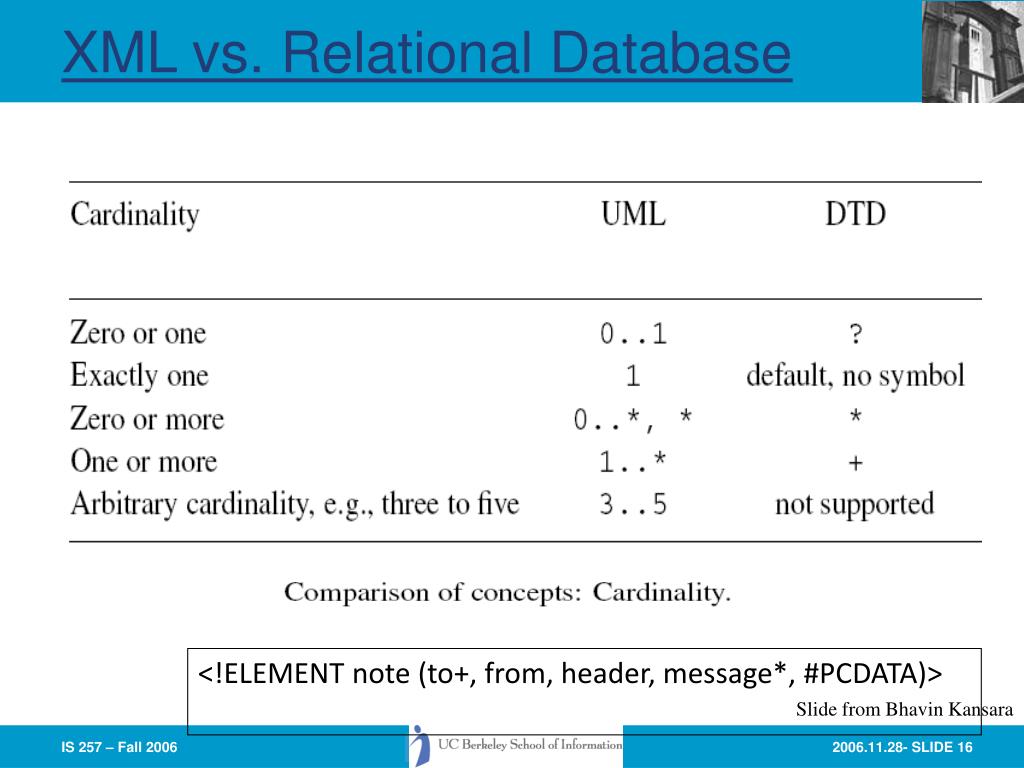

XML vs. Relational Database <!ELEMENT note (to+, from, header, message*, #PCDATA)> Slide from Bhavin Kansara

XML vs. Relational Database Slide from Bhavin Kansara

When XML representation is not beneficial Slide from Bhavin Kansara When downstream processing of the data is relational When the highest possible performance is required When any normalized data components have value outside the XML representation or the data need not be retained in XML form to have value When the data is naturally tabular

When XML representation is beneficial Slide from Bhavin Kansara When schema is volatile When data is inherently hierarchical in nature When data represents business objects in which the component parts do not make sense when removed from the context of that business object When applications have sparse attributes When low-volume data is highly structured

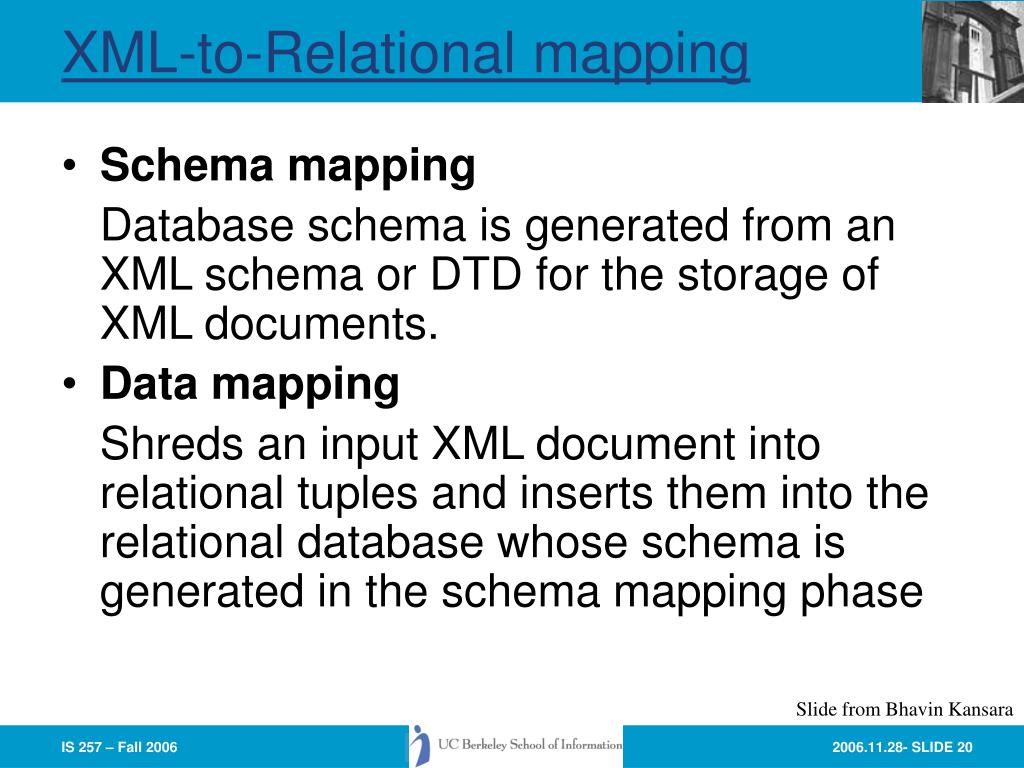

XML-to-Relational mapping Slide from Bhavin Kansara • Schema mapping Database schema is generated from an XML schema or DTD for the storage of XML documents. • Data mapping Shreds an input XML document into relational tuples and inserts them into the relational database whose schema is generated in the schema mapping phase

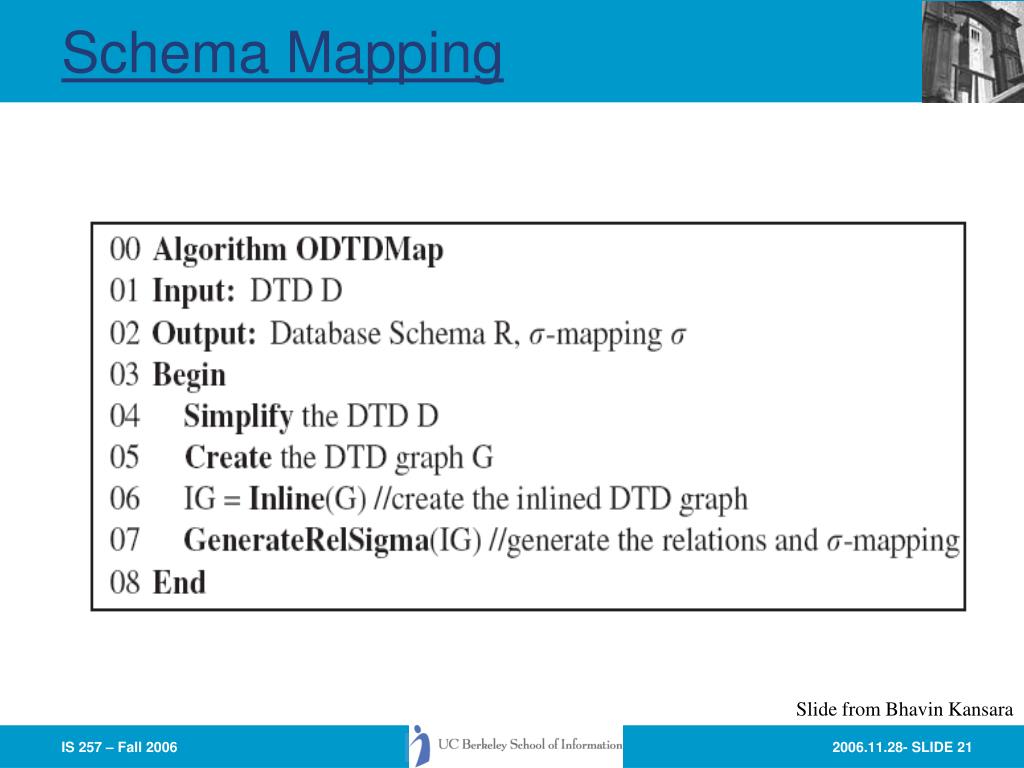

Schema Mapping Slide from Bhavin Kansara

Simplifying DTD Slide from Bhavin Kansara

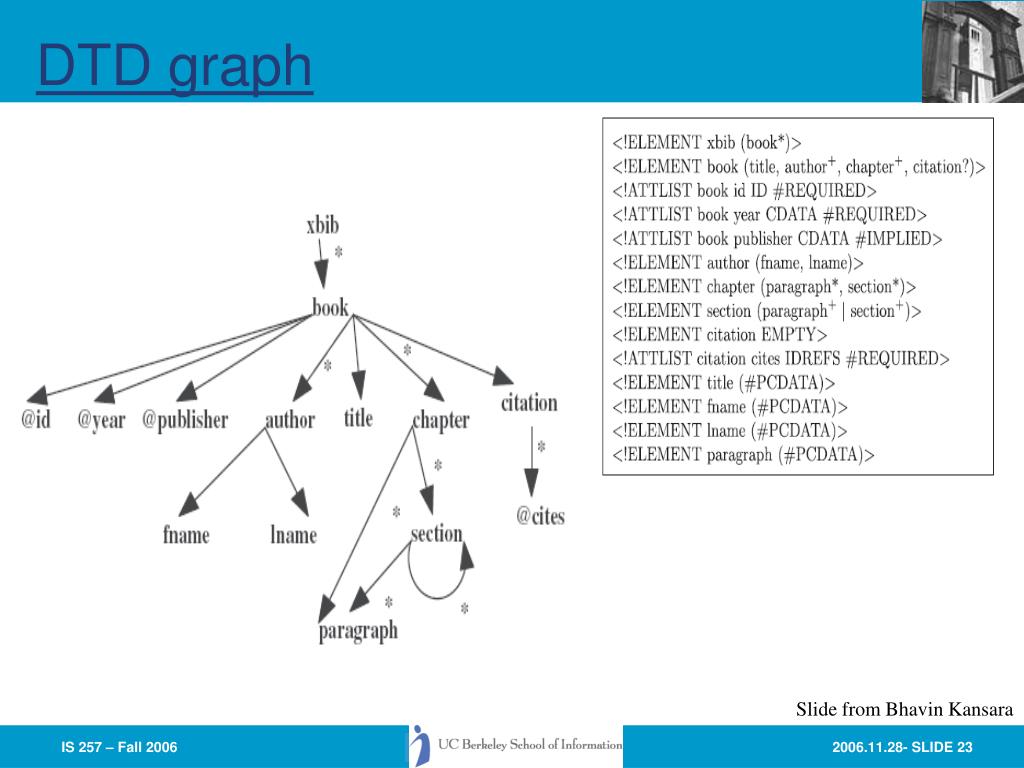

DTD graph Slide from Bhavin Kansara

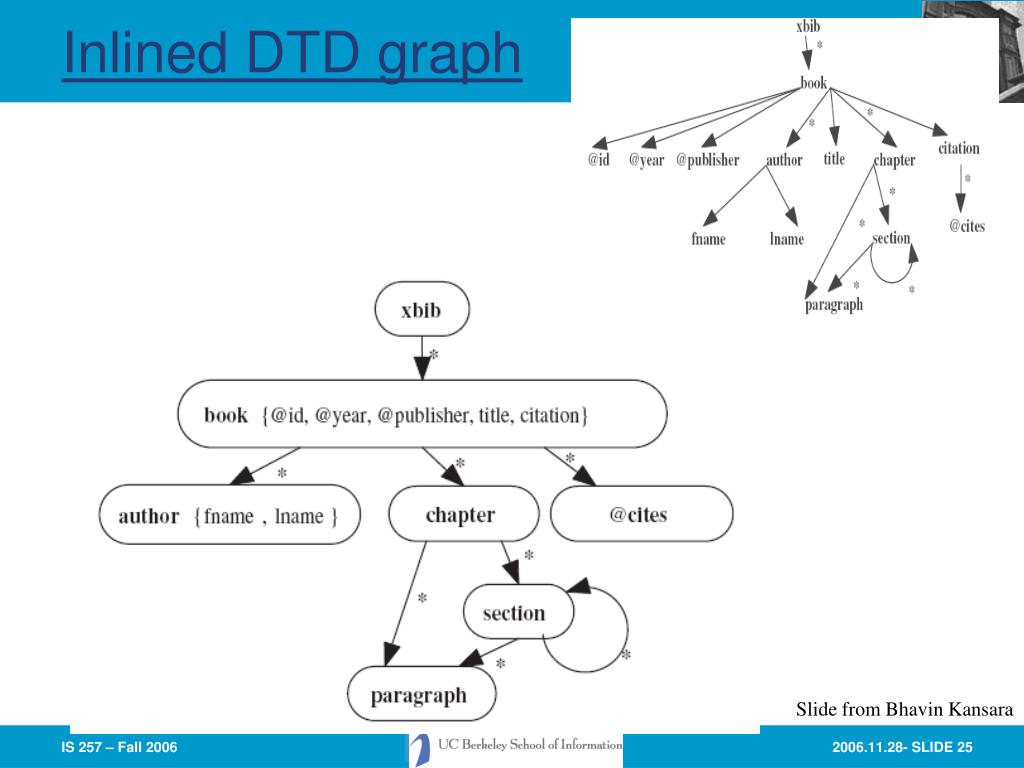

Inlined DTD graph Slide from Bhavin Kansara Given a DTD graph, a node is inlinable if and only if it has exactly one incoming edge and that edge is a normal edge.

Inlined DTD graph Slide from Bhavin Kansara

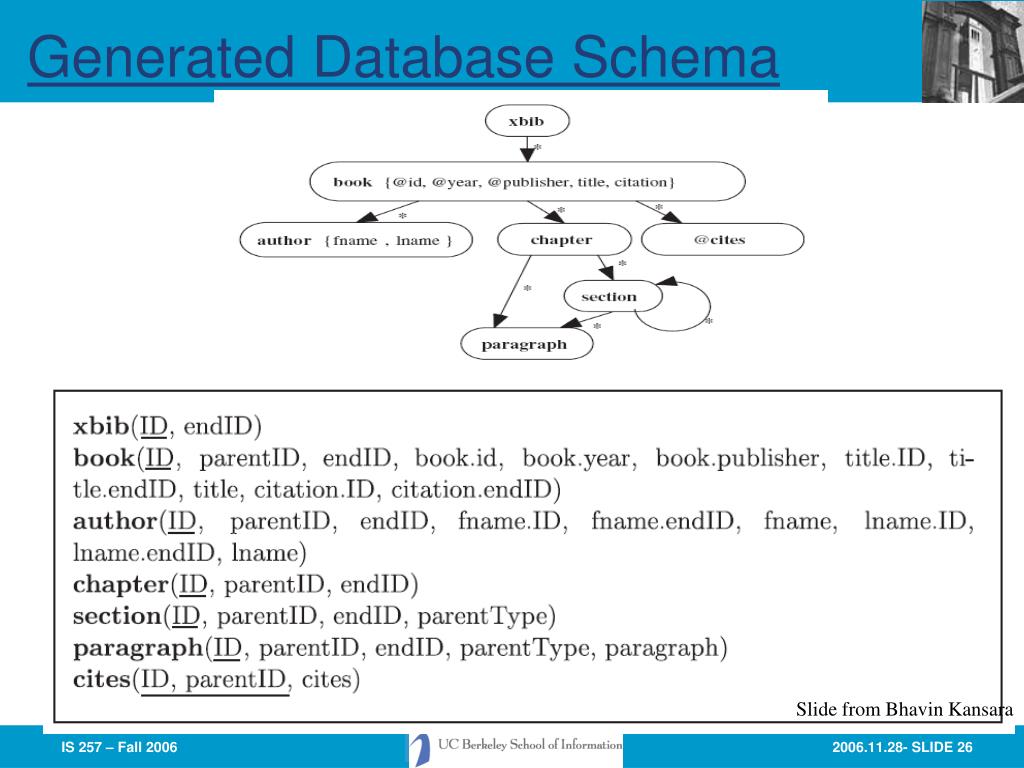

Generated Database Schema Slide from Bhavin Kansara

Data Mapping Slide from Bhavin Kansara XML file is used to insert data into generated database schema Parser is used to fetch data from XML file.

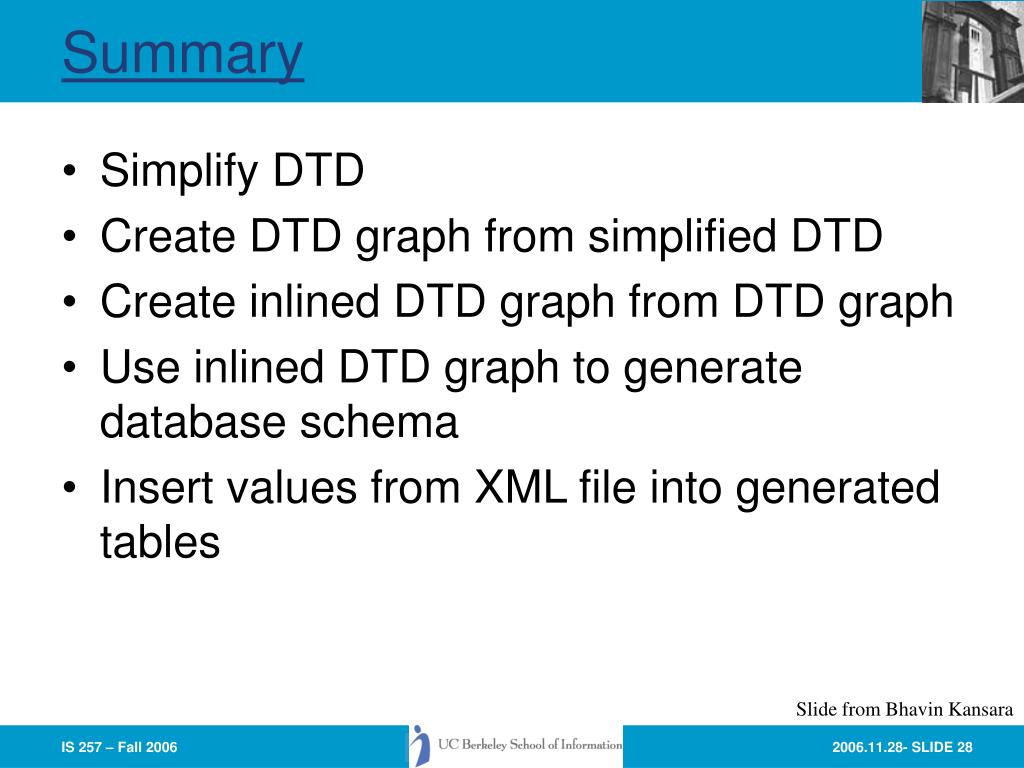

Summary Slide from Bhavin Kansara Simplify DTD Create DTD graph from simplified DTD Create inlined DTD graph from DTD graph Use inlined DTD graph to generate database schema Insert values from XML file into generated tables

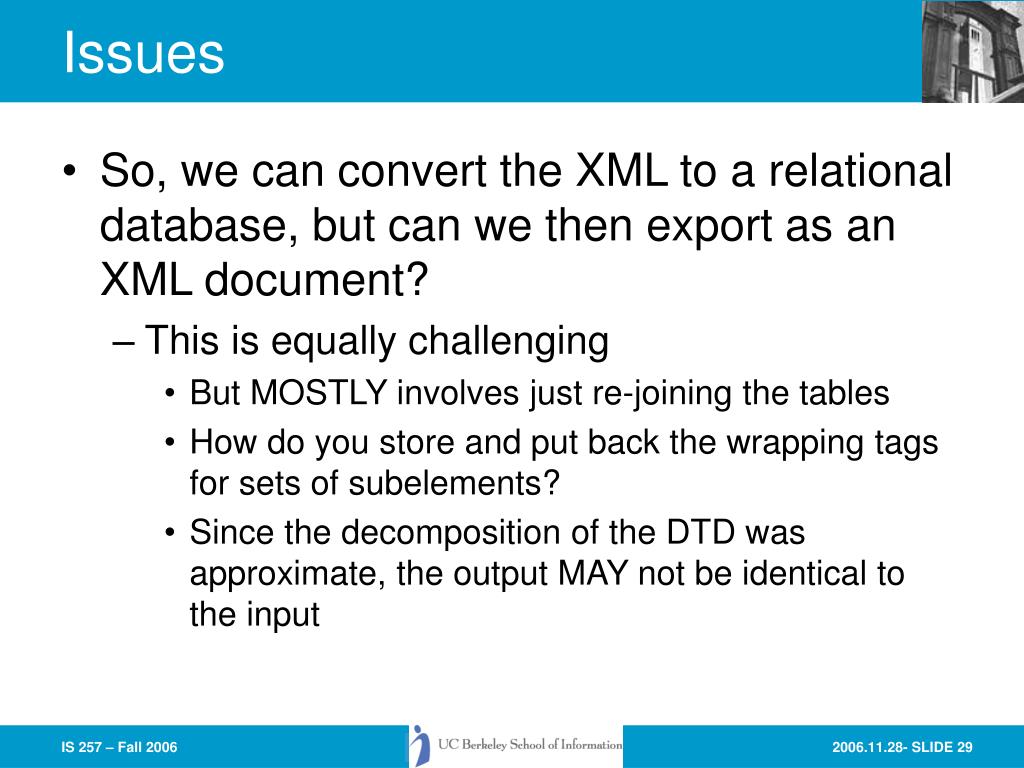

Issues • So, we can convert the XML to a relational database, but can we then export as an XML document? • This is equally challenging • But MOSTLY involves just re-joining the tables • How do you store and put back the wrapping tags for sets of subelements? • Since the decomposition of the DTD was approximate, the output MAY not be identical to the input

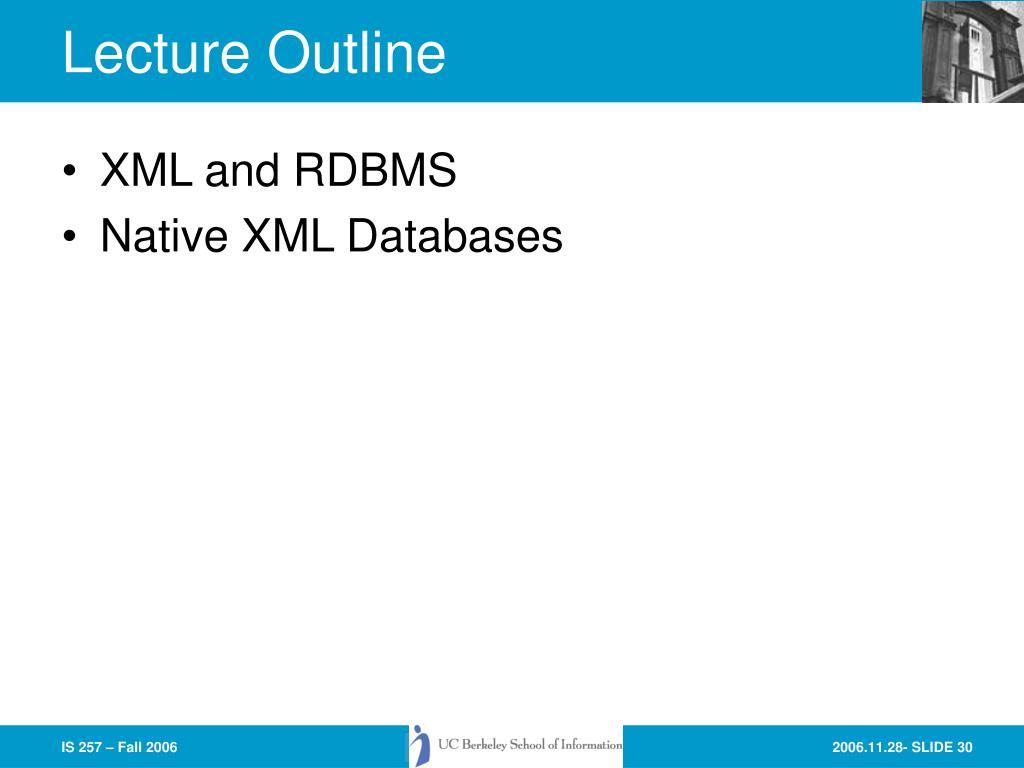

Lecture Outline • XML and RDBMS • Native XML Databases

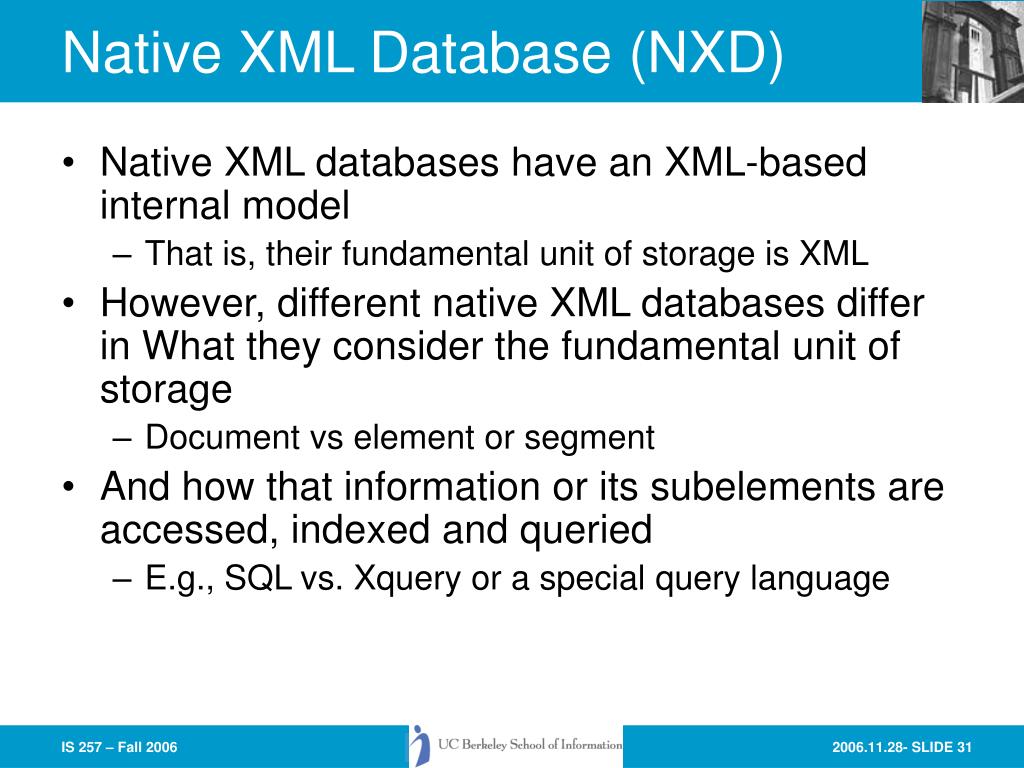

Native XML Database (NXD) • Native XML databases have an XML-based internal model • That is, their fundamental unit of storage is XML • However, different native XML databases differ in What they consider the fundamental unit of storage • Document vs element or segment • And how that information or its subelements are accessed, indexed and queried • E.g., SQL vs. Xquery or a special query language

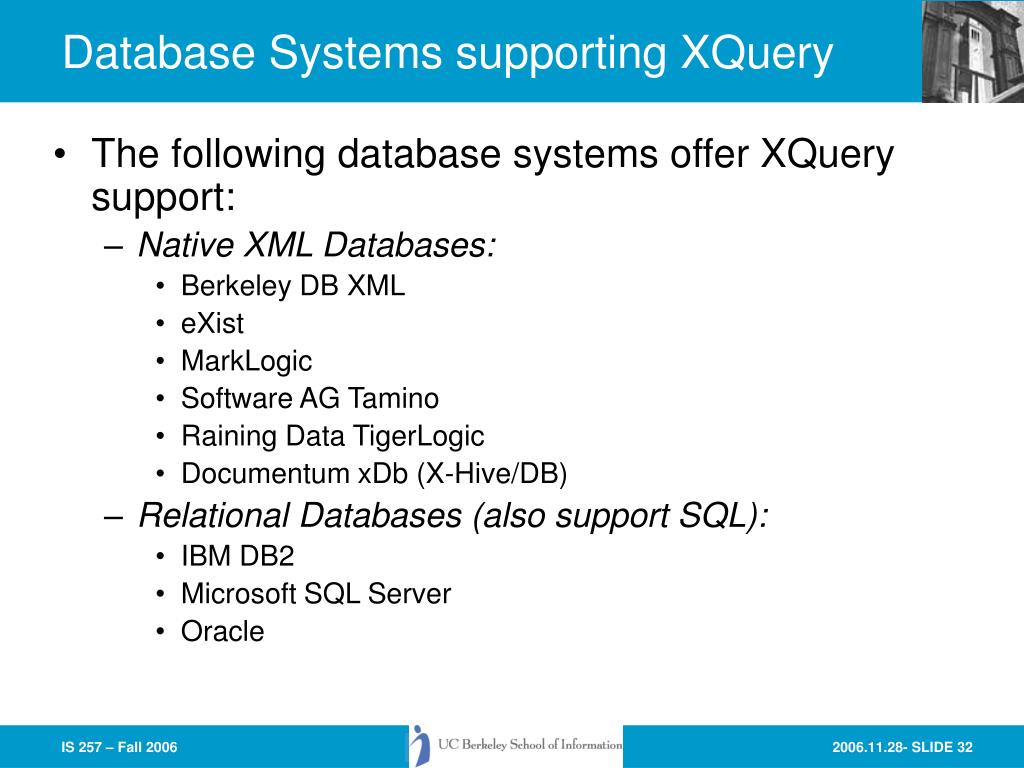

Database Systems supporting XQuery The following database systems offer XQuery support: Native XML Databases: Berkeley DB XML eXist MarkLogic Software AG Tamino Raining Data TigerLogic Documentum xDb (X-Hive/DB) Relational Databases (also support SQL): IBM DB2 Microsoft SQL Server Oracle

Anatomy of a Native XML database • The next set of slides (available on the class web site) come from George Feinberg of SleepyCat Software • SleepyCat is now part of Oracle

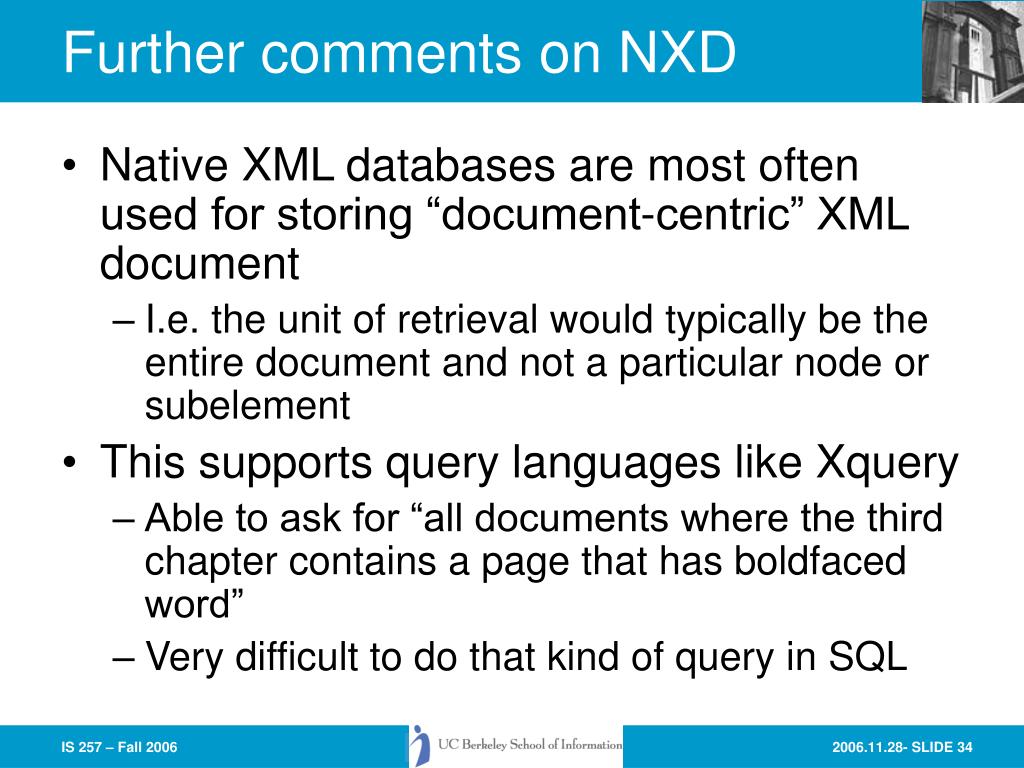

Further comments on NXD • Native XML databases are most often used for storing “document-centric” XML document • I.e. the unit of retrieval would typically be the entire document and not a particular node or subelement • This supports query languages like Xquery • Able to ask for “all documents where the third chapter contains a page that has boldfaced word” • Very difficult to do that kind of query in SQL

XML-Based IR - Cheshire II • I thought I would take a little time to talk about how the Cheshire system (that I have been working for nearly 20 years) uses XML, since it has some similarities (and many differences) to XML database systems • Cheshire II (and Cheshire 3) are document-centric and involve parsing the XML for the purposes of indexing (and sometimes for retrieval of partial documents)

Cheshire II SGML/XML Support • Underlying native format for all data is SGML or XML • The DTD defines the file format for each file • Full SGML/XML parsing • SGML/XML Format Configuration Files define the database • USMARC DTD and MARC to SGML conversion (and back again) • Access to full-text via special SGML/XML tags

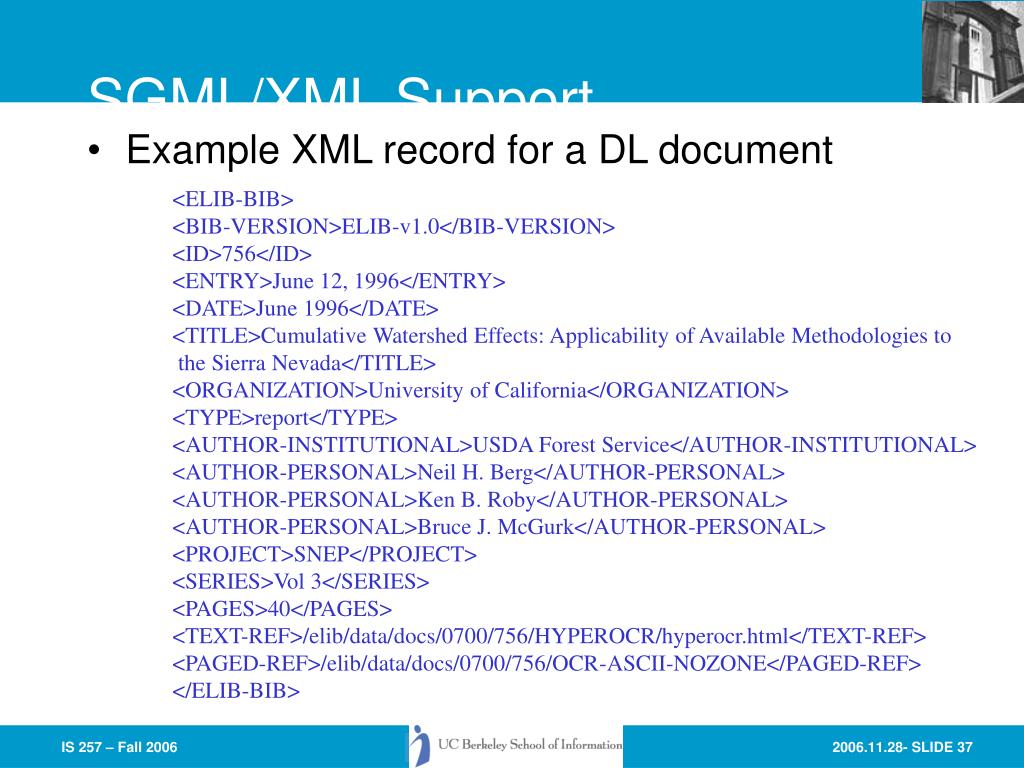

SGML/XML Support • Example XML record for a DL document <ELIB-BIB> <BIB-VERSION>ELIB-v1.0</BIB-VERSION> <ID>756</ID> <ENTRY>June 12, 1996</ENTRY> <DATE>June 1996</DATE> <TITLE>Cumulative Watershed Effects: Applicability of Available Methodologies to the Sierra Nevada</TITLE> <ORGANIZATION>University of California</ORGANIZATION> <TYPE>report</TYPE> <AUTHOR-INSTITUTIONAL>USDA Forest Service</AUTHOR-INSTITUTIONAL> <AUTHOR-PERSONAL>Neil H. Berg</AUTHOR-PERSONAL> <AUTHOR-PERSONAL>Ken B. Roby</AUTHOR-PERSONAL> <AUTHOR-PERSONAL>Bruce J. McGurk</AUTHOR-PERSONAL> <PROJECT>SNEP</PROJECT> <SERIES>Vol 3</SERIES> <PAGES>40</PAGES> <TEXT-REF>/elib/data/docs/0700/756/HYPEROCR/hyperocr.html</TEXT-REF> <PAGED-REF>/elib/data/docs/0700/756/OCR-ASCII-NOZONE</PAGED-REF> </ELIB-BIB>

SGML Support • Example SGML/MARC Record <USMARC Material="BK" ID="00000003"><leader><LRL>00722</LRL><RecStat>n</RecStat> <RecType>a</RecType><BibLevel>m</BibLevel><UCP></UCP><IndCount>2</IndCount> <SFCount>2</SFCount><BaseAddr>00229</BaseAddr><EncLevel> </EncLevel> <DscCatFm></DscCatFm><LinkRec></LinkRec><EntryMap><FLength>4</Flength><SCharPos> 5</SCharPos><IDLength>0</IDLength><EMUCP></EMUCP></EntryMap></Leader> <Directry>001001400000005001700014008004100031010001400072035002000086035001700106100001900123245010500142250001100247260003200258300003300290504005000323650003600373700002200409700002200431950003200453998000700485</Directry><VarFlds> <VarCFlds><Fld001>CUBGGLAD1282B</Fld001><Fld005>19940414143202.0</Fld005> <Fld008>830810 1983 nyu eng u</Fld008></VarCFlds> <VarDFlds><NumbCode><Fld010 I1="Blank" I2="Blnk"><a>82019962 </a></Fld010> <Fld035 I1="Blank" I2="Blnk"><a>(CU)ocm08866667</a></Fld035><Fld035 I1="Blank" I2="Blnk"><a>(CU)GLAD1282</a></Fld035></NumbCode><MainEnty><Fld100 NameType="Single" I2=""><a>Burch, John G.</a></Fld100></MainEnty><Titles><Fld245 AddEnty="Yes" NFChars="0"><a>Information systems :</a>theory and practice /<c>John G. Burch, Jr., Felix R. Strater, Gary Grudnitski</c></Fld245></Titles><EdImprnt><Fld250 I1="Blank" I2="Blnk"><a>3rd ed</a></Fld250><Fld260 I1="" I2="Blnk"><a>New York :</a>J. Wiley,<c>1983</c></Fld260></EdImprnt><PhysDesc><Fld300 I1="Blank" I2="Blnk"><a>xvi, 632 p. :</a>ill. ;<c>24 cm</c></Fld300></PhysDesc><Series></Series><Notes><Fld504 I1="Blank" I2="Blnk"><a>Includes bibliographical references and index</a></Fld504></Notes><SubjAccs><Fld650 SubjLvl="NoInfo" SubjSys="LCSH"><a>Managementinformation systems.</a></Fld650> ...

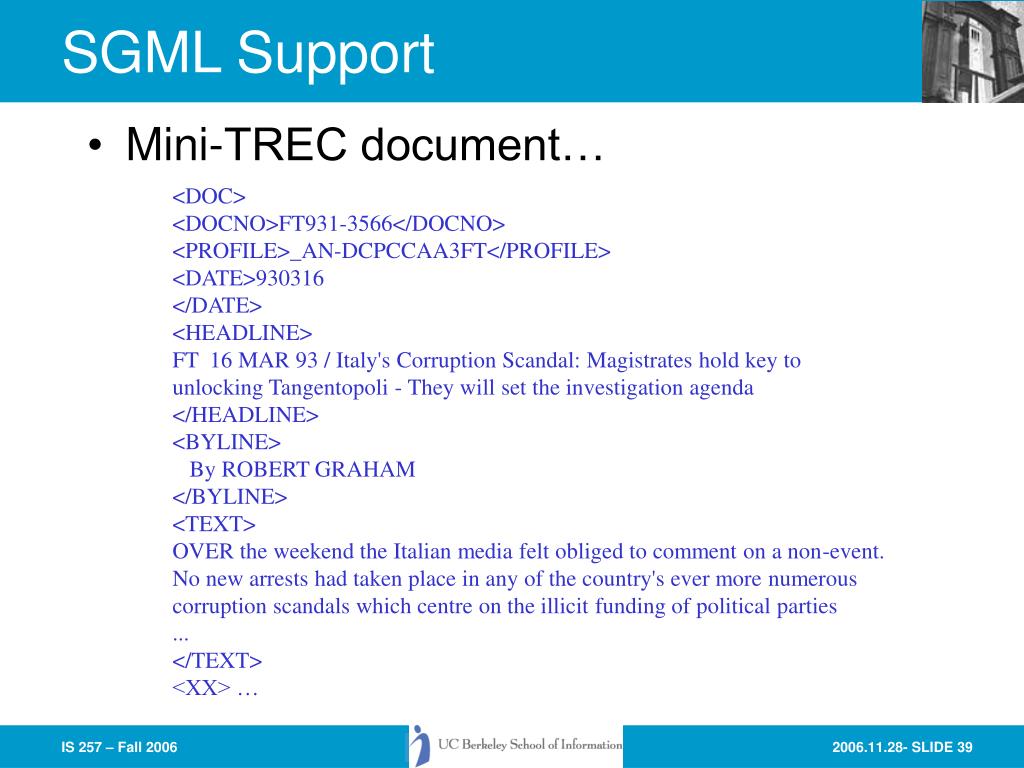

SGML Support • Mini-TREC document… <DOC> <DOCNO>FT931-3566</DOCNO> <PROFILE>_AN-DCPCCAA3FT</PROFILE> <DATE>930316 </DATE> <HEADLINE> FT 16 MAR 93 / Italy's Corruption Scandal: Magistrates hold key to unlocking Tangentopoli - They will set the investigation agenda </HEADLINE> <BYLINE> By ROBERT GRAHAM </BYLINE> <TEXT> OVER the weekend the Italian media felt obliged to comment on a non-event. No new arrests had taken place in any of the country's ever more numerous corruption scandals which centre on the illicit funding of political parties ... </TEXT> <XX> …

… Companies:- </XX> <CO>Ente Nazionale Idrocarburi. Ente Nazionale per L'Energia Electtrica. Ente Partecipazioni E Finanziamento Industria Manifatturiera. IRI Istituto per La Ricostruzione Industriale. </CO> <XX> Countries:- </XX> <CN>ITZ Italy, EC. </CN> <XX> Industries:- </XX> <IN>P9222 Legal Counsel and Prosecution. P91 Executive, Legislative and General Government. P13 Oil and Gas Extraction. P9631 Regulation, Administration of Utilities. P6719 Holding Companies, NEC. </IN> <XX> Types:- </XX> …

… <TP>CMMT Comment & Analysis. GOVT Legal issues. </TP> <PUB>The Financial Times </PUB> <PAGE> London Page 4 </PAGE> </DOC>

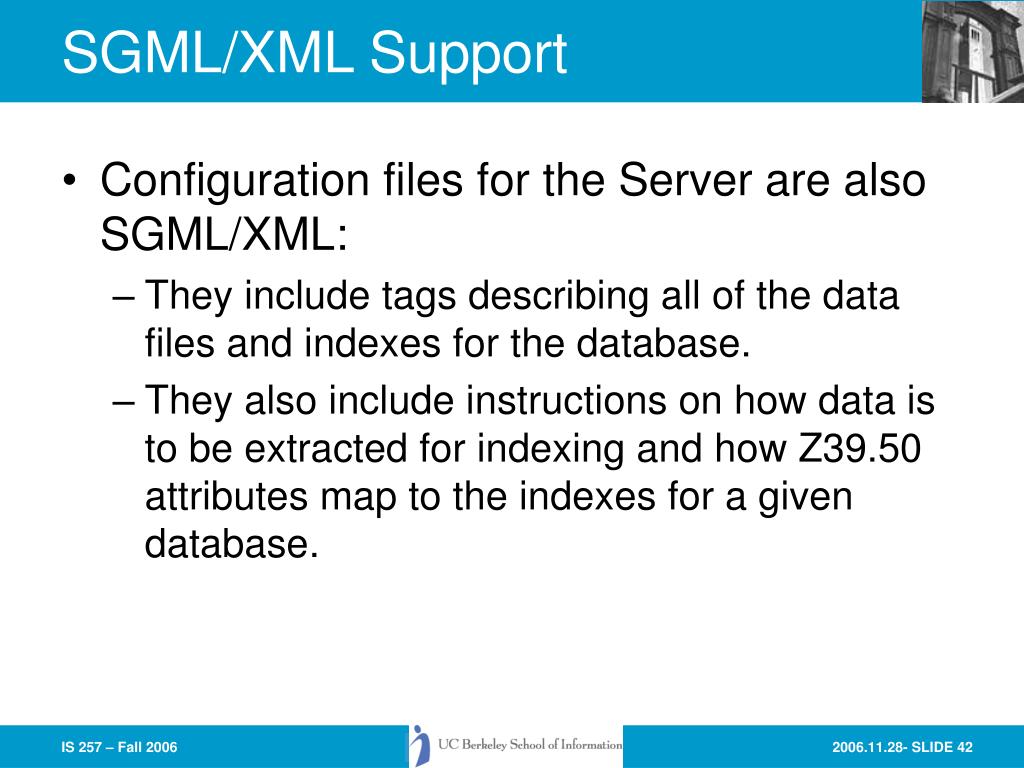

SGML/XML Support • Configuration files for the Server are also SGML/XML: • They include tags describing all of the data files and indexes for the database. • They also include instructions on how data is to be extracted for indexing and how Z39.50 attributes map to the indexes for a given database.

Cheshire Configuration Files     <DBCONFIG> <DBENV>/projects/is240/GroupX/indexes </DBENV>     <FILEDEF TYPE=SGML> <DEFAULTPATH>/projects/is240/GroupX </DEFAULTPATH>  <FILETAG> trec </FILETAG>  <FILENAME> /projects/is240/ft </FILENAME> <CONTINCLUDE> /projects/is240/ft.CONT </CONTINCLUDE>  <FILEDTD> /projects/is240/TREC.FT.DTD </FILEDTD>  <ASSOCFIL> ft.assoc </ASSOCFIL>  <HISTORY> cheshire_index/TESTDATA.history </HISTORY> …

<INDEXES><INDEXDEF ACCESS=BTREE EXTRACT=KEYWORD NORMAL=NONE PRIMARYKEY=IGNORE><INDXNAME> cheshire_index/trec.docno.index </INDXNAME><INDXTAG> docno </INDXTAG><INDXMAP> <USE> 12 </USE><struct> 1 </struct> </INDXMAP><INDXMAP> <USE> 12 </USE><struct> 2 </struct> </INDXMAP><INDXMAP> <USE> 12 </USE><struct> 6 </struct> </INDXMAP><INDXKEY><TAGSPEC><FTAG>DOCNO </FTAG></TAGSPEC> </INDXKEY> </INDEXDEF>…

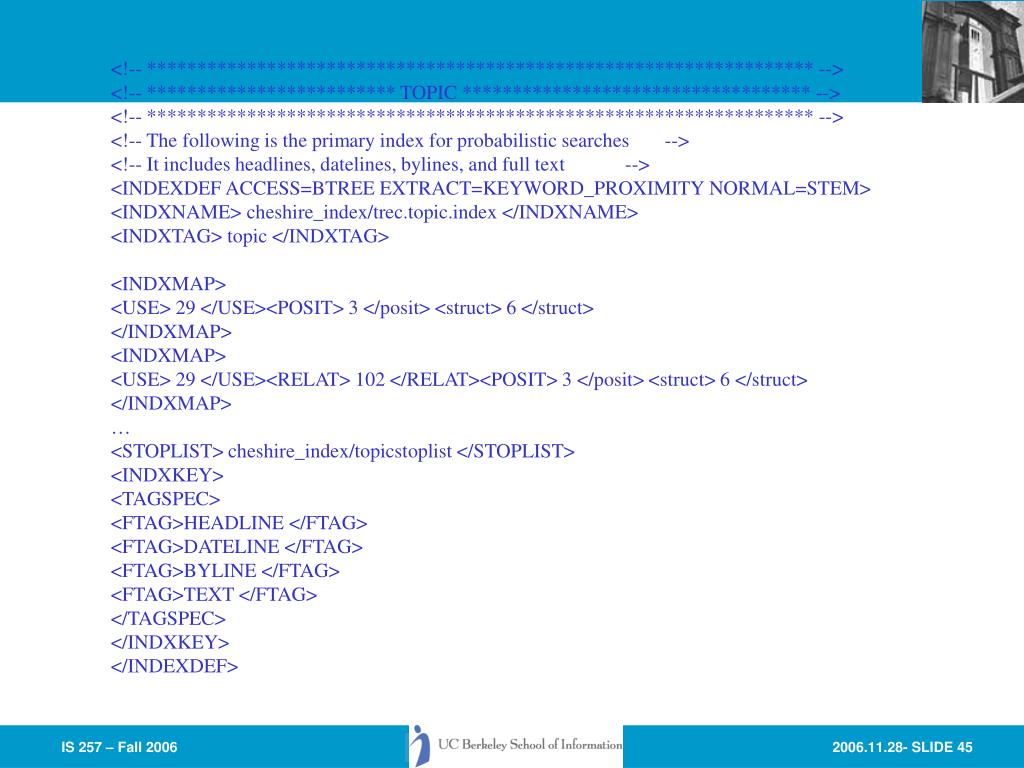

     <INDEXDEF ACCESS=BTREE EXTRACT=KEYWORD_PROXIMITY NORMAL=STEM> <INDXNAME> cheshire_index/trec.topic.index </INDXNAME> <INDXTAG> topic </INDXTAG> <INDXMAP> <USE> 29 </USE><POSIT> 3 </posit> <struct> 6 </struct> </INDXMAP> <INDXMAP> <USE> 29 </USE><RELAT> 102 </RELAT><POSIT> 3 </posit> <struct> 6 </struct> </INDXMAP> … <STOPLIST> cheshire_index/topicstoplist </STOPLIST> <INDXKEY> <TAGSPEC> <FTAG>HEADLINE </FTAG> <FTAG>DATELINE </FTAG> <FTAG>BYLINE </FTAG> <FTAG>TEXT </FTAG> </TAGSPEC> </INDXKEY> </INDEXDEF>

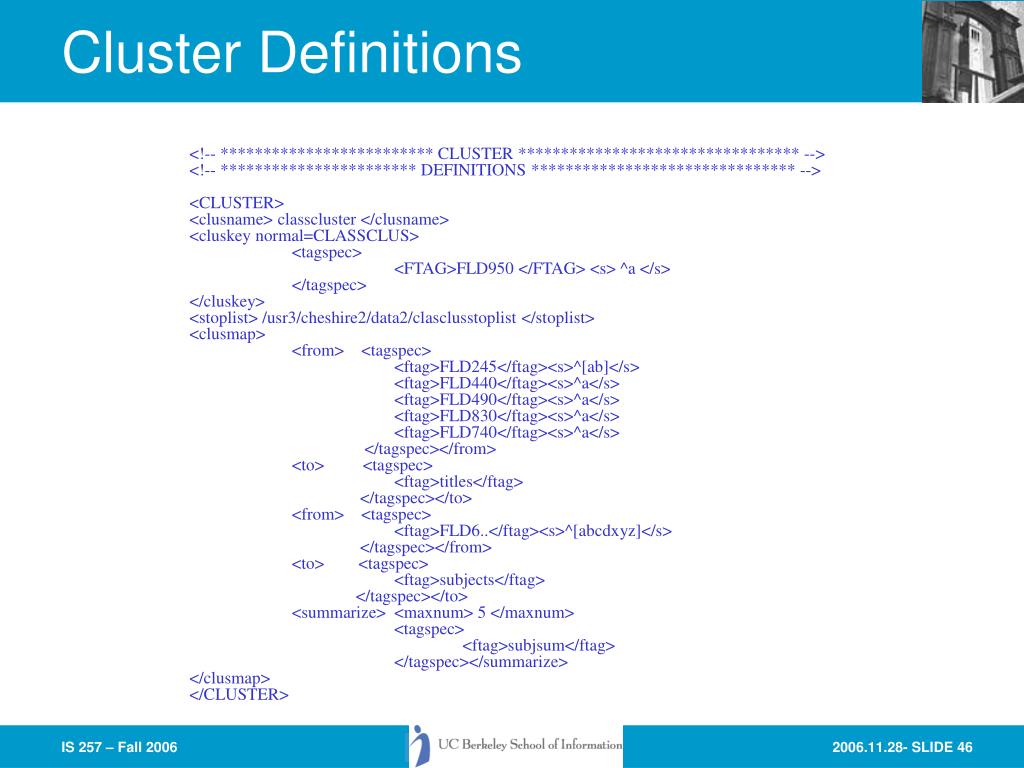

Cluster Definitions   <CLUSTER> <clusname> classcluster </clusname> <cluskey normal=CLASSCLUS> <tagspec> <FTAG>FLD950 </FTAG> <s> â </s> </tagspec> </cluskey> <stoplist> /usr3/cheshire2/data2/clasclusstoplist </stoplist> <clusmap> <from> <tagspec> <ftag>FLD245</ftag><s>^[ab]</s> <ftag>FLD440</ftag><s>â</s> <ftag>FLD490</ftag><s>â</s> <ftag>FLD830</ftag><s>â</s> <ftag>FLD740</ftag><s>â</s> </tagspec></from> <to> <tagspec> <ftag>titles</ftag> </tagspec></to> <from> <tagspec> <ftag>FLD6..</ftag><s>^[abcdxyz]</s> </tagspec></from> <to> <tagspec> <ftag>subjects</ftag> </tagspec></to> <summarize> <maxnum> 5 </maxnum> <tagspec> <ftag>subjsum</ftag> </tagspec></summarize> </clusmap> </CLUSTER>

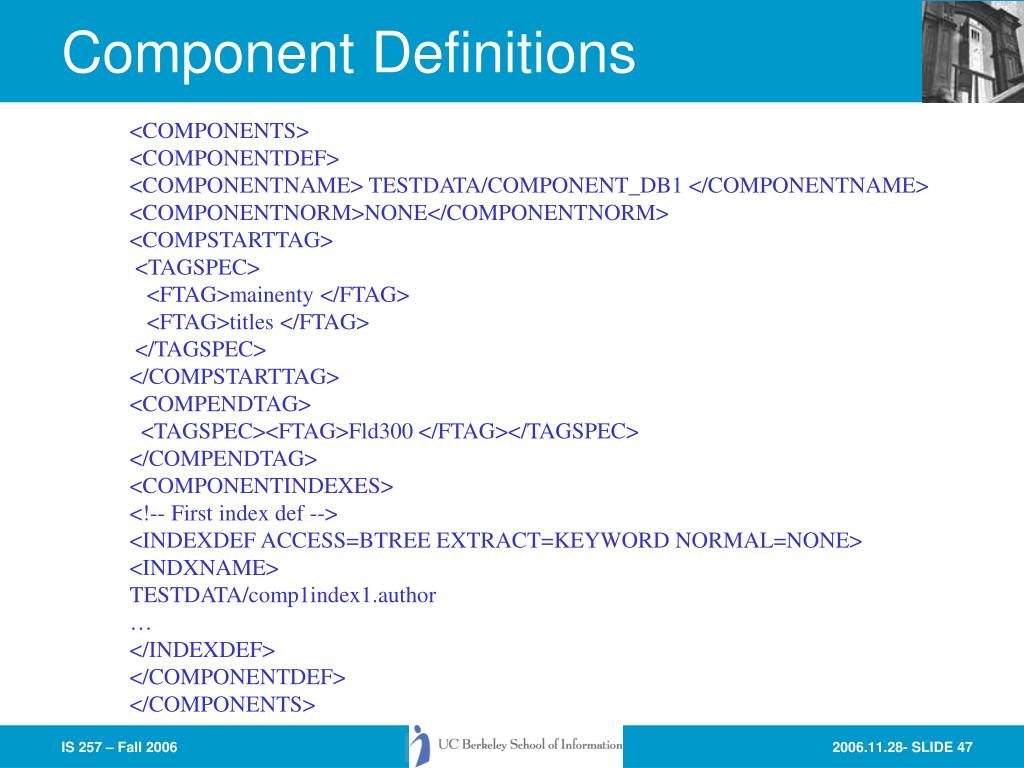

Component Definitions <COMPONENTS> <COMPONENTDEF> <COMPONENTNAME> TESTDATA/COMPONENT_DB1 </COMPONENTNAME> <COMPONENTNORM>NONE</COMPONENTNORM> <COMPSTARTTAG> <TAGSPEC> <FTAG>mainenty </FTAG> <FTAG>titles </FTAG> </TAGSPEC> </COMPSTARTTAG> <COMPENDTAG> <TAGSPEC><FTAG>Fld300 </FTAG></TAGSPEC> </COMPENDTAG> <COMPONENTINDEXES>  <INDEXDEF ACCESS=BTREE EXTRACT=KEYWORD NORMAL=NONE> <INDXNAME> TESTDATA/comp1index1.author … </INDEXDEF> </COMPONENTDEF> </COMPONENTS>

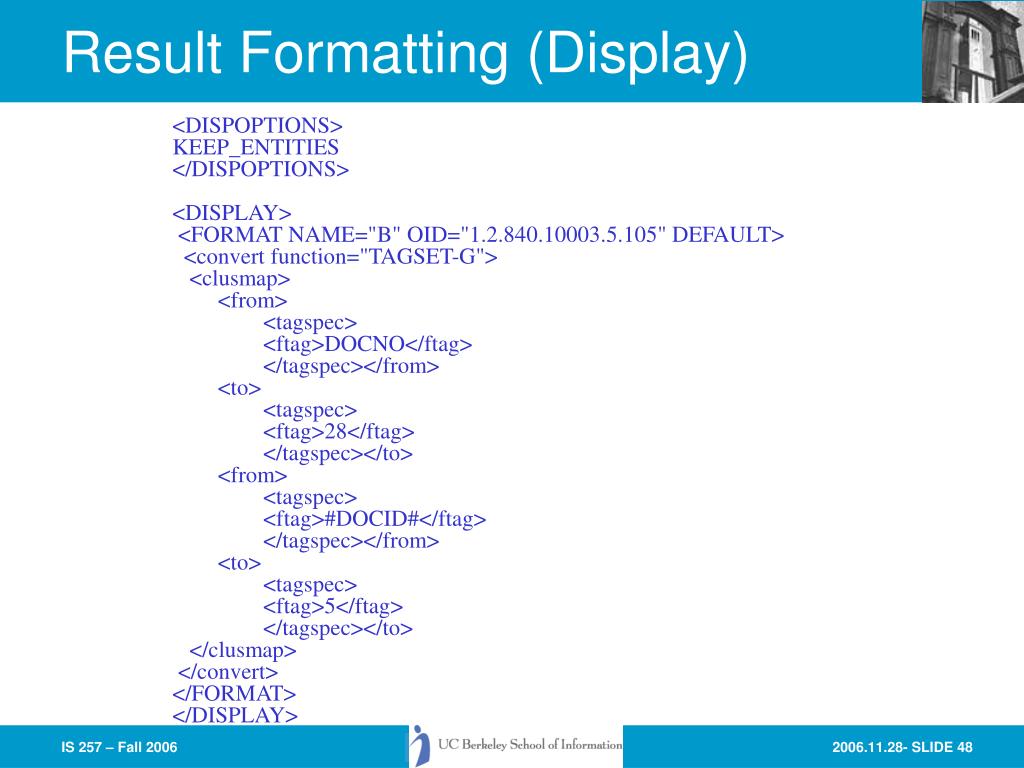

Result Formatting (Display) <DISPOPTIONS> KEEP_ENTITIES </DISPOPTIONS> <DISPLAY> <FORMAT NAME="B" OID="1.2.840.10003.5.105" DEFAULT> <convert function="TAGSET-G"> <clusmap> <from> <tagspec> <ftag>DOCNO</ftag> </tagspec></from> <to> <tagspec> <ftag>28</ftag> </tagspec></to> <from> <tagspec> <ftag>#DOCID#</ftag> </tagspec></from> <to> <tagspec> <ftag>5</ftag> </tagspec></to> </clusmap> </convert> </FORMAT> </DISPLAY>

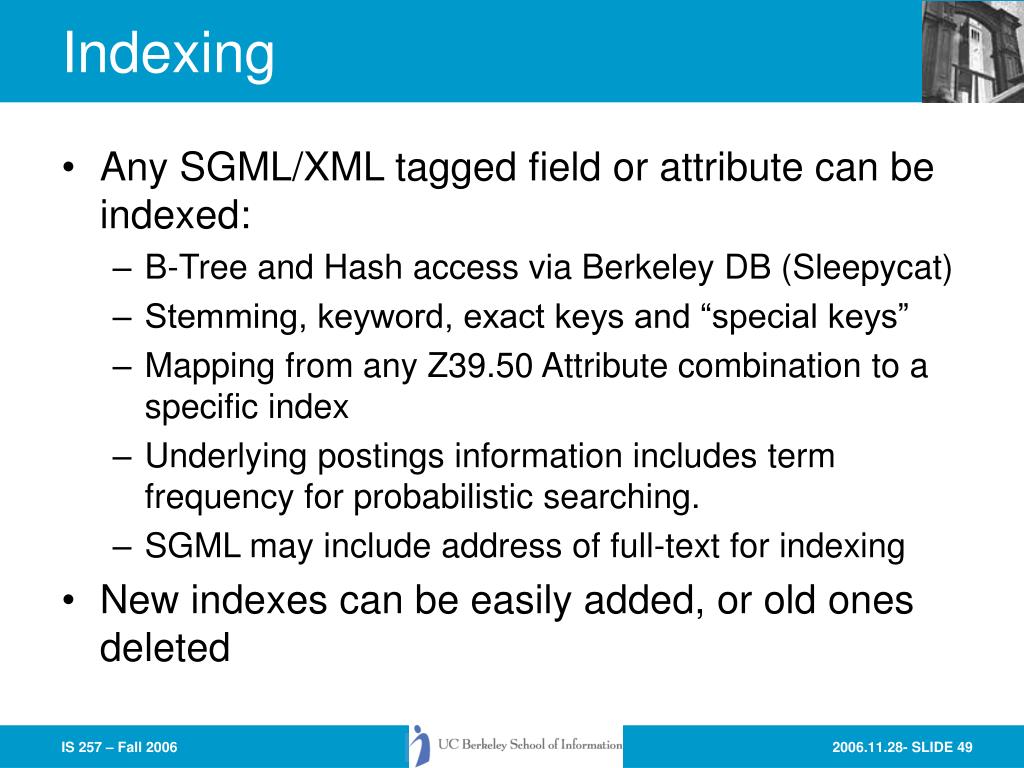

Indexing • Any SGML/XML tagged field or attribute can be indexed: • B-Tree and Hash access via Berkeley DB (Sleepycat) • Stemming, keyword, exact keys and “special keys” • Mapping from any Z39.50 Attribute combination to a specific index • Underlying postings information includes term frequency for probabilistic searching. • SGML may include address of full-text for indexing • New indexes can be easily added, or old ones deleted

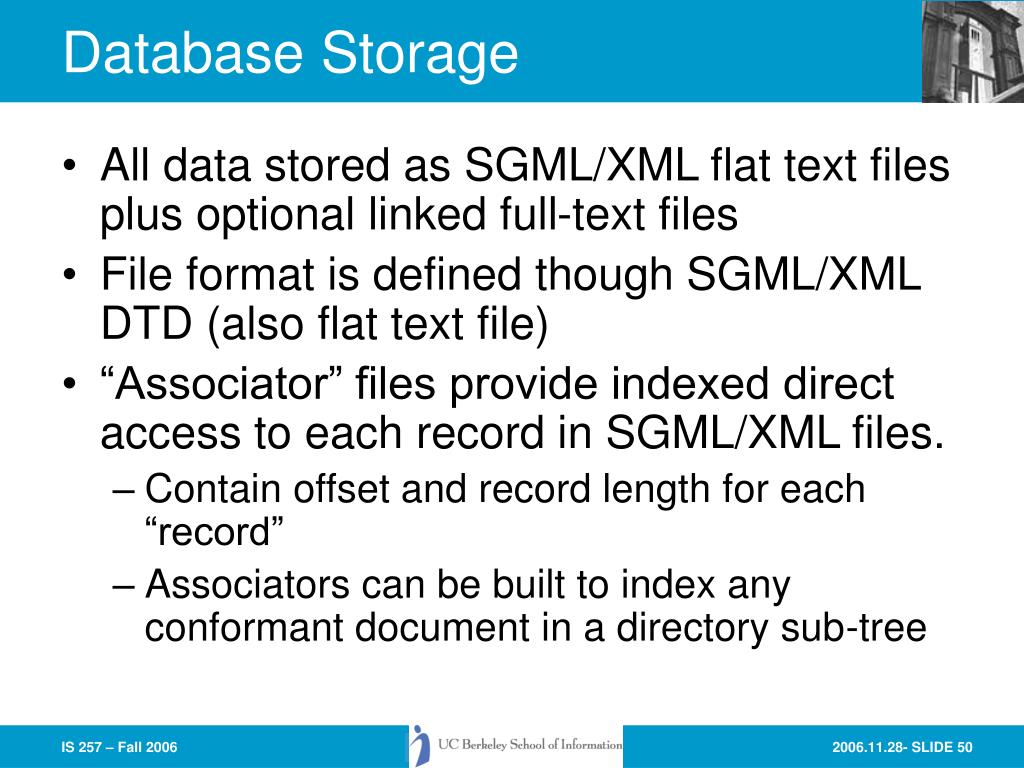

Database Storage • All data stored as SGML/XML flat text files plus optional linked full-text files • File format is defined though SGML/XML DTD (also flat text file) • “Associator” files provide indexed direct access to each record in SGML/XML files. • Contain offset and record length for each “record” • Associators can be built to index any conformant document in a directory sub-tree
