Explosion Isolation Valve

Our Explosion Isolation Valves are essential for preventing the propagation of explosions in piping systems. Designed for high reliability and efficiency, these valves quickly isolate sections of the pipeline to enhance safety and minimize damage. With robust construction and innovative technology, our valves are your first line of defense against explosive hazards.<br><br>Speak with Our Expert:<br><br>Email: sales@vcplin.com<br><br>Phone: 91 9156463116/5/4<br><br>Head Office: Ventil Components Pvt Ltd. 246/9, Maan Hinjawadi, Phase1, Tal- Mulshi, Pune 411057, Maharastra

ventil
Download Presentation

Explosion Isolation Valve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

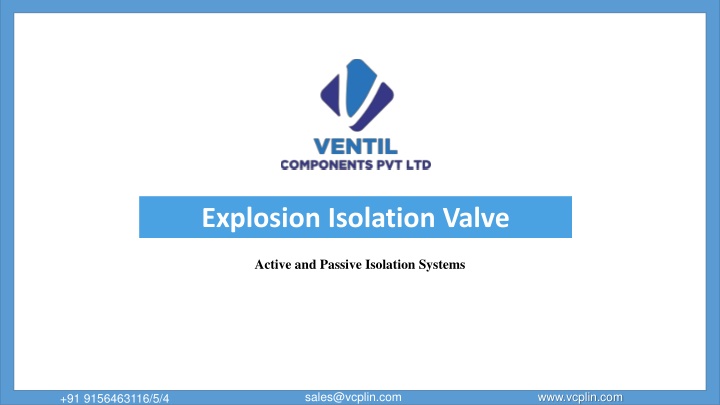

  1. Explosion Isolation Valve Active and Passive Isolation Systems  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

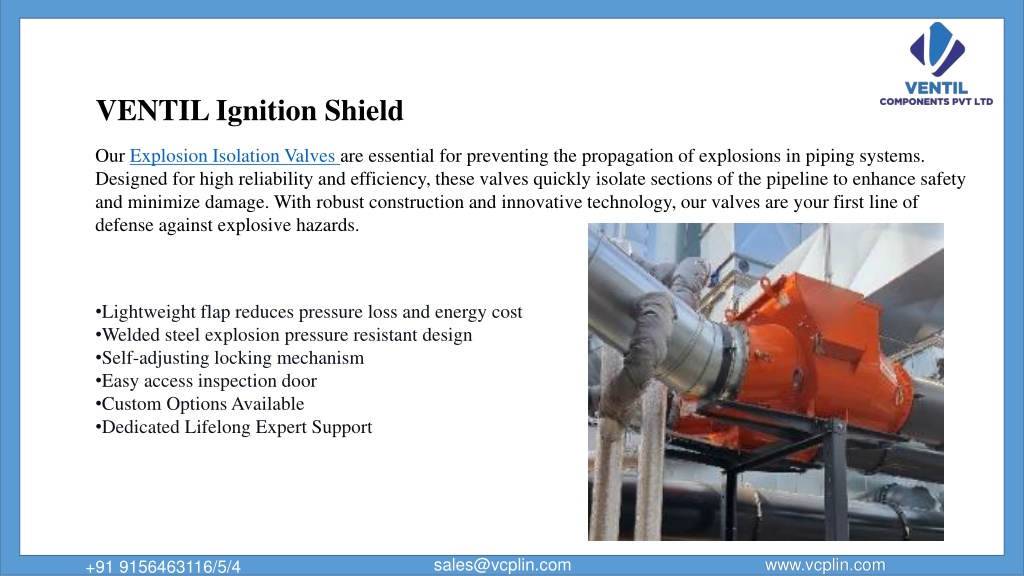

  2. VENTIL Ignition Shield Our Explosion Isolation Valves are essential for preventing the propagation of explosions in piping systems. Designed for high reliability and efficiency, these valves quickly isolate sections of the pipeline to enhance safety and minimize damage. With robust construction and innovative technology, our valves are your first line of defense against explosive hazards. • Lightweight flap reduces pressure loss and energy cost • Welded steel explosion pressure resistant design • Self-adjusting locking mechanism • Easy access inspection door • Custom Options Available • Dedicated Lifelong Expert Support  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

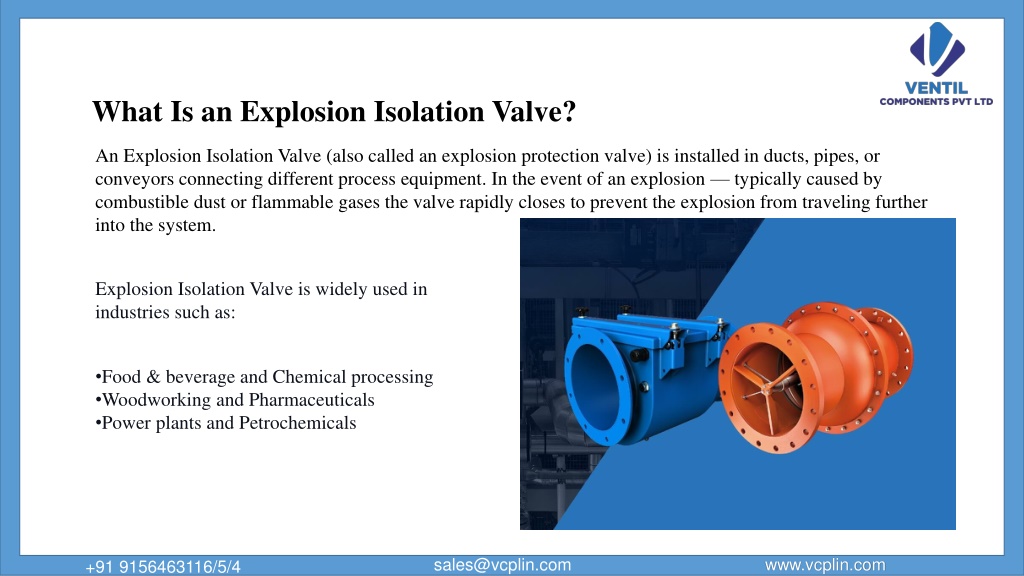

  3. What Is an Explosion Isolation Valve? An Explosion Isolation Valve (also called an explosion protection valve) is installed in ducts, pipes, or conveyors connecting different process equipment. In the event of an explosion — typically caused by combustible dust or flammable gases the valve rapidly closes to prevent the explosion from traveling further into the system. Explosion Isolation Valve is widely used in industries such as: • Food & beverage and Chemical processing • Woodworking and Pharmaceuticals • Power plants and Petrochemicals  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

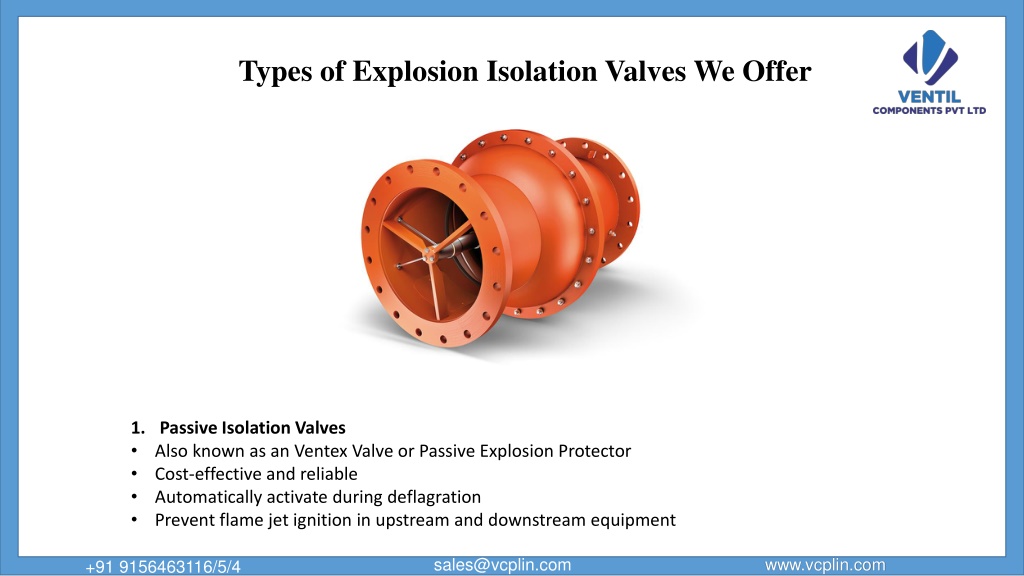

  4. Types of Explosion Isolation Valves We Offer • Passive Isolation Valves • Also known as an Ventex Valve or Passive Explosion Protector • Cost-effective and reliable • Automatically activate during deflagration • Prevent flame jet ignition in upstream and downstream equipment  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

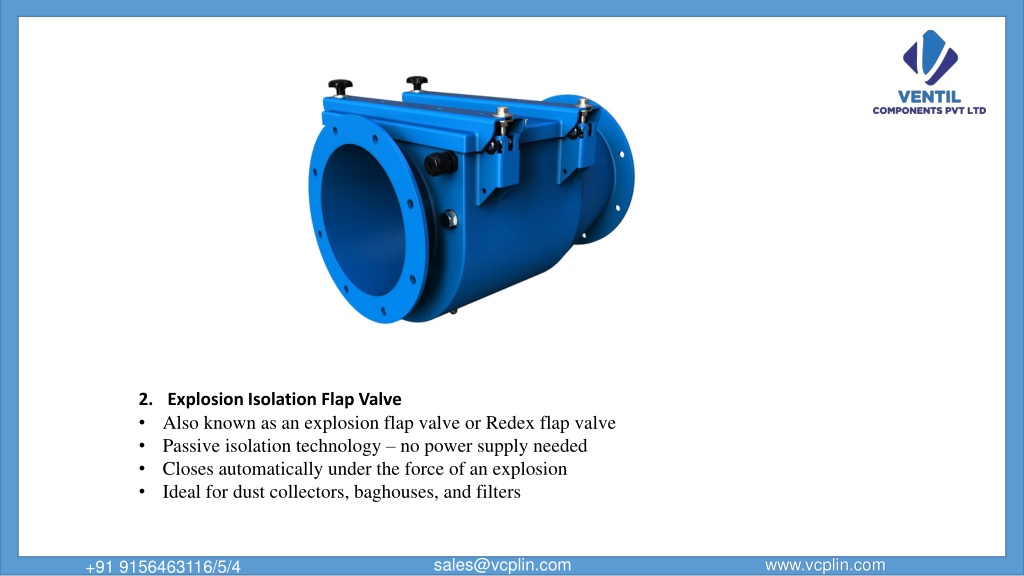

  5. Explosion Isolation Flap Valve • Also known as an explosion flap valve or Redex flap valve • Passive isolation technology – no power supply needed • Closes automatically under the force of an explosion • Ideal for dust collectors, baghouses, and filters  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

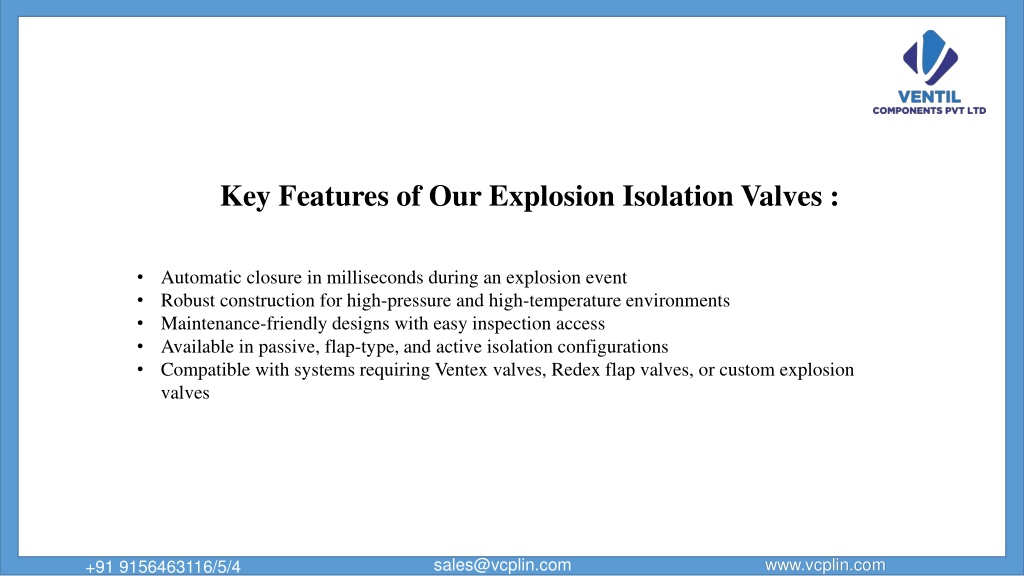

  6. Key Features of Our Explosion Isolation Valves : • Automatic closure in milliseconds during an explosion event • Robust construction for high-pressure and high-temperature environments • Maintenance-friendly designs with easy inspection access • Available in passive, flap-type, and active isolation configurations • Compatible with systems requiring Ventex valves, Redex flap valves, or custom explosion valves  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

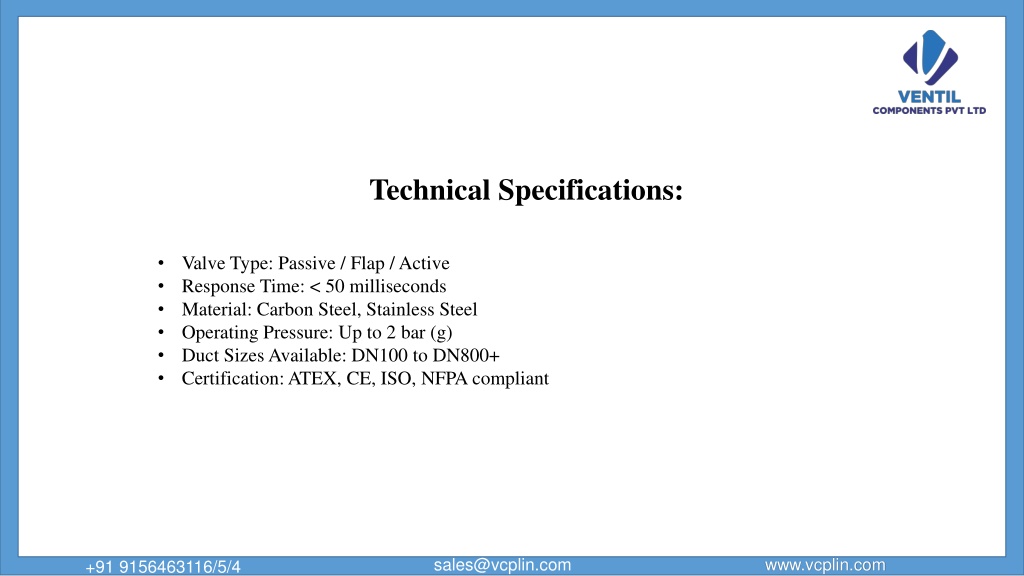

  7. Technical Specifications: • Valve Type: Passive / Flap / Active • Response Time: < 50 milliseconds • Material: Carbon Steel, Stainless Steel • Operating Pressure: Up to 2 bar (g) • Duct Sizes Available: DN100 to DN800+ • Certification: ATEX, CE, ISO, NFPA compliant  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

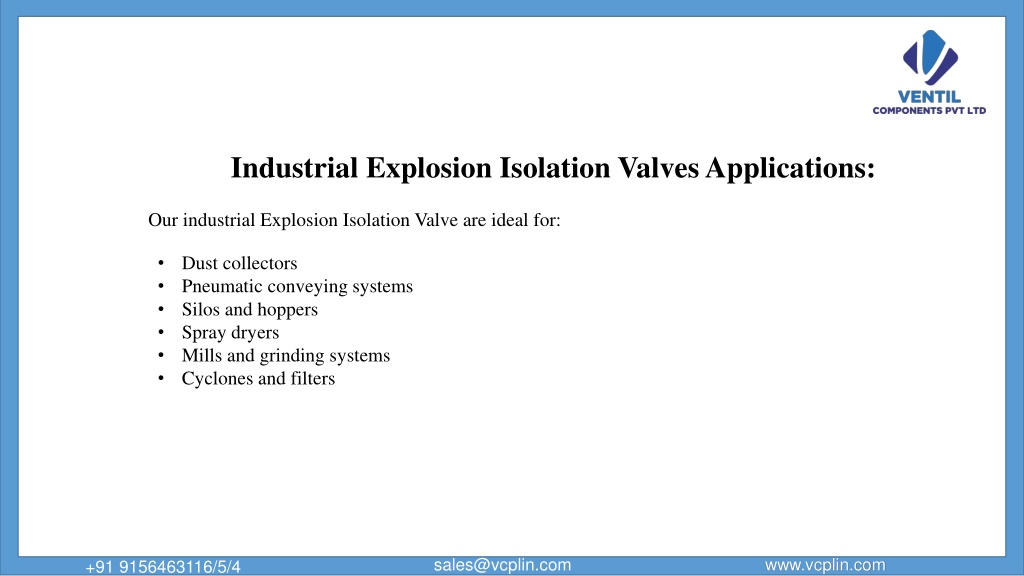

  8. Industrial Explosion Isolation Valves Applications: Our industrial Explosion Isolation Valve are ideal for: • Dust collectors • Pneumatic conveying systems • Silos and hoppers • Spray dryers • Mills and grinding systems • Cyclones and filters  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

  9. Why Choose Ventil Components as Your Explosion Isolation Valve Manufacturer? Looking for a trusted Explosion Isolation Valves manufacturer in India? Connect with Ventil for customized passive, flap, and Ventex-type valves. Contact us today to request a quote or consultation. Get the Best Explosion Isolation Valves for Your Industry from Ventil!  sales@vcplin.com www.vcplin.com +91 9156463116/5/4

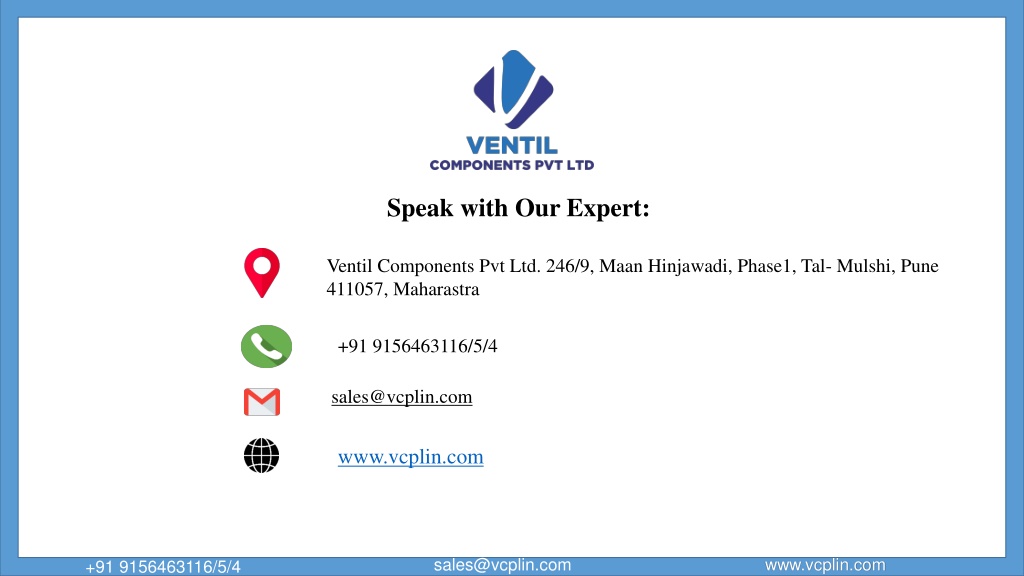

  10. Speak with Our Expert: Ventil Components Pvt Ltd. 246/9, MaanHinjawadi, Phase1, Tal- Mulshi, Pune 411057, Maharastra +91 9156463116/5/4 sales@vcplin.com www.vcplin.com  sales@vcplin.com www.vcplin.com +91 9156463116/5/4
