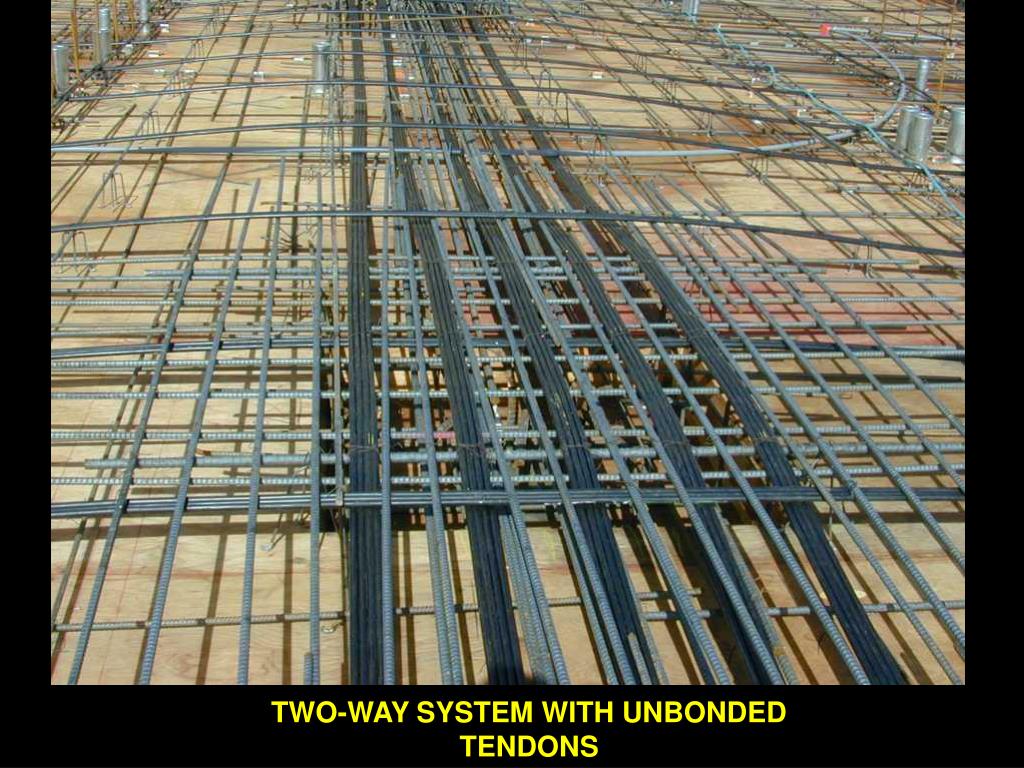

  1. TWO-WAY SYSTEM WITH UNBONDED TENDONS

  2. EXAMPLE OF A SLAB BAND (Wide Shallow Beam)

  3. EXAMPLE OF A TWO-WAY FLOOR SYSTEM (California)

  4. EXAMPLE OF A ONE-WAY SLAB AND BEAM SYSTEM

  5. FLAT DUCT GROUTED POST-TENSIONING Ngee Ann City, Singapore - BBR

  6. FLAT DUCT GROUTED POST-TENSIONING

  7. STRAND AND FLAT DUCTS FOR GROUTED PT SYSTEM

  8. THREADED FOUR STRAND DUCTS READY FOR LAYOUT

  9. VIEW OF DEAD END

  10. TENDON ARRANGEMENT AROUND COLUMN

  11. LIVE (STRESSING) ENDS AT SLAB EDGE

  12. LIVE (STRESSING) ENDS AT SLAB EDGE

  13. AN ALTERNATIVE FOR DEAD ENDING STRANDS

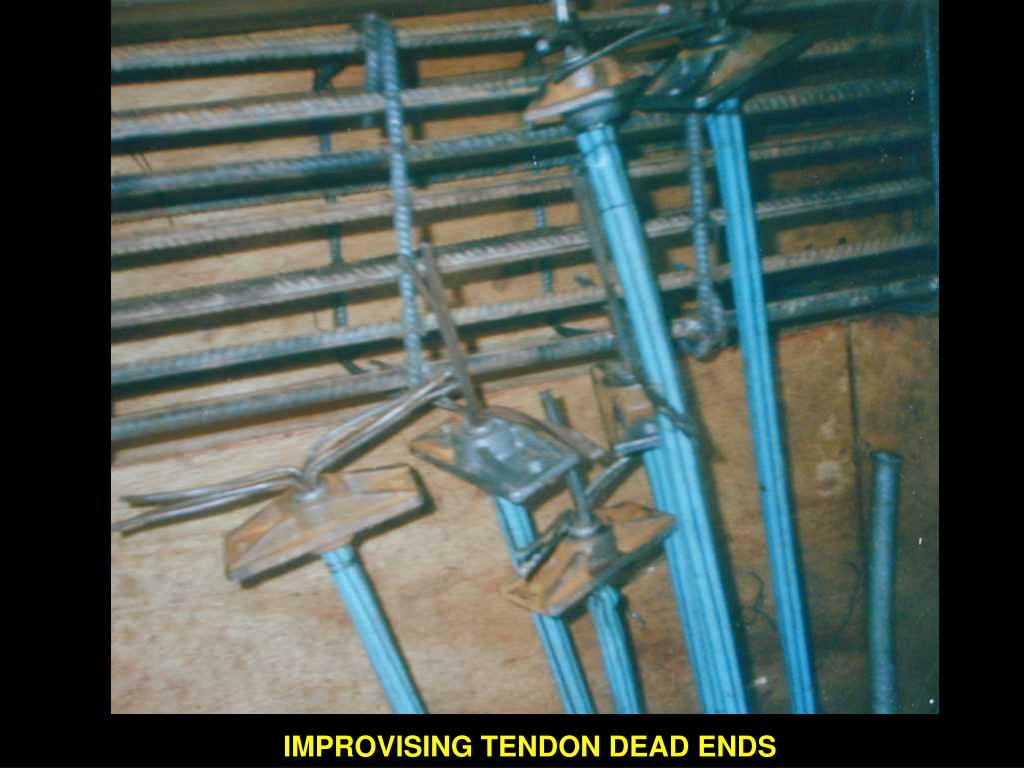

  14. IMPROVISING TENDON DEAD ENDS

  15. CONSTRUCTION JOINT WITH INTERMEDIATE STRESSING

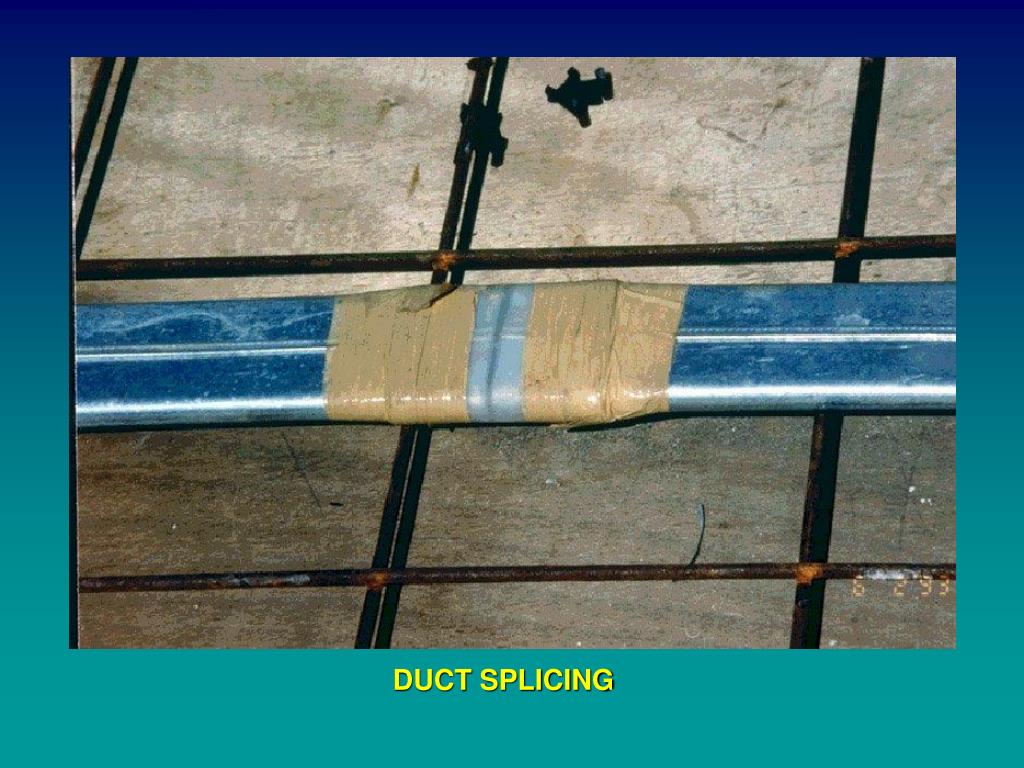

  16. DUCT SPLICING

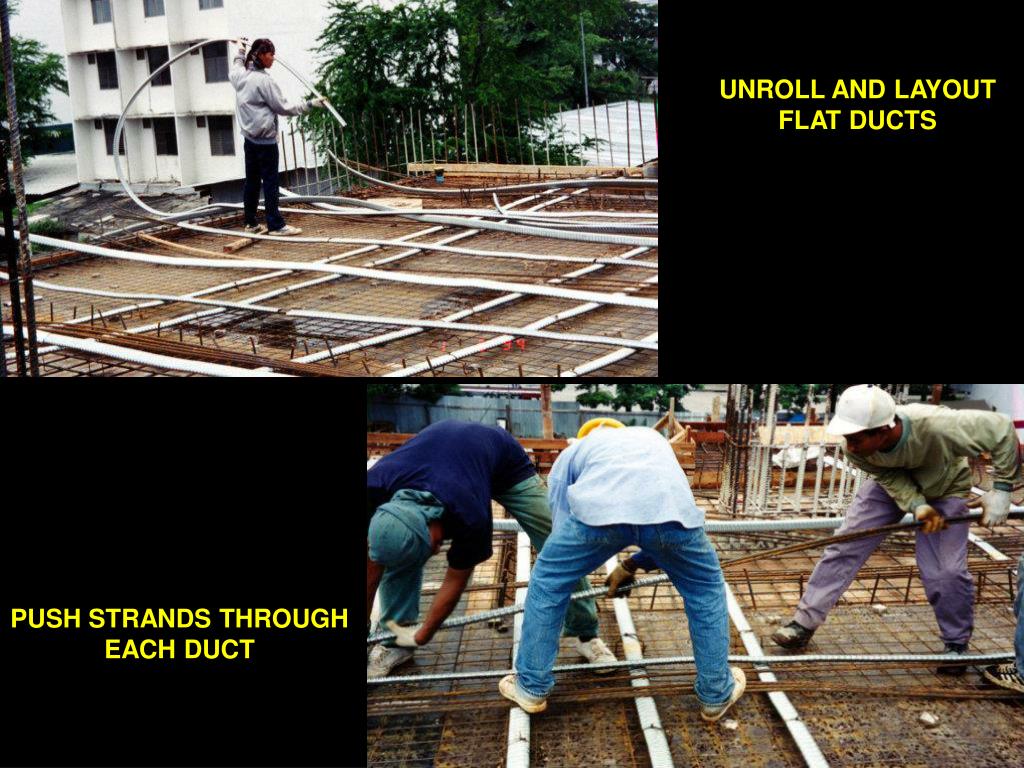

  17. UNROLL AND LAYOUTFLAT DUCTS PUSH STRANDS THROUGHEACH DUCT

  18. DEAD END ARRANGEMENT ALTERNATIVE TENDON LAYOUT

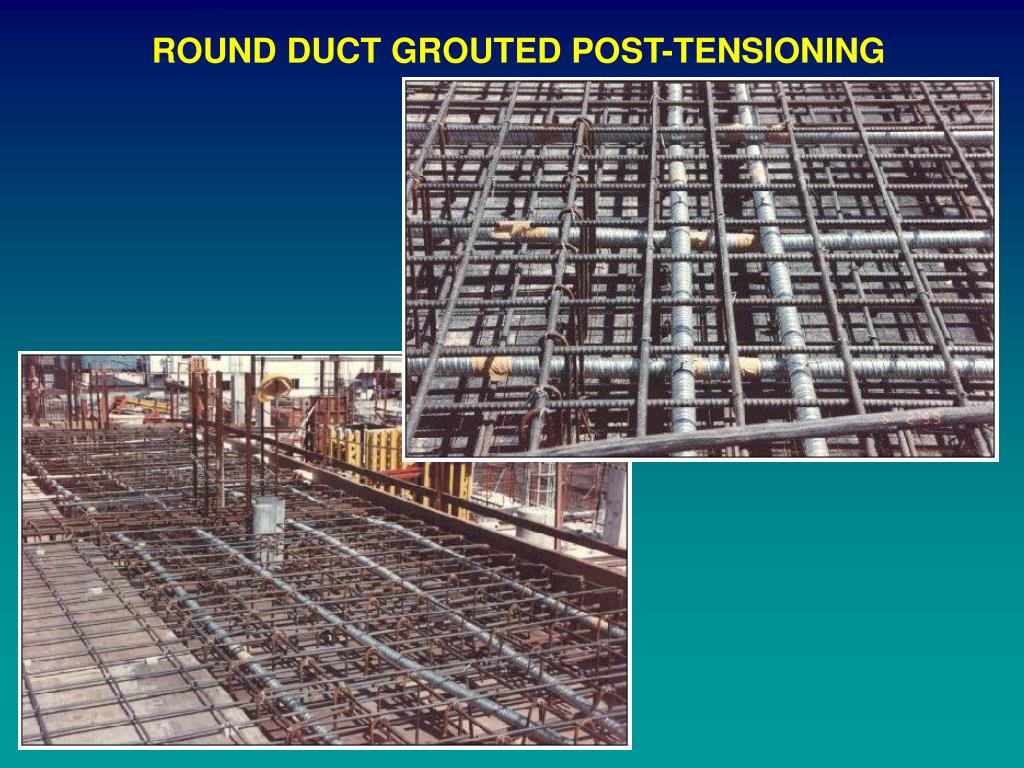

  19. ROUND DUCT GROUTED POST-TENSIONING

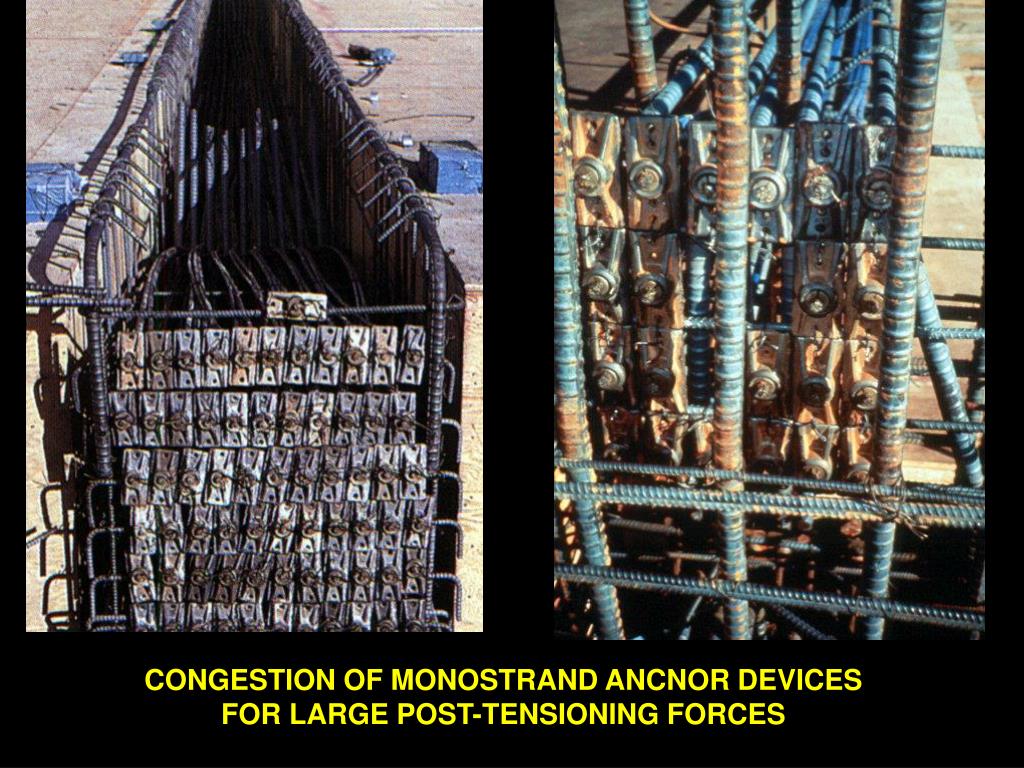

  20. CONGESTION OF MONOSTRAND ANCNOR DEVICESFOR LARGE POST-TENSIONING FORCES

  21. EXAMPLES OF POST-TENSIONING CONSTRUCTION MISUNDERSTANDING OF STRUCTURAL CONCRETE AND POST-TENSIONING

  22. Thank you for listening

  23. Log file for PT_introduction.ppt • 11-30-00 add two jpgs to place holder slide 29, otherwise OK

  24. LIVE (STRESSING) ENDS AT SLAB EDGE

  25. LIVE (STRESSING) ENDS AT SLAB EDGE
