  1. SBR Sequential Batch Reactor

  2. Activ sludge • Mostly used method of treatment sanitary waste water • Organic polution converts in to sludge by micro-organisms • Mickro-organisms are suspended in water • Biological purification are going on in reactor

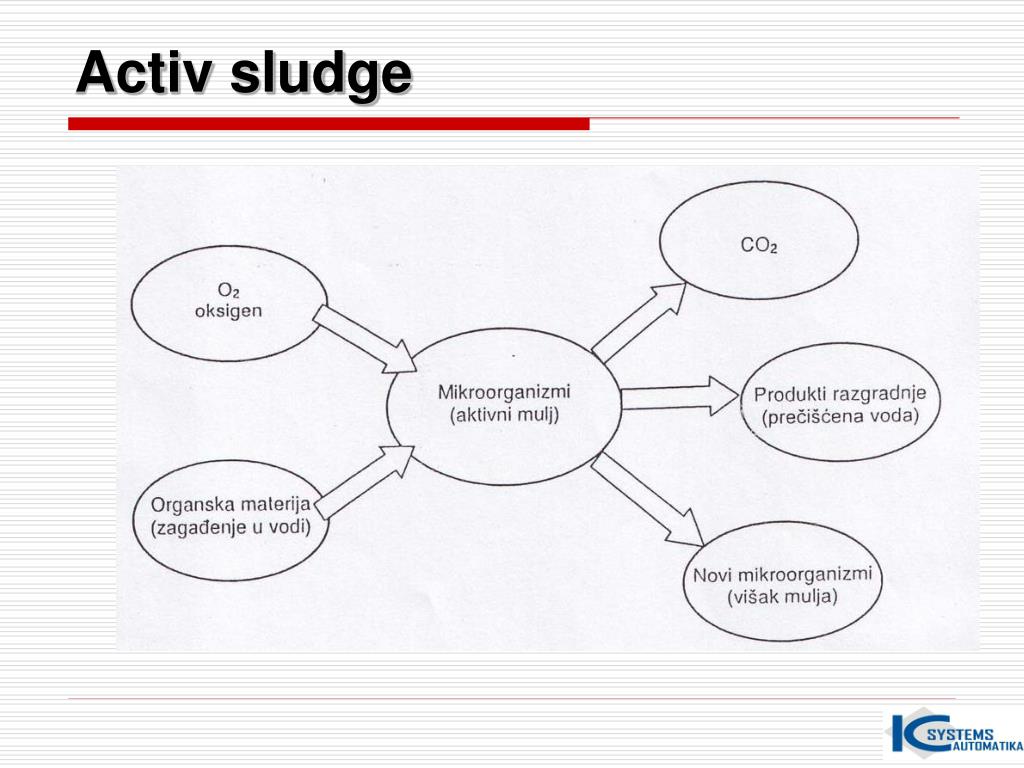

  3. Activ sludge

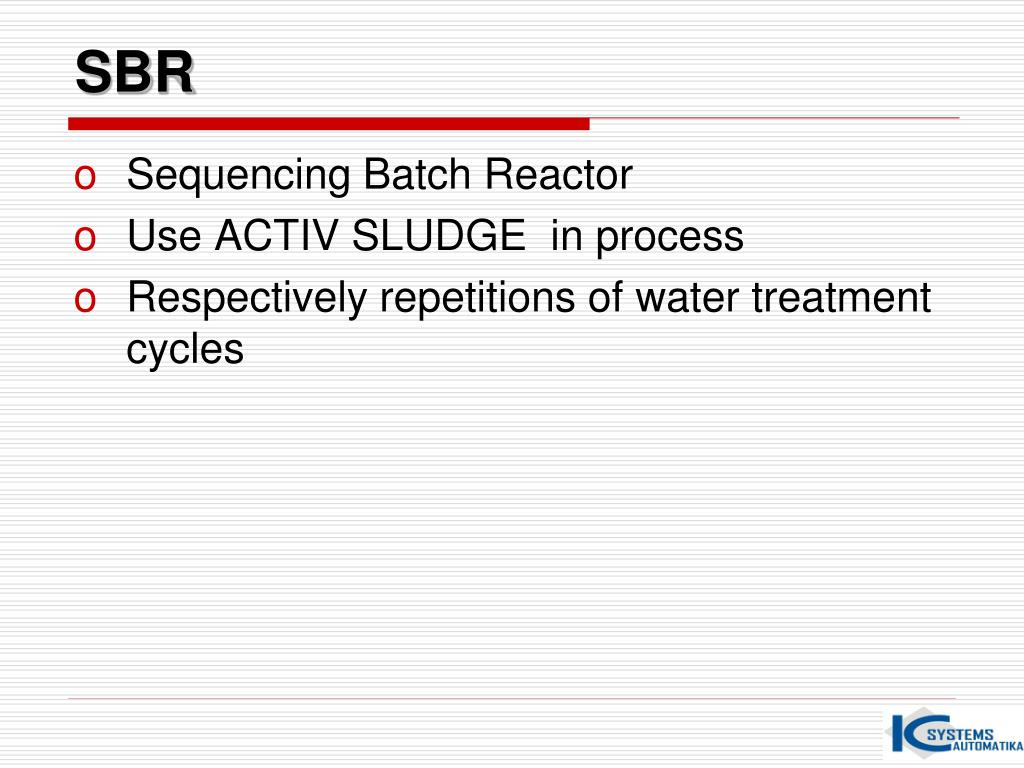

  4. SBR • Sequencing Batch Reactor • Use ACTIV SLUDGE in process • Respectively repetitions of water treatment cycles

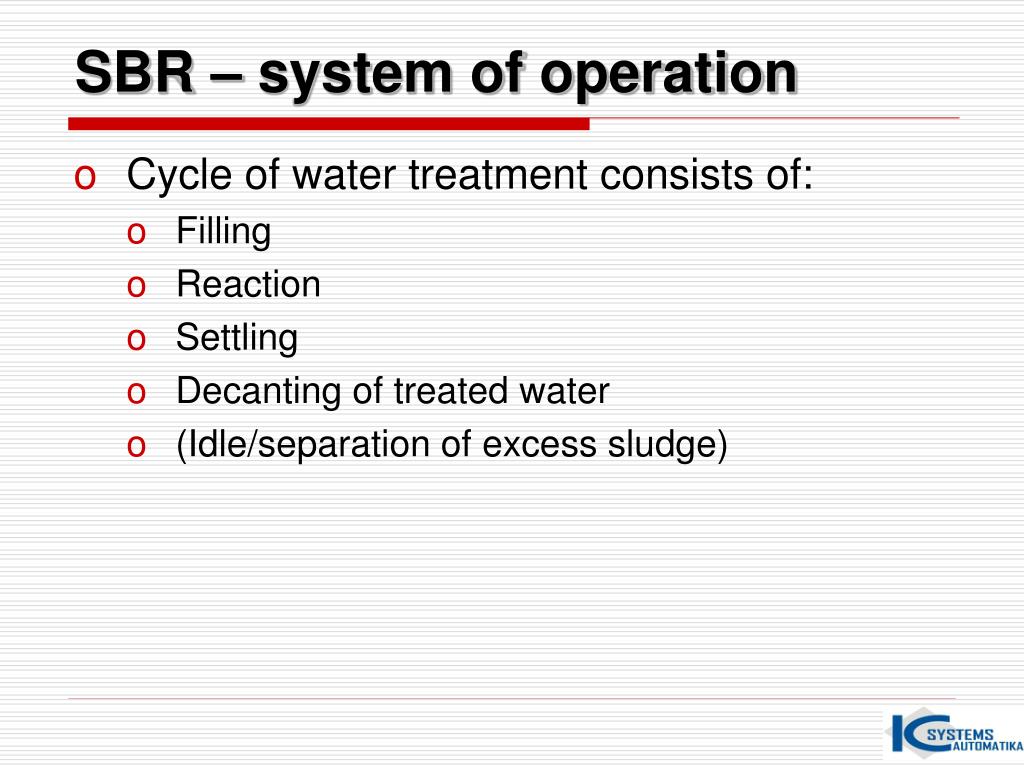

  5. SBR – system of operation • Cycle of water treatment consists of: • Filling • Reaction • Settling • Decanting of treated water • (Idle/separation of excess sludge)

  6. Settling Idle/Separation of excess sludgea Decanting Sludge SBR – system of operation Reaction Waste water Filling Start End Efluent Sludge

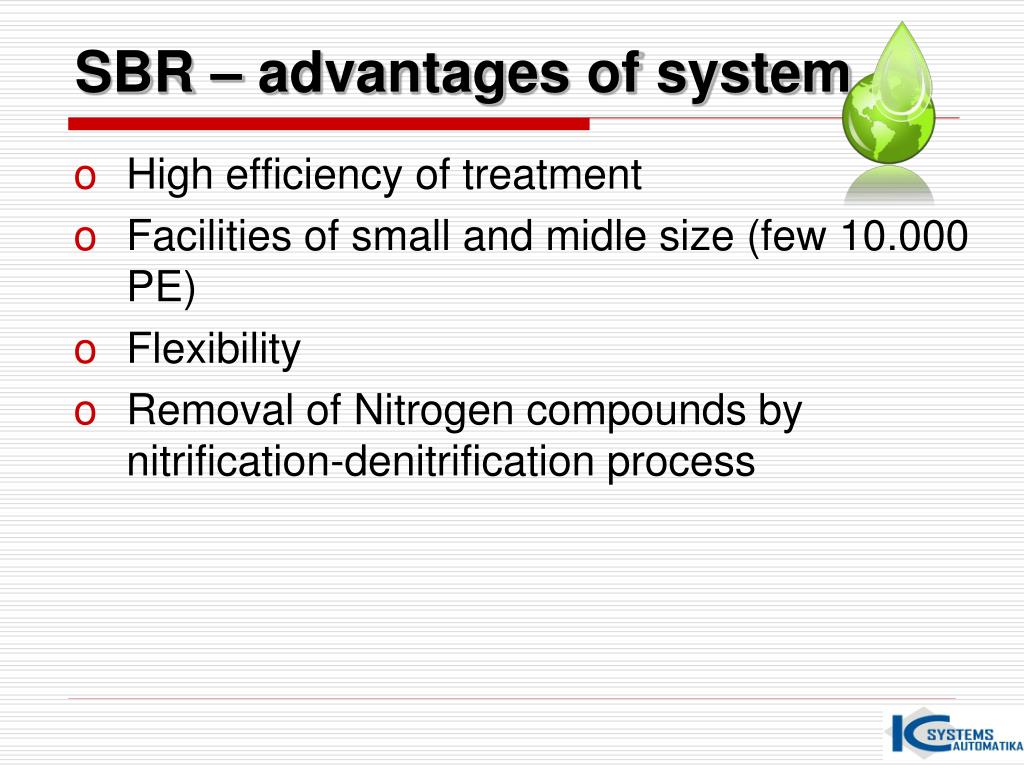

  7. SBR – advantages of system • High efficiency of treatment • Facilities of small and midle size (few 10.000 PE) • Flexibility • Removal of Nitrogen compounds by nitrification-denitrification process

  8. Thanks on your attention!!!
